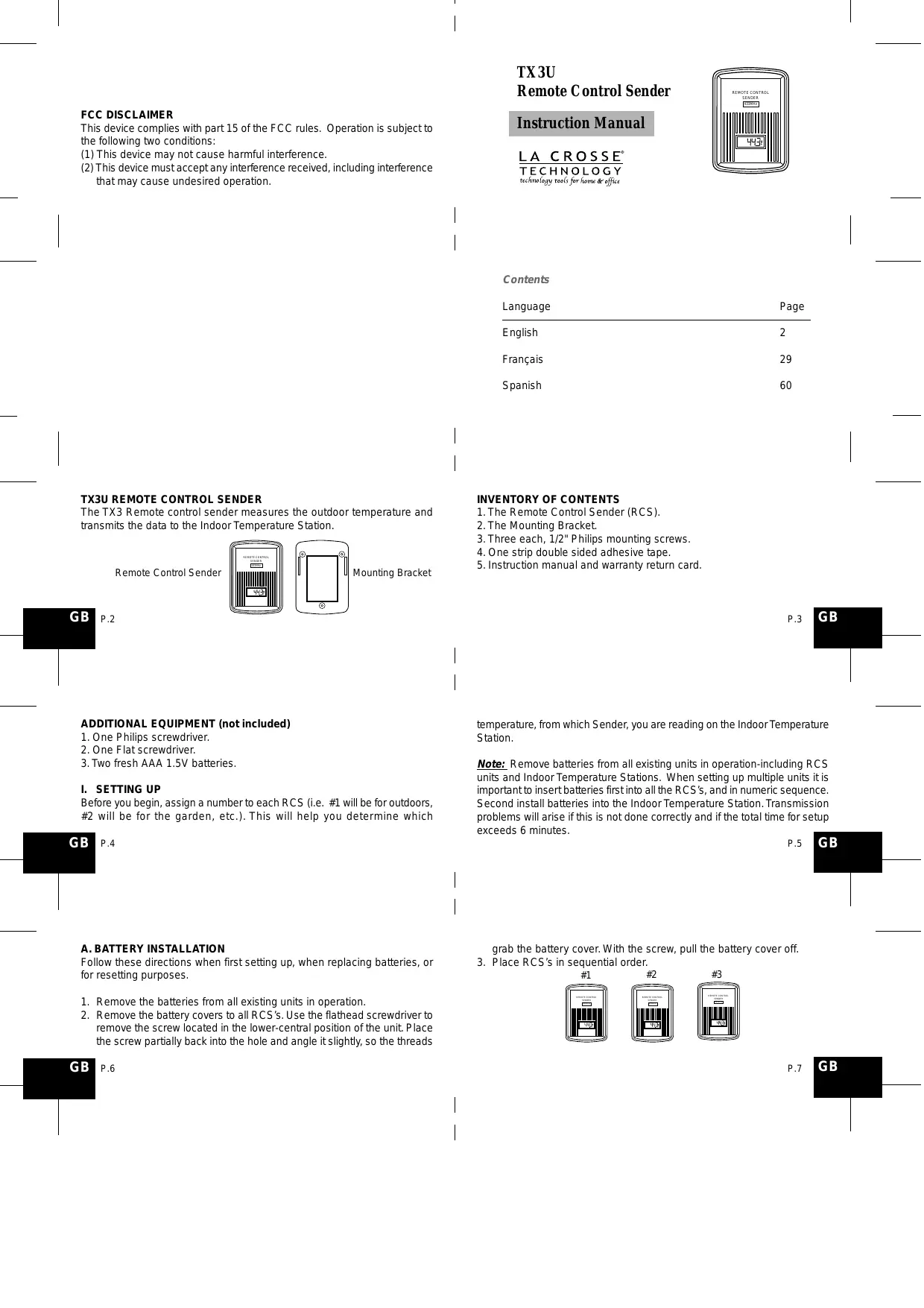

TX3U Remote Control Sender FCC DISCLAIMER This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Instruction Manual

TX3U REMOTE CONTROL SENDER

The TX3 Remote control sender measures the outdoor temperature and transmits the data to the Indoor Temperature Station. REMOTE CONTROL SENDER 433MHz Remote Control Sender

I. SETTING UP

Before you begin, assign a number to each RCS (i.e. #1 will be for outdoors, #2 will be for the garden, etc.). This will help you determine which English

INVENTORY OF CONTENTS

1. The Remote Control Sender (RCS).

2. The Mounting Bracket.

3. Three each, 1/2" Philips mounting screws.

4. One strip double sided adhesive tape.

5. Instruction manual and warranty return card.

1. Remove the batteries from all existing units in operation.

2. Remove the battery covers to all RCS’s. Use the flathead screwdriver to

remove the screw located in the lower-central position of the unit. Place the screw partially back into the hole and angle it slightly, so the threads P.6

temperature, from which Sender, you are reading on the Indoor Temperature Station. Note: Remove batteries from all existing units in operation-including RCS units and Indoor Temperature Stations. When setting up multiple units it is important to insert batteries first into all the RCS’s, and in numeric sequence. Second install batteries into the Indoor Temperature Station. Transmission problems will arise if this is not done correctly and if the total time for setup exceeds 6 minutes. P.4

A. BATTERY INSTALLATION

Follow these directions when first setting up, when replacing batteries, or for resetting purposes.

Page P.2 ADDITIONAL EQUIPMENT (not included)

1. One Philips screwdriver.

2. One Flat screwdriver.

3. Two fresh AAA 1.5V batteries.

grab the battery cover. With the screw, pull the battery cover off.

3. Place RCS’s in sequential order.

Note: RCS’s will not usually read the same temperature as they do above. This is due to variants such as drafts and handling. This is normal.

1. Install the batteries in sequential order. Observe the correct polarity

and install 2 AAA batteries. The batteries will fit tightly-make sure they do not spring free. This may cause start-up problems.

2. Check the LCD screen of the RCS for a temperature reading. If there is

no reading check the polarity of the batteries or replace with new

7. The Indoor Temperature Station should now show “-:—” in the TIME

LCD, and temperatures in the INDOOR and OUTDOOR LCD’S.

II. MOUNTING

Note: The sending range of the RCS is 80 ft. However, obstacles such as walls, concrete, and large metal objects can reduce the range. Before permanently mounting, place units in their desired location to see if a reading is obtained. There should be a change of temperature in the OUTDOOR

P.15 Dimensions Transmission frequency Transmission range Power source P.16 -21.8˚F to 157.8˚F with 0.2˚F resolution. every 10 seconds in first 3 minutes every 1 minute thereafter

433.92 MHz

80 feet (25m) 2 x 1.5V Battery AAA, IEC LR3

2. Clean displays and units with a soft, damp cloth. Do not use solvents or

scouring agents, they may mark the displays and casings.

3. Do not submerge in water.

4. Do not subject the units to unnecessary heat or cold by placing them in

the oven or freezer.

5. Opening the casings invalidates the warranty. Do not try to repair the

unit. Contact La Crosse Technology or the retailer for repairs. P.14 Temperature measuring range Transmission interval

B. MOUNTING WITH ADHESIVE TAPE

1. With a nonabrasive solution, clean and dry the back of the mounting

bracket and the mounting surface to ensure a secure hold. The mounting surface should be smooth and flat.

2. Remove the protective strip from one side of the tape. Press firmly into

IV. SPECIFICATIONS

5. Snap the RCS into place, and situate the probe. It may be necessary to

further secure the probe and wire, to prevent drifting. P.12

III. MAINTENANCE AND CARE

1. Extreme temperatures, vibrations, and shock should be avoided to

prevent damage to the units.

The RCS can be mounted in two ways:

• with the use of screws or,
• using the adhesive tape. P.11 the designated area on the back of the mounting bracket.

3. Remove the protective strip from the other side of the tape, and position

the RCS in the desired location.

4. Situate the probe in desired location.

LCD within 6 minutes. If the Indoor Temperature Station loses the signal from the RCS, it will display the last temperature reading for 15 minutes. After 15 minutes of not receiving any signals the OUTDOOR LCD of the Indoor Temperature Station will display “- - . -”. Also, ensure that the probe can reach the desired location before mounting. P.10

A. MOUNTING WITH THE SCREWS

1. Remove the mounting bracket from the RCS.

2. Place mounting bracket over desired location. Through the 3 screw holes

of the bracket, mark the mounting surface with a pencil.

3. Where marked, drill holes into mounting surface using an appropriate

4. Screw mounting bracket onto the mounting surface. Ensure that the

screws are flush with the bracket.

3. Make sure the rubber weather seal is in place and replace the battery

cover, screw, and mounting bracket.

4. Observing the correct polarity, install 2 AA batteries into the Indoor

Temperature Station.

5. Replace battery cover.

6. Wait 5-6 minutes or until both indoor and outdoor temperatures are shown

on the LCD of the Indoor Temperature Station.

V. LIABILITY DISCLAIMER

1. The manufacturer and supplier cannot accept any responsibility for any

incorrect readings and any consequences occurring should an inaccurate reading take place.

2. This product is not to be used for medical purposes or for public

3. The specifications of this product may change without prior notice.

4. This product is not a toy. Keep out of children’s reach.

5. No part of this manual may be reproduced without written consent of

VI. WARRANTY INFORMATION

La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship.

P.18 P.19 La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of La Crosse Technology, Ltd and must be returned to La Crosse Technology, Ltd. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will

P.21 P.23 This warranty gives you specific legal rights. You may also have other

For warranty work, technical support, or information contact: La Crosse Technology, Ltd 190 Main Street P.25 rights specific to your State. Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. P.24 La Crescent, MN 55947 Phone: 507.895.7095 Fax: 507.895.2820

authorized La Crosse Technology, Ltd authorized service center; (6) units used for other than home use (7) applications and uses that this product was not intended or (8) the products inability to receive a signal due to any source of interference. This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances. P.22 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR

INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR

DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN’S REACH.

pay all expenses for labor and materials for all repairs covered by this warranty. If necessary repairs are not covered by this warranty, or if a product is examined which is not in need or repair, you will be charged for the repairs or examination. The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay reasonable return shipping charges to the owner of the product. P.20 Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage to, or deterioration of, any accessory or decorative surface; (4) damage resulting from failure to follow instructions contained in your owner’s manual; (5) damage resulting from the performance of repairs or alterations by someone other than an

This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product. To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for problem determination and service procedures. Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.

sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical P.27

or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences. All trademarks and patents are acknowledged.

433MHz WARRANTY INFORMATION La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product. To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for problem determination and service procedures. Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of La Crosse Technology, Ltd and must be returned to La Crosse Technology, Ltd. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs covered by this warranty. If necessary repairs are not covered by this warranty, or if a product is examined which is not in need or repair, you will be charged for the repairs or examination. The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay ground return shipping charges to the owner of the product to a USA address only. Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage to, or deterioration of, any accessory or decorative surface; (4) damage resulting from failure to follow instructions contained in your owner’s manual; (5) damage resulting from the performance of repairs or alterations by someone other than an authorized La Crosse Technology, Ltd authorized service center; (6) units used for other than home use (7) applications and uses that this product was not intended or (8) the products inability to receive a signal due to any source of interference.. This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or

adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances. LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY

FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER

SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN’S REACH. This warranty gives you specific legal rights. You may also have other rights specific to your State. Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. For warranty work, technical support, or information contact: La Crosse Technology, Ltd 2809 Losey Blvd S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com

FCC DISCLAIMER This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. La Crosse Technology Made in China All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences. All trademarks and patents are acknowledged.
