USER MANUAL CTP644MCBB/1 CANDY

THANK YOU FOR PURCHASING THE CANDY INDUCTION HOB. PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THE HOB. KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE.

Download hOn App

In the hOn App you'll have access to several recipes and extra contents.

SAFETY WARNINGS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

Take care - panel edges are sharp. Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed at this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these installation instructions.

- This appliance is to be properly installed and earthed by a suitably qualified person.

- This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

- Failure to install the appliance correctly could invalidate any warranty or liability claims.

- Regarding the details of installation, please refer to the section.

Operation and maintenance

Electrical Shock Hazard

- Do not cook on a broken or cracked cooktop. If the surface is broken or cracked, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.

- Switch the cooktop off at the wall before cleaning or maintenance.

- Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnetic safety standards.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can become hot. Children less than 8 years of age shall be kept away unless continuously supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boil-over causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pan.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

- Children or persons with a disability that limits their ability to use the appliance should have a responsible competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in a domestic household environment only! Commercial use of any kind is not covered under the manufacturer's warranty!

• WARNING: The appliance and its accessible parts become hot during use. Young children should be kept away.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flame, e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for surfaces of glass-ceramic or similar material which protect live parts. A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• CAUTION: The cooking process has to be supervised. Short term cooking process has to be supervised

continuously.

The power cord cannot be accessible after installation.

Product Overview

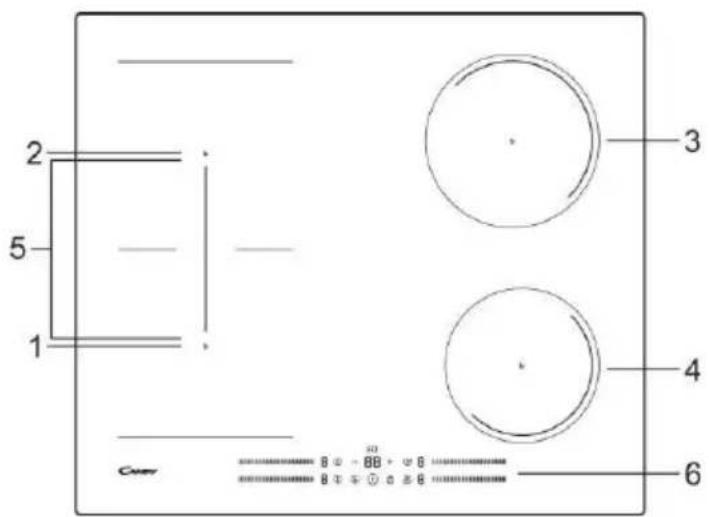

Top View

1. 1800 W zone, boost to 2100 W
2. 1800 W zone, boost to 2100 W
3. 1800 W zone, boost to 2100 W
4. 1200 W zone, boost to 1500 W
5. 3000 W zone, boost to 3600 W
6. Control panel

CTP644MCBB/1

The Control Panel

CTP644MCBB/1

1. ON/OFF control 6. Boost control
2. Heating zone selection controls 7. Pause control & Power regulating key 8. Keep warm
3. Timer regulating control 9. Automatic detection
4. Keylock control 10. Flexible zone
5. Energy efficiency

Product Information

The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families.

The hob centers on customers and adopts personalized design. The hob has safe reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because pan eventually warms it up.

iron pot

magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (utensil or a cloth) covering them. Even a thin film of water may make controls difficult to operate.

Choosing the right Cookware

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, it is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.
2. Follow the steps under 'To start cooking'.
3. If it does not flash in the display and the water is heating, the pan is suitable.

- Cookware made by the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Size of burner (mm)	The minimum cookware (diameter /mm)
160	120
180	140
210	180
280	180
Flexible zone	250

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

- Use pans whose diameter of the ferromagnetic area (base of the pan) is within the range of dimensions in the table below. (Table 1)

- If you use smaller pots, performance could be affected.

- If you use a pot with a diameter smaller than the one indicated above, the pot may not be detected.

According to the dimension of the zone, you can use pots of different diameters as shown in the picture below:

- If the ferromagnetic part covers only partially the base of the pan, only the ferromagnetic area will heat up; the rest of the base may not heat up to a sufficient temperature for cooking.

- If the ferromagnetic area is not homogeneous, but contains other materials such as aluminum, this may affect the heating up and the pan detection.

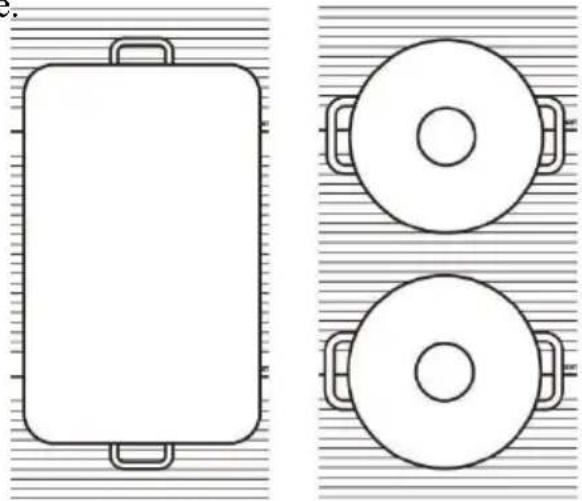

If the base of the pan is similar to the pictures below, the pan could be detected.

Using your Induction Hob

To start cooking

• After power on, the buzzer beeps once, all the indicators light up for 1 second and then go out, indicating that the hob has entered the standby mode.

1. Touch the ON/OFF switch. All the indicators show “-”.

1. Place a suitable pan on the cooking zone that you want to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Select a heat setting by touching the "slider" control.

- If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

When you have finished cooking

1. Turn the cooking zone off by touching the "slider" control down to "0". Make sure the display shows "0".

1. Turn the whole hob off by touching the ON/OFF control.

1. Beware of hot surfaces

“H” will show, which means the cooking zone is too hot. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving feature: if you want to heat further pans, use the hotplate that is still hot.

Using the Power Management

It is possible to set a maximum power absorption level for the induction hob, up to different power ranges.

Induction hobs are able to limit themselves automatically in order to work at a low power level, to avoid the risk of overloading.

To enter the power management function

1. Turn on the hob, then press the “+” (timer) and Pause at the same time. The indicator will show “P5”, which means power level 5. The default mode is set to 7.

To switch to another level

Press +/- on the timer. There are 5 power levels, from “P1” to “P5”. The indicator will show one of them.

“P1”: the maximum power is 2.5 kW.

“P2”: the maximum power is 3.5 kW.

“P3”: the maximum power is 4.5 kW.

“P4”: the maximum power is 5.5 kW.

“P5”: the maximum power is 7.2 kW.

Confirmation and Exit of Power Management Function

Press the “+” (timer) and Pause at the same time to confirm, then the hob turns off.

Using the Boost function

Activate the boost function

1. Touch the slider control of the zone you want to select.

Note: The power setting of the bridge zone works the same as any other normal area.

1. Touch the booster key when the display is blinking; the power level indication shows "P".

Cancel Boost function

1. Touch the slider to cancel the Boost function, and select the level you want to set.

The Boost function can only last for 5 minutes, after which the zone will go to level automatically.

Using Energy Efficiency Function

For induction hobs, the better the pot you use, the more efficiency you will get. The function can automatically detect the quality of pots and show the efficiency you

Activate the Energy Efficiency function

Press the EE button, the EE% indicator will light up. The display shows the percentage of power you use.

If the timer, keylock, or EE functions are activated at the same time, it will indicate corresponding information alternately.

Cancel the Energy Efficiency function

Press the EE button, the EE% indicator will go out and the function is canceled.

Using the Keep Warm function

Activate the Keep Warm function

1. Touch the slider control of the zone you want to set.

1. Touch the keep warm control, the zone indication shows ""

Cancel the Keep Warm function

Touch the slider control of the zone you want to cancel the Keep warm function for; that cooking zone will revert to the level you select.

Using the Pause function

1. Press the Pause control; the heating zones stop working. All zone indicators show "||".

1. Press the Pause control again; all heating zones will revert to their original settings.
2. This function is available when one or more heating zones are working.
3. If you do not cancel the stop working mode within 30 minutes, the induction hob will automatically switch off.

Locking the Controls

• You can lock the controls to prevent unintended use (for example, children accidentally turning on the cooking zones).
• When the controls are locked and heating zones are working, all controls except the ON/OFF and Pause are disabled.

To lock the controls

Touch the keylock control.

The timer indicator will show "Lo".

To unlock the controls

1. Make sure the hob is turned on.
2. Touch and hold the keylock control for 3 seconds.
3. You can now start using your hob.

When the hob is in lock mode and without heating zone working, all the controls are disabled excepting the ON/OFF, you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter “H” appears to warn you to keep away from it.

Using Flexible zone function

• This may be used as a single zone or two individual zones depending on the cooking needs in each situation.
• It is made of two independent coils that can be controlled separately. When the flexible zone is working, only the zone covered by the cookware is activated function only works on 1# and 2# cooking zones.
• To ensure that the cookware is detected and heat is distributed evenly, correctly centre the cookware.

- One hob with more than one flexible zone, it is not recommended to use seven zones at the same time for a single pan.

Activate Flexible zone function

1. To activate the flexible area as a single big zone, touch the key. The buzzer beeps indicating that the induction hob enters selection of flexible zone, and the corresponding indicator will flash.

1. Select the power level you want to set by touching the "Slider" control.

Cancel Flexible zone function

1. Touch the key to cancel the flexible zone function.

1. The power setting works the same as any other normal area.

Auto Shutdown

A safety feature of the hob is auto shutdown. This occurs whenever you forget to turn off a cooking zone. The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hou)	8	8	8	4	4	4	2	2	2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any zone off when the set time is up.
• You can use it as a cut-off timer to turn one or more cooking zones off after the set time.
• You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

1. Make sure the hob is turned on. And zone selection key is not activated (indication '-' is not blinking).

Note: You can set minute minder before or after cooking zone power setting.

1. Set the time by touching '+' or '-'.

Press the '+' once increases the time by one minute. Press the '-' once decreases the time by one minute. When the set time exceeds 99 minutes, it will automatically return to '00'. If the '-' and '+' keys are pressed simultaneously, the indicator will display '00'.

1. When the time is set, it will begin to count down immediately. The display shows the remaining time.
2. Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the set time has finished.

Using the timer to switch off one or more cooking zones.

1. Press the slider control of the cooking zone you want to set the timer for.

1. Set the time by touching “+” or “-”.

Pressing “+” once increases the time by one minute; pressing “-” once decreases the time by one minute. When the set time exceeds 99 minutes, it will automatically return to “00”. If the “-” and “+” keys are pressed simultaneously, the indicator will display “00”.

1. Once the time is set, it will begin to count down immediately. The display shows the remaining time.

NOTE: There will be a red dot in the bottom right corner of the power level indicator, indicating that the zone is selected.

1. When the cooking timer expires, the corresponding cooking zone will switch off automatically.

Note: Other cooking zones will keep operating if they were turned on previously.

If the timer is set on more than one zone:

1. When you set the timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the minimum timer. The dot of the corresponding zone blinks.

1. Once the countdown timer expires, the corresponding zone will switch off. The display will show the new minimum timer and the dot of the corresponding zone will flash.

Note: Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

Cancel the timer

Touching the timer key “-” to set the timer to “00”, the timer is canceled.

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly, particularly if using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the power setting. Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85°C, when bubbles are just occasionally rising to the surface of the cooking liquid. It is the key to delicious and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour-thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a higher setting than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 to 4 minutes per side.

Press the steak to gauge how cooked it is – the firmer it is, the more 'well done' it will be.

1. Leave the steak to rest on a warm plate for a few minutes to allow it to become tender before serving.

For stir-frying

1. Choose a ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickl·gentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sauteing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	Switch the power to the cooktopApply a cooktop cleaner while t glass is still warm (but not hot Rinse and wipe dry with a clea cloth or paper towel.Switch the power to the cooktop back on.	When the power to the cooktop switched off, there will be no ‘h surface’ indication but the cooking zone may still be hot! Take extr care.Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Alw read the label to check if your or scourer is suitable.Never leave cleaning residue on cooktop: the glass may become stained.
Boil-overs, melts, and hot sugary spills on the glass	Remove these immediately with a f slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:Switch the power to the cooktop at the wall.Hold the blade or utensil at a angle and scrape the soiling or to a cool area of the cooktop.Clean the soiling or spill up wi dish cloth or paper towel.Follow steps 2 to 4 for ‘Everyo soiling on glass’ above.	Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on th glass, they may be difficult to remove or even permanently damage the glass surface.Cut hazard: when the safety cove is retracted, the blade in a scrape is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	Switch the power to the cooktopSoak up the spillWipe the touch control area wit clean damp sponge or cloth.Wipe the area completely dry with a paper towel.Switch the power to the cooktop back on.	The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you v the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the cooktop is connected the power supply and that it is switched on.Check whether there is a power outage in your home or area. If checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area dry and use the ball of your fing when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See ‘Choosing the right cookware’.See ‘Care and cleaning’.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes low humming noise when used on a high heat sett	This is caused by the technology of induction cooking.	This is normal, but the noise sho quieten down or disappear complete when you decrease the heat setting
Fan noise coming from t induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you’ve turned the induction hob off.	This is normal and needs no acti Do not switch the power to the induction hob off at the wall whi fan is running.
Pans do not become hot and appears in the displa	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the because it is too small for the co zone or not properly centered on it	Use cookware suitable for induction cooking. See section ‘Choosing the right cookware’.Centre the pan and make sure tha base matches the size of the cook zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typicall alternating with one or tv digits in the cooking tim display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality occurs, the induction hob will enter the protective state automatically and display corresponding protective codes:

Problem	Possible causes	What to do
E4/E5	Temperature sensor failure	Please contact the supplier.
E7/E8	Temperature sensor of the IGBT failure.	Please contact the supplier.
E2/E3	Abnormal supply voltage	Please inspect whether power supp is normal. Power on after the po supply is normal.
E6/E9	Bad induction hob heat radiation	Please restart after the induction cools down.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damage to the induction hob.

Technical Specification

Induction Hob	CTP644MCBB/1
Cooking Zones 4 Zones
Supply Voltage 220-240V~ 50 / 60Hz
Installed Electric Power 7200W
Product Size D×W×H(mm) 590×520×58
Building-in Dimensions A×B (mm) 560×490

Weight and dimensions are approximate. Because we continually strive to improve our products, we may change specifications and designs without prior notice.

Installation

Selection of installation equipment

• Cut out the work surface according to the sizes shown in the drawing.
• For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
• Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

Warning: The work surface material must use impregnated wood or other insulating material.

	L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
CTP644MCBB/1	590	520	58	54	560	490	50 mini

Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good working state. As shown below. Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

Before you install the hob, make sure that

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
• The isolating switch must be of an approved type and provide a 3mm air gap separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the surfaces surrounding the hob.

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not force onto the controls protruding from the hob.

Locating the fixing brackets

• The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

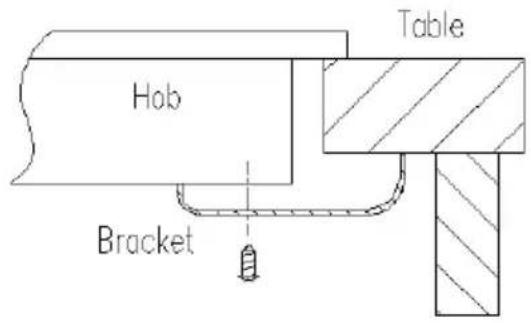

• Fix the hob on the work surface by screwing four brackets on the bottom of the hob (see picture) after installation.
• Adjust the bracket position to suit different work surface thicknesses.

Cautions

• The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
• The hob shall not be mounted to cooling equipment, dishwashers, and rotary dryers.
• The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
• The wall and induced heating zone above the work surface shall withstand heat. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. A steam cleaner is not to be used.
• This ceramic hob can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
• If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and only replaced by a properly qualified person.

DISPOSAL: Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as household waste. It should be taken to a collection point for electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste service or the shop where you purchased the product.

SAFETY WARNINGS: PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

Installation

iron pan

	C (mm)	L (mm)	A (mm)	D (mm)	A (mm)	B (mm)	X (mm)
CTP644MCBB/1	590	520	58	54	560	490	50 mini

A (mm)	B (mm)	C (mm)	D	E
760	50 mini	20 mini	Entrada de ar	Saída de ar 5 mm

Precautions

SAFETY WARNINGS: PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

Installation

iron pot

	H (mm)	SZ (mm)	M (mm)	D (mm)	A (mm)	B (mm)	X (mm)
CTP644MCBB/1	590	520	58	54	560	490	50 mini

Precautions

iron pot

	L (mm)	H (mm)	W (mm)	D (mm)	A (mm)	B (mm)	X (mm)
CTP644MCBB/1	590	520	58	54	560	490	50 mini

Notes

iron pot
