USER MANUAL P1752XNLK SMEG

1.1 General safety instructions 30
1.2 Manufacturer liability 33
1.3 Appliance purpose 33
1.4 Identification plate 33
1.5 This user manual 33
1.6 Disposal 34
1.7 How to read the user manual 35

2 Description 36

2.1 General Description 36
2.2 Symbols 36

3 Use 38

3.1 Instructions 38
3.2 First use 38
3.3 Using the hob 38

4 Cleaning and maintenance 42

4.1 Instructions 42
4.2 Cleaning the appliance 42

5 Installation 44

5.1 Safety instructions 44

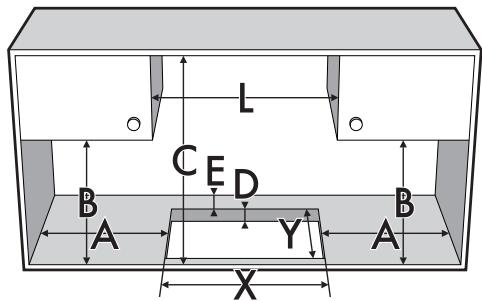

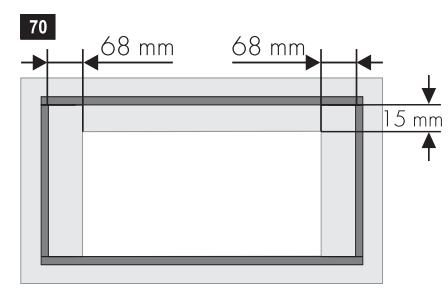

5.2 Section cut from the countertop 44
5.3 Mounting 45

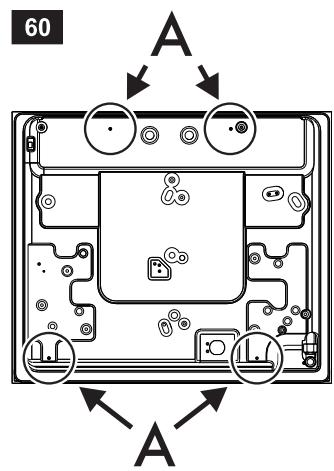

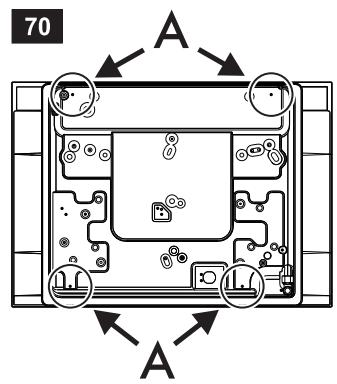

5.4 Fastening with brackets 46
5.5 Gas connection 47
5.6 Adaptation to different types of gas 50
5.7 Electrical connection 54

These instructions apply only for the destination countries listed on the appliance's data plate. This is a class 3 built in hob.

We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its accessible parts become very hot. Never touch the heating elements during use.
• Never try to put out a fire or flames with water: Turn off the appliance and smother the flames with a fire blanket or other appropriate cover.
• This appliance may be used by children aged at least 8 and by people of reduced physical, sensory or mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or instructed by adults who are responsible for their safety.
• Children must not play with the appliance.
• Keep children under the age of eight at a safe distance unless they are constantly supervised.

• Keep children under the age of 8 away from the appliance when it is in use.

• Cleaning and maintenance must not be carried out by unsupervised children.

• Make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps.
• Be aware of how rapidly the cooking zones heat up. Do not place empty pans on the heat. Danger of overheating.
• Fats and oils can catch fire if they overheat. Do not leave the appliance unattended while preparing foods containing oils or fats. If fats or oils catch fire, never put water on them. Place the lid on the pan and turn off the relevant cooking zone.
• The cooking process must always be monitored. A short cooking process must be continuously monitored.
• Do not place metal objects, such as dishes or cutlery, on the hob surface during use as they may overheat.

• Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.

• Do not use aerosols in the vicinity of this appliance whilst it is in use.

• Switch off the appliance immediately after use.
• Do not modify this appliance.
• Do not try to repair the appliance yourself or without the intervention of a qualified technician.
• Do not pull the cable to remove the plug.
• If the power supply cable is damaged, contact technical support immediately and they will replace it.

Risk of damaging the appliance

• Do not seat on the appliance.
• Do not use steam jets to clean the appliance.
• Do not obstruct ventilation openings and heat dispersal slots.
• Never leave the appliance unattended during cooking operations where fats or oils could be released, as these could then heat up and catch fire. Be very careful.

• Never leave objects on the cooking surface.

• Do not use the appliance to heat rooms for any reason.

• Do not spray any spray products near the oven.
• Do not use plastic cookware or containers when cooking food.
• Cooking vessels or griddle plates should be placed inside the perimeter of the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill, remove the excess from the hob.
  Take care not to spill acid substances such as lemon juice or vinegar on the hob.
• Do not put empty pans or frying pans on switched on cooking zones.
• Do not use steam jets to clean the appliance.
• Do not use rough or abrasive materials or sharp metal scrapers.
• Do not use cleaning products containing chlorine, ammonia or bleach on parts made of steel or that have metallic surface finishes (e.g. anodizing, nickel- or chromium-plating).
• Do not wash removable parts such as the hob grids, flame-spreader crowns and burner caps in the dishwasher.

Installation

• This appliance must not be installed in a boat or caravan.
• The appliance must not be installed on a pedestal.
• Position the appliance into the cabinet cut-out with the help of a second person.
• To avoid potential overheating, the appliance must not be installed behind a decorative door or a panel.
• Always use any necessary/ required personal protective equipment (PPE) before performing any work on the appliance (installation, maintenance, positioning or movement).
• Before performing any work on the appliance, switch off the power supply.
• Have qualified personnel carry out installation and assistance interventions according to the standards in force.

• Have the gas connection performed by authorised technical personnel.

• Installation using a hose must be carried out so that the length of the hose does not exceed 2 metres when fully extended for steel hoses and 1.5 metres for rubber hoses.

• The hoses should not come into contact with moving parts and should not be crushed in any way.
• If required, use a pressure regulator that complies with current regulations.
  After carrying out any operation, check that the tightening torque of gas connections is between 10 Nm and 15 Nm .
• At the end of the installation, check for any leaks with a soapy solution, never with a flame.
• Have the electrical connection performed by authorised technical personnel.
• The appliance must be connected to earth in compliance with electrical system safety standards.

• Use cables withstanding a temperature of at least 90^ C .

• The tightening torque of the screws of the terminal supply wires must be 1.5 - 2 Nm .

• If it is necessary to replace the power cable, this must only be performed by a qualified technician.

For this appliance

• Do not obstruct ventilation openings and heat dispersal slots.
• Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
• Do not use the appliance to heat rooms for any reason.
• The appliance is not designed to operate with external timers or with remote-control systems.

1.2 Manufacturer liability

The manufacturer declines all liability for damage to persons or property caused by:

• Use of the appliance other than the one envisaged,
• Failure to comply with the instructions in the user manual;
• Tampering with any part of the appliance,
• The use of non-original spare parts.

1.3 Appliance purpose

This appliance is intended for cooking food in the home environment. Every other use is considered improper.

1.4 Identification plate

The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.

1.5 This user manual

This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.

Read this user manual carefully before using the appliance.

1.6 Disposal

This appliance must be disposed of separately from other waste (Directives 2002/95/EC, 2002/

96/EC, 2003/108/EC). The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.

To dispose of the appliance:

• Cut the power supply cable and remove it along with the plug.

Power voltage Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

• Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.

Our appliances are packaged in nonpolluting and recyclable materials.

• Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

• Do not leave the packaging or any part of it unattended.
• Do not let children play with the plastic bags.

1.7 How to read the user manual

This user manual uses the following reading conventions:

Instructions

General information on this user manual, on safety and final disposal.

Description

Description of the appliance and its accessories.

Use

Information on the use of the appliance and its accessories, cooking advice.

Cleaning and maintenance

Information for proper cleaning and maintenance of the appliance.

Installation

Information for the qualified technician: Installation, operation and inspection.

Safety instructions

Information

Advice

1. Sequence of instructions for use.

2. Standalone instruction.

2 Description

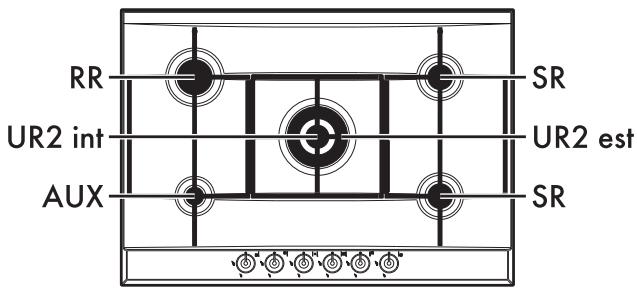

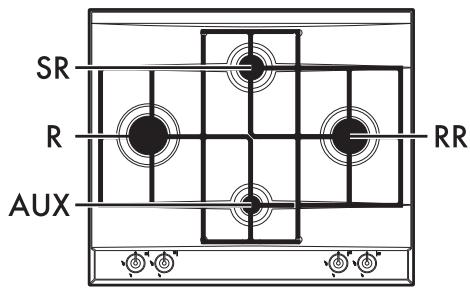

2.1 General Description

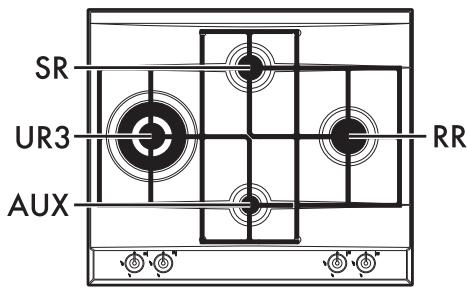

60 cm

70 cm

$$ A U X = A u x i a l y $$

$$ S R = S e m i - r a p i d $$

$$ R R = \text {R e d u c e d r a p i d} $$

$$ R = R a p i d $$

$$ U R 3 = \text {T r i p l e c r o w n u l t r a - r a p i d} $$

$$ U R 2 \text {i n t} = \text {I n t e r n a l c r o w n u l t r a r i p d} $$

$$ U R 2 e s t = E x t e r n a l c r o w n u l t r a r a p i d $$

2.2 Symbols

Cooking zones

Burners

Burner off

Burner at minimum setting

Burner at maximum setting

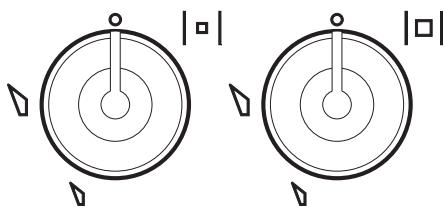

Burner knobs

For lighting and adjusting the hob burners.

Press and turn the knobs anti-clockwise to in order to light the relative burners. Turn the knobs to the zone between the maximum and minimum setting to adjust the flame. Return the knobs to the position to turn off the burners.

(on certain models only)

Double-crown burners comprise an auxiliary and a rapid burner. They are controlled by two different knobs which allow both burners to be used at the same time or to select one or the other as required.

3 Use

3.1 Instructions

Improper use Danger of burns

• Make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps.
• Oils and fats could catch fire if overheated. Be very careful.
• Do not leave the appliance unattended during cooking operations where fats or oils could be released.
• Do not spray any spray products near the appliance.
• Do not touch the appliance's heating elements when it is running. Leave them to cool before cleaning.
• Keep children under the age of 8 away from the appliance when it is in use.

Improper use Risk of damage to surfaces

• Do not use aluminium foil to cover the burners or hob body.
• Cooking vessels or griddle plates should be placed inside the perimeter of the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill, remove the excess from the hob.

3.2 First use

1. Remove any protective film from the outside or inside of the appliance, including accessories.
2. Remove any labels (apart from the technical data plate) from accessories.
3. Remove and wash all the appliance accessories (see 4 Cleaning and maintenance).

3.3 Using the hob

All the appliance's control and monitoring devices are located together on the front panel. The burner controlled by each knob is shown next to the knob. The appliance is equipped with an electronic ignition device. Simply press the knob and turn it anticlockwise to the maximum flame symbol, until the burner ignites. If the burner does not light in the first 15 seconds, turn the knob to and wait 60 seconds before trying again. After lighting, keep the knob pressed in for a few seconds to allow the thermocouple to heat up. The burner may go out when the knob is released: In this case, the thermocouple has not heated up sufficiently. Wait a few moments and repeat the operation. Keep the knob pressed in longer.

In case of an accidental switching off, a safety device will be tripped, cutting off the gas supply, even if the gas cock is open. Return the knob to O and wait at least 60 seconds before lighting it again.

Correct positioning of the grids

Under the grids there are silicone rests with a hole that must be centred onto the matching fixing pins on the surface.

Make sure that the grids are simply centred on their respective burners, without forcing them to be raised or tilted. If they are, repeat the positioning procedure.

If you find that a pan is particularly unstable, make sure that the grids have not been positioned incorrectly.

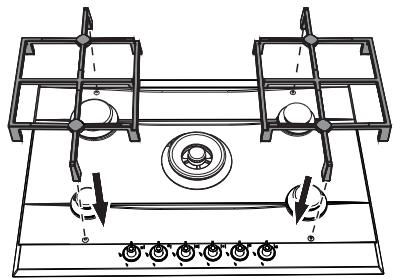

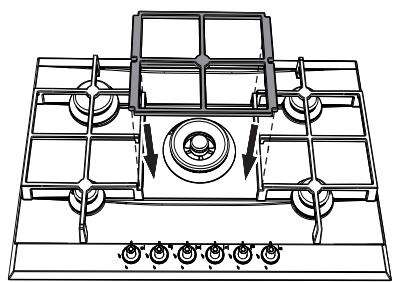

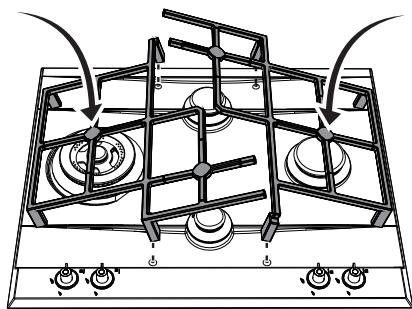

Installing the grids

To position the grids correctly on their burners, follow the instructions below:

70 cm

60 cm

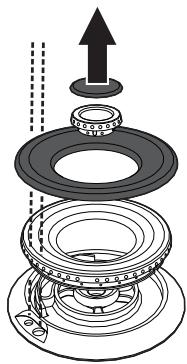

Correct positioning of the flame-spreader crowns and burner caps

Before lighting the hob burners, make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps. Make sure that the holes in the burners are aligned with the igniters and thermocouples. Also ensure that the flame-spreader crowns are correctly engaged in the burner holes.

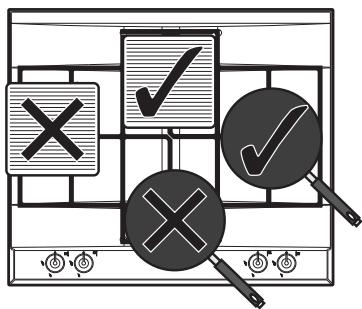

Practical tips for using the hob

For better burner efficiency and to minimise gas consumption, use pans with lids and of suitable size for the burner, so that the flames do not reach up the sides of the pan. Once the contents come to the boil, turn down the flame far enough to ensure that the liquid does not boil over.

Cookware diameters:

AUX:7-18cm.
- SR: 10 - 24 cm.
RR:12-24cm.
R:14-26cm.
- UR3: 12 - 26 cm
- UR2:12 - 26 cm.

During cooking, in order to avoid burns or damage to the hob or top, all pans or griddles must be positioned inside the outer edge of the hob and at a minimum distance of 50~mm from the knobs.

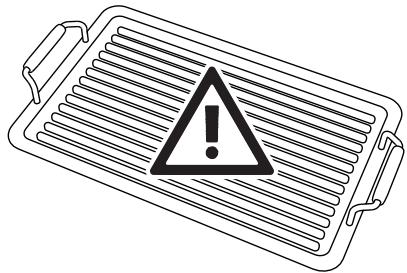

Limitations on griddle use

A few precautions are necessary if you wish to use a griddle:

Griddles must never protrude beyond the edge of the hob.
Aluminium griddles with Teflon anti-stick coating should be pre-heated for a maximum of 5 minutes in order to avoid damage to the appliance and the Teflon coating. After pre-heating, place the foodstuffs on the griddle to cook them; do not exceed 40 minutes of total use for the griddle.
- If one of the burners close to the wooden rear wall is an ultra-rapid burner (UR3 or UR2), leave a gap of at least 160 ~mm between this wall and the edge of the griddle;
- Do not use griddles or plates to cook or heat food on the ultra-rapid/triple crown burner (UR3) or the ultra-rapid/double crown burner (UR2).
It is not recommended to use earthenware or steatite (soapstone) pans to cook or heat food.
- Do not allow the burner flames to extend beyond the edge of the griddle;

• Leave a gap of at least 160 ~mm between the edge of the griddle and the side wall;
• Do not place the griddle over more than one burner at the same time.
• Never use the griddle for more than 40 minutes.

4 Cleaning and maintenance

4.1 Instructions

Improper use

Risk of damage to surfaces

• Do not use steam jets to clean the appliance.
• Do not use cleaning products containing chlorine, ammonia or bleach on parts made of steel or that have metallic surface finishes (e.g. anodizing, nickel- or chromium-plating).
• Do not use rough or abrasive materials or sharp metal scrapers.
• Do not wash removable parts such as the hob grids, flame-spreader crowns and burner caps in the dishwasher.

4.2 Cleaning the appliance

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Ordinary daily cleaning

Always and only use specific products that do not contain abrasives or chlorine-based acids.

Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Food stains or residues

Do not use steel sponges and sharp scrapers as they will damage the surface. Use normal, non-abrasive products and a wooden or plastic tool, if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Cleaning and maintenance

Cooking hob grids

Remove the grids and clean them in lukewarm water and non-abrasive detergent. Make sure to remove any encrustations. Dry them thoroughly and return them to the hob.

The continuous contact between the grids and the flame can cause modifications to the enamel over time in those parts exposed to heat. This is a completely natural phenomenon which has no effect on the operation of this component.

Flame-spreader crowns and burner caps

For easier cleaning, the flame-spreader crowns and the burner caps can be removed. Wash them in hot water and non-abrasive detergent. Carefully remove any encrustation, then wait until they are perfectly dry. Refit the flame-spreader crowns, making sure that they are correctly positioned in their housings with their respective burner caps.

Knobs

Do not use aggressive products containing alcohol or products for cleaning steel and glass when cleaning the knobs, as these products could cause permanent damage.

The knobs should be cleaned with a soft cloth dampened with warm water, then dried carefully. They can easily be removed by pulling them upwards.

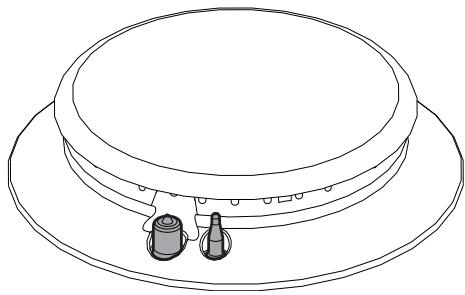

Igniters and thermocouples

For correct operation the igniters and thermocouples must always be perfectly clean. Check them frequently and clean them with a damp cloth if necessary. Remove any dry residues with a wooden toothpick or a needle.

After cleaning, dry the appliance thoroughly to prevent water or detergent drips from interfering with its operation or creating unsightly marks.

5 Installation

5.1 Safety instructions

Heat production during appliance operation Risk of fire

• Check that the carcass material is heat resistant.
• Check that the carcase has the required openings.

Veneers, adhesives or plastic coatings on adjacent furniture should be temperature-resistant (>90^) , otherwise they might warp over time.

The minimum clearance between a ventilation hood and the cooking surface must be at least the distance indicated in the ventilation hood installation instructions.

The minimum clearances must also be respected for the edges of the hob on the back as indicated in the mounting illustrations.

5.2 Section cut from the countertop

The following operation requires building and/or carpentry work and must therefore be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat resistant (>90^)

Create an opening with the dimensions shown in the figure in the countertop of the carcase.

L (mm)	X (mm)	Y (mm)
600 - 725	555÷560	478÷482

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
min 150	min 460	min 750	20÷40	min 50

5.3 Mounting

Over built-in oven unit

The clearance between the hob and the kitchen furniture or other installed appliances must be enough to ensure sufficient ventilation and air discharge.

If installed above an oven, a space must be left between the bottom of the hob and the top of the appliance installed below.

opens on bottom
opens on bottom and on rear

If installed on top of an oven, the latter must be equipped with a cooling fan.

Over empty kitchen unit or drawers

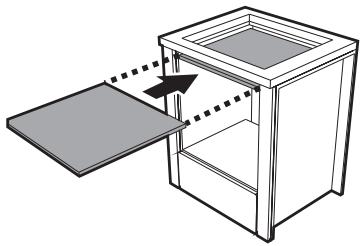

If there are other pieces of furniture (lateral walls, drawers, etc.), dishwashers or fridges under the hob, a double-layer wooden base must be installed at least 10mm from the bottom of the hob to avoid any accidental contact. It must only be possible to remove the double-layer base using suitable equipment.

opens on bottom
opens on rear

Failure to install the double-layer wooden base exposes the user to possible accidental contact with sharp or hot parts.

Hob seal

To prevent leakage of liquid between the frame of the hob and the work surface, put the insulating seal provided in position before assembly.

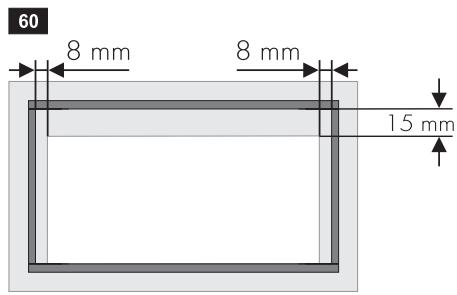

1. Refer to the dimensions in the figure, bearing in mind that the long front side must be flush with the hole.

1. Use light pressure to make the seal stick to the edge around the hole cut in the worktop.

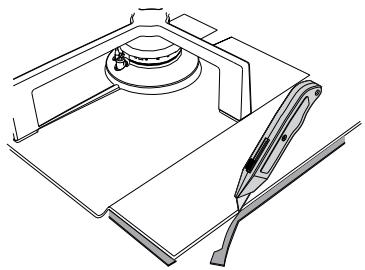

2. Carefully trim the surplus edge away from the seal.

5.4 Fastening with brackets

The figures below show the exact holes to be used to correctly attach the hob to the work surface with brackets.

Screw the fixing brackets (A) into the holes on the sides of the bottom casing to properly fasten the hob to the structure.

Do not use silicone to secure the hob. This would make it impossible to remove the hob, if necessary, without damaging it.

5.5 Gas connection

Gas leak

Danger of explosion

After carrying out any operation, check that the tightening torque of gas connections is between 10Nm and 15Nm .
- If required, use a pressure regulator that complies with current regulations.
- At the end of the installation, check for any leaks with a soapy solution, never with a flame.
- The hoses should not come into contact with moving parts and should not be crushed in any way.

General information

Connection to the gas mains can be made using a rigid copper pipe or a continuous wall steel hose in compliance with the provisions established by the applicable standard.

For supplying it with other types of gas, see chapter "5.6 Adaptation to different types of gas". The gas inlet connection is threaded 12 external gas (ISO 228-1).

Connection with a steel hose

Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard.

Carefully screw the connector 3 to the gas connector 1 of the appliance, placing the seal 2 between them.

Connection with a steel hose with conical fitting

Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard.

Carefully screw the hose connector 3 to the appliance's gas connector 1 (12'' thread ISO 228-1), placing the supplied seal 2 between them. Apply insulating material to the thread of connector 3, then tighten the steel hose 4 to the connector 3.

Connection to LPG

Use a pressure regulator and make the connection on the gas cylinder, following all applicable standards and regulations.

The supply pressure must comply with the values indicated in the table in "Burner and nozzle characteristics tables".

Room ventilation

The appliance should be installed in rooms that have a permanent air supply in accordance with the standards in force. The room where the appliance is installed must have enough air flow for the regular combustion of gas and the necessary air change in the room itself. The air vents, protected by grilles, must be the right size to comply with current regulations and positioned so that no part of them is obstructed, not even partially.

The room must be kept adequately ventilated in order to eliminate the heat and humidity produced by cooking: In particular, after prolonged use, you are recommended to open a window or to increase the speed of any fans.

Extraction of the combustion products

The combustion products may be extracted by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction. An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and clearances indicated by the applicable standards.

When the job is complete, the installer must issue a certificate of conformity.

1 Extraction using a hood
2 Extraction without a hood

A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-mounted extractor fan
D Directly outdoors through wall

5.6 Adaptation to different types of gas

If other types of gas are to be used, the nozzles must be replaced and the primary air must be adjusted. In order to replace the nozzles and adjust the burners, the hob top must be removed.

Removing the hob top

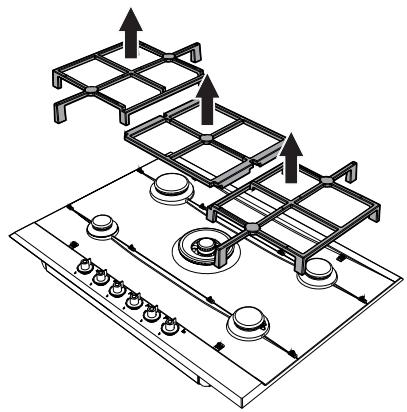

1. Remove the grids from the hob.

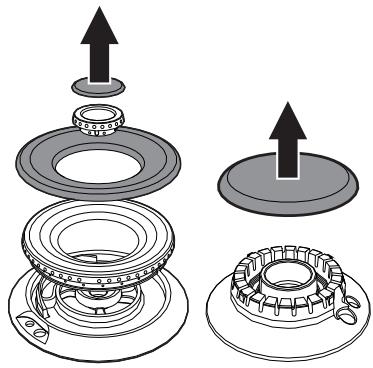

1. Remove the flame-spreader crowns and relative burner caps.

1. Pull the knobs upwards to remove them.

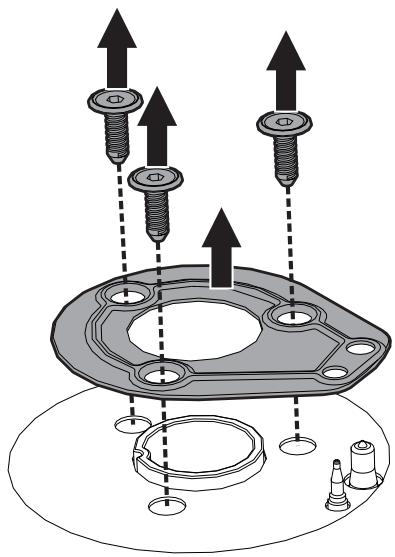

1. Remove the screws fastening the hob and the plates corresponding to each burner zone.

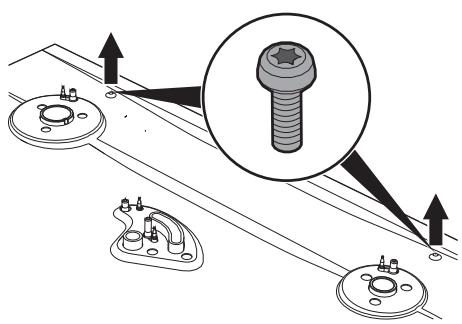

1. The two rear screws need to be removed only on 70 cm models.

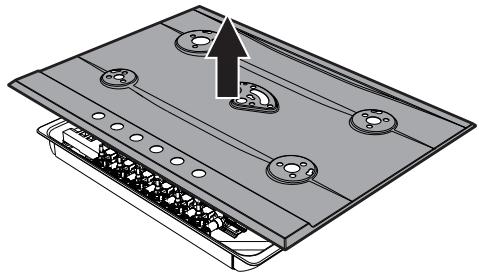

1. Remove the hob top.

Replacing nozzles

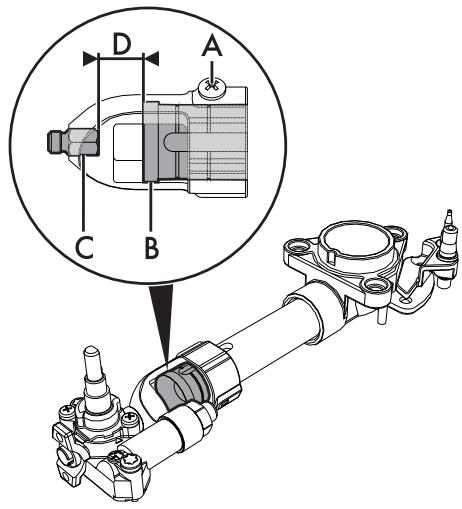

1. Unscrew screw A and push air regulator B as far as it will go.
2. Use a spanner to remove the nozzles C and install the new ones for the required gas supply, following the indications given in the relevant table (see "Burner and nozzle characteristics tables").

The nozzle tightening torque must be no more than 3 Nm.

1. Adjust the air flow by moving the air regulator B to obtain the distance D given in the corresponding table (see "Burner and nozzle characteristics tables").
2. After adjusting each burner, reassemble the appliance correctly.

Adjusting the minimum setting for natural or town gas

Light the burner and turn it to the minimum position. Extract the gas cock knob and turn the adjustment screw next to the gas cock rod (depending on the model) until the correct minimum flame is achieved.

Refit the knob and verify that the burner flame is stable. Turn the knob rapidly from the maximum to the minimum setting: The flame should not go out. Repeat the operation on all gas cocks.

Adjusting the minimum setting for LPG

Tighten the screw located at the side of the tap rod clockwise all the way.

Following adjustment to a gas other than the one originally set in the factory, replace the gas setting label on the appliance with the one corresponding to the new gas. The label is inserted inside the nozzle pack (where present).

Lubricating the gas cocks

Over time the gas cocks may become difficult to turn and get blocked. Clean them internally and replace the lubrication grease.

Lubrication of the gas cocks should be performed by a specialised technician.

Burner and nozzle characteristics tables

Natural Gas G20 - 20 mbar	AUX	SR	RR	R	UR3	UR2 int.	UR2 ext.
Rated heating capacity (kW)	1.1	1.7	2.6	3.1	3.5	1.0	3.2
Nozzle diameter (1/100 mm)	76	95	115	126	135	73	130
Reduced flow rate (W)	400	500	750	900	1600	400	1400
Primary air (mm)	1	0.5	1	1	1.5	2	1.5
Natural Gas G25 - 25 mbar / G25.3 - 25 mbar	AUX	SR	RR	R	UR3	UR2 int.	UR2 ext.
Rated heating capacity (kW)	1.1	1.7	3.1	3.1	3.5	1.0	3.2
Nozzle diameter (1/100 mm)	76	95	115	126	135	73	130
Reduced flow rate (W)	400	500	750	900	1600	400	1400
Primaryair (mm)	1	0.5	1	1	1	2	1
LPG G30/31 - 30/30 mbar	AUX	SR	RR	R	UR3	UR2 int.	UR2 ext.
Rated heating capacity (kW)	1.1	1.7	2.6	3.1	3.5	1.0	3.2
Nozzle diameter (1/100 mm)	48	62	76	85	87	48	85
Reduced flow rate (W)	400	500	750	1000	1600	400	1400
Primaryair (mm)	1.5	1.5	1.5	8	3	4	12
Rated flow rate G30 (g/h)	80	124	189	225	254	73	233
Rated flow rate G31 (g/h)	79	121	186	221	250	71	229

The nozzles not provided are available at Authorised Service Centres.

Appliance set for:
G+ Groningen Group K gas
G25 (2L) - 25 mbar
G25.3 (2K) - 25 mbar

5.7 Electrical connection

Power voltage Danger of electrocution

• Have the electrical connection performed by authorised technical personnel.
• Use personal protective equipment.
• The appliance must be connected to earth in compliance with electrical system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the plug.
  Use cables withstanding a temperature of at least 90^
• The tightening torque of the screws of the terminal supply wires must be 1.5 - 2 Nm.

General information

Check the grid characteristics against the data indicated on the plate.

The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance. Do not remove this plate for any reason.

Perform the ground connection using a wire that is 20 ~mm longer than the other wires.

Pass the power supply cable through the back of the unit, taking care that it does not touch the bottom casing of the hob or the oven (if any) installed underneath it.

The appliance can work in the following modes:

220-240V1N\~

Use a 3 × 1 ~mm^2 three-core cable.

The values indicated refer to the cross-section of the internal conductor.

Fixed connection

Fit the power line with an omnipolar circuit breaker with contact separation equal to or greater than 3mm in compliance with installation regulations.

The circuit breaker should be located near the appliance and in an easily reachable position.

Connection with plug and socket

Make sure that the plug and socket are of the same type.

Avoid using adapters and shunts as these could cause overheating and a risk of burns.
