USER MANUAL KY-PZ510BE JVC
4K PTZ REMOTE CAMERA
KY-PZ510NWU/KY-PZ510NWE KY-PZ510NBU/KY-PZ510NBE KY-PZ510WU/KY-PZ510WE KY-PZ510BU/KY-PZ510BE
INSTRUCTIONS
HDMI
HIGH-DEFINITION MULTIMEDIA INTERFACE
SRT
SECURE
RELIABLE
TRANSPORT
Specifications and appearance of this unit are subject to change for further improvement without prior notice.
Details
For details on settings and operation, refer to "INSTRUCTIONS" on the website.
Please check the latest INSTRUCTIONS, tools, etc. from the URL below.
North America:
http://pro.jvc.com/prof/main.jsp
Europe:
https://eu.jvc.com/#pro
North America Europe
Thank you for purchasing this product.
Before beginning to operate this unit, please read the "INSTRUCTIONS" carefully to ensure proper use of the product.
In particular, please read through the "Safety Precautions" to ensure safe use of the product. After reading, store them with the warranty card and refer to them whenever needed.
The serial number is crucial for the purpose of quality control. After purchasing this product, please check to ensure that the serial number is indicated correctly on this product, and the same serial number is also indicated on the warranty card.
For Customer Use:
Enter below the Serial No. which is located on the body.
Retain this information for future reference.
KY-PZ510NWU/KY-PZ510NBU
Model No. KY-PZ510WU/KY-PZ510BU
Serial No.
Please read the following before getting started:
Thank you for purchasing this product.
Before operating this unit, please read the instructions carefully to ensure the best possible performance.
In this manual, each model number is described without the last letter (U/E) which indicates the shipping destination.
(U: for USA and Canada, E: for Europe)
Only "U" models
(KY-PZ510NWU/KY-PZ510NBU/KY-PZ510WU/
KY-PZ510BU) have been evaluated by UL.
FOR USA
These are general Important Safety Instructions and certain items may not apply to all appliances.
Important Safety Instructions
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
FOR USA
Safety Precautions
FOR USA AND CANADA
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
FOR CANADA
ATTENTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION:
TO AVOID ANY RISK OF ELECTRIC SHOCK, DO NOT OPEN THE CASE. NO USER-SERVICEABLE PARTS INSIDE. REFER TO A QUALIFIED AGENT IN CASE OF PROBLEM.
Supplier's Declaration of Conformity
Model Number: KY-PZ510NWU/KY-PZ510NBU KY-PZ510WU/KY-PZ510BU
Trade Name: JVC
Responsible party: JVCKENWOOD USA Corporation
Address: 1440 Corporate Drive, Irving, TX 75038
Telephone Number: 678-449-8879
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not approved by JVC could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Address: 1440 Corporate Drive, Irving, TX 75038
The mains plug shall remain readily operable.
- Remove the mains plug immediately if the camera functions abnormally.
WARNING:
The battery pack, the camera with battery installed, and the remote control with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
NOTES:
- The rating plate and safety caution are on the bottom and/or the back of the main unit.
- The serial number plate is on the bottom of the unit.
- The rating information and safety caution of the AC adapter are on its upper and lower sides.
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.
Attention:
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
Connecting cables (Audio/Video, etc.) to this unit and leaving it on top of the TV is not recommended, as tripping on the cables will cause the unit to fall, resulting in damage.
When using the AC adapter in areas other than the USA
The provided AC adapter features automatic voltage selection in the AC range from 110 V to 240 V.
USING HOUSEHOLD AC PLUG ADAPTER
If you connect the unit's power cord to an AC wall outlet that is not of the American National Standard C73 series type, use an AC plug adapter called a "Siemens Plug" as shown.
For this AC plug adapter, please contact your local dealers.
Plug Adapter
- Remove the AC adapter from the AC wall outlet when not in use.
- Do not leave dust or metal objects adhered to the AC wall outlet or AC adapter (power/DC plug).
IMPORTANT (for owners in the U.K.) Connection to the mains supply in the United Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or contact your local dealers.
BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If nonetheless the mains plug is cut off, be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug, then follow the instructions given below:
DO NOT make any connection to the Larger Terminal coded E or Green.
The wires in the mains lead are coloured in accordance with the following code:
If these colours do not correspond with the terminal identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured black.
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
CAUTIONS:
- To prevent shock, do not open the cabinet. No user serviceable parts inside.
Refer servicing to qualified personnel.
- When you are not using the AC adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet.
CAUTION:
Where there are strong electromagnetic waves or magnetism, for example near a radio or TV transmitter, transformer, motor, etc., the picture and the sound may be disturbed. In such case, please keep the apparatus away from the sources of the disturbance.
CAUTION:
To avoid electric shock or damage to the unit, first firmly insert the small end
of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord in to an AC outlet.
Dear Customer
This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.
European representative of
JVCKENWOOD Corporation is:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
The plastics packaging bags may cause suffocation when they are covered over the head. Tear them open, and keep them away from the reach of infants and children by ensuring that they are disposed of properly.
Consult your dealer as special technique is required when installing this product. Ensure that the fixing screws or nuts are tightened securely, otherwise, the unit may fall off.
Mounting to a firm place
As the unit contains parts rotating at high speed, mount it on a firm place with sufficient strength to support the vibration and weight of the unit.
Mass: Approx. 2.0 kg
If the strength is weak, the vibration will cause fuzzy images on the monitor screen. In the worst scenario, the camera may even fall off and hit somebody, resulting in serious accidents.
Mount the camera correctly
When mounting the unit to the ceiling, make sure to use a ceiling mounting bracket.
Be sure to connect the fall prevention wire (sold separately) and tighten the fixing screws or nuts securely.
Using the correct power and voltage
To supply power to this unit, use a DC 12 V or PoE+ (IEEE802.3at) power. Make use of the correct voltage.
Use the supplied AC adapter for the DC 12 V power supply. Do not use the supplied AC adapter on other devices.
Inspect the unit regularly
Screws may be loosened due to vibration or deterioration of the mounting section. Perform regular inspections for loosened screws and check whether there is any danger of the unit falling off.
Do not hang on this product, shake it, or hang objects over it. Applying an excessive load may cause the product to fall off and result in accidents.
Do not modify this product. It may result in accidents.
Do not place any object inside the product. Placing a metallic or inflammable object may cause a fire or shock hazard.
Contents
Getting Started
Safety Precautions 4
Contents 11
Main Features 13
Precautions 14

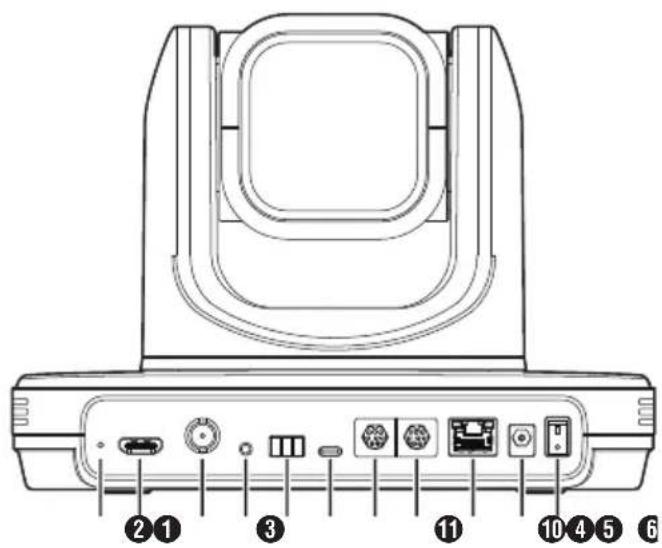

Names of Parts 17

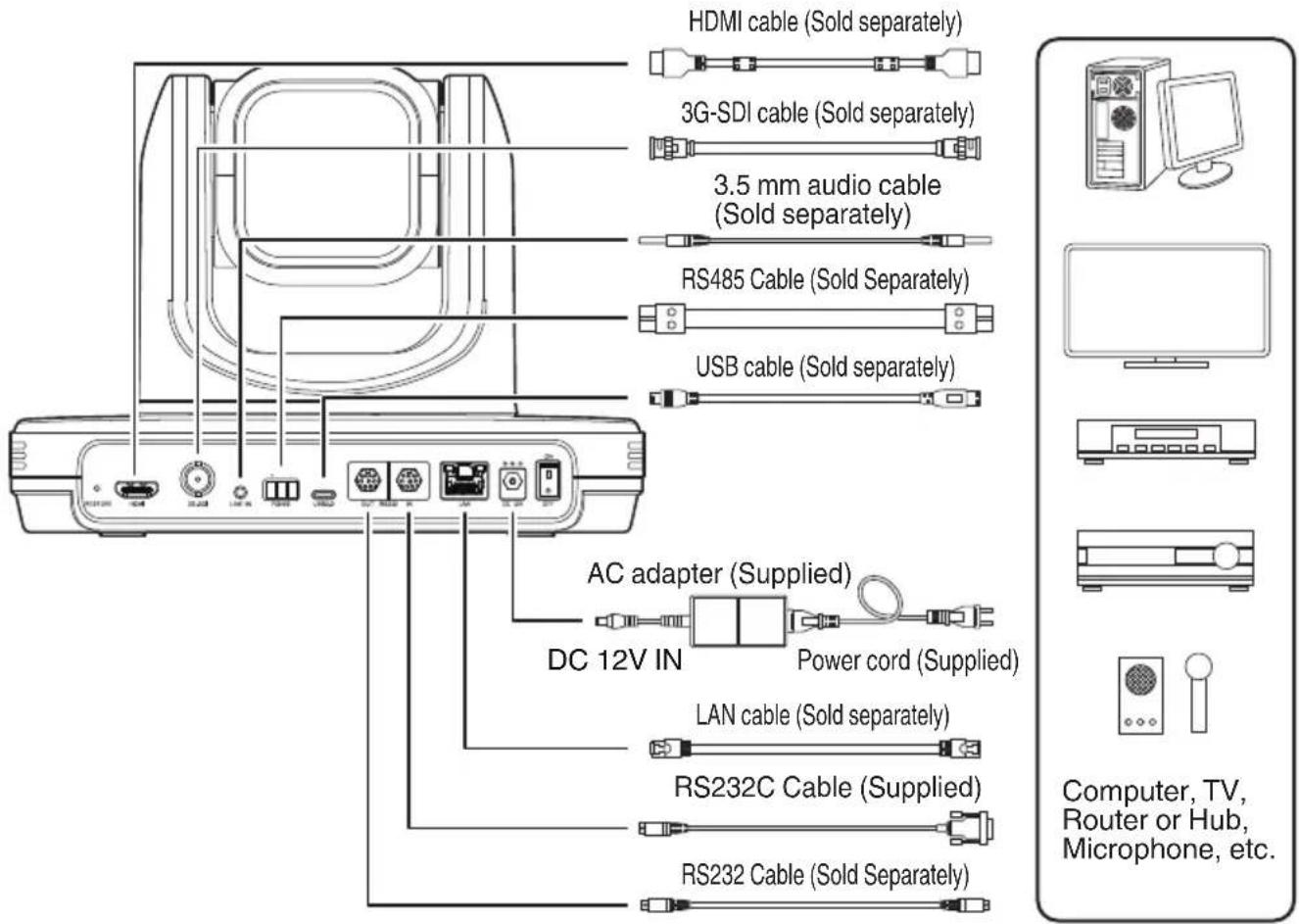

Basic System Diagram 21
Installation/Connection

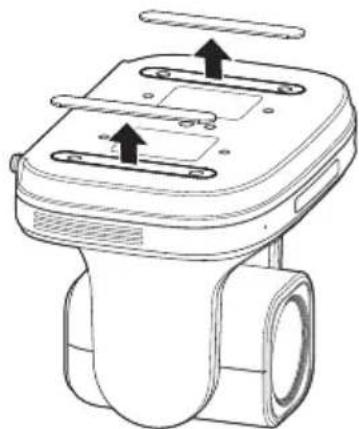

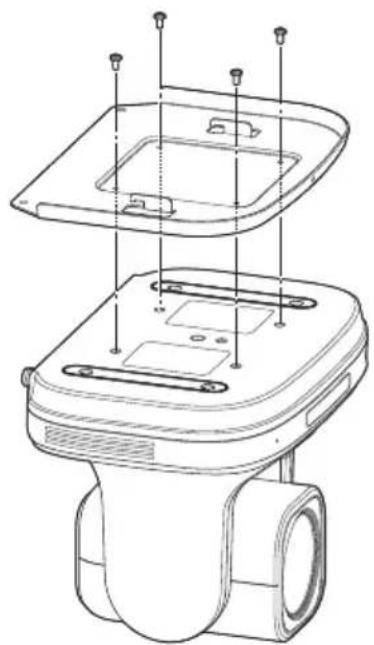

Mounting the Camera to the Ceiling Mount Bracket 22

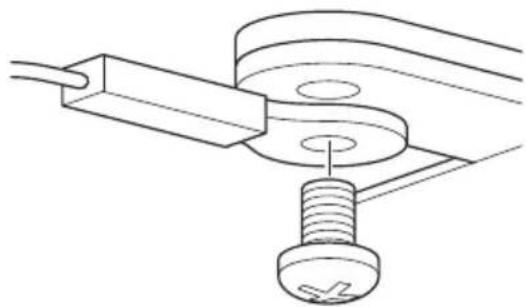

Attaching Label to the Camera 22

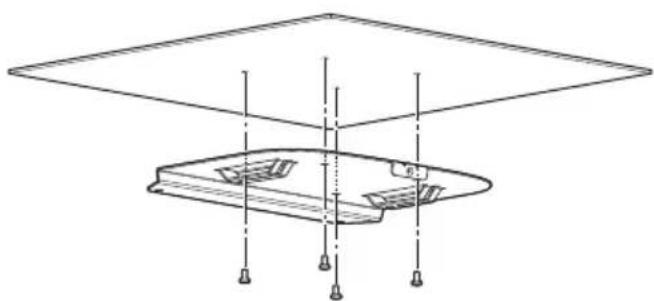

Installing the Camera on the Ceiling 23
Installing the Camera on a Desktop 24
Attaching the Camera to a Tripod 24
Connecting the Cables 24
Network Features 25
Operating Environment 25
Checking the IP address 25
IP address settings 25
Confirming the Connection 26

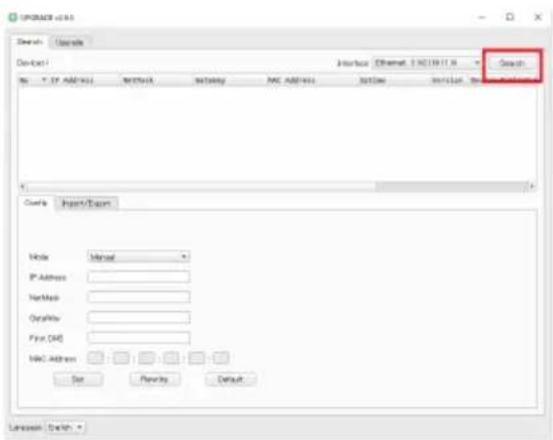

Firmware Update 27
Using View Remote

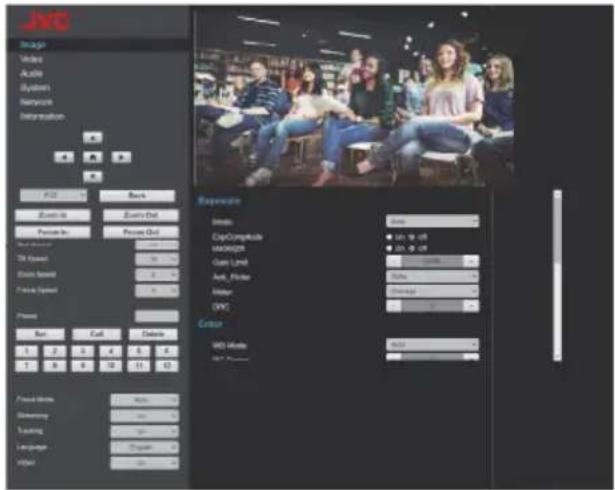

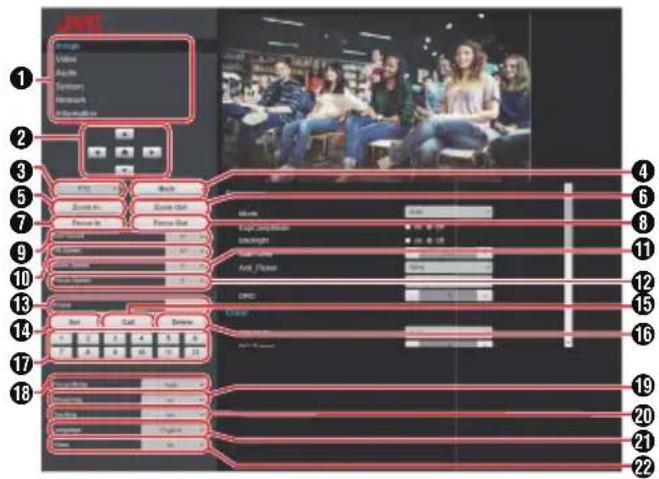

View Remote Screen 28
Image 29
Video 32
Audio 34
System 34
Network 35
NDI Config 510N 37
Information 38
Shooting
Basic Shooting Procedures 39
Selecting the Video Output Resolution and Frame Rate 39
Connecting to the Network
Performing Live Streaming 40
Menu Display and Detailed Settings

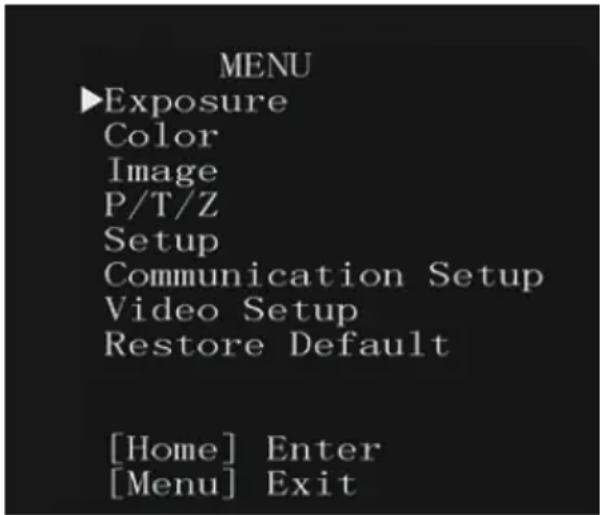

Menu Screen Hierarchical Chart 42
GUI Settings 43
Exposure 43
Color 45
Image 46
P/T/Z (P/T/Z) 46
Setup 47
Communication Setup 47
Video Settings 48
Restore Default 49
Camera Features
Auto-Tracking 50

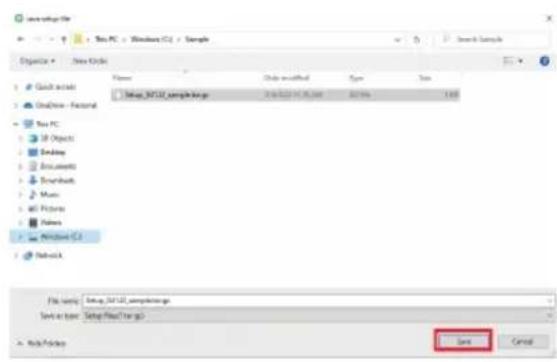

Configuring Setup Files 51
Still Image Capture 52
Others
Troubleshooting 53
Specifications 54
Software License Agreement 57
Important Notice concerning the Software ..... 58
Symbols used
Caution: Describes precautions concerning the operation of this product.
Memo: Describes reference information, such as functions and usage restrictions of this product.
: Indicates the reference page numbers and reference items.
510N
: Feature available on KY-PZ510NWU/KY-PZ510NWE/KY-PZ510NBU/KY-PZ510NBE only.
Content of this manual
- All rights reserved by JVCKENWOOD Corporation. Unauthorized duplication or reprinting of this manual, in whole or in part, is strictly prohibited.
- Illustrated designs, specifications and other contents of this manual are subject to change for improvement without prior notice.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- NDI is a trademark or registered trademark of Vizrt Group in the United States and other countries. • macOS is a trademark of Apple Inc., registered in the U.S. and other countries.
- Google Chrome is a trademark and/or registered trademark of Google LLC.
- QR Code is a registered trademark of Denso Wave Incorporated.
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
- Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective companies. Marks such as ™ and ® have been omitted in this manual.
Main Features
4K Ultra HD
Equipped with a new-generation premium-quality high sensitivity CMOS sensor with a maximum number of 8.40 megapixels, this camera supports 4K (3840 x 2160)/50p, 60p output. It provides high resolution and smooth HDMI or IP video output. This 4K/50p, 60p output also supports H.264 or H.265. H.265 enables high-quality transmission in low bandwidth and H.264 enables transmission with a number of compatibilities.
80.0° Wide-angle Lens
Our first professional zoom lens with a horizontal angle of view of 80.0°. It enables shooting from a closer distance such as in a classroom or conference room. It is designed to completely suppress distortion and chromatic aberration.
Supports the NDI5 streaming protocol 510N
Equipped with NDI|HX that enables video/audio transmission, low latency, and camera control with just a LAN cable. This mode also supports 4K 50p/60p.
Auto-Tracking Function
This camera enables the tracking of a target person without using external control. With the recognition of the human body, face and head by AI, misidentification due to multiple people is minimized. In addition to lateral tracking, the camera is able to zoom and track a person moving away from it to obtain a close-up of the target person.
Supports the SRT streaming protocol
With the packet loss support and encryption, the SRT protocol, which is ideal for live streaming via the Internet, is available at 4K 50/60p.
Multi-camera Synchronization
This camera is able to obtain time information via NTP (Network Time Protocol) and superimpose it on the streaming data to create a multi-camera synchronization solution for live music events, etc. A compatible decoder is required for synchronous playback.
USB Video Class
This camera can be used as a USB camera by connecting the USB Type-C terminal as the camera output to a PC. Enables up to 4K 30p output.
Front LCD
Equipped with a display device on the front to tell the output mode and IP address readily.
Remote Control Unit
This camera can be controlled using the industry standard protocol (IP/serial). It also comes with a user-friendly large infrared remote control to facilitate on-site camera control. Fine-grained control over the camera is also available with our dedicated IP protocol.
Supports PoE+
In addition to the usual AC adapter, this camera supports PoE+ that provides power via a LAN cable.
Precautions
Installation Location
■ Be sure to install the camera horizontally.
Storage and Usage Locations
- Allowable ambient temperature and humidity: Be sure to use this unit within the allowable temperature range of 0 °C to 40 °C (32 °F to 104 °F) and a relative humidity of 30 % to 80 %. Using this unit at a temperature or humidity outside the allowable ranges could result not only in malfunction but also serious impact on the CMOS elements as small white spots may be generated. Please exercise care during use. ■ Strong electromagnetic waves or magnetism: Noise may appear in the picture or audio and/or the colors may be incorrect if this unit is used near a radio or television transmitting antenna, in places where strong magnetic fields are generated by transformers, motors, etc., or near devices emitting radio waves, such as transceivers or cellular phones. ■ Use of wireless microphone near this unit: When a wireless microphone or wireless microphone tuner is used near this unit during recording, the tuner could pick up noise. ■ Inadequate heat ventilation may result in malfunction of this product. Be sure not to block vents around the product. This product discharges heat from the surface of the main unit.
- Do not install it at locations directly subjected to cold air such as near the vents of air-conditioners or at locations with high temperature.
- Avoid using or placing this unit in the following places.
- Locations beyond the allowable operating humidity range of 30 %RH to 80 %RH. (Condensation is not allowed)
- Near equipment that emits strong magnetic fields, such as transformers or motors.
- Near equipment that emits radio waves, such as transceivers and mobile phones.
- Locations with excessive dust and sand.
- Locations that are subject to vibration such as inside a car or ship.
- Locations prone to moisture such as near windows.
- Locations subject to steam or oil, such as kitchens.
- Special environments, such as those with a combustible atmosphere.
- Locations that are subjected to radiation, X-rays, salt attack, or corrosive gases.
- Locations where chemicals are used, such as swimming pools.
- Hot or cold places that are beyond the allowable ambient operating temperature range.
Transportation
- Do not throw away the original box of the unit. Keep it and use it for transporting the unit in the future.
Carrying the Camera
■ Do not drop or hit this unit against a hard object when transporting. ■ Remove the connecting cables when transporting the unit. ■ When transporting the unit, turn off the power of the system. ■ Pack the unit with cushioning material so as to avoid shock when transporting. ■ Handle the unit with care and do not subject it to vibration or shock.
Power Saving
If the camera is not to be used for a long time, turn off the power of the system for safety and energy conservation reasons.
Maintenance
■ Turn off the power before performing any maintenance. ■ Wipe the external cabinet of the unit with a soft cloth. Do not wipe the body with benzene or thinner. Doing so may cause the surface to melt or turn cloudy. When it is extremely dirty, soak the cloth in a solution of neutral detergent, wipe the body with it, and then use a clean cloth to remove the detergent.
License Notices
■ MPEG LA AVC THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
Copyright
■ Any recordings made on this camera that are played back for profit or public preview may infringe on the rights of the owner of the recordings. Do not use the recordings for purpose other than personal enjoyment without prior consent from the owner. And even for personal enjoyment, you may not be able to record without permission from the owner.
Login Password
The default password is widely known. It is very dangerous to use the password without changing it. Set a password that is not easily guessed. It is also recommended to change the password regularly.
Others
This camera will perform the initial operation of pan/tilt/zoom upon powering on. The camera body may be captured in the recording depending on the pan, tilt, or zoom position. Do not subject the lens to strong light sources such as sun rays. This may cause the equipment to malfunction. During audio input or when using the mic, noise may occur when the rotation mechanism is rotated horizontally/vertically, when zooming is performed, or when the power is turned on/off. This is not a malfunction. The pan operation range of this product is limited to ±162.5°. Regardless of the function, operation is not possible beyond this range. Some switching hubs of products that are equipped with intelligent features may include a broadcast/multicast suppression function. Viewing of multicast images on this product may fail if this function is enabled. The dark areas on the screen may appear grainy or white spots may increase. When switching between color and black-and-white images, the brighter area on the screen is emphasized, which may reduce the visibility. However, this is not a malfunction. If the power supply voltage is momentarily cut off or reduced due to lightning or turning on of the air conditioner's power, the image may be disrupted or noise interference may occur. When shooting objects with a luminance difference or near a light source, ghost may occur on the screen. This is a feature of the built-in lens, and is not a malfunction. When the monitor in use has a wide display area, lines may appear at the peripheral area of the screen. Operation via an infrared remote control unit may not work depending on where and how the camera is installed.
An afterimage can appear if you view a moving object on the monitor output, however this is not a malfunction. Do not put anything into the camera unit. Metal and flammable items entering from the connectors can result in fire or electric shock. The camera may not show stable pictures for a few seconds immediately after the power is turned on, but this is not a malfunction. Do not drop this unit or subject it to strong impact or vibration as it is a precision equipment. Optical performance of lens: Due to the optical performance of the lens, color divergence phenomena (magnification chromatic aberration) may occur at the periphery of the image. This is not a camera malfunction. Noise may appear in the image when switching modes. Use the supplied AC adapter for the power supply (DC 12 V). Do not use the supplied AC adapter on other devices. Use the supplied power cord. And do not use the supplied power cord for any other devices.
Before starting an important recording, be sure to perform a test recording in order to confirm that a normal recording is possible.
We shall not be liable for the loss of recordings or opportunities in the event that recording could not be performed due to a problem that arises during the use of the video camera or recorder.
Names of Parts
① Tally lamp Light turns on or goes off during external control. Turns on/off according to the menu setting and blinks depending on the status of this camera. ② Built-in microphone You can configure the menu settings to make use of the built-in microphone. ( P34 [ Input Type ] ) ③ STANDBY lamp Lights up in green during standby. ④ Information display Displays information on the camera settings. ⑤ POWER lamp Lights up in blue when the power is turned on.
Terminal Section
① RESTORE switch (Reset switch)
Memo : ____ • Press and hold down to activate reset.
② HDMI terminal ③ 3G-SDI terminal ④ LINE IN terminal ⑤ RS485 terminal
- Half duplex mode
- Baud rate: 2400/4800/9600/38400 bps
- Start position: 1 bit • Data bit length: 8 bits
- Stop bit length: 1 bit
- Check digit: None
⑥ USB 2.0 terminal
⑧ RS232 IN terminal RS232 communication control
⑦ RS232 OUT terminal
The serial port parameters are as follows.
- Half duplex mode • Baud rate: 2400/4800/9600/38400 bps
- Start position: 1 bit • Data bit length: 8 bits
- Stop bit length: 1 bit
- Check digit: None
| RS-232C IN RS-232C OUT | |||
| Pin Number | Signal Name | Pin Number | Signal Name |
| 1 DTR_IN | 1 DTR_OUT | ||
| 2 DSR_IN | 2 DSR_OUT | ||
| 3 TXD_IN | 3 TXD_OUT | ||
| 4 GND | 4 GND | ||
| 5 RXD_IN | 5 RXD_OUT | ||
| 6 GND | 6 GND | ||
| 7 IR_OUT | 7 NC | ||
| 8 NC 8 NC | |||
Corresponding Pins between Camera and Windows DB-9
| Camera | Windows DB-9 |
| 1.DTR | 1.CD |
| 2.DSR | 2.RXD |
| 3.TXD | 3.TXD |
| 4.GND | 4.DTR |
| 5.RXD | 5.GND |
| 6.GND | 6.DSR |
| 7.IR OUT | 7.RTS |
| 8.NC | 8.CTS |
| 9.RI |
Corresponding Pins between Camera and Mini DIN
| Mini DINCamera | |
| 1.DTR | 1.DTR |
| 2.DSR | 2.DSR |
| 3.TXD | 3.TXD |
| 4.GND | 4.GND |
| 5.RXD | 5.RXD |
| 6.GND | 6.GND |
| 7.IR OUT | 7.NC |
| 8.NC | 8.NC |
⑨ LAN(PoE+) terminal ⑩ DC 12V terminal 11 Power switch
Infrared Remote Control
1 STANDBY button Switches between the standby and normal modes. 2 NUMBER button For preset configuration or invoking a preset number. ③ * button To be used together with other buttons. 4 PRESET button Stores the preset position. [PRESET] + NUMBER button (1 to 9): Stores the preset position in the selected NUMBER button.
Memo: ____
- Press the buttons above in sequence.
⑤ HOME button Restores the orientation of the camera to face the front. Functions as a confirmation button when the menu is displayed. 6 RETURN button Functions as a cancel button when the menu is displayed. ⑦ ZOOM button SLOW ZOOM: Zooms in [+] or zooms out [-] the camera at a low speed. FAST ZOOM: Zooms in [+] or zooms out [-] the camera at a high speed.
8 L/R SET button Press the button together with the NUMBER button [1] or [2] at the same time to pans the camera toward the left or right. - Pressing the left or right side of the [L / R SET] + [1] (STD) at the same time pans the camera toward the left or right accordingly. - Pressing the left or right side of the [L / R SET] + [2] (REV) at the same time pans the camera toward the right or left accordingly. This setting comes in handy in cases such as when the camera is suspended from the ceiling.
⑨ FOCUS button For adjusting the focus.
• [AUTO]: Auto Focus mode (AF) • [MANUAL]: Manual Focus mode (MF) - During MF, focus is adjusted using [FAR] (for setting focus on a distant subject) and [NEAR] (for setting focus on a nearby subject).
10 P/T RST button Resets the pan and tilt positions.
11 BACKLIGHT button Press the button to enable backlight compensation. Pressing the button again disables backlight compensation.
- This feature is available only when [Exposure] is configured to "Auto".
- Use this feature when there is a light source behind the subject that causes the subject to appear dark in the image.
⑫ MENU button Displays the menu or exits the menu display.
13 PAN/TILT CONTROL button Press the arrow button to pan or tilt the camera. Pressing the [HOME] button restores the orientation of the camera to face the front. Moves the cursor when the menu is displayed.
14 RESET button Erases the preconfigured settings. [RESET] + NUMBER button (0 to 9): Erases the preset position in the selected NUMBER button. [*] + [#] + [RESET]: Erases all the preset positions.
- Press the buttons above in sequence.
15 IR REMOTE CONTROL, AUTO TRACKING buttons
- IR REMOTE CONTROL
For configuring the number of the camera you want to control using the infrared remote control.
[∗] + [#] + [F1]: Address 1
[*] + [#] + [F2]: Address 2
[*] + [#] + [F3]: Address 3
[※] + [#] + [F4]: Address 4
Memo: ____
Press the buttons above in sequence.
• AUTO TRACKING
Configuring this setting enables the camera to lock on to a target and perform auto tracking.
Press the F3 button to start and the F4 button to exit.
(P50 [Auto-Tracking])
16 # button To be used together with other buttons.
⑰ CAMERA SELECT button Press the number of the camera you want to control using the infrared remote control.
Memo: ____
- The remote control unit makes use of 2 AAA dry-cell batteries.
- Make sure to load the battery in the correct +/- orientation.
Caution: ____
- Do not place the remote control at a location that is subject to high temperature. Otherwise, the remote control may be deformed, thus resulting in malfunction.
- Place the batteries at a location that is out of reach of children. In the event that the battery is swallowed by mistake, consult a doctor immediately.
- Do not throw the batteries into fire or place them at a location that is subject to high temperature. Otherwise, the batteries may explode.
- When replacing the batteries, use ones that are of the same model or type. Using a different type of battery may cause it to explode.
Shortcut settings
[∗] + [#] + [1]:
Configures the menu language to English.
[∗] + [#] + [3]:
Configures the menu language to Chinese.
[∗] + [#] + [4]:
Displays the current IP address.
[∗] + [#] + [6]:
Resets all menu settings to the default values.
[∗] + [#] + [8]:
Displays the camera version.
[∗] + [#] + [9]:
Flips the video image horizontally or vertically.
[*] + [#] + [MANUAL]:
Resets the IP address to the default value.
Memo: ____
- Press the buttons above in sequence.
Basic System Diagram
Quick Start
① Check to ensure that the connections are correct before turning on the power. ② Connect the AC adapter to the DC 12 V terminal. Turn on the power switch. ③ Initialization is activated after the camera is powered on. The camera lens moves to both the horizontal and vertical limit positions. Initialization is complete after it has moved back to the front view position.
Memo:
- Operation is possible when the light of the STANDBY lamp has turned off.
- If Preset 1 is preconfigured, the camera will move to the Preset 1 position.
Use as a USB camera
This camera can be used as a USB camera by connecting the USB2.0 port to a PC using a USB2.0-compatible cable (sold separately).
Memo:
- Streaming from the camera will not take place while it is connected to a PC via USB. To start video streaming, disconnect the USB connection with the PC and restart the camera.
- If the USB connection with the PC is disconnected, turn on the power of the camera again.
- To enable the Auto-Tracking Function on the USB camera, turn on the power of the camera after connecting the camera and the PC.
Mounting the Camera to the Ceiling Mount Bracket
- Be sure to put on protective glasses to protect your eyes from falling objects when mounting the camera.
- Be sure to place the base of the camera horizontally. The camera will not operate properly if it is slanted.
Memo:
- The ceiling mount bracket is not necessary when the camera is installed on a desktop or attached to a tripod.
- If necessary, make a hole (Φ40 mm) to route the connection cable and fall prevention wire (ceiling) into the ceiling.
Caution:
- The fall prevention wire (for ceiling) is not supplied. Make use of the wire while taking note of its length, strength, pull and material (insulation).
- Attach the fall prevention wire (ceiling) to a place with sufficient strength (ceiling slab, etc.).
- Take note of the length, strength, pull and material (insulation) of the fall prevention wire (for ceiling) and use one with a wire strength of 150 N (15 kg) or more.
- The inner diameter of the ring section of the fall prevention wire (ceiling) mounted on the camera should be above Φ3 mm but below Φ4 mm, the outer diameter should be Φ9 mm and below, and the thickness 2 mm and below.
- The camera does not come with mounting screws for attaching it to the ceiling. Make appropriate use of the M5 expansion screws (x4) according to the thickness of the ceiling.
1. Place the ceiling mounting bracket (ceiling side) against the ceiling and mark the mounting position on the ceiling.
Memo:
- Take note of the front direction of the camera when placing the marks.
2 Drill holes into the ceiling at the marked positions.
Memo :
- Insert a straw or toothpick into the mounting holes to determine the depth and required length of the screws.
3 Place the ceiling mounting bracket (ceiling side) against the ceiling again at the marked position.
4 Fasten the mounting bracket using the M5 expansion screws (sold separately).
Memo :
- Check that the screws are tightened securely when mounting is completed.
Attaching Label to the Camera
Before installing the camera to the ceiling, attach the JVC logo label as illustrated in the diagram.
1 Peel off the label backing. 2 Turn the label upside down. 3 Align the center position of "V" of the JVC logo on the camera with that on the label, followed by attaching the label.
Memo :
- If there is dust or dirt on the surface, remove accordingly before attaching the label.
- Make sure that the JVC logo label is not tilted when attaching.
Installing the Camera on the Ceiling
1 Remove the feet from the bottom surface of the camera.
2 Use the four M3 screws that come with the camera to attach the ceiling mounting bracket (camera side) to the bottom surface of the camera.
3 Mount the camera to the ceiling mount bracket (ceiling side).
Attach the hook on the ceiling mounting bracket (camera side) to the hole on the ceiling mounting bracket (ceiling side).
4 Use three M3 screws that come with the camera to attach.
Fasten the drop prevention wire (sold separately) together with one of the screws.
Connect the cables after these procedures.
Installing the Camera on a Desktop
- Place the camera on a flat surface.
- Be sure to place the base of the camera horizontally. The camera will not operate properly if it is slanted.
Memo: ____
- The use of ceiling mount bracket is not required.
Caution:
- Do not move the camera while the power of the system is on. Doing so may result in malfunctions or accidents.
- Do not hold the camera head while carrying the camera.
Connect the cables after these procedures.
Attaching the Camera to a Tripod
- Attach a tripod using the screw hole at the bottom of this product. (1/4-20UNC, ISO1222 (6.35 mm))
- To prevent the camera from falling off, which may result in injuries or damages, read the "INSTRUCTIONS" of the tripod to be used and make sure that it is securely attached.
- To ensure proper pan/tilt operation, set the tripod such that the camera is parallel to the horizontal surface.
Memo: ____
The use of ceiling mount bracket is not required.
Caution: ____
- If the camera exceeds the weight limit of the tripod, do not mount it on the tripod.
- Use the tripod on a stable surface.
- Use screws with a screw length between 4.5 mm and 7 mm.
- Do not install the camera at a high location when the camera is attached to a tripod.
Connect the cables after these procedures.
Connecting the Cables
1. Connect the cables.
- Connecting to an HDMI/SDI monitor allows you to check the camera images.
- To input the audio, connect the audio cable to the LINE IN terminal.
2 Connect the LAN cable.
- You can operate the camera from a web browser by connecting a LAN cable.
3 Connect the power cable.
- To supply power from an AC adapter, connect an AC adapter cable.
- To supply power via PoE+, do not connect the AC adapter cable.
4 After turning on the power switch, the POWER lamp lights up and initialization starts.
The camera lens moves to both the horizontal and vertical limit positions. Initialization is complete after it has moved back to the front view position.
Memo :
- Operation is possible when the light of the STANDBY lamp has turned off.
- If Preset 1 is preconfigured, the camera will move to the Preset 1 position.
Caution :
- Do not supply power through the AC adapter cable and LAN cable at the same time.
Warning
To supply power to this unit, use a DC 12 V or PoE+ (IEEE802.3at) power. Make use of the correct voltage.
Supplying a power beyond the rated value may result in failures, smoke or fire. If the camera breaks down, turn off the power and contact our service center immediately.
When a power beyond the rated value is supplied, the internal components may be damaged even if no abnormality is found on the appearance and operation of the camera.
Please contact our service center immediately for servicing (charged separately).
Network Features
| Operating Environment
Operation has been verified for the following environments.
- Computer
- OS: Windows 10 Web browser: Google Chrome
- OS : macOS 12.4 Web browser: Google Chrome
| Checking the IP address
There are two ways to identify the IP address of the camera.
① Press *, # and the number 4 button on the remote control in sequence to display the IP address of the camera on the screen of the HDMI/SDI monitor connected to the monitor. ② Connect the camera to a PC using a network cable and run "upgrade_standard.exe" to search for the IP address.
Memo :
- Download the "upgrade_standard.exe" from the URL stated on the cover page.
IP address settings
There are two ways to configure the IP address of the camera.
① Log in to the web page, and select [Network] → [Lan Settings] to make changes to the IP address, subnet mask and gateway. Click "Submit" to restart the camera. ② Use "upgrade_standard.exe" to set the IP address.

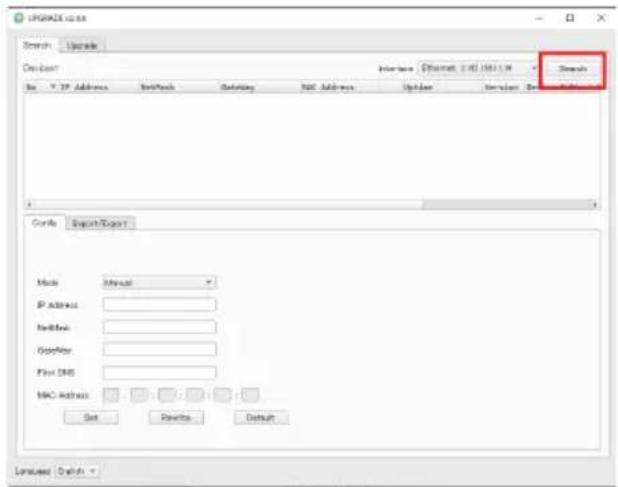

1. Click the [Search] button.
2. Select the IP address of the camera you want to change.
3. After changing the value of "IP Address", "NetMask", and "GateWay" is complete, click the [Set] button.
- When the setting is successful, the following display appears and the camera restarts.
Confirming the Connection
1. Start up the web browser on the terminal you wish to connect to the camera, and enter the IP address in the address field. (Example: http://192.168.0.10)
Memo:
- The default IP address of camera is 192.168.0.10.
2. Enter the user name and password.
Enter the user name (jvc) and the password on the login screen to display the Live View screen.
Memo:
- A screen for changing the password is displayed when you log in for the first time and enter the default password ("0000"). Please change the password.
Firmware Update
Update the camera's firmware from a Windows PC.
It is recommended to update the firmware to the latest version once it is released to the public.
Note:
- Download "upgrade_standard.exe" and the firmware update file from the URL link on the cover page of this manual.

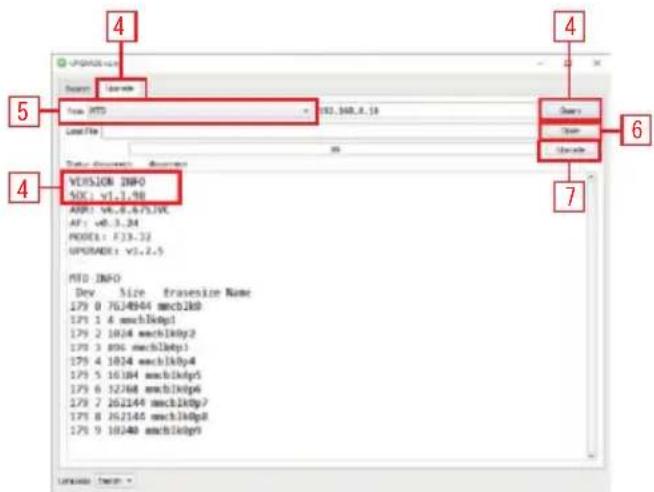

1. Connect the camera to a PC on the same network and run "upgrade_standard.exe" on the PC. 2. Click the [Search] button.
Cameras connected on the same network are displayed.
3. Select the camera to update.
Double-click to select.
4. Click the [Query] button under the [Upgrade] tab. The current firmware version is displayed. 5. Click the [Type] button and select "MTD".
6. Click the [Open] button and select the update file (.img file). 7. Click the [Upgrade] button.
The firmware update starts.
The update is complete when "Upgrade Success" is displayed.
8. After the update is complete, press and hold the "RESTORE" switch on the terminal area at the back of the camera.
The camera settings are initialized.
View Remote Screen
Memo :
- Some menu items may not be configurable depending on the operating mode and status of the camera.
- After changing the setting menu, the setting value may be initialized if the power is turned off before the saving is completed with the [Submit & Reboot] or [Submit] button.
- Depending on the camera condition, the actual setting value may not be reflected on the display of the View Remote screen. In this case, reload the web browser.
① Settings menu selection switch Displays the different settings menus. Selecting "Image" displays the camera image.
Memo :
• Audio is not output. • Supports full-screen display. - To display the menu on the live screen, configure [Encode Codec] of [First stream] or [Second stream] to "H.264". If the menu display is too small, decrease the [Resolution] for [First stream] or [Second stream] accordingly.
② Pan/tilt, menu control and HOME buttons Moves the camera in one of the ◀▶▲▼ directions.
Pressing the HOME button restores the pan, tilt and zoom positions to the default setting. If the camera menu is open, move the cursor using ◀▶▲▼, followed by pressing the HOME button to confirm.
Memo :
- Selecting "OSD" at ④ Pan/tilt operation/ Camera menu call-up enables camera menu operation. Selecting "PTZ" enables the camera operation.
③ Pan/tilt operation/ Camera menu call-up Selecting "OSD" displays the camera menu on the live video of the web browser, streaming video and HDMI (SDI) screen. You can use the buttons at ② to move the menu cursor and to confirm your selection. Selecting "PTZ" closes the camera menu. You can pan and tilt using the buttons at ②.
④ Back button Returns to the next higher level in the menu during menu operation.
⑤ Zoom In button Moves the zoom toward the Tele-end.
⑥ Zoom Out button Moves the zoom toward the Wide-end.
⑦ Focus In button Moves the focus toward the Tele-end when the camera is in the manual focus mode.
⑧ Focus Out button Moves the focus toward the Wide-end when the camera is in the Manual Focus mode.
9 Horizontal speed control For configuring the speed of horizontal movement. [Setting Values: 1 to ● 10 to 24]
10 Vertical speed control For configuring the speed of vertical movement. [Setting Values: 1 to ● 10 to 20]
11 Zoom speed control For specifying the zooming speed. [Setting Values: 1 to ● 5 to 7]
12 Focus speed control For setting the focusing speed. [Setting Values: 1 to ● 5 to 7]
13 Preset number After setting the preset number, pressing the 14 Preset button saves the pan, tilt or zoom position and pressing the 15 Preset Call button pans, tilts or zooms to the position that was saved. [Setting Values: 1 to 255]
14 Preset button Saves the current pan/tilt/zoom position to the preconfigured preset number.
15 Preset Call button Calls up the corresponding pan/tilt/zoom position using a preset number.
Memo:
- The camera will not move if a pan/tilt/zoom position is not stored in the selected preset number.
16 Preset Delete button Deletes the information of the pan, tilt or zoom position that has been configured to the preset number. 17 Direct preset number Moves to the preset number directly with one action. Pressing 1 moves the camera lens to Preset number 1.
18 Focus mode Switches between Auto Focus and Manual Focus.
19 Streaming button Switches streaming to on or off.
20 Tracking button Switches the Auto-Tracking to on or off.
Memo: ____ You can also start and stop tracking from the View Remote screen.
- Start tracking: Set the Tracking button to "on".
- Stop tracking: Set the Tracking button to "off". (P50 [Auto-Tracking])
② Language button For configuring the display language on the web screen. [Setting Values: ●English, Français, Deutsch, Italiano, Español, Русский, 中文(簡), 日本語]
22 Video Setting this button from "off" to "on" restores the position of Preset number 1 and outputs the camera image. (The camera enters into video on mode.)
Setting this button from "on" to "off" moves the pan/tilt position to the rear facing down and stops the camera image output. (The camera enters into video off mode.)
This is the setting for adjusting the image quality. Memo: ____
- To display the menu on the camera's video image, configure [Encode Codec] of [First stream] or [Second stream] to "H.264". If the menu display is too small, decrease the [Resolution] for [First stream] or [Second stream] accordingly.
Exposure
→ Mode
For selecting the method for controlling the exposure.
- Auto Gain/Shutter/Iris are adjusted automatically.
- Manual Gain/Shutter/Iris operate according to the menu setting.
- SAE Shutter speed is configured according to the setting in the [Shutter] menu, while gain and iris are automatically adjusted.
- AAE Iris is configured according to the setting in the [Iris] menu, while gain and shutter speed are automatically adjusted.
- Bright Adjusts the brightness of the RAW data.
[Setting Values: ●Auto, Manual, SAE, AAE, Bright]
→ ExpCompMode
Performs exposure compensation when this is configured to on.
[Setting Values: on, ●off]
Memo : ____
- This item can be configured when [Mode] is set to "Auto".
→ ExpComp
Adjusts the exposure compensation value. [Setting Values: -7 to +7 (●0)]
Memo : ____
- This item can be configured when [ExpCompMode] is set to "on".
→ Backlight
For configuring backlight compensation.
[Setting Values: on, ●off]
Memo:
- This item can be configured when [Mode] is set to "Auto".
→ Bright
Adjusts the brightness.
[Setting Values: 0 to 17 (●7)]
Memo:
- This item can be configured when [Mode] is set to "Bright".
→ Gain
This function electrically boosts the light sensitivity when there is insufficient illumination on the object. You can set the gain of the video amplifier according to the brightness of the object.
[Setting Values: ●0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, 45dB]
Memo:
- This item can be configured when [Mode] is set to "Manual".
→ Shutter
For configuring the shutter speed.
- For "60Hz"[Video Format]
[Setting Values: 1/30, ●1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000]
- For "50Hz"[Video Format]
[Setting Values: 1/25, ●1/50, 1/75, 1/100, 1/120, 1/150, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000]
Memo:
- This item can be configured when [Mode] is set to "Manual" or "SAE".
- "1/30" can be selected when the frame rate is set to 30p/29.97p, and "1/25" can be selected when the frame rate is set to 25p.
(See P39 [Selecting the Video Output Resolution and Frame Rate])
→ Iris
For configuring the iris value (F number).
[Setting Values: ●F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6, F11.0, Close]
Memo:
- This item can be configured when [Mode] is set to "Manual" or "AAE".
→ Gain Limit
For setting the maximum value of the operation that automatically switches the gain boost level according to the brightness.
[Setting Values: 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, 45dB]
Memo:
- This item can be configured when [Mode] is set to "Auto", "SAE", "AAE", or "Bright".
→ Anti-Flicker
For correcting video image flicker that occurs under a fluorescent light.
[Setting Values: 50Hz, 60Hz, off] (U model)
[Setting Values: 50Hz, 60Hz, off] (E model)
Memo:
- This item can be configured when [Exposure] is set to "Auto", "AAE", or "Bright".
→ Meter
Shutter speed, iris (F number), and ISO speed are controlled to adjust the exposure to an appropriate level according to the brightness of the subject in the [Mode] settings. Use this setting to configure the method of compensation in this case.
[Setting Values: Average, Center, Smart, Top]
Memo:
- This item can be configured when [Mode] is set to "Auto", "SAE", "AAE", or "Bright".
→ DRC
Adjusts the intensity of DRC.
[Setting Values: 0 to 8 (●0)]
Color
→ WB Mode
For setting the white balance mode.
- Auto: The white balance is automatically adjusted according to the color temperature changes of the lighting that is currently used to illuminate the subject.
- Indoor: For configuring to a color temperature that is suitable for indoor shooting.
- Outdoor: For configuring to a color temperature that is suitable for outdoor shooting.
- Manual: Enables adjustment of the color temperature using R gain and B gain.
- OnePush: Selecting "OnePush" and pressing the [●] button adjusts the white balance according to the color temperature of the lighting that is currently used to illuminate the subject.
[Setting values: ●Auto, Indoor, Outdoor, Manual, OnePush]
→ R Gain
Adjusts the R (red) gain in the Manual mode.
[Setting Values: 0 to 255 (●61)]
Memo: ____
- This item can be configured when [WB Mode] is set to "Manual".
→ RG Tuning
Fine-tunes the R (red) component.
[Setting Values: -10 to +10 (●0)]
Memo : ____
- This item can be configured when [WB Mode] is set to "Auto".
→ B Gain
Adjusts the B (blue) gain in the Manual mode.
[Setting Values: 0 to 255 (●67)]
Memo : ____
- This item can be configured when [WB Mode] is set to "Manual".
→ BG Tuning
Fine-tunes the B (blue) component.
[Setting Values: -10 to +10 (●0)]
Memo : ____
- This item can be configured when [WB Mode] is set to "Auto".
→ Saturation
For adjusting the saturation.
[Setting Values: 60% to 200% (●100%)]
→Hue
For adjusting the hue.
[Setting Values: 0 to 14 (●7)]
→ Brightness
For adjusting the brightness.
[Setting Values: 0 to 14 (●7)]
* When [Style] is set to a value other than "Bright"
[Setting Values: 0 to 14 (●8)]
* When [Style] is set to "Bright"
→ Contrast
For adjusting the contrast.
[Setting Values: 0 to 14 (●7)]
* When [Style] is configured to "Default" or "Norm"
[Setting Values: 0 to 14 (●9)]
* When the [Style] item is configured to "Bright" or "PC"
→ Sharpness
Adjusts the outline correction value.
[Setting Values: 0 to 11 (●6)]
* When [Style] is configured to "Default" or "Norm"
[Setting Values: 0 to 11 (●7)]
* When the [Style] item is configured to "Bright" or "PC"
→ Flip-H
Flips the video image in the horizontal direction.
[Setting Values: on, ●off]
→ Flip-V
Flips the video image in the vertical direction.
[Setting Values: on, ●off]
B&W Mode
Switches the video to a grayscale display.
[Setting Values: on, ●off]
→ Style
For configuring the picture quality adjustment mode.
[Setting Values: ●Default, Norm, Bright, PC]
Memo :
- The settings will not be reset even when you press the RESTORE switch.
NR3D-Level
For configuring 3D noise reduction.
[Setting values: off, 1 to 8 (●6), Auto]
Video
This is the setting screen for the HDMI/SDI terminal and streaming video.
After configuring the items, press the [Submit & Reboot] or [Submit] button.
The settings will be applied when the camera is next restarted.
Video Settings
→ HDMI/SDI Output
For selecting the video output destination.
[Setting values: SDI, ●HDMI]
→ Video Format
For configuring the video format.
- When the video output is "HDMI" [Setting values: 3840x2160/60p, 3840x2160/59.94p, 3840x2160/50p, 3840x2160/30p, 3840x2160/29.97p, 3840x2160/25p, 1920x1080/60p, 1920x1080/59.94p, 1920x1080/50p, 1920x1080/60i, 1920x1080/59.94i, 1920x1080/50i, 1920x1080/30p, 1920x1080/29.97p, 1920x1080/25p, 1280x720/60p, 1280x720/59.94p, 1280x720/50p]
- When the video output is "SDI" [Setting values: 1920x1080/60p, 1920x1080/59.94p, 1920x1080/50p, 1920x1080/60i, 1920x1080/59.94i, 1920x1080/50i, 1920x1080/30p, 1920x1080/29.97p, 1920x1080/25p, 1280x720/60p, 1280x720/59.94p, 1280x720/50p]
[Default Value: 1920x1080/59.94p] (U model)
[Default Value: 1920x1080/50p] (E model)
Setup Type
For selecting the method to configure the streaming video.
[Setting Values: Recommended, ●Manual]
→ Video Format
For selecting the streaming frame rate.
[Setting Values: UHD/2160p, ●FHD/1080p, HD/720p]
Memo :
- Available when [Setup Type] is set to "Recommended".
→ Bandwidth
For selecting the streaming bandwidth.
[Setting Values: High, Medium, ●Low]
Memo :
- Available when [Setup Type] is set to "Recommended".
First Stream, Second Stream
RTSP and RTMP(S) allow simultaneous streaming of videos in the First Stream and Second Stream settings.
Memo :
- Available when [Setup Type] is set to "manual".
→ Encode Codec
For selecting the streaming video codec.
[Setting Values: ●H.264, H.265, MJPEG]
Memo:
- Select "H.264" or "H.265" when [Resolution] (first stream) is set to "3840x2160".
→ Resolution
For selecting the streaming video resolution.
[Setting Values (First Stream): 3840x2160,
●1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360]
[Setting Values (Second Stream): 720x480, 720x408, 640x480, ●640x360, 480x320, 320x240]
Memo:
- When [Video Settings]→[Video Format] is set to "3840x2160/60p", "3840x2160/59.94p" or "3840x2160/50p", "3840x2160" cannot be selected.
→ Frame Rate
For configuring the streaming video frame rate.
[Setting Values: 1 to 60]
Memo:
- To configure [Frame Rate] to "60fps" or "50fps" when [Resolution] is set to "3840x2160", configure [Video Settings]→[Video Format] to a value other than "3840x2160/**p".
→ Bit Rate
For configuring the bitrate of the video stream when [Encode Codec] is configured to "H.264" or "H.265".
[Setting Values (First Stream): 32 to 61440]
(●8192)]
[Setting Values (Second Stream): 32 to 20480
(●1024)]
→ Qfactor
For configuring the Q value when [Encode Codec] is configured to "MJPEG".
[Setting values: 1 to 99 (●80)]
→ I Key Frame Interval
Performs encoding with the I-frame as the starting point.
Lowering the value to shorten the interval helps to maintain a stable picture quality even when there are rapid changes in the video image. However, the picture quality for video images with little change will deteriorate.
[Setting Values: 2 to 60]
→ Bit Rate Control
For selecting Constant Bitrate (CBR) or Variable Bitrate (VBR).
[Setting values: ●CBR, VBR]
Advanced Settings
→ Encode Level
For selecting a streaming video encoding level.
[Setting Values: ●mainprofile, highprofile]
Memo:
- If [Encode Codec] for [First Stream] or [Second Stream] is configured to "H.265", the setting is fixed at "mainprofile".
Audio
This is the setting screen for the HDMI terminal, SDI terminal and streaming audio. After configuring the items, press the [Submit & Reboot] or [Submit] button. The settings will be applied when the camera is next restarted.
Audio Settings
→ Audio Switch
Configuring this item to "on" enables audio input from the LINE IN terminal (LINE IN) or the built-in microphone (MIC).
[Setting Values: ●on, off]
Memo:
- This setting remains valid when the camera is connected to a PC via USB.
→ Sample Rate
For configuring the sampling rate. Fixed at "48K".
→ Bit Rate
For configuring the bitrate. [Setting Values: ●96K, 128K]
→ Input Type
For setting the audio input method. [Setting values: ●LINE IN, MIC]
→ Input Vol
For configuring the volume of the audio input. [Setting Values: 0 dB to 59 dB (●20 dB)]
→ ADTS Options
For configuring the ADTS option. [Setting Values: on, ●off]
System
For restarting the system and management of users.
Initialize
→ Reboot
Restarts the camera. Use this function to apply new video or audio settings.
User
→ UserName
User name for accessing the camera from the web browser. Fixed at "jvc".
→ Passwd
For configuring the password for accessing the camera from a web browser.
Memo :
- The password cannot be configured to the default password value (0000).
Restore Default
After initializing the settings, all settings such as the IP address will be restored to the factory default settings. After the initialization, it is necessary to close the browser and reconnect.
Network
For configuring network-related settings.
After configuring the items, press the [Submit & Reboot] or [Submit] button.
The settings will be applied when the camera is next restarted.
SRT Settings
Configuring it to "on" and pressing the [Submit & Reboot] button starts SRT streaming after the camera is restarted.
[Setting Values: ●on, off]
→ SRT Mode
For configuring the SRT connection mode.
[Setting values: Caller, ●Listener, Rendezvous]
→ SRT Server
For setting the address of the SRT server.
The default value is 192.0.2.1.
Memo :
- This item can be configured when [SRT Mode] is set to "Caller" or "Rendezvous".
→ SRT Port
For configuring the SRT port for use during live streaming.
The default value is "4578".
→ SRT Encryption
For configuring SRT encryption.
[Setting values: ●None, AES-256, AES-192, AES-128]
→ SRT Password
For configuring the SRT password.
You can enter up to 10 to 15 characters.
The default value is "1234567890".
→ SRT Bandwidth Overhead
Enter the SRT bandwidth overhead using an integer between 5% and 100%.
The default value is "25%".
→ SRT Latency
Enter the amount of SRT latency using an integer between 20 ms and 8000 ms.
The default value is "500ms".
→ SRT FEC
For configuring the FEC mode.
It enables recovery of data streaming packet loss without retransmission.
[Setting values: 6x6, 8x8, 10x10, ●off]
→ SRT StreamId
For setting the registered stream ID of the live distribution destination. It allows direct streaming of multiple cameras on a single device.
* You can enter up to 50 characters.
Memo:
- Input and change are possible only when [SRT Mode] is configured to "Caller".
RTSP Settings
→ RTSP Port
For configuring the RTSP port.
The default value is "554".
→ RTSP Auth
Configuring to "on", the user name and password are required to receive streaming.
[Setting Values: on, ●off]
RTMP(S) Settings
→ First Stream
For configuring the RTMP(S) First Stream video. Configure the setting to "on" for streaming and press the [Submit & Reboot] button. RTMP(S) streaming will start after the camera is restarted.
[Setting values: on, ●off]
Memo:
- The settings in [Video]-[First Stream] will be applied as the video settings.
→ Second Stream
For configuring the RTMP(S) Second Stream video.
Configure the setting to "on" for streaming and press the [Submit & Reboot] button. RTMP(S) streaming will start after the camera is restarted.
[Setting values: on, ●off]
Memo:
- The settings in [Video]-[Second Stream] will be applied as the video settings.
→ MRL
For configuring the streaming server address for the RTMP(S) First Stream/Second Stream.
First Stream
[Default Value: rtmp://192.0.2.1/live/stream0]
Second Stream
[Default Value: rtmp://192.0.2.2/live/stream1]
MPEG2-TS Setting
For configuring the MPEG2-TS setting.
[Setting Values: ●RTP, UDP]
→ First Stream/Second Stream
For configuring the First Stream/Second Stream of MPEG2-TS.
[Setting Values: on, ●off]
→ Destination Address
For configuring the IP address of the destination. [Setting values: 192.0.2.1 (First stream), 192.0.2.2 (Second stream)]
→ Port
For setting the port of the live streaming destination.
The default values are "6688" (First stream) and "6690" (Second stream).
ZeroConfig
For allowing this camera to be detected automatically by external devices (such as switchers) connected to the same LAN.
Connection can be established via one link from the menu of the external device.
Memo :
- The Zero Config function is not equipped with the function to change the settings of the camera.
→ Announcement
For configuring the method of connection from an external device during automatic detection of this camera.
[Setting Values: ●on, off]
→ Hostname Prefix
Part of the host name can be changed. (Up to 8 characters)
The default value is "PZ510".
Memo :
The following setting values are common. Any changes made to an item will cause the other items to be changed at the same time.
- [Network] → [ZeroConfig] → [Hostname Prefix]
- [NDI Settings] → [NDI Settings] → [NDI Local Device Name] 510N
• [Information] → [Information] → [Device ID]
NTP Settings
Enables display of time information acquired from the NTP server on the streaming video.
→ NTP time sync
Configuring to "on" enables time information to be acquired from the NTP server.
[Setting Values: on, ●off]
→ Time Zone
For setting the GMT time difference in units of 1 hour.
[Setting Values: GMT-11:00 to GMT +13:00 (●GMT-05:00 (U model)), (●GMT+00:00 (E model))]
→ Server address
For setting the address of the NTP server. [Default Value: ntp.example.com]
→ Time interval(min)
For configuring the interval between time queries to the NTP server to a value between 0 and 99999. [Default Value: 1440]
→ Main time show, Sub time show
Configuring to "on" displays the NTP time information on the streaming video. [Setting Values: on, ●off]
Memo :
- To display the NTP time information on the live screen, configure [Encode Codec] of [First Stream] or [Second Stream] to "H.264". If the display is too small, decrease the [Resolution] for [First Stream] or [Second Stream] accordingly.
→ Position
For configuring the position for displaying the First Stream time or Second Stream time.
Configure the display position with the top left corner of the screen as [X0, Y0] and the bottom right corner as [X100, Y100].
[Default Values: X0, Y0]
Port Settings
→ HTTP Port
For configuring the HTTP port.
[Setting Values: ●80 or 1025 to 65535]
→ UDP Port
For configuring the UDP port.
[Setting Values: 1025 to 65535 (●1259)]
→ Standard Protocol
Displays the Standard Protocol port number.
Memo:
- Not changeable.
LAN Settings
→ IP Configuration Type
For selecting the method for configuring the IP address.
[Setting Values: Dynamic IP Address, ●Fixed IP Address]
→ IP Address
Displays the current IP address.
The IP address of the camera can be configured manually when [IP Configuration Type] is configured to "Fixed IP Address".
The default value is 192.168.0.10.
→ Subnet Mask
Displays the address of the current subnet mask.
The subnet mask of the camera can be configured manually when [IP Configuration Type] is configured to "Fixed IP Address".
→ Gateway
Displays the address of the current default gateway.
The default gateway of the camera can be configured manually when [IP Configuration Type] is configured to "Fixed IP Address".
→ DNS Address
Displays the current DNS address.
The DNS address of the camera can be configured manually when [IP Configuration Type] is configured to "Fixed IP Address".
→ MAC Address
Displays the MAC address of the camera.
Memo :
- Not changeable.
NDI Config
510N
This is the setting screen for the NDI (Network Device Interface) protocol.
After configuring the items, press the [Submit & Reboot] or [Submit] button.
The settings will be applied when the camera is next restarted.
NDI Settings
→ NDI Local Device Name
For configuring the device name displayed in the NDI application.
[Default Value: PZ510]
Memo :
The following setting values are common. Any changes made to an item will cause the other items to be changed at the same time.
- [Network] → [ZeroConfig] → [Hostname Prefix]
- [NDI Settings] → [NDI Settings] → [NDI Local Device Name] 510N • [Information] → [Information] → [Device ID]
→ NDI Receive Group
For configuring the group name to be used for the NDI application.
The default value is "public".
NDI Firmware Version
Displays the NDI firmware version.
Information
Information
→ Device ID
For configuring the device name of this unit. The default value is "PZ510".
Memo:
The following setting values are common. Any changes made to an item will cause the other items to be changed at the same time.
- [Network] → [ZeroConfig] → [Hostname Prefix]
- [NDI Settings] → [NDI Settings] → [NDI Local Device Name] 510N • [Information] → [Information] → [Device ID]
→ Device Type
Displays the device type of this unit.
→ Software Version
Displays the current software version.
→ Webware Version
Displays the current web-based software version.
← Open Source License
Displays the license for the open source software used by this camera.
Network Status
Displays the current streaming setting values.
Basic Shooting Procedures
Preparations
1 Supply power to the camera via a LAN cable or AC adapter.
(→ P24 [Connecting the Cables])
2 Turn on the power switch. 3 Configure the IP address of the camera.
For viewing the IP address of the camera and configuring the IP address.
(P25 [Checking the IP address])
(P25 [IP address settings])
4 Check the connection.
(P26 [Confirming the Connection])
Memo:
- You are recommended to operate this camera by connecting it to a PC or a controller. The supplied infrared remote control unit might not work depending on the conditions of installation.
Selecting the Video Output Resolution and Frame Rate
This camera allows you to select the video format for the output video.
Setting a Video Format
1 Set [Video]→[Video Settings]→[Video Format]. 2 After setting is complete, press the [Submit & Reboot] button.
■ When [Video]→[Video Settings]→[HDMI/SDI Output] is set to "HDMI"
3840x2160/60p, 3840x2160/59.94p,
3840x2160/50p, 3840x2160/30p,
3840x2160/29.97p, 3840x2160/25p,
1920x1080/60p, 1920x1080/59.94p,
1920x1080/50p, 1920x1080/60i,
1920x1080/59.94i, 1920x1080/50i,
1920x1080/30p, 1920x1080/29.97p,
1920x1080/25p, 1280x720/60p,
1280x720/59.94p, 1280x720/50p
■ When [Video]→[Video Settings]→[HDMI/SDI Output] is set to "SDI"
1920X1080/60p, 1920x1080/59.94p,
1920x1080/50p, 1920x1080/60i,
1920x1080/59.94i, 1920x1080/50i,
1920x1080/30p, 1920x1080/29.97p,
1920x1080/25p, 1280x720/60p,
1280x720/59.94p, 1280x720/50p
Performing Live Streaming
By combining with the decoder or PC application that supports live streaming, you can perform audio and video streaming via the network.
Supported Codecs
H.264, H.265, Motion JPEG
Supported Formats
[Streaming resolution (First Stream)] 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 [Streaming resolution (Second Stream)] 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 [Frame rate (for streaming resolution of 3840x2160)] 30p, 29.97p, 25p [Frame rate (when streaming resolution is other than 3840x2160)] 60p, 59.94p, 50p, 30p, 29.97p, 25p [Audio] AAC, 48kHz, 96kbps/128kbps
Memo:
- The range of configurable resolutions and bitrates varies according to the codec that has been selected.
- Depending on the connection environment, images and audio sound during live streaming may be choppy.
Supported Protocols
RTSP/RTP, RTMP/RTMPS, SRT, MPEG2-TS/RTP, MPEG2-TS/UDP, NDI|HX 510N
Setting Distribution
1. Configure the streaming video and audio format. Configure the codec, resolution, frame rate, and bitrate settings in [Video] and [Audio] of the View Remote. 2. Set the distribution protocol. Configure the streaming protocol and related items in the [Network] settings of the View Remote. 3. Restart the camera. After configuring the different items, press the [Submit & Reboot] button to restart the camera. Alternatively, press the [Submit] button followed by pressing the [Reboot] button in the [System] menu to restart the camera.
Receive streaming data
Streaming starts automatically after the camera has restarted. Configure the necessary settings for the decoder and PC application to receive streaming data.
■ URL when receiving streaming data using RTSP/RTP
- First Stream rtsp:// : /1
- Second Stream rtsp:// : /2 (Example) rtsp://192.168.0.10:554/1
■ When receiving streaming data using RTMP(S) Enter the server and stream key into the MRL field under the RTMP(S) setting in the [Network] settings of the View Remote, and view the content from the designated video link after restarting the camera.
■ URL when receiving streaming data using SRT srt:// : ?
mode= (Example) srt://192.168.0.10:4578?mode=caller
■ URL when receiving streaming data using MPEG2-TS
rtp://@: (Example) rtp://@:6688 rtp:// : (Example) rtp://192.0.2.1:6688
Install the NDI Tools on the PC for viewing. For more information, please refer to the instruction manual of the NDI Tools.
Supported Streaming Formats
You can configure the detailed settings for streaming by setting [Video]→[Setup Type] to "manual".
Streaming formats that are supported using the [Video]→[Video Settings]→[Video Format] setting are as follows.
Configure [Video Format] according to the format to be used for streaming.
| Video Format | Stream | Resolution | |||||||||
| 3840x2160 | 1920x1080 | 1280x720 | 1024x576 | 720x480 | 720x408 | 640x480 | 640x360 | 480x320 | 320x240 | ||
| 3840x2160/60p3840x2160/59.94p3840x2160/50p | First | - | √ | √ | √ | √ | √ | √ | √ | - | - |
| Second | - | - | - | - | √ | √ | √ | √ | √ | √ | |
| 3840x2160/30p3840x2160/29.97p3840x2160/25p | First | √*1 | √ | √ | √ | √ | √ | √ | √ | - | - |
| Second | - | - | - | - | √ | √ | √ | √ | √ | √ | |
| 1920x1080/**p1920x1080/**l1280x720/**p | First | √ | √ | √ | √ | √ | √ | √ | √ | - | - |
| Second | - | - | - | - | √ | √ | √ | √ | √ | √ | |
*1 When [Video Format] is set to "3840x2160/**p", the configurable frame rate is up to 30p when the [Resolution] for streaming is 3840x2160.
Memo :
- MJPEG does not support streaming at 3840x2160.
Menu Screen Hierarchical Chart
Menu ..... (P 43)
EXPOSURE (P 43)
- Mode ...... (P 43)
- ExpCompMode ...... (P 43)
L ExpComp ...... (P 43)
Backlight (P 43)
Bright (P 44)
Iris (P 44)
- Shutter ..... (P 44)
Gain (P 44)
Gain Limit (P 44)
Anti-Flicker (P 44)
Meter (P 44)
L DRC (P 44)
COLOR (P 45)
WB Mode (P 45)
- R Gain ...... (P 45)
RG Tuning (P 45)
B Gain (P 45)
BG Tuning (P 45)
- Saturation ..... (P 45)
Hue (P 45)
Image ...... (P 46)
Luminance (P 46)
Contrast (P 46)
- Sharpness ...... (P 46)
Flip-H (P 46)
Flip-V (P 46)
B&W Mode (P 46)
Style (P 46)
NR3D-Level (P 46)
- P/T/Z (P 46)
- SpeedByZoom (P 46)
- AF-Zone (P 46)
- AF-Sense (P 46)
- L/R Set (P 46)
- Display Info ..... (P 46)
- Image Freeze ..... (P 46)
- Digital Zoom (P 46)
- Call Preset Speed ..... (P 46)
- Pre Zoom Speed ..... (P 46)
- SETUP (P 47)
- Language ..... (P 47)
- Auto Inversion ..... (P 47)
- Tally Mode ..... (P 47)
I- LCD Info. (P 47)
- COMMUNICATION SETUP ...... (P 47)
- Protocol ...... (P 47)
- V_Address ...... (P 47)
- V_AddrFix (P 47)
- Net Mode ..... (P 47)
- P_D_Address (P 47)
- P_P_Address (P 47)
- Baudrate ..... (P 47)
- Video Settings ...... (P 48)
- Output (P 48)
- Format ...... (P 48)
- HDMI Mode ..... (P 48)
- DVI Mode ..... (P 48)
I- SDI-3G Mode ..... (P 48)
- Restore Default ...... (P 49)
- Some menus cannot be set depending on the operating mode or status of the camera. These items are displayed in gray, and they cannot be selected.
- Setting value with the ● mark is the factory default.
GUI Settings
Menu
Pressing the [MENU] button on the infrared remote control unit displays the main menu on the HDMI/SDI and streaming screens. You can move the cursor using the arrow buttons. Use the [HOME] button to enter the corresponding menu.
![MENU ►Exposure Color Image P/T/Z Setup Communication Setup Video Setup Restore Default [Home] Enter [Menu] Exit](/content/2026/06/1374720/images/1fa20b16c9fa2a86311ed0715b2f94110d90666eb68f718521d247daff71646d.jpg)
Memo :
- To display the menu on the video image on the View Remote screen, configure [Encode Codec] of [First Stream] or [Second Stream] to "H.264". If the menu display is too small, decrease the [Resolution] for [First Stream] or [Second Stream] accordingly.
Exposure
Mode
For selecting the method for controlling the exposure.
- Auto Gain/Shutter/Iris are adjusted automatically.
- Manual Gain/Shutter/Iris operate according to the menu setting. • SAE Shutter speed is configured according to the setting in the [Shutter] menu, while gain and iris are automatically adjusted. • AAE Iris is configured according to the setting in the [Iris], while gain and shutter speed are automatically adjusted.
- Bright Adjusts the brightness of the RAW data. [Setting Values: ●Auto, Manual, SAE, AAE, Bright]
ExpCompMode
Performs exposure compensation when this is configured to "On".
[Setting Values: ●Off, On]
Memo:
- This item can be configured when [Mode] is set to "Auto".
→ ExpComp
Adjusts the exposure compensation value. [Setting Values: -7 to +7 (●0)]
Memo:
- This item can be configured when [ExpCompMode] is set to "On".
Backlight
For configuring backlight compensation. [Setting Values: ●Off, On]
Memo:
- This item can be configured when [Mode] is set to "Auto".
Bright
Adjusts the brightness.
[Setting Values: 0 to 17 (●7)]
Memo:
- This item can be configured when [Mode] is set to "Bright".
Iris
For configuring the iris value (F number).
[Setting Values: ●F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6, F11.0, Close]
Memo:
- This item can be configured when [Mode] is configured to "Manual" or "AAE".
Shutter
For configuring the shutter speed.
- For "60Hz" [Video Format] [Setting Values: 1/30, ●1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000]
- For "50Hz" [Video Format] [Setting Values: 1/25, ●1/50, 1/75, 1/100, 1/120, 1/150, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000]
Memo:
- This item can be configured when [Mode] is configured to "Manual" or "SAE".
- "1/30" can be selected when frame rate is configured to 30p/29.97p, and "1/25" can be selected when frame rate is configured to 25p. (P39 [Selecting the Video Output Resolution and Frame Rate])
Gain
This function electrically boosts the light sensitivity when there is insufficient illumination on the object. You can set the gain of the video amplifier according to the brightness of the object.
[Setting Values: ●0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, 45dB]
Memo:
- This item can be configured when [Mode] is set to "Manual".
Gain Limit
For setting the maximum value of the operation that automatically switches to the electrically boosted sensitivity level according to the brightness.
[Setting Values: 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, ●27dB, 30dB, 33dB, 36dB, 39dB, 42dB, 45dB]
Memo:
- This item can be configured when [Mode] is configured to "Auto", "SAE", "AAE" or "Bright".
Anti-Flicker
For correcting video image flicker that occurs under a fluorescent light.
[Setting Values: 50Hz, ●60Hz, Off] (U model)
[Setting Values: ●50Hz, 60Hz, Off] (E model)
Memo:
- This item can be configured when [Exposure] is configured to "Auto", "AAE" or "Bright".
Meter
Shutter speed, iris (F number) and ISO speed are controlled to adjust the exposure to an appropriate level according to the brightness of the subject in the [Mode] settings. Use this setting to configure the method of compensation in this case.
[Setting Values: ●Average, Center, Smart, Top]
Memo:
- This item can be configured when [Mode] is configured to "Auto", "SAE", "AAE" or "Bright".
DRC
Adjusts the intensity of DRC.
[Setting Values: 0 to 8 (●0)]
Color
WB Mode
For setting the white balance mode.
- Auto: Automatically adjusts the white balance according to the color temperature of the lighting for illuminating the subject.
- Indoor: For configuring to a color temperature that is suitable for indoor shooting.
- Outdoor: For configuring to a color temperature that is suitable for outdoor shooting.
- OnePush: When “OnePush” is selected, pressing the [HOME] button adjusts the white balance according to the color temperature of the lighting that is currently used to illuminate the subject.
- Manual Enables adjustment of the color temperature using R gain and B gain. [Setting Values: ●Auto, Indoor, Outdoor, OnePush, Manual]
R Gain
Adjusts the R (red) gain in the Manual mode.
[Setting Values: 0 to 255 (●61)]
Memo :
- This item can be configured when [WB Mode] is set to "Manual".
RG Tuning
Fine-tunes the R (red) component.
[Setting Values: -10 to +10 (●0)]
Memo :
- This item can be configured when [WB Mode] is set to "Auto".
B Gain
Adjusts the B (blue) gain in the Manual mode.
[Setting Values: 0 to 255 (●67)]
Memo :
- This item can be configured when [WB Mode] is set to "Manual".
BG Tuning
Fine-tunes the B (blue) component.
[Setting Values: -10 to +10 (●0)]
Memo :
- This item can be configured when [WB Mode] is set to "Auto".
Saturation
Adjusts the color density.
[Setting Values: 60% to 200% (●100%)]
Hue
For setting the color phase.
[Setting Values: 0 to 14 (●7)]
Luminance
For adjusting the brightness.
[Setting Values: 0 to 14 (●7)]
* When [Style] is set to a value other than "Bright"
[Setting Values: 0 to 14 (●8)]
* When [Style] is set to "Bright"
Contrast
For adjusting the contrast.
[Setting Values: 0 to 14 (●7)]
* When [Style] is configured to "Default" or "Norm"
[Setting Values: 0 to 14 (●9)]
* When the [Style] item is configured to "Bright" or "PC"
Sharpness
Adjusts the outline correction value.
[Setting Values: 0 to 11 (●6)]
* When [Style] is configured to "Default" or "Norm"
[Setting Values: 0 to 11 (●7)]
* When the [Style] item is configured to "Bright" or "PC"
Flip-H
Flips the video image in the horizontal direction.
[Setting Values: ●Off, On]
Flip-V
Flips the video image in the vertical direction.
[Setting Values: ●Off, On]
B&W Mode
Switches the video to a grayscale display.
[Setting Values: ●Off, On]
Style
For configuring the picture quality adjustment mode.
[Setting Values: ●Default, Norm, Bright, PC]
Memo:
- The settings will not be reset even when you press the RESTORE switch.
NR3D-Level
For configuring 3D noise reduction.
[Setting Values: Auto, Off, 1 to 8 (●6)]
P/T/Z (P/T/Z)
SpeedByZoom
Configuring to "On" reduces the speed of pan/tilt movement further as the camera zooms toward the Tele-end.
[Setting Values: ●On, Off]
AF-Zone
For configuring the auto focus reference area.
[Setting Values: ●Center, Bottom, Front, Top]
AF-Sense
Adjusts the auto focus sensitivity level.
[Setting values: ●High, Low, Normal]
L/R Set
Inverts the pan operation.
STD: Use the Right cursor button to move to the right, and the Left button to move to the left.
REV: Use the Right cursor button to move to the left, and the Left button to move to the right.
[Setting Values: ●STD, REV]
Display Info
Configuring to "On" shows a "Registration is complete" OSD when you have registered a preset position.
[Setting Values: ●On, Off]
Image Freeze
Setting to "On" displays the video image before movement starts as a still image during the interval after preset starts until the camera has reached the registered position.
[Setting Values: ●Off, On]
Digital Zoom
For configuring the digital zoom factor.
[Setting Values: ●Off, 2x, 4x, 8x, 16x]
Call Preset Speed
For configuring the preset pan/tilt speed.
[Setting Values: 1 to 24 (●20)]
Pre Zoom Speed
For configuring the preset zoom speed.
[Setting Values: 0 to 7 (●5)]
Setup
Language
Switches between languages in the menu screen.
[Setting values: ●EN, Français, Deutsch, Italiano,
For configuring the auto flip setting of the video output.
On : Flips the video image when the camera is mounted to the ceiling. Video is not flipped when the camera is installed on a desktop.
Off : Does not flip the video image when the camera is mounted to the ceiling.
[Setting Values: ●On, Off]
Tally Mode
For configuring whether to light up the tally lamp at the front of the camera.
[Setting Values: ●On, Off]
LCD Info.
For configuring the LCD Info.
[Setting Values: ●On, Off]
Communication Setup
Protocol
For configuring the control protocols.
[Setting Values: ●Standard, PELCO-D, PELCO-P, Auto]
V_Address
For configuring the address of the Standard protocol.
[Setting Values: 1 to 7 (●1)]
Memo:
- This item can be configured when [Protocol] is set to "Standard" or "Auto".
V_AddrFix
For configuring the necessity of the Address Set command.
On: Address Set command is not needed.
Off: Address Set command is needed.
[Setting Values: ●Off, On]
Memo:
- This item can be configured when [Protocol] is set to "Standard" or "Auto".
Net Mode
For configuring the serial port network control.
[Setting Values: ●Serial, Paral]
Memo:
- This item can be configured when [Protocol] is set to "Standard" or "Auto".
P_D_Address
For configuring the address of PELCO-D.
[Setting Values: 0 to 254 (●1)]
Memo:
- This item can be configured when [Protocol] is set to "PELCO-D" or "Auto".
P_P_Address
For configuring the address of PELCO-P.
[Setting Values: 0 to 31 (●0)]
Memo:
- This item can be configured when [Protocol] is set to "PELCO-P" or "Auto".
Baudrate
For configuring the baud rate of the serial port.
[Setting Values: 2400, 4800, ●9600, 38400]
Video Settings
Output
For setting the terminal to output the video.
[Setting Values: ●HDMI, SDI]
Memo:
- Press the [HOME] button to confirm and restart the camera. Changes to the setting values are reflected by restarting each item. If you move to another item without restarting, the setting value will be restored when you exit the menu.
Format
For setting a video format for the HDMI or 3G-SDI output.
- When the video output is "HDMI" [Setting Values: 3840x2160/60p, 3840x2160/59.94p, 3840x2160/50p, 3840x2160/30p, 3840x2160/29.97p, 3840x2160/25p, 1920x1080/60p, 1920x1080/60i, 1920x1080/59.94p, 1920x1080/59.94i, 1920x1080/50p, 1920x1080/50i, 1920x1080/30p, 1920x1080/29.97p, 1920x1080/25p, 1280x720/60p, 1280x720/59.94p, 1280x720/50p]
Memo:
- When DVI Mode is set to "DVI", 3840x2160/60p, 3840x2160/59.94p, 3840x2160/50p cannot be configured.
- When the video output is "SDI" [Setting Values: 1920x1080/60p, 1920x1080/60i, 1920x1080/59.94p, 1920x1080/59.94i, 1920x1080/50p, 1920x1080/50i, 1920x1080/30p, 1920x1080/29.97p, 1920x1080/25p, 1280x720/60p, 1280x720/59.94p, 1280x720/50p]
[Default Value: 1920x1080/59.94p] (U model)
[Default Value: 1920x1080/50p] (E model)
Memo:
- Press the [HOME] button to confirm and restart the camera. Changes to the setting values are reflected by restarting each item. If you move to another item without restarting, the setting value will be restored when you exit the menu.
HDMI Mode
For setting the color format of HDMI signals.
[Setting Values: ●YUV, RGB]
Memo:
- Press the [HOME] button to confirm and restart the camera. Changes to the setting values are reflected by restarting each item. If you move to another item without restarting, the setting value will be restored when you exit the menu.
DVI Mode
For configuring the audio output from the HDMI terminal.
HDMI : Outputs the audio.
DVI: Mutes the audio.
[Setting Values: ●HDMI, DVI]
Memo:
- Press the [HOME] button to confirm and restart the camera. Changes to the setting values are reflected by restarting each item. If you move to another item without restarting, the setting value will be restored when you exit the menu.
SDI-3G Mode
For setting the 3G-SDI mapping structure.
[Setting Value: ●LEVEL-A, LEVEL-B]
Restore Default
Restore?
Resets all the menu item settings except for the language setting.
[Setting Values: ●No, Yes]
Memo:
- Press the [HOME] button to confirm the selection. Preset values will also be initialized. IP address, web password and View Remote settings will not be initialized.
P/T Limit Reset
Resets only the menu settings.
[Setting Values: ●No, Yes]
Memo:
- Press the [HOME] button to confirm the selection.
Auto-Tracking
The Auto-tracking function enables the camera to automatically pan, tilt, and zoom so that the specified person is always displayed in the center of the screen.
| Only One Person in the Camera Image
1 Press the F3 button on the remote control to start tracking.
Adjust the angle and zoom so that the person you want to track is in the center of the camera image.
If there is only one person in the camera image, press the F3 button on the remote control to lock the target and start tracking.
When the tracking target cannot be detected, the camera will stop at that position and automatically resume tracking when the tracking target appears again.
Memo:
- During Auto-Tracking, the Auto-Tracking function may not work depending on the conditions of surrounding and people.
- During Auto-Tracking, the following operations are not allowed: Pan, tilt, zoom, moving to the Preset, manual focus, and displaying the menu.
2 Press the F4 button on the remote control to stop tracking.
Multiple People in the Camera Image
1 Press the F3 button on the remote control and select the target using the left and right buttons.
If there are multiple people in the camera image when the F3 button on the remote control is pressed, a green frame for selecting the tracking target is displayed.
Use the left and right buttons on the remote control to move the cursor to the person to be tracked.

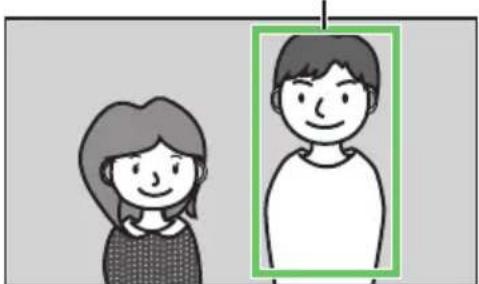

Detection Frame (Green)
2 Press the [HOME] button on the remote control to start tracking.
Pressing the [HOME] button on the remote control hides the frame and starts the tracking. To change the target to be tracked, do so using the left and right buttons on the remote control. When the tracking target cannot be detected, the camera will stop at that position and automatically resume tracking when the tracking target appears again.
Memo:
- During Auto-Tracking, the Auto-Tracking function may not work depending on the conditions of surrounding and people.
- During Auto-Tracking, the following operations are not allowed. Pan, tilt, zoom, moving to the Preset, manual focus and displaying the menu
3 Press the F4 button on the remote control to stop tracking.
Configuring Setup Files
This camera allows you to save the menu settings as a setup file on a PC. Loading a saved setup file enables you to reproduce the appropriate setup state speedily. Use the firmware update application (upgrade_standard.exe) to save (export) and load (import) the setup file.
1 Connect the camera to a PC on the same network and run "upgrade_standard.exe" on the PC.
2 Click the [Search] button. Cameras connected on the same network are displayed.
3 Select the camera to save the setup file.
4 Click the [Import/Export] tab.
The information of the selected camera is displayed.
To save the setup file: [Saving the Setup File (Export)] (P 51)
To load the setup file: [Loading the Setup Files (Import)] ( P 52)
| Saving the Setup File (Export)

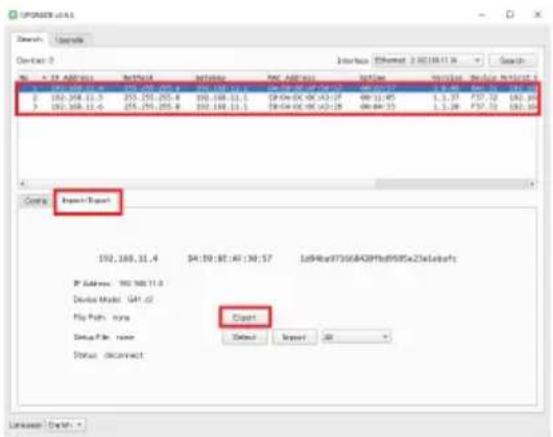

5 Click the [Export] button.
A dialog box to save the file is displayed. Specify the destination to save and a file name.
6 Click the [Save] button.

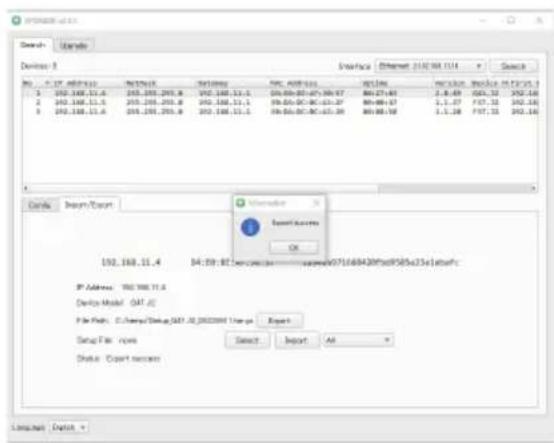

The setup file is saved to the specified folder. An "Export Success" message appears if the saving is successful.
Memo :
The settings for saving are as follows.
- Preset positions (255 positions)
- Setting values However, the following setting values are not saved in the setup file. • [Video] of the View Remote screen
- [System] → [User] settings of View Remote
- [Network]→[Lan Settings] settings of View Remote
Loading the Setup Files (Import)
5 Click the [Select] button.
A dialog box to select the file is displayed. Select the file name to import.
6 Click the [Open] button.
The file name appears in the Setup File field.
7 Click the import target select button.
You can select from the following three types. [All] : Imports all the settings. [Without Preset]: Imports the settings other than presets. [Only Preset] : Imports only the preset settings.
![IOSVOSI-0.01 Search Search Device: No. IP Address NETBACK Network PAC ADDRESS Options Service Device N/O/CE 1 [92.368.11.4] [255.255.255.8] [92.168.11.1] [0479.067.179.57] [0827.83] 2.8.48 [441.72] [92.36] 2 [92.368.11.5] [255.255.255.8] [92.168.11.1] [0479.067.08.12] [0828.47] 1.3.37 [737.32] [92.3…](/content/2026/06/1374720/images/d4bc38caf7b13c862ef82db55e8e97cfebfa5fe255627e2bcaf8142450b0c858.jpg)
8 Press the [Import] button.
Loads the setup file. An "Import Success" message appears if the loading is successful.
Still Image Capture
This unit is able to capture 4 still images.
These image files can be accessed via a web browser on the PC that is connected to the same network.
Launch the web browser on the PC to be connected to this unit, and enter the following text string in the address field to continuously record 4 still image files.
http://[Camera IP]/cgi-bin/booth.cgi?
0&4&[Interval]&photo&0
[Interval] is used to set the interval for recording still images in units of seconds.
You can specify a value between 1 and 9 seconds for [Interval].
(Example: If the IP address of this unit is
192.168.0.10 and 4 still images are to be recorded at 5 second intervals, enter the following character string in the address field.
http://192.168.0.10/cgi-bin/booth.cgi?
0&4&5&photo&0)
To access a still image, launch the web browser on the PC to be connected to this unit, and enter the following text strings in the address field.
Image 1 : http://[Camera IP]/photo1.jpg
Image 2 : http://[Camera IP]/photo2.jpg
Image 3 : http://[Camera IP]/photo3.jpg
Image 4 : http://[Camera IP]/photo4.jpg
Troubleshooting
| Problem Action | |
| Video image does not appear on the monitor | Check to ensure that the power supply of the camera is properly connected, the power voltage is normal and the POWER lamp is on at all times.Check that the monitor is turned on, restart the camera and check if the initialization is performed.Check the video format setting and whether the monitor cable is properly connected. |
| Sometimes the video image is not displayed | Check the video format setting and whether the monitor cable is properly connected. |
| Video image becomes blurry when zoomed to the Tele end | Check whether the camera is installed at a stable location.Check to ensure that there are no vibrating machines or objects near the camera. |
| Video image does not appear on the Web browser | You can use the VLC media player to receive video and audio streams.Access the VLC website. (http://www.videolan.org/vlc)Download and install the VLC media player. |
| Unable to access camera from the Web browser | 1Access the network using a PC to test whether network access is functioning properly.2Disconnect from the network, connect the camera and the PC separately, and reset the IP address of the PC.3Check the IP address, subnet mask and gateway settings of the camera.4Check to ensure that there is no conflict in the MAC address.5Check whether the HTTP port is occupied by a different device. |
| I forgot the IP address or login password | Manage the password properly to avoid forgetting it. If you forgot the password, reset the camera to return to its default settings. (Default IP address: 192.168.0.10; default user name: jvc; default password: 0000) |
| Unable to control using the remote control unit | Replace the batteries in the remote control with new ones and check again.Check whether the camera is in the correct operation mode.Check whether the camera number configured using the remote control unit matches the number of the camera. |
| Unable to control via the serial port | Check to ensure that the protocol and address of the camera are consistent.Check whether the cables are properly connected. |
| Video and audio distortion during streaming | If the [Encode Codec] is configured to “H.264” or “H.265”, changing the [Bit Rate] may improve the condition.If [Encode Codec] is configured to “MJPEG”, changing the [Qfactor] may improve the condition. |
Specifications
General

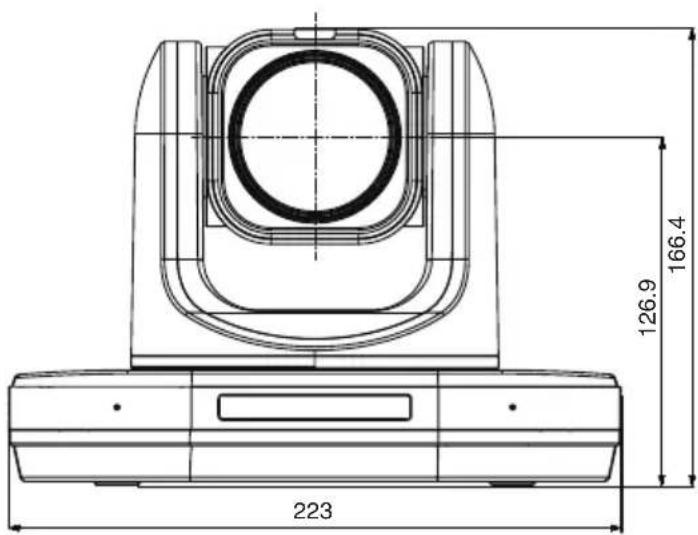

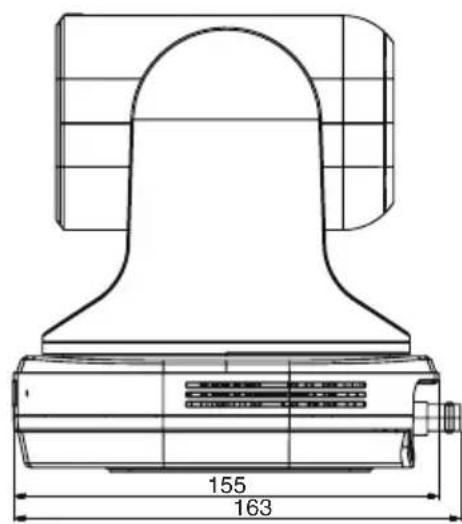

| Item Description | |
| Power DC 12 V (when an AC adapter is used) PoE+ | |
| Current consumption | 0.95 A (*1)0.25 A (*2) |
| Mass | Approx. 2.0 kg |
| Allowable operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Allowable operating humidity | 30 %RH to 80 %RH (No condensation) |
| Allowable storage temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Dimensions (W × H × D) (*3) | 223.0 mm x 166.4 mm x 163.0 mm |
| MTBF > 30000 h | |
*1 Operated in the factory default settings when an AC adapter is in use. *2 Operated in the factory default settings when using power supply from a PoE+ via a LAN cable. *3 When the tilt position is horizontal.
Terminal Section
| Item Description | |
| [LINE IN] terminal | Φ3.5 mmLine input |
| [RS485] terminal | 2-pin Phoenix portProtocols: Standard/Pelco-D/Pelco-P |
| [RS232 IN] terminal | 8-pin mini DINProtocols: Standard/Pelco-D/Pelco-P |
| [RS232 OUT] terminal | 8-pin mini DINProtocol: Use only Standard network |
| [LAN] terminal RJ | J-45PoE+ power supply: DC 42.5 V to 57 VEthernet: 10BASE-T/100BASE-TX/1000BASE-T |
| Item Description | |
| [3G-SDI] terminal | BNC type720p/1080i/1080p: embedded audio3G-SDI: SMPTE ST424-compliantHD-SDI: SMPTE ST292-compliant |
| [HDMI] output terminal | Type A |
| [USB 2.0] terminal | USB Type-C |
| [DC 12V] terminal | For use with the supplied AC adapter |
Lens/Camera
| Item Description | |
| Lens 12x, f=3.4 mm to 41.6 mm, F1.8 to F3.7 | |
| Image pickup device | 1/2.8-inch Progressive CMOS, maximum effective pixel: 8.4 Megapixels |
| Digital Zoom 16x | |
| Shutter 1/25 s to | 1/10000 s |
| White balance Auto, Indoor, Outdoor, One Push, Manual | |
| Backlight compensation | Available |
| Digital noise reduction | 3D digital noise reduction |
| H&V flip Available | |
| Image Freeze Available | |
| No. of presets 255 | |
| Preset accuracy 0.1° | |
Rotation Mechanism Section
| Item Description | |
| Horizontal viewing angle | 80.0° to 8.0° |
| Vertical viewing angle | 50.5° to 4.5° |
| Horizontal rotation range | ±162.5° |
| Vertical rotation range | -30° to +90° |
| Horizontal rotation speed | 1.8°/sec to 80.5°/sec |
| Vertical rotation speed | 1.5°/sec to 49°/sec |
Video
| Item Description | |
| Signal system 38 | 40x2160/60p, 50p, 30p, 25p, 59.94p, 29.97p1920x1080/60p, 50p, 30p, 25p, 59.94p, 29.97p, 60i, 50i, 59.94i1280x720/60p, 50p, 59.94p |
Network
| Item Description | |
| Video compression | H.264, H.265, Motion JPEG |
| Video stream First Stream | Second Stream |
| First Stream resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 |
| Second Stream resolution | 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 |
| Video bit rate 32 | kbps to 61440 kbps |
| Bit rate type CBR, VBR | |
| Frame rate 60fps | 59.94fps, 50fps, 30fps, 29.97fps, 25fps |
| Audio compression | AAC |
| Audio bit rate 96 | kbps,128 kbps |
| Protocols Control | : Standard,NDI|HX 510NStreaming: RTSP/RTP, RTMP/RTMPS, SRT, MPEG2-TS/RTP, MPEG2-TS/UDP,NDI|HX 510N |
Infrared Remote Control
| Item Description | |
| Remote control system | Infrared type |
| Battery AAA dry-cell battery x 2 | |
| Battery life Approx. 1 year (varies with the frequency of use) | |
| Operating distance | 8 m (horizontal distance from the front) |
| Allowable operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (W × H × D) | 46 mm × 20.8 mm × 168.1 mm |
| Mass | Approx. 90 g |
Accessories
| Accessories | |
| Warranty Card (U model only) 1 | |
| 保修卡 (E model only / For China) 1 | |
| INSTRUCTIONS (Installation/IP Address Settings) | 1 |
| 使用说明书(安装/IP 地址设置) (E model only / For China) | 1 |
| AC Adapter 1 | |
| Power Cord (U model: 1, E model: 2) | |
| RS232C cable 1 | |
| Remote control unit 1 | |
| Ceiling mount bracket set 1 | |
| Screws (M3) | 7 |
| JVC logo label 2 | |
| Lens cap | 1 |
* The warranty card can be found inside INSTRUCTIONS (Installation/IP Address Settings).
* The specifications and appearance of this product are subject to changes for further improvement without prior notice.
Software License Agreement
The software embedded in the Product (hereinafter the “Licensed Software”) provided by JVCKENWOOD Corporation (hereinafter the “Licensor”) is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the “User”) initially used the Product in which the “Licensed Software” is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the “Important Notice concerning the Software” to be provided separately.
Article 1 General Provision
The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) license to use the Licensed Software within the country of the User (the country where the User bought the Product (hereinafter the “Country”)).
Article 2 License
- The license granted under this Agreement shall be the right to use the Licensed Software in the Product.
- The User shall not duplicate, copy, modify, add, translate or otherwise alter, or lease the Licensed Software and any related documents, whether in whole or in part.
- The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.
- The User shall use the Licensed Software according to the directions described in the operation manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software.
Article 3 Conditions for Grant of License
- When the User transfers the Product, it may also transfer the license to use the Licensed Software embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.
- The User shall not carry out reverse engineering, disassembling, decompiling or any other code analysis works in connection with the Licensed Software.
Article 4 Right pertaining to the Licensed Software
- Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents.
- The User shall, whenever the User uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights.
Article 5 Indemnification of Licensor
- Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.
- The Licensor will offer no guarantee for the merchantability, convertibility and consistency with certain objective of the Licensed Software.
Article 6 Liability to Third Party
If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at the User's own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause.
Article 7 Confidentiality
The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor.
Article 8 Termination
In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event:
(1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution.
Article 9 Destruction of the Licensed Software
If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination.
Article 10 Export Restriction
- The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries.
- The User shall agree that the software will be subject to any and all applicable international and domestic laws including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities.
- If the User is an agency of the United States of America (the “Government”), the User acknowledge Licensor’s representation that the Licensed Software is a “Commercial Item” as defined in Federal Acquisition Regulation (FAR) part 2.101(g) consisting unpublished “Commercial Computer Software” as those items are used at FAR part 12.212 and is only license the User with the same use right Licensor grants all commercial end users pursuant to the terms of this Agreement.
Article 11 Miscellaneous
- In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force.
- Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.
- The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance.
Important Notice concerning the Software
Software License Attached to the Product:
The Software embedded in the Product is composed of several independent software components, and in each of such individual components (hereinafter the "Licensed Software"), a copyright of either JVCKENWOOD Corporation (hereinafter "JKC") or a third party subsists.
The Product uses the software component designated in the End-User License Agreement that was executed between JKC and a third party (hereinafter "EULA").
The Licensed Software covers those corresponding to free software, and, as a condition of distribution of the software component in executable format which is based on the license granted under the GNU General Public License or Lesser General Public License (hereinafter "GPL/LGPL"), it requires an availability of the source code for the relevant component. Please refer to the following URL concerning the distribution of the source code:
https://www3.jvckenwood.com/download/gpl/index.html
Please note that we are unable to answer any inquiry relating to the contents, etc. of the source code. In addition, the Licensed Software includes the software developed or created independently by JKC and there exists an ownership of JKC in such software and any accompanying documents, which is protected by the Copyright Law, any international treaties and other applicable laws. As to matters concerning the handling by JKC of the software components, please refer to the "Software License Agreement" attached hereto. Please note that any software component licensed under "EULA" which is not subject to "GPL/LGPL", and those developed or created independently by JKC shall not be subject to the requirement for provision of the source code. The software component distributed under "GPL/LGPL" shall be licensed to users without charge, and, therefore, no warranty is given for such software component, either express or implied, within the scope of the applicable laws and regulations. Unless otherwise permitted by applicable laws and regulations or agreed in written form, none of the owners of the copyright or persons entitled to alter or redistribute the software component under the said license shall have any liability for any type of damage or loss resulting from the use of or inability to use such software component. For further details of the conditions of use of such software component or matters required to be complied with, please refer to the relevant "GPL/LGPL".
Users are urged to read the details for the relevant license carefully before using the software component covered by "GPL/LGPL" and embedded in the Product. Since the terms and conditions of individual licenses are provided by parties other than JKC, the original English version will be displayed by the Product or the Settings screen.
① Access the camera from the Web browser ② Click "Information" on the left side of the screen ③ Press the "Open Source License" button in the "Information" menu screen
4K PTZ REMOTE CAMERA KY-PZ510NWU/KY-PZ510NWE KY-PZ510NBU/KY-PZ510NBE KY-PZ510WU/KY-PZ510WE KY-PZ510BU/KY-PZ510BE
JVC
- K PTZ REMOTE CAMERA
- KY-PZ510NWU/KY-PZ510NWE KY-PZ510NBU/KY-PZ510NBE KY-PZ510WU/KY-PZ510WE KY-PZ510BU/KY-PZ510BE
- DETAILS
- FOR CUSTOMER USE
- PLEASE READ THE FOLLOWING BEFORE GETTING STARTED
- FOR USA
- IMPORTANT SAFETY INSTRUCTIONS
- SAFETY PRECAUTIONS
- FOR USA AND CANADA
- CAUTION
- FOR CANADA
- ATTENTION
- WARNING
- WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE
- NOTES
- WHEN USING THE AC ADAPTER IN AREAS OTHER THAN THE USA
- USING HOUSEHOLD AC PLUG ADAPTER
- IMPORTANT (FOR OWNERS IN THE U.K.) CONNECTION TO THE MAINS SUPPLY IN THE UNITED KINGDOM
- DO NOT CUT OFF THE MAINS PLUG FROM THIS EQUIPMENT
- CAUTIONS
- DEAR CUSTOMER
- MOUNTING TO A FIRM PLACE
- MOUNT THE CAMERA CORRECTLY
- USING THE CORRECT POWER AND VOLTAGE
- INSPECT THE UNIT REGULARLY
- CONTENTS
- GETTING STARTED
- INSTALLATION/CONNECTION
- USING VIEW REMOTE
- SHOOTING
- PERFORMING LIVE STREAMING
- MENU SCREEN HIERARCHICAL CHART
- CAMERA FEATURES
- OTHERS
- CONTENT OF THIS MANUAL
- MAIN FEATURES
- K ULTRA HD
- ° WIDE-ANGLE LENS
- SUPPORTS THE NDI5 STREAMING PROTOCOL 510N
- AUTO-TRACKING FUNCTION
- SUPPORTS THE SRT STREAMING PROTOCOL
- MULTI-CAMERA SYNCHRONIZATION
- USB VIDEO CLASS
- FRONT LCD
- REMOTE CONTROL UNIT
- SUPPORTS POE
- PRECAUTIONS
- INSTALLATION LOCATION
- STORAGE AND USAGE LOCATIONS
- TRANSPORTATION
- CARRYING THE CAMERA
- POWER SAVING
- MAINTENANCE
- LICENSE NOTICES
- COPYRIGHT
- LOGIN PASSWORD
- NAMES OF PARTS
- INFRARED REMOTE CONTROL
- BASIC SYSTEM DIAGRAM
- QUICK START
- USE AS A USB CAMERA
- MOUNTING THE CAMERA TO THE CEILING MOUNT BRACKET
- MEMO
- ATTACHING LABEL TO THE CAMERA
- INSTALLING THE CAMERA ON THE CEILING
- INSTALLING THE CAMERA ON A DESKTOP
- ATTACHING THE CAMERA TO A TRIPOD
- CONNECTING THE CABLES
- CONNECT THE CABLES
- CONNECT THE LAN CABLE
- CONNECT THE POWER CABLE
- AFTER TURNING ON THE POWER SWITCH, THE POWER LAMP LIGHTS UP AND INITIALIZATION STARTS
- NETWORK FEATURES
- OPERATING ENVIRONMENT
- CHECKING THE IP ADDRESS
- IP ADDRESS SETTINGS
- CONFIRMING THE CONNECTION
- FIRMWARE UPDATE
- VIEW REMOTE SCREEN
- IMAGE
- EXPOSURE
- → MODE
- → EXPCOMPMODE
- → EXPCOMP
- → BACKLIGHT
- → BRIGHT
- → GAIN
- → SHUTTER
- → IRIS
- → GAIN LIMIT
- → ANTI-FLICKER
- → METER
- → DRC
- COLOR
- → WB MODE
- → R GAIN
- → RG TUNING
- → B GAIN
- → BG TUNING
- → SATURATION
- →HUE
- → BRIGHTNESS
- → CONTRAST
- → SHARPNESS
- → FLIP-H
- → FLIP-V
- B&W MODE
- → STYLE
- NR3D-LEVEL
- VIDEO
- VIDEO SETTINGS
- → HDMI/SDI OUTPUT
- → VIDEO FORMAT
- SETUP TYPE
- → BANDWIDTH
- FIRST STREAM, SECOND STREAM
- → ENCODE CODEC
- → RESOLUTION
- → FRAME RATE
- → BIT RATE
- → QFACTOR
- → I KEY FRAME INTERVAL
- → BIT RATE CONTROL
- ADVANCED SETTINGS
- → ENCODE LEVEL
- AUDIO
- AUDIO SETTINGS
- → AUDIO SWITCH
- → SAMPLE RATE
- → INPUT TYPE
- → INPUT VOL
- → ADTS OPTIONS
- SYSTEM
- INITIALIZE
- → REBOOT
- USER
- → USERNAME
- → PASSWD
- RESTORE DEFAULT
- NETWORK
- SRT SETTINGS
- → SRT MODE
- → SRT SERVER
- → SRT PORT
- → SRT ENCRYPTION
- → SRT PASSWORD
- → SRT BANDWIDTH OVERHEAD
- → SRT LATENCY
- → SRT FEC
- → SRT STREAMID
- RTSP SETTINGS
- → RTSP PORT
- → RTSP AUTH
- RTMP(S) SETTINGS
- → FIRST STREAM
- → SECOND STREAM
- → MRL
- MPEG2-TS SETTING
- → FIRST STREAM/SECOND STREAM
- → DESTINATION ADDRESS
- → PORT
- ZEROCONFIG
- → ANNOUNCEMENT
- → HOSTNAME PREFIX
- NTP SETTINGS
- → NTP TIME SYNC
- → TIME ZONE
- → SERVER ADDRESS
- → TIME INTERVAL(MIN)
- → MAIN TIME SHOW, SUB TIME SHOW
- → POSITION
- PORT SETTINGS
- → HTTP PORT
- → UDP PORT
- → STANDARD PROTOCOL
- LAN SETTINGS
- → IP CONFIGURATION TYPE
- → IP ADDRESS
- → SUBNET MASK
- → GATEWAY
- → DNS ADDRESS
- → MAC ADDRESS
- NDI CONFIG
- N
- NDI SETTINGS
- → NDI LOCAL DEVICE NAME
- → NDI RECEIVE GROUP
- NDI FIRMWARE VERSION
- INFORMATION
- → DEVICE ID
- → DEVICE TYPE
- → SOFTWARE VERSION
- → WEBWARE VERSION
- ← OPEN SOURCE LICENSE
- NETWORK STATUS
- BASIC SHOOTING PROCEDURES
- PREPARATIONS
- SELECTING THE VIDEO OUTPUT RESOLUTION AND FRAME RATE
- SETTING A VIDEO FORMAT
- SUPPORTED CODECS
- SUPPORTED FORMATS
- SUPPORTED PROTOCOLS
- SETTING DISTRIBUTION
- RECEIVE STREAMING DATA
- SUPPORTED STREAMING FORMATS
- GUI SETTINGS
- MENU
- MODE
- EXPCOMPMODE
- BACKLIGHT
- BRIGHT
- IRIS
- SHUTTER
- GAIN
- GAIN LIMIT
- ANTI-FLICKER
- METER
- DRC
- WB MODE
- R GAIN
- RG TUNING
- B GAIN
- BG TUNING
- SATURATION
- HUE
- LUMINANCE
- CONTRAST
- SHARPNESS
- FLIP-H
- FLIP-V
- STYLE
- P/T/Z (P/T/Z)
- SPEEDBYZOOM
- AF-ZONE
- AF-SENSE
- L/R SET
- DISPLAY INFO
- IMAGE FREEZE
- DIGITAL ZOOM
- CALL PRESET SPEED
- PRE ZOOM SPEED
- SETUP
- LANGUAGE
- TALLY MODE
- LCD INFO
- COMMUNICATION SETUP
- PROTOCOL
- V_ADDRESS
- V_ADDRFIX
- NET MODE
- P_D_ADDRESS
- P_P_ADDRESS
- BAUDRATE
- OUTPUT
- FORMAT
- HDMI MODE
- DVI MODE
- SDI-3G MODE
- RESTORE
- P/T LIMIT RESET
- AUTO-TRACKING
- ONLY ONE PERSON IN THE CAMERA IMAGE
- PRESS THE F3 BUTTON ON THE REMOTE CONTROL TO START TRACKING
- PRESS THE F4 BUTTON ON THE REMOTE CONTROL TO STOP TRACKING
- MULTIPLE PEOPLE IN THE CAMERA IMAGE
- PRESS THE F3 BUTTON ON THE REMOTE CONTROL AND SELECT THE TARGET USING THE LEFT AND RIGHT BUTTONS
- PRESS THE [HOME] BUTTON ON THE REMOTE CONTROL TO START TRACKING
- CONFIGURING SETUP FILES
- SAVING THE SETUP FILE (EXPORT)
- LOADING THE SETUP FILES (IMPORT)
- CLICK THE [SELECT] BUTTON
- CLICK THE [OPEN] BUTTON
- CLICK THE IMPORT TARGET SELECT BUTTON
- PRESS THE [IMPORT] BUTTON
- STILL IMAGE CAPTURE
- TROUBLESHOOTING
- SPECIFICATIONS
- SOFTWARE LICENSE AGREEMENT
- ARTICLE 1 GENERAL PROVISION
- ARTICLE 2 LICENSE
- ARTICLE 3 CONDITIONS FOR GRANT OF LICENSE
- ARTICLE 4 RIGHT PERTAINING TO THE LICENSED SOFTWARE
- ARTICLE 5 INDEMNIFICATION OF LICENSOR
- ARTICLE 6 LIABILITY TO THIRD PARTY
- ARTICLE 7 CONFIDENTIALITY
- ARTICLE 8 TERMINATION
- ARTICLE 9 DESTRUCTION OF THE LICENSED SOFTWARE
- ARTICLE 10 EXPORT RESTRICTION
- ARTICLE 11 MISCELLANEOUS
- IMPORTANT NOTICE CONCERNING THE SOFTWARE
- SOFTWARE LICENSE ATTACHED TO THE PRODUCT
Brand : JVC
Model : KY-PZ510BE
Category : Camcorder
