Brand	SMEG
Model	110B91GMCX
Product Type	Gas cooker with electric oven
Dimensions (W x D x H)	110 cm x 60 cm x 85 cm (approx)
Weight	Approx 70 kg
Power Supply	Natural gas G20 (20 mbar) and electricity 220-240 V~
Hob Burners	4 burners: Auxiliary (1.0 kW), Semi-rapid (1.8 kW), Rapid (3.0 kW), Ultra-rapid (4.2 kW)
Ignition	Integrated electronic
Burner Safety	Thermocouples on all burners (automatic gas shut-off)
Oven Functions	Static, Fan forced (Turbo), Grill, Fan grill, Rotisserie, Defrost
Interior Lighting	Yes (25 W bulb, T300°C)
Cooling Fan	Yes
Programmable Clock	Timer, cooking duration, programmed end of cooking
Included Accessories	Grid, drip tray, rotisserie with support and handle, wok reducer
Cleaning	Enamelled surfaces, removable grids, detachable door, clean with warm water and non-abrasive detergent
Installation	Class 1 (free-standing) or class 2 (built-in) – depending on configuration
Compliance	European directives (safety, environment)
Warranty	Refer to manufacturer's warranty

Frequently Asked Questions - 110B91GMCX SMEG

How to light a burner on the hob?

Press the corresponding knob and turn it counterclockwise to the maximum flame symbol. Keep it pressed for a few seconds after ignition to allow the thermocouple to heat up. If the burner does not light within 15 seconds, close the gas valve and wait 60 seconds before trying again.

How to use the oven for the first time?

Remove all protective films, labels and accessories. Wash the accessories with warm water. Heat the empty oven at maximum temperature for about 30 minutes to burn off manufacturing residues. Air the room.

How to set a timed cooking?

Select a cooking function and temperature. Press the cooking duration key (), set the duration with the + and - keys, then wait 5 seconds. The appliance will stop automatically at the end. For a programmed cooking (delayed start), first set the duration, then press the end of cooking key () to set the end time.

How to clean the hob burners?

Remove the grids, crowns and caps. Wash them in hot water with a non-abrasive detergent. Do not put these parts in the dishwasher. Dry thoroughly and reassemble, making sure the holes of the crowns are aligned with the igniters and thermocouples.

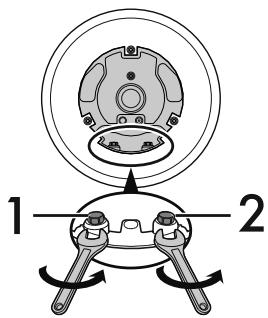

How to convert the appliance for another type of gas?

Replace the burner injectors with those corresponding to the new gas (refer to the characteristics table). Adjust the minimum flow setting on each tap. The operation must be carried out by a qualified technician.

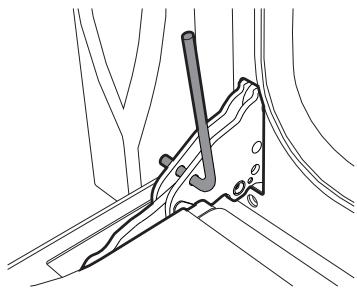

How to remove the oven door for cleaning?

Open the door fully, insert two pins into the hinge holes. Grasp the door on both sides, lift it to about 30° and remove it. To refit, place the hinges in the slots, lower the door and remove the pins.

How to use the rotisserie?

Thread the food onto the spit and secure it with the forks. Place the spit on the support, insert the end into the motor hole, remove the handle. Select the rotisserie function (symbol ~) on the function knob. At the end of cooking, use the handle to remove the spit.

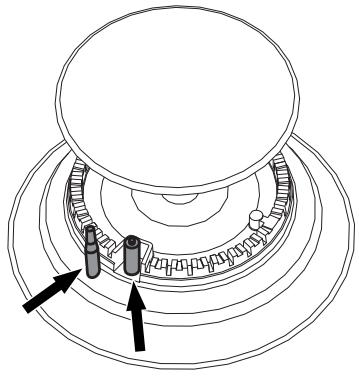

Why won't the burner light?

Check that the crowns are correctly positioned and that the holes are aligned with the igniters. Clean the igniters and thermocouples with a damp cloth or a needle. Ensure the gas is turned on and the cylinder is not empty (for LPG).

How to set the clock?

Press the + and - keys simultaneously until the digits flash. Use + or - to set the hour and minutes. Wait 5 seconds or press the validation key (⚫) to confirm.

What pan diameters are recommended for each burner?

Auxiliary: 12-14 cm. Semi-rapid: 16-24 cm. Rapid: 18-26 cm. Ultra-rapid: 20-26 cm. Use flat-bottomed pans of appropriate size to optimize gas consumption.

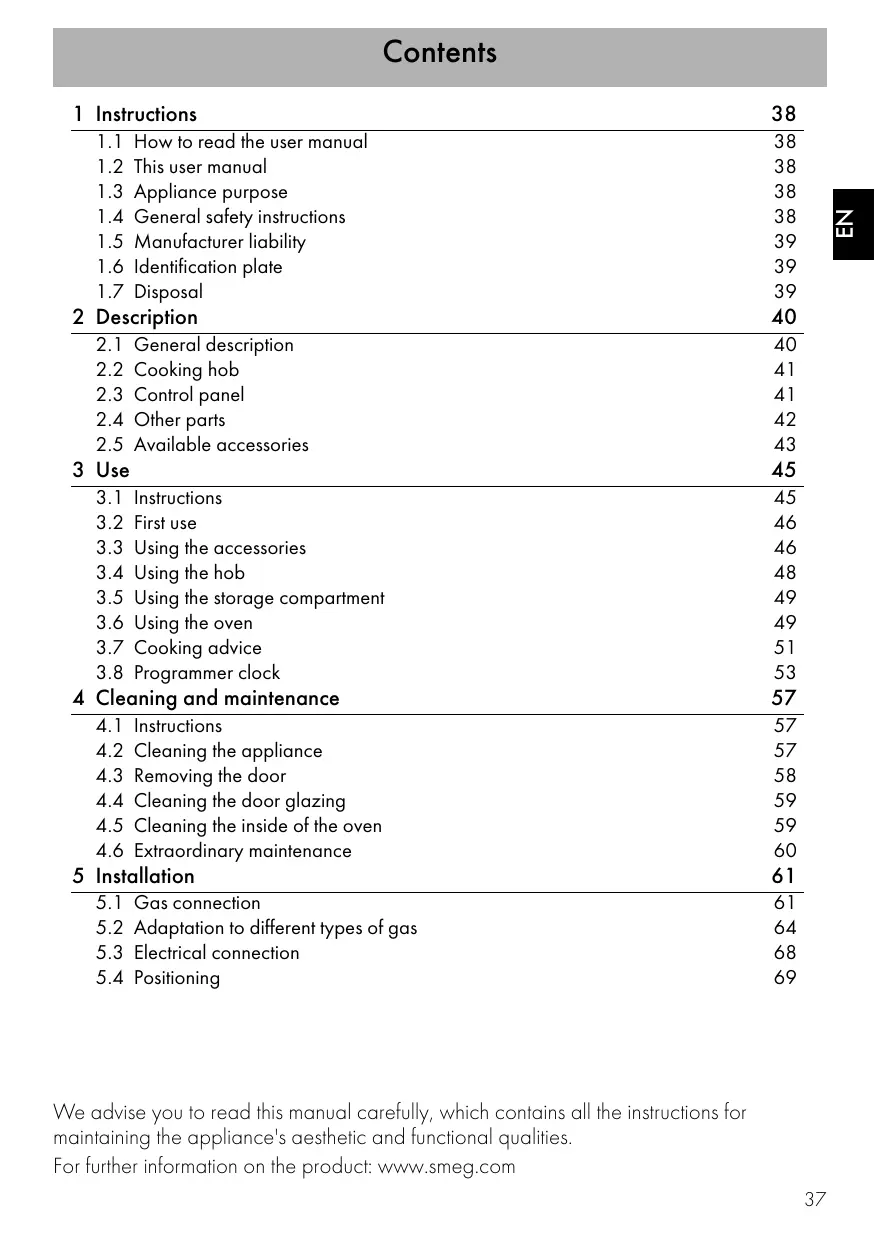

USER MANUAL 110B91GMCX SMEG

1.1 How to read the user manual 38
1.2 This user manual 38
1.3 Appliance purpose 38
1.4 General safety instructions 38
1.5 Manufacturer liability 39
1.6 Identification plate 39
1.7 Disposal 39

2 Description 40

2.1 General description 40
2.2 Cooking hob 41
2.3 Control panel 41
2.4 Other parts 42
2.5 Available accessories 43

3 Use 45

3.1 Instructions 45
3.2 First use 46
3.3 Using the accessories 46
3.4 Using the hob 48
3.5 Using the storage compartment 49
3.6 Using the oven 49
3.7 Cooking advice 51
3.8 Programmer clock 53

4 Cleaning and maintenance 57

4.1 Instructions 57
4.2 Cleaning the appliance 57
4.3 Removing the door 58
4.4 Cleaning the door glazing 59
4.5 Cleaning the inside of the oven 59
4.6 Extraordinary maintenance 60

5 Installation 61

5.1 Gas connection 61
5.2 Adaptation to different types of gas 64
5.3 Electrical connection 68
5.4 Positioning 69

We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

1 Instructions

1.1 How to read the user manual

This user manual uses the following reading conventions:

Instructions

General information on this user manual, on safety and final disposal.

Description

Description of the appliance and its accessories.

Use

Information on the use of the appliance and its accessories, cooking advice.

Cleaning and maintenance

Information for proper cleaning and maintenance of the appliance.

Installation

Information for the qualified technician: installation, operation and inspection.

Safety instructions

Information

Advice

1. Use instruction sequence.

- Single use instruction.

1.2 This user manual

This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.

1.3 Appliance purpose

This appliance is intended for cooking food in the home environment. Every other use is considered improper.

This appliance must not be used by people (including children) of reduced physical and mental capacity, or lacking in experience in the use of electrical appliances, unless they are supervised or instructed by adults who are responsible for their safety.

1.4 General safety instructions

For your safety and to avoid damage to the appliance, always respect the general safety instructions indicated below. In general

• Have qualified personnel carry out installation and assistance interventions according to the standards in force.
• Read this user manual carefully before using the appliance.
• Do not modify this appliance.
• Do not try to repair the appliance yourself or without the intervention of a qualified technician.
• If the power supply cable is damaged, contact technical support immediately and they will replace it.

For this appliance

• Do not obstruct ventilation openings and heat dispersal slots.
• Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
• Do not rest any weight or sit on the open door of the appliance.
  • Take care that no objects are stuck in the doors.
• Do not use the appliance to heat rooms for any reason.

1.5 Manufacturer liability

The manufacturer declines all liability for damage to persons or property caused by:

• use of the appliance other than the one envisaged,
  • non-observance of the user manual provisions,
• tampering with any part of the appliance,
  • use of non-original spare parts.

1.6 Identification plate

The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.

1.7 Disposal

This appliance must be disposed of separately from other waste (Directives 2002/95/EC, 2002/ 96/EC, 2003/108/EC). The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.

To dispose of the appliance:

• Remove the doors and leave the accessories (racks and trays) in their usual working positions, so that children cannot get stuck in the oven compartment.

Power voltage Danger of electrocution

• Disconnect the main power supply.
• Disconnect the power cable from the electrical system.
• Cut the power supply cable and remove it along with the plug.
• Consign the appliance to the appropriate selective collection centres for electrical and electronic equipment waste, or deliver it back to the retailer when purchasing an equivalent product, on a one for one basis.

Our appliances are packed in non-polluting and recyclable materials.

- Consign the packing materials to the appropriate selective collection centres.

Plastic packaging Danger of suffocation

• Do not leave the packaging or any part of it unattended.
• Do not let children play with the packaging plastic bags.

2 Description

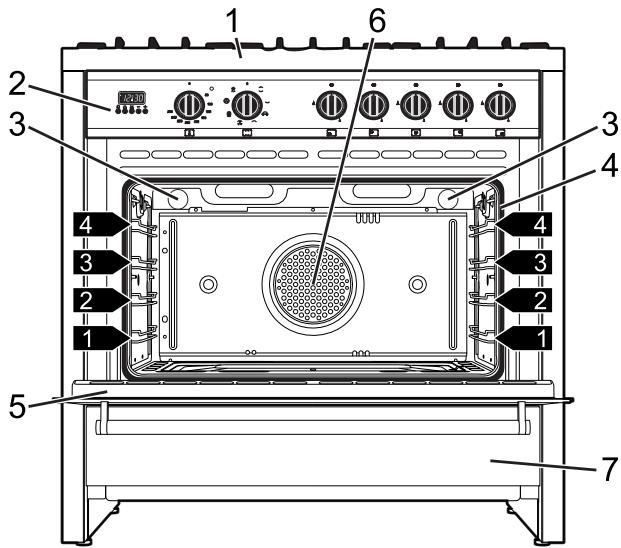

2.1 General description

Technical diagram of an oven with numbered parts for identification

2 Cooking hob
3 Control panel
4 Oven light
5 Seal

6 Door
7 Fan
8 Storage compartment

1,2,3... Rack/tray support frame shelf

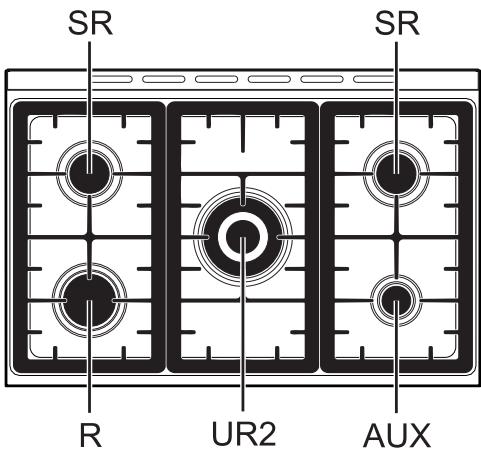

2.2 Cooking hob

SR R UR2 AUX SR

AUX = Auxiliary

SR = Semi-rapid

R = Rapid

UR2 = Ultra-rapid

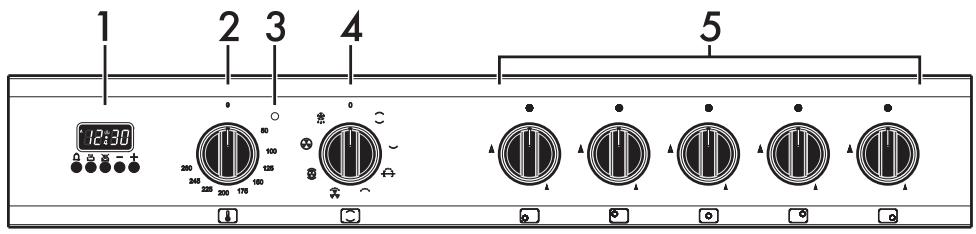

2.3 Control panel

1 2 3 4 5 12:30 200 240 200 170 80 100 120 150 180 200 240 200 170 200 240 200 180 200 240 200 170 200 240 200 180

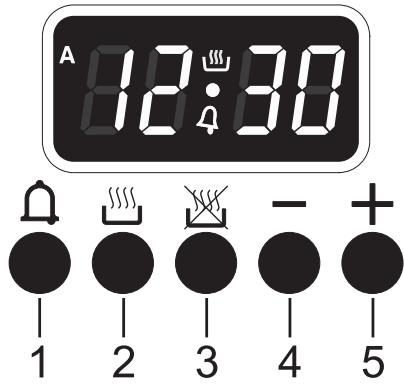

Clock (1)

Useful for displaying the current time, setting programmed cooking operations and programming the minute minder timer.

Temperature knob (2)

This knob allows you to select the cooking temperature.

Turn the knob clockwise to the required value, between the minimum and maximum setting.

Indicator light (3)

The indicator light comes on to indicate that the oven is heating up. It turns off as soon as it reaches the set temperature. It flashes regularly to indicate that the temperature set is kept constant inside the oven.

Function knob (4)

The oven's various functions are suitable for different cooking modes. After selecting the required function, set the cooking temperature using the temperature knob.

Hob burner knobs (5)

Useful for lighting and adjusting the hob burners.

Press and turn the knobs anti-clockwise to the value △ to light the relative burners. Turn the knobs to the zone between the maximum △ and minimum △ setting to adjust the flame.

Return the knobs to the Ⓞ position to turn off the burners.

2.4 Other parts

Shelves

The appliance features shelves for positioning trays and racks at different heights. The insertion heights are indicated from the bottom upwards (see 2.1 General description).

Cooling fan

The fan cools the appliance and comes into operation during cooking.

The fan causes a steady outflow of air that exits from the front of the appliance and which may continue for a brief period of time even after the appliance has been turned off.

Interior lighting

The internal light of the ovens comes on when any function is selected or when the oven door is opened.

2.5 Available accessories

Some models are not provided with all accessories.

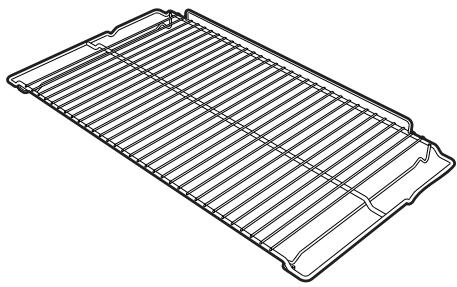

Rack

Line drawing of a rectangular metal grate or rack with evenly spaced slats (no text or symbols)

Useful for holding cooking containers.

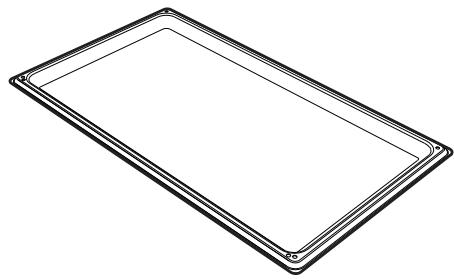

Tray

Simple line drawing of a rectangular tray or container with rounded edges and no text or symbols

Useful for collecting fat from foods placed on the rack above and for cooking pies, pizzas and baked desserts.

Rotisserie rod

Line drawing of a mechanical linkage or connector with two symmetrical arms and a central shaft (no text or symbols)

For cooking chicken and all foods which require uniform cooking over their entire surface.

Rotisserie support

Simple line drawing of a rectangular tray or container with internal wavy lines (no text or symbols)

To be used to support the rotisserie rod.

Rotisserie handle

Line drawing of a laboratory pipette or tool with a curved handle and pointed tip (no text or symbols)

The handle is used to extract the rotisserie rod from the oven cavity.

WOK reduction pan stand

Line drawing of an ornate symmetrical decorative frame with curved and angular edges (no text or symbols)

Useful when using a wok.

The accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation.

Supplied and optional accessories can be requested to Authorised Assistance Centres. Use only original accessories supplied by the manufacturer.

3 Use

3.1 Instructions

High appliance temperature during use Danger of burns

• Keep the oven door closed during cooking.
• Protect your hands wearing heat resistant gloves when moving food inside the oven.
• Do not touch the heating elements inside the oven.
• Do not pour water directly onto very hot trays.
• Do not allow children younger than 8 years old to come near the appliance when in operation.
• If you need to move food or at the end of cooking, open the door 5 cm for a few seconds, let the steam come out, then open it fully.

High temperature inside the storage compartment Danger of burns

• Do not open the storage compartment when the oven is on and still hot.
• The items inside the storage compartment could be very hot after using the oven.

Improper use Danger of burns

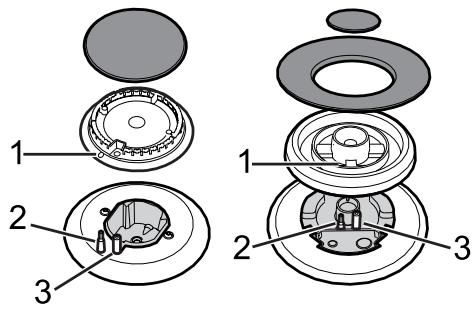

• Make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps.
• Oils and fat could catch fire if overheated. Be very careful.

High temperature inside the oven during use Danger of fire or explosion

• Do not spray any spray products near the oven.
• Do not use or leave flammable materials near the oven or the storage compartment.
• Do not use plastic kitchenware or containers when cooking food.
• Do not put sealed tins or containers in the oven.
• Do not leave the oven unattended during cooking operations where fats or oils could be released.
• Remove all trays and racks which are not required during cooking.

Improper use Risk of damage to surfaces

• Do not cover the bottom of the oven cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.
• Do not place pans or trays directly on the bottom of the oven cavity.
• Do not use the open door to rest pans or trays on the internal glass pane.
• The cooking vessels or griddle plates should be placed inside the perimeter of the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill, remove the excess from the hob.

3.2 First use

1. Remove any protective film from the outside or inside of the appliance, including accessories.
2. Remove any labels (apart from the technical data plate) from the accessories and from the cooking compartments.
3. Remove and wash all the appliance accessories (see 4 Cleaning and maintenance).
4. Heat the empty oven at the maximum temperature to burn off any residues left by the manufacturing process.

3.3 Using the accessories

Racks and trays

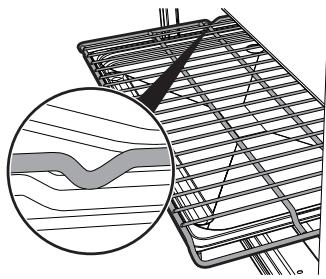

Racks and trays have to be inserted into the side guides until they come to a complete stop.

- The mechanical safety locks that prevent the rack from being taken out accidentally have to face downwards and towards the oven back.

Diagram of a grid structure with an inset showing a wavy line pattern, no text or symbols present.

Gently insert racks and trays into the oven until they come to a stop.

Clean the trays before using them for the first time to remove any residues left by the manufacturing process.

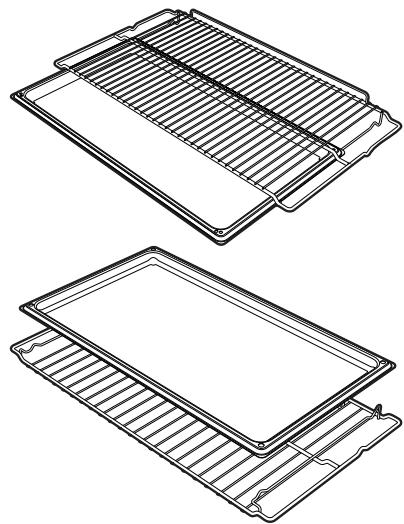

Tray rack

The tray can be used two different ways:

• Inside the rack (with the anti-tip stop facing upwards) to collect grease during cooking.
• Resting on the rack (with the anti-tip stop facing downwards) to cook sweets, biscuits, pastries etc.

Technical line drawing of two rectangular trays with slats and grilles, no text or symbols present

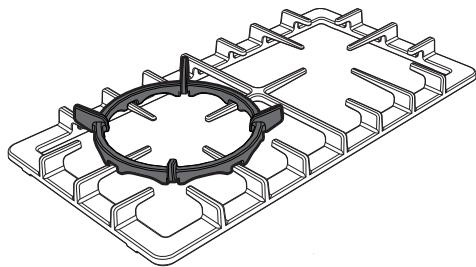

Reduction pan stands

The reduction pan stands have to be placed on the hob grids. Make sure they are properly placed.

Isometric technical drawing of a mechanical component with a central circular feature and surrounding grid-like structures (no text or symbols)

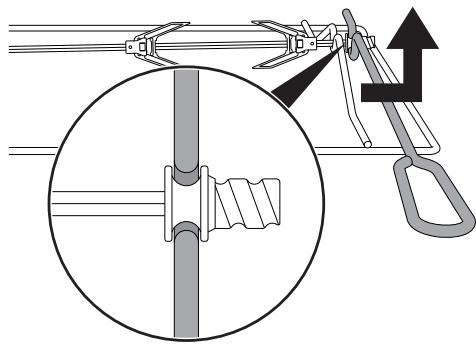

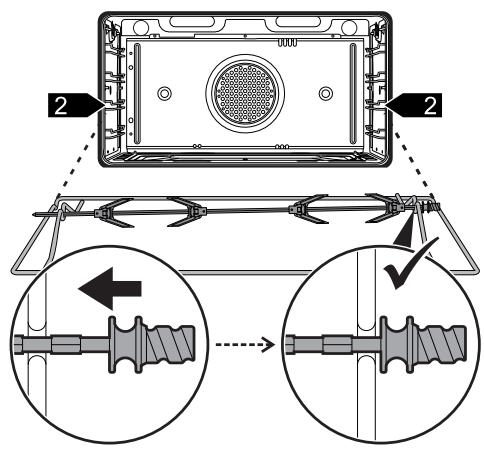

Rotisserie rod (on some models only)

1. Prepare the rotisserie rod with the food using the clip forks provided.

Mechanical linkage diagram with multiple blades and joints (no text or symbols)

1. Screw on the handle provided so that you can handle the rod with the food on it readily.

Illustration of a pair of pliers with a screwdriver inserted into a handle (no text or symbols)

1. Once you have prepared the rotisserie rod, place it on the rotisserie support. Insert the rod into the hole so that it connects with the rotisserie motor. Make sure that the contoured part is placed correctly on the guide frame and remove the handle.

Technical diagram showing assembly of a device with labeled parts and two views of the component, including a close-up view of the internal structure.

1. To activate the rotisserie, turn the function
   knob to position [\~]
2. At the end of cooking, use the rotisserie handle provided to extract the rod from the hole and remove the frame in order to take the rotisserie rod out of the oven cavity.

Diagram showing mechanical assembly with a magnified inset of a threaded component (no text or symbols)

These operations must be performed with the oven off and cold.

3.4 Using the hob

All the appliance's control and monitoring devices are located together on the front panel. The burner controlled by each knob is shown next to the knob. The appliance is equipped with an electronic ignition device. Simply press the knob and turn it anticlockwise to the maximum flame symbol, until the burner lights. If the burner does not light in the first 15 seconds, turn the knob to

and wait 60 seconds before trying again. After lighting, keep the knob pressed in for a few seconds to allow the thermocouple to heat up. The burner may go out when the knob is released: in this case, the thermocouple has not heated up sufficiently. Wait a few moments and repeat the operation. Keep the knob pressed in longer.

In case of an accidental switching off, a safety device will be tripped, cutting off the gas supply, even if the gas tap is open. Return the knob to Ⓞ and wait at least 60 seconds before lighting it again.

Correct positioning of the flame-spreader crowns and burner caps

Before lighting the hob burners, make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps. Make sure that the holes 1 in the flame-spreader crowns are aligned with the igniters 3 and thermocouples 2.

1 2 3 1 2 3

Practical tips for using the hob

For better burner efficiency and to minimise gas consumption, use pans with lids and of suitable size for the burner, so that flames do not reach up the sides of the pan.

Once the contents come to the boil, turn down the flame far enough to ensure that the liquid does not boil over.

Cookware diameters:

• Auxiliary: 12 - 14 cm.
• Semi-rapid: 16 - 24 cm.
• Rapid: 18 - 26 cm.
• Ultra-rapid: 20 - 26 cm.

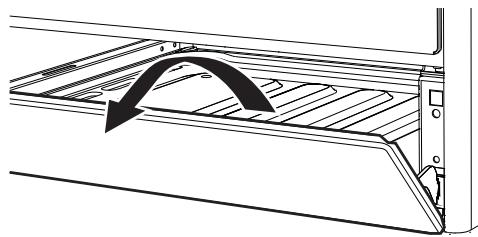

3.5 Using the storage compartment

The storage compartment is at the bottom of the cooker. To open it, pull the handle towards you. It can be used to store cookware or metallic objects necessary when using the appliance.

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

3.6 Using the oven

Switching on the oven

To switch on the oven:

1. Select the cooking function using the function knob.
2. Select the temperature using the temperature knob.

Regular flashing of the thermostat indicator light during cooking is normal and indicates that the temperature is being maintained constant inside the oven.

Functions list

Static

As the heat comes from above and below at the same time, this system is particularly suitable for certain types of food. Traditional cooking, also known as static cooking, is suitable for cooking just one dish at a time. Perfect for all types of roasts, bread and cakes and in any case particularly suitable for fatty meats such as goose and duck.

Lower element

The heat coming just from the bottom allows you to complete the cooking of foods that require a higher bottom temperature, without affecting their browning. Perfect for cakes, pies, tarts and pizzas.

Rotisserie

The rotisserie works in combination with the grill element, allowing food to be perfectly browned.

Grill

The heat coming from the grill element gives perfect grilling results above all for thin and medium thickness meat and in combination with the rotisserie (where fitted) gives the food an even browning at the end of cooking. Perfect for sausages, spare ribs and bacon. This function enables large quantities of food, particularly meat, to be grilled evenly.

Fan with grill

The air produced by the fan softens the strong heatwave generated by the grill, grilling perfectly even very thick foods. Perfect for large cuts of meat (e.g. shin of pork).

Turbo

The combination of fan assisted cooking and traditional cooking allows different foods to be cooked on several levels extremely quickly and efficiently, without odours and flavours mingling. Perfect for large volumes that call for intense cooking.

Fan + circulaire

The combination of the fan and the circulaire heating element (incorporated in the rear of the oven) allows you to cook different foods on several levels, as long as they need the same temperatures and same type of cooking. Hot air circulation ensures instant and even distribution of heat. It will be possible, for instance, to cook fish, vegetables and biscuits simultaneously (on different levels) without odours and flavours mingling.

Defrost

Rapid defrost is helped by switching on the fan provided and the upper heating element that ensure uniform distribution of low temperature air inside the oven.

3.7 Cooking advice

General advice

• Use a fan assisted function to achieve consistent cooking at several levels.
• It is not possible to shorten cooking times by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside).

Advice for cooking meat

• Cooking times vary according to the thickness and quality of the food and to consumer taste.
• Use a meat thermometer when roasting meat, or simply press on the roast with a spoon. If it is hard, it is ready; if not, it needs another few minutes cooking.

Advice for cooking with the Grill and the Fan with grill

• Meat can be grilled even when it is put into the cold oven or into the preheated oven if you wish to change the effect of the cooking.

• With the Fan with grill function, we recommend that you preheat the oven before grilling.
  • We recommend placing the food at the centre of the rack.

• With the Grill function, we recommend that you turn the temperature knob to the maximum value near the 📄 symbol to optimise cooking.

• Foods should be seasoned before cooking. Foods should also be coated with oil or melted butter before cooking.
• Use the oven tray on the first bottom shelf to collect fluids produced by grilling.
• Grilling processes should never last more than 60 minutes using multifunction ovens, 30 minutes inside the auxiliary ovens, if present.

Advice for cooking desserts/pastries and biscuits

• Use dark metal moulds: they help to absorb the heat better.
• The temperature and the cooking time depend on the quality and consistency of the dough.
• To check whether the dessert is cooked right through: at the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10^ C, selecting a longer cooking time if necessary.
• While cooking desserts or vegetables, excessive condensation may form on the glass. In order to avoid this, open the door very carefully a couple of times while cooking.

Advice for defrosting and proving

• Place frozen foods without their packaging in a lidless container on the first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on the second level and a tray on the first level. In this way, the liquid from the defrosting food drains away from the food.
• The most delicate parts can be covered with aluminium foil.
• For successful proving, a container of water should be placed in the bottom of the oven.

To save energy

• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at all times.

3.8 Programmer clock

A 12:30 1 2 3 4 5

1 Minute minder timer key
2 Cooking duration key
3 End of cooking key
4 Value decrease key
5 Value increase key

Please make sure the programmer clock shows the cooking duration symbol 📊, otherwise the oven will not switch on.

Press keys 📄 and ✗ at the same time to reset the programmer clock.

Setting the time

If the time is not set, the oven will not switch on.

On the first use, or after a power failure, the digits ^A 0.00 will be flashing on the appliance's display.

1. Press the 🎨 and 🎨 keys at the same time. The dot between the hours and the minutes flashes.
2. The time can be set using — or +. Keep the key pressed in to increase or decrease rapidly.
3. Press the ⚫ key or wait 5 seconds. The dot between the hours and the minutes stops flashing.
4. The symbol 📊 on the display indicates that the appliance is ready to start cooking.

Timed cooking

Timed cooking is the function which allows a cooking operation to be started and then ended after a specific length of time set by the user.

1. After selecting a cooking function and temperature, press key 🎨. The display will shows the digits 🎨 and the symbol 🎨 displayed between the hours and the minutes.

2. Use the — or + key to set the required minutes.

3. Wait approx. 5 seconds without pressing any key in order for the function to activate. The current time and the symbols A and 📊 will appear on the display.

4. At the end of cooking the heating elements will be deactivated. On the display, symbol 📋 turns off, symbol A flashes and the buzzer sounds.
5. To turn off the buzzer just press any key of the programmer clock.
6. Press keys 📄 and 🌐 at the same time to reset the programmer clock.

It is not possible to set a cooking time of more than 10 hours.

After the setting, to display the cooking time left press the 🎨 key.

To reset the set program, press keys 📄 and ✗ at the same time and switch off the oven manually.

Programmed cooking

Programmed cooking is the function which allows a cooking operation to be started at a set time and then ended after a specific length of time set by the user.

1. Set the cooking time as described in the previous point "Timed cooking".
2. Press 📋. The sum of the current time plus the pre-set cooking duration will appear on the display.
3. Use the — or + key to set the required minutes.
4. Wait approx. 5 seconds without pressing any key in order for the function to activate. The current time and the symbols A and 📊 will appear on the display.
5. At the end of cooking the heating elements will be deactivated. On the display, symbol 📋 turns off, symbol A flashes and the buzzer sounds.
6. To turn off the buzzer just press any key of the programmer clock.
7. Press keys 📄 and 🌐 at the same time to reset the programmer clock.

After the setting, to display the cooking time left press the 🎨 key. To display the end of cooking time, press the 🔗 key.

Minute minder timer

The minute minder timer does not stop the cooking operation but rather informs the user when the set time has run out.

The minute minder timer can be activated at any time.

1. Press 🔒. The display shows the digits
   0:00 and the indicator light flashing between the hours and the minutes.
2. Use the — or + key to set the required minutes.
3. Wait approx. 5 seconds without pressing any key to finish setting the minute minder. The current time and the symbols 🎨 and 🔒 appear on the display.

It is not possible to set a cooking time of more than 24 hours.

After the minute minder timer has been programmed, the display will go back to showing the current time; to display the remaining time, press 🔒.

Adjusting the buzzer volume

The buzzer volume can be set to 3 different levels. When the buzzer is in operation, press — to change the setting.

Deleting the set data

Press keys 🎨 and 🎨 at the same time to reset the programs set.

Then switch off the oven manually if cooking is in progress.

Cooking information table

Food	Weight (Kg)	Function	Runner position from the bottom	Temperature (°C)	Time (minutes)
Lasagne	3 - 4	Static	1	220 - 230	50 - 60
Pasta bake	2	Static	1	220 - 230	40
Roast veal	1.2	Fan assisted	2	180 - 190	70 - 80
Pork loin	1.2	Fan assisted	2	180 - 190	70 - 80
Pork shoulder	1.2	Fan assisted	2	180 - 190	90 - 100
Roast rabbit	1.2	Circulaire	2	180 - 190	70 - 80
Turkey breast	1.5	Fan assisted	2	180 - 190	80 - 90
Roast pork neck	2	Fan assisted	2	180 - 190	190 - 210
Roast chicken	1.2	Fan assisted	2	190 - 200	60 - 70
					1^st surface	2^nd surface
Pork sausages	1.2	Fan with grill	3	250	7 - 9	5 - 6
Pork chops	1.2	Grill	4	250	15	5
Hamburgers	0.8	Grill	4	250	9	5
Bacon	0.8	Fan with grill	3	250	13	3
Spit-roast chicken	1.2	Rotisserie		250	70 - 80
Salmon trout	1.2	Fan + bottom	2	150 - 160	35 - 40
Pizza	1	Fan + bottom	1	250	6 - 10
Bread	1	Circulaire	2	190 - 200	25 - 30
Focaccia	1	Fan assisted	2	180 - 190	15 - 20
Bundt cake	1	Fan assisted	2	160	50 - 60
Tart	1	Fan assisted	2	160	30 - 35
Short pastry	0.5	Fan + bottom	2	160 - 170	20 - 25
Jam tarts	1.2	Circulaire	2	160 - 170	40 - 50
Paradise cake	1.2	Fan assisted	2	160	50 - 60
Profiteroles	0.8	Fan assisted	2	150 - 160	40 - 50
Sponge cake	0.8	Circulaire	2	150 - 160	45 - 50
Rice pudding	1	Circulaire/Static	2	160	40 - 50
Brioches	0.6	Circulaire	2	160	25 - 30
Short pastry biscuits		Fan assisted	1-3	160 - 170	16 - 20

The times indicated in the table do not include preheating times and are provided as a guide only.

4 Cleaning and maintenance

4.1 Instructions

Improper use Risk of damage to surfaces

• Do not use steam jets for cleaning the appliance.
• Do not use cleaning products containing chlorine, ammonia or bleach on steel parts or parts with metallic finishes on the surface (e.g. anodizing, nickel- or chromium-plating).
• Do not use abrasive or corrosive detergents on glass parts (e.g. powder products, stain removers and metallic sponges).
• Do not use rough or abrasive materials or sharp metal scrapers.
• Do not wash the removable components such as the hob pan stands, flame-spreader crowns and burner caps in a dishwasher.

4.2 Cleaning the appliance

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Ordinary daily cleaning

Always use only specific products that do not contain abrasives or chlorine-based acids.

Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Food stains or residues

Do not use metallic sponges or sharp scrapers as they will damage the surfaces.

Use ordinary non-abrasive products with the aid of wooden or plastic utensils if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

Cooking hob grids

Remove the grids and clean them with lukewarm water and non-abrasive detergent. Make sure to remove any encrustations. Dry them thoroughly and return them to the hob.

Continuous contact between the grids and the flame can cause modifications to the enamel over time in those parts exposed to heat. This is a completely natural phenomenon which has no effect on the operation of this component.

Flame-spreader crowns and burner caps

For easier cleaning, the flame-spreader crowns and the burner caps can be removed. Wash them in hot water and non-abrasive detergent. Carefully remove any encrustation, then wait until they are perfectly dry. Refit the flame-spreader crowns making sure that they are correctly positioned in their housings with their respective burner caps.

Igniters and thermocouples

For correct operation the igniters and thermocouples must always be perfectly clean. Check them frequently and clean them with a damp cloth if necessary. Remove any dry residues with a wooden toothpick or a needle.

Technical line drawing of a mechanical assembly with concentric rings and two directional arrows indicating motion (no text or symbols)

4.3 Removing the door

For easier cleaning, the door can be removed and placed on a canvas.

To remove the door proceed as follows:

1. Open the door completely and insert two pins into the holes on the hinges indicated in the figure.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Grasp the door on both sides with both hands, lift it forming an angle of around 30^ and remove it.

30°

1. To reassemble the door, put the hinges in the relevant slots in the oven, making sure that grooved sections A are resting completely in the slots. Lower the door

and once it is in place remove the pins from the holes in the hinges.

Diagram showing a mechanical component with a circular inset labeled 'A' (no text or symbols beyond label)

4.4 Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and an ordinary detergent.

We recommend the use of cleaning products distributed by the manufacturer.

4.5 Cleaning the inside of the oven

For the best oven upkeep, clean it regularly after having allowed it to cool.

- Take out all removable parts. Clean the oven racks with warm water and non-abrasive detergent. Carefully rinse and dry damp parts.

The oven should be operated at the maximum temperature for about 15-20 minutes after the use of specific products, to burn off the residues left inside the oven.

For easier cleaning, remove the door.

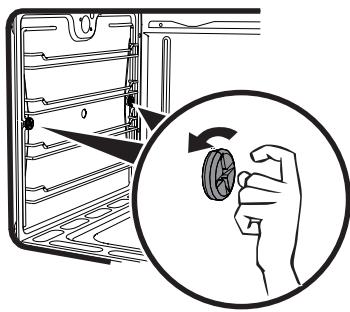

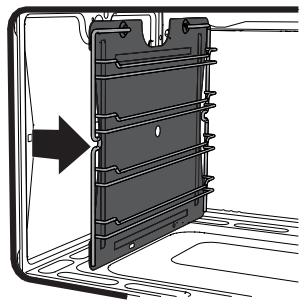

Removing racks/trays support frames

Removing the rack/tray support frames enables the sides to be cleaned more easily.

Removing the rack/tray support frames:

1. Unscrew the two fastening pins of the frame.

Diagram showing a hand turning a tire inside an oven, with no text or symbols present.

1. Pull out the frame toward the interior. If self-cleaning panels are fitted they have to be removed together with the frame.

Diagram of a device panel with internal structure and directional arrow (no text or symbols)

1. When cleaning is complete, repeat the above procedures to put the guide frames back in.

Cleaning and maintenance

4.6 Extraordinary maintenance

Live parts

Danger of electrocution

- Disconnect the appliance from the power supply.

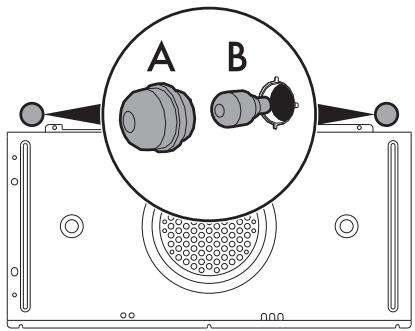

Replacing the internal light bulb

1. Unscrew protective cover A (turn anticlockwise).
2. Replace bulb B with one of the same type (25W). Use only oven bulbs (T 300°C).

A B

1. Re-fit protective cover A.

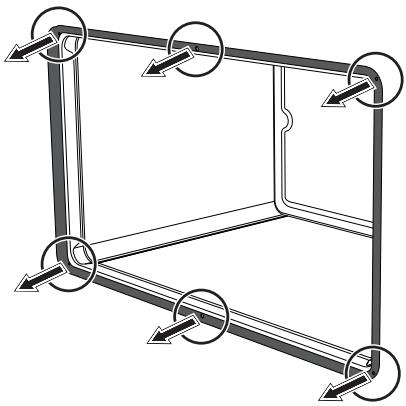

Removing the seal of the oven

To permit thorough cleaning of the oven, the door seal may be removed. There are fasteners on all 4 sides and in the middle to attach it to the edge of the oven. Pull the seal outwards at the indicated points in order to remove it from the appliance.

Pure 3D diagram of a cube with directional arrows indicating force or movement (no text or symbols)

To keep the seals clean, use a non-abrasive sponge and lukewarm water. Seals should be soft and elastic.

5 Installation

5.1 Gas connection

Gas leak

Danger of explosion

• After carrying out any operation, check that the tightening torque of gas connections is between 10 Nm and 15 Nm.
• If required, use a pressure regulator that complies with current regulations.
• At the end of the installation, check for any leaks with a soapy solution, never with a flame.
• Installation with flexible hose must be carried out so that the length of the piping does not exceed 2 metres when fully extended as regards flexible steel hoses and 1.5 metres in case of rubber hoses.
• The hoses should not come into contact with moving parts and should not be crushed in any way.

General information

Connection to the gas supply network can be made using a continuous wall flexible steel hose in compliance with the guidelines established by the standards in force. The appliance is preset for natural gas G20 (2H) at a pressure of 20 mbar. For supplying it with other types of gas, see chapter "5.2 Adaptation to different types of gas". The gas inlet connection is threaded 12 " external gas (ISO 228-1).

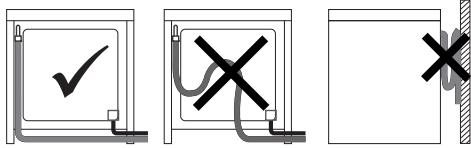

Connection with a rubber hose

Verify that all following conditions are met:

• the hose is fixed to the hose connection with safety clamps;
• no part of the hose is in contact with hot walls (max. 50 °C);
• the hose is not under traction or tension and has no kinks or twists;
• the hose is not in contact with sharp objects or sharp corners;
• if the hose is not perfectly airtight and leaks gas, do not try to repair it; replace it with a new hose.
• verify that the hose is not past its expiry date (serigraphed on the hose itself).

Diagram showing three different electrical circuit symbols: checkmark, crossed-out switch, and cross symbol.

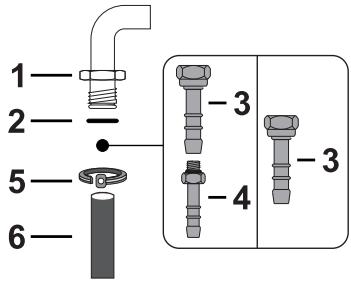

Make the connection to the gas mains using a rubber hose whose specifications comply with current standards (verify that the reference standard is stamped on the hose).

Carefully screw hose connector 3 to the appliance's gas connector 1 ( 12 " ISO 228-1 thread), placing seal 2 between them. Hose connector 4 can also be screwed to hose connector 3, depending on the diameter of the gas hose used. After tightening the hose connector(s), push gas hose 6 onto the hose connector and secure

it with clamp 5 (which must be compliant with the applicable standard).

1 2 5 6 -3 -4 -3

Connection using a rubber hose complying with current standards is only permitted if the hose can be inspected along its entire length.

The inside diameter of the hose must be 8 mm for LPG and 13 mm for Natural gas and City gas.

Connection to LPG

Use a pressure regulator and make the connection on the gas cylinder following the guidelines set out in the standards in force.

The supply pressure must comply with the values indicated in the table in "Gas types and Countries".

Connection with a flexible steel hose

Make the connection to the gas mains using a continuous wall flexible steel hose whose specifications comply with the applicable standard.

Carefully screw the connector 3 to the gas connector 1 of the appliance, placing the seal 2 between them.

1 2 3

Connection with a flexible steel hose with bayonet fitting

Carry out the connection to the gas mains using a flexible steel hose with bayonet fitting compliant with B.S. 669. Apply insulating material to the thread of the gas hose connector 4 and then tighten the adapter 3. Screw the assembly to the movable connector 1 of the appliance, placing the supplied seal 2 between them.

1 2 3 4

Connection with a flexible steel hose with conical fitting

Make the connection to the gas mains using a continuous wall flexible steel hose whose specifications comply with the applicable standard.

Carefully screw the hose connector 3 to the appliance's gas connector 1 ( 12 " thread ISO 228-1), placing the supplied seal 2 between them. Apply insulating material to the thread of connector 3, then tighten the flexible steel hose 4 to the connector 3.

1 2 3 4

Room ventilation

The appliance should be installed in rooms that have a permanent air supply in accordance with the standards in force. The room where the appliance is installed must have enough air flow for the regular combustion of gas and the necessary air change in the room itself. The air vents, protected by grilles, must be the right size to comply with current regulations and positioned so that no part of them is obstructed, not even partially.

The room must be kept adequately ventilated in order to eliminate the heat and humidity produced by cooking: in particular, after prolonged use, you are recommended to open a window or to increase the speed of any fans.

Extraction of the combustion products

The combustion products may be extracted by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction. An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and distances indicated by the applicable standards.

When the job is complete, the installer must issue a certificate of conformity.

1 Extraction using a hood
2 Extraction without a hood

A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-mounted extractor fan
D Directly outdoors through wall

Air

Combustion products

Extractor fan

5.2 Adaptation to different types of gas

The appliance is preset for natural gas G20 at a pressure of 20 mbar.

In case of operation with other types of gas, the burner nozzles must be changed and the minimum flame adjusted on the gas taps.

Replacing nozzles

1. Remove the pan stands, burner caps and flame-spreader crowns to access the burner casings.
2. Replace the nozzles using a 7 mm spanner according to the gas to be used (see Burner and nozzle characteristics tables).

1 2

Mechanical assembly diagram showing a rotating shaft and base with mounting holes (no text or symbols)

1. Internal nozzle

2. External nozzle

3. Replace the burners in the correct position.

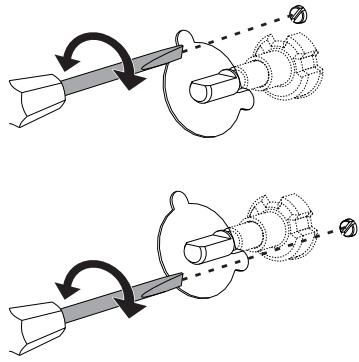

Adjusting the minimum setting for natural or city gas

Light the burner and turn it to the minimum position. Extract the gas tap knob and turn the adjustment screw next to the tap rod (depending on the model) until the correct minimum flame is achieved.

Refit the knob and verify that the burner flame is stable. Turn the knob rapidly from the maximum to the minimum setting: the flame should not go out. Repeat the operation on all gas taps.

Mechanical diagram showing two sequential steps of a tool or component with arrows indicating motion (no text or symbols)

Adjusting the minimum setting for LPG

Tighten the screw located at the side of the tap rod clockwise all the way.

Following adjustment to a gas other than the one originally set in the factory, replace the gas setting label on the appliance with the one corresponding to the new gas. The label is inserted inside the nozzle pack (where present).

Lubricating the gas taps

Over time the gas taps may become difficult to turn and get blocked. Clean them internally and replace the grease.

Lubrication of the gas taps should be performed by a specialised technician.

Gas types and Countries

Gas types

IT

GB-IE

FR-BE

DE

AT

NL

ES

PT

SE

RU

DK

1 Natural Gas G20

G20

20 mbar

●

●

●

●

●

●

●

●

●

G20/25

20/25 mbar

●

2 Natural Gas G25

G25

25 mbar

●

3 Natural Gas G25

G25

20 mbar

●

4 LPG G30/31

G30/31

28/37 mbar

●

●

●

●

G30/31

30/37 mbar

●

●

G30/31

30/30 mbar

●

●

●

5 LPG G30/31

G30/31

50 mbar

●

●

6 City Gas G110

G110

8 mbar

●

●

●

7 City Gas G120

G120

8 mbar

●

Burner and nozzle characteristics tables

1 Natural Gas G20	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	4.2
Nozzle diameter (1/100 mm)	72	97	115	75 + 135
Pre-chamber (printed on nozzle)	(X)	(Z)	(Y)	(H1)+(H3)
Reduced capacity (W)	400	500	800	1900
2 Natural Gas G25	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	4.2
Nozzle diameter (1/100 mm)	72	94	121	75 + 145
Pre-chamber (printed on nozzle)	(F1)	(Y)	(F2)	(H1)+(H3)
Reduced capacity (W)	400	500	800	1900
3 Natural Gas G25	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	4.1
Nozzle diameter (1/100 mm)	77	100	134	80 + 145
Pre-chamber (printed on nozzle)	(F1)	(Y)	(F3)	(Y)+(H3)
Reduced capacity (W)	400	500	800	1900
4 LPG G30/31	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	4.2
Nozzle diameter (1/100 mm)	50	65	85	46 + 91
Reduced capacity (W)	400	500	800	1900
Rated capacity G30 (g/h)	76	131	218	305
Rated capacity G31 (g/h)	75	129	214	300
5 LPG G30/31	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	2.9	4.2
Nozzle diameter (1/100 mm)	43	58	70	43 + 70
Pre-chamber (printed on nozzle)	(H2)	(M)	(Y)	(S1)+(H2)
Reduced capacity (W)	400	500	800	1900
Rated capacity G30 (g/h)	76	131	211	305
Rated capacity G31 (g/h)	75	129	207	300
6 City Gas G110	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	3.8
Nozzle diameter (1/100 mm)	145	185	260	140 + 320
Pre-chamber (printed on nozzle)	(8)	(2)	(3)	-
Reduced capacity (W)	400	500	800	1400
7 City Gas G120	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	3.9
Nozzle diameter (1/100 mm)	135	175	240	130 + 290
Pre-chamber (printed on nozzle)	(8)	(1)	(3)	-
Reduced capacity (W)	400	500	800	1400

The nozzles not provided are available at Authorised Service Centres.

5.3 Electrical connection

Power voltage Danger of electrocution

• Have the electrical connection performed by authorised technical personnel.
• Use personal protective equipment.
• The appliance must be connected to earth in compliance with electrical system safety standards.
• Disconnect the main power supply.
• Do not pull the cable to remove the plug.
• Use cables withstanding a temperature of at least 90°C.
• The tightening torque of the screws of the terminal supply wires must be 1.5 - 2 Nm.

General information

Check the grid characteristics against the data indicated on the plate.

The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance.

Do not remove this plate for any reason.

Perform the ground connection using a wire that is 20 mm longer than the other wires.

220-240V~ 1.5 mm² 20 mm

The values indicated above refer to the cross-section of the internal conductor.

The aforementioned power cables are sized taking into account the coincidence factor (in compliance with standard EN 60335-2-6).

Fixed connection

Fit the power line with an omnipolar circuit breaker in compliance with installation regulations.

The circuit breaker should be located near the appliance and in an easily reachable position.

Connection with plug and socket

Make sure that the plug and socket are of the same type.

Avoid using adapters and shunts as these could cause overheating and a risk of burns.

5.4 Positioning

Heavy appliance Danger of crush injuries

- Place the appliance into the piece of furniture with the aid of a second person.

Pressure on the open door Risk of damages to the appliance

• Never use the oven door to lever the appliance into place when fitting.
• Avoid exerting too much pressure on the oven door when open.

Heat production during appliance operation Risk of fire

- Veneers, adhesives or plastic coatings on adjacent furniture should be temperature-resistant (no less than 90°C).

General information

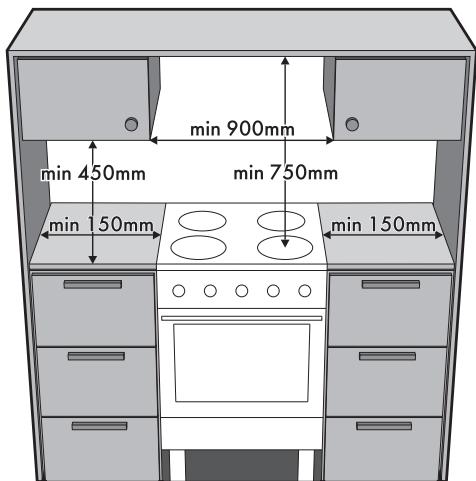

This appliance may be installed next to walls, one of which must be higher than the worktop, at a minimum distance of 150 mm from the side of the appliance, as shown in figures A and C relative to the installation classes.

Any wall units positioned above the worktop must be at a minimum distance of at least 750 mm.

min 900mm min 450mm min 750mm min 150mm min 150mm

If a hood is installed above the hob, refer to the hood instruction manual to ensure the correct clearance is left.

Depending on the type of installation, this appliance belongs to classes:

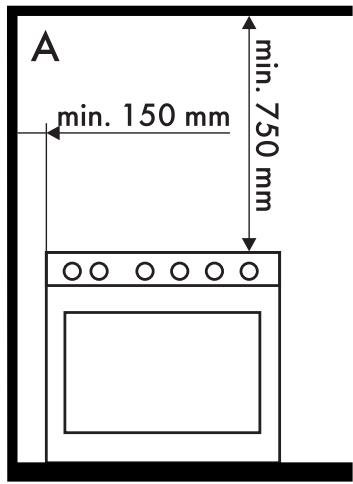

A min. 150 mm min. 750 mm

A - Class 1 (Free-standing appliance)

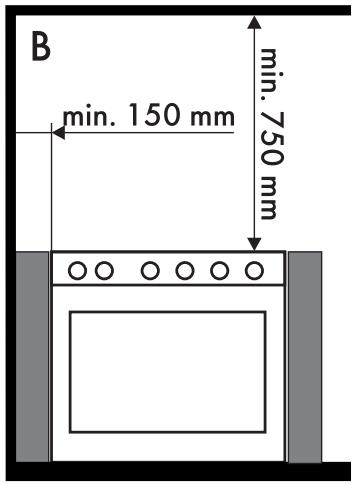

B min. 150 mm min. 750 mm

B - Class 2 subclass 1 (Built-in appliance)

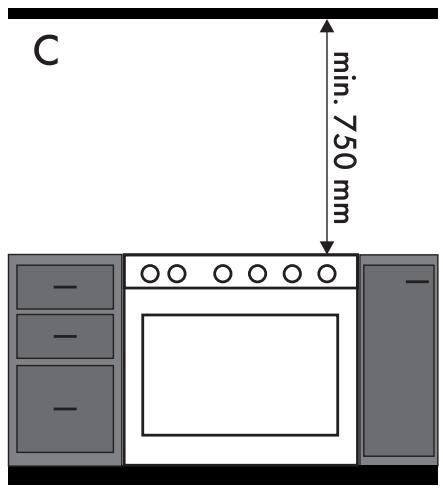

C min. 750 mm - - - - -

C - Class 2 subclass 1 (Built-in appliance)

The appliance must be installed by a qualified technician and according to the regulations in force.

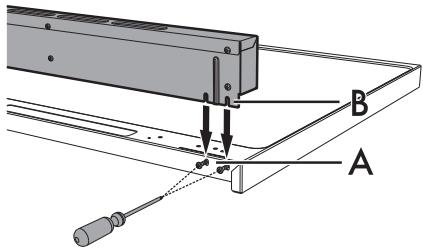

Assembling the backguard

The backguard provided is an integral part of the product; it must be fastened to the appliance prior to installation.

The backguard must always be positioned and secured correctly on the appliance.

1. Loosen the 4 screws (A) on the back of the hob (2 for each side) using a screwdriver.
2. Place the backguard on the worktop.
3. Align the slots of the backguard (B) with the screws (A).

B A

1. Secure the backguard to the worktop by tightening the 4 screws previously loosened.
