32FBG5000 - Television BLAUPUNKT - Free user manual and instructions

Product Type	LED Television
Screen Size	32 inches (81 cm)
Display Resolution	HD Ready (1366 x 768 pixels)
Refresh Rate	60 Hz
Dimensions (Without Stand)	73.5 x 43.5 x 7.6 cm (W x H x D)
Dimensions (With Stand)	73.5 x 47.0 x 18.0 cm (W x H x D)
Weight (Without Stand)	4.2 kg
Weight (With Stand)	4.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	38 W
Power Consumption (Standby)	< 0.5 W
Main Features	Digital tuner (DVB-T2/C/S2), USB media player, HDMI, VGA, CI+ slot, 2x5W speakers
Cleaning Instructions	Unplug TV. Clean with soft dry cloth. No liquids or harsh chemicals.
Safety Warnings	Do not block ventilation. Avoid prolonged static images. Use correctly rated power cord.
Spare Parts Availability	Remote control, stand base, screws available from authorized service centers.
Repairability	Product designed for professional repair. Refer to service manual.
General Information	Model: 32FBG5000; Brand: Blaupunkt; Energy Class: A+; VESA mount: 200x200

Frequently Asked Questions - 32FBG5000 BLAUPUNKT

How do I connect my TV to a Wi-Fi network?

This model does not have built-in Wi-Fi. Use an external streaming device via HDMI.

What type of remote control does the TV use?

It uses an infrared (IR) remote control. The model number is typically printed on the remote.

How can I reset the TV to factory settings?

Go to Menu > Settings > System > Factory Reset. Enter PIN (default 0000) to confirm.

Can I mount this TV on a wall?

Yes, it supports VESA 200x200 mm standard. Use a compatible wall mount.

What devices can I connect via HDMI?

You can connect Blu-ray players, game consoles, laptops, streaming devices, etc., using HDMI cables.

How do I scan for digital channels?

Press Source button, select TV (DVB-T/C/S). Go to Menu > Channel > Auto Tuning and follow prompts.

Why is there no sound from the TV speakers?

Check volume level, ensure mute is off, and verify audio output setting is not set to External Speakers.

Can I use USB devices to play media?

Yes, connect a USB flash drive to the USB port, then select Media Player from the Source menu.

How do I update the TV firmware?

Visit the Blaupunkt support website, download the latest firmware to USB, and use USB Update in Menu settings.

What should I do if the TV won't turn on?

Check power cord connection, try a different power outlet, and press and hold the power button on the TV for 10 seconds.

USER MANUAL 32FBG5000 BLAUPUNKT

Enjoy it.

UNION DISTRIBUTION S.R.O.

NA STRŽI 1702/65, 140 00 PRAGUE 4, CZECH REPUBLIC

Please read this manual carefully for proper usage before installation. It is recommended to keep this manual properly for future reference. The pictures provided in this manual are only for your reference.

01-12

English

61-72

Slovak

13-24

German

73-84

Italian

25-36

Czech

85-96

Romanian

37-48

Polish

97-108

Ukrainian

49-60

Hungarian

109-110

Warranty

Help

The Help feature offers a lot of information about your TV operation. To use the Help feature, press the Home button, and then use the arrow and OK buttons to access the Help menu. You can find how to troubleshoot from the list or keyword search. If you update APK, the Help feature and information will be updated.

Package

1.	LED TV. 1
2.	Remote control. 1
3.	Stands (Group). 1
4.	User Manual. 1
5.	Screw (Group). 1
6.	Remote control battery. 2
7.	Individual packing container, set. 1

Dear customer, before operating, please read all these safety and operating instructions completely and then retain this manual for future reference. Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Regulatory information

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

a. Relocate the receiving antenna. b. Increase the separation between the equipment and receiver. c. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. d. Consult the dealer or experienced radio/TV technician for help.

CAUTION

Do not attempt to modify this product in any way without written authorization from the supplier. Unauthorized modification could void the user's authority to operate this product. Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

IMPORTANT WARNINGS AND CAUTION

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating, and cleaning the product.

1. Attachments – Only use attachments/accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.
2. Water – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the apparatus.
3. Fire or explosion – Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes, or incense sticks on top of the TV set.

Warning: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

1. Ventilation – When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
2. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
3. Power source – This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
4. Overloading – Do not overload wall outlets, extension cables, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
5. Voltage – Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the appliance rating label.
6. Power plug – Do not defeat the safety purpose of the polarized or grounding-type plug. Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.
7. The MAINS plug of the apparatus is used as the disconnect device, the disconnect device shall remain readily operable. Keep you AC power socket close to you TV for easy plugging and unplugging.
8. Wall mounting—When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer. This is a safety feature.
9. Stand – Do not place the product on an unstable trolley, stand, tripod, or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Always place the TV on furniture that can safely support the TV. Make sure the ends of the TV do not overhang the edge of the supporting furniture.
10. Entering of objects and liquids – Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
11. Damage requiring service – This unit should only be serviced by an authorized and properly trained technician. Opening the cover or other attempts by the user to service this unit may result in serious injury or death from electrical shock, and may increase the risk of fire.
12. Replacement parts – In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock, and/or other danger.
13. Safety checks – Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
14. Children – Do not allow young children to play with the plastic bag that came with the television when you unpacked it. Failure to do so can result in suffocation, causing injury.
15. Batteries – The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Do not dispose of any batteries in with the domestic waste. Return them to a collection point for old batteries.
16. Antenna – Install the antenna away from high-voltage power lines and communication cables and make sure it is installed securely. If the antenna touches a power line, contact with the antenna could result in fire, electric shock or serious injury.
17. Panel protection – The panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the panel breaks.
18. It is recommended not to use the product in places where there is oil smoke or steam that may damage the material of this product.
19. Operating conditions: air temperature from 15 to 35 °C; humidity from 45 to 75%; atmospheric pressure from 86 to 106 kPa (from 650 to 800 mm of mercury).
20. Transportation: Packed TVs are allowed to be transported by all modes of transport air temperature from +50 to -40 °C and humidity from 75 to 100%.
21. It indicates alternating current.

It indicates direct current.

Safety Instructions

Important safety instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.

1. Clean only with a dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

1. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

1. Do not use this apparatus near water.

1. Do not block any ventilation openings. Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains etc.

1. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.	11. Educate children about the dangers of climbing on furniture to reach TV controls.12. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley.
13. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.	14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

NOTE

Disposal of this product must be carried out in accordance with the regulations of your local authority. Do not dispose of this product with general household waste.

Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effect on the screen. It is not recommended.

It is not recommended to keep a still image displayed on the screen for a long time, as well as displaying extremely bright images on screen. Reduce the brightness and contrast when displaying still images.

The product is in standby mode under the network function, and it takes 30 minutes to enter the stable state.

Safety Stability TV tips

The television set may fall, causing serious personal injury or death.

ALWAYS use cabinets or stands or mounting methods recommended by the television set manufacturer.

ALWAYS use furniture that can safely support the television set.

ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.

ALWAYS educate children about the dangers of climbing furniture to reach the television set or its controls.

ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled, or grabbed.

NEVER place a television set in an unstable location.

NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

Frameless model reminder tips

No matter the circumstances, please keep the TV panel vertically placed. If any tilt, the tilt angle between the panel and the vertical plane must not exceed 15 degrees (the rule applies to frameless series products).

Getting started

Fitting the stand

Before you can install your TV set, you need to fit the stand. Alternatively, you can mount it on the wall. A Phillips screwdriver is needed to perform the installation.

Setting up the TV set

Place your TV set on a flat, stable surface (e.g. a table or a specially designed TV stand).

Make sure that all cables are laid simply and safely and do not represent a trip hazard. The device must be connected to a mains socket using the mains cable. This mains socket must be easily accessible so that the mains plug can be removed immediately in the event of an emergency.

Fitting the batteries into the remote control

1. Turn the remote control over with its underside facing upwards, insert a finger into the recess, and push the battery compartment cover in the direction of the arrow. Remove the battery compartment cover.

1. Insert the batteries supplied into the remote control. Make sure that you insert the batteries correctly with the polarity as shown inside the battery compartment.
2. Replace the battery compartment cover and push in the opposite direction to the arrow until it clicks into place.

Caution: Remove the batteries from the remote control if you are not going to use the device for an extended period of time. Otherwise, the remote control can be damaged by leaking battery acid.

Controls and connections

Caution:

Before connecting or disconnecting any cables, switch off all related devices (also the TV). Otherwise you could damage the devices.

Back

1. DIGITAL AUDIO OUT: Connect to an external digital audio device.
2. Common Interface slot.
3. USB2.0: USB port. Connect a USB storage device for multimedia file playback.
4. AV: AV audio/video signal input.
5. HDMI: HDMI (High-Definition Multimedia Interface) input. (HDMI1 supports ARC function).
6. ANT2: Connection for satellite antenna (ANT 2) (SATELLITE)
7. ANT1: For connection of the external antenna.
8. LAN: Local area network (LAN) port. Connect a LAN cable to this port to connect to the Network.
9. Headphone out: Earphones/headphones jack.

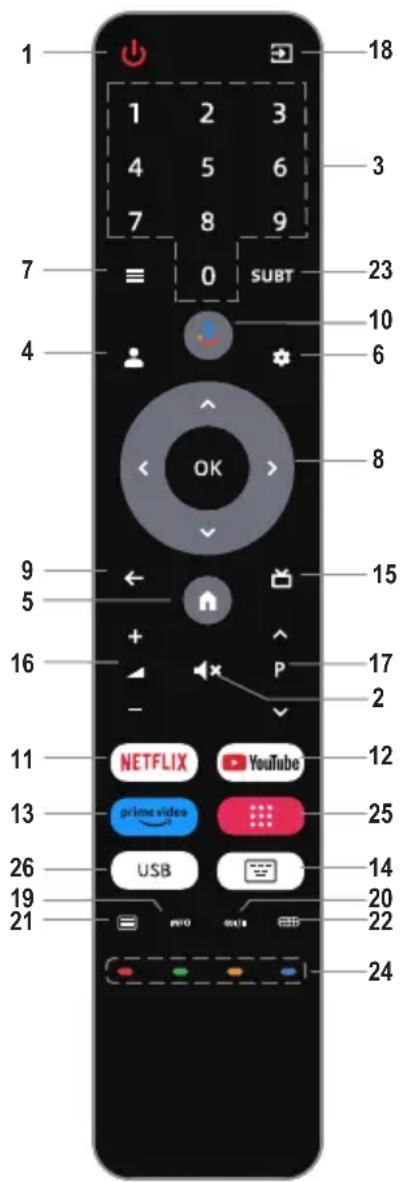

Remote control

Definition of the buttons on remote control:

No Buttons Description
1. Power Turn on/off TV.
2. Mute Mute or restore sound.
3. Number Number buttons.
4. Account Switch account.
5. Home Open Google TV Homepage.
6. Dashboard		Display dashboard menu.
7. MENU Main Menu.
8. Direction/OK Press the direction buttons to select menu options or settings. Press OK to select or confirm menu item.
9. Back Return to last viewed program.
10.	Voice	Activate Voice command function Google assist.
11.	NETFLIX Open Netflix App.
12.	YouTube	Open YouTube App.
13.	Prime video	Open prime video App.
14.	Virtual keyboard	Open virtual keyboard.(only under Live TV)
15.	EPG	Launch Electronic Program Guide.
16.	Volume	Adjust the volume.
17.	Program	Select programs in asce n ding or descending order.
18.	Source	Select signal source.
19.	Info	Display program information.
20.	Audio	Select audio languages and Audio channels.
21.	TTX	Show or hide Teletext.
22.	Screen Scale	Adjust screen scale.
23.	Subtitle	Select subtitle.
24.	Color	Use in accordance with the Operation interface instructions.
25.	APPS Display all installed applications.
26.	USB	Switches to the USB source.

Connecting antennae, Internet and external devices

Connecting a digital audio system

You can connect your TV set to a digital audio system (e.g., amplifier, home cinema). Connect the plug at the end of a coaxial audio cable (not supplied) to the Digital Audio Out connection on your TV set.

CI card slot

If you have purchased a subscription for watching scrambled programmes with a Pay TV provider, you can insert the module with the CI or CI+ card into this slot. For more information, please read the documentation supplied with your CI card.

Caution:

Switch your TV set off before inserting or removing the CI module. Otherwise you could damage the module or the TV set.

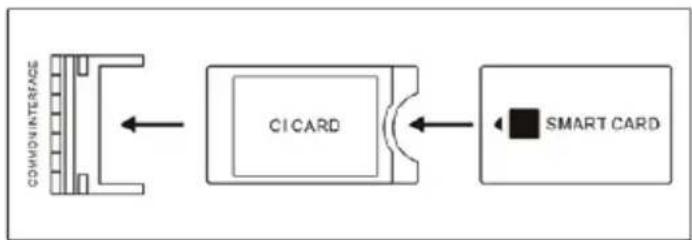

Inserting the CI card

Insert the module with the CI or CI+ card into the CI card slot. Make sure it is the right way around.

Removing the CI card

To remove the CI card, carefully pull it out of the CI card slot.

The CI/CI+ module is initialised after you switch the TV set on. This may take a little while. You should then be able to view the scrambled channels. If this is not the case, consult your Pay TV provider to check that the signal has been enabled for you.

Connecting USB device

The TV has USB 2.0 ports for connection with appropriate mass storage devices.

Connecting an external device with AV output

Connect external devices via the AV jack directly to TV by using an AV cable. In order to play the audio and video signal fed in from the external device on the TV, select the signal source "AV".

Connecting external equipment with HDMI interface

HDMI is the abbreviation for "High Definition Multimedia Interface" and allows the digital transmission of both audio and video signals over the same cable. To play the audio and video signal fed in from the external device on the TV, select the appropriate signal source.

Connecting the TV antenna or cable TV

You can connect the cable from your indoor or outdoor antenna or cable TV to the antenna socket.

Connecting the satellite antenna

You can connect the cable from your satellite antenna to the ANT 2 SATELLITE socket. To switch to satellite reception, select signal source "DVB-S/S2".

Connecting the network cable (LAN connection)

You can also establish an internet connection via WiFi.

Connecting headphones

You can connect headphones or an analogue playback device to the socket marked with a headphones symbol. Use an audio cable with a 3.5 mm jack-type plug.

Getting started

Powering on

Check that the TV is in standby mode. This means the mains cable must be connected to a working mains socket. Then press the power button on the device or the ⏻ button on the remote to turn on the TV.

Powering off

To power the TV off, either press the Power button on the device or press the button on the remote control.

After use

Cleaning

Warning:

Make sure the device is unplugged from the mains power before cleaning. Otherwise, there is a risk of electrocution!

Never spill or spray any type of liquid into the unit. Only use a clean, dry cloth for cleaning the casing. Never use aggressive liquids. When very dirty, use a slightly dampened cloth.

Clean the screen with a special cleaning cloth for screens.

Caution: when you clean the screen, hold the device steady with one hand and carefully clean the screen with the other. Otherwise, the device could tip over and get damaged or cause injuries.

Storage when not in use

If you do not plan to use the device for an extended period of time, unplug the power cord from the socket and remove the batteries from the remote control. Make sure that the storage temperature is between 15 °C and 45 °C and the relative humidity does not exceed 90%.

Transport

If you wish to move the device a short distance, proceed as follows to transport the device:

1. Disconnect the device from the mains.
2. Remove all cables connected to the device.
3. If you wish to move the device outside your building, demount the base and the optional side supports or the mounted wall bracket by reversing the procedure.
4. Pack the TV set up carefully. Take special care to ensure the corners of the casing and the screen are well protected.
5. Take the TV set and its accessories to its new location and recommission it.

Disposal of old electrical appliances

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

This product meets the requirements of EU directives on electromagnetic compatibility and electrical safety.

Trouble-shooting

You can solve most common problems yourself using the solutions below. If the problem persists after checking the suggested solutions, please contact your reseller.

General problems

The TV set will not switch on.

• Plug the power cable of the TV set into a working mains socket.
• Replace the batteries in the remote control.
• Unplug the plug of the power cable from the mains socket, wait approx. 30 seconds and plug the power cable back in. The device should then work normally.

The remote control does not work

• Is there an obstruction between the remote control and the sensor on the TV?
• Replace the batteries.
• Make sure that the remote control sensor is not exposed to direct sunlight.

No picture

• Are all the connection cables to external signal sources properly connected?
• Is the connection cable to the external signal source damaged?
• Have you selected the correct signal source on the TV set?

TV reception problems

No picture

• Is the antenna plugged in properly? Is the antenna cable damaged?
• Is the antenna cable plug firmly connected?
• Have you selected the correct signal source on the TV set?
• Have you already executed a channel search at your present location?

Poor picture

• Is the antenna plugged in? Adjust the antenna.
• Check that the channel is tuned properly.
• Adjust the picture settings, such as brightness, colour, sharpness.

No sound

• Is the sound muted? Press the ◀ button.
• Is the volume turned down? Press the ▲+ button.

No colour

• Adjust the colour setting.
• Check the programme is broadcast in colour.
• Check that the channel is tuned properly.

Multimedia playback problems

File is not played back

- Check that the USB mass storage device contains compatible files.

Problems with playback from external devices

No sound

• Check that the audio cable is properly connected or damaged.
• Make sure that you have selected the correct signal source on your TV set.

Sound is distorted or humming

• Clean the connector plugs.
• Replace the connection cable to the external device.

Problems with online services (Smart TV)

If you are using a cable network connection (LAN)

• Check that the network cable is properly connected.
• Check whether the network cable is damaged.
• Check whether you can access the internet from another device on the network.
• It is possible that the server for the selected service is temporarily down.
• Check the network settings on the TV set.

If you are using a wireless network

• Check whether you can access the internet from another device on the wireless network.
• It is possible that the server for the selected service is temporarily down.
• Check the network settings on the TV set.

Specifications

WI-FI
Frequency range Transm ission power (max)
2.412GHz-2.472GHz (2.4G wifi) <20 dBm
5.180GHz-5.320GHz (5G wifi) <20 dBm
5.500GHz-5.700GHz (5G wifi) <20 dBm
5.745GHz-5.825GHz (5G wifi) <14 dBm
Bluetooth
Frequency range Transmission power (max)
2.402GHz-2.480GHz <10 dBm

The device complies with RF specifications when the device is used at 20 cm from your body. The operation frequency in 5150-5350MHz of Wi-Fi 5G is restricted to indoor usage only.

Software version (involve or above): V02.03021

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Specifications

Model		32FB( 50004
Screen Size		32” (80cm)
Resolution 1920 x 1080
Brightness (cd/m)		250
Contrast ratio 3000:1
Aspect Ratio 16:9
Viewing angle 178/178
Power Input ~100-2407 50/60) z
VESA		200 x 200 mm
Dimensions, mm	Without stand	719.4x421.3x81.2
	With stand	719.4x470.1x182.7
Weight, kg With stand 4.0
Energy efficiency class		F
Energy consumption in working mode, W		27
Annual consumption, kW*h/1000h		27
Power consumption in standby mode, W		0.5

Note: The technical data and design may be changed without prior notice. All the pictures in this user manual are for illustrative purposes only and may be used for reference. Depending on the model, the actual product shall prevail.

USER MANUAL

Slot for CI card

Getting started

Power on

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING!

DO NOT REMOVE THE COVER (OR BACK COVER) TO REDUCE THE RISK OF ELECTRIC SHOCK. THERE ARE NO INTERNAL PARTS INSIDE THAT THE USER SHOULD ACCESS. CONTACT QUALIFIED PERSONNEL.

CI connector

First steps

CI connector

CI card blocking

Starting work

Switching on

CI connector

Starting work

Inclusion

CI connector

To begin

Switching on

— Indicates constant current.

Safety instructions

CI connector

Connecting the cables

CI connector

Starting work

Switching on

EN Information about warranty, service and certification

The service life of the product is 5 years. The consumer warranty period is 2 years. At the end of its service life, contact the service center if necessary. The products have the appropriate certification that does not contain harmful substances in accordance with the rules and technical regulations.

You can get online support, view customization videos, find customer support services and other useful information on the website: https://service.uniondistribution.eu or on our YouTube Channel: https://www.youtube.com/@udservice. Additional product information, certificates and declarations can be found at the website: https://blaupunkt.com/.
