USER MANUAL CVI38X SMEG

Operating instructions

Multi-temperature wine cabinet

Gebruiksaanwijzing

Wijnklimaatkast

Mode d'emploi

• Keep packaging materials away from children - polythene sheets and bags can cause suffocation!
• Please return the packaging to an official collection point.

Your old appliance: This contains some reusable materials and should be disposed of properly - not simply with assorted household refuse.

• Discarded appliances should be disabled: Remove the plug, cut through the connection cable and render the catch unusable so that children cannot become trapped inside.
• Ensure that the refrigerant circuit is not damaged when the appliance that is no longer needed is taken away for disposal.
• Details of the refrigerant can be found on the type plate.
• Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

Range of appliance use

The appliance is suited only for storing wine. In the case of commercial food cooling, the pertinent statutory regulations have to be observed.

The appliance is not suited for storing and cooling pharmaceuticals, blood plasma, laboratory preparations or similar substances and products subject to the Medical Devices Directive 2007/47/EC.

Any misuse of the appliance may result in damage to or spoilage of the stored goods.

Furthermore, the appliance is unsuited for use in areas exposed to an explosion hazard.

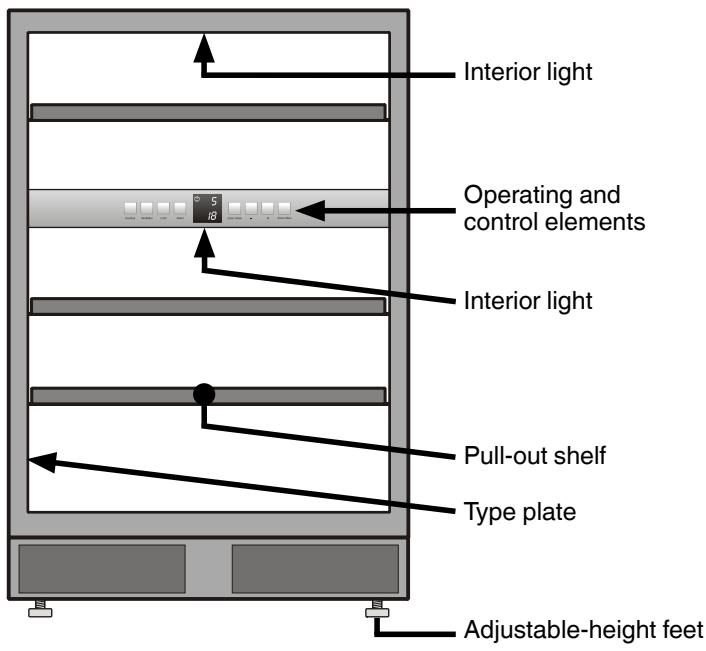

Description of appliance and equipment

Safety instructions and warnings

• To prevent injury or damage to the unit, the appliance should be unpacked and set up by two people.
• In the event that the appliance is damaged on delivery, contact the supplier immediately before connecting to the mains.
• To guarantee safe operation, ensure that the appliance is set up and connected as described in these operating instructions.
• Disconnect the appliance from the mains if any fault occurs. Pull out the plug, switch off or remove the fuse.
• When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried out by the customer service department, as unauthorised work could prove highly dangerous for the user. The same applies to changing the mains power cable.
• Do not allow naked flames or ignition sources to enter the appliance. When transporting and cleaning the appliance ensure that the refrigerant circuit is not damaged. In the event of damage, make sure that there are no ignition sources nearby and keep the room well ventilated.
• Do not stand on the plinth, drawers or doors or use them to support anything else.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Avoid prolonged skin contact with cold surfaces or chilled/frozen food. This could cause pain, numbness and frostbite. In the case of prolonged skin contact, protective measures should be taken, e.g. gloves should be worn.
• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane etc. in the appliance. Electrical components might cause leaking gas to ignite. You may identify such sprays by the printed contents or a flame symbol.
• Do not use electrical appliances inside the appliance.

Climate rating

The appliance is set to operate within specific ambient temperature limits according to its climate rating. These temperature limits should not be exceeded. The correct climate rating for your appliance is indicated on the type plate.

Climate rating

SN-ST

Ambient temperature

+10°C to +38°C

Setting up

• Avoid positioning the appliance in direct sunlight or near cookers, radiators and similar sources of heat.
• The floor on which the appliance stands should be horizontal and level. To compensate for any unevenness, adjust the height of the feet with the open-ended spanner supplied.
• Standard EN 378 specifies that the room in which you install your appliance must have a volume of 1m^3 per 8g of R 600a refrigerant used in the appliance, so as to avoid the formation of inflammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.

Connecting to the mains

Power supply (AC) and voltage at the operating point must comply with the details on the type plate, which is located inside the appliance on the left-hand side. The socket must be fused with a 10 A fuse or higher, it must be away from the rear of the appliance and must be easily accessible.

Connect the appliance with a properly earthed fused plug and socket only.

The wires in the mains lead are coloured in accordance with the following code: green/yellow = earth, blue = neutral, brown = live. Warning! This appliance must be earthed.

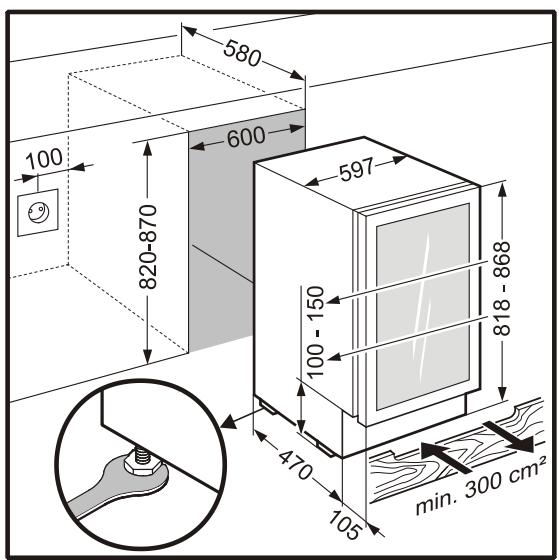

Installation dimensions (mm)

Adjust to recess height using the 4 adjustable feet on the underside of the appliance.
The ventilation cross-section in the plinth panel must be min. 300~cm^2

Installation and fitting

• Connect the appliance to the mains.
• Slide the appliance into the recess.

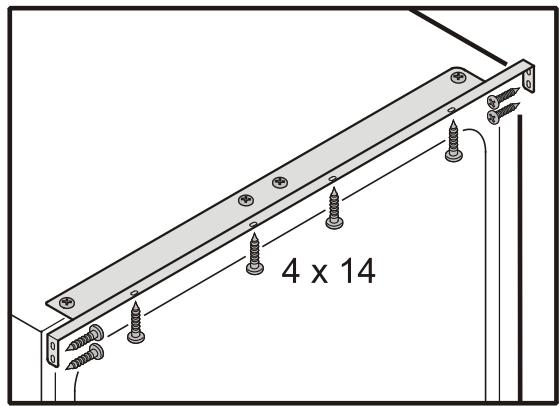

• Secure the appliance in the recess using 4 × 14 screws.

The under-worktop mutli-temperature wine cabinet

Wines only develop their full flavour and aroma when they are at the right temperature for drinking. In your multi-temperature wine cabinet, wines can be brought slowly and evenly to the ideal drinking temperature. Red wines and white wines can be stored at the same time at the optimal drinking temperature in two separately adjustable temperature zones.

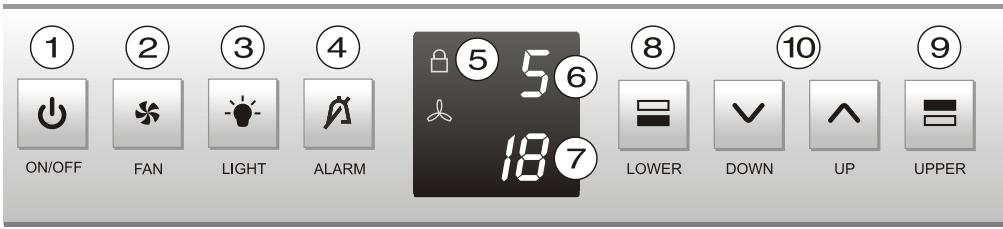

① On/Off button
② Fan button
③ Interior light on/off button
④ Audible warning on/off button
⑤ Child lock display

⑥ Upper compartment temperature display
⑦ Lower compartment temperature display
Lower compartment activation button
9 Upper compartment activation button
⑩ Temperature setting buttons

Switching the appliance on and off

You are recommended to clean the appliance before switching it on for the first time (see "Cleaning").

To switch the appliance on: Press the ON/OFF button ① until the temperature display lights up.

ON/OFF

To switch the appliance off: Keep the ON/OFF button pressed for 3 sec. so that the temperature display goes out.

Setting the temperature

The temperature of both compartments can be set sep

Select the appropriate compartment by pressing button ⑧ or ⑨ . The respective temperature display flashes.

LOWER

UPPER

To reduce the temperature: Press the DOWN button.
To increase the temperature: Press the UP button.

The electronic controls will switch over automatically about 5 seconds after the last time you pressed the button, and the actual temperature will be displayed.

Audible warning signal

The audible warning signal helps to protect your wines against excessive temperature fluctuations.

• It sounds when the door has been left open for longer than about 60 seconds.
• It sounds when the interior gets too warm or too cold. The temperature display will also flash. The audible warning device is switched off by pressing the ALARM button.

ALARM

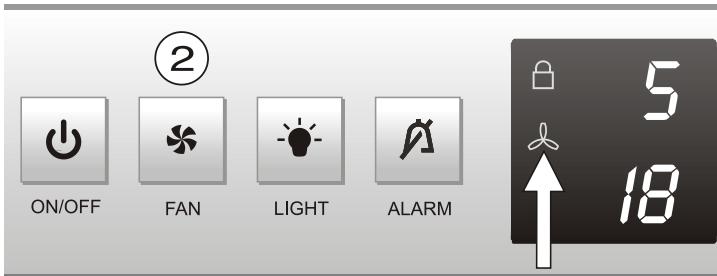

Fan button

Should you wish to use the wine cabinet to store wine for long periods of time, activate the FAN button ② . The light in the display comes on. Thereby a climate which corresponds to that of a wine cellar is achieved inside the wine cabinet. Corks are prevented from drying out due to an increased level of humidity.

Additional functions

In set-up mode you can set the child lock and adjust the brightness of the display. The child lock is designed to protect the appliance from being switched off accidentally.

Activating set-up mode:

• Press the FAN button ② for approx. 5 seconds.
• The display shows c for child lock.
  Note: The value to be altered flashes.
• Select the required function by pressing the UP/DOWN button: c = child lock, h = display brightness
• Now select/acknowledge the function by pressing the FAN button ② briefly:

For c = child lock, press the UP/DOWN button to select

c1 = child lock on or

c0 = child lock off and acknowledge with the FAN button ②. When the symbol is lit, the child lock is activated.

FAN

For h = brightness,press the UP/DOWN button to select

h1 = minimum to

h5 = maximum brightness and acknowledge with the FAN button ②.

Exiting set-up mode:

Exit the set-up mode by pressing the ON/OFF button ①; after 2 min. the electronic system switches over automatically. The normal operating mode is activated again.

ON/OFF

Interior light

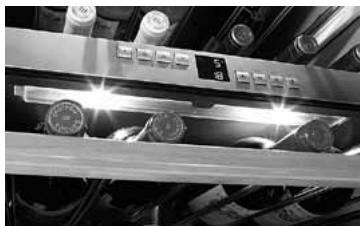

A lightbar is integrated into the upper and lower compartments.

The interior light can be switched on and off using button ③.

Caution - class 1M laser radiation. When cover is removed, do not look directly at light through optical instruments.

The lighting may only be replaced by the customer service technician or by competent skilled personnel!

Furthermore, the brightness of the lighting can be adjusted.

• Press the LIGHT button ③.

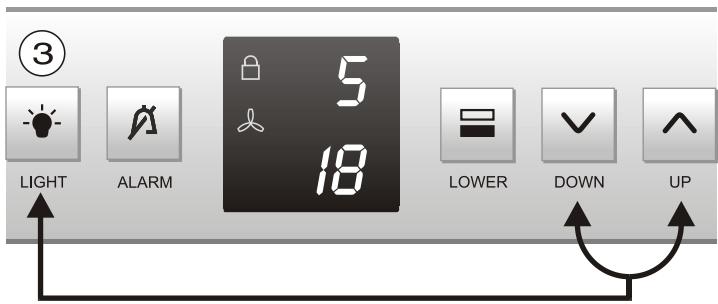

• Press and hold button ③ and at the same time press the temperature setting buttons to increase or decrease the brightness.

Air exchange with activated charcoal filter

The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated charcoal filter has been fitted in the lower area of the rear wall of the appliance to ensure that the air throughput remains at an optimum quality. We recommend that you replace the filter once a year. Filters can be obtained from your dealer.

Changing the filter:

Take the filter by the handle. Turn it 90^ to the left or right and remove.

Inserting the filter:

Insert with the handle in a vertical position. Turn it 90^ to the left or right until it clicks into place.

Defrosting

The appliance defrosts automatically. The water that forms on the rear wall drains into a reservoir at the back of the appliance and evaporates automatically through the compressor heat.

Cleaning

Before cleaning always switch off the appliance. Pull out the mains plug or remove/unscrew the fuse.

Do not use steam cleaners because of the risk of injury and damage.

• Use a glass cleaner to clean the glass surfaces.
• Only clean the door surfaces with a clean and soft cloth. If necessary, moisten the cloth (water + detergent). Alternatively, use a micro-fibre cloth.
• Clean the inside and equipment with lukewarm water and a little detergent, with the exception of the wooden trims on the grid shelves.
• Ensure that no cleaning water penetrates into the electrical components.
• Dry all parts well with a cloth.
• Do not damage or remove the type plate on the inside of the appliance. It is very important for servicing purposes.

Malfunctions

You may be able to rectify the following faults by checking the possible causes yourself:

Appliance does not function:

• Is the appliance switched on?
• Is the plug correctly fitted in the mains socket?
• Is the socket fuse intact?

Loud running noise:

• Is the appliance set up firmly on the floor?
• Does the appliance cause nearby items of furniture or objects to vibrate? Please note that noises caused by the refrigerant circuit cannot be avoided.

The temperature is not low enough:

• Is the temperature setting correct (see "Setting the temperature")?
• Does the separately installed thermometer show the correct reading?
• Is the ventilation system working properly?
• Is the appliance set up too close to a heat source?

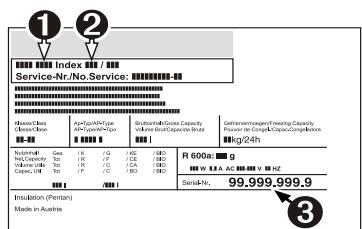

If none of the above causes apply and you cannot rectify the fault yourself, contact the nearest customer service department stating the type designation 1, index 2 and appliance number 3 as indicated on the type plate.

Shutting your appliance down

If your appliance is to be shut down for any length of time, switch it off and disconnect the plug or switch off or unscrew the fuse. Clean the appliance and leave the door open in order to prevent unpleasant smells.

The appliance complies with the relevant safety regulations and EC Directives 2004/108/EC and 2006/95/EC.

All types and models are subject to continuous improvement and the manufacturer therefore reserves the right to make modifications to the shape, equipment and technology.
