USER MANUAL Aruba Unified AP-515 HP
Aruba 510 Series Campus Access Points
Installation Guide
The Aruba 510 Series Campus Access Points (AP-514 and AP-515) are high-performance, multi-radio wireless devices that can be deployed in either controller-based (ArubaOS) or controllerless (Aruba Instant) network environments. These access points deliver high performance concurrent 2.4 GHz and 5 GHz 802.11ax Wi-Fi functionality with MIMO radios (2x2 in 2.4 GHz, 4x4 in 5 GHz), while also supporting legacy 802.11a/b/g/n/ac wireless services.
Ethernet ports located on the back of these access points are used to connect the device to the wired networking infrastructure and to provide (802.3at class 4) PoE power to the device.
In addition to both Wi-Fi radios, these APs also incorporate a Bluetooth Low Energy (BLE) and Zigbee radio, supporting a variety of use-cases and services, such as locationing and IoT.
A mount kit (sold separately) is needed to mount the AP. Make sure to purchase the correct mount kit for the intended deployment of the AP.
Package Contents
• Aruba 510 Series Campus Access Point (with a pre-installed mount bracket)
The AP mount bracket attaches to a variety of mount kits (sold separately).
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 510 Series access points.
Figure 1 AP-515 Front View
Figure 2 LEDs (AP-515 shown)

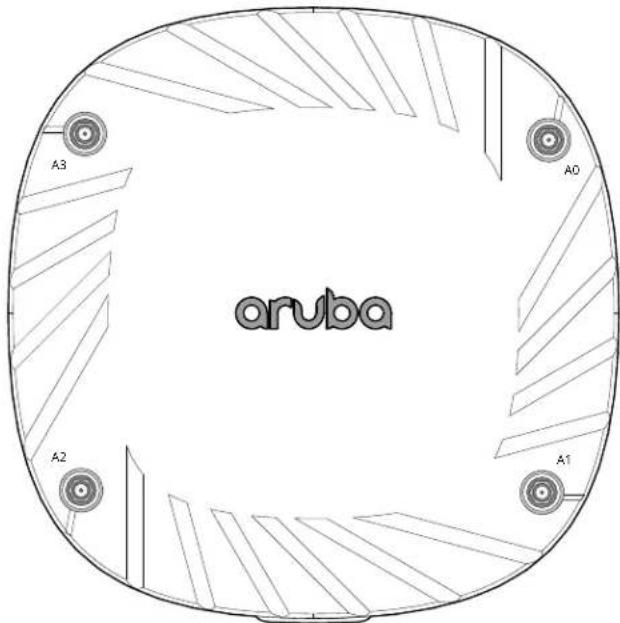

Figure 3 AP-514 Front View
External Antenna Connectors
The AP-514 access points are equipped with four external antenna connectors located on the front corners of the access point (see Figure 3). Antenna ports A0 and A1 (corresponding with radio chains 0 and 1) are used for both radios and bands (RF signals are diplexed), while antenna ports A2 and A3 (corresponding with radio chains 2 and 3) are used for the 5 GHz radio only.
External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other Aruba-certified technician, using manufacturer-approved antennas only.
The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the regulatory limit set by the host country/domain.
Installers are required to record the antenna gain for this device in the system management software. A list of approved antennas can be found at: http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf.
The LED displays located on the front panel of the access point indicate the following functions:
System Status
The System Status LED indicates the operating condition of the access point. See Table 1.
Table 1 System Status LED
| Color/State Meaning | |
| Off Device Powered off | |
| Green- solid Device ready, fully functional, no network restrictions | |
| Green- blinking1 | Device booting, not ready |
| Green- flashing2 | Device ready, fully functional, either uplink negotiated in sub-optimal speed (<1Gbps) |
| Amber- solid Device ready, restricted power mode (limited PoE power available, or IPM restrictions applied), no network restrictions | |
| Amber- flashing Device ready, restricted power mode (limited PoE power available, or IPM restrictions applied), uplink negotiated in sub-optimal speed | |
| Red System error condition - Immediate attention required | |
- Blinking: one second on, one second off, 2 seconds cycle.
- Flashing: mostly on, fraction of a second off, 2 seconds cycle.
Radio Status
The Radio Status LED indicates the operating mode of the access point's radios. See Table 2.
Table 2 Radio Status LEDs
| Color/State Meaning | |
| Off Device powered off, or both radios disabled | |
| Green- solid Both radios enabled in access mode | |
| Green- blinking One radio enabled in access mode, other disabled | |
| Amber- solid Both radios enabled in monitor mode | |
| Amber- blinking One radio enabled in monitor mode, other disabled | |
| Green/Amber-alternating1 | Green: one radio in access modeAmber: one radio in monitor mode |
- Alternating: one second each color, 2 seconds cycle.
LED Display Settings
The LEDs have three operating modes that can be selected in the system management software:
• Default mode: Refer to Table 1 and Table 2 • Off mode: LEDs are off • Blink mode: LEDs blink green (synchronized) Force the LEDs into off mode and back to software defined mode by pressing the reset button for a short duration.
Pressing the reset button for longer than 10 seconds may cause the AP to reset and return to factory default state.
Figure 4 AP-515 Rear View
Cable Guide
The cable guide on the rear of the access point is used to organize cables, as shown in Figure 5. The use of the cable guide is optional and does not support all types of cables and plugs.
Figure 5 Cable Guide
To remove the cable guide, perform the following steps:
- Insert the flat head of a screwdriver into the slot on the cable guide. Press the screwdriver down to disengage the buckle on underside of the tab, as shown in Figure 6.
- Push the cable guide towards the chassis as shown in Figure 6, the cable guide will slide out.
Figure 6 Removing Cable Guide
Bluetooth Low Energy and Zigbee Radio
510 Series access points are equipped with an integrated BLE and Zigbee radio that provide the following capabilities:
• location beacon applications • wireless console access • IOT gateway applications
Console Port
The console port is a Micro-B connector located on the back of this device. A proprietary serial adapter cable (AP-
CBL-SERU) is needed to use this interface. It is sold separately to connect the AP to a serial terminal or a laptop for direct local management (a standard USB cable cannot be used for this interface). For pin-out details, refer to Figure 7.
Figure 7 Micro-B Port Pin-out
1: N/C
2: RXD
3: TXD
4: GND
5: GND
Ethernet Ports
The Aruba 510 Series access points are equipped with two Ethernet ports (E0 and E1), shown in Figure 4.
E0 port: 100/1000/2500BaseT auto-sensing MDI/MDX wired RJ45 network connectivity port • E1 port: 100/1000BaseT auto-sensing MDI/MDX wired RJ45 network connectivity port
Both ports are compliant with 802.3ab 1000BaseT Gigabit Ethernet standard, while E0 also supports both NBase-T and 802.3bz standards for 2.5bps Ethernet. The E0 port supports 802.3af, 802.3at and 802.3bt to accept power from a POE source, such as a PoE midspan injector, or a network switch.
Kensington Lock Slot
The 510 Series is equipped with a Kensington lock slot for additional physical security.
USB 2.0 Interface
The top of this access point is equipped with a USB-A port that is compatible with selected cellular modems and other peripherals. When active, this port can supply up to 5W/1A to a connected device.
Reset Button
The reset button located on the bottom of the device can be used to reset the access point to factory default settings or turn off/on the LED display.
There are two ways to reset the access point to factory default settings:
Reset the AP during normal operation
Press and hold down the reset button using a small, narrow object such as a paper clip for more than 10 seconds during normal operation.
Reset the AP while powering up
- Press and hold down the reset button using a small, narrow object such as a paper clip while the access point is not powered on (either via DC power or PoE).
- Connect the power supply (DC or PoE) to the access point while the reset button is being held down.
- Release the reset button on the access point after 15 seconds.
To turn off/on the LED display, press and release the reset button using a small, narrow object, such as a paperclip for less than 10 seconds during normal operation of the access point.
Power
E0 port supports PoE-in (AP is a PoE-PD device), allowing the device to draw power from compliant PoE power sources. If PoE is not available, a proprietary AP-AC-12V30B power adapter (sold separately) can be used to power the access point. When both PoE and DC power sources are available, the DC power source takes precedence. In that case, the access point simultaneously draws a minimal current from the PoE source. In the event that the DC source fails, the access point switches to the PoE sources.
The Intelligent Power Monitoring (IPM) feature may also be used to manage the power consumption preferences for this device. When enabled, the user may enable/disable power restrictions for the access point using Aruba's AP management software.
Table 3 lists operational restrictions when the access point is powered by different power options. Table 3: Power Options and Operational Restrictions
| Power Source IPM Restrictions | ||
| DC power n/a No restrictions, all capabilities available | ||
| PoE 802.3bt n/a No restrictions, all capabilities available | ||
| PoE 802.3at n/a No restrictions, all capabilities available | ||
| PoE 802.3af enabled All capabilities available (features may be disabled per IPM configuration) | ||
| PoE 802.3af disabled Not supported | ||
Before You Begin
Refer to the sections below before beginning the installation process.
FCC Statement: Improper termination of access points installed in the United States configured to non-US model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or intentional violation may result in a requirement by the FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80).
Pre-Installation Checklist
Before installing your Aruba 510 Series access point, be sure that you have the following (not included with the AP):
- A mount kit compatible with the AP and mount surface
- Cat5E or better UTP cable with network access • One or more external antennas (when using the AP-514)
- (Optional) a compatible 12V AC-to-DC power adapter with power cord
- (Optional) a compatible PoE midspan injector with power cord
- (Optional) a compatible snap-on front cover (for easy aesthetic customization) • (Optional) an AP-CBL-SERU console cable
Also make sure that (at least) one of the following network services is supported:
• Aruba Discovery Protocol (ADP)
• DNS server with an "A" record
• DHCP Server with vendor-specific options
The Aruba 510 Series access point is designed in compliance with governmental requirements so that only authorized network administrators can change the settings. For more information about access point configuration, refer to the AP Software Quick Start Guide.
Identifying Specific Installation Locations
Use the access point placement map generated by Aruba RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/interference sources will impact RF propagation and should be accounted for during the planning phase and adjusted for in RF plan.
Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
Identifying Known RF Absorbers/Reflectors/Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation phase is critical. Make sure that these sources are taken into consideration when you attach an access point to its fixed location.
RF absorbers include:
- Cement/concrete—Old concrete has high levels of water dissipation, which dries out the concrete, allowing for potential RF propagation. New concrete has high levels of water concentration in the concrete, blocking RF signals. • Natural Items—Fish tanks, water fountains, ponds, and trees
- Brick
RF reflectors include:
- Metal Objects—Metal pans between floors, rebar, fire doors, air conditioning/heating ducts, mesh windows, blinds, chain link fences (depending on aperture size), refrigerators, racks, shelves, and filing cabinets.
- Do not place an access point between two air conditioning/heating ducts. Make sure that access points are placed below ducts to avoid RF disturbances.
RF interference sources include:
- Microwave ovens and other 2.4 or 5 GHz objects (such as cordless phones)
- Cordless headset such as those used in call centers or lunch rooms
Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the access point. Otherwise, degradation of the performance of this equipment could result.
RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits. This equipment should be installed and operated with a minimum distance of 13.78 inches (35cm) between the radiator and your body for 2.4 GHz and 5 GHz operations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Access Point Installation
The Aruba 510 Series access points are designed for ceiling or wall mounted deployments. Several optional mount kits are available to attach the Aruba 510 Series access point to a variety of surfaces. These mount kits are available as accessories and must be ordered separately. Refer to the online ordering guide at http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf
All Aruba access points should be professionally installed by an Aruba-Certified Mobility Professional (ACMP). The installer is responsible for ensuring that grounding is available and meets applicable national and electrical codes. Failure to properly install this product may result in physical injury and/or damage to property.
The installer is responsible for securing the access point onto the ceiling tile rail. Failure to properly install this product may result in physical injury and/or damage to property.
Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
Software
For instructions on choosing operating modes and initial software configuration, refer to the AP Software Quick Start Guide.
Aruba access points are classified as radio transmission devices, and are subject to government regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration and operation of this equipment is in compliance with their country's regulations. For a complete list of approved channels in your country, refer to the Aruba Downloadable Regulatory Table at support.arubanetworks.com.
Verifying Post-Installation Connectivity
The integrated LED on the access point can be used to verify that the access point is receiving power and initializing successfully (see Table 1-Table 2). Refer to the AP Software Quick Start Guide for further details on verifying post-installation network connectivity.
Electrical and Environmental Specifications
For additional specifications on this product, please refer to the product data sheet at www.arubanetworks.com
Electrical
- Ethernet:
E0 port: 100/1000/2500BaseT auto-sensing MDI/MDX wired RJ45 network connectivity port ■ E1 port: 100/1000BaseT auto-sensing MDI/MDX wired RJ45 network connectivity port
Power:
■ 12V DC power interface, support powering through AC-to-DC power adapter (AP-AC-12V30B) ■ Power over Ethernet (PoE): 802.3af, 802.3at or 802.3bt compliant source
If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12V DC, minimum 0.75A, marked "LPS" and "Class 2," and suitable for plugging into a standard power receptacle in the US and Canada.
Environmental
- Operating:
■ Temperature: 0°C to +50°C (+32°F to +122°F) ■ Humidity: 5% to 93% non-condensing
• Storage and transport:
■ Temperature: -40°C to +70°C (-40°F to +158°F) ■ Humidity: 5% to 93% non-condensing
The Aruba 510 Series access points are for indoor use only. The access point, AC adapter, and all connected cables are not designed for outdoor use.
This device is intended for stationary use in partly temperature controlled weather-protected environments.
Regulatory Model Name
The following regulatory model numbers (RMN) apply to the 510 Series:
• AP-514 RMN: APIN0514 • AP-515 RMN: APIN0515
Safety and Regulatory Compliance
RF Radiation Exposure Statement: This equipment complies with RF radiation exposure limits. This equipment should be installed and operated with a minimum distance of 13.78 inches (35 cm) between the radiator and your body for 2.4 GHz and 5 GHz operations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
Federal Communication Commission
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio or TV technician for help.
Industry Canada
This Class B digital apparatus meets all of the requirements of the Canadian Interference-Causing Equipment Regulations.
In accordance with Industry Canada regulations, this radio transmitter and receiver may only be used with an antenna, the maximum type and gain of which must be approved by Industry Canada. To reduce potential radio interference, the type of antenna and its gain shall be chosen so that the equivalent isotropic radiated power (EIRP) does not exceed the values necessary for effective communication.
This device complies with Industry Canada's license-exempt RSS regulations. Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation.
When operated in the 5.15 to 5.25 GHz frequency range, this device is restricted to indoor use to reduce the potential for harmful interference with co-channel Mobile Satellite Systems.
This radio transmitter model APIN0514/APIN0515 has been approved by Industry Canada to operate with the antenna types listed in the table in the online ordering guide (link provided below) with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf
European Union Regulatory Conformance
The Declaration of Conformity made under Radio Equipment Directive 2014/53/EU is available for viewing at: www.hpe.com/eu/certificates. Select the document that corresponds to your device's model number as it is indicated on the product label.
This radio transmitter model has been approved to operate with the antenna types listed in the online ordering guide (link provided below) with the maximum permissible gain indicated. Antenna types not included in this list, having a greater gain than the maximum gain indicated for the type, are strictly prohibited for use with this device. Compliance is only assured if the Aruba approved accessories as listed in the ordering guide are used. http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf
Wireless Channel Restrictions
5150-5350MHz band is limited to indoor only in the following countries; Austria (AT), Belgium (BE), Bulgaria (BG), Croatia (HR), Cyprus (CY), Czech Republic (CZ), Denmark (DK), Estonia (EE), Finland (FI), France (FR), Germany (DE), Greece (GR), Hungary (HU), Iceland (IS), Ireland (IE), Italy (IT), Latvia (LV), Liechtenstein (LI), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovakia (SK), Slovenia (SL), Spain (ES), Sweden (SE), Switzerland (CH), Turkey (TR), United Kingdom (UK).
| Radio Frequency | Range MHz Max EIRP | |
| BLE/Zigbee 2402-2480 9 dBm | ||
| Wi-Fi | 2412-2472 20 dBm | |
| 5150-5250 23 dBm | ||
| 5250-5350 23 dBm | ||
| 5470-5725 30 dBm | ||
| 5725-5850 14 dBm | ||
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please refer to the ArubaOS User Guide/Instant User Guide for details on restrictions.
Medical
- Equipment not suitable for use in the presence of flammable mixtures.
- Connect to only IEC 60950-1 or IEC 60601-1 certified products and power sources. The end user is responsible for the resulting medical system complies with the requirements of IEC 60601-1.
- Wipe with a dry cloth, no additional maintenance required.
- No serviceable parts, the unit must be sent back to the manufacturer for repair.
- No modifications are allowed without Aruba approval.
NOTE
NOTE
This device is intended for indoor use in professional healthcare facilities.
This device has no IEC/EN60601-1-2 essential performance.
CAUTION Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
NOTE Compliance is based on the use of Aruba approved accessories. Refer to the ordering guide for this access point at http://www.arubanetworks.com/assets/og/OG_AP-510Series.pdf.
CAUTION Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
CAUTION
Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the access point. Otherwise, degradation of the performance of this equipment could result.
Brazil
| Main Site https://www.arubanetworks.com | |
| Support Site https://support.arubanetworks.com | |
| Airheads Social Forums and Knowledge Base | https://community.arubanetworks.com/ |
| North America Telephone 1-800-943-4526 | 1-408-754-1200 |
| International Telephone | https://www.arubanetworks.com/support-services/contact-support/ |
| Software Licensing Site | https://www.hpe.com/networking/support |
| End-of-Life Information | https://www.arubanetworks.com/support-services/end-of-life/ |
| Security Incident Response Team (SIRT) | https://www.arubanetworks.com/support-service/security-bulletins/Email: aruba-sirt@hpe.com |
Copyright
© Copyright 2019 Hewlett Packard Enterprise Development LP
Open Source Code
This product includes code licensed under the GNU General Public License, the GNU Lesser General Public License, and/or certain other open source licenses.
A complete machine-readable copy of the source code corresponding to such code is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company.
To obtain such source code, send a check or money order in the amount of US $10.00 to:
Hewlett Packard Enterprise Company
Attn: General Counsel
6280 America Center Drive
San Jose, CA 94089
USA
Warranty
This hardware product is protected by an Aruba warranty. For more details, visit www.hpe.com/us/en/support.html
- ARUBA 510 SERIES CAMPUS ACCESS POINTS
- INSTALLATION GUIDE
- PACKAGE CONTENTS
- HARDWARE OVERVIEW
- EXTERNAL ANTENNA CONNECTORS
- SYSTEM STATUS
- RADIO STATUS
- LED DISPLAY SETTINGS
- CABLE GUIDE
- BLUETOOTH LOW ENERGY AND ZIGBEE RADIO
- CONSOLE PORT
- ETHERNET PORTS
- KENSINGTON LOCK SLOT
- USB 2.0 INTERFACE
- RESET BUTTON
- RESET THE AP DURING NORMAL OPERATION
- RESET THE AP WHILE POWERING UP
- POWER
- BEFORE YOU BEGIN
- PRE-INSTALLATION CHECKLIST
- IDENTIFYING SPECIFIC INSTALLATION LOCATIONS
- IDENTIFYING KNOWN RF ABSORBERS/REFLECTORS/INTERFERENCE SOURCES
- ACCESS POINT INSTALLATION
- SOFTWARE
- VERIFYING POST-INSTALLATION CONNECTIVITY
- ELECTRICAL AND ENVIRONMENTAL SPECIFICATIONS
- ELECTRICAL
- ENVIRONMENTAL
- REGULATORY MODEL NAME
- SAFETY AND REGULATORY COMPLIANCE
- FEDERAL COMMUNICATION COMMISSION
- INDUSTRY CANADA
- EUROPEAN UNION REGULATORY CONFORMANCE
- WIRELESS CHANNEL RESTRICTIONS
- MEDICAL
- BRAZIL
- COPYRIGHT
- OPEN SOURCE CODE
- WARRANTY
Brand : HP
Model : Aruba Unified AP-515
Category : Access Point
