| Product type | Static cold refrigerator |
| Brand | Candy |
| Model | COT1S45FWH |
| Dimensions (H x W x D) | 84 x 50 x 45 cm |
| Net weight | 22 kg |
| Total volume | 45 liters |
| Power supply | 220-240 V, 50 Hz |
| Energy class | E |
| Annual energy consumption | 120 kWh |
| Number of shelves | 2 glass shelves |
| Number of door racks | 2 door racks |
| Interior lighting | LED |
| Adjustable thermostat | Yes, mechanical control |
| Defrost type | Manual |
| Cooling system | Static |
| Noise level | 42 dB(A) |
| Reversible door | Yes |
| Shelf material | Tempered glass |
| Maintenance and cleaning | Interior cleaning with soapy water, condenser should be dusted |
| Safety | Door secured with stop, CE compliant |
| Repairability index | Not provided by the manufacturer |
Frequently Asked Questions - COT1S45FWH CANDY
User questions about COT1S45FWH CANDY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual COT1S45FWH - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. COT1S45FWH by CANDY.
USER MANUAL COT1S45FWH CANDY
SAFETY INFORMATION......2
SCRAPPING OLD APPLIANCES 10
Energy Saving.... 11
Before first use....12
Fridge use....13
Freezer use....13
Overview....14
Storage 15
Control panel 16
Installation of the appliance 21
Care and Cleaning 23
Troubleshooting.... 25
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:
- the kitchen area for personnel in shops, offices and other working environments
- on farms, by clientele of hotels, motels and other residential-type environments, and at bed and breakfasts (B & B)
- for catering services and similar applications, not for retail sale.
This appliance must be used only for the purpose of storing food. Any other use is considered dangerous, and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.
SAFETY INFORMATION
Please read the operating and installation instructions carefully!
They contain important information on how to install, use, and maintain the appliance.
The manufacturer is not liable if you fail to comply with the instructions and warnings.
Retain all documents for subsequent use or for the next owner.
- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.
Danger of suffocation from folding cartons and plastic film!
- Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.
- Do not damage the refrigerant circuit.
- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
- Never use water to wash the compressor position; wipe it with a dry cloth thoroughly after cleaning to prevent rust.
- Always handle the appliance with at least two people because it is heavy. Install and level the appliance in an area suitable for its size and use.
- Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
- The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
- Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. Make sure that the mains cable is not caught under the appliance during and after
carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person in order to avoid a hazard.
Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight and to water.
Do not install the appliance near heaters or inflammable materials.
For appliances with a freezer compartment: if there is a power failure, do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
Do not store medicines, bacteria, or chemical agents in the appliance. This appliance is a household appliance; it is not recommended to store materials that require strict temperatures.
Do not excessively pull or fold the power cord
or touch the plug with wet hands.
Do not store products which contain flammable propellant (e.g., spray cans) or explosive substances in the appliance. Risk of explosion!
Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.
Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
- At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
- Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.
• Children should not play with the appliance.
- Children aged from 3 to 8 years are allowed to load and unload this appliance.
- FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
- FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!
- Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
- Before performing any operation, unplug the power cord from the power socket.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.
- Supervise children while the appliance is being cleaned or maintained.
- Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
- WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
- If the refrigerant circuit should be damaged:
- Switch off the appliance and pull out the mains plug,
- Keep naked flames and/or ignition sources away from the appliance,
- Thoroughly ventilate the room for several minutes,
- Inform customer service.
- WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
- WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.
- Do not attempt to sit or stand on the top of the
appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.
- The product is designed and built for domestic household use only.
- Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in the refrigerator, so that they do not come into contact with or drip onto other food.
- Two-star frozen-food compartments (if present in the appliance) are suitable for storing pre-frozen food, making or storing ice cream, and making ice cubes.
- One-, two-, and three-star compartments, if present in the appliance, are not suitable for freezing fresh food.
- If the appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside the appliance.
- FOR WINE COOLERS: This appliance is intended to be used exclusively for the storage of wine.
- FOR A FREE-STANDING APPLIANCE: This refrigerating appliance is not intended to be used as a built-in appliance.
- FOR APPLIANCES WITHOUT A 4-STAR COMPARTMENT: This refrigerating appliance is not suitable for freezing foodstuffs.
- Replaceable (LED only) light source by a professional. This product contains a light source of energy efficiency
class G.
Scrapping old appliances
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE should not be treated as household waste.
- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
Conformity
By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
Guarantee
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
Energy Saving
For better energy saving we suggest:
• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room. - Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor. • Do not excessively stuff foods so as to ensure proper air circulation. • Defrost the appliance in case there is ice to facilitate the transfer of cold. - In case of absence of electrical energy, it is advisable to keep the refrigerator door closed. • Open or keep the doors of the appliance open as little as possible - Avoid adjusting the setting to temperatures too cold. - Remove dust present on the rear of the appliance
Before first use
You must allow the fridge to settle for at least four hours prior to switching the
power on.
It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.
Please note:
The appliance will start at 5°C for fridge and -18°C for freezer and work continuously until it comes down to the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.
Fridge use
● Never put liquids in the refrigerator uncovered.
- Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
- Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
● Make sure food is clean and any extra water is wiped away before putting into the fridge.
- Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
- Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
- Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
- Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
- Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.
Freezer use
● The freezer compartments are designed to store only frozen food.
- Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
- Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date.
- Store food in small packages (ideally less than 1kg). This reduces the freezing time and improves the quality of the food after thawing.
- Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
- Label the food before freezing with information including type of food and dates of storage and expiry.
- Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
- Bottled or canned drinks should not be stored in the freezer compartments as they could explode.
● The maximum amount of fresh food that can be frozen within a 24 hour period is 2.0kg.
- Do not attempt to freeze more than the maximum amount.
Overview
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.
Storage
The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.
As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.
- Butter, cheeses etc.
- Food in jars and bottles
- Drinks, e.g. milk
- Cooked food
- Yogurts, preserves etc.
- Fruit and vegetables
The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.
To replace, slide the shelf back into the slot, and then lower the rear section.
The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.
Control panel
There are total 5 temperature settings for the refrigerator. After connecting to the power supply, the refrigerator will be set on setting 3, which is the default setting.
Button "Power": Located on the left side, functioned as switching on / off by pressing 3s.
Button "Adjust": located on the right side, functioned as adjusting the temperature settings for the refrigerator
Adjusting the temperature:
The inside temperature of the refrigerator is adjusted by pressing the left "adjust" button. By pressing the button, the settings 1 to 5 represent different temperatures from the highest to the lowest.
| Position | Conditions |
| 1-2 | Summer or ambient temperature between 25°C-35 °C |
| 3-4 | Spring Autumn or ambient temperature between 15°C-25 °C |
| 5 | Winter or ambient temperature between 5°C-15 °C |
| Super freezing function | Quick freeze |
Caution: Some time will be required for the refrigerator to reach the set level when temperature adjustments are made.
The length of this period is determined by difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed and the amount of food in storage.
Super freezing function
To activate the Super Freezing function:
● set the thermostat in position 5, - press door switch and temperature adjustment button
together, wait until the Led of position 5 blinks continuously, the SF function has been activated.
SF will working 24h, after that the function will quit automatically, then back to the original position setting.
Note: During the SF period, the Led of position 5 will keep blinking.
Reversing the appliance doors
We recommend you seek the help of another individual to support the doors whilst performing this operation.
| 1. remove the top screws cover | 2.remove the screws then remove the top cover |
 |  |
| 3.unscrews the top hinge and then unscrew the hinge pin,turn the hinge over and replace it. | 4. remove the door |
 |  |
| 5. unscrews the lower hinge and adjustable feet then unscrew the hinge pin,turn the hinge over and replace it. | 6. get the left side stopper from accessory bag and install it on the lest side of refrigerator, then install the lower hinge on the on the lest side of refrigerator accordingly. |
 |  |
| 7. fix the door on the lower left side hinge | 8. refit the top hinge |
 |  |

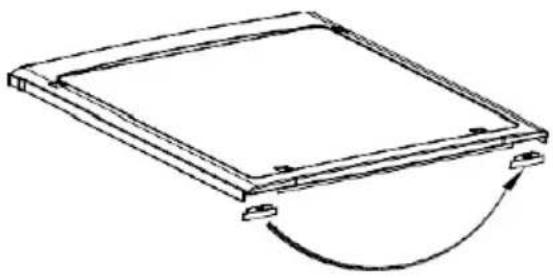

| 9. change the screws hole cover from left side to right side and refit the top cover. | 10. install the top cover screws |
 |  |

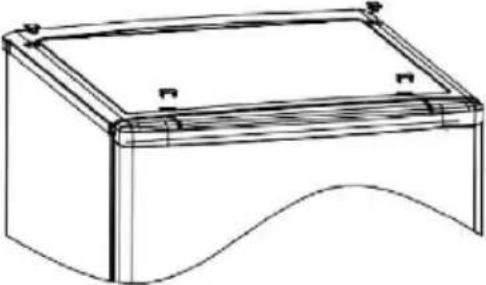

| 11. refit the top screws cover | |
 |

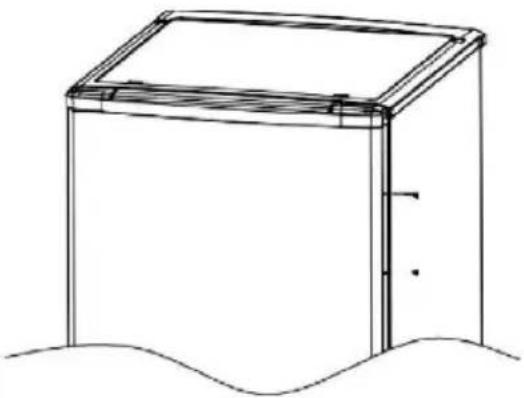

Install door external handle (if external handle present)

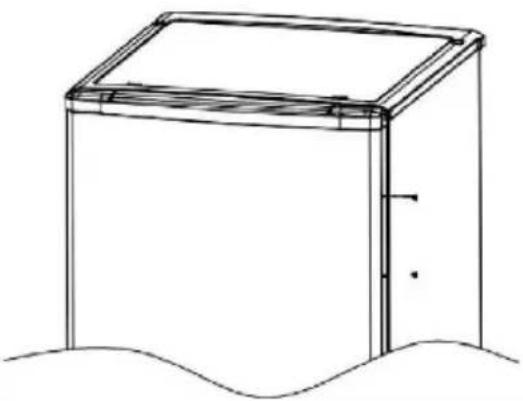

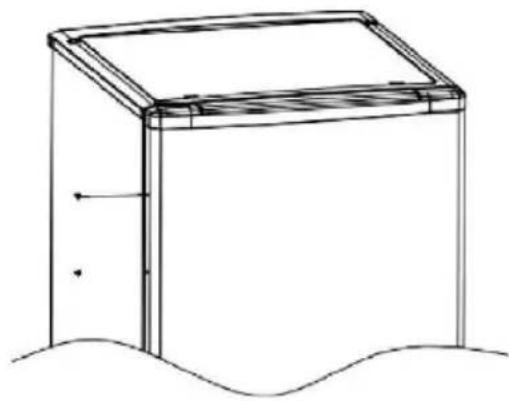

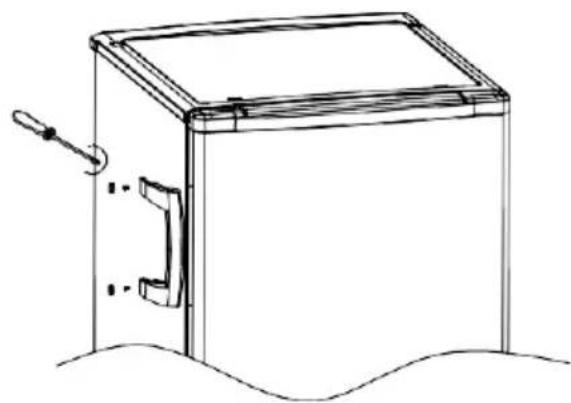

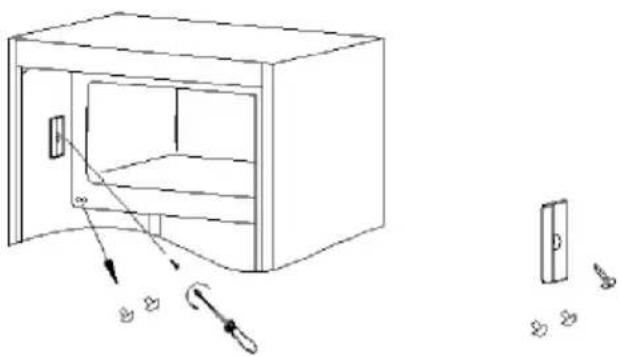

| 1. unscrew the handle on the left side. | 2. remove the screws cover from right side |
 |  |

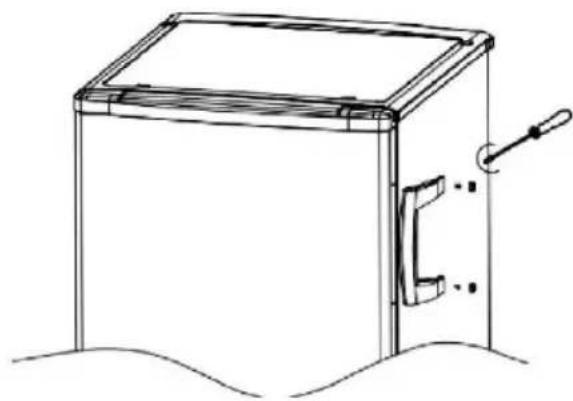

| 3. install the screw cover on the left side | 4. Install the handle to the right side |
 |  |

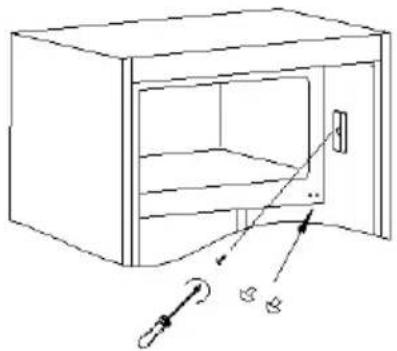

Reversing the inner doors

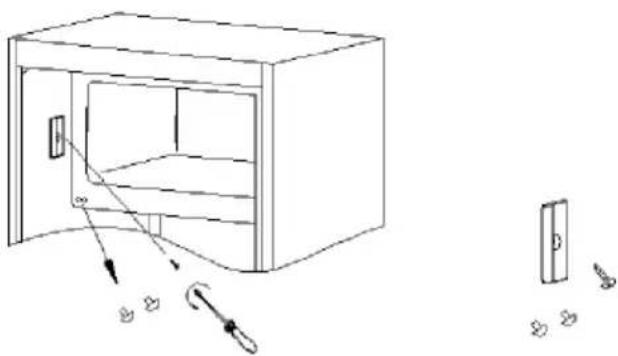

| 1.remove the screw cover on the right side, then unscrew the screws. | 2.remove the screw cover on the left side. |
 |  |
| 3. install the screw cover from left side to right side. | 4. Rotate inner door and install to the left side and then install the screws. |
 |  |
Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.
INSTALLATION
WARNING! The appliance is heavy. Always handle with at least two persons.
Before first use
Remove all packaging materials. Clean the appliance with water and a mild detergent and dry it with soft cloth. ➢ Check if power supply, socket and fusing are appropriate to the rating plate. ➢ Check if the power socket is earthed and no multi-plug or extension is present. ➢ Check if the power plug is accessible after the appliance has been positioned. ➢ Refrigerator and freezer temperature are automatically set at 4°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperature manually. See Adjust the temperature.
Environmental conditions
This appliance should be installed in a room that is dry and well ventilated. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sunlight. If this appliance is situated in a cold environment (such as a shed, outhouse or garage), the performance will be affected and this may damage the food.
Install this product in a position where the ambient temperature is not lower or higher than the operating temperature: in this case the appliance does not work properly.
- Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C'.
- Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
- Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.
- Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'.
Levelling the appliance
The appliance should be placed on a flat and solid surface. 1. Tilt the appliance slightly backwards. 2. Turn the feet clockwise to raise the refrigerator. 3. Turn the feet counter clockwise to lower the refrigerator.
Moving the appliance
- Remove all food and unplug the appliance.
- Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape.
- Do not tilt the refrigerator more than 45 degrees to avoid damaging the refrigerating system.
TIPS FOR FOOD STORAGE
Position different food in different compartments according to the table below:
| Refrigerator compartment Type of food | |
| Door or balconies of fridge compartment | Foods with natural preservatives, such as jams, juices, drinks, condimentsDo not store perishable foods |
| Crisper drawers (salad drawer) | Fruits, herbs and vegetables should be placed separately in the crisper binDo not store bananas, onions, potatoes, garlic in the refrigerator |
| Fridge shelf – middle | Dairy products, eggs |
| Fridge shelf – top | Foods that do not need cocking, such as ready-to-eat foods, deli meats, leftovers |
| Freezer drawer(s)/tray | Foods for long-term storageBottom drawer for raw meat, poultry, fishMiddle drawer for frozen vegetables, chipsTop tray for ice cream, frozen fruit, frozen baked goods |
It's suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment. For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat. For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C).
Tips for storing food in the fridge
Keep your fridge temperature below 5°C. Hot food must be cooled to room temperature before storing in the appliance. Foods stored in the refrigerator should be washed and dried before storing. Food to be stored should be properly sealed to avoid odor or taste alterations. It is advisable to keep food covered with materials that are tasteless, impermeable to air and water, non-toxic and free of pollution, to avoid contamination or odor transfer. It is recommended not to obstruct the air outlets of the refrigerator compartment. Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogenous cooling. Leave a gap between foods and the inner walls, allowing air flowing. In special way don't
store foods against the rear wall, as food could freeze.
The ageing process of some fruit and vegetables (such as melons, papaya, banana, pineapple etc) can be accelerated in the refrigerator; therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.
Tips for freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. Place the fresh food to be frozen in the freezer compartment. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate. The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Tips for storing food in the freezer
Keep the freezer temperature at -18°C. Hot food must be cooled to room temperature before storing in the freezer compartment. Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg. It is better to pack the food before putting it into the freezer. Defrosted food cannot be re-frozen unless it is first cooked. Do not load excessive quantities of fresh food in the freezer compartment. Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables 6-12 months). Do not exceed the food storage time recommended by the manufacturers.
CARE AND CLEANING
WARNING! Disconnect the appliance from the power supply before cleaning.
General
The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.
Clean the inside and housing of the appliance with lukewarm water and some neutral soap. Rinse and dry with a soft cloth. Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance. Do not clean any of the parts of the appliance in a dishwasher. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
Replacing the LED lamps
The internal light is an LED type. To replace the lamp, please contact customer service. See Troubleshooting.
Door opening alarm
When the appliance door is left open for more than 1 minute, the door opening alarm will sound. The alarm can be silenced by closing the door or by pressing the SET key (this will not affect the temperature setting, it will just mute the alarm).
Non-use for long periods
If the appliance is not used for an extended period of time:
- Take out the food and unplug the power cord.
- Clean the appliance as described in the "Care and Cleaning - General" section.
- Keep the door and freezer drawers/door open to prevent the creation of bad odors inside.
Power interruption
In the event of a power cut, food should remain safely cold for the time indicated on the rating plate. Follow these tips during a prolonged power interruption, especially in summer:
Open the door/drawer as few times as possible. Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than the amount of hours indicated on the rating plate, make some ice and put it in the top of the refrigerator compartment. The storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) in order to prevent health risks.
Availability of spare parts
Thermostats, temperature sensors, printed circuit boards, and light sources are available for a minimum period of 7 years after placing the last unit of the model on the market. Door handles, door hinges, trays, and baskets for a minimum period of 7 years, and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.
TROUBLESHOOTING
In case of a problem, please check all shown possibilities and follow the instructions below before contacting an after-sales service.
| Problem Possible cause Possible solution | ||
| The appliance does not work | The appliance is turned off | Press the ON/OFF key to turn on the appliance |
| Mains plug is not connected in the mains socket | Connect the mains plug | |
| Fuse has blown or is defective | Check the fuse and replace it if necessary | |
| Socket is defective | Mains malfunctions should be corrected by an electrician | |
| The appliance runs frequently or runs for a too long period of time | The indoor or outdoor temperature is too high | It is normal for the appliance to run longer |
| The appliance has been off power for a period of time | Normally, it takes 8 to 12 hours for the appliance to cool down completely | |
| A door/drawer of the appliance is not tightly closed | Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door | |
| The inside of the refrigerator is dirty and/or smells | The inside of the refrigerator needs cleaning | Clean the inside of the refrigerator |
| Food of strong odour is stored in the refrigerator | Wrap the food thoroughly | |
| Moisture formation on the inside of the refrigerator | The climate is too warm and too damp | Increase the temperature |
| A door/drawer of the appliance is not tightly closed. | Close the door/drawer | |
| Food containers or liquids are left open | Let hot foods cool to room temperature and cover foods and liquids | |
| Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer | The climate is too warm and too damp | This is normal in damp climate and will change when the humidity decreases |
| The door/drawer is not closed tightly | Ensure that the door/drawer is tightly shut | |
| Strong ice and frost in the freezer compartment | The goods were not adequately packaged | Always pack the goods well |
| A door/drawer of the appliance is not tightly closed | Close the door/drawer | |
| Unusual noises | The appliance is not at level Re-adjust the feet | |
| The appliance is touching the wall or other objects | Slightly move the appliance | |
| UI Led's are flashing | One of the sensors is out of range Contact the assistance | |
| An alarm is beeping | The fridge storage compartment door is open | Close the door or silence the alarm manually |
| The interior lighting or cooling system does not work | The LED-lamp is out of order | Please call the service for changing the lamp |
During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product.
To contact technical assistance, visit our website: https://corporate.haier-europe.com/en/
Under the “website” section, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact technical assistance.
For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR code on the energy label supplied with the appliance.
Control panel
Control panel
Super Freeze function
Control panel
Control panel
Control panel
Control panel
Control panel
Control panel
This device is marked in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).
Control panel
The refrigerator has a total of 5 temperature settings. After connecting the refrigerator to the power supply, the temperature setting is 3, which is the standard setting. The "Power" button: located on the left side, used to turn on/off when pressed for 3 seconds. The "Adjust" button: located on the right side, used to adjust the refrigerator temperature settings.
Temperature adjustment:
The internal temperature of the refrigerator is adjusted by pressing the left "Adjust" button. Settings from 1 to 5 represent different temperatures from highest to lowest.
| Položaj | Uvjeti |
| 1 – 2 | Ljeto ili temperatura okoline između 25 °C i 35 °C |
| 3 – 4 | Proljeće, jesen ili temperatura okoline između 15 °C i 25 °C |
| 5 | Zima ili temperatura okoline između 5°C i 15 °C |
| Funkcija superzamrzavanja | Brzo zamrzavanje |
Super freeze function
To activate the super freeze function:
- set the thermostat to position 5;
- press the door switch and the temperature adjustment button; wait until the LED indicator for position 5 starts flashing continuously; the SF function is activated.
The SF function operates for 24 hours, after which the function automatically turns off and returns to the initial setting.
Note: The LED indicator for position 5 continues to flash while the SF function is active.
Reversing the door of the appliance
- Place the screw cover on the left side.
- Remove the screw cover from the right side.
- Place the handle on the right side.
- Place the screw cover from the left to the right side.
- Remove the screw cover on the left side.
- Turn the inner door and place it on the left side, then insert the screws.
Ensuring proper door closure:
The gasket is usually compressed after turning the door. Close the door and use a hair dryer to expand the gasket and fill the gap between the door and the appliance housing. Be careful not to hold the hair dryer too close to the appliance as this may damage the gasket. A distance of approximately 10 cm is sufficient. When finished, wait for the gasket and door to cool down before touching them. The gasket should remain in place at the end of the process.
INSTALLATION
Control panel
Control panel
Super freeze function
This appliance is marked according to the European directive 2012/19/EU on waste electrical and electronic equipment (WEEE).
Control panel
- remove the screw cover on the left side.
Moving the appliance
Control panel
Control panel
Super Freeze function
Reversing the doors of the appliance
Reversing the inner doors
Moving the appliance
Replacing the LED lamps
Control panel
Moving the appliance
Control panel
Moving the appliance
Control panel
The refrigerator has a total of 5 temperature settings. When connected to the power source, the refrigerator will be set to setting 3, which is the default setting.
- Install the screw cover from the left side to the right side.
Moving the appliance
Control panel
Super Freezing function
- Remove the screw covers on the right side.
- Install the screw covers on the left side.
- Install the handle on the right side.
- Install the screw cover from the left to the right side.
- Remove the screw cover on the left side.
- Turn the inner door and install it on the left side, then tighten the screws.
Moving the appliance
Control panel
There are a total of 5 temperature settings for the refrigerator. After connecting to the power supply, the refrigerator will be set to setting 3, which is the default setting.
The "Power" button: Located on the left side, it functions as an on/off switch by pressing for 3 seconds.
The "Settings" button is located on the right side and is used to adjust the temperature settings for the refrigerator.
Temperature adjustment:
The internal temperature of the refrigerator is adjusted by pressing the left adjustment button. Pressing the button cycles through settings 1 to 5, which represent different temperatures from highest to lowest.
| Položaj | Uslovi |
| 1–2 | Letnja temperatura ili temperatura okruženja u opsegu 25–35 °C |
| 3–4 | Prolećna temperatura, jesenja temperatura ili temperatura okruženja u opsegu 15–25 °C |
| 5 | Zimska temperatura ili temperatura okruženja u opsegu 5–15 °C |
| Funkcija super zamrzavanja | Brzo zamrzavanje |
Super freeze function
How to use the super freeze function:
- Set the thermostat to position 5.
- Press the door switch and the temperature adjustment button together, and wait until the LED light for position 5 blinks continuously. The super freeze function (SF) is then activated. SF will run for 24 hours, after which the function will automatically turn off and return to the original setting. Note: During the super freeze period, the LED indicator for position 5 will continue to blink.
Reversing the appliance door
We recommend that you ask another person to help hold the door while performing this operation.
| 1. skinite poklopac sa gornjih vijaka | 2. uklonite vijke, a zatim uklonite gornji poklopac |
 |  |
| 3. odvrnite gornju šarku i zatim odvrnite iglu šarke, okrenite šarku i zamenite je. | 4. uklonite vrata |
 |  |
| 5. odvrnite donju šarku i podesive nožice, zatim odvrnite iglu šarke, okrenite šarku i zamenite je. | 6. izvadite levi bočni čep iz torbe sa priborom i postavite ga na levu stranu frižidera, a zatim postavite donju šarku na levu stranu frižidera u skladu sa tim. |
 |  |
| 7. pričvrstite vrata na donjoj levoj šarki | 8. ponovo montirajte gornju šarku |
 |  |
| 9. promenite poklopac otvora vijaka sa leve na desnu stranu i ponovo postavite gornji poklopac. | 10. montirajte gornje vijke poklopca |
 |  |
| 11. vratite poklopac gornjih vijaka | |
 |
Install the external door handle (if an external handle is present).
| 1. odvrnite ručku na levoj strani. | 2. uklonite poklopac vijaka sa desne strane |
 |  |
| 3. postavite poklopac zavrtnja na levu stranu | 4. Montirajte ručku na desnu stranu |
 |  |
Reversing the inner doors
- Remove the screw cover on the right side, then unscrew the screws.
- Remove the screw cover on the left side.
- Rotate the inner doors and place them on the left side, then install the screws.
Properly secure the door gasket:
It is normal for the gasket to compress after the door has been reversed. With the door closed, use a hair dryer to warm the gasket and fill the gap between the door and the appliance body. Be careful not to use the hair dryer too close to the appliance, as this could damage the gasket. A distance of about 10 cm should be adequate. When finished, allow the gasket and door to cool before touching them. Once done, the gasket should stay in place.
INSTALLATION
Moving the appliance
- Remove all food and unplug the appliance
- Secure shelves and other movable parts in the refrigerator and freezer with adhesive tape.
- Do not tilt the refrigerator more than 45° to avoid damaging the cooling system.
FOOD STORAGE TIPS
Place different types of food in different compartments according to the following table:
| Pregrada u frižideru | Vrsta hrane |
| Pregrade u vratima frižidera | Hrana s prirodnim konzervansima kao što su džemovi, sokovi, pića, začiniNemojte čuvati kvarljivu hranu |
| Providne fioke (fioka za salatu) | Voće, začinske biljke i povrće treba stavljati zasebno u providnu pregraduU frižideru nemojte čuvati banane, luk, krompir, beli luk |
| Polica u frižideru – srednja | Mlečni proizvodi, jaja |
| Polica u frižideru – gornja | Hrana koja se ne kuva, kao što su gotova jela, delikatesno meso, ostaci hrane |
| Fioke/tacne u zamrzivaču | Hrana koja se dugo čuvaDonja fioka za sirovo meso, živinsko meso, ribuSrednja fioka za smrznuto povrće, krompirGornja fioka za sladoled, smrznuto voće, smrznuta peciva |
It is recommended to set the refrigerator temperature to 4 °C and the freezer temperature to -18 °C whenever possible. For most food categories that need to be kept longer in the refrigerator compartment, it is best to store them at lower temperatures. Since some products (such as fresh fruits and vegetables) can be damaged at lower temperatures, it is recommended to store them in transparent drawers if available. If not, maintain average thermostat settings. For frozen food, the storage time should be indicated on the packaging. This storage time applies when the reference temperatures of the compartment are respected (one star -6 °C, two stars -12 °C, three stars -18 °C)
Tips for storing food in the refrigerator
Control panel
Super freezing function
How to activate the Super freezing function:
Move the device
Control panel
Moving the device
- SAFETY INFORMATION
- SCRAPPING OLD APPLIANCES
- CONFORMITY
- GUARANTEE
- ENERGY SAVING
- BEFORE FIRST USE
- PLEASE NOTE
- FRIDGE USE
- FREEZER USE
- OVERVIEW
- STORAGE
- CONTROL PANEL
- ADJUSTING THE TEMPERATURE
- SUPER FREEZING FUNCTION
- REVERSING THE APPLIANCE DOORS
- INSTALL DOOR EXTERNAL HANDLE (IF EXTERNAL HANDLE PRESENT)
- REVERSING THE INNER DOORS
- ENSURING THE DOOR SEALS CORRECTLY
- INSTALLATION
- ENVIRONMENTAL CONDITIONS
- LEVELLING THE APPLIANCE
- MOVING THE APPLIANCE
- TIPS FOR FOOD STORAGE
- TIPS FOR STORING FOOD IN THE FRIDGE
- TIPS FOR FREEZING FRESH FOOD
- TIPS FOR STORING FOOD IN THE FREEZER
- CARE AND CLEANING
- GENERAL
- REPLACING THE LED LAMPS
- DOOR OPENING ALARM
- NON-USE FOR LONG PERIODS
- POWER INTERRUPTION
- AVAILABILITY OF SPARE PARTS
- TROUBLESHOOTING
- SUPER FREEZE FUNCTION
- TEMPERATURE ADJUSTMENT
- REVERSING THE DOOR OF THE APPLIANCE
- ENSURING PROPER DOOR CLOSURE
- REVERSING THE DOORS OF THE APPLIANCE
- REVERSING THE APPLIANCE DOOR
- INSTALL THE EXTERNAL DOOR HANDLE (IF AN EXTERNAL HANDLE IS PRESENT)
- PROPERLY SECURE THE DOOR GASKET
- FOOD STORAGE TIPS
- TIPS FOR STORING FOOD IN THE REFRIGERATOR
- MOVE THE DEVICE
- MOVING THE DEVICE
Brand : CANDY
Model : COT1S45FWH
Category : Refrigerator
