X50V5 - Desktop computer Shuttle - Free user manual and instructions

Product Type	Desktop Computer
Brand	Shuttle
Model	X50V5
Form Factor	Small Form Factor (SFF)
Dimensions (W x D x H)	200 mm x 200 mm x 80 mm
Weight	2.5 kg
Power Supply	90W AC Adapter
Processor	Intel Core i5 (latest generation)
Memory	8GB DDR4 (upgradable)
Storage	256GB SSD + 1TB HDD
Operating System	Windows 10 Pro
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.2, Gigabit Ethernet
Ports	4x USB 3.0, 2x HDMI, 1x VGA, Audio In/Out
Main Functions	Office work, multimedia, light gaming, digital signage
Maintenance	Periodic dust removal from vents; ensure proper airflow
Cleaning	Use a soft, dry cloth; avoid liquids and abrasive cleaners
Safety	Keep away from water and moisture; unplug before cleaning
Spare Parts and Repairability	User-accessible RAM and storage; other parts contact Shuttle support
General Information	Energy-efficient, quiet operation, suitable for 24/7 use

Frequently Asked Questions - X50V5 Shuttle

How to clean the Shuttle X50V5?

Use a soft, dry cloth to wipe the exterior. For vents, use compressed air. Avoid liquids and abrasive cleaners. Always unplug the device before cleaning.

Can I upgrade the RAM on the X50V5?

Yes, the X50V5 supports up to 32GB DDR4 RAM via two SO-DIMM slots. Refer to the user manual for specific compatible modules and installation instructions.

What operating system is supported?

The X50V5 comes with Windows 10 Pro pre-installed. It also supports Windows 11 and various Linux distributions (drivers may be required).

How to connect dual monitors?

Use the available HDMI and VGA ports. Connect each monitor to a separate port. In Windows, go to Display Settings to extend or duplicate the desktop.

Is the X50V5 suitable for gaming?

It can handle light gaming and older titles. For modern games, it may require lower settings. Dedicated graphics are not present; rely on integrated Intel graphics.

What is the power consumption of the X50V5?

Typical power consumption is around 30-60W under load, thanks to the energy-efficient design. The power supply is rated at 90W.

How to update the BIOS on the X50V5?

Download the latest BIOS from the Shuttle support website. Copy it to a FAT32 USB drive, restart the system, and press DEL during boot to enter BIOS setup, then use the instant flash tool.

Can I install Linux on the X50V5?

Yes, many Linux distributions work well. Ensure you have the latest BIOS and secure boot disabled. Some components like Wi-Fi may need proprietary drivers.

Where to find drivers for the X50V5?

Drivers are available on the Shuttle support page for the X50V5 model. Download and install chipset, LAN, audio, and graphics drivers as needed.

How to contact Shuttle support?

Visit the official Shuttle website and navigate to the Support section. You can find contact forms, email addresses, and phone numbers for your region.

USER MANUAL X50V5 Shuttle

©2016 by Shuttle® Inc. All Rights Reserved.

No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means such as electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior written permission from Shuttle® Inc.

Other brands and product names used herein are for identification purposes only and may be trademarks of their respective owners.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

Shuttle® Inc. makes no representation or warranty regarding the contents of this manual. Information in this manual had been carefully checked for accuracy; however, no guarantee is given as to the correctness of the contents. For continuing product improvement, Shuttle® Inc. reserves the right to revise the manual or make changes to the specifications of this product at any time without notice and obligation to any person or entity regarding such change. The information contained in this manual is provided for general use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must withstand any background interference including those that may cause undesired operation.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice

Other brand and product names used herein are for identification purposes only and may be trademarks of their respective owners.

Safety Information

Read the following precautions before setting up a Shuttle XPC.

CAUTION

Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Dispose of used batteries according to the manufacturer's instructions.

Laser compliance statement

The optical disc drive in this server is a laser product. The drive's classification label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Installation Notices

Do not place this device underneath heavy loads or in an unstable position.

Do not use or expose this device around magnetic fields as magnetic interference may affect the performance of the device.

Do not expose this device to high levels of direct sunlight, high-humidity or wet conditions.

Do not block the air vents to this device or impede the airflow in any way.

TABLE OF CONTENTS

Driver and Software Installation....1

■ Motherboard Driver DVD....1 ■ User Manuals ......2

Appendix....3

Starting BIOS ....3

BIOS Setup Menu ....3

Main Setup ....5 Advanced 6

➢ CPU Configuration ....7 ➢ SATA Configuration ......9 USB Configuration 9 Onboard Device Configuration 10 Power Management Configuration ......12 Hardware Health Configuration 13

Boot 14 Security 16 Exit 18

■ Motherboard Driver DVD

The DVD contents attached in X50V5 Series motherboard are subject to change without notice.

The Motherboard Driver DVD contains all the motherboard drivers necessary to optimize the performance of this Shuttle Xvision in a Windows® OS. Install these drivers after installing Microsoft® Windows®.

Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Navigation Bar Description :

Auto Install Driver/Utility Install Intel Rapid Storage Tech. Driver Install eGalax Touch Panel Driver User Manuals - Motherboard Manual, Quick Guide. Link To Shuttle Website - Link to shuttle website homepage. Browse This DVD - Allows you to see contents of this DVD.

User Manuals

Install Adobe Reader 9.5. Motherboard Manual Quick Guide.

Starting BIOS

AMIBIOS has been integrated into many motherboards for over a decade. In the past, people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or CMOS setup.

American Megatrends refers to this setup as BIOS. Specifically, it is the name of the AMIBIOS BIOS setup utility. This chapter describes the basic navigation of the BIOS setup screens.

Enter the BIOS

To enter the BIOS setup screens, follow the steps below:

Step 1. Power on the motherboard.

Step 2. Press the key on your keyboard when you see the following text prompt: Press DEL to run Setup.

Step 3. After you press the key, the main BIOS setup menu displays. You can access the other setup screens from the main BIOS setup menu, such as the Chipset and Power menus.

This manual describes the standard look of the BIOS setup screen. The motherboard manufacturer has the ability to change any and all of the settings described in this manual. This means that some of the options described in this manual do not exist in your motherboard's AMIBIOS.

In most cases, the key is used to invoke the BIOS setup screen. There are a few cases that other keys are used, such as , , and so on.

BIOS Setup Menu

The main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user's guide.

The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. Options in blue can be.

The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white.

Often a text message will accompany it.

AMIBIOS has default text messages built into it. The motherboard manufacturer retains the option to include, leave out, or change any of these text messages. They can also add their own text messages. Because of this, many screen shots in this manual are different from your BIOS setup screen.

The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include , , , , keys, and so on.

There is a hot key legend located in the right frame on most BIOS setup screens.

Hot Key Description
→ Left← Right	The Left and Rightkeys allow you to select a BIOS setup screen. For example: Main screen, Advanced screen, Chipset screen, and so on.
↑ Up↓ Down	The Up and Downkeys allow you to select an BIOS setup item or sub-screen.
+- Plus/Minus	The Plus and Minuskeys allow you to change the field value of a particular setup item. For example: Date and Time.
Tab Thekey allows you to select BIOS setup fields.
F1	Thekey allows you to display the General Help screen. Press thekey to open the General Help screen.
F4	Thekey allows you to save any changes you have made and exit BIOS Setup. Press thekey to save your changes. Press thekey to save the configuration and exit. You can also use thekey to select Cancel and then press thekey to abort this function and return to the previous screen.
ESC	Thekey allows you to discard any changes you have made and exit the BIOS Setup. Press thekey to exit the BIOS setup without saving your changes. Press thekey to discard changes and exit. You can also use thekey to select Cancel and then press thekey to abort this function and return to the previous screen.
Enter	Thekey allows you to display or change the setup option listed for a particular setup item. Thekey can also allow you to display the setup sub-screens.

Main Setup

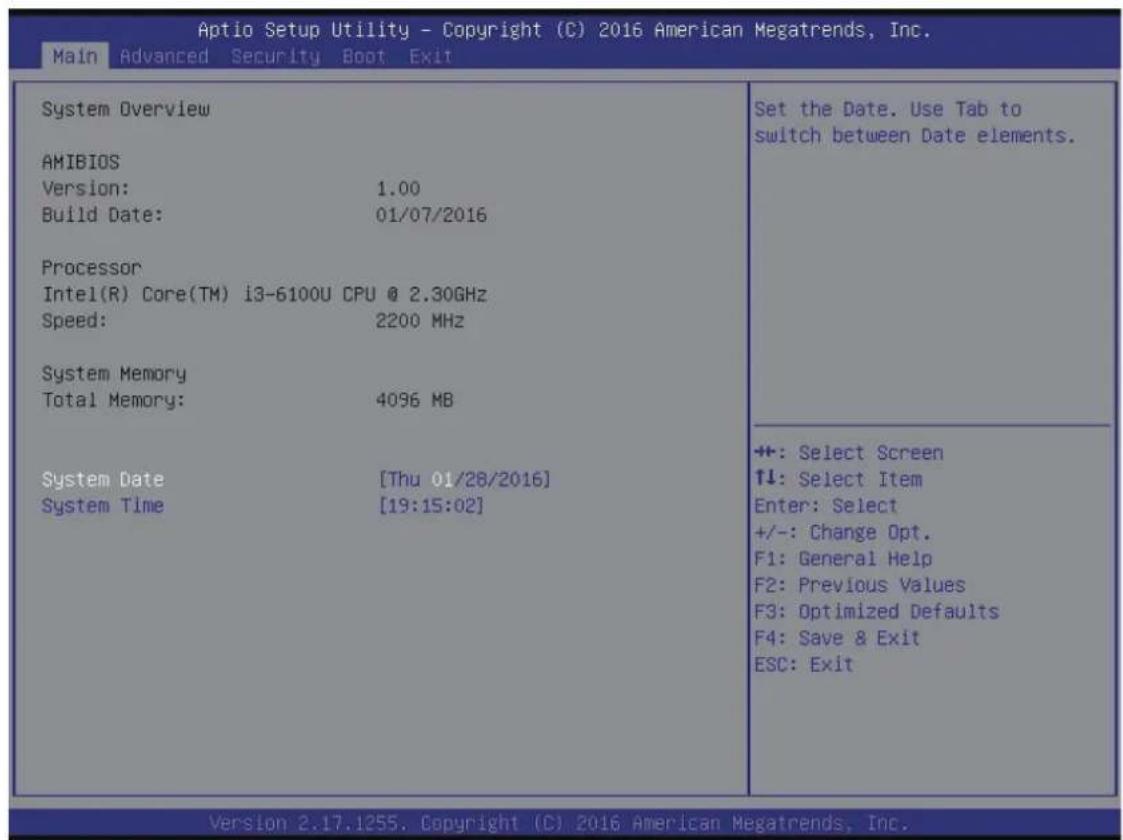

When you first enter the BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below.

System Time/System Date

Use this option to change the system time and date. Highlight System Time or System Date using the keys. Enter new values through the keyboard. Press the key or the keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.

The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00.

Advanced

Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item.

You can display an Advanced BIOS Setup option by highlighting it using the keys. All Advanced BIOS Setup options are described in this section.

The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Security Boot Exit
Advanced Settings WARNING:Setting wrong values in below sections may cause system function. ►CPU Configuration ►SATA Configuration ►USB Configuration ►OnBoard Device Configuration ►Power Management Configuration ►Hardware Health Configuration	CPU Configuration Settings
	++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.17.1255, Copyright (C) 2016 American Megatrends, Inc.

CPU Configuration

You can use this screen to select options for the CPU Configuration Settings. Use the up and down keys to select an item. Use the left and right keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. The settings are described on the following pages. An example of the CPU Configuration screen is shown below.

The CPU Configuration setup screen varies depending on the installed processor.

Intel® HT Technology

This item allows you to enable or disable Intel(R) HT Technology.

The choice: Enabled, Disabled.

CPU support, item appear.

Active Processor Cores

This item allows you to determine how many cores to be enabled.

The choice: ALL, 1.

Intel(R) V. T.

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

The choice: Enabled, Disabled.

CPU support, item appear.

EIST

This item allows you to enable or disable Enhanced Intel SpeedStep® Technology.

The choice: Enabled, Disabled.

C State Support

This item allows you to enable or disable CPU C State.

The choice: Enabled, Disabled.

SATA Configuration

USB Configuration

Onboard Device Configuration

High Definition Audio

This item allows you to enable or disable system High Definition Audio.

The choice: Enabled, Disabled.

Onboard LAN Function

This item allows you to enable or disable LAN Function.

The choice: Enabled, Disabled.

Onboard LAN BOOT ROM

This item allows you to enable or disable Onboard LAN BOOT ROM.

The choice: Enabled, Disabled.

M.2 Device Select

M.2 PCIE and SATA device selection.

The choice: PCIE, SATA.

IGD Memory Size Select

Allows you to select the size of system memory used by the internal graphics device.

The choice: 64MB, 128MB, 256MB, 512MB, 1024MB.

Intel® VT-d

This item allows you to enable or disable Intel® VT-d.

The choice: Enabled, Disabled.

Serial Port Configuration

Options are in its sub-menu.

Press to enter the sub-menu of detailed options.

Serial Port 1/2/3/4

Enabled/Disabled Serial Port (COM).

The choice: Enabled, Disabled.

Serial Port 1/2/3/4 Address

The choice: 3F8h, 2F8h, 3E8h, 2E8h.

Serial Port 1 Mode

COM mode select.

The choice: RS232, RS422, RS485.

Power Management Configuration

Wake Up By USB (S3)

This item allows you to enable or disable system wake up by USB (S3).

The choice: Enabled, Disabled.

EuP Function

This item allows you to enable or disable system EuP function in S4/S5.

The choice: Enabled, Disabled.

Power-On after Power-Fail

This item allows you to set system power on automatically after AC power restored.

The choice: Power On, Former-sts, Power Off, Power On by LAN, Power On by RTC.

Wake Up By LAN

This item allows you to enable or disable system wake on by onboard LAN chip.

The choice: Enabled, Disabled.

PowerOn by RTC Alarm

When enabled, System will wake on the hr::min::sec specified.

The choice: Enabled, Disabled.

Hardware Health Configuration

Boot

Select the Boot tab from the BIOS setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Settings Configuration, to go to the sub menu for that item.

You can display an Boot BIOS Setup option by highlighting it using the keys. All Boot BIOS Setup options are described in this section.

The Boot BIOS Setup screen is shown below. The sub menus are described on the following pages.

Bootup Num-Lock

Select NumLock state after system bootup.

The choice: Enabled, Disabled.

Boot from Card-Reader

Enabled/Disabled onboard Card-Reader boot function.

The choice: Enabled, Disabled.

Boot from USB device

Enabled/Disabled onboard USB storage boot function.

The choice: Enabled, Disabled.

Fast Boot Function

This item allows you to enable or disable Fast Boot Function.

The choice: Enabled, Disabled.

Boot Mode Select

Choice Boot ro UEFI or Legacy.

The choice: LEGACY, UEFI.

Boot Device Priority (Boot Option #1/2/3/....)

Specifies the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in the corresponding type menu.

Security

Select the Security tab from the BIOS setup screen to enter the Security BIOS Setup screen. You can display a Security BIOS Setup option by highlighting it using the keys. All Security BIOS Setup options are described in this section.

The Security Setup screen is shown below. The submenus are documented on the following pages.

Supervisor Password

Indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

User Password

Indicates whether a user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change Supervisor Password

Select Change Supervisor Password from the Security Setup menu and press <Enter>.

Enter New Password:

appears. Type the password and press <Enter>. The screen does not display the characters entered. Retype the password as prompted and press <Enter>. If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes.

Change User Password

Select Change User Password from the Security Setup menu and press <Enter>.

Enter New Password:

appears. Type the password and press <Enter>. The screen does not display the characters entered. Retype the password as prompted and press <Enter>. If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes.

Password Login control

This item allows user to adjust Password Login control.

The choice: Setup, Boot, Both.

Flash Write Protection

Choose [Enabled] to avoid virus destroy BIOS. If you want to flash BIOS, you must set it [Disabled].

The choice: Enabled or Disabled.

Secure Boot Control

This item allows user to enable/disable Secure Boot function.

Exit

Select the Exit tab from the BIOS setup screen to enter the Exit BIOS Setup screen.

You can display an Exit BIOS Setup option by highlighting it using the keys. All Exit BIOS Setup options are described in this section.

The Exit BIOS Setup screen is shown below.

Save Changes and Exit

When you have completed the system configuration changes, select this option to leave BIOS Setup and reboot the computer so the new system configuration parameters can take effect.

Select "Save Changes and Exit" from the Exit menu and press .

Save Configuration Changes and Exit Now?

[Ok] [Cancel]

appears in the window. Select Ok to save changes and exit.

Exit Without Saving Changes

Select "Exit without Saving Changes" from the Exit menu and press .

Select Ok to discard changes and Exit.

Load Defaults Settings

BIOS automatically sets all BIOS Setup options to a complete set of default settings when you Select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Optimal BIOS Setup options if your computer is experiencing system configuration problems.

Select Load Optimal Defaults from the Exit menu and press .

Select Ok to load optimal defaults.
