Product Type	Hedge Trimmer
Brand	G-Technology
Model	HT50
Power Source	Electric (Corded)
Cutting Length	50 cm (20 inches)
Blade Type	Dual reciprocating blades
Tooth Gap	20 mm
Weight	4.2 kg
Overall Length	85 cm
Handle Type	D-shaped rear handle
Safety Features	Two-hand operation, blade guard, safety switch
Power Cord Length	10 m
Noise Level	95 dB(A)
Vibration Level	2.5 m/s²
Maintenance	Blade lubrication, cleaning after use
Repairability	Replacement blades and parts available

Frequently Asked Questions - HT50 G-TECHNOLOGY

How do I lubricate the blades?

Apply a light machine oil to the blade edges before and after each use. Always disconnect the power source before lubricating.

What safety precautions should I take?

Wear safety goggles, gloves, and hearing protection. Keep both hands on the handles and never operate near bystanders or pets.

Can the HT50 cut thick branches?

It is designed for branches up to 20 mm thick. For larger branches, use a pruning saw.

How do I adjust the blade tension?

Blade tension is pre-set at the factory. If adjustment is needed, consult the manual for specific steps, as over-tightening can damage the blades.

What should I do if the blades jam?

Release the trigger, disconnect the power, and remove the obstruction carefully with a stick or tool. Never use your hands.

How do I replace the blades?

Use only G-Technology approved replacement blades. Disconnect power, remove the blade guard, unscrew the blades, and install new ones. Tighten screws securely.

Is the HT50 suitable for commercial use?

It is designed for home garden use. For continuous commercial trimming, consider a heavier-duty model.

How often should I clean the trimmer?

After each use, wipe off debris and sap with a damp cloth. Lubricate blades monthly or after extended use.

What type of extension cord is recommended?

Use a heavy-duty outdoor extension cord of at least 14 AWG gauge, not exceeding 30 meters in length.

Why does the trimmer shut off during use?

This may be due to overheating or overloading. Allow the tool to cool for 5 minutes before restarting. Check for blade obstructions.

USER MANUAL HT50 G-TECHNOLOGY

Technical line drawings of two mechanical tools with no visible text or symbols

Cordless Hedge Trimmer HT Series
OPERATING MANUAL

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury.

Do not use in rain or leave outdoors whilst raining.

Personal safety:

• Only use the hedge trimmer in the manner intended and for trimming hedges as described in this manual.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge.
• Keep out of reach of children and animals at all times. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Pay special attention to the hazards posed to third parties by the reach working radius. Always be aware of your surroundings and stay alert for possible hazards.
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• The operator is responsible for accidents or hazards occurring to other people at their property.
• Do not use power tools while you are tired or under the influence of drugs, alcohol or medication. This may result in serious personal injury.
• Do not expose this hedge trimmer to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Only use in daylight or good artificial light.
  • Always be sure of your footing on

ladders, slopes or in slippery conditions. Do not over-reach or use this hedge trimmer on excessively steep slopes.

• Check the hedge and area where the hedge trimmer is being used for any objects, such as wire fences, that could damage or jam the trimmer blade.
• Dress appropriately. Do not wear loose clothing or jewellery and keep hair, clothing and gloves away from moving parts. Do not operate when barefoot or wearing open-toed shoes.
• Use protective personal equipment such as safety glasses, non-skid safety shoes and sturdy gloves to reduce the risk of personal injury.
• Keep all body parts, especially hands and feet, away from the blade at all times.
• Do not run with the hedge trimmer.
• When operating the hedge trimmer, ensure that both hands are correctly positioned on the handle.
• Do not operate the hedge trimmer if it is incomplete or has unauthorised modifications.
• Warning: the blade will continue to move after the motor is switched off.
• Remove the battery and ensure the motor and blade have stopped turning before: cleaning; clearing a blockage; checking or carrying out maintenance on the hedge trimmer.

• Avoid accidental starting. Ensure the switch is in the 'Off' position before picking up or carrying the hedge trimmer.

• Carry the hedge trimmer by the handle with the blade stopped.

• When transporting or storing the hedge trimmer, always fit the protective blade cover.
• Never operate the trimmer with damaged guards.
• Keep the product and all accessories away from hot surfaces.
• Never modify the hedge trimmer in any way.

Electrical safety:

- Do not operate this hedge trimmer in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

- Do not use the hedge trimmer when a thunderstorm is approaching.

- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the hedge trimmer in unexpected situations.

- Do not expose the hedge trimmer to rain or wet conditions.

- Do not handle the charger or hedge trimmer with wet hands.

- Before charging, check the power supply and charger cables for signs of damage or ageing.

- Do not overload the hedge trimmer. For safety, the hedge trimmer will automatically cut out if the motor becomes overloaded. If this occurs, wait a few seconds for the cut out to reset and then use lighter cuts to trim the hedge.

Battery safety:

- This product contains Li-ion batteries. Do not incinerate batteries or expose to high temperatures, as they may explode.

- Do not abuse the charger cord. Never use the charger cord for carrying, pulling or unplugging the power tool. Keep the charger cord away from heat, oil, sharp edges or moving parts. Damaged or entangled charger cords increase the risk of electric shock.

- Use only with the battery pack supplied.

- Do not attempt to use charger with any other product or to charge this product with any other charger.

- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of injury and fire when used with another battery pack.

- Do not charge the battery when the surrounding air temperature or the battery pack is below 0°C or above 35°C.

• After heavy use or in high temperatures, the battery may become warm. Allow the product to cool for 30 minutes before charging.

- Leaks from battery cells can occur under extreme conditions. If the liquid gets on your skin, wash the area immediately with soap and water. If the liquid gets into your eyes, flush them immediately with cold water for a minimum of 10 minutes and seek urgent medical attention.

- Do not store the battery outside or in cold conditions for prolonged periods of time.

- When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

- Do not use hedge trimmer continuously with multiple batteries without a minimum of 60 minutes of rest time in between uses.

Training:

• Read the instructions carefully. Be familiar with the controls and the correct use of the hedge trimmer.
• Never allow children or people unfamiliar with these instructions to use the hedge trimmer. Local regulations can restrict the age of the operator.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation:

• Before use, always visually inspect the hedge trimmer for damages.
• Never operate the hedge trimmer while people, especially children, or pets are nearby.

Operation:

- Wear eye protection and stout shoes at all times while operating the hedge trimmer. Use protective personal equipment such as safety glasses, non-skid safety shoes and sturdy gloves to reduce the risk of personal injury.

- Avoid using the hedge trimmer in bad weather conditions, especially when there is a risk of lightning.

- Switch on the motor only when the hands and feet are away from the cutting means.

• Always disconnect the hedge trimmer from the removable battery: whenever the hedge trimmer is left unattended; before clearing a blockage; before checking, cleaning or working on the hedge trimmer; after striking a foreign object; whenever the hedge trimmer starts vibrating abnormally.

• Always ensure that the ventilation openings are kept clear of debris.

- Keep all parts of the body away from the cutter blade. Do not remove cut material, or hold material to be cut, when blades are moving. Make sure the switch is

off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• Do not operate product when ambient temperature is above 35 degrees.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer, always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

- Hold the hedge trimmer by its insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutting blades contacting a 'live' wire may make exposed metal parts of the power tool 'live' and could give the operator an electric shock.

- Do not use the hedge trimmer if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

- Disconnect the charger from the hedge trimmer and the battery pack from the power tool before making any adjustments, changing accessories or storing the hedge trimmer. Such preventive safety measure reduces the risk of starting the hedge trimmer accidentally.

- Store idle power tools out of way of children and do not allow persons unfamiliar with the hedge trimmer or these instructions to operate the power tool. Hedge trimmers are dangerous in the hands of untrained users.

- Maintain the hedge trimmer. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the hedge trimmer repaired before use.

Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the hedge trimmer, accessories and tool bits etc in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the hedge trimmer for operations different from those intended could result in a hazardous situation.

Maintenance and storage:

• Disconnect the hedge trimmer from the removable battery before carrying out maintenance or cleaning work.
• Use only the manufacturer's recommended replacement parts and accessories.
• Inspect and maintain the hedge trimmer regularly. Have the hedge trimmer repaired only by an authorised repairer.
• When not in use, store the hedge trimmer out of the reach of children.

Service:

• Do not use the hedge trimmer if the switch does not turn it on or off. If hedge trimmer cannot be controlled by the switch it could be dangerous and therefore must be replaced.
• Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the trimmers operations. If damaged, have the power tool repaired or replaced.
• Check that the blade is clean and without damage. If the blade becomes worn, a replacement should be fitted before use.
• Wear protective gloves when handling or cleaning the blade.
• Before using the hedge trimmer, and after any impact, check for signs of wear and damage or replace as necessary.
  • Always ensure that the ventilation openings are kept clear of debris.
• Do not attempt to repair any damaged parts on the hedge trimmer unless you are qualified to do so.

Intended use:

• This product is intended for DOMESTIC USE ONLY.

Warning label descriptions

General hazard safety alert.

Read instruction manual before use

Wear eye protection when using this product.

Wear ear protection when using this product.

Measured sound power level: L_WA = 87.1 dB(A) K=3dB(A)

Guaranteed sound power level: 90 dB(A)

Note: Measured noise values determined according to 2000/14 EC (1.60m height, 1.0m distance away).

Do not use in rain or leave outdoors whilst raining.

Risk of fatal injury due to electric shock! Keep at least 10m away from electricity lines.

Portrait of a smiling man in a collared shirt (no text or symbols visible)

Thank you for choosing Gtech

"Welcome to the Gtech family. I started Gtech to create sensible, easy to use products that do a great job, and hope you get many years of trouble-free performance from your new product."

Nick Grey – Inventor, owner of Gtech

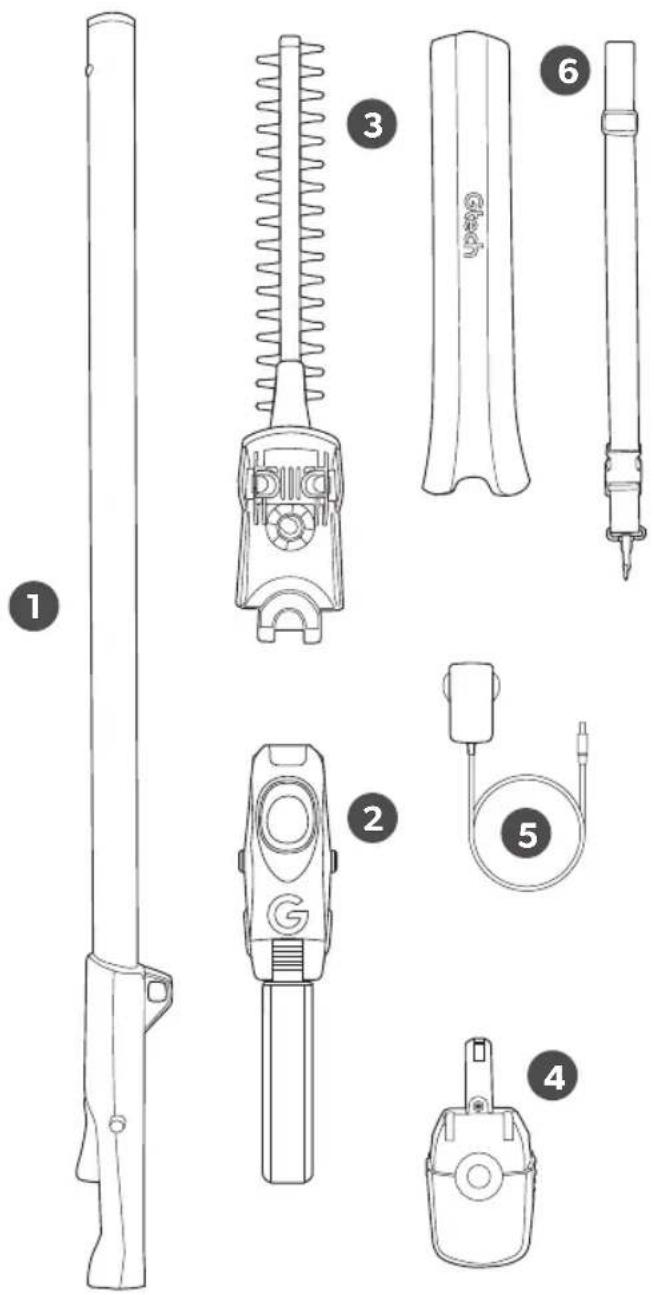

What's in the box

1 Hedge trimmer main unit
2 Hedge trimmer head
3 Blade + blade cover
4 Battery
5 Battery charger
6 Safety harness

Assembly

When inserting the body into the hedge trimmer head, ensure the body is the right way up. The shapes need to match or the handle will not fit.

When the pole is fully inserted, the button (1) will pop up into the aperture (2). To remove, press the button (1) and pull the pole.

Illustration of a hand using a pliers to adjust or install a mechanical component (no text or symbols visible)

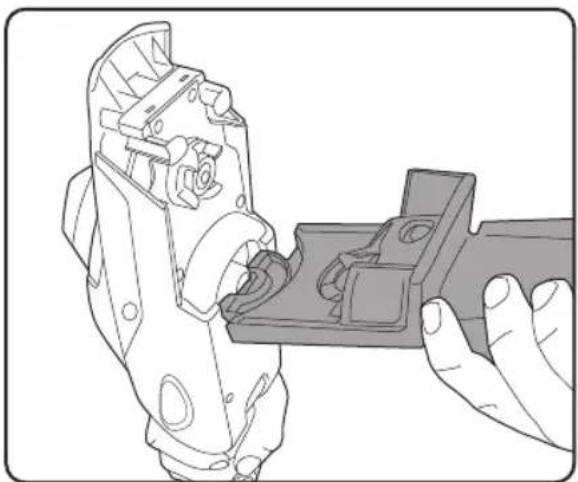

With the blade cover still on, connect the hedge trimmer blade to the head.

Illustration of a hand using a tool to adjust or install a mechanical component, with a green arrow indicating rotation (no text or symbols present)

It will locks (click) securely into place.

Illustration of hands using a mechanical tool to adjust or install a component, with a green arrow indicating direction (no text or symbols present)

Insert the battery - it will click once fully inserted.

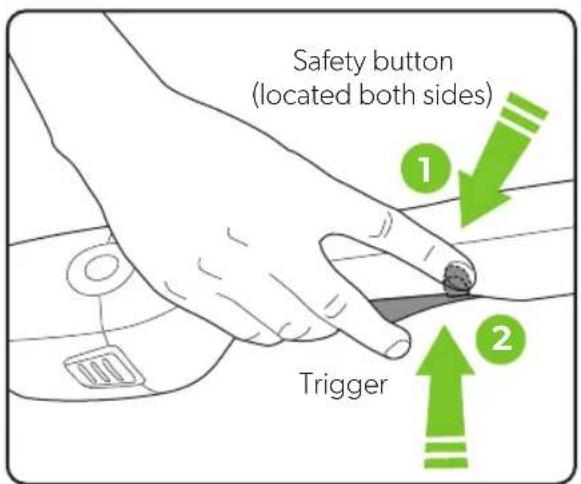

Operation

Push and hold the safety button on either side, then press the trigger to operate.

When you release the trigger, the hedge trimmer will stop.

Rotating the hedge trimmer blade

WARNING: to reduce risk of personal injury, ensure the trimmer is switched off and the blade has stopped before adjusting the cutting head.

WARNING: ensure the cutting head is securely locked in position before starting the trimmer.

Line drawing of a person using a handheld tool to hold an object, no text or symbols present

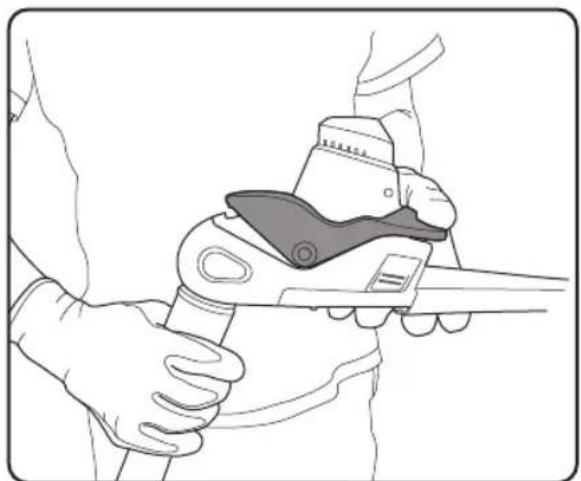

Remove the battery and ensure that the blade cover is on before continuing the next step. Depress the lever as shown. The head will now rotate freely.

Line drawing of a person using a handheld device to interact with another hand (no text or symbols present)

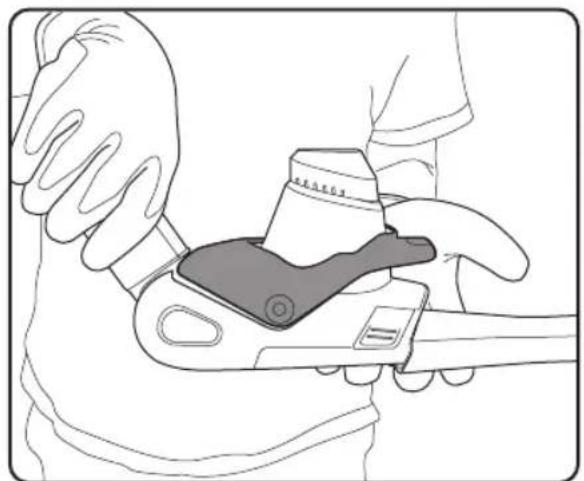

You can now rotate the head whilst pressing down on the lever. Release the lever and it will lock into place. This feature does NOT work with the branch-cutter.

Removing the blade

Illustration of a hand holding a mechanical component with a green directional arrow (no text or symbols)

Remove the battery and ensure the cover is on the blade.

Line drawing of a mechanical clamp or lever mechanism with a green arrow indicating the pivot point (no text or symbols present)

Press the green buttons on either side of the trimmer head.

Illustration of a hand using a tool to adjust a mechanical component, showing a green arrow indicating rotation (no text or symbols present)

The blade will pivot away from the head.

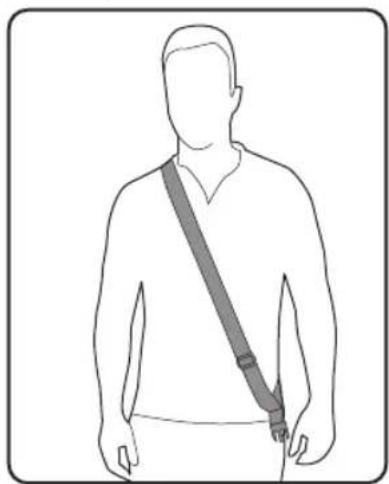

Safety harness

Line drawing of a person wearing a sling and shirt, standing with hands on hips (no text or symbols)

The harness is included as a safety feature for use with the branch cutter and the hedge trimmer. The sling passes over your head and rests on your shoulder - use the sliding adjuster to ensure the harness fits you comfortably.

Technical line drawing of a mechanical component with a cylindrical shaft and base (no text or symbols)

Attach the clip to the loop on the top of the handle. Then attach the clip to the harnesses.

Line drawing of a hand holding a small rectangular object and a separate mechanical component (no text or symbols)

In an emergency situation, the harness clip can be released quickly.

Hedge top

The head can be angled to help you trim the top of the hedge as you face it.

Using your hedge trimmer

Hold the trimmer away from your body using both hands and stand on a solid and secure surface.

The double-edged blade allows you to cut with either a side-to-side or up and down motion.

When cutting, move slowly and steadily so that stems are fed directly into the blade. Cut the sides of the hedge first and then the top. To keep the sides of the hedge flat, cutting upwards with the growth is recommended.

WARNING: risk of electric shock. Pay attention to the position of overhead cables.

WARNING: to reduce the risk of personal injury, always wear eye protection. Personal protective equipment such as sturdy gloves and non-slip shoes are recommended.

WARNING: to reduce risk of injury from accidental start-up of the trimmer, always ensure that the protective blade guard is fitted when the trimmer is not in use, and when being transported, handled or stored.

Pay attention to the hazard posed to third parties from the increased working area of the trimmer.

11

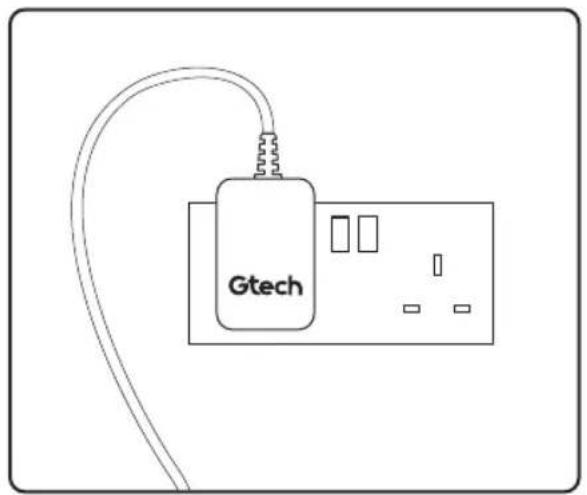

Removing the battery for charging

Press both buttons at the same time and pull to remove the battery.

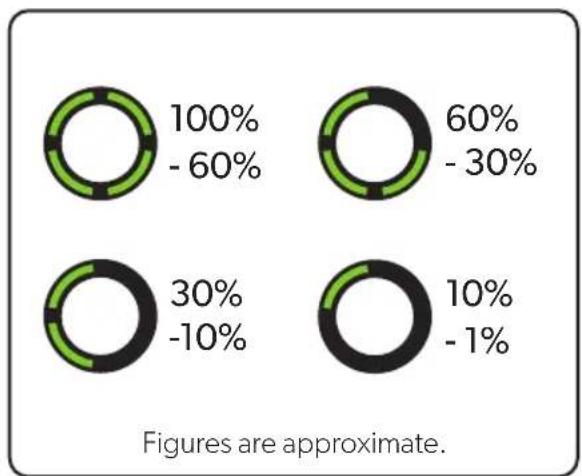

Checking battery charge status

Hand holding a small mechanical device with a green arrow indicating direction (no text or symbols)

Press the button to check how much charge there is in the battery.

The number of lit LEDs shows the charge.

Circular icon with a green arc and radiating lines, resembling a progress or refresh symbol (no text or numbers present)

When there is no power left, the final LED will flash for 10 seconds then go out.

Charging the battery

Hand using a tool to adjust or install a mechanical component, with green arrows indicating downward motion (no text or symbols present)

Connect the charger to the battery where indicated.

Line drawing of a Gtech plug connected to an electrical outlet (no text or symbols on the diagram itself)

Plug the charger into an ordinary plug socket.

Simple sun icon with green rays and black center, no text or symbols present

While charging, the LEDs will progressively pulse until all 4 are lit.

The battery can be charged from flat in 4 hours. The state-of-charge indicator will show 4 solid green lights when it is fully charged.

Product Care

Wear protective gloves when handling or cleaning the blade.

To reduce risk of injury, ensure that protective blade guard is fitted when the trimmer is not in use, and when being transported, handled or stored.

To ensure that your product gives you a long and reliable service, carry out the following maintenance regularly:

• Check for obvious defects, such as loose, dislodged, worn or damaged blades, loose fixings, and worn, damaged, or loose parts.
• Check that all covers and guards are correctly fitted and undamaged.
  • Always clean the cutting blade after use and apply a lubricating oil or spray before storage.
• During longer cutting periods, it is recommended to lubricate the blade. This will improve cutting performance and maximise the run-time.
• Before use, check the condition of the cutting edges of the blade and check that the blade fixings are secure.
• Do not use water, solvents, or polishes to clean the trimmer. Wipe clean with a dry cloth.
• Do not use abrasive materials to clean the product, and do not immerse it in water.
• Store the hedge trimmer in a secure, dry place, out of reach of children. Do not expose it to moisture.

PLEASE NOTE: if the product needs to be repaired or replaced, only use replacement parts supplied by the manufacturer.

Spare parts can be purchased from Grey Technology Ltd:

tel : [phone] www.gtech.co.uk

Troubleshooting

Trimmer fails to operate 1. Recharge battery.2. Check switch. It will click if operating correctly.3. Blade is jammed.

Cutting blade will not cut 1. Blade is either worn or damaged.2. Replace blade.

Blade will not move 1. Clean and lubricate blade.2. Replace blade.

Cutting time has reduced 1. Use a lighter cutting action and cut in several stages.2. Fully discharge and recharge battery.3. Clean and lubricate blade.4. Replace blade.

Trimmer stops when cutting 1. Wait for automatic cut-out to reset. Use a lighter cutting action.2. Check blade and remove any debris.3. Charge battery.

LEDs show solid red 1. The hedge trimmer has jammed.2. Check blade and remove any debris.

Product support

If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product.

Visit: www.gtech.co.uk/support

[e-mail] chat supportOnline How to Videos

HEDGE TRIMMER TECHNICAL SPECIFICATION

Blade cutting length 510mm
Blade cutting width 25mm
No load speed	1200min^-1
Battery 18V DC 2000mAh Li-ion
Charging period 4 hours
Battery charger output	21.6V --- 0.5A 10.8W
Battery charger input 100-240V~50/60Hz
Measured sound power level, L_WA	L_WA=87.1 dB(A) , uncertainty K=3dB(A)
Guaranteed sound power level, L_WA	90 dB(A)
Weight 2.9kg
Vibration Front handle a	_h=0.64m/s^2 Uncertainty k=0.5 m/s ^2 Rear handle a_h=0.79 m/s^2 Uncertainty k=0.5 m/s ^2

Environmental and product recycling

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2012/19/EU)

When the product has reached the end of its life, please do not dispose of it with general household waste. Consider the environment and take it to a recognised recycling facility.

The product contains a Li-ion battery which should not be disposed of with general household waste. The battery should be disposed of properly with the product at a recycling facility.

Call your local council, civic amenity site or recycling centre for information on the disposal and recycling of electrical products.

Alternatively, visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

WARRANTY - TERMS AND CONDITIONS

Your Gtech product is guaranteed against material or manufacturing faults for 2 years from the date of purchase, subject to the following terms and conditions:

WHAT ISN'T COVERED SUMMARY

The guarantee becomes effective at the date of purchase (or the date of delivery if this is later). If a product is repaired or replaced during the warranty period, the warranty period is not started again.

• You must provide proof of delivery/purchase before any work can be carried out on the product. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your product is under guarantee and will not extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear.
  • Use of consumables
• Accidental damage, faults caused by negligent use or lack of care and maintenance, misuse, neglect, careless operation or handling of the product which is not in accordance with operating manual.
• Use of the product for anything other than the normal domestic household purposes.
• Use of parts and accessories which are not Gtech genuine components.
• Faulty installation (except where installed by Gtech)
• If it is modified in any way.
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
• Purchasing your product from an unofficial third party (i.e not from Gtech or an official Gtech retailer.
• If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on UK: 08000 308 794

International orders are subject to a delivery charge for both faulty and non faulty products.

EC Declaration of Conformity

We, manufacturer/importer

Grey Technology Ltd

Brindley Road

Warndon

Worcester

WR4 9FB

declare that the product

HT Series Cordless Hedge Trimmer

complies with the essential health and safety requirements of the following directives:

2014/30/EU - EMC Directive.

2006/42/EC - Machinery Directive

2000/14/EC - Noise emission in the environment by equipment for use outdoors Directive.

- Conformity assessment procedure as per ANNEX VI.

- Measured Sound Power Level = 87.1 dB(A), uncertainty K=3dB(A)

- Declared Guaranteed Sound Power Level = 90 dB(A)

2011/65/EU - RoHS directive

Technical documentation holder: Grey Technology Ltd, WR4 9FB

Standards and technical specifications referred to :

EN 60745-1:2009+A11:2010

EN 60745-2-15:2009+A1:2010

EN ISO 10517:2019

EN 55014-1:2017

EN 55014-2:2015

IEC 62133-2:2017

Authorized person for the compilation

of the technical documentation:

Andrew Boddy

Authorized Signature/Date/Place:

03.2020 Worcester, UK

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk

CPN4720
