GT50 - String Trimmer G-TECHNOLOGY - Free user manual and instructions

Product Type	Grass Trimmer
Brand	G-Technology
Model	GT50
Power Source	Battery (Lithium-Ion)
Battery Voltage	18 V
Cutting Width	30 cm (12 in)
Cutting Line Diameter	2.0 mm
Weight	2.5 kg (5.5 lbs)
Height Adjustment	Telescopic shaft
Head Type	Bump-feed automatic line advance
Safety Features	Safety guard, two-handed operation, lock-off switch
Maintenance	Regular cleaning of air vents and cutting head; replace line as needed
Spare Parts	Cutting line, spool, battery, charger (sold separately)
Repairability	User-replaceable parts; professional service recommended for motor issues
Warranty	2 years limited warranty

Frequently Asked Questions - GT50 G-TECHNOLOGY

How do I replace the cutting line on the GT50?

To replace the cutting line, first remove the spool cap, take out the old line, and wind new 2.0 mm line onto the spool in the direction indicated. Reinstall the spool and cap, then press the bump-feed button to advance the line.

What battery does the GT50 use?

The GT50 uses an 18V Lithium-Ion battery (G-Technology G18 series). It is recommended to use the original charger for optimal performance.

How long does the battery last?

Battery runtime varies by usage, but typically lasts between 20 to 30 minutes of continuous trimming. For extended work, consider purchasing an additional battery.

Can I use the GT50 for edging?

Yes, the GT50 can be used for edging by rotating the cutting head. The telescopic shaft allows you to adjust the length for comfortable operation.

Is the GT50 suitable for heavy weeds?

The GT50 is designed for light to medium grass and weeds. For thick or woody vegetation, a brush cutter attachment (if available) may be more suitable.

How do I clean the GT50 after use?

Remove the battery and use a damp cloth to clean the exterior. Do not use water directly on the motor. Clean grass debris from the cutting head and air vents with a brush.

What safety precautions should I take?

Always wear safety glasses, long pants, and sturdy shoes. Keep bystanders at least 15 meters away. Ensure the lock-off switch is engaged before starting.

Why won't my GT50 start?

Check that the battery is charged and properly inserted. Ensure the lock-off switch is disengaged. If the problem persists, inspect the battery contacts and fuses.

Can I buy spare parts online?

Yes, spare parts such as cutting line, spools, and batteries are available from G-Technology's website or authorized retailers. Use only genuine parts to maintain warranty.

Does the GT50 have a warranty?

Yes, the GT50 comes with a 2-year limited warranty covering manufacturing defects. Proof of purchase is required. Batteries and cutting line are not covered.

USER MANUAL GT50 G-TECHNOLOGY

Cordless Grass Trimmer

GT Series

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury.

Do not use in rain or leave outdoors whilst raining.

Personal Safety:

• Only use the trimmer in the manner intended and for trimming grass as described in this manual.
• Keep out of reach of children and animals at all times.
• Only use in daylight or good artificial light.
• Always be sure of your footing on uneven ground, slopes or in slippery conditions.
• Do not over-reach or use on excessive steep slopes.
• Remove any stones, loose debris and other objects from the cutting area.
• Pay special attention to the hazards posed to bystanders by thrown or flyaway objects.
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use power tools while you are tired or under the influence of drugs, alcohol or medication. This may result in serious personal injury.
  • Always be aware of your surroundings and stay alert for possible hazards.
• Use protective personal equipment such as safety glasses, non-skid safety shoes, sturdy gloves to reduce the risk of personal injury.
• Do not operate when barefoot or wearing open toed shoes. Always wear substantial footwear and long trousers.
• Dress appropriately. Do not wear loose

clothing or jewellery and keep hair, clothing and gloves away from moving parts.

• Avoid accidental starting. Ensure the switch is in the off position before picking up or carrying the trimmer.
• Do not run with the trimmer.
• When operating the trimmer ensure that both hands are correctly positioned on the handle.
• Do not operate the trimmer if it is incomplete or has unauthorised modifications.
• Keep all body parts, especially hands and feet, away from the blade at all times.
• Warning, the blade will continue to move after the motor is switched off.
• Ensure that the motor has fully stopped before cleaning, clearing a blockage, checking, or carrying out maintenance on the trimmer.
• Carry the grass trimmer by the handle with the blade stopped.
• The operator is responsible for accidents or hazards occurring to other people at their property.
• Never operate the trimmer with damaged guards or without the guards in place.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge.
• Keep the product and all accessories away from hot surfaces.

- Never modify the trimmer in any way.

- Never fit metal cutting blades.

Electrical safety:

- Do not operate trimmers in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Trimmers create sparks, which may ignite the dust and fumes.

- Do not use the trimmer when a thunderstorm is approaching.

- Avoid body contact with earthed or grounded surfaces, such as pipes. There is an increased risk of electric shock if your body is earthed or grounded.

- Do not expose trimmers to rain or wet conditions.

- Do not handle the charger or the trimmer with wet hands.

- Before charging check the power supply and charger cables for signs of damage or ageing.

- Do not overload the trimmer. Forcing the trimmer to cut may damage the motor. For safety the trimmer will automatically cut out if the motor becomes overloaded. If this occurs, wait a few seconds for the cut out to reset and then use lighter cuts to trim the grass.

Battery safety:

- Do not attempt to use the charger with any other product or to charge this product with any other charger.

- This product contains Li-Ion batteries. Do not incinerate batteries or expose to high temperatures, as they may explode.

- Do not charge the battery when the surrounding air temperature or the battery pack is below 0°C or above 45°C.

• After heavy use or in high temperatures the battery may become warm. Allow the product to cool for 30 minutes

before charging.

- Use only with the battery pack supplied.

- Leaks from battery cells can occur under extreme conditions. If the liquid gets on your skin wash immediately with soap and water. If the liquid gets into your eyes, flush them immediately with cold water for a minimum of 10 minutes and seek urgent medical attention.

- Do not store the battery outside or in cold conditions for prolonged periods of time, especially over the winter months.

Training

- Read the instructions carefully. Be familiar with the controls and the correct use of the machine.

- Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.

- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

- Before use, always visually inspect the machine for damaged, missing or misplaced guards or shields.

- Never operate the machine while people, especially children, or pets are nearby.

- Before use, check that a new fresh blade is correctly fitted and the hub screw is tight.

Operation

• Keep supply and extension cords away from cutting means.
• Wear eye protection and stout shoes at all times while operating the machine.
• Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
• Never operate the machine with damaged guards or shields or without guards or shields in place.
• Switch on the motor only when the hands and feet are away from the cutting means.
• Always disconnect the machine from the power supply (removable battery)

1) whenever the machine is left unattended;
2) before clearing a blockage;
3) before checking, cleaning or working on the machine;
4) after striking a foreign object;
5) whenever the machine starts vibrating abnormally.

• Always ensure that the ventilation openings are kept clear of debris.

Maintenance and storage

• Disconnect the machine from the power supply (removable battery) before carrying out maintenance or cleaning work.
• Use only the manufacturer's recommended replacement parts and accessories.
• Inspect and maintain the machine regularly. Have the machine repaired only by an authorised repairer.
• When not in use, store the machine out of the reach of children.

Service:

• Do not use the trimmer if the switch does not turn it on or off. Any power tool that cannot be controlled by the switch is dangerous and must be repaired or replaced.
• Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the trimmer's operations. If damaged, have the power tool repaired or replaced.
• Check that the blade is clean and without damage. If the blade becomes worn or damaged, a replacement should be fitted before use.
• Before using the machine and after any impact, check for signs of wear and damage and repair or replace as necessary.
  • Always ensure that the ventilation openings are kept clear of debris.
• Have your trimmer serviced by a qualified repair person using only genuine replacement parts. This will ensure that the safety of the trimmer is maintained.
• Do not attempt to repair any damaged parts on the trimmer unless you are qualified to do so.

Intended Use:

• This product is intended for trimming and edging grass and light foliage.
• Avoid prolonged continuous use of the product. It is recommended to periodically rest the product.
• Avoid striking foreign objects, such as posts, fences and walls.
  • This product is intended for DOMESTIC USE ONLY.

Warning Label Descriptions

General hazard safety alert.

Read instruction manual before use

Do not use in rain or leave outdoors whilst raining.

Measured sound power level: 90.5dB(A) K=3dB(A) Guaranteed sound power level: 94dB(A)

Note: Measured noise values determined according to 2000/14 EC amended by 2005/88/EC

Wear eye protection when using this product.

Wear hearing protection when using this product.

Keep bystanders away.

Foot and leg protection must be worn.

Portrait of a smiling man in a polo shirt (no text or symbols visible)

Thank you for choosing Gtech

"Welcome to the Gtech family. I started Gtech to create sensible, easy to use products that do a great job, and hope you get many years of trouble-free performance from your new product."

Nick Grey – Inventor, owner of Gtech

Make a note of your product serial number code for future reference. You can find this on the underside of item 2

Line drawing of a mechanical component with a green circular highlight (no text or symbols)

What's in the box

1 Grass trimmer main body
2 Grass trimmer head
3 Grass trimmer shroud

4 Battery

5 Battery charger

6 Bag of blades

7 Harness

Assembly

Attach the shroud first. Align both clips on the shroud to the holes on the trimmer head and simultaneously push them into place.

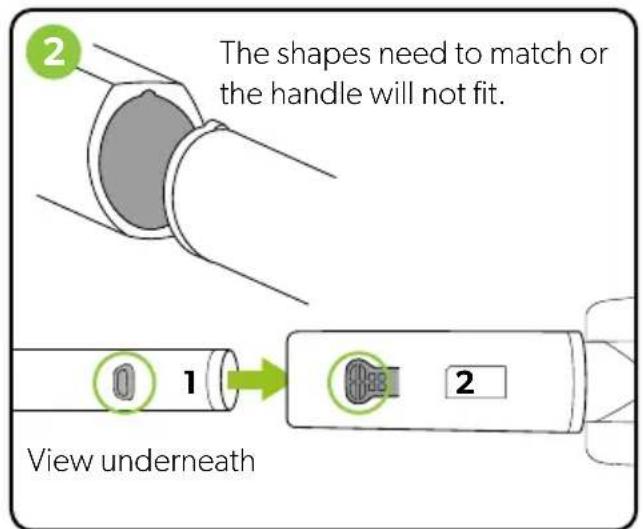

Insert the body pole into the grass trimmer head, ensuring it is the right way up.

When the pole is fully inserted, the button (1) will pop up into the aperture (2)

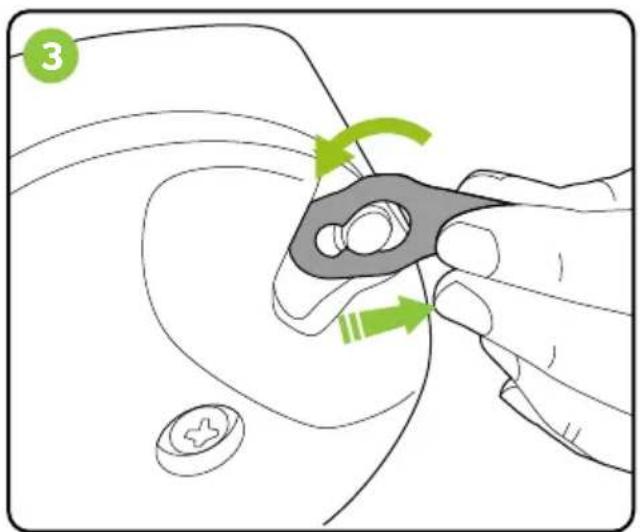

Hook a blade over the pin and pull to securely lock into place.

Illustration of hands using a tool to handle a mechanical component, with a green arrow indicating direction (no text or symbols)

Insert the battery which will click into place.

Operation

Line drawing of a hand using a tool to press or adjust a mechanical component, with no visible text or symbols.

Push the green button and rotate the head to the required angle.

Illustration of a hand using a tool to adjust or install a mechanical component, with a green arrow indicating rotation (no text or symbols present)

Release the button and ensure the head clicks into a locked position.

Illustration of hands using a tool to adjust a mechanical component, showing a green arrow indicating rotation (no text or symbols present)

Push the green button and rotate the handle to the required angle.

Illustration of a hand using a tool to lift a pipe, with a green arrow indicating the motion direction (no text or symbols present)

Release the button and ensure the handle clicks into a locked position.

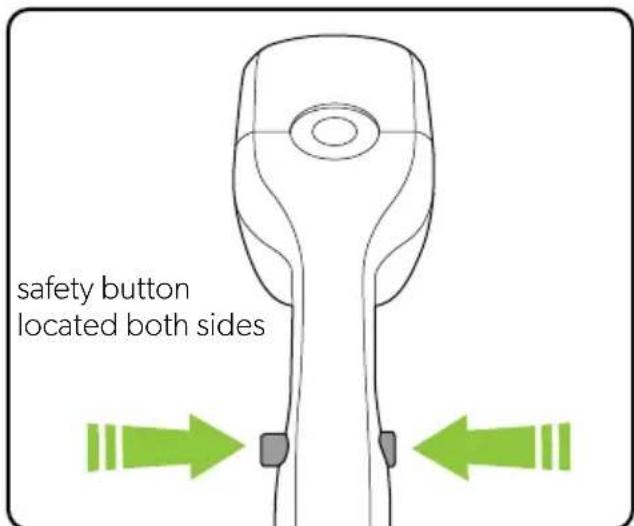

Push and hold the safety button on either side, then press the trigger to operate.

When you release the trigger the trimmer will stop.

Changing to edge trimming mode

Illustration of a hand holding a tool with a green arrow indicating motion (no text or symbols)

Firmly grip the main unit and rotate the head 180^

Illustration of a hand holding a tool with a circular component, no text or symbols present

The head only rotates in one direction.

WARNING: To reduce risk of personal injury, ensure the trimmer is switched off and the blade has stopped before adjusting the cutting head.

WARNING: Ensure the cutting head is securely locked in position before starting the trimmer.

WARNING: Do not attempt to remove the blade while the unit is running. Wait until the blade has stopped before attempting to remove the blade. Never fit metal blades. Only fit blades recommended by the manufacturer.

Using your Grass Trimmer

Hold the trimmer away from your body using both hands and stand on a solid and secure surface.

Line drawing of a person using a handheld metal detector (no text or symbols)

Using to trim grass Using to edge

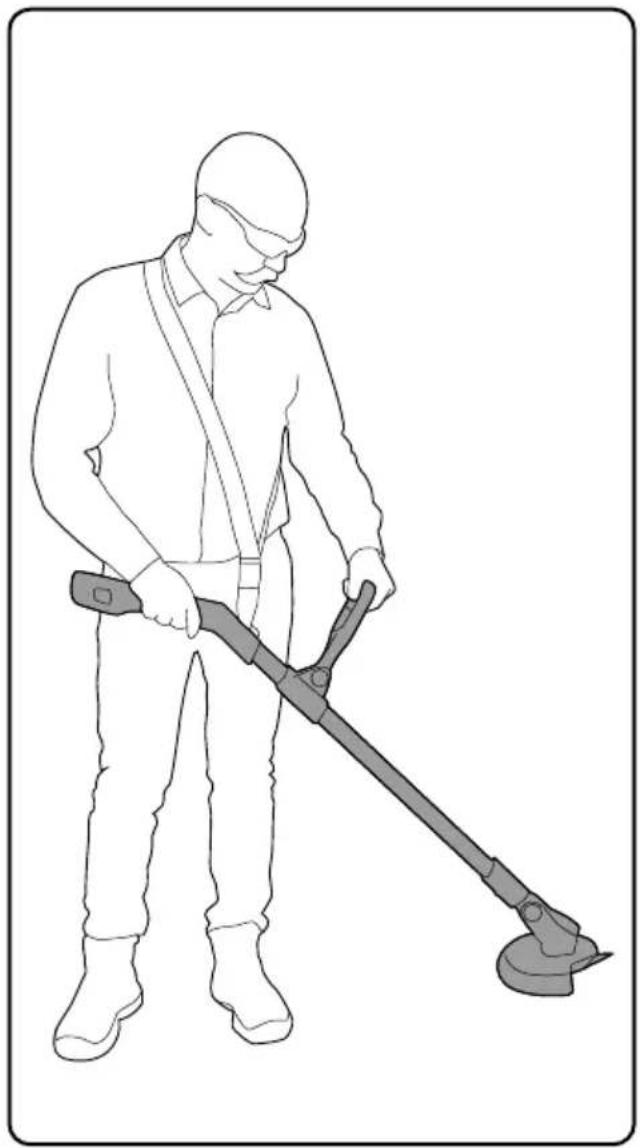

Firmly grip both handles, move slowly and steadily using a side to side sweeping motion.

Line drawing of a person using a handheld tool to clean or spray the material (no text or symbols)

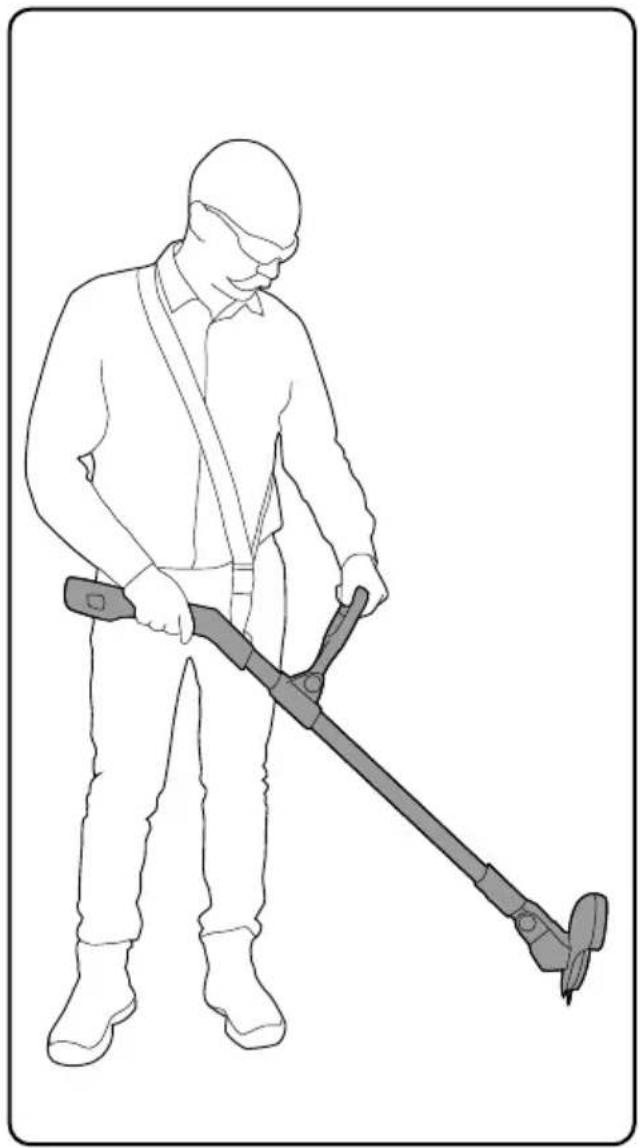

Firmly grip both handles with the head rotated, move slowly to trim the edge of the lawn.

Harness

Line drawing of a person wearing a sling and shirt, standing with hands extended (no text or symbols)

The harness can be used to bear the load of the product. The sling passes over your head and rests on your shoulder - use the sliding adjuster to ensure the harness fits you comfortably.

Technical line drawing of a mechanical component with a vertical shaft and base (no text or symbols)

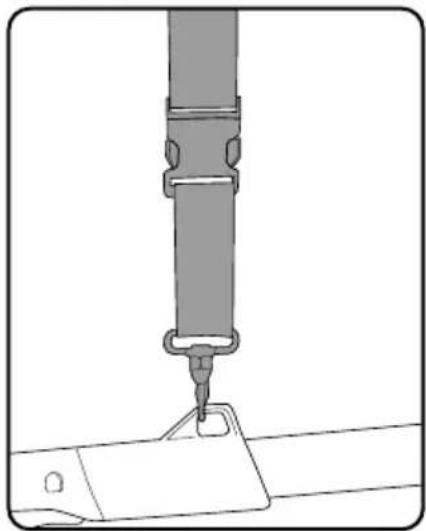

Attach the clip to the loop on the of the handle and clip the harness to this.

Line drawing showing a hand holding a rectangular object and a separate mechanical component with triangular supports (no text or symbols)

The clip can be used for quick and easy release of the product.

WARNING: Risk of electric shock. Pay attention to the position of garden cables.

WARNING: To reduce the risk of personal injury always wear eye protection. Personal protective equipment such as sturdy gloves and non-slip shoes are recommended.

Pay attention to the hazard posed to third parties from the increased working area of the trimmer.

Always take care when other people are around you. The trimmer may throw out stones and debris at high speed.

Take care not to overload the trimmer. Attempting to force the trimmer to cut may damage the motor. To prevent overloading cut long or difficult foliage in stages with several light cuts.

Take care not to grind the rotating parts against the ground as this will wear parts and cause damage to the trimmer.

Take care when trimming around objects such as stone or concrete as these can damage the trimmer blade and parts that attach the blade.

If the blade becomes worn or damaged it should be replaced with a new blade.

Removing the battery for charging

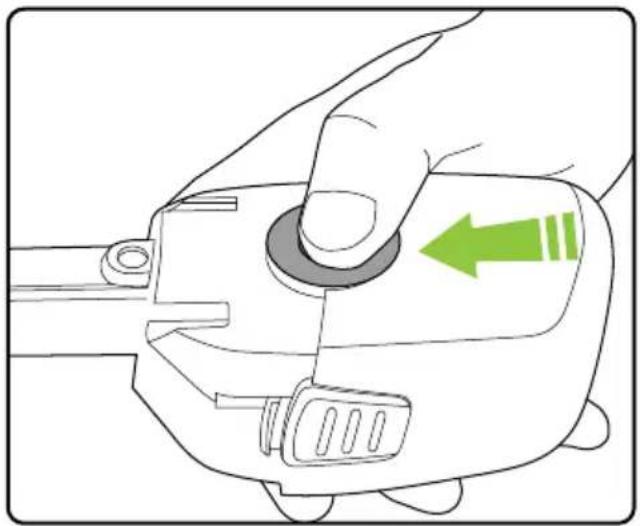

Press both buttons at the same time and pull to remove the battery.

Checking the battery charge status

Hand holding a small electronic device with a green arrow indicating the left side (no text or symbols present)

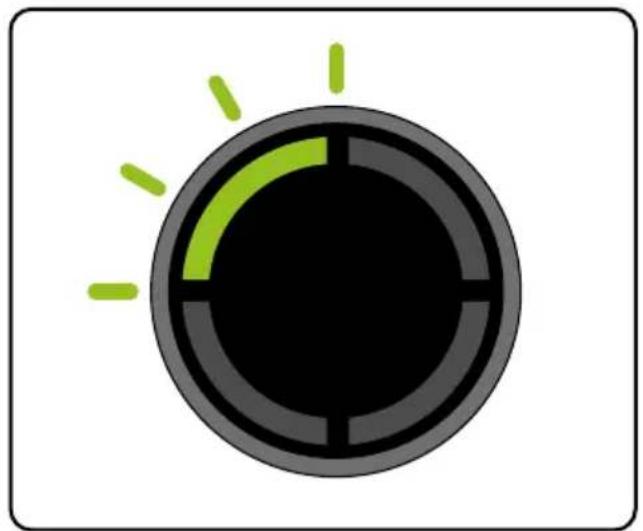

Press the button to check how much charge there is in the battery.

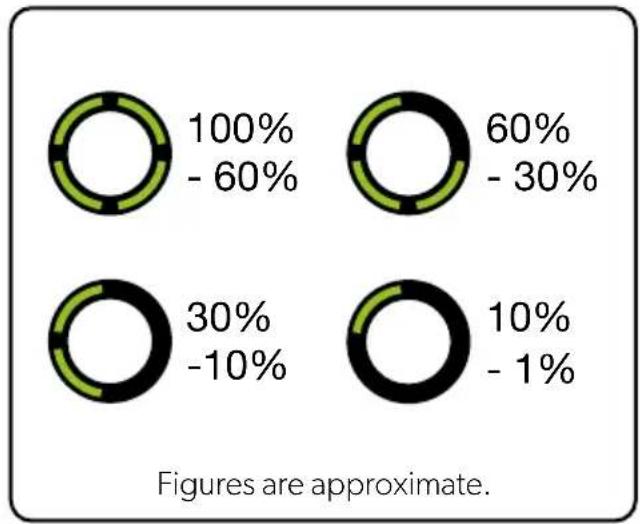

The number of lit LEDs shows the charge.

Circular icon with a green arc and light rays, no text or symbols present

When there is no power left the final LED will flash for 10 seconds and then go out.

Charging the battery

Line drawing of a hand using a tool to adjust or install a device component, with green arrows indicating downward motion (no text or symbols)

Connect the charger to the battery where indicated.

Line drawing of a wall socket connected to a plug, showing internal components and wiring (no text or symbols)

Plug the charger into an ordinary plug socket.

Simple sun icon with green rays and black center, no text or symbols present

While charging the LEDs will progressively pulse until all four are lit.

The battery can be charged from flat in 4 hours. The state of charge indicator will show 4 solid green lights when it is charged.

Reconnecting the battery to the Grass Trimmer

For reconnecting the battery to your grass trimmer, please refer to the instructions on page 7 of this manual.

To ensure that your product gives you long and reliable service, carry out the following maintenance regularly:

• Check for obvious defects such as loose, dislodged, worn or damaged blades, loose fixings, and worn, damaged, or loose parts.
• Check that covers and guards are correctly fitted and undamaged.
• Before use check the condition of the cutting edges of the blade and that the blade fixings are secure.
• Do not use water, solvents, or polishes to clean the trimmer. Wipe clean with a dry cloth.
• Do not use abrasive materials to clean the product, and do not immerse it in water.
• Store in a secure, dry place, out of reach of children. Do not expose to moisture.

PLEASE NOTE: If the product needs to be repaired or replaced only use replacement parts supplied by the manufacturer.

Spare parts can be purchased from Grey Technology Ltd:

tel : [phone] www.gtech.co.uk

Troubleshooting

Trimmer fails to operate 1. Recharge battery.2. Check switch. It will click if operating correctly.3. Blade is jammed

Cutting blade will not cut 1. Blade is either worn or damaged.2. Replace blade.

Blade will not move Replace blade

Cutting time has reduced 1. Use lighter cutting action and cut in several stages.2. Fully discharge and recharge battery.3. Replace blade.

Abnormal vibrations 1. Check the hub screw is securely screwed in.2. Check the blade is installed.3. Check if any obstacle is preventing normal rotation of the hub.

Trimmer stops when cutting 1. Wait for automatic cut out to reset. Use lighter cutting action.2. Check blade and remove any debris.3. Charge battery.

LEDs show solid red 1. The grass trimmer has jammed.2. Check blade and remove any debris.

Product support

If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product.

Visit: www.gtech.co.uk/support

Simple black-and-white icon of a computer monitor inside a circle (no text or symbols)

Black circular icon with a white speech bubble symbol (no text or numbers)

Black circular icon with a white envelope symbol containing an '@' (no text or symbols beyond the '@')

Black circular play button icon with white triangle (no text or symbols)

[e-mail] chat supportOnline How to Vide

GRASS TRIMMER TECHNICAL SPECIFICATION

Cutting width 23cm
No load speed 9000min	-1
Battery 18V DC 2000mAh Li-ion
Charging period 4 hours
Battery charger output 21.6V 0.5A 10.8W	---
Battery charger input 100-240V 50/60Hz	~
Measure sound power level, L_WA	90.5 dB(A) K = 3dB(A)
Guaranteed sound power level, LwA,d 94dB(A)
Weight 1.85kg
Vibration Front handle a	_h=4.14 m/s^2 Uncertainty k=1.5 m/s ^2 Rear handle a_h=3.63 m/s^2 Uncertainty k=1.5 m/s ^2

Environmental and Product Recycling

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2012/19/EU)

When the product has reached the end of its life please do not dispose of it with general household waste. Consider the environment and take it to a recognised recycling facility.

The product contains a Li-Ion battery which should not be disposed of with general household waste. The battery should be disposed of properly with the product at a recycling facility.

Call your local council, civic amenity site, or recycling centre for information on the disposal and recycling of electrical products.

Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

Visit www.gtech.co.uk/warrantyregistration to register your product to ensure that we have all the information required to provide you with quick and efficient support.

You will need your product's serial code.

Line drawing of a mechanical tool or grip with a green circle highlighting a specific area (no text or symbols present)

If you purchased directly from Gtech your details are already registered and your 2 year warranty will start automatically.

If you purchased from an authorised Gtech retailer, please register your warranty within 3 months and you will need to provide proof of purchase to support any claim against your warranty.

WARRANTY – TERMS AND CONDITIONS

Your Gtech product is guaranteed against material or manufacturing faults for 2 years from the date of purchase, subject to the following terms and conditions:

WHAT ISN'T COVEREDSUMMARY

The guarantee becomes effective at the date of purchase (or the date of delivery if this is later). If a product is repaired or replaced during the warranty period, the warranty period is not started again.

- You must provide proof of delivery/purchase before any work can be carried out on the product. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.

- All work will be carried out by Gtech or its authorised agents.

- Any parts which are replaced will become the property of Gtech.

- The repair or replacement of your product is under guarantee and will not extend the period of guarantee.

- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear.
  • Use of consumables (e.g blades)
• Accidental damage, faults caused by negligent use or lack of care and maintenance, misuse, neglect, careless operation or handling of the product which is not in accordance with operating manual.
• Use of the product for anything other than the normal domestic household purposes.
• Use of parts and accessories which are not Gtech genuine components.
• Faulty installation (except where installed by Gtech)
• If it is modified in any way.
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
  • Purchasing your product from an unofficial third party (i.e not from Gtech or an official Gtech retailer.
• If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on UK: 08000 308 794

International orders are subject to a delivery charge for both faulty and non faulty products.

EC Declaration of Conformity

We, manufacturer/importer

Grey Technology Ltd

Brindley Road

Warndon

Worcester

WR4 9FB

declare that the product

GT4.0 Cordless Grass Trimmer

complies with the essential health and safety requirements of the following directives:

2014/30/EU - EMC Directive.

2006/42/EC - Machinery Directive

2000/14/EC amended by 2005/88/EC

- Noise emission in the environment by equipment for use outdoors Directive.

- Conformity assessment procedure as per ANNEX VI.

- Measured Sound Power Level = 90.5dB(A) K=3dB(A)

- Declared Guaranteed Sound Power Level = 94dB(A)

- Notified Body for EC Directive 2000/14/EC amended by 2005/88/EC

2011/65/EU - RoHS directive

Technical documentation holder: Grey Technology Ltd, WR4 9FB

Standards and technical specifications referred to:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019

EN 50636-2-91:2014

EN 55014-1:2017

EN 55014-2:2015

IEC 62133-2:2017

Authorized person for the compilation

of the technical documentation:

Andrew Boddy

Authorized Signature/Date/ Place:

03.2020 Worcester, UK

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone:[phone]

www.gtech.co.uk
