Product Type	Freestanding Washing Machine
Model	TK5 1480 EXP
Brand	Teka
Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Noise Level (Wash/Spin)	56 dB / 76 dB
Dimensions (H x W x D)	85 x 60 x 54 cm
Net Weight	67 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Connection	Cold water only
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Wool, Quick 30', Eco, Sport, Anti-Allergy, Rinse & Spin, Spin Only, Drain
Display	LED Digital with Time Remaining
Delay Start	Up to 24 hours
Child Lock	Yes
Drum Material	Stainless Steel
Door Opening	155° wide opening
Auto Unbalance Control	Yes
Foam Control	Yes
Maintenance	Clean filter regularly, descale every 3 months
Spare Parts Availability	At least 10 years after last production
Repairability Index	7.8 / 10

Frequently Asked Questions - TK5 1480 EXP TEKA

How do I install the washing machine?

Remove all transport bolts and packing material. Connect the inlet hose to a cold water tap with 3/4 inch thread. Insert the drain hose into a standpipe or sink. Level the machine by adjusting the feet. Plug into a grounded outlet.

What does the error code E01 mean?

E01 indicates a door lock issue. Check if the door is properly closed. If the problem persists, the door lock mechanism may need replacement.

How often should I clean the filter?

Clean the filter every 2-3 months. Open the filter door, unscrew the filter cap, remove lint and debris, rinse under water, and reinstall securely.

Can I wash a duvet in this machine?

Yes, but use a large capacity machine (8 kg). Select the Duvet program or a gentle cycle with cold water. Avoid overloading.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the icon appears. To deactivate, repeat the process.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm. You can reduce it using the spin speed selector.

Why is water not entering the machine?

Check if the water tap is open. Ensure the inlet hose is not kinked. Verify that the inlet filter is not clogged. If using an extension hose, ensure it is compatible.

How do I use the delay start function?

Select your program, then press the Delay Start button repeatedly to set the desired delay (1-24 hours). Press Start to begin countdown.

What does the Eco program do?

The Eco program optimizes water and energy usage. It uses lower temperatures and longer wash times to achieve the same cleaning results while saving resources.

Where can I buy spare parts?

Contact Teka customer service or authorized dealers. Spare parts are available for at least 10 years after the model ceases production.

USER MANUAL TK5 1480 EXP TEKA

User Manual

TK5 1480 WD SLIM

EN

SAFETY INSTRUCTIONS

Safety Instructions .... 2

INSTALLATION

Product Description 9

Installation 10

OPERATION

Quick Start 13

Before Each Washing 15

Detergent Dispenser 16

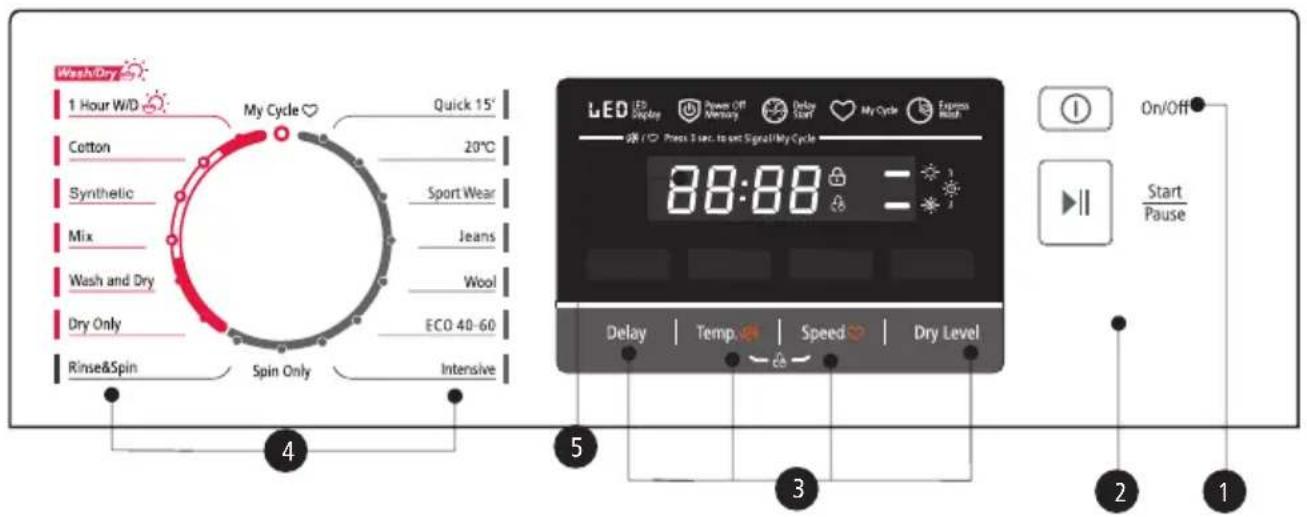

Control Panel 18

Programmes.... 19

Option.... 24

MAINTENANCE

■ Cleaning and Care 28

■ Trouble Shooting 31

■ Technical Specifications .... 32

■ Product Fiche 33

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

⚠ Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent, or similarly qualified persons. Risk of electric shock!

The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts corroding.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes, let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the washer dryer.
• Do not operate the machine in rooms with a temperature below 5°C. This can cause damage to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning of drain pump filter") to avoid damage caused by frost.
• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washer dryer, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or be connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out the power plug with wet hands.
• Always pull at the plug, not at the cable.
• Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap, and the outlet hose for possible problems due to changes in water pressure. If the connections loosen or leak, close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• The glass door may become very hot during operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Large quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate.
• The washer dryer is not to be used if industrial chemicals have been used for cleaning. Risk of explosion.
• Never use any flammable, explosive, or toxic solvents. Do not use gasoline or alcohol as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance. • Thoroughly rinse items that have been washed by hand.
• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

•Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. - Never pour water over the appliance for cleaning purpose. Risk of electric shock! - Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

•Before Transport: -Bolts shall be reinstalled to the machine by a specialized person -Accumulated water shall be drained out of the machine - This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered improper use. The producer is not responsible for any damage or injuries that may result from it.

This appliance is intended for household and similar applications such as:

Staff kitchen areas in shops, offices, and other working environments;

Farm houses;

By clients in hotels, motels, and other residential-type environments;

Bed and breakfast type environments;

Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Product Description

Note!

The product picture is for illustration only; please refer to the real product as reference.

Accessories

4 x Cover caps, 1 x Supply hose (cold water), 1 x Owner's manual

Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture.

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0° C
5. Keep far away from the heat sources such as coal or gas burning appliances.

Unpacking the washer dryer

Warning!

• Packaging material (e.g. films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Loosen the 4 transport bolts with a spanner.

Remove the bolts including the rubber parts and keep them for future use.

Close the holes using the cover caps.

Levelling the washer dryer

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

⚠ Warning!

To prevent leakage or water damage, follow the instructions in this chapter.

- Do not kink, crush or modify the water inlet hose.

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position the drain hose properly, otherwise damage might result from water leakage.

There are two ways to place the end of the drain hose:

1. Put it into the water trough. 2. Connect it to the branch drain pipe of

the trough.

Quick Start

! Caution!

• Before washing, please make sure the washer dryer is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washer dryer, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1- Remove all accessories from the drum and close the door; 2- Insert the mains plug to the socket; 3- Switch on the washer dryer and press simply "duty" and "Speed" for 10 seconds until "t19" is displayed; 4- Press [ ▷II] to start the appliance and wait till “*****” is displayed.

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

Power on Select programme Select function or remain default settings Press Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Check the care label

Sort laundry according to color and textile type

Take all items out of the pockets

Tie together long textile strips and belts, close zips and button

Put small items into a laundry bag

Turn easy-pilling and long-pile fabric inside out

Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

Detergent only needs to be added in "compartment I" after selecting the pre-wash function.

Programme	|	||	✿	Programme	|	||	✿
Quick 15'		●	○	Cotton		●	○
20°C		●	○	Synthetic		●	○
Sport Wear		●	○	Mix		●	○
Jeans		●	○	Wash and Dry		●	○
Wool		●	○	Dry Only
ECO 40-60		●	○	Rinse & Spin			○
Intensive		●	○	Spin Only
1 Hour W/D		●	○

● Means must, ○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton,ECO 40-60,Mix,Intensive	20/30 / 40/60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton,ECO40-60,Mix,20°CIntensive,	Cold/20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C,Synthetic	Cold/20/30/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20 30/	Delicate textiles, silk, viscose
Special wool detergent	Wool	20 30/	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet getting blocked and thus causing a water overflow.
• Please choose the suitable type of detergent to get maximum washing performance and minimum water and energy consumption.
• To achieve the best cleaning result, proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness; if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is; less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

The following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

The following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

■ Control Panel

Model: TK5 1480 WD SLIM

1 On/Off

Turn the appliance on and off.

2 Start/Pause

Start or pause your programme.

3 Option

This allows you to select additional functions and will light when selected.

4 Programs

Available according to the laundry type.

5 Display

The display shows settings, estimated remaining time, options and status messages.

A Display

Wash Time

125

Delay Time

2h

Speed

100

Error

E30

End

End

Temp.

30

B Door Lock

C Child Lock

D Normal Dry

E Extra Dry

F Time Dry

Programmes

Model: TK5 1480 WD SLIM

Programme	Washing/Drying Load (kg)	Default (°C) Temp.	Default Time
	8.0		8.0
Quick 15'	2.0	Cold	0:15
20°C	4.0	20	1:01
Sport Wear	4.0	20	0:45
Jeans	8.0	30	1:35
Wool	2.0	40	1:07
ECO 40-60	8.0	-	3:35
Intensive	8.0	40	3:48
1 Hour W/D	1.0/1.0	Cold	0:58
Cotton	8.0/6.0	40	3:39
Synthetic	4.0/4.0	40	3:18
Mix	8.0/6.0	40	1:20
Wash and Dry	6.0/6.0	40	5:04
Dry Only	-/6.0	-	4:14
Rinse & Spin	8.0	-	0:20
Spin Only	8.0	-	0:12

Note!

- The parameters in this table are only for user's reference. The actual parameters may differ from those in the above table.

Programmes

TK5 1480 WD SLIM
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature °C1)	Residual moisture in % / Spin speed in rpm 2)
ECO 40-60 3)	8.0	-	3:38	0.871	64.0	38	53% / 1400
	4.0	-	2:48	0.530	46.3	38	53% / 1400
	2.0	-	2:48	0.205	33.4	21	53% / 1400
20°C	4.0	20	1:01	0.183	44	20	65% / 1000
Cotton (60°C)	8.0	60	3:44	1.498	70	60	55% / 1400
Mix	8.0	40	1:20	0.754	71	40	65% / 1000
Quick 15'	2.0	Cold	0:15	0.030	31	Cold	75% / 800
Intensive	8.0	40	3:48	1.013	71	40	70% / 800
Wash and Dry 4)	6.0	40	9:30	4.680	108.4	39	3% / 1400
	3.0	-	6:40	2.400	63.5	27	3% / 1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The values given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.
• Concerning EN 60456:2016 with (EU) 1061/2010, (EU) 1015/2010, the EU energy efficiency class is: A

Energy test program: Intensive / Dry Only

Intensive: Speed: The highest speed; Temp.: 60°C, Other as the default.

Dry Only: dry level: Extra dry, Other as the default.

Dry load for 8.0Kg machine: 6.0Kg.

- Concerning to EN IEC 62512:2020+A11:2020, EN 60456:2016+A11:2020

With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The EU wash and dry energy efficiency class is: E (8.0kg),

Energy test program: ECO 40-60. Other as the default.

Half load for 8.0Kg machine: 4.0Kg.

Quarter load for 8.0Kg machine: 2.0Kg.

Energy test program: Wash and Dry; Dry level: Extra Dry. Other as the default.

Dry load for 8.0Kg machine: 6.0Kg.

Half load for 6.0Kg machine: 3.0Kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341. 4) The Wash and Dry programme, dry level setting “Extra Dry” is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard. This programme is used to assess the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washer-dryer up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending.While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	20°C default, can choose cold water.
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
1Hour W/D	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts).
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Rinse&Spin	Extra rinse with spin.
Spin Only	Extra spin with selectable spin speed.
Intensive	To increase the washing effects, washing time is increased.
Dry Only	Select it to dry clothes, the temperature is different .The drying time according to the load .
Wash and dry	The standard energy program.
Sport Wear	Washing the activewear.
Jeans	Specially for jeans.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm	Additional functions
1400
Quick 15'	Cold	800
20°C	20	1000
Sport Wear	20	800
Jeans	30	800
Wool	40	600
Eco 40-60	--	1400
Intensive	40	800
Spin Only	--	1000
Rinse&Spin	--	1000
Dry Only	--	1400
Wash and Dry	40	1400
Mix	40	1000
Synthetic	40	1200
Cotton	40	1400
1Hour W/D	Cold	1400

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 and Wash and Dry programs, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Delay

Set the Delay function:

1. Select a programme; 2. Press the Delay button to choose the time (the delaying time is 0-24 H.);
2. Press [Start/Pause] to commence the delay operation

Choose the Programme

Start setting time

Cancel the Delay function:

Press the [Delay] button until the display shows 0H. It should be pressed before starting the programme. If the programme has already started, switch off the programme to reset a new one.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.

My Cycle

To memorize the frequently used programme.

After choosing the programme and setting the options, press [Speed] for 3 seconds before starting the wash. The default setting course is Cotton.

Model: MFG100-DU1505B/C25E-EU(ND)

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is a large amount of water with high temperature in the drum, the state is unsafe and the door cannot be opened forcefully. To press

[Start/Pause] for 3 seconds to reload, and start the clothes adding in the midway function. Please follow the steps below:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [Start/Pause] button.

Press [Start/Pause] to start.

Reload the clothes.

Start.

Dry.

Press the Dry button continuously to choose the dry level:

Normal Dry, Extra Dry, and Time Dry.

Normal Dry: Clothes are ready for storing in the wardrobe.

Extra Dry: Clothes are dried completely to be worn directly.

Timed Dry: Drying your laundry and finish within given time.

(30/60/90/120/180 minutes)

Note!

- Drying hints

- Thoroughly spin your laundry before drying.

- To ensure proper drying, please sort your laundry according to the fabric type and drying temperature.

• Clothes not suitable for drying

- Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.

- Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.

- Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Speed

Spin Speed

When needed, the spinning speed can be adjusted pressing the Speed button in the following steps:

1400: 0-400-600-800-1000-1200-1400 1500: 0-400-600-800-1000-1200-1400-1500

Temp.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

Child Lock

This function is meant to keep children from misusing the controls.

Press [strem]ta naods [spere3]sec

until the buzzer beep. The child lock indicator switches on.

Caution!

When the Child Lock is activated, the display will alternately show "CL" and the remaining time.

Pressing any other button will cause the Child Lock indicator to flash for 3 seconds.

When the program ends, "CL" and "END" will alternate on the display for 10 seconds, then the indicator will flash for 3 seconds.

The Child Lock deactivates the function of all buttons except the On/Off button and the Child Lock button!

Only the simultaneous pressing of the [Tamp.] and [Speed] buttons deactivates the Child Lock!

Please deactivate the Child Lock before selecting a new program!

Mute the buzzer

Temp.

Choose the Programme

Press the [Temp.] button for 3 seconds to mute the buzzer.

To activate the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

- After muting the buzzer function, the sounds will not be activated anymore.

■ Cleaning and Care

⚠ Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Caution!

- Never use abrasive or caustic agents, formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

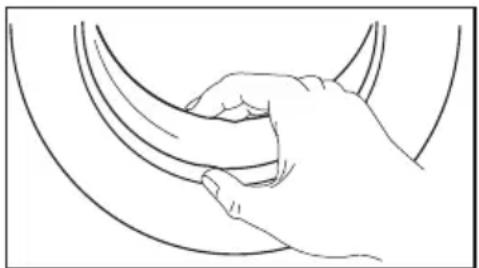

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter needs to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the inlet filter every 3 months to ensure the normal operation of the appliance.

Clean the detergent dispenser.

1. Press down the release [ ☑ on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Press the release and remove the dispenser drawer.

Clean the dispenser drawer and the softener cover under water.

Clean the recess with a soft brush.

Insert the dispenser drawer.

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Open the lower cover cap.

Open the filter by turning it counterclockwise.

Remove extraneous matter.

Close the lower cover cap.

Caution!

- When the appliance is in use and depending on the programme selected, there can be hot water in the pump. Never remove the pump cover during a wash cycle; always wait until the appliance has finished the cycle and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare parts for your appliance are available for a minimum of 10 years.

In case of questions, please contact our customer service at:

⚠ Warning!

Risk of electric shock

• Never try to repair an appliance which is defective or presumed to be defective. You may put your own and future users' lives in danger. Only authorized specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages cannot be recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance - Cleaning the drain pump filter").
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
MFG80-DU1405B/C18E-EU(NE)	8.0kg	595*475*850	65kg	1900W

Product Fiches

Model	MFG80-DU1405B/C18E-EU(NE)
Washing Capacity	8kg
Drying Capacity	6kg
Spin Speed	1400 rpm
Energy efficiency class 1	A
Energy consumption of per cycle(to wash and dry a full capacity wash load at 60°C)	5.44kwh/Cycle
Water consumption of per cycle(Total)	136 L/cycle
Annual energy consumption(Using the dryer) 2	1088kWh /annual
Annual water consumption(Using the dryer) 2	27200L /annual
Annual energy consumption(Never Using the dryer) 3	176kWh /annua
Annual water consumption(Never Using the dryer) 3	12800L /annual
Washing performance class 4	A
Standard washing cycle 5	Intensive
Energy consumption of the Intensive 60°C at full load(Washing)	0.88kwh /cycle
Water consumption of the Intensive 60°C at full load(Washing)	64L/cycle
Remaining moisture content of the Intensive 60°C at full load(Washing)	53%
Programme duration of Intensive 60°C at full load(Washing)	310min
Energy consumption of the Dry at full load(Drying)	4.56kwh /cycle
Water consumption of the Dry at full load(Drying)	72L/cycle
Remaining moisture content of the Dry at full load(Drying)	0%
Programme duration of Dry at full load(Drying)	420min
Power consumption of off - mode	0.5W
Power consumption of Left on -mode	1.0W
Noise level of washing	57dB (A)
Noise level of spinning	79dB (A)
Noise level of drying	62dB (A)

Energy test program: Intensive; Speed: The highest speed; Temp.: 60°C; Other as the default.

Dry Only: dry level: Extra dry, Other as the default.

1) The actual energy consumption will depend on how the appliance is used. 2) The actual water consumption will depend on how the appliance is used and on the hardness of the water. 3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Remarks:

The energy efficiency class is from A (highest efficiency) to D (lowest efficiency). 2. Energy consumption per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used. 3. Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used. 4. Washing performance class from G (least efficient) to A (most efficient). 5. The standard 60°C programme and the standard 40°C programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature. Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

TEKA
