USER MANUAL CF-259ELF Vivax
Instructions for use
grounded outlet with a current rating of 10A. If your home does not have such an outlet, please consult a qualified electrician or your electricity distributor. Have the replacement done by a qualified electrician. Do not share the outlet with other electrical appliances.
- Do not use extension cords or external timers.
- The plug and power cord must be firmly inserted into the outlet to prevent the possibility of sparking and causing a fire. • Do not crush, pull, or twist the power cord.
- The refrigerator is intended for connection to a power supply of 220-240V, 50Hz. Voltage fluctuations beyond the limits of 220-240 ± 10%V can cause malfunction or damage to the appliance. If you have an unstable power source, provide a power stabilizer with a minimum power of 750W.
- Do not place heavy objects or multiple items on the appliance. When opening the door, items may fall off the appliance and cause damage or injury.
- Be sure to disconnect the power plug in case of a power outage or when cleaning and maintaining the appliance.
- Do not connect the appliance to the power supply within five minutes after disconnecting, to prevent damage to the compressor due to consecutive starts.
Warnings regarding food storage
- Do not use the appliance for storing explosive substances such as aerosol cans or containers containing flammable agents, as this can cause damage to the appliance or fire. Bottles containing a high percentage of alcohol must be placed vertically.
- Do not store explosive substances, such as containers with aerosol or flammable gas, in the refrigerator.
- Do not place glass bottles or any other rigid containers filled with liquid in the freezer compartment, as they may burst.
- Do not eat ice that you have removed from the freezer.
- Do not touch frozen food with wet hands. Do not eat frozen food immediately.
WARNINGS
Keep the device packaging away from the reach of small children. Make sure that children do not play with the packaging, as this can cause choking and life-threatening injuries.
Keep the device in well-ventilated places, away from heat, dust, and do not expose it to direct sunlight.
IMPORTANT: The device must stand firmly on the floor and be level with the ground (turn the leveling feet until the device is stable).
◆ During initial installation, set the rotary knob to the "MED" (3-4) position. ◆ Leave the freezer running for a while before you start putting in food. It is best to wait 24 hours before adding food.
If necessary, turn the thermostat knob to adjust the desired temperature.
Maintenance
Cleaning
Before starting cleaning, be sure to disconnect the refrigerator from the power supply.
Cleaning tips
- Remove the middle hinge
- Remove the upper hinge
- Remove the freezer door
3 Remove the upper door
6 Remove the lower hinge, place the lower hinge on the opposite side of the cabinet and reattach it
8. Fit the middle hinge and secure it to the cabinet.
9. Fit the upper door and secure the upper hinge. Place the plastic shield on the hinge.
User Manual
Contents
■ Safety warnings
Warnings related to the use of the refrigerator
- Do not use the refrigerator to store explosive substances such as aerosol cans or containers containing flammable agents, as this may cause damage to the appliance or fire. Bottles containing a high percentage of alcohol must be stored vertically.
The refrigerator should be placed in a well-ventilated room, must stand firmly on a flat surface, and be level with the floor.
The free space above the appliance must be greater than 30 cm, and the distance from the sides and back must be greater than 10 cm, to facilitate opening and closing the doors and heat dissipation.
WxD ≥ 930 × 910mm
Dimensions are shown for reference only.
♦ During high ambient temperatures on hot summer days, it may be necessary to adjust the thermostat to a stronger cooling position ("Max" position). This may cause the compressor to run continuously.
◆ During initial installation, set the rotary knob to the "Med" position. ◆ Allow the refrigerator/freezer to run for a while before placing food inside. It is best to wait 24 hours before adding food.
◆ For cleaning, use a soft cloth or sponge soaked in water with a mild solution of neutral detergent. ◆ Remove all shelves and drawers from the refrigerator. Wipe the interior of the appliance with a mild solution of baking soda, then wipe the interior with a soft cloth or sponge. Finally, dry the interior with a dry cloth. Wash and dry the shelves and drawers in the same way.
- Use a damp cloth to clean the external surfaces. You can use standard furniture cleaners. Be careful that cleaning chemicals do not come into contact with the door gasket.
◆ Clean the door gasket with a damp and soft cloth.
◆ The condenser grille (if present) on the back of the appliance can be vacuumed using a soft brush attachment.
Cleaning tips
- Remove the middle hinge
- Remove the top hinge
- Remove the freezer door
3 Remove the top door
6 Remove the bottom hinge, place the bottom hinge on the opposite side of the cabinet and reattach it
7 Fit the freezer door onto the bottom hinge
8 Fit the middle hinge and attach it to the cabinet
9 Fit the top door and attach the top hinge. Place the plastic shield on the hinge.
Energy saving tips
CF-259ELF W
MK
WARNING
Rm. 1503A, 15/F, Shun Kwong Commercial Bldg., No. 8 Des Voeux Road West, Sheung Wan, Hong Kong
Rm. 1503A, 15/F, Shun Kwong Commercial Bldg., No. 8 Des Voeux Road West, Sheung Wan, Hong Kong
Subject of declaration:
Product: REFRIGERATOR COUNTER
PAKOM KOMPANI
member of M SAN Grupa
Margareta Gnjatovic Spirov Manager
Signed
WARNINGS
◆ Before connecting it
- Take off knuckle guard

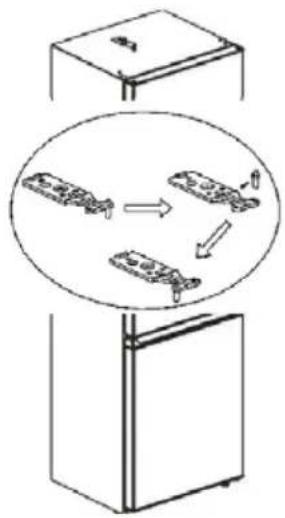

CF-259ELF W
SLO
Instructions for use
Contents
Safety warnings
WARNINGS
IMPORTANT: The appliance must stand firmly on the floor and be level with the ground.
Turn the leveling foot until the appliance is stable.
◆ Check that the power supply indicated on the product label matches the power supply of your electrical network. The power plug must be connected to a 220-240 V ~ 50 Hz power supply. ◆ Place the refrigerator in the intended location and let it rest for up to half an hour before connecting it to 220-240 V, 50 Hz.
- Remove the middle hinge
- Remove the freezer door
CF-259ELF W
CZ
User manual
Contents
- Remove the top hinge
Energy saving tips
CF-259ELF W
SK
User Manual
Table of Contents
to an electrician. Do not share the socket with other electrical appliances.
WARNINGS
WxD ≥ 930 × 910 mm
Maintenance
Cleaning
Cleaning tips
- Remove the freezer door
6 Remove the hinge with a screwdriver and install it on the left side
CF-259ELF W
PL
User Manual
Table of Contents
CF-259ELF W
HU
Instruction manual
Table of contents
CF-259ELF W
RO
power supply.
WARNINGS
CF-259ELF W
ITA
WARNINGS
9 Assemble the fridge door and the knuckle guard![graph TD A["Refrigerator"] --> B["Server"] B --> C["Process Step"] C --> D["Device 1"] C --> E["Device 2"]](/content/2026/06/1363492/images/c75e36497514b19fa7b4126eae0b762cc0ac631ca3cd7726995d2667427c54b7.jpg)
CF-259ELF W
EN
Instruction manual
Contents
Safety warnings
Meaning of safety warning symbols
Electricity related warnings
Related warnings for Use
Warnings related with Placement items
Warnings related to Disposal
Servicing and Transport Warnings
Refrigerator use
Names of components
Interior Accessories
Operation
The first Start
Maintenance of refrigerators
Cleaning
Defrost
Switch off for long periods of time
Frequently asked questions
Door Reversing
Tips for Energy Savings
Disposal, EU Declaration of Conformity
DEAR CUSTOMER:
Thank you for buying this refrigerator-freezer. To ensure that you get the best results from your new refrigerator-freezer, please take time to read through the simple instructions in this booklet.
Please ensure that the packing material is disposed of in accordance with the current environmental requirements.
When disposing of any refrigerator-freezer equipment please contact your local waste disposal department for advice on safe disposal.
This appliance must be only used for its intended purpose.
Please read these instructions carefully before installing and powering the refrigerator. The manufacturer is not responsible for improper device usage.
Follow the instructions for use. Store these instructions in a known and safe place to keep them in case of reuse.
Safety warnings
Meaning of safety warning symbols
Prohibition symbols
The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.
Warning symbols
The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.
Note symbols
The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.
CAUTION:
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- Cleaning and user maintenance shall not be made by children without supervision.
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- by clients in hotels, motels and other residential type environments, farm houses;
- bed and breakfast type environments.
- Do not pull the power cord when disconnecting the power plug from the wall socket. Please firmly grasp
the plug and pull it out from the socket directly.
- Never plug in or unplug the power plug with damp or wet hands in order to avoid the danger of electrical shock.
- Do not damage the power cord under any condition so as to ensure safe use. Do not use when the power cord is damaged or the plug is worn.
- Worn or damaged power cords shall be replaced in manufacturer-authorized maintenance stations.
- Please use a dedicated grounded power socket which is 10A or more, and the power socket shall not be shared with other electrical appliances.
- Do not use extension cords or external timers.
- The power cord should be firmly contacted with the socket, or else fires might be caused. Do not pull or bend the power cable.
- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
- The refrigerator adopts 220-240V/50Hz AC power. Voltage fluctuations over the range of 220-240 ±10%V will cause malfunction or even damage, so a 750W automatic voltage regulator must be installed in concert with the AC power.
CAUTION
Risk of fire!
- Refrigerator contains refrigerant R600a gas and Cyclopentane insulation. Gas type is indicated on the label inside the refrigerator. Gas is completely environmentally friendly, R600 is a natural gas and is completely harmless, but flammable. When transporting and installing the equipment, make sure that there is no damage of any parts (components) of a refrigerator or freezer. In case of damage, avoid open flame or exposure devices hot springs, and immediately ventilate the room where the device is located. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.
- To ensure safety, it is not recommended to place regulators, rice cookers, microwave ovens and other appliances at the top of the refrigerator, those recommended by the manufacturer are not included. Do not use electrical appliances in the food pantry.
- Unauthorized demolition or renovation of the refrigerator is prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the refrigerator must be carried out by professionals.
- Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
- The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained.
- The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the refrigerator door to avoid falling articles.
- Do not pick foods or containers in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.
- Do not allow children to enter or climb the refrigerator to prevent that children are sealed in refrigerator and other electrical appliances considering the refrigerator or children are injured by the falling refrigerator.
- Do not spray or wash the refrigerator;
- Do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.
- Do not place heavy objects on the top of the refrigerator considering that objectives may fall when switching the door, and accidental injuries might
- Please pull off the plug in case of power failure or cleaning.
- Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.
- Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
- Do not place flammable items near the refrigerator to avoid fires.
- This product is household refrigerators and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance
- Do not place items such as glass bottles or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.
- Do not eat ice, which have removed from the freezer.
- Do not touch frozen food with wet hands. Do not immediately eat frozen food.
WARNINGS
- WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING Do not damage the refrigerant circuit.
- WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
- WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Please abandon the refrigerator-freezer according to local regulators for it uses flammable blowing gas and refrigerant.
- Please follow local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children from being trapped.
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
- Do not use extension cords or ungrounded (two prong) adapters.
Placement
Before using the refrigerator, remove all packaging materials including bottom cushions and foam pads and tapes inside the refrigerator, tear off the protective film on the door and the refrigerator body (if present).
Keep all packaging away from small children. Do not allow children to play with packaging.
Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy (rotate left or right to adjust the wheel for leveling if unstable).
For freestanding appliances, this refrigerating appliance is not intended to be used as a built-in appliance.
The top space of the refrigerator shall be greater than 30cm, and the distances from both sides and backside shall be more than 10 cm to facilitate opening and closing and heat dissipation.
IMPORTANT: The refrigerator or freezer must be placed so that all feet firmly lie on the ground.
Adjust the leveling feet to ensure the appliance is properly positioned. The device must stand upright and stable!
Please leave enough space to ensure the door can be opened and drawers can be removed.
WxD ≥ 930 × 910 mm
Dimensions shown are for reference only.
The refrigerator's R600a refrigerant and cyclopentane foam materials are combustible. Discarded refrigerators should be kept away from fire sources and must not be burned.
Please transfer the freezer to qualified professional recycling companies for processing to avoid damage to the environment or other hazards.
DANGER: RISK OF CHILD ENTRAPMENT
Please remove the door and shelves of the refrigerator and place them properly to prevent children from entering and playing inside the refrigerator.
If this appliance is replacing an old refrigerator with a lock, remove the lock for safety reasons to protect children while they play.
Servicing
The unit should be serviced by an authorized engineer, and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
Do not block the air outlet and return air inlet of the refrigerator.
Do not place foods of higher temperature close to the temperature sensor.
Take out the drawer of the freezing chamber of the refrigerator and put foods directly on the glass partition.
Transport
The appliance should be transported in its original box and partitions or as wrapped with a soft cloth.
Incorrect packaging may cause damage to the outer surface of the appliance.
Before moving the refrigerator, please remove all items in the refrigerator and fasten the glass partitions, fruit and vegetable boxes, freezer drawers with taps lest the door opens during displacement.
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.
Do not turn upside, horizontally place or vibrate the refrigerator.
The carrying angle cannot be greater than 45°.
NOTE:
ANY MALFUNCTION OR DAMAGE CAUSED DURING LOADING, UNLOADING OR TRANSPORT AFTER THE DELIVERY OF PRODUCT TO THE CUSTOMER IS NOT COVERED BY THE WARRANTY.
Refrigerator use
Names of components
- LED Light
- Thermostat control
- Glass shelves
- Vegetable and Fruit crisper drawer
- Freezer drawers
- Adjustable legs
- Door shelves
- Bottle shelf
Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.
Interior accessories:
Various glass or plastic storage shelves are included with your appliance - different models have different combinations.
You should always slide one of the full-size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swiveled upwards or downwards and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves or drawers from the appliance, according to your daily use.
Refrigerator compartment and Freezer
Cooling compartment in the refrigerator is suitable for cooling foods such as fruits, vegetables, beverages, and other foods that are consumed in the short term; suggested storage time is 3 to 5 days.
Warm food must not be placed in the refrigerator until it has cooled to room temperature.
It is recommended that foods are tightly closed (in a container or plastic bag) before placing them in the refrigerator.
Shelves can be moved to adjust the space inside the refrigerator in order to optimally organize space.
The freezer is used for long-term storage of food (up to 6 months).
For additional information about possible storage duration, check the packaging of the product or food.
Never freeze again already thawed food.
Tips for Keeping Food in the Unit
◆ Store raw meat and fish in suitable containers in the refrigerator, so that they do not come into contact with or drip onto other food. Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. Leave space around your food to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool. ◆ To prevent transfer of flavors and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped. ◆ Always let pre-cooked food cool down before you put it in the unit. This will help to maintain the internal temperature of the unit. ◆ To avoid contamination of the food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
- To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.
- In case your device has a freezing compartment with 4 stars, this refrigerating appliance is suitable for freezing foodstuffs.
In case your device has a freezing compartment with 1, 2, or 3 stars, this refrigerating appliance is NOT suitable for freezing foodstuffs.
- Two-star * frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
- One-, two- and three-star compartments are not suitable for freezing fresh food.
- If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside the appliance.
First Start
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate of soda. Then rinse with warm water using a wrung-out sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing them in the unit.
Clean the exterior of the unit with a damp cloth.
If you require more information, refer to the Cleaning section.
◆ Before Plugging In
You must check that you have a socket compatible with the plug supplied with the unit.
◆ Before Turning On!
Do not turn on until one hour after moving the unit.
The refrigerator should run for 2 to 3 hours before loading fresh or frozen foods; in summer, it should run for more than 4 hours in advance, considering that the ambient temperature is high.
Operation
Switching On Your Unit
◆ The temperature selector knob is located inside the refrigerator compartment.
When the Thermostat knob is turned up to the end position, below the "Min" position (1), the Refrigerator will stop cooling.
Setting "MIN" (1-2): Less Cool Temperature
Setting "MED" (3-4): Normal Operation (adequate for most situations)
Setting "MAX" (5-6): Coolest Temperature
During high ambient temperatures, e.g., on hot summer days, it may be necessary to set the thermostat to the coolest setting (position "MAX" (5-6)). Turn the knob clockwise.
This may cause the compressor to run continuously in order to maintain a low temperature in the cabinet.
For the first time you install your refrigerator, set the thermostat knob at "MED" (3-4) (middle position). Give your freezer time to cool down completely before adding food. It is best to wait 24 hours before adding food. The thermostat knob controls the temperature.
When the thermostat control knob is set to the OFF position, the refrigerator will not be running.
WARNING: In the lowest thermostat position, although the fridge is not cooling, it does not mean that the device is disconnected from the power supply. For cleaning and maintenance, disconnect the power supply by pulling the power plug out of the socket.
Noise Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC-free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.
Change the Light Bulb
The LED lamp must be replaced by authorized service. Please contact authorized service or manufacturer.
Maintenance of Refrigerator
Cleaning
Please unplug the refrigerator for defrost and cleaning.
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.
◆ Remove all the shelves and the salad bin. To remove the salad bin, first remove the lower door shelf. ◆ Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a “wrung-out” sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
◆ Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit. The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.
Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.
Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items to clean the refrigerator, considering that this may damage the fridge surface and interior.
Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning lighting lamps, temperature control knob and electrical components.
Defrost
Defrost the freezing compartment whenever the layer of frost on the surface of the evaporator reaches 3 or 4 mm.
- Set the thermostat at "OFF" position and disconnect the refrigerator from the main supply.
- Remove drawers with frozen food. Store frozen food in some cold place.
- Put the drip tray under the evaporator to collect melted water. To improve melting, you can put a bowl with hot water inside the compartment.
- After the frost has melted, discard the melted water and clean all the interior.
- Dry up the interior of refrigerator.
- Put drawer into compartment and put back frozen foods.
- Plug in refrigerator on main supply and turn thermostat to the desired setting.
It is recommended that you use frozen food as soon as possible.
Do not use metal utensils or electric heater for defrost so as not to damage the appliance.
Please remove the food and put in a cool place when defrosting before removing drawers and other accessories.
Switching Off for Long Periods of Time
Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance. Keep the door open to avoid the bad odor.
Continuous operation is recommended when the refrigerator is started.
Please do not move the refrigerator under normal circumstances so as not to affect the refrigerator's service life.
Frequently asked questions
The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.
| Refrigerator is not work | Whether the freezer is plugged and connected to power; Low voltage;Failure power or tripping circuit |
| Odor | Odorous foods should closely wrapped; Whether foods are rotten;Whether the interior shall be cleaned |
| Foods in the refrigerating chamber are frozen | Whether the thermostat is over adjusted; Whether foods containing water is put in inside the glass partition. |
| Long-term operation of compressor | It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled;Frequent opening of refrigerator door |
| The refrigerator door cannot be properly closed. | The freezer door is stuck by food packages; Too much food; Tilt refrigerator. |
| Loud noises | Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed. |
Warm tips:
The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. ◆ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient and the condensation can be wiped away w ◆ Airflow sound: Refrigerants circulating in 1 sound and grunts which is normal does not
phenomenon and does not affect the operation.
- The refrigerating chamber will periodically frost and defrost (water drops will be generated on the backside of the refrigerating chamber when defrosting) which are normal.
Reversing the Door
Caution: To avoid injury to yourself and/or property we recommend someone assist you during the door reversal process.
Ensure the appliance is unplugged and empty.
Adjust the two leveling feet to their highest position.
We recommend you have someone to assist you.
Tools required: Cross-bladed screw driver
NOTE: To take the door off it is necessary to tilt the appliance backward.
You should rest the appliance on something solid, e.g. a chair just below the top panel so you can access the bottom of the refrigerator.
DO NOT lay the appliance completely flat as this may damage the coolant system.
- Take off knuckle guard
- Take off middle hinge with a screw driver
2.Take off top hinge
- Take off the door of freezing chamber
3. Remove the door of the refrigerator chamber.
6. Remove the hinge assembly with a screwdriver. Assemble the lower hinge assembly to the left side of the cabinet with a screwdriver.
7. Assemble the door of the freezer chamber on the lower hinge.
8. Assemble the middle hinge assembly to the left side of the cabinet.
9. Assemble the door of the refrigerating chamber. Put on the knuckle guard.
Tips for Energy Savings
Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.
Every now and then, check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
In normal temperature conditions, please set the thermostat to the middle setting.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.
If it is the outer condenser, the rear wall should be always clean and free of dust or any impurities. ◆ The appliance should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight. ◆ Let hot foods cool to room temperature before placing them in the appliance. ◆ Overloading the appliance forces the compressor to run longer. ◆ Foods that freeze too slowly may lose quality or spoil. Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. ◆ The appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. ◆ Organize and label food to reduce door openings and extended searches. ◆ Remove as many items as needed at one time, and close the door as soon as possible.
Spare Parts
The ordered parts in the following table can be acquired from the channel:
| Ordered Part Provided by | | Minimum Time Required for Provision |
| Thermostat | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| Temperature sensors | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| Printed circuit boards | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| Light sources | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| Door handles | Professional maintenance personnel and end-users | At least 7 years after the last model is launched on the market |
| Door hinges | Professional maintenance personnel and end-users | At least 7 years after the last model is launched on the market |
| Trays | Professional maintenance personnel and end-users | At least 7 years after the last model is launched on the market |
| Basket | Professional maintenance personnel and end-users | At least 7 years after the last model is launched on the market |
| Door baskets | Professional maintenance personnel and end-users | At least 7 years after the last model is launched on the market |
Climate Classes
For the climate class of your device, please refer to the rating label on your device.
| Class Symbol Ambient average temperature (°C) |
| Extended temperate SN + 10 to + 32 | |
| Temperate N + 16 to + 32 | |
| Suptropical ST + 16 to + 38 | |
| Tropical T + 16 to + 43 | |
◆ Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C; ◆ Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C; ◆ Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C; ◆ Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.
Disposal of electrical and electronic equipment
To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic equipment.
The symbol of the crossed-out wheeled bin indicates that this product must be returned to the collection point for electronic waste to be recycled, ensuring the best possible raw material recycling.
By ensuring this product is disposed of correctly, you will prevent possible negative effects on the environment and human health, which could otherwise be caused by improper disposal of this product. The recycling of materials from this product will help to preserve a healthy environment and natural resources.
For detailed information about the collection of electrical and electronic products, contact M SAN Grupa d.d. or the dealer where you purchased the product.
This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.
The EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala
Product Information sheet data entered into the EPREL database. For more info and the Product Information sheet, please scan the QR code or visit the Vivax website: www.vivax.com
MODEL
SERIAL NUMBER
DATE OF SALE
SELLER'S INVOICE NUMBER
SELLER'S SIGNATURE AND STAMP
- With this warranty, M SAN Grupa, as the warranty provider in the Republic of Croatia, guarantees free repair of the product in accordance with applicable regulations and the conditions described in this warranty certificate.
With this warranty, we guarantee that the product covered by this warranty will operate without defects caused by possible poor workmanship or poor materials. Any defects that may occur will be repaired free of charge at an authorized service center within the warranty period.
- WARRANTY TERMS The warranty period begins from the date of purchase of the product and lasts:
| 60 MJESECI (5 godina) | HLADNJACI,VERTIKALNE I HORIZONTALNE LEDENICE |
| 36 MJESECI (3 godine) | SAMOSTOJEĆI ŠTEDNJACI, PERILICE I SUŠILICERUBLJA, PERILICE SUĐA, KUHINJSKE NAPEUGRADBENE PEĆNICE I PLOČE, KUHINJSKE NAPEGRIJALICE VODE |
- In the event of a defect in the product covered by this warranty, we undertake to repair it as soon as possible, and no later than within 45 days. If the product cannot be repaired or is not repaired within 45 days, it will be replaced with a new one. The warranty will be extended for the duration of the repair.
- The warranty is recognized only with the purchase receipt and this warranty certificate, which must be properly filled out, i.e., it must contain the date of sale, stamp, and signature of the seller.
- THE WARRANTY DOES NOT COVER
Seller's signature and stamp
Warranty statement
- With this warranty, the manufacturer of the product, through KIM TEC d.o.o., as the importer and warranty provider in Bosnia and Herzegovina, guarantees free repair of the product in accordance with applicable regulations and the conditions described in this warranty card. With this warranty, we guarantee that the item covered by this warranty will operate without defects caused by possible poor workmanship or poor materials. Any malfunctions that may occur will be repaired free of charge at an authorized service center within the warranty period.
- WARRANTY CONDITIONS: The warranty period begins on the date of purchase of the product and lasts:
| 60 MJESECI (5 godina) | HLADNJACI,VERTIKALNE I HORIZONTALNE ŠKRINJE |
| 36 MJESECI (3 godine) | ŠTEDNJACI, PERILICE I SUŠILICE RUBLJA, PERILICESUĐA, KUHINJSKE NAPE, UGRADBENE PEĆNICE IPLOČE, GRIJALICE VODE |
- In the event of a malfunction of the product covered by this warranty, we undertake to repair it as soon as possible, and no later than within 30 days. If the product cannot be repaired or is not repaired within 30 days, it will be replaced with a new one.
- The warranty is recognized only with the purchase receipt and this warranty card, which must be properly filled out, i.e., it must contain the date of sale, the seller's stamp, and signature.
- The warranty provider ensures service and spare parts for 7 years from the date of purchase.
THE WARRANTY DOES NOT COVER:
VIVAX
PRODUCT NAME:
TYPE:
SERIAL NUMBER:
DATE OF PURCHASE:
CONSUMER PRICE OF THE PRODUCT
DEALER'S STAMP:
DEAR CUSTOMER!
A.T.L snc of Andrea Latella&C
Piazza Umberto 1, 88900 Crotone KR-- Italy
atl@atl-service.it
Tel +39 9622 0751
