Product Type	Microwave Oven
Brand	Kelvinator
Model	KMT630K5HPM
Capacity	30 Liters
Power Output	1000 Watts
Dimensions (W x D x H)	450 x 400 x 280 mm (approx.)
Net Weight	14 kg (approx.)
Power Supply	230V ~ 50Hz
Control Type	Electronic Touch Control
Display Type	Digital LED Display
Turntable Diameter	320 mm
Functions	Defrost, Auto Cook, Timer, Clock, Multi-stage Cooking
Child Lock	Yes
Interior Light	Yes
Door Release	Push-button
Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Safety Certification	CE, RoHS
Spare Parts Availability	Contact authorized service centers
Repairability Index	7/10 (moderate, common parts replaceable)

Frequently Asked Questions - KMT630K5HPM KELVINATOR

How do I set the clock on my Kelvinator KMT630K5HPM microwave?

Press the Clock button, then use the numeric keypad to enter the current time. Confirm by pressing Clock again or Start.

What type of cookware can I use in this microwave?

Use microwave-safe glass, ceramic, or plastic containers. Avoid metal, aluminum foil, or utensils with metallic trim.

How do I clean the interior of my microwave?

Wipe the interior with a soft damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.

What is the power consumption of this microwave?

The microwave has a power output of 1000 Watts and a typical input power of around 1500 Watts.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds until the lock icon appears on the display.

Can I use the microwave to defrost frozen food?

Yes, use the Defrost function. Enter the weight of the food and the microwave will automatically set the time and power.

Why is my microwave not heating?

Check that the door is fully closed and the power cord is plugged in. Ensure the timer is set correctly. If the problem persists, contact customer service.

What is the recommended installation clearance?

Leave at least 10 cm clearance on all sides for proper ventilation, and 20 cm above the microwave.

How do I reset the microwave after a power outage?

Simply press the Stop/Cancel button. The clock may need to be reset if power was lost.

Where can I find spare parts for my KMT630K5HPM?

Contact an authorized Kelvinator service center or visit the official website for spare parts ordering.

USER MANUAL KMT630K5HPM KELVINATOR

Microwave Oven

INSTRUCTION MANUAL

MODEL: \*MT630K5HPM

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

MADE IN CHINA

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	*MT630K5HPM
Rated Voltage:	220V~60Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1100W
Rated Input Power(Convection):	2500W
Oven Capacity:	30L
Turntable Diameter:	∅315 mm
External Dimensions:	520×210×335 mm
Net Weight:	Approx.19.3 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
29. Accessible parts may become hot during use. Young children should be kept away.
30. Steam cleaner is not to be used.
31. Surface of a storage drawer can get hot.
32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
33. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
34. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
35. The rear surface of appliance shall be placed against a wall.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

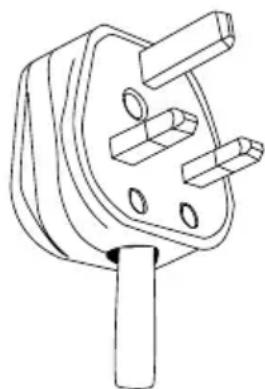

Line drawing of a mechanical component with multiple ports and a handle (no text or symbols)

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

G

Simple line drawing of a symmetrical structure with vertical bars and support columns (no text or symbols)

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

The rear surface of appliance shall be placed against a wall.

A minimum clearance of 3.0 inches

(7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven applies modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "Clock" to choose 12-hour or 24-hour system.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23(24-hour) or 1--12(12-hour).
3) Press "Clock", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press "Clock" to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Power Level "several times to select the power you want. Turn " " to adjust the cooking time. Press " Start/Go " to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press "Power Level" once, the oven will display "P100".
2) Press "Power Level" once again to choose 80% power, the oven will display "P80".
3) Turn " 🔍 " to adjust the cooking time until the oven display"20:00"

(The maximum setting time is 95 minutes.)

4) Press " Start/Go " to start cooking, ":" will light.

Presses Instructions	Display	Microwave Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0---1 minute : 5 seconds

1---5 minutes : 10 seconds

5---10 minutes : 30 seconds

10---30 minutes : 1 minute

30---95 minutes : 5 minutes

3. Convection Cooking(Warm-up)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the "Cooking Function" key once to select convection function, and the oven will display "140"(°C).

Turn " 🔍 " to select convection temperature from "140" to "230" (°C).

2) Press the "Start/Go" key to confirm.
3) Press the "Start/Go" key to start warming up. When the preheated temperature arrives, five minutes later, the buzzer will ring twice to remind you to put the food into the oven, and then close the door.
4) Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the "Start/Go" key to start cooking.

Note: a. Cooking time cannot be input until the preheating temperature arrives.

If the temperature arrives, door must be opened to input the cooking time.

b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

4. Convection Cooking(No Warm-up)

1) Press the "Cooking Function" key once to select convection function, and the oven will display "140"(°C).

Turn " 🔍 " to select convection temperature from "140" to "230" ( °C).

2) Press the "Start/Go" key to confirm.
3) Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)
4) Press the "Start/Go" key to start cooking.

5. Grill Cooking

1) Press the "Cooking Function" key once, and the oven will display "140"(°C).

Turn " " to select grill function till the oven display "G-1".

2) Press the "Start/Go" key to confirm.
3) Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)
4) Press the "Start/Go" key to start cooking.

Note: If half the grill time passes, the oven sounds twice to tell you to turn the food over.

You can just leave continue working. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/Go" to continue cooking. If no operation, the oven will work automatically and sound once.

6. Combination Cooking

1) Press the "Cooking Function" key once, and the oven will display "140"( ).

Turn " " to select combination function till the oven display "C-1", "C-2", "C-3" or "C-4".

2) Press the "Start/Go" key to confirm.
3) Turn " to adjust the cooking time. (The maximum setting time is 95 minutes.)
4) Press the "Start/Go" key to start cooking.

Order	Display	Microwave Power	Grill Power	Convection Power
1	C-1	●		●
2	C-2	●	●
3	C-3		●	●
4	C-4	●	●	●

7. Auto Menu

Example: If you want to use "Auto Menu" to cook fish of 250g.

1) Turn " 🔍 " right till the oven display "A1".
2) Press " Start/Go" key to confirm.
4) Turn " 🔍 " to select the weight of fish till "250" display.
5) Press "Start/Go" key to start cooking.

Note: (1) Consult the appendix of the automatic menu procedure.
(2) Cake menu is under convection cooking with 160°warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press "Start/Go" to start cooking.

8. Multi-Stage Cooking

Three stages of cooking can be maximally set together. If one of the stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the stages of multi-stage cooking

Example: If you want to cook the food with 100% microwave power for 10 minutes+ 80% microwave power for 15 minutes. Do it as following:

1) Press "Power Level" once to choose 100% microwave power;
2) Turn " 🔍 " to adjust the cooking time of 10 minutes;
3) Press "Power Level" twice to choose 80% microwave power;
4) Turn " " to adjust the cooking time of 15 minutes;
5) Press "Start/Go" to start cooking.

9. Auto Reheat

1) Press "Auto Reheat" key once, the oven will display "h-1".

(press"Auto Reheat " several times to select the varidty of reheating function)

2) Turn " 🔍 " to select the weight as the chart below.
3) Press "Start/Go" key to start cooking.

Function	Display	Weight
h-1(Auto Reheat)	150	150g
	250	250g
	350	350g
	450	450g
	600	600g
h-2(Dinner Plate)	250	250g
	350	350g
	450	450g
h-3(Beverage/Coffee)	1	240g
	2	480g
	3	720g
h-4(Roll/Muffin)	1	70g
	2	140g
	3	210g

10. Defrost by Weight

1) Press "Defrost" pad once, the oven will display "d-1".
2) Turn " 🔍 " to select the weight of food within the range of 100 to 2000 g
3) Press "Start/Go" key to start defrosting and the surplus cooking time will be displayed.

11. Defrost by Time

1) Press "Defrost" key twice, "d-2" will be displayed.
2) Turn " " to select the defrosting time. The maximum setting time is 95 minutes.
3) Press " Start/Go" key to start defrosting and the surplus cooking time will be displayed.

12. Speedy Cooking

When the oven is in the waiting states, Press "Start/Go" key to start cooking food with full microwave power for 30 seconds. The cooking time will add 30 seconds by every press of "Start/Go" key, and the maximum setting time is 95 minutes.

Note: Be invalidation under the situation of Defrost, Auto menu and Multi-stage cooking.

13. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Three stages can be set at most. Defrosting should not be set here. Please do not press "Start/Go" at the last step.
3) Press "Clock" to display the current time, and hour figures will flash.
4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23(24-hour) or 1--12(12-hour).
5) Press "Clock", the minute figures will flash.
6) Turn " " to adjust the minute figures, the input time should be within 0--59.
7) Press " Start/Go " to finish setting, and ":" will stop flashing. buzzer will ring twice when the time arrives, then cooking will start automatically.

14. Inquiring Function

(1) During cooking state, press "Power Level" or "Cooking Function" key, the current power will be displayed for 2-3 seconds. After that, the oven will turn back to the former state;
(2) In pre-set state, press "Clock" to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
(3) In cooking state, press "Clock" to inquire the current time.

15. Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting entering the children-lock state and the locked indicator will light.

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released, and the locked indicator will disappear.

16. Cooking End Reminding Function

When cooking ends, there will be 5 "beep" which is reminding the completion of cooking.

17. Display Specification

(1) In waiting state, the oven will display clock and " : " will flash.
(2) In function setting state, the oven will display the related setting.
(3) In the operation and suspending state, the oven will display the residual cooking time.

appendix of the automatic menu procedure

Display	Cook	Display	Cook	Display	Cook	Display	Cook
A1	Fish	A4	Bread	A7	Pasta	A10	Potato
A2	Soup	A5	Pizza	A8	Roast Chicken
A3	Meat	A6	Cake	A9	Vegetable

Menu	Weight	Display
A1 Fish	150 g	150
	250 g	250
	350 g	350
	450 g	450
	650 g	650
A2 Soup	200 ml	200
	400 ml	400
	600 ml	600
A3 Meat	150 g	150
	300 g	300
	450 g	450
	600 g	600
A4 Bread	50 g	50
	100 g	100
	150 g	150
A5 Pizza	200 g	200
	300 g	300
	400 g	400
A6 Cake	475 g	475
A7 Pasta	50(with water 450 g)	50
	100(with water 800 g)	100
	150(with water 1200 g)	150
A8 Roast Chicken	500 g	500
	750 g	750
	1000 g	1000
	1200 g	1200
A9 Vegetable	150 g	150
	350 g	350
	500 g	500
A10 Potato	1(about 230 g)	1
	2(about 460 g)	2
	3(about 690 g)	3

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid black rectangle below (no text or symbols present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
