WGCXL132FEG - Electrical switch HAGER - Free user manual and instructions

Product Type	Residual Current Circuit Breaker (RCCB)
Model	WGCXL132FEG
Brand	Hager
Number of Poles	2
Rated Current (In)	32 A
Rated Voltage (Ue)	230 V AC
Rated Residual Current (IΔn)	30 mA
Rated Short-Circuit Capacity (Icn)	10 kA
Frequency	50/60 Hz
Mounting Type	DIN rail mount
Width (modules)	2 modules (36 mm)
Dimensions (H x W x D)	85 x 36 x 71 mm
Weight	0.2 kg
Terminal Capacity	1.5 to 25 mm²
Protection Class	IP20 (front face)
Operating Temperature	-25°C to +55°C
Standards	EN 61008-1, IEC 61008-1
Tripping Characteristic	Type AC (sinusoidal residual current)
Test Button	Yes, monthly test recommended
Status Indication	Mechanical ON/OFF flag
Energy Limiting Class	3

Frequently Asked Questions - WGCXL132FEG HAGER

What is the rated current of the Hager WGCXL132FEG?

The Hager WGCXL132FEG has a rated current of 32 A.

Can the WGCXL132FEG be used in a three-phase system?

No, this model is a 2-pole device designed for single-phase systems.

What is the recommended test frequency for the RCD?

It is recommended to press the test button at least once a month to ensure proper operation.

What is the width of the device on a DIN rail?

The device occupies 2 modules, which is 36 mm on a standard DIN rail.

What type of residual current does the WGCXL132FEG detect?

It is Type AC, meaning it detects sinusoidal alternating residual currents.

What is the maximum wire size that can be connected?

The terminals accept wires from 1.5 mm² up to 25 mm².

Is the WGCXL132FEG suitable for outdoor use?

The front face has IP20 protection, so it should be installed indoors in a dry location.

What standards does this RCCB comply with?

It complies with EN 61008-1 and IEC 61008-1.

How do I know if the device has tripped?

The device has a mechanical ON/OFF flag that indicates the switch position.

Can this device be used as a main switch?

Yes, it can be used as a main switch for isolation, but it primarily provides residual current protection.

USER MANUAL WGCXL132FEG HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

1

- Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

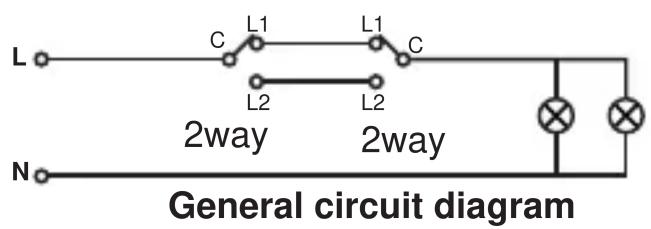

General circuit diagram

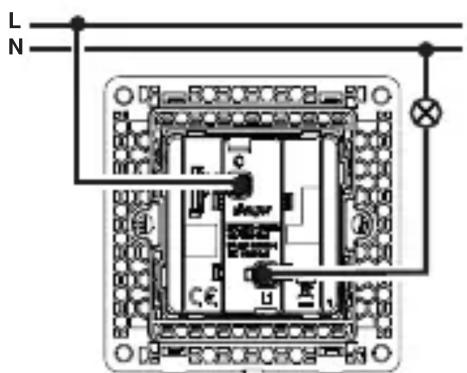

1gang 1way switch

1way switch

2gang 1way switch

2B

2way switch

2C

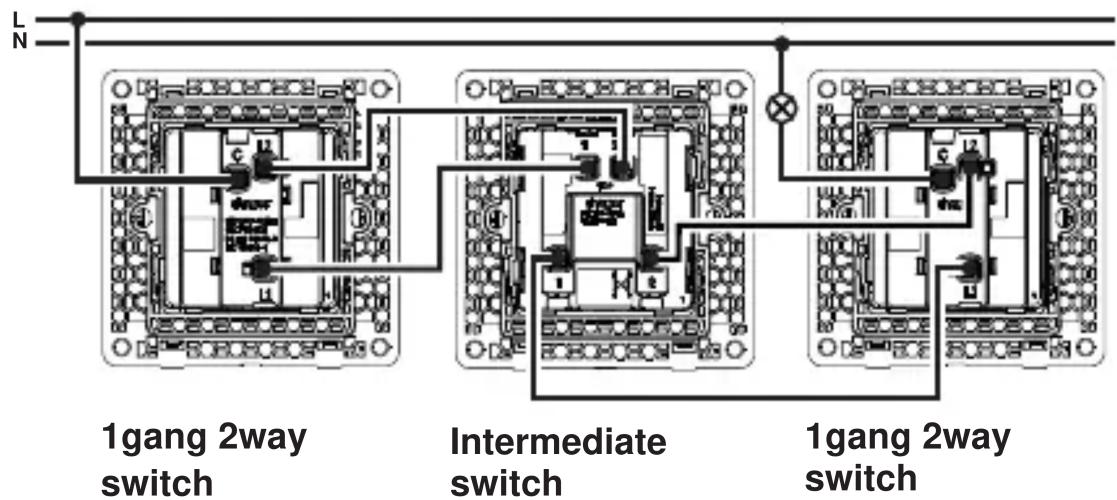

Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

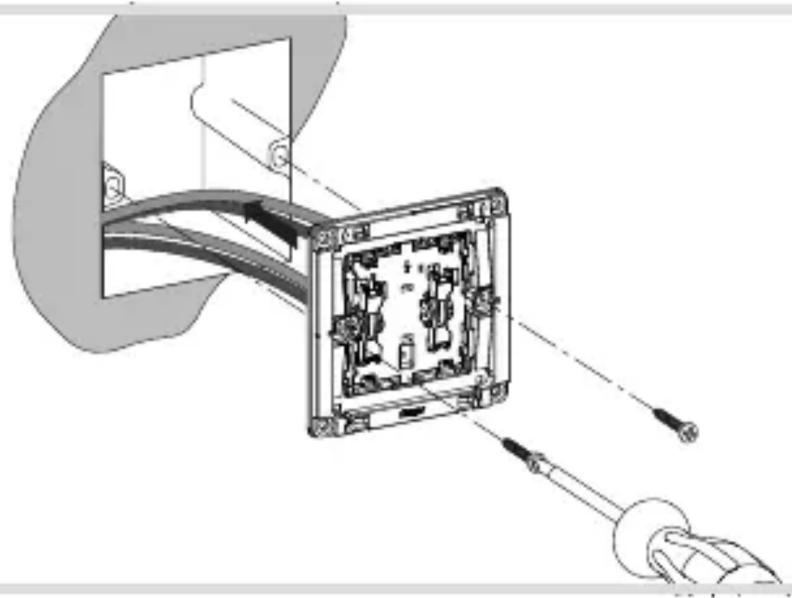

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Diagram of an electrical outlet with internal components and wiring, showing connections without any text or symbols.

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
