Product Type	Electrical Control Module
Brand	Hager
Model	WGCHKTM
Rated Voltage	230 V AC, 50/60 Hz
Rated Current	16 A
Power Consumption	< 1 W (standby)
Dimensions (H x W x D)	90 x 18 x 65 mm
Weight	0.1 kg
Mounting Type	DIN rail (EN 60715)
Enclosure Material	Self-extinguishing plastic (V0)
Protection Rating	IP20
Operating Temperature	-5°C to +45°C
Storage Temperature	-25°C to +70°C
Main Functions	Switching, timing, control of electrical loads
Indicator	LED for status
Terminal Type	Screw terminals
Conductor Cross Section	1.5 to 2.5 mm²
Cleaning	Dry cloth only; no solvents
Safety Standards	IEC 60669, EN 60730
Spare Parts Availability	Replacement terminals and modules available
Warranty	2 years (depending on region)

Frequently Asked Questions - WGCHKTM HAGER

What is the Hager WGCHKTM used for?

The Hager WGCHKTM is an electrical control module designed for switching and timing of lighting, heating, or other loads in residential or commercial installations.

What is the rated voltage and current of the WGCHKTM?

It is rated for 230 V AC (50/60 Hz) and a maximum 16 A current.

How do I install the WGCHKTM on a DIN rail?

Snap the module onto a DIN rail per EN 60715. Ensure it clicks into place. Connect wires to screw terminals according to the wiring diagram in the manual.

Can the WGCHKTM be used outdoors?

No, it has an IP20 rating, meaning it is only suitable for indoor use in dry locations.

How do I clean the device?

Use a dry, lint-free cloth. Do not use water, solvents, or abrasive cleaners.

What does the LED indicator mean?

The LED indicates the operating status of the module. A steady light typically means the output is active; off means off. Refer to the manual for specific patterns.

Is the WGCHKTM compatible with smart home systems?

This model is a standalone electromechanical timer and does not have built-in smart home connectivity. It can be integrated via external controllers.

What wire sizes can be connected?

The screw terminals accept 1.5 to 2.5 mm² solid or stranded conductors.

How can I obtain spare parts?

Spare parts such as replacement terminals or covers are available through Hager distributors or authorized service centers.

What should I do if the device is not working?

Check the power supply, connections, and the LED indicator. If the problem persists, consult the manual or contact Hager technical support. Do not open the device.

USER MANUAL WGCHKTM HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The key card switch is used for central switching on of electric loads by inserting a key card as well as for storage of the key card. The key card switch is installed in the entrance area. When the key card is removed the connected loads will be switched off automatically after the delay time has expired (approx. 30 seconds) and the LED orientation light of the key card switch is switched on.

Diagram of a device with a paper plane and a screen, showing internal components and a downward arrow (no text or symbols)

Technical line drawing of a mechanical component with a paper clip and threaded base (no text or symbols)

The key card switch RFID works exclusively with the RFID key card programmed for this purpose.

Correct use

• Switching of incandescent lamps, high-voltage halogen lamps, fluorescent lamps, 230 V LED lamps as well as dimmable electronic transformers (marked with L, C) with halogen lamps.
• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 230 V\~

Frequency: 50/60 Hz

Rated current: 16 A

Delay time: 30 s (+/- 10 s)

Power consumption (standby): < 1.5 W

Contact type: relay, 1 normally-open contact

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ^4

Distance of fixing holes: 60.3 mm

Operating temperature: -5 ... +45°C

Relative humidity (without condensation): 5 ... 95 % (at 25 °C)

Standards: BS EN 60669-2-1, IEC 60669-2-1

WARNING!

To avoid possible damage to the product or spurious insulation readings, please DISCONNECT the product before carrying out insulation resistance testing!

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

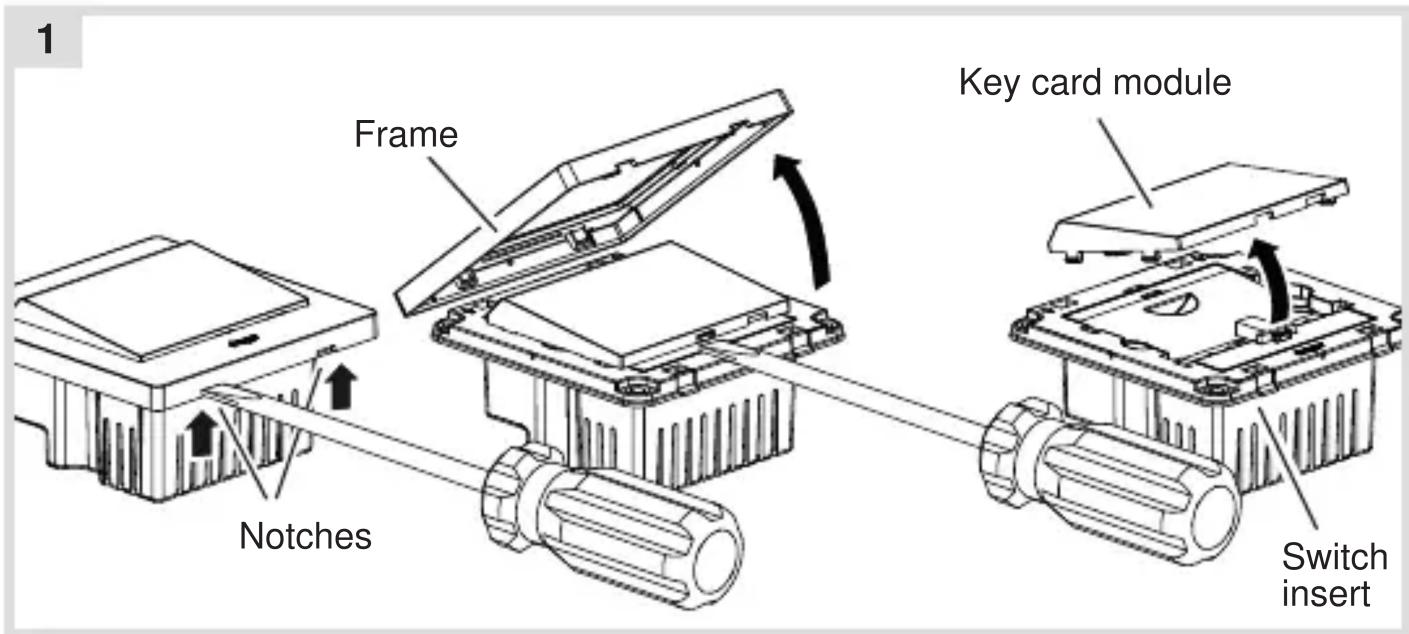

■ Loosen the frame on the notches with a flat-blade screwdriver (1).

- Carefully remove the key card module from the switch insert.

Connecting the device

- Strip connection cables approx. 12 mm.

■ Connect key card switch for direct switching of loads according to connecting diagram (2A). Can be installed alternatively with a load contactor (2B).

Installing the device into the wall box

3

■ After wiring, fix the switch insert with the two screws attached into the wall box (3).

Assembling the key card module and frame

4

Place the key card module in the correct position and let snap in carefully (4).

Fit frame.

2-5gang frames are available for multiple combinations.
