Product Type	Freestanding Washing Machine
Brand	Hotpoint
Model	AQ107D 49D IT
Capacity	7 kg
Maximum Spin Speed	1200 rpm
Energy Class	A+++
Washing Efficiency Class	A
Spin Drying Efficiency Class	B
Noise Level (Wash)	59 dB(A)
Noise Level (Spin)	76 dB(A)
Annual Water Consumption	9900 L/year
Annual Energy Consumption	196 kWh/year
Number of Programs	16
Dimensions (H x W x D)	85 cm x 59.5 cm x 54 cm
Weight	75 kg
Connected Load	1850 W
Voltage / Frequency	220-240 V / 50 Hz
Water Connection Pressure	100-1000 kPa
Child Lock	Yes
Delay Start	Yes (up to 24 hours)
Display	Digital LED
Drum Material	Stainless Steel
Drum Clean Function	Yes
Self-Cleaning Filter	No (manual cleaning required)

Frequently Asked Questions - AQ107D 49D IT HOTPOINT

How do I clean the filter on my Hotpoint AQ107D 49D IT washing machine?

To clean the filter, locate it at the bottom right corner of the machine. Open the flap, pull out the hose to drain any residual water, then unscrew the filter (turn counterclockwise). Clean the filter under running water and remove any lint or objects. Refit and screw back clockwise, ensuring it is tight. Close the flap.

What should I do if the washing machine displays error code F01?

Error F01 indicates a motor or tacho generator problem. First, turn the machine off and unplug it for 5 minutes. If the error persists, check the wiring between the motor and control board. If you are not experienced, contact a qualified technician.

Can I use liquid detergent in my Hotpoint washing machine?

Yes, you can use liquid detergent. However, always follow the dosage instructions on the detergent packaging. For better results, especially with powder detergent, use the main wash compartment (II). For liquid, use a dosing ball or pour directly into the drum.

How do I enable the child lock on the AQ107D 49D IT?

To activate the child lock, press and hold the 'Start/Pause' button for 3 seconds until the key symbol appears on the display. To deactivate, press and hold again for 3 seconds.

What is the maximum load capacity for a cotton cycle?

For the cotton cycle, the maximum load is 7 kg. Overloading may cause poor washing results and damage the machine.

How do I clean the drum of my washing machine?

Run a 'Drum Clean' cycle (if available) with an empty drum, using a washing machine cleaner or 50 ml of bleach. Alternatively, run a 90°C cotton cycle with no laundry. After the cycle, leave the door open to dry.

Why does my washing machine take too long?

The machine automatically adjusts the cycle time based on load size and water absorption. Additionally, if you select extra rinse or soak options, the time increases. The time displayed is an estimate and may change.

How do I install the washing machine?

Remove all packaging, including the transit bolts at the back (keep them for safe moving). Level the machine by adjusting the front feet. Connect the water inlet hose to a cold water supply (3/4 inch thread). Insert the drain hose into a standpipe or sink. Ensure the plug is accessible.

The machine does not start. What should I check?

First, ensure the door is closed properly and the start button is pressed. Check if the water supply is turned on and the filter is not blocked. Also, verify that the machine is not in a delay start mode. If none of these help, check the fuse or circuit breaker.

How often should I clean the detergent drawer?

Clean the detergent drawer every 2-3 months. Remove the drawer by pressing the release catch. Wash it under warm water with a brush, ensuring all compartments are clear. Dry and reinsert.

USER MANUAL AQ107D 49D IT HOTPOINT

IT

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with a valve and handle (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Diagram of a pipe connection with a hanging object above it (no text or symbols)

Line drawing of hands operating a washing machine with a circular vent and a shaded base (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and rotational motion arrows (no text or symbols)

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Hand holding a knob with a black arrow pointing to the knob area (no text or symbols visible)

Hand holding a cable with a black downward arrow indicating a drop or decrease (no text or symbols present)

Illustration of a hand opening a washing machine with a circular dial and directional arrow (no text or symbols)

Diagram of a refrigerator interior showing the door, fan, and seat area with an arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with a black arrow pointing to the component (no text or symbols present)

Illustration of a hand inserting a baby into a washing machine (no text or symbols)

Unpacking and levelling

Connecting the electricity and water supplies

Technical data

Care and maintenance, 16

Cutting off the water and electricity supplies

Cleaning the machine

Cleaning the detergent dispenser drawer

Caring for your appliance drum

Cleaning the pump

Checking the water inlet hose

Precautions and advice, 17

General safety

Load balancing system

Disposal

Opening the porthole door manually

AQUALTIS

AQ107D 49D

Description of the machine, 18-19

Touch control panel

Running a wash cycle, 20

Wash cycles and options, 21

Table of wash cycles

Wash options

Detergents and laundry, 22

Detergent

Preparing the laundry

Washing recommendations

Trouble shooting, 23

Assistance, 24

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

! Inside the pack containing this manual, you will also find the guarantee and all the details necessary for installation.

Unpacking and levelling

Unpacking

1. Once you have removed all the packaging from the washing machine, make sure it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

1. Remove the 4 protective screws (used during transportation) and the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs supplied in the pack.

3. Keep all the parts in a safe place; they will be needed again if the washing machine is moved to another location, to prevent the inside of the appliance being damaged.

! Packaging materials should not be used as toys for children.

Levelling

1. Place the washing machine on a flat sturdy floor, without resting it up against walls or cabinets.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

1. If the floor is uneven, the front feet of the machine may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees).

! If the appliance is levelled correctly, it will be more stable and much less likely to cause vibrations and noise while it is operating, particularly during the spin cycle.

! If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

! Before connecting the inlet hose to the water supply, run the water until it is perfectly clear.

Diagram of a mechanical valve mechanism with rotation arrow (no text or symbols)

1. Connect the inlet hose to the machine by screwing it onto the cold water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

Technical line drawing of a mechanical component with two views: top shows a flanged knob and ring, bottom shows a flanged screw base (no text or symbols)

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.

! Never use second-hand or old inlet hoses; use the products supplied with the machine.

Connecting the drain hose

Connect the drain hose to drain duct piping or a wall drain located between 65 and 100 cm above the floor, making sure it is not bent at all.

Diagram of a pipe connection with a hanging device (no text or symbols)

Alternatively, rest the drain hose on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the appliance. If this is not the case, have the socket or the plug replaced.

! The machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! The mains socket must remain within easy reach after the washing machine has been installed.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable and plug must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

Technical data
Model	AQ107D 49D
Dimensions	width 59.5 cmheight 85 cmdepth 61,6 cm
Capacity	from 1 to 10 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure1 MPa (10 bar)minimum pressure0.05 MPa (0.5 bar)drum capacity 71 litres
Spin speed	up to 1400 rotations per minute
Test wash cycles in accordance with directives1061/2010 and1015/2010	programmeEco Cotton 60°C.programmeEco Cotton 40°C.
	This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compatibility)- 2006/95/EC (Low Voltage)- 2012/19/EU (WEEE)

Care and maintenance

GB

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system in the machine and help to prevent leaks.
• Unplug the appliance when cleaning it and during all maintenance work.

Cleaning the machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure). Wash it under running water; this procedure should be repeated frequently.

Caring for your appliance drum

• Always leave the door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Line drawing of hands pressing down on a washing machine component (no text or symbols)

1. take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures);

Simple line drawing of a ceiling-mounted device with a circular component and directional arrows (no text or symbols)

1. position a container so that it will collect the water which flows out (approximately 1.5 l) (see figure);

2. unscrew the lid by rotating it in an anti-clockwise direction (see figure);

3. clean the inside thoroughly;

4. screw the lid back on;
5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! The machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not touch the machine when barefoot or with wet or damp hands or feet.
- Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
- Do not touch the drained water as it may reach extremely high temperatures.
- Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
- If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
- Always keep children well away from the appliance while it is operating.
- If it must be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
- Before loading laundry into the washing machine, make sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials

inside the machine, while preventing potential damage to the atmosphere and to public health.

The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For more information relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

Line drawing of a washing machine with a bucket beside it (no text or symbols)

1. remove the plug from the electrical socket.

2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

3. remove the cover panel on the lower front part of the washing machine (see overleaf).

Hand holding a knob with a black arrow pointing to the knob area (no text or symbols visible)

1. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.

Hand holding a cable with a black downward arrow indicating a drop or direction (no text or symbols present)

1. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Description of the machine

PORTHOLE DOOR

Illustration of a hand opening a washing machine with a circular dial and directional arrow (no text or symbols)

Always use the handle to open the porthole door (see figure).

DETERGENT DISPENSER DRAWER

Diagram of a washing machine interior showing a fan blade and door, with an arrow indicating direction (no text or symbols present)

The detergent dispenser drawer is located inside the machine and can be accessed by opening the door. For more information on detergent measures, please refer to the chapter entitled "Detergents and laundry".

1. pre-wash compartment: use powder detergent. ! Before pouring in the detergent, make sure that extra compartment 3 has been removed.
2. main wash compartment: If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot

B.

1. extra compartment: Bleach ! The use of extra compartment 3 excludes the pre-wash function.

washing additives compartment: for fabric softener or liquid additives. We recommend that the maximum level indicated by the grille is not exceeded, and that concentrated fabric softeners are diluted.

DIRECT INJECTION SYSTEM

The washing machine features the innovative "Direct Injection" technology that quickly solubilises the detergent and efficiently activates all the various components. The system guarantees the complete use and dissolution of the detergent, which is mixed with water before reaching the garments. This ensures better cleaning results already at low temperatures, providing significant energy savings while perfectly protecting colours and fibres. The "Direct Injection" technology is activated automatically in all the cycles.

TOUCH CONTROL PANEL

To adjust the settings, gently press the icon inside the sensitive (touch control) area as illustrated in the figure.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF Button briefly and wait for the machine to start up again. Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W

Button with ⏻ ON/OFF indicator light: press this briefly to switch the machine on or off. The green indicator light indicates that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR knob: may be turned in either direction. To select the most suitable wash cycle, please refer to the "Table of wash cycles".

The knob will not move during the wash cycle.

M1-M2-M3 buttons: press and hold one of the buttons to store a cycle with your own set preferences in the memory of the machine. To recall a previously-stored cycle, press the corresponding button.

TEMPERATURE Button: press to modify or exclude the temperature setting; the value selected will appear on the display above (see "Running a wash cycle").

SPIN CYCLE Button: press to modify or exclude the spin cycle; the value selected will appear on the display above (see "Running a wash cycle").

DELAYED START button: press to set a delayed start for the selected wash cycle; the set delay time will appear on the display above (see "Running a wash cycle").

OPTION buttons: press to select the available options. The indicator light corresponding to the selected option will remain lit (see "Running a wash cycle").

WASH CYCLE PHASE icons: these illuminate to indicate the progress of the wash cycle (Wash Rinse Spin Drain) The text lights up when the cycle is complete.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button

again; the indicator light will flash in an orange colour. If the "Door locked" 📋 indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

DOOR LOCKED 📄 indicator light: indicates that the porthole door is locked. To open the door, pause the wash cycle (see "Running a wash cycle").

CONTROL PANEL LOCK button with indicator light: to activate or deactivate the control panel lock, press and hold the button for approximately 2 seconds. when the indicator light is illuminated, the control panel is locked (apart from the ON/OFF button).. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home.

ECO indicator light: the ECO on lights up when, after altering the washing parameters, an energy saving of at least 10% is made. Furthermore, before the machine enters "Standby" mode, the icon will light up for a few seconds; when the machine is switched off the estimated energy saving will be around the 80% mark.

CHANGE LANGUAGE.

The first time the machine is switched on, the first language will flash on the display. The “Λ”, “OK” and “V” symbols will appear on the display, in line with the 3 buttons on the right-hand side. The languages change automatically every 3”; alternatively, they can be changed by pressing the buttons next to the “Λ” and “V” symbols. Use the “OK” button to confirm the language, which will be set after 2”. If no buttons are pressed, the automatic language change will begin again after 30”.

To change the language, switch the machine on and off again; in the 30" time period after it has been switched off, press and hold the temperature U-spin E-delayed start buttons simultaneously for 5". A short sound alert will be emitted and the set language will flash on the display. Press the buttons next to the "A" and "V" symbols to change the language. Use the button next to the "OK" symbol to confirm the language, which will be set after 2". If no buttons are pressed, the language set previously will be displayed after 30". Switch on the machine.

WARNING: before you use the washing machine for the first time, run a wash cycle with detergent and no laundry, using the 90° cottons cycle without pre-wash.

1. SWITCH THE MACHINE ON. Press the button. All the indicator lights will illuminate for 1 second and the text AQUALTIS will appear on the display; the indicator light corresponding to the button will then remain lit in a constant manner and the START/PAUSE indicator light will flash.
2. SELECT THE PROGRAMME. Turn the PROGRAMME KNOB left or right, until the required programme has been selected; the name of the programme will appear on the display. A temperature and spin speed is set for each programme; these may be adjusted. The cycle duration will also appear on the display.
3. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of wash cycles on the following page.
4. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in "Description of the machine".
5. CLOSE THE PORTHOLE DOOR.
6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons on the control panel:

Modify the temperature and/or spin speed.

The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash "OFF" setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded "OFF". If these buttons are pressed again, the maximum values are restored. ! Exception: if the programme is selected, the temperature can be increased up to a value of 90°C.

Setting a delayed start.

To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. During the setting procedure, the delay period and the text "Starts in:" will be displayed, along with the flashing symbol. After the delayed start has been set, the symbol will remain fixed on the display, which will also indicate the duration of the selected cycle with the text "Ends in:" and the cycle duration. Press the DELAYED START button just once to display the delay time set previously. After the countdown has begun, the display will show the text "Starts in:" and the delay period. Once the set delay time has elapsed, the machine will begin its cycle and the display will show "Ends in:" and the time remaining until the end of the cycle.

To remove the delayed start option, press the button until the display shows the text OFF; the Ⓤ symbol will disappear.

Modify the cycle settings.

- Press the button to activate the option; the name of the option will then appear on the display and the corresponding indicator light will illuminate.

- Press the button again to deactivate the option; the name of the option will then appear on the display followed by the text OFF, and the corresponding indicator light will switch off.

! If the selected option is not compatible with the selected wash cycle, this incompatibility will be signalled by the flashing of the indicator light and a sound alert (3 beeps); the option will not be activated.

! If the selected option is not compatible with another option that has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the button will remain lit in a constant manner.

! The options may affect the recommended load value and/or the duration of the cycle.

1. START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light remains lit in a fixed manner and the porthole door locks (the 🔒 DOOR LOCKED indicator light illuminates). The icons corresponding to the wash cycle phases will light up during the cycle to indicate which phase is currently in progress.

To change a wash cycle once it has already started, pause the washing machine by pressing the START/PAUSE button; then select the desired cycle and press the START/PAUSE button again.

To open the door during a wash cycle, press the START/PAUSE button; if the DOOR LOCKED 🔒 indicator light is switched off you may open the door. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

1. THE END OF THE WASH CYCLE. This is indicated by the illuminated text END. The porthole door may be opened immediately. If the START/PAUSE indicator light is flashing, press the button to end the cycle. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the ⏻ button until the cycle stops and the machine switches off.

Bag for quilts, curtains and delicate garments

The Aqualtis washing machine makes it easier for you to wash even the most valuable and delicate garments in complete confidence thanks to the special bag which protects the laundry (this is supplied with the machine). We recommend that the bag is used every time you wash quilts and padded items with an outer layer made using synthetic material.

Table of wash cycles

Icon	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergent and additives				Max. load (kg)	Residual dampness %	Energy consumption kWh	Total water ft	Cycle duration
				Prewash	Wash	Bleach	Fabric softener
	Cotton: heavily soiled whites and resistant colours.	60° (Max. 90°)	1400	●	●	●	●	10	-	-	-	**
	Multi Colour	20°	1400	-	●	-	●	9	-	-	-	**
	Coloureds Intensive	40°	1400	●	●	-	●	9	-	-	-	**
	Darks	30°	800	-	●	-	●	6	-	-	-	**
	Synthetics Resistant	60°	1000	●	●	●	●	5	48	1,21	78	125'
	Synthetics Resistant (3)	40°	1000	●	●	●	●	5	-	-	-	**
	Shirts	40°	600	-	●	●	●	2,5	-	-	-	**
	Duvets: for down-stuffed garments.	30°	1000	-	●	-	●	3,5	-	-	-	**
	Bed&Bath for bedlinen and towels.	60°	1400	●	●	●	●	10	-	-	-	**
	Rinse	-	1400	-	-	●	●	10	-	-	-	**
	Spin and Pump out	-	1400	-	-	-	-	10	-	-	-	**
	"Pump out" only *	-	OFF	-	-	-	-	10	-	-	-	**
	Anti Allergy Plus	60°	1400	-	●	-	●	6	-	-	-	**
	Anti Allergy Delicate	40°	1400	-	●	-	●	6	-	-	-	**
	Ultradelicates	30°	0	-	●	-	●	1	-	-	-	**
	Wool Platinum Care: for wool, cashmere, etc.	40°	800	-	●	-	●	2,5	-	-	-	**
	Mix 30': to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	-	●	-	●	4	71	0,20	44	30'
	Eco Cotton 60°C (1): heavily soiled whites and resistant colours.	60°	1400	-	●	-	●	10	53	0,71	59,7	215'
	Eco Cotton 40°C (2): lightly soiled whites and delicate colours.	40°	1400	-	●	-	●	10	53	1,07	95	210'

* If you select programme and exclude the spin cycle, the machine will drain only.
** The duration of the wash cycle can be checked on the display.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of the wash cycle on the basis of the load inside it; this value will then be shown on the display.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

3) Long wash cycle for synthetics: set wash cycle with a temperature of 40°C.

Wash options

- If the selected option is not compatible with the selected wash cycle, this incompatibility will be signalled by the flashing of the indicator light and a sound alert (3 beeps); the option will not be activated.

- If the selected option is not compatible with another option that has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the button will remain lit in a constant manner.

Super Wash

This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (3) into compartment 1. When

pouring in the bleach, be careful not to exceed the "max" level

marked on the central pivot (see figure). To bleach laundry without carrying out a full wash cycle, pour the bleach into the extra compartment 3, select the "Rinse" cycle and activate the "Super Wash" option.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal residual detergent removal is guaranteed. It is particularly useful for skin which is sensitive to detergents. We recommend this option is used with a full load of washing, or when a large amount of detergent is required.

Easy Iron

By selecting this option, the wash and spin cycles will be modified in order to reduce the formation of creases.

At the end of the cycle the washing machine drum will rotate slowly; the "Easy Iron" and START/PAUSE indicator lights will flash. To end the cycle press the START/PAUSE button or the "Easy Iron" button.

Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

Detergents and laundry

GB

Detergent

The type and quantity of detergent required depend on the type of fabric you are washing (cotton, wool, silk, etc.), as well as its colour, the washing temperature, the level of soiling and the hardness of the water in the area. Measuring out the detergent carefully will avoid wastage and help to protect the environment: although they are biodegradable, detergents still contain ingredients which alter the balance of nature. We recommend the following:

• use powder detergents for white cotton garments and pre-washing.
• use liquid detergents for delicate cotton garments and for all low-temperature wash cycles.
• use gentle liquid detergents for wool and silk garments. The detergent should be poured into the relevant compartment - or the dispenser placed directly inside the drum - before the wash cycle begins. In the latter case, it will not be possible to select the Cottons with pre-wash cycle.
  ! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C
  ! Follow the instructions given on the detergent packaging.
  ! Do not use hand washing detergents because these create too much foam.

Preparing the laundry

• Shake out the garments before loading them into the machin
- Divide the laundry according fabric type (symbol on the washing instruction label) and colour, making sure you separate the coloured garments from the white ones;
• Empty all pockets and check the buttons;
- Do not exceed the values listed in the "Table of wash cycles", which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g
1 pillowcase 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g
1 pair of jeans 400-500 g
1 shirt 150-200 g

Washing recommendations

Multi Colour: use the 📋 cycle to wash medium-soiled multi-coloured garments or garments of different colours. Cycle designed to ensure colour care while achieving a 40° performance at just 20°. We recommend using detergents that are suitable for coloured washes and active already at low temperatures.

! We always recommend a separate wash for running garments and the first time you wash a new coloured item.

Coloureds Intensive: use the cycle on light coloured garments to remove tough stains without damaging the integrity and brightness of the colours. The cycle is studied to guarantee a 60° performance at only 40°. We recommend the use of detergents suitable to wash coloured clothes.

Darks: use cycle 📋 to wash dark-coloured garments. This programme is designed to maintain dark colours over time. We recommend using a liquid detergent for the best results when washing dark-coloured garments.

Shirts: use the special ash cycle to wash shirts in different fabrics and colours to guarantee they receive the best possible care.

Duvets: to wash double or single duvets (the weight of which should not exceed 3,5 kg), cushions or clothes padded with goose down such as puffa jackets, use the special wash cycle. We recommend that duvets are placed in the drum with their edges folded inwards (see figure) and that no more than 34 of the total volume of the drum is used. To achieve the best results, we recommend that a liquid detergent is used and placed inside the detergent dispenser drawer.

Illustration of a hand holding a medical device with an arrow pointing to a leaf-like structure (no text or symbols)

Illustration of hands installing or adjusting a circular component inside a washing machine (no text or symbols visible)

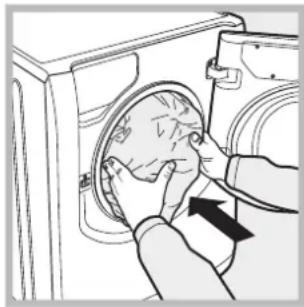

Quilts: to wash quilts with a synthetic outer layer, use the bag provided and set the wash cycle to .

Bedlinen and towels: Use programme to wash bed when and towels in one single cycle: it optimises softener performance and helps you save time and energy. We recommend the use of powder detergent

Anti Allergy Plus cycle studied for cotton laundry and other resistant fabrics to guarantee the removal of the main allergens such as pollen, mites, cat and dog hair.

Anti Allergy Delicate cycle studied for cotton laundry and other resistant fabrics to guarantee the removal of pollen and cat and dog hair already at 40°.

Ultradelicates: use programme 📁 wash very delicate garments having strasses or sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

To wash Silk garments and Curtains (these should be folded and placed inside the bag provided), select cycle, and then option = the machine will end the cycle while the laundry is soaking and the indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the button.

Wool - Woolmark Apparel Care - Green: the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as "hand wash" provided that the garments are washed according to the instructions issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. (M1135)

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not fill with water.
The washing machine door remains locked.
The machine continuously fills with water and drains.
The washing machine does not drain or spin.
The machine vibrates a lot during the spin cycle.
The washing machine leaks.
The icons corresponding to the "Phase in progress" flash rapidly at the same time as the ON/OFF indicator light.
The washing machine door remains locked.
Possible causes / Solutions:

The appliance is not plugged into the socket fully, or not enough to make contact.There is no power in the house.The door is not closed properly.The START/PAUSE button has not been pressed.The water tap has not been opened.A delayed start has been set.

• The water inlet hose is not connected to the tap.
• The hose is bent.
  • The water tap has not been opened.
  • There is no water supply in the house.
  • The pressure is too low.
  • The START/PAUSE button has not been pressed.
• If you have selected the function, at the end of the cycle the washing machine drum will rotate slowly; to end the cycle press the START/PAUSE button or the button.
• The drain hose is not fitted at a height between 65 and 100 cm from the floor (see "Installation").
• The free end of the hose is under water (see "Installation").
• If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to prevent this inconvenience.
  • The wall drainage system is not fitted with a breather pipe.
• The wash cycle does not include draining: Some wash cycles require the drain phase to be started manually (see "Wash cycles and options").
• The option is enabled: to complete the wash cycle, press the START/PAUSE button ("Wash cycles and options").
  • The drain hose is bent (see Installation).
  • The drainage duct is clogged.
• The drum was not unlocked correctly during installation (see "Installation").
  • The machine is not level (see "Installation").
• The machine is trapped between cabinets and walls (see "Installation").
• The load is unbalanced (see "Detergents and laundry").
• The water inlet hose is not screwed on properly (see "Installation").
• The detergent dispenser is blocked (to clean it, see "Care and maintenance").
• The drain hose is not fixed in place properly (see "Installation").
• Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.
• The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like).
  • Too much detergent was used.
• Perform the manual unlocking procedure (see "Precautions and tips").

Before calling for Assistance:

• Check whether you can solve the problem by yourself (see "Trouble shooting");
• Restart the wash cycle to check whether the problem has been solved;
  • If it has not, contact the Authorised Technical Assistance Service.

! If the washing machine has been installed or used incorrectly, you will have to pay for the call-out service.

! Always request the assistance of authorised technicians.

Please have the following information to hand:

• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).

The above information can be found on the data plate located on the appliance itself.

COMMISSION DELEGATED REGULATION (EU) No 1061/2010
Brand	HOTPOINT/ARISTON
Model	AQ107D 49D IT
Rated capacity in kg of cotton	10
Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption)	A+++
Energy consumption per year in kWh 1)	144
Energy consumption of the standard 60 °C cotton programme at full load in kWh 2)	0.715
Energy consumption of the standard 60 °C cotton programme at partial load in kWh 2)	0.595
Energy consumption of the standard 40 °C cotton programme at partial load in kWh 2)	0.54
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	8
Water consumption per year in litres 3)	12530
Spin-drying efficacy class on a scale from G (minimum efficacy) to A (maximum efficacy)	B
Maximum spin speed attained 4)	1400
Remaining moisture content 5)	53.0%
Programme time of the "standard 60 °C cotton" at full load in minutes	215
Programme time of the "standard 60 °C cotton" at partial load in minutes	135
Programme time of the "standard 40°C cotton" at partial load in minutes	125
Duration of the left-on mode in minutes	30
Noise in dB(A) re 1 pW washing 6)	56
Noise in dB(A) re 1 pW spinning 6)	79
Built-in model

1) The "standard 60°C cotton" at full and partial load and the "standard 40°C cotton" at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60°C cotton and standard 40°C cotton are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load.

2) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

3) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

4) For the standard 60 °C at full and partial load or the 40°C at partial whichever is lower.

5) Attained for 60 °C cotton at full and partial load or the 40°C at partial whichever is higher.

6) Based on washing and spinning phases for the standard 60°C cotton programme at full load.
