Product Type	Baby Monitor
Brand	Angelcare
Model	AC215
Dimensions (Parent Unit)	Approx. 12.5 x 7.5 x 3.5 cm
Dimensions (Baby Unit)	Approx. 8.5 x 8.5 x 4.5 cm
Weight (Parent Unit)	Approx. 90 g
Weight (Baby Unit)	Approx. 70 g
Power Source	Parent unit: rechargeable battery (Li-ion); Baby unit: AC adapter
Charging Time	Approx. 6 hours
Battery Life (Parent Unit)	Up to 8 hours
Transmission Range	Up to 250 meters (open field)
Frequency	2.4 GHz
Audio	Two-way talk, sound activation (VOX)
Night Light	Soothing night light on baby unit
Temperature Sensor	Room temperature display on parent unit
Volume Control	Adjustable on parent unit
Maintenance	Wipe with dry cloth; do not immerse in water
Cleaning	Use a soft, dry cloth; avoid solvents
Safety	Keep all cables out of reach of children; do not place in crib
Spare Parts Availability	Replacement power adapters and batteries available from manufacturer
Repairability	Repairs by authorized service center only
General Information	Standard monitoring range; suitable for everyday use

Frequently Asked Questions - AC215 ANGELCARE

How do I pair the parent unit with the baby unit?

Press the pair button on the baby unit, then select 'Pair' on the parent unit menu. Ensure both units are powered on and within 1 meter during pairing.

What does VOX mode do?

VOX (Voice Activation) saves battery by keeping the parent unit silent until the baby unit detects sound above a certain threshold. The parent unit then activates automatically.

Can I use multiple parent units with one baby unit?

No, the AC215 supports only one parent unit per baby unit.

How do I set the temperature alert?

Go to the settings menu on the parent unit, select 'Temperature', and set the high/low limits. An alarm will sound if the room temperature exceeds those limits.

What is the range of the monitor?

The operating range is up to 250 meters in open air. Walls and obstacles may reduce the range.

How do I clean the baby monitor?

Unplug the units. Use a soft, dry cloth to wipe the surfaces. Do not use water, solvents, or abrasive cleaners. Avoid getting moisture into openings.

The parent unit is not charging. What should I do?

Ensure the power adapter is securely connected. Try a different wall outlet. If the battery is completely depleted, leave it charging for 10 minutes before it starts. If issues persist, contact support.

Can I turn off the night light?

Yes, press the night light button on the baby unit repeatedly to cycle through brightness levels or turn it off.

Is the monitor safe to place near the crib?

Place the baby unit at least 1 meter away from the crib to avoid entanglement with cords. Never place the device inside the crib. Keep all cables out of reach.

How do I adjust the volume on the parent unit?

Use the volume up/down buttons on the side of the parent unit. There are 5 volume levels and a mute option.

USER MANUAL AC215 ANGELCARE

Baby Movement Monitor, with Video

Product display of Angelcare medical device with infant care device and screen (no visible text or symbols)

TABLE OF CONTENTS

WARNINGS 2

SETUP REQUIREMENTS....4

STEP 1 - Charging the Parent Unit (9 hours) 5

STEP 2 - Installing the Sensor Pad....6

STEP 3 - Setting up the Camera....9

STEP 4 - Turning on your monitor....10

STEP 5 - Testing and getting to know your monitor....11

STEP 6 - Activating and deactivating additional functions....15

Troubleshooting....20

Limited warranty....22

Technical specifications 22

OWNER'S MANUAL

KEEP YOUR OWNER'S MANUAL FOR FUTURE REFERENCE.

PLEASE READ THE WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING & USING THE PRODUCT.

FAILURE TO FOLLOW THE WARNINGS AND THE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH OR DAMAGES TO THE PRODUCT.

THE SENSOR PAD FEATURE IS NOT FOR USE WITH ADULTS, CHILDREN OR INFANTS OLDER THAN 24 MONTHS.

THE SENSOR PAD IS NOT INTENDED TO BE USED TO DETERMINE IF A CHILD IS OUT OF THE COT.

WARNING

Adult assembly required.

Keep small parts away from children when assembling.

We, at Angelcare ^® , stand behind all of our products.

If you are not completely satisfied or have any questions,

United States and Canada: Please contact us at:

[e-mail]

Other countries: Please contact your local distributor:

international.angelcarebaby.com

WARNINGS

⚠ WARNING - Strangulation Hazard – Children have STRANGLED in cords.

- KEEP the Camera Unit and adaptor cords out of the reach of children more than 3 feet or 1 metre away. • NEVER attempt to use the Sensor Pad(s) cord without the protective cord covers supplied. • CHECK protective cord covering before each use: - Ensure there is no slack in cords and that the cord is not exposed to your child - Immediately discontinue use of Sensor Pad(s) if protective covering is damaged or broken. • NEVER use extension cords with adaptors. ONLY use adaptors provided. • This product is NOT a Toy. NEVER allow children to play with it.

1. THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION. This product is designed to aid in the monitoring of your child. When using the monitor, you must still provide the supervision necessary for the continued safety of your child. Monitoring of premature babies, or those considered to be at risk, should always be carried out under the supervision of a health professional. This monitor SHOULD NOT be used as a medical device, nor as a device to prevent Sudden Infant Death Syndrome (SIDS).
2. When an adapter is plugged into an electrical outlet, DO NOT touch the exposed end.
3. ALWAYS be sure that both the transmitter and receiver are working properly and are within range of each other. Test the monitor before first use, periodically and when changing location of the Camera.
4. ALWAYS be sure to immediately check on baby whenever an alarm sounds.
5. DO NOT use monitor near water (such as bath tub, sink, etc.).

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

DO NOT EXPOSE TO RAIN OR MOISTURE

1. Keep monitor AWAY from heat sources (such as stoves, radiators, etc.).
2. ALWAYS place both the Camera and the Parent Unit on a flat surface in an upright position and allow for proper ventilation. DO NOT place on sofas, cushions, beds, etc. which may block ventilation.
3. This monitor uses public airwaves to transmit signals. The Parent Unit may pick up signals or interference from other monitors in your area. Your monitor may even be picked up by other households. To protect your privacy, make sure both units are turned OFF when not in use. If you experience interference, change the channel on both units.
4. This product contains small parts. Adult assembly required. Exercise care when unpacking and assembling the product and keep small parts away from children.
5. When using the monitor, the room temperature should be between 10^ C and 40^ C.

BATTERY WARNING

1. Danger of explosion if batteries are incorrectly replaced. The Parent Unit battery is a replaceable Li-Ion battery. Only use the Angelcare recommended replacement battery. In both units, DO NOT mix old and new batteries. DO NOT mix alkaline, standard or rechargeable batteries. Insert batteries with correct polarity. DO NOT short-circuit supply terminals. ONLY use the recommended batteries or equivalent (volts and size) and the correct adapter. Remove battery from Parent Unit when product is stored for long periods of time or when batteries are exhausted. Dispose exhausted batteries properly. Keep all batteries away from children.

12. IMPORTANT SAFETY INSTRUCTIONS

12.1 Heed all warnings - All warnings on the product and in the operating instructions should be adhered to.
12.2 Follow all instructions - All operating and use instructions should be followed.
12.3 Water and moisture - DO NOT use this apparatus near water. For example, near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet environment or near a swimming pool and the like. Care should be taken so that objects DO NOT fall onto units and that liquids are not spilled into either unit or Sensor Pad through its openings.
12.4 Cleaning - Disconnect all units before cleaning. DO NOT immerse in water any part of the monitor. Clean only with dry cloth.
12.5 Ventilation - DO NOT block any ventilation openings. Allow for proper ventilation when units are in use. DO NOT cover the Camera or the Parent Unit with any object such as a blanket. DO NOT place it in a drawer or in any location which would muffle the sound or interfere with the normal flow of air.
12.6 Heat sources - DO NOT install near any heat sources such as radiators, heat registers, stoves, TVs or other apparatus (including amplifiers) that produce heat. Heat can damage the case or electrical parts.
12.7 Power cord protection - Protect the Sensor Pad cord and Adapter's power cord from being walked on or pinched by furniture or other items - Power supply cords should be routed so that they are not likely to be walked on or pinched by items upon or against them, paying particular attention to cords and plugs, convenience receptacle, and the point where they exit from the product.

The socket outlet shall be installed near the equipment and shall be easily accessible. Make sure to plug the adapter to the socket outlet nearest to the equipment and that is easily accessible. To disconnect from mains, unplug the adapter.

12.8 Accessories - Only use attachments/accessories specified by the manufacturer. DO NOT place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult and serious damage to the product. Use ONLY with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions.

12.9 Unplug this appliance during lightning storms or when not used for long periods of time.

12.10 Servicing - DO NOT attempt to service this product yourself as opening or removing covers (except battery door) may expose you to dangerous voltage or other hazards.

12.11 Replacement parts - When replacement parts are required, be sure the replacement parts specified by the manufacturer have the same characteristic as the original part. Unauthorized substitution may result in fire, electric shock or other hazards.

12.12 Usage - This baby monitor is intended as an aid. It is NOT a substitute for responsible and proper adult supervision and should not be used as such. Use this appliance ONLY for its intended use as described in this manual.

12.13 Power Sources - Operate this product only from the type of power source indicated on the type plate of the adaptor. If you are unsure of the type of power supply to your home, consult your dealer or local power company.

12.14 Overloading - DO NOT overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock.

12.15 Object and Liquid Entry - NEVER push objects of any kind into this product through casing slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. NEVER spill liquid of any kind on the product.

12.16 Antenna - The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

12.17 Power Lines - An outside antenna system should NOT be located in the vicinity of overhead power lines or other electric light or power circuit, or where it can fall into such power lines or circuits as contact with them may be fatal.

12.18 Vibration Source - When the monitor is in use, DO NOT use a bedside cot, cot mobile or other cot accessories that may produce vibrations. Other sources of vibrations may include fans, washing machines, loud music, etc. These sources of vibration may interfere with the performance of your Angelcare * monitor and the alarm will not sound if it continues to detect any movement other than your baby's. Be sure all vibration sources are eliminated before using the monitor. You may experience false alarms for several reasons. The most common reason is the Camera has not been turned OFF after you have removed your baby from the cot. Another reason is the Sensor Pad has not been placed under the mattress properly. Be sure the Sensor Pad is on a flat, firm surface with the printed side facing up. The sensitivity level may also need to be adjusted. Refer to Step 5.1. Always be sure to immediately check on baby whenever an alarm sounds.

12.19 Sensor Pad - Your Sensor Pad can be used in any cot that is stationary. If the cot has a spring or slat base, place a hard board between the cot base and the Sensor Pad measuring at least 33 x 33 cm and 6 mm thick. Only use your Angelcare® monitor in a stationary sleeping environment such as a cot where the Sensor Pad can rest on a completely flat, firm surface. The Sensor Pad is made of plastic and does not permit the air to circulate. Therefore, mildew build up could develop underneath the mattress in the Sensor Pad area. We suggest rotating the mattress regularly to prevent any mildew.

13. IMPORTANT SAFETY INSTRUCTIONS RELATED TO USE OF BATTERIES

13.1 Use ONLY the type and size of batteries specified in the owner's manual. There is a risk of explosion if batteries are replaced with an incorrect type.

13.2 Charge the battery for 9 hours prior to first use. Be sure to have the monitor in the OFF position during this period. ONLY use the adapters included with your monitor.

13.3 DO NOT use these adapters with any other equipments.

13.4 When unplugging the adapter from the Camera, be sure it is switched to the OFF position. If it isn't, the unit will revert to battery mode if batteries are installed.

13.5 DO NOT dispose batteries in fire. They may explode. Check with local regulations for possible special disposal instructions.

13.6 Exercise care in handling batteries in order not to short out the batteries with conducting materials such as rings, bracelets and keys. Overcharging, short circuiting, reverse charging, mutilation, or incineration of batteries must be avoided to prevent one or more of the following occurrences: release of toxic materials, release of hydrogen and/or oxygen, gas and rise in surface temperature.

13.7 DO NOT attempt to recharge batteries provided with or identified for use with this product that are not intended to be charged. The batteries may leak corrosive electrolyte or explode.

13.8 DO NOT attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden release of battery electrolyte may occur, causing burns or irritation to eyes or skin.

13.9 If and when necessary, the batteries must be replaced with identical new ones or equivalent (volts and size). If a battery to be replaced is connected with other batteries in series, replace the other batteries at the same time as well. DO NOT mix old and new batteries.

13.10 Reverse polarity installation of the batteries in the end product must be avoided. Reverse insertion of batteries can cause charging, and that may result in leakage or explosion.

13.11 Remove batteries from both units if you store the product over 30 days because the batteries could leak and damage the product.

13.12 Discard 'dead' batteries as soon as possible since 'dead' batteries are more likely to leak in a product. If a battery has leaked or vented, it should be replaced immediately using protective gloves.

13.13 DO NOT store this product, or the batteries provided with or identified for use with this product, in high-temperature areas.

SETUP REQUIREMENTS

INCLUDED:

Parent Unit

Simple line drawing of a device with a circular button and a small sensor icon, labeled 'Angelcare' at the bottom (no other text or symbols)

Camera Unit

Tabletop stand with removable wall mount metal ball (for Camera Unit)

Simple line drawing of a cable and a box connected by wires, with no text or symbols present.

AC adapter (for Parent Unit)

Diagram of a rectangular device with wires and connectors, no visible text or symbols

Lithium ion battery pack (for Parent Unit)

DO NOT REMOVE THE YELLOW PLASTIC BATTERY COVERING

Wired Movement Sensor Pad * Always place Angelcare logo side up *

(Screwdriver required for wall mounting)

AC adapter (for Camera Unit)

Pure electrical circuit lines without any symbols

6 Pre-threaded cord covers with Split USB cable

YOU MUST PREPARE:

One hardboard (not included)

Thickness: 6 mm

Minimum dimensions:

33 cm x 33 cm

Maximum dimensions:

equal to the mattress size

Hardboard

IMPORTANT

The hardboard must be larger than the Sensor Pad surface area

WHAT YOU WILL NEED (NOT INCLUDED):

Miniature Philips Screwdriver

1) Unlock and open the battery compartment on the rear of the unit and remove the cover.
2) Plug in the battery connector to the Parent Unit by aligning the connector pins. Replace the Parent Unit cover.
3) Connect the adaptor to the Parent Unit and into an electrical outlet.
4) Prior to the first use, charge the Parent Unit for 9 continuous hour.

NOTE:

To optimize your battery performance please refer to Battery Guidelines in the Troubleshooting section.

PARENT UNIT:

⚠ WARNING - Strangulation Hazard – Children have STRANGLED in cords.

• KEEP the Camera Unit and adaptor cords out of the reach of children more than 3 feet or 1 metre away.
• NEVER attempt to use the Sensor Pad(s) cord without the protective cord covers supplied.
• CHECK protective cord covering before each use: - Ensure there is no slack in cords and that the cord is not exposed to your child - Immediately discontinue use of Sensor Pad(s) if protective covering is damaged or broken.
• NEVER use extension cords with adaptors. ONLY use adaptors provided.
• This product is NOT a Toy. NEVER allow children to play with it.

STEP 2 - POSITIONING THE MOVEMENT SENSOR PAD

2.1 - SELECT A LOCATION FOR THE CAMERA

IMPORTANT

Place the cot near a supporting wall and far from air currents. Install the Camera on a flat, stable surface facing the cot at a distance of at least 1 metre. Make sure to plug the adapter to the socket outlet nearest to the equipment and that is easily accessible.

1) Insert jack 1 into the Sensor Pad and twist it clockwise to lock it. Gently pull on the cord to ensure it is locked.

2.2 - SELECT THE COT LEG TO SECURE THE CORD COVERS

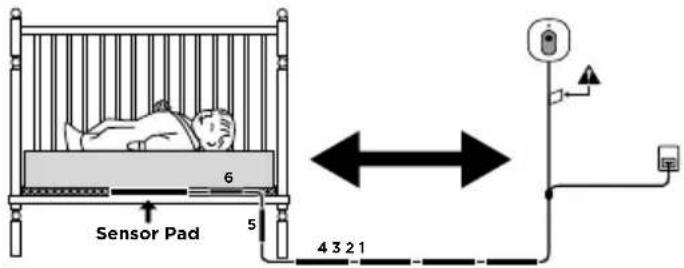

Use the cot leg by the wall closest to the Camera (Figure 1). In cases where the Camera is across the room, use the leg closest to the Camera to position the covered wire (Figure 2). It is always preferable that the covered cord run along a wall.

2.3 - INSTALL THE SENSOR PAD ON THE MATTRESS SUPPORT

IMPORTANT

If your cot does not have a solid, stationary, completely flat, firm surface including a spring or slat base, place a hard board between the crib base and the Sensor Pad, to ensure correct operation.

The hardboard support must measure at least 33 x 33 cm (13" x 13") and 6 mm (1/4") thick. This hardboard support must be larger than the Sensor Pad surface area.

Hardboard

The Sensor Pad functions with any size and type of mattress except memory-foam mattresses, hollow frame mattresses and water beds. The hardboard maintains a constant pressure on the Sensor Pad, enabling it to detect the baby's movements even when the baby is at the edges of the cot.

1) Remove the mattress from the cot.

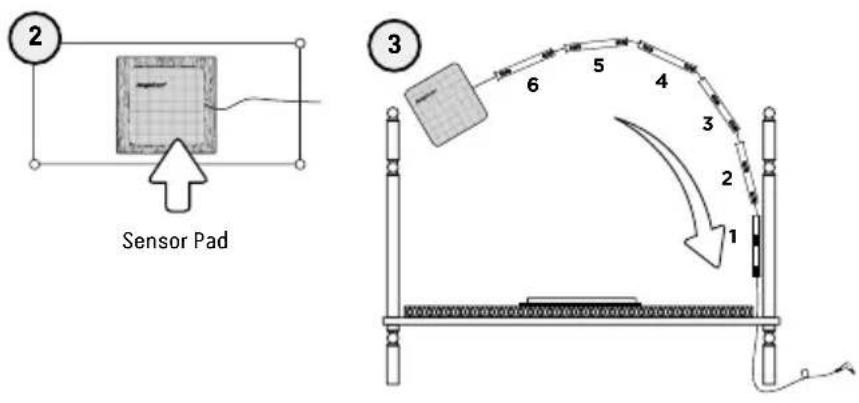

2) Place the Sensor Pad - Angelcare logo side up - on top of the hardboard.
3) Run the connection pin, warning label and the first 5 cord covers down along the backside of the cot leg, between the mattress support and the inside edge of the cot.

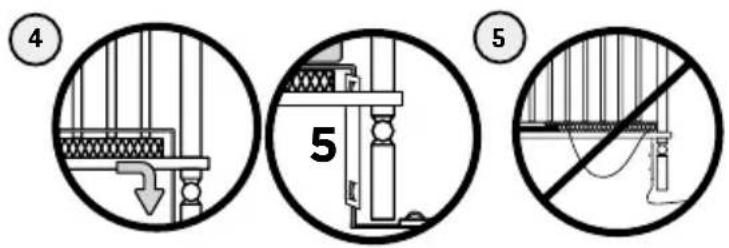

4) Bring the first 4 cord covers down the floor, and keep the 5th cord cover vertically, along the backside of the cot leg, between the mattress and the inside edge of the cot.
5) Remove any cord slack to make sure no parts of the cord are loose.

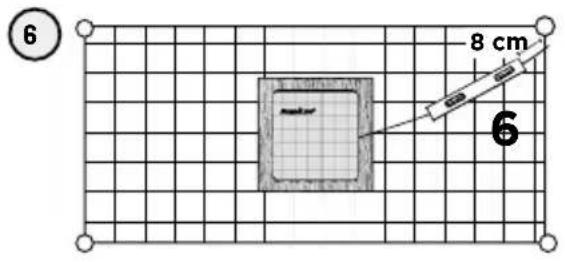

6) Place the 6th cord cover approximately 8 cm from the edge of the mattress support.


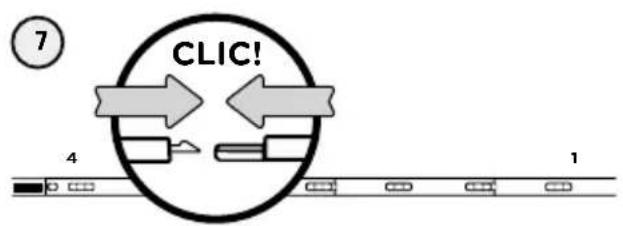

7) Snap together the remaining cord covers that will run along the floor.

8) Remove any cord slack to make sure no parts of the cord are loose.

9) Peel off the double-sided tape on the 4th cord cover and place it securely under the cot leg.

IMPORTANT

- ENSURE THE CORD PROTECTIVE COVER IS SECURELY PLACED UNDER THE LEG OF THE COT.

- Ensure the Sensor Pad cable connector is locked into the Sensor Pad – check before each use

- Ensure the Sensor Pad is in the center of the cot - printed or Logo side up - on top of the hardboard. Check the position is central before each use.

- Ensure there is no slack in cords and exposure of cord to child is minimised (see further instructions within).

- When re-positioning the mattress support as your child grows, adjust the position of the vertical cord cover (on the leg of the cot) by threading the cord through the cover and ensure the cover is always vertically central about the leg. Remove any slack in the cord.

- BEFORE FIRST TIME USE: Test that the unit is ready for use – refer to the Full User Manual to check if installation is correct.

Camera can be installed on the wall (see included parts) or using the tabletop stand. Depending on the position you choose, you'll need to remove the metal ball from the stand to wall mount camera.

OR
MUST BE MORE THAN 1 METRE AWAY

1) Install the Camera on a flat, stable surface facing the cot at a distance of at least 1 metre and plug the Sensor Pad cord into the Camera.
2) Check to make sure the Sensor Pad has not moved from position.
3) Place the mattress back inside the cot.

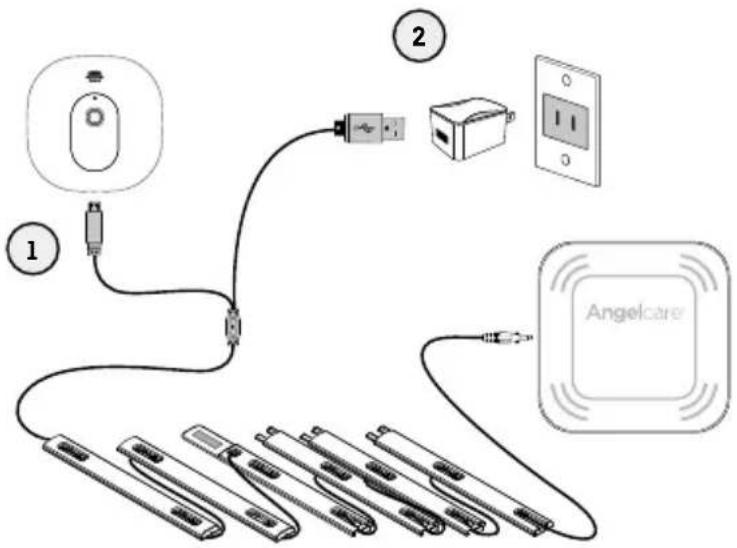

1) Connect the USB plug to the Camera.
2) Connect the USB plug with the power adapter and then with an electrical outlet.
3) Adjust the Camera using the magnetic mount to get the best view of baby in the cot.

STEP 4 - TURNING ON YOUR MONITOR

Your Camera and Parent Unit come pre-paired, so you should see video within 3 - 4 seconds of turning ON the units. The Camera connection signal strength icon will appear in the status bar.

1) Press and hold the Parent Unit ON/OFF button for 2 seconds until LCD screen is turned ON. Angelcare's logo will be shown for 1 second.

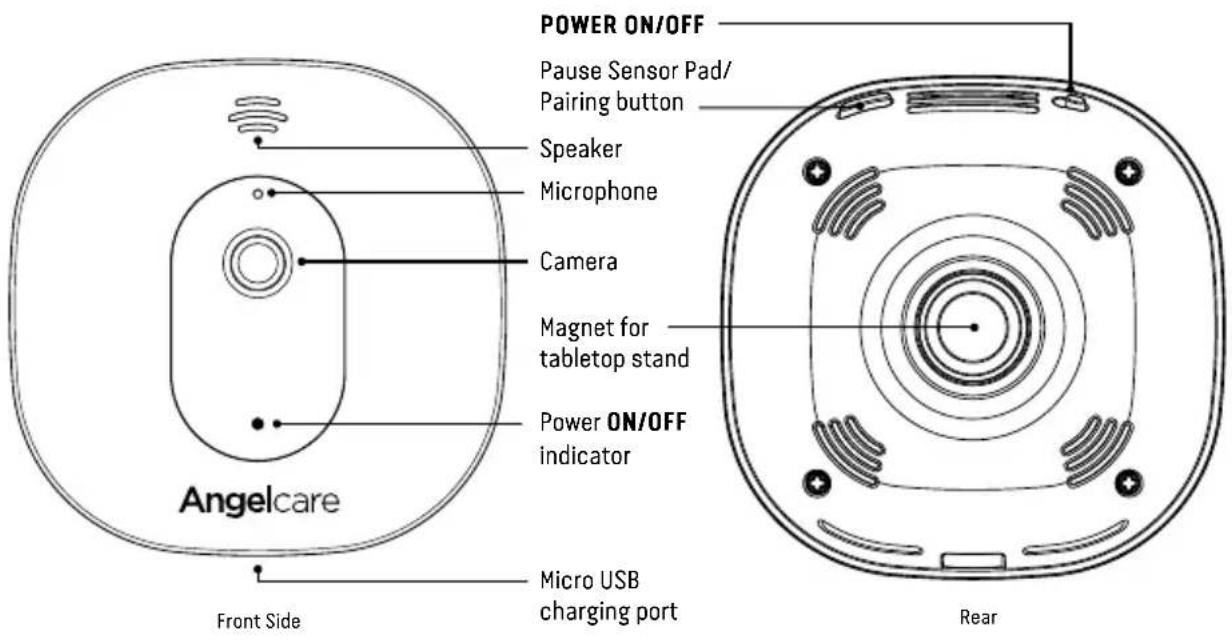

2) Slide the Camera ON/OFF switch to the ON position.
3) The Parent Unit will display Video mode screen.

When Parent Unit is turned ON and Camera is OFF, Parent Unit will display Out-of-Range icon.

If there is a lost connection between the 2 units after 15 seconds, the Out-of-Range alarm will sound on the Parent Unit (refer to Troubleshooting section):

- The Out-of-Range icon will appear on the screen.

Temperature icon: Indicates room temperature

Temperature Alarm icon: Indicates Temperature Alarm is active

Pendulum icon: Indicates the Movement Sensor is active

Night View Mode icon: Indicates the Camera is in Night View Mode

Sound icon: Indicates that Sound function is active

Connection icon: Indicates the connection quality between the Parent Unit and the Camera.

Good connection

Poor connection Lost connection

Battery Level icon: Indicates battery level

Empty □/3 Full

2/3 Full

Full

STEP 5 - TESTING AND GETTING TO KNOW YOUR MONITOR

The Angelcare® monitor can be used with the pre-program factory settings or you can also customize your settings to your preference. Main menu on the LCD display shows the different operation settings. Use the direction keys to change or check the different functions on the Parent Unit.

Press the Menu/Select button to highlight selected icon in blue.

Press the Menu/Select button to change from blue to green to show preferred setting is selected. Press the Zzz button to exit or go back to main menu when in sub-menu.

IMPORTANT

When in menu or sub-menu modes, sound transmission between the Parent Unit and the Camera will be temporarily deactivated. ONLY movement-detection alarm will remain active (if function is ativated).

5.1 - SENSOR PAD

IMPORTANT

• Test your monitor before first use.
• Test your monitor regularly to ensure it is functioning correctly.
• Test your monitor every time you move the Sensor Pad to a different place.

TO ACTIVATE THE SENSOR PAD:

1) Press Menu/Select button to access main menu.
2) Select the Movement icon by pressing the right arrow.
3) Use the up and down arrows to activate or deactivate the Movement Alarm.
4) Press Menu/Select button to confirm.
5) Return to camera view by pressing Zzz button.

TO TEST THE SENSOR PAD:

Simple line drawing of vertical bars with a numbered circle and bottom label (no text or symbols)

When movement is activated the static pendulum icon shows in info bar

1) Move your hand lightly on the mattress.
2) Remove your hand from the mattress. After 15 seconds you will hear a 'TIC' pre-alarm sound, and 5 seconds later the Movement Alarm will trigger.

MOVEMENT ALARM

• Alarm activates when no movement is detected by the Sensor Pad for 20 seconds.
• Both the Parent Unit and the Camera speakers will emit loud continuous beeps.
• Movement Alarm icon will show on the LCD screen.

IF THE ALARM DOES NOT SOUND

• Avoid contact with the cot while Sensor Pad is in operation.
• Place the cot near a supporting wall.
• Adjust the Sensor Pad sensitivity level.
• Turn OFF cot mobile, fans, loud music or anything else that may cause vibration.

TO STOP THE ALARM

Press any key of the Parent Unit to stop the alarm.

OR

Press the Pause Sensor Pad button on the Camera.

TO ADJUST THE SENSOR PAD SENSITIVITY LEVEL:

1) Press Menu/Select button to access main menu.
2) Select the Settings icon to access sub-menu.
3) Select the Movement Sensitivity icon.
4) Use the up and down arrows to choose the desired sensitivity level (1 = LOW to 5 = High).
5) Press Menu/Select button to confirm.

NOTE:

If you are receiving false alarms, adjust the sensitivity level. Please only adjust if required.

TO ACTIVATE THE TIC FUNCTION:

Allows you to hear a TIC sound when Sensor Pad function is activated.

1) Press Menu/Select button to access the main menu.
2) Select the TIC icon.
3) Use the up and down arrows to activate or deactivate the TIC function.
4) Press Menu/Select button to confirm.

Regular TIC sound will emit from Parent Unit.

NOTE:

Make sure the Sensor Pad is activated before activating the TIC function.

IMPORTANT

• The Sensor Pad is not designed for use with adults, children or infants older than 24 months.
• Once you are finished using the Sensor Pad, deactivate the movement function and store safely away for future use.

5.2 - SOUND

TO ACTIVATE/DEACTIVATE SOUND

TO TEST THE SOUND:

Ask someone to speak into the Camera or place the unit near a radio to ensure that sound is being picked up.

1) Press Menu/Select button to access main menu.
2) Select the Sound icon.
3) Use the up and down arrows to activate or deactivate the sound.
4) Press Menu/Select button to confirm.

• Check that both units are powered ON.
• Check that both units are plugged into functioning electrical outlets.
• Check the batteries in both units (replace or recharge them if necessary).
• Bring the Parent Unit closer to the Camera.

IMPORTANT

To avoid feedback (whistling), keep both units at least 3 meters apart.

Increase volume (Up arrow)

Lower volume (Down arrow)

Press the down arrow for 2 seconds to mute sound.

Mute icon will flash in Info Bar. Press again for 2 seconds to reactivate sound.

5.3 - BATTERY

HOW TO CHECK THE BATTERY:

Unplug the adapter from the Parent Unit and check the battery level indicator.

Diagram showing a battery with an icon and downward arrow, enclosed in a circle (no text or symbols)

1/3 fullEmpty 2/3 full full

HOW TO CHARGE THE BATTERY IN THE PARENT UNIT:

Leave the Parent Unit plugged in to fully charge the unit. Although the battery at 1/3 capacity works normally, we recommend that you fully recharge it.

PARENT UNIT BATTERY ALERT

• Alert activates when the battery needs to be recharged.
• Parent Unit will emit a beep sound every15 seconds.
  • Empty icon will show on LCD screen.

YOU ARE NOW READY TO USE YOUR MONITOR

The Angelcare ^® monitor can be used with the pre-program factory settings or you can also customise your settings to your preference.

DEFAULT SETTINGS

Sound Mode: ON

Speaker Volume: Level 3 (of 6)

Movement Mode: ON

Sensor Pad Sensitivity: Level 3 (of 5)

TIC: OFF

Temperature Unit: Celsius

Temperature Alarm: OFF

VOX: ON

VOX Level: Level 2 (of 4)

Screen Saver Timer: ON

(after 3 minutes)

LCD Brightness: Level 3 (of 5)

Key Tone: ON

IMPORTANT

• Test your monitor before first use.
• Test your monitor regularly to ensure it is functioning correctly.
• Test your monitor every time you move the Sensor Pad to a different place.

STEP 6 - VOICE ACTIVATION (VOX ON) OR CONTINUOUS SOUND (VOX OFF) MODE

IMPORTANT

When in the menu or sub-menu modes, sound transmission between Parent Unit and Camera will be temporarily deactivated. ONLY the movement detection alarm will remain active (if function is activated).

6.1 - VOICE ACTIVATION (VOX) OR CONTINUOUS SOUND MODE

Allows you to select your option on how you monitor sound: VOX (voice activation picks up sound based on the setting of the sensitivity level) or Continuous (sound monitoring is continuously on, picking up all sounds).

TO DEACTIVATE OR ACTIVATE VOX MODE:

1

2

Grid of nine grayscale icons representing mechanical or industrial components, with one icon highlighted by a white arrow (no text or symbols)

3

1) Press Menu/Select button to access the main menu.
2) Select the VOX icon to activate or deactivate the VOX function.
3) Press Menu/Select button to confirm.

NOTE:

By deactivating VOX, Continuous Sound setting will turn ON.

TO ADJUST THE SOUND SENSITIVITY (VOX):

Allows you to determine the sound level needed to trigger sound transmission to the Parent Unit. This means that sound will only transmit based on the level that you set.

1) Press Menu/Select button to access the main menu.
2) Select the Settings icon to access sub-menu.
3) Select the VOX Sensitivity icon.
4) Use the up and down arrows to choose the desired sensitivity level (1 = LOW to 4 = High).

5) Press Menu/Select button to confirm.

6.2 - HOLD

Allows you to pause the monitor if you remove baby from the cot, e.g. for feeding or comforting.

1) Press Menu/Select button to access main menu.
2) Select the Hold icon. OR Press the Camera Pause button
3) Hold icon will appear on the screen.
4) Press the Camera Pause again to return to deactivate Hold. Camera Indicator (green light) will blink. Parent Unit will emit 3 consecutive beeps every 30 seconds to remind you that monitor is on Hold.

IMPORTANT

When your monitor is on Hold, the movement-detection feature and movement alarm are disabled.

6.3 - THERMOMETER

TO CHANGE THE MEASUREMENT UNIT:

1

2

3

4

TO ACTIVATE THE TEMPERATURE ALARM:

1

2

3

4

TO SET THE TEMPERATURE RANGE:

1

2

46

The range between the minimum and maximum temperature must be at least 4 °C/7°F. An error tone will be heard if you try to set it up below this minimum level.

1) Press Menu/Select button to access main menu.
2) Select the Temperature icon to access sub-menu.
3) Select the °C °F icon.
4) Use the up and down arrows to change from Celsius to Fahrenheit.

5) Press Menu/Select button to confirm.

1) Press Menu/Select button to access main menu.
2) Select the Temperature icon to access sub-menu.
3) Select the Temperature Alarm icon.
4) Use the up and down arrows to activate or deactivate the Temperature Alarm.

5) Press Menu/Select button to confirm.

1) Press Menu/Select button to access main menu.
2) Select the Temperature icon to access sub-menu.
3) Select the High Temperature icon to set maximum temperature range (15 to 32°Celsius).
4) Use the up and down arrows to set the highest temperature preferred.
5) Select the Low Temperature icon to set minimum temperature range (5 to 20 °Celsius).
6) Use the up and down arrows to set the lowest temperature preferred.
7) Press Menu/Select button to confirm.

TEMPERATURE ALARM

• Alarm activates when temperature reaches maximum or minimum set temperature.
• Parent Unit will emit 4 consecutive beeps, every 5 seconds.
  • Temperature Alarm icon will show on LCD screen.

6.4 - SCREEN SAVER

Allows you to set the screen saver starting point.

MANUAL SETTING:

To manually activate the Screen Saver mode press and hold the Parent Unit Zzz button.

1) Press Menu/Select button to access main menu.
2) Select the Settings icon to access sub-menu.
3) Select the Screen Saver icon.
4) Use the up and down arrows to select timed delay before Video mode turns into Screen Saver mode.
5) Press Menu/Select button to confirm.

NOTE:

The LCD screen will turn black when video is in Screen Saver mode. Press any button to return to Video mode.

Allows you to capture image when lighting is insufficient.

A Night View icon will appear at the top of the Parent Unit screen.

The Night View icon will disappear at the top of the Parent Unit screen.

1) The infrared LEDS will turn ON automatically when the lighting is not sufficient, to give a night view on LCD display.
When the Infrared Night Vision is ON, only black and white image will be displayed on the LCD screen.
2) If the light is bright enough in the room, the infrared LED on the Camera will turn OFF automatically.

Note:

6.6 - ZOOM MODE

Allows you to zoom in to twice the normal view.

6.7 - KEY TONE

Allows you to activate or deactivate key tone sound.

6.8 - LCD SCREEN BRIGHTNESS

Allows you to adjust the LCD screen brightness on the Parent Unit.

1) Press and release the Zoom button on the Parent Unit.
2) The Zoom icon will appear at the bottom left corner of the screen.
3) Use the arrow keys to zoom in on what you want to see more closely.
4) Press and release the Zoom button on the Parent Unit again to return to normal view.

1) Press Menu/Select button to access main menu.
2) Select the Settings icon to access sub-menu.
3) Select the Key Tone icon.
4) Use the up and down arrows to activate or deactivate Key Tone sound.
5) Press Menu/Select button to confirm.

1) Use the left and right arrows to adjust the screen brightness level (1 = LOW to 5 = High).
2) A light bulb will be shown on the LCD screen.

• Ensure that you fully charge your battery for 9 hours before first use.
• To maintain maximum battery life it is recommended that you fully discharge your battery periodically. If your Parent Unit is not in use, please turn it OFF.

LOSS OF CONNECTIVITY

In the case of loss of connectivity, the first step is to bring the Parent Unit and Camera closer together and make sure that both units are ON to restore the connection. If there is still no connection and no out-of-range warning after the above has been done, then and only then should the re-connection procedure below be done.

1) Turn both Unit OFF
2) Turn the Nursery Unit ON.
3) Press and hold the Pause button on the Camera till the Power Indicator Light blinks green, then release the button.
4) Turn the Parent Unit ON.
5) Whilst still pressing the Zoom button, quickly press and release the ON/OFF button.
6) The Parent Unit will display a forward icon during the reconnection procedure. The reconnection is successful if Parent unit shows the camera view. The Zoom button can be release.

FALSE ALARMS

• Turn OFF the Camera.
• Verify the connection between the Sensor Pad and the Camera. Unplug and reconnect the cord.
• Make sure there is no bedding between the mattress and the Sensor Pad.
• If the cot has a spring or slat base, place a hardboard between the cot base and the Sensor Pad measuring at least 33 × 33 cm and 6mm thick.
• Make sure the Sensor Pad is positioned as described under the setup requirements. Sensitivity may need to be adjusted, refer to Step 5.1.

ALARM WILL NOT SOUND

• Avoid contact with the cot when the monitor is ON.
• Place cot near a solid supporting wall to avoid Sensor Pad from detecting movement from outside the cot.
• You may need to decrease the sensitivity, refer to Step 5.1.

NO SOUND IS BEING TRANSMITTED

• Bring the Parent Unit closer to the Camera.
• Recharge the Parent Unit.
• Check connections or change to another electrical outlet.
• Ensure both units are ON.
• Ensure mains supply units are activated.
• Check on the top bar of the Parent Unit to see if the monitor is on MUTE instead of ON. Refer to Step 5.2.

CAMERA POWER ON INDICATOR (GREEN LIGHT) DOES NOT LIGHT UP

• Check connections or change to another electrical outlet.
• Slide the Camera ON/OFF switch to the ON position.

WEAK RECEPTION

• Bring units closer together.
• Change the position of one or both units.
• Place units on a flat surface away from baby's reach.
• Recharge the Parent Unit.

STATIC, DISTORTION, INTERFERENCES (FROM OTHER MONITORS, WIRELESS PHONES, WALKIE-TALKIES, ETC.)

- Rotate Parent Unit or move it away from source of interference.

FEEDBACK (LOUD NOISES EMITTED FROM THE PARENT UNIT)

• Move units farther apart (at least 3 meters).
• Decrease volume on Parent Unit.

THE PARENT UNIT SCREEN IS BLACK (PARENT UNIT IS OFF)

• Turn the Parent Unit back ON by pushing and holding the POWER ON/OFF button for 2 seconds.
• Recharge the Parent Unit.

LIMITED WARRANTY

Angelcare* warrants to the original owner of this product that Angelcare* monitor is free from any material and workmanship defects for the term of the warranty period (see warranty table below to determine the warranty for your country). If this monitoring system fails to function properly when used as directed under normal conditions and during the warranty period, Angelcare * will either repair or replace the product, at our discretion, free of charge. Please contact your local distributor to validate warranty and warranty period.

The product must be accompanied by a proof of purchase, either a bill of sale or other proof that the monitoring system is within the warranty period. Angelcare ^® will bear the cost of repairing or replacing the product and shipping it back to you.

This warranty does not apply to a product which has been damaged as a result of improper maintenance, an accident, improper voltage supply or any other form of misuse. The warranty is also void if the owner repairs or modifies the product in any way. Angelcare® is not liable for any incidental or consequential damages with regard to this product. The warranty also excludes any liability other than what is stated above. No other warranty is given.

This warranty does not cover products and accessories which are not Angelcare-branded, or any problems that result from usage that is not in accordance with product instructions, failure to follow the product instructions, or problems caused by using accessories, parts or components not supplied by Angelcare.

LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. WE ARE NOT IN ANY WAY RESPONSIBLE FOR ANY OUTCOME RESULTING FROM THE USE OF THIS PRODUCT.

IMPORTANT! This Angelcare® monitor monitor is a personal care product. Please do not return this product to the store. If you have questions or need help, please call your distributor before returning this product.

Please contact your local distributor for warranty information. Find your local distributor by visiting our website: international.angelcarebaby.com

WARRANTY TERM PER COUNTRY
North America 1 year
UK, South Africa, Russia	1 year
Other Countries	2 years

TECHNICAL SPECIFICATIONS

Range:

Open field (Open area without obstructions): up to 250 meters.

Number of Channels:

USA/Canada: 19 channels. Europe: 64 channels.

Power Supply:

1 included Li-Ion battery (Parent Unit) 100 - 240 VAC / 5 VDC adapter for the Parent Unit 100 - 240 VAC / 5 VDC adapter for the Camera

Caution: To reduce the risk of electric shock, do not expose this product to rain or moisture.

Danger of explosion if batteries are incorrectly replaced. The battery included for the Parent Unit is a user replaceable Li-ion rechargeable battery, manufactured by SPRINGPOWER TECHNOLOGY (SHENZHEN) COMPANY LIMITED. Only use the Angelcare recommended replacement battery. To obtain information on replacement batteries please contact Angelcare customer service: www.angelcarebaby.com or contact your local distributor. Instructions will be included with the replacement battery. Keep all batteries away from children.

PROTECT THE ENVIRONMENT

The wheelie bin symbols mean that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When the product/battery reaches its end of life take it to a collection point designated by local authorities. The separate disposal and recycling will help conserve natural resources and protect human health and the environment. Refer to User's Guide for removal of batteries.

BATTERY INFORMATION

Rechargeable Li-ion Battery 1ICP5/46/45 Made in China Model: 454543 3.7V 1000mAh 3.7Wh YYYY/EH Springpower Technology (Shenzhen) Co., Ltd.

WARNING:

• CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
• Do not disassemble, crush, puncture the battery, or allow metal to touch battery terminals (short-circuit).
• Do not dispose of in fire or incinerate.
• Do not store or expose in high temperature environment (140 degree F/60 degree C).
• Do not use the battery after immersed in water.
• Refer to user's manual before use this battery.

Transmission:

Data transmission between the Parent Unit and the Camera is made on the 2.4 GHz frequency.

Maximum RF Power Transmitted = 20dBm (100mW)

Hereby, Angelcare Monitors Inc., declares that this Baby Monitor is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: international.angelcarebaby.com/declaration-of-conformity.

ErP COMPLIANCE

USE ONLY THE FOLLOWING ANGELCARE® BRAND POWER SUPPLY MODEL NUMBERS:

EUROPEAN UNION (INCLUDING GERMANY) - K05S050060G

UK - K05S050060B

See product for compliance marks specific to this device.

www.angelcarebaby.com
