USER MANUAL XENARO GDP 5100 GRUNDIG

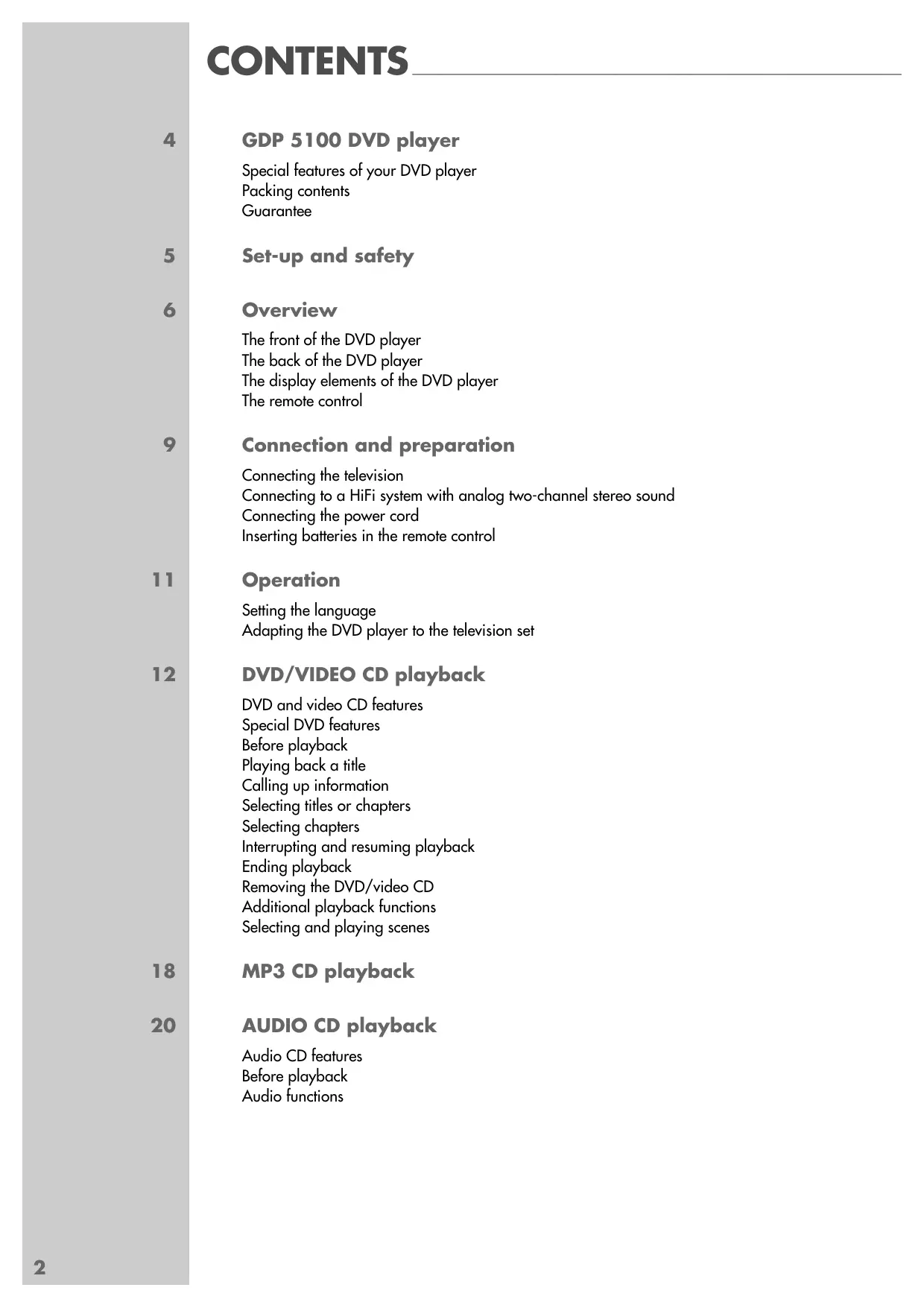

CONTENTS GDP 5100 DVD player Special features of your DVD player Packing contents Guarantee Set-up and safety Overview The front of the DVD player The back of the DVD player The display elements of the DVD player The remote control Connection and preparation Connecting the television Connecting to a HiFi system with analog two-channel stereo sound Connecting the power cord Inserting batteries in the remote control Operation Setting the language Adapting the DVD player to the television set DVD/VIDEO CD playback DVD and video CD features Special DVD features Before playback Playing back a title Calling up information Selecting titles or chapters Selecting chapters Interrupting and resuming playback Ending playback Removing the DVD/video CD Additional playback functions Selecting and playing scenes MP3 CD playback AUDIO CD playback Audio CD features Before playback Audio functions

CONTENTS Parental lock Locking and releasing the disc tray of the DVD player Authorising the contents of a DVD Sound settings Surround sound settings Picture settings Selecting the picture format for your television Selecting filter functions Custom settings Settings in the »Player menut menu Selecting the language of the screen menu Setting the TV system Setting the screen menu and the display of the DVD player Language settings Using external devices Connecting to a digital multi-channel amplifier Connecting to a HiFi system with digital two-channel stereo sound (PCM) Adapting the digital output to the digital multi-channel amplifier Adapting the analogue output to the HiFi system Television remote control INFORMATION Technical data General instructions for laser devices Rectifying minor problems Cleaning CDs and DVDs GRUNDIG Service

Special features of your DVD player HIS (DIGITAL VIDEO) COMPACT DIGITAL AUDIO Your DVD player gives you perfect digital video playback in studio quality. It also provides superb cinema-quality audio playback — in stereo or with digital multi-channel sound — depending on the type of DVD and the HiFl system or ste- reo television. Other features of DVD video include the choice of audio channel and language, choice of subititle language, and various camera recording angles. In addition to DVDs, your DVD player can also play MP3, video and audio CDs. Your DVD player is suitable for DVDs with regional code 2. Packing contents [2° 6000 o0e safe 0000 8e (OÙ °cce

© © © @ © ©® 1 GDP 5100 DVD player 2 2 batteries, 1.5 V-, mignon type 3 Remote control 4 Operating manual 5 Power cord Guarantee: We wish to point out explicitly that only operating software authorized by GRUNDIG is permissible for the DVD player. You can obtain this software from your dealer, or in the near future from the Grundig Websites www.grundig.com or www.grundig.de. Any instance of operating software from a dubious Internet source being loaded into the device Will impair functioning and also, due to unauthorized intervention, invalidate any claims under the guarantee. As a rule, GRUNDIG dedlines to refund any costs resulting in such cases. Any repair costs thus due, even those occurring within the guarantee period, are to be paid by the customer.

Please note the following points when setting up the DVD player: This DVD player set is designed to play video and audio signals from compact dises (DVD and CD). Any other use is expressly prohibited. IF the DVD player is subject to a sudden change in temperature, for example if brought in from the cold to a warm room, connect it to the mains supply and let it stand for at least two hours before you insert a DVD. The DVD player is designed for use in dry rooms. IF you do use it in the open, please ensure that it is protected from moisture, such as rain or Water splashes. Place the DVD player on a hard, level surface. Do not place any objects such as newspapers on the DVD player or any cloth or similar articles underneath it. Do not place the DVD player close to heating units or in direct sunlight, as this Will impair cooling. Do not insert foreign objects in the air vents or the disc compartment. Never open the DVD player casing under any circumstances. The manufacture accepts no liability for damage resulting from improper handling. Do not place any vessels such as vases on the DVD player, as they may spill liquid, thus presenting a safety risk. Thunderstorms are a danger to all electrical devices. Even if the DVD player is switched off, it can be damaged by a lightning strike to the mains. Always remove the mains plug during an electrical storm. IF the DVD player is unable to scan DVDs or CDs perfecly, use a standard com- mercial cleaning CD to clean the laser optics. Other cleaning methods may damage the laser optics. Always keep the disc compartment closed to prevent dust from collecting on the laser optics. This DVD player is designed to the highest technological and environmental standards. Only ecologically compatible, high quality materials have been used. The batteries included are free of mercury and cadmium. The range of materials used has been deliberately restricted and all the larger plastic parts have been labelled. This DVD player is easily disassembled to make servicing easier and optimise recycling. ü ENGLISH

OVERVIEW The front of the DVD player GRUNDIG Xenaro

[e] Switches the DVD player to and from stand-by mode. Switching the DVD player off does not mean it is disconnected from the mains. Selects the previous title or section during playback. Press and hold down to switch to reverse frame search during playback (20-speed). Selects the next title or section during playback. Press and hold down, switches to forward frame search during playback (20-speed). Opens and closes the dise compartment. Stand-by indicator. Display. Compartment for DVDs/CDs. Starts playback. Press and hold down (4 seconds) to switch the video strobe function on. Press once to activate the RESUME” function. Press twice to switch to "STOP” mode. Press once to pause. Press twice to advance the picture playback frame by frame. Press and hold down to start the playback at half speed (slow motion].

OVERVIEW The back of the DVD player @æ Ô sun era moon @' 5 Gs) À me Q e Re > CE AUDIO OUT LR Audio output jacks (left/right channel) for con- nection to a HiFi system. S-VIDEO OUT Video-output jack for connecting a television set with an S-VHS jack. EURO AV — TV Video/audio output jack for connecting a televi- sion set. DIGITAL AUDIO OUT Audio output jack (coaxial) for PCM/MPEG2/AC3/DTS signals, for connecting a digital multichannel audio/video amplifier. 220-240V- 50/60Hz 20W Socket for power cord. Caution: Do not connect any devices while the DVD player is switched on. Never touch the inside of the sockets and plugs of the connecting cables. An electrostatic discharge can damage the DVD player. The display elements of the DVD player ll DVD VCD TITLE CHAPTER >» Playback. »Hx Pause/Freeze-Frame. » DVD « DVD inserted. »VCD« VCD inserted. » CD A-B« One of the Repeat functions is activated. »DOD« The DVD provides a Dolby Digital audio signal. »D 1 TITLEG Number of the title on a DVD. »0 1 CHAPTER& Number of the section on a DVD or CD or the track on a music CD. Function display for playback, pause, search etc., switched off on delivery. »O: 00:00 Total or elapsed playing time in hours, minutes and seconds. N ENGLISH

GRUNDIG Tele PiotE1 D The remote control Switches the DVD player on from stand-by mode [the red indicator on the DVD player is lit) and off again (stand-by]. Numeric keys for various inputs. Zooms in on scenes during playback. For marking and repeating sections on DVDs and video CDs or tracks on audio CDs. Selects various camera angles for certain scenes or passages on the DVD during playback. Calls up the DVD player menu. Switches the sound of the television set off [mute). Quits the menu or returns to the previous menu level. Select various functions in the menus. Select various functions in the menus; » 4 « quits the menu or returns to the previous menu level. Displays various information on the television screen during playback, such as the title or chapter number and playing time. Confirms selections made from the menus. Calls up the disc menu of the DVD/video CD during playback; switches the content menu of a MP3 CD on and off. Calls up the title menu of a DVD during playback; calls up the info menu of a MP3 CD. Marks scenes on a DVD. Freeze-frame for DVDs and video CDs. Pause for audio CDs Press and hold down for slow motion (DVD). Interrupts the currently running function. Starts playback. Selects the previous title or section during playback. Selects the next title or section during playback. Switches to reverse frame search at various speeds during playback. Switches to forward frame search at various speeds during playback. Switches between the original and the dubbed language during DVD play- back. Switches the remote control from video recorder operation to TV operation, see the options described on page 34. For selecting and displaying subititles on the DVD during playback.

Connecting the television … UE IE UN I

.… using a EURO-AV cable 1 Plug a standard EURO-AV-cable into the »EURO AV — TV socket on the Û == DVD player and the appropriate socket (AV 2) on the television set. , Note: Ifthe DVD player is connected via the »EURO AV — TV« socket, you must carry out the setting described in ”Selecting the video output socket (RGB or S-Video)” on page 11. .… using a Y/C cable (S-VHS) and cinch cable 1 Plug a standard Y/C cable into the »S-VIDEO OUT« socket on the DVD player and into the appropriate socket (S-VIDEO IN) on the television. 2 Plug a standard cinch AV cable into the » AUDIO OUT L R« sockets on the ] DVD player and the appropriate sockets (AUDIO IN) on the television. Note: If the DVD player is connected via the »S-VIDEO OUT socket, you must carry out the setting described in ”Selecting the video output socket (RGB or S-Video)” on page 11. IFthe DVD player is connected to a television set with a 16:9 format, observe the settings described in the ”Selecting the screen format of the television” section on page 11. The colour norm of the DVD player's screen menus has to be adapted to the format of the television. Make sure to observe the settings described in the ”’Setting the TV system” section on page 27. For information on connecting a HiFi system with analogue two-channel ste- reo sound, see page 10. For information on connecting a digital multi-chan- nel amplifier or a HiFi system with digital two-channel stereo sound, see page 30. © ENGLISH

Connecting to a HiFi system with analogue two- channel stereo sound As an alternative to using the television's speakers, the sound can also be played back through a HiFi system.

1 Plug a standard cinch cable into the » AUDIO OUT L R« sockets on the DVD player and into the appropriate sockets on the HiFi system. Caution: Do not connect the DVD players » AUDIO OUT L R« sockets to the PHONO sockets (record player input) on the HiFi system. Connecting the power cord 1 Plug the power cord supplied into the »220-240V « socket on the back of the the DVD player. 2 Insert the power cord plug into the socket. Caution: The only way to disconnect the DVD player from the mains supply is to pull the plug. Inserting batteries in the remote control 1 Open the battery compartment by pressing the snap-catch, and remove the lid. 2 When inserting the batteries (mignon type, for example, LR 6 or AA 2 x 1.5 V), observe the polarity marked on the battery compartment. Note: IFthe DVD player no longer reacts properly to remote control commands, the batteries may be flat. Always remove flat batteries. No liability is accepted for damage resulting from leaking batteries. Environmental note: Batteries, including those which are heavy metal-free, may not be disposed of with household waste. Please dispose of used batteries in an environ- mentally sound manner. Find out about the legal regulations which apply in Your area.

DVD and video CD features You can recognise DVDs, s-video CDs and video CDs by the logo on the label. Depending on the contents of the DVD, s-video CD or video CD (films, video clips etc.}, they may carry one or more titles. Each title may contain one or more chapters. Titles and chapters can be selected easily and conveniently. You can control and direct playback of a DVD, s-video CD or video CD using the menu of the DVD player on the television screen. Some of the DVD player’s functions, such as video strobe or slow motion, can not be selected when playing back a video CD. This depends on the video CD. Special DVD features DVDs have a title menu which provides an overview of the titles available and the passages they contain. Some of the DVD player's functions, such as slow motion, freeze-frame and auto-play, can also be controlled by the DVD itself. It is therefore possible that the freeze-frame function, for example, cannot be selected during certain scenes. Many DVDs have audio tracks recorded in up to eight languages. This enables you to select the language you prefer. Many DVDs are recorded by the manufacturer with subtitles in several languages. You can select subtile superimposition from up to 32 different languages. Since films are released in different parts of the world at different times, all DVD players world-wide are given a regional code. Your DVD player has been given region code 2. DVDs can also be given a supplementary regional code. If you insert a DVD with different code to that of the DVD player, a reference to the regional code appears on the television screen. The DVD player will not be able to play back the DVD. Before playback Preparation 1 Switch on the television and select the channel for the DVD player. 2 Ifa HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player. 3 Press » (D« to switch on the DVD player. — On-screen display: »no disc. Note: When the parental lock is activated, the »« display appears. You must deactivate this lock. See the chapters on locking and releasing the disc compartment of the DVD player on page 22.

Inserting a DVD/video CD 1 Press »A« on the DVD player. — The disc tray opens. 2 Insert the desired DVD/video CD in the disc tray with the label facing upwards. 3 Press »Ak. — DVD-player display: »DVD«,or »VCDK,, the current chapter and the elapsed playing time of the DVD or Video-CD. Playback starts automatically. Note: IFthe DVD/video CD has not been authorised, the rating must be changed. (See the chapter on the parental lock on page 23). IFthe » O« symbol appears on the television screen, then the selected func- tion is not possible with this DVD/video CD. Playing back a title 1 After the disc compartment closes and the DVD is scanned, playback starts automatically. 2 To pause playback (freeze-frame}, press »RIk. 3 Press »D « again to resume playback. 4 End playback by pressing » Mk. Note: Depending on the DVD/video CD you are using, you may have to select a title or chapter from the DVD's/video CD'S table of contents. Use the » A «, » w&, » 4« or »« buttons to select it and then press »OK« to confirm. IFthe selection is numbered, use the » 1 … O« keys. Calling up information You can call up information on the title, chapter and playing time for display on the screen. 1 Press »OKK to see the Info line. — This provides information on: The type of disc, current title number, current chapter number, playing time, remaining playing time, language options, audio system, subtitle language, camera position and bit rate. 2 Press »OKK to hide the Info line. ENGLISH

MË 74 Le] Selecting titles or chapters If a DVD or video CD contains several titles and/or chapters, you can select from among them. The » CT «and » Ç& « boxes in the info line will tell you whether a DVD contains more than one title or chapter. 1° Call up the contents of the DVD/video CD by pressing » ©. — IFthe DVD/video CD has a title menu, it will appear on the screen. 2 Ifthe selection options are numbered, select the desired title and section using »1 … O«. 3 1fthe options are not numbered, select titles and sections with » a «, »w«, » 4€ or »h«, and activate with »OK«. — Playback begins with title/chapter selected. Selecting chapters … .… using the numerical buttons of the remote control 1 Select the desired chapter using » 1 .… O« and confirm with »OKk. — Playback begins with the chapter selected. Note: Incorrect entries can be deleted by pressing » (J«...… step by step 1 To select the next chapter, press » I during playback. 2 Return to the beginning of the chapter by pressing » IA« once. 3 To select the previous chapter, press » I4« twice. — Playback begins with the chapter selected. Interrupting and resuming playback The playback of a DVD/video CD can be interrupted at any point and then resumed from the same place. 1° Interrupt playback by pressing »I« once only. 2 Resume playback at the same point by pressing »B> «. Ending playback Playback of a DVD or video CD automatically stops at the end of a title. You can stop playback at any point by pressing »IB« twice. Removing the DVD/video CD 1 Press »A« on the DVD player to open the disc tray.

Additional playback functions Note: The sound is muted with the ”frame-search”, ’slow-motion” and "freeze- frame” functions. Some functions can not be selected. This depends on the DVD/video CD being used. Video strobe With this effect, individual video frames of the DVD are shown on the screen after each other in groups of nine. During this function, which can be used to analyse the pictures, all the picture movement functions can be selected. T During playback, press and hold down »B> « to switch on the function. 2 Resume playback by pressing »b> «. Video search You can choose from among four different speeds (forwards or reverse). 1 During playback, select the desired playback speed with » 4{« or » D «. You can select a speed which is two, four, eight or twenty times faster, for- wards or reverse. Note: With » I& or »Bl« on the device {press and hold down}, only a video search twenty times quicker is possible. 2 Resume playback by pressing »b> «. Slow motion You can choose from among four different speeds (forwards or reverse). T During playback, press »RE«. 2 Select desired slow motion speed (1/20, 1/8, 1/4, 1/2) by pressing » 4{« or » Dh «. 3 Resume playback by pressing »B> «. Frame-by-frame playback 1 During playback, press »HEk. 2 Move the freeze frame step by step backwards or forwards with »ld« or »bl«. 3 Resume playback by pressing »B> «. ENGLISH

(74 =: Repeating a chapter or a DVD These functions repeat the currently running chapter or the entire DVD. 1 During playback, press and hold down » Cp. —» D CC « appears on the television screen, the chapter is repeated. 2 During playback, press » D« and afterwards press it again. -»@D © appears on the television screen, the DVD is repeated. 3 To quit this function, press » CD+« again. Repeating a selected scene (A-B Repeat) You can use this function to select the beginning and end of a scene, and then play it over and over. 1 During playback, mark the beginning of the scene by briefly pressing » D« -»@D A appears on the television screen. 2 To mark the end of the scene, press » CD« again briefly. -»@ A:B« appears on the television screen, the marked scene is repea- ted continuously. 3 To quit this function, press » CD« again. Selecting the camera angle for particular scenes or passages Many DVDs contain scenes or passages which were filmed several times from dif- ferent camera angles. You can choose from among these different angles. IF the DVD offers this function, » PQ 1/44 appears on the television screen in the info line. 1 During playback press » 2% « to select the camera angle function. — The camera angle » 2% 2/4« appears in the display, 2 of 4 in this exam- ple. 2 Select a different camera angle by pressing » Pa «. Enlarging the picture (Zoom) 1 During playback or pause, press » [Ql«. — Display: » & X2k, the DVD player enlarges a section of the screen. 2 You can move the screen section by pressing » 4 «, »b«, » A « or » w«. 3 To return to normal picture size, press » [QJ« again.

ASS | 00:26:28 Changing the dubbed language This setting switches out of the preset dubbed language, when the DVD offers alternatives. 1 During playback, press » D «. — Display: for example » ® de 2/3 : OÙ 5.1« appears briefly, and the cur- rent dubbed language is displayed. 2 To set the desired language, press » ? « repeatedlly. Selecting and displaying subtitles IFthe current DVD provides subititles, they can be displayed on your TV screen. When subtitles in several languages are available, you can select your langua- ge of choice. 1 During playback, press » (=J«. — Display: for example »(=] de 2/14« appears briefly, and the current dubbed language is displayed. 2 To set the language for the subititles, press » [—]« repeatedly. Note: To switch off the subtitles, keep pressing » (=]« until »-« appears in the dis- play, or press and hold down » (=]«. Selecting and playing scenes You can mark a scene on the DVD, which you can then select directly during playback. The bookmark is retained when you remove the DVD. You can give up to 5 DVDs a bookmark. Setting a mark 1 During playback, press » (F«. Note: This mark is deleted automatically when you set a new mark. Playing selected scenes 1 During playback, press and hold down » j«. — Playback starts at the point marked. ENGLISH

Comment: come tmp Album: Upped by dll Var

Preparation 1 Switch on the television and select the channel for the DVD player. 2 Ifa HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player. 3 Press » ()« to switch on the DVD player. — On-screen display »no disce. Inserting an MP3-CD 1 Press »A« on the DVD player. 2 Insert the MP3 CD in the disc compartment, with the labelling facing upwards. 3 Press »A«. — The DVD player displays the number of titles and the playing time of the MP3-CD. — À menu appears on the screen showing the content of the MP3 CD. Playback 1 Select the folder or track required with » à « or » w «. Note: A folder can contain tracks, which can be called up with »OKk. 2 Start track playback with »B «. — The number of the track and the playing time appears in the display on the DVD player. Note: For information about the MP3 CD, press »TITLEK. To see the contents of the MP3 CD, press » O«. 3 To pause playback, press » EIk. 4 Press » > « again to resume playback. Selecting a different track 1 To select the next track, press » B|« during playback. 2 To select the previous track, press » | « during playback.

Selecting a different folder and other tracks This can be done if the MP3 CD contains several folders. 1 Press » @)« to call up the Contents menu [file browser]. 2 Press »IMx to end playback. 3 IFthe Contents menu displays tracks, press » 4« to switch back one level. 4 Select the folder by pressing » À « or » w«. Note: If you want to play all the tracks in a folder, press »B>«. 5 Press »h « to see the tracks in the folder. 6 Press » A « or » w « to select the track you want to hear and then »B-« to start playback. Ending playback 1 End playback by pressing »k. Removing an MP3-CD 1 Press »A« on the DVD player to open the disc tray.

Audio CD features Compacr An audio CD is identified by this logo. Audio CDs contain only music recordings. They can be played in the normal DIGITAL AUDIO manner on a HiFi system.

Before playback Preparation 1 Switch on the television and select the channel for the DVD player. — With this you can see the DVD players displays. 2 Ifa HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player. 3 Press » ()« to switch on the DVD player. — Display on the DVD player and television »no disc«. Inserting an audio CD 1 Press »A« on the DVD player. — The disc tray opens. y op: 2 Insert the audio CD in the disc tray, with the labelling facing upwards. 3 Press »A«. — The CD is loaded. — The DVD player displays the number of tracks and the total playing time ofthe CD. Calling up the info line 1 Press »OKK to call up the info line. — The info line is displayed. Here you find information about the CD, inclu- ding the number of tracks, the playing time of the tracks, the playing time remaining, the audio system and the data flow. Audio functions Playing back a track 1 Start playback with »B «. — Playback stops automatically at the end of the CD. Cr) Cu] 2 To pause playback, press » REk.

Selecting a different track 1 To select the next track, press » B|« during playback. 2 Return to the beginning of the track by pressing » IM« once. 3 To select previous track, press »|4« twice. — Playback begins with the track selected. 4 To select a track directly, enter the one or two-digit number of the track with » 1. 0 and press »OKK to confirm. Interrupting and resuming playback The playback of a CD can be interrupted at any point and then resumed from the same place. 1 Interrupt playback by pressing »II« once only. 2 Resume playback at the same point by pressing »B>- « Ending playback Playback of the CD stops automatically at the end of the last track. You can stop playback at any point by pressing »« twice. Repeating a title or an audio CD These functions repeat the track currently being played or the entire audio CD. 1 Press and hold down » D« during playback. —»@ CT « appears on the television screen, the track is repeated. 2 During playback, press » 4 and afterwards press again. -»@D © appears on the television screen, the audio CD is repeated. 3 To quit this function, press » CD« again. ENGLISH

PARENTAL LOCK With the parental lock you can: — Lock the disc tray of the DVD player. — Block scenes which are not appropriate for children from DVDs or video CDs, or select alternative scenes. Locking and releasing the disc tray of the DVD player Locking the disc tray of the DVD player T Press »i« to call up the main menu. 2 Select the »Child lock line with » # « or » À « and activate with »OKK, or GE select directly with »1 … Ox. sect 929 and choose © task —— 3 Enter » 1« »9« »9« »9« with the number keys. — The »Child lockt menu is displayed, the parental lock status (»Onx or »Off«] is shown. Cm 4 Select the »Player lockt line with » w « or » À « and activate with »OKk. Chr 5 Lock the DVD player with » A « or » w « [»Onc) and confirm with »OKk. 6 Press »ix to quit the menu. a Séect 922 and choose © back Note: The »A« button on the DVD player is locked and »x is displayed each time it is pushed. A disc in the DVD player can be played. Releasing the disc tray of the DVD player 1 To release the disc tray, repeat steps 2 to 5 in the ’Locking the disc tray on the DVD player” chapter, select the »Off« display with » A « or » w« and confirm with »OKk. 2 Set 12.) and choose

PICTURE SETTINGS Selecting the picture format for your television This setting is dependent on the chosen TV format, see the ’Selecting the screen format for your television” chapter on page 11. IF 4:3 format is selected, you can set: »Pan&Scant for wide-screen playback using the full height of the screen, but With the left and right edges of the picture cropped. »Letterboxt for wide-screen playback with black bars on the top and bottom edges of the screen IF 16:9 format is selected, you can set: »Use TV settings for resetting the format by the television set. »Automatic« for adapting the picture format automatically by the DVD player. »Original« for 4:3 playback with black bars on the left and right edges of the screen. »Cinema zoomt, where the picture is enlarged to the width of the screen, and the upper and lower edges of the picture are cropped. Picture Dijomt ____ [ 1 Press »ic to call up the main menu. xdended set 2 Select the »Picture« menu with » w « or » À « activate with »OKK, or select directly with » 1 … Ok. 43 select © exit 1820 and choose © back —— 3 Select the »Formatx line with » w « or » À « and activate with »OKK. Format 4 Select the desired setting for 4:3 format (»Pan&Scant or »Letterboxe} with »Y or » À «€ and press »OKK to confirm; Letterbox

Return to the »Extended settings« menu by pressing » Software status and dealer menu Here you can get information about your DVD player’ software version. The »Dealer Service menu line is reserved for the authorised dealer. T Select the »Dealer Service menu line by pressing » #« or » & « and then press » OKK to activate it. 2 Select the » System informationent line by pressing » # « or » & « and then press » OKK to activate it. 2 select 922 and choose © back 3 Press »i to quit the menu.

CUSTOM SETTINGS Language settings rences 1 Press »ic to call up the main menu. Audio language GES TS Monutamguage ——_Enoi 2 Select the »Disc preferencest menu with » # « or » A « and activate with »OKK, or select directly using » 1 … Ok. Note: For further operation, see the following sections, each one starting from Step 1. Selecting the dubbed language If several languages are available on the current DVD, the sound is played back in the language you have selected. IFthe language you select is not on the DVD, the first dubbed language available is automatically selected. 1 Select the » Audio language line by pressing » « or » & « and then press »OKK to activate it. z 2 Select the desired dubbed language with » w « or » A « and confirm with 029 and choose »OK«. Selecting the language for the subtitles IF subtitles are available on the current DVD, they are played back in the language you have selected. IF the language you have selected for the subtitles is not on the DVD, the first language available is automatically selected. 1 Select the » Subtitle line with » w « or » À « and activate with » OK« 2 Select the desired language with » # « or » À « and activate with »OK«. D select

Note: When the »OfKK line is selected, the subtiles are not displayed. Selecting the language of the DVD menus If a DVD has menus in several languages, you can select the language of your choice. Menu language German T Select the »Menu languaget line with » #« or » A « and activate with »>OKk. (Duich 2 Select the desired language for the DVD menus using » # « or » A « and press »OKK to confirm. CAF — 3 Press vit to switch off the menu. ENGLISH

Connecting to a digital multi-channel amplifier The digital multi-channel sound of a DVD can best be decoded and played with a multi-channel audio/video amplifier (Dolby* digital decoder or DTS).

ST _ fe Ü (A B 1° Plug a standard cinch cable into the »DIGITAL AUDIO OUT socket of the DVD player and into the appropriate socket on the digital multi-channel amplifier.

• Manufactured under license from Dolby Laboratories Licensing Corporation. Dolby”, "Dolby Pro Logic”, "AC 3" and the double-D symbol "DU" are trademarks of the Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories, Inc. All rights reserved. Connecting to a HiFi system with digital two-channel stereo sound (PCM)

1 Plug a standard cinch cable into the »DIGITAL AUDIO OUT« sockets on the DVD player and into the appropriate sockets on the HiFi system. Note: The correct digital output format must be set on the DVD player. For this, you must observe the settings in the “Adapting the digital output to a digital multi-channel amplifier” chapter starting on page 31.

(Cora |originat Output level 008 NR saect 189 and choose

Extended setings F [Dita

You can also operate GRUNDIG televisions with this remote control. The functions available to you depend on the model of the GRUNDIG television. Point the remote control directly at the TV. TV Switches the remote control to television operation. ee To do this, press and hold down »TV« then press the relevant button for the desired function. d Switches off the television set (stand-by).

1.0 Switches the television off, stand-by on.

Selects the television channel directly. » O « selects the channel posi- tion » AP«. In video text operation: for entering the three-figure page number.

[rez] In television operation: inset picture in main picture. (=) Switches the picture format.

i Calls up the "DIALOG CENTER” or switches to menu operation. ©0000 o ©:

AY Select TV channels, » À « up, » w « down. In menu mode: » A « cursor up, » w « cursor down. TXTO Switches from TV operation to video text operation and back. TV-GTitle Switches the TV guide on and off again. (A In teletext mode: returns to the previous page. >! In teletext mode: advances to the next page. « In teletext mode: switches to the next theme. D} In teletext mode: switches to the next chapter. 9 Calls up the sound menu. 8 Calls up the screen menu.

tional safety regulation IEC 60065. improper handling. Mains voltage:

220 - 240V -, 50/60 Hz

Power consumption: Operating: approx. 20 W Stand-by: < 5 W Ambient temperature: +10°C to +35°C Playback standard: PAL, 50 Hz, 625 lines NTSC, 60 Hz, 525 lines Playback system: DVD video, video CD, $ video CD, MP3-CD, audio-CD

Laser: Semiconductor laser Wavelength 650 nm DVD Wavelength 780 nm CD This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC. This device conforms to the safety regulation DIN EN 60065 [VDE 0860) and therefore the interna- You may not open the DVD player. The manufacturer accepts no liability for damage resulting from Audio format: Digital: MPEG2/Dolby Digital, PCM, DTS Analogue: Stereo sound, Dolby Pro Logic Audio: Signal: Analogue DVD: 48/96 kHz AHz-22/44 kHz Video CD: 44.1 kHz 4Hz-20 kHz Audio CD: 44.1 kHz 4Hz-20 kHz Signal-to-noise ratio at 1 kHz}: 95 dB Sound volume at 1 kHz}: 95 dB Dimensions and weight: Dimensions: WxH xL 360 x 73 x 24.6 mm Weight 2.4 kg General instructions for laser devices CLASS 1 LASER PRODUCT Caution: rous exposure to emissions. or serviced by trained personnel. Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances. If operating devices or methods other than those specified here are employed, it may lead to dange- This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened If seHings other than those specified here are employed or OTHER PROCEDURES are carried out, this may lead to dangerous radiation exposure. This product contains components which are covered by certain U.S. patents or for other reasons are considered intellectual property of the Macrovision Corporation and other proprietors. Use of this protected technology must be approved by the Macrovision Company and is only permissible for private presentation at home or for other limited applications, where no special permission has been granted by Macrovision. Reproduction or disassembly of the device is prohibited. Manufactured with permission from Dolby Laboratories. The "Dolby label and the double-D logo “DU” are trademarks of Dolby Laboratories. Confidential unpublished material. ©1992-1997 Dolby Laboratories, Inc. AI rights reserved. When playing DTS-encoded CD's & DVD's, excessive noise will be exhibited from the analog ste- reo outputs. To avoid possible damage to the audio system, the consumer should take proper pre- cautions when the analog stereo outpuis of the DVD player is connected to an amplification sys- tem. To enjoy DTS Digital Surround playback, an external 5.1 channel DTS Digital Surround deco- der system must be connected to the digital output (S/PDIF) of the DVD player. "DTS" and "DTS Digital Ouf" are registered trademarks of Digital Theater Systems, Inc. ENGLISH

INFORMATION Rectifying minor problems Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control. IF the following measures do not bring about satisfactory results, consult an authorised dealer. Fault Cause/Remedy DVD player does not respond to remote | Point the remote control direcily at the DVD player. control Remove all obstacles which may impair the path of the remote control signal. Check or replace the remote control batteries. No picture Check the video connection. Distorted picture Make sure that there are no fingerprints on the DVD/CD, follow the cleaning instructions on this page. DVD/CD cannot be played Check that the label on the DVD/CD is facing upwards. Clean the DVD/CD. Check if the DVD/CD is damaged by testing it with another DVD/CD. No sound Check the audio connections. Try another playback source. Distorted sound from HiFi system Ensure that the audio connections have not been connected at the phono input on the amplifier. Cleaning DVDs and CDs Wipe the dirty DVD/CD with a cloth from the centre outwards in a straight line. Do not use any solvents such as petrol, thinners, conventional cleaner or anti-static spray for vinyl records.
