USER MANUAL VCH 5730 HANDSTAUBSAUGER WET DRY GRUNDIG

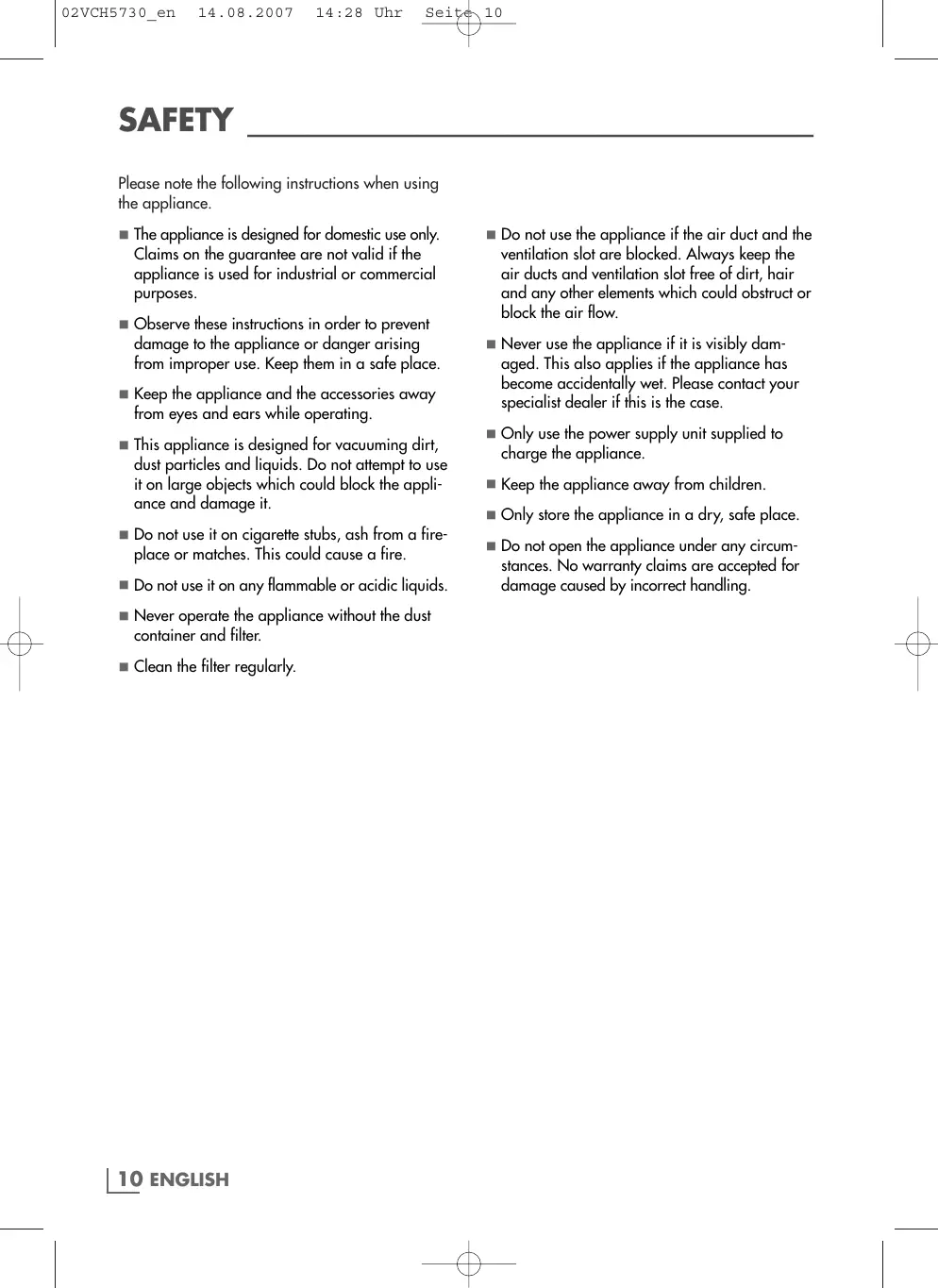

Seité 10 Please note the following instructions when using the appliance. m The appliance is designed for domestic use only. Claims on the guarantee are not valid if the appliance is used for industrial or commercial purposes. m Observe these instructions in order to prevent damage to the appliance or danger arising from improper use. Keep them in a safe place. m Keep the appliance and the accessories away from eyes and sars while operating. 2 This appliance is designed for vacuuming dirt, dust particles and liquids. Do not attempt to use it on large objects which could block the appli- ance and damage it. m Do not use it on cigarette stubs, ash from a fire- place or matches. This could cause a fire. m Do not use it on any flammable or acidic liquids. m Never operate the appliance without the dust container and filter. æ Clean the filter regulariy. [10 ENGLISH m Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air ducts and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow. æ Never use the appliance if it is visibly dam- aged. This also applies if the appliance has become accidentally wet. Please contact your specialist dealer if this is the case. m# Only use the power supply unit supplied to charge the appliance. = Keep the appliance away from children. m Only store the appliance in a dry, safe place. m Do not open the appliance under any circum- stances. No warranty claims are accepted for damage caused by incorrect handling.

Dear customer, We hope you enjoy using your new GRUNDIG handheld vacuum cleaner with its built-in Microban hygiene protection. Special features - Upholstery brush for cleaning skirting boards, fabric surfaces such as upholstery and pieces of furniture, for example picture frames. — Crevice nozzle for parts that are difficult to reach. — Attachment for wet operation. — Microban® hygiene protection. What is Microban° ? Microban® is odourless, tasteless and colourless. Microban! inhibits the growth of microorganisms by permeating the cell walls and destroying the micro-organisms, These cells are then no longer able to reproduce and growth is prohibited. Grundig offers an effective way to clean floors hygienically with the impressive technology from Microban?. The Grundig dust filter is equipped with the integrated Microban® hygiene protection. This even inhibits the spread of tiny microscopic particles including house mites, pollen and dust. Dangerous bacteria can hard}y survive with the integrated Microban® hygiene protection. Microban technology has been tested in inde- pendent laboratories and certified, thus making a significant contribution towards a healthier household. Controls and individual parts Unfold page 2 so that you have the illustration in front of you. EX Switch for turning on and off. [ Button to open the dust container. I Dust container. E Filter (inside the dust container). E Suction intake. I Engine housing. E Charging display (LED). El] Handle. Accessories I Charging unit for wall mounting with power supply unit (see page 13). EX Microban® hygiene protection replacement filter. EX Crevice nozzle. LA Upholstery brush. [ Atiachment for wet operation. ENGLISH 11 |

Your appliance is supplied with three attachments: The crevice nozzle, the upholstery brush and the attachment for wet operation. The parts can be stored in the charging unit. “Mi Crevice nozzle Use the crevice nozzle [4 for cleaning crevices and corners that are difficult to reach [such as PC keyboard). 1 Switch off the appliance.

2 Press the crevice nozzle firmly into the suction intake EI of the appliance.

[12 ENGLISH Upholstery brush Use the upholstery brush EM for cleaning skirting boards, fabric surfaces such as upholstery and pieces of furniture for example, picture frames. 1 Switch off the appliance. 2 Press the upholstery brush firmly into the suction intake EI of the appliance.

Attachment for wet operation Use the attachment [] for cleaning wet surfaces. Hold the appliance in an upright position and pull it towards you. The rubber lip must be positioned behind the liquid. 1 Switch off the appliance. 2 Press the attachment firmly into the suction intake of the EI appliance.

OPERATION Seite 13 Charging unit for wall mounting Attach the charging unit EE to the wall. Caution m Do not mount the charging unit close to a heat- ing unit or in direct sunlight. Do not mount the charging unit outside. m Make sure the place you select for mounting is free of any concealed electrical wiring and water or gas pipes. 1 Select a place near a socket (230 V, 50 Hz] for connecting to the power supply unit. 2 Select an appropriate drill for the screws and wall plugs supplied. 3 Drill io holes approx. 30 cm above the floor, insert he wall plugs and screw in the screws. 4 Plug the power supply unit into the M charg- ing unit and rotate it by 90°. 5 Hang the charging unit on the screws.

Charging Check to see whether the type plate on the power supply unit corresponds to your local mains supply. 1 Press the EX button to switch off the device. 2 Fit the appliance exacily into the charging unit 3 Plug the power supply unit into the socket. — Charging begins, the charge indicator [EI lights up red. — The charge indicator lights up until the appli- ance is removed from the charging unit or the power supply unit is disconnected. Notes m Charge up the batteries completely [14 hours) before you first use them or if you have not used them for a long time. # Charge the appliance at room temperature. Low or high temperatures will affect the service life of the battery. m The ambient temperature should be between 5 °C and 40 °C. m The operating time is approx. 18 minutes after it has been charged. m The power supply unit heats up while it is charging. This is normal. mA lace the appliance back in the charg- En ie The batteries will be : recharged and the appliance is ready to use at all times. If you do not intend to use the appli- ance for a long time (for example two weeks), disconnect the power supply unit from the socket. ENGLISH 13 |

Seité 14 Switching on and off and using 1 Remove the appliance from the charging unit 2 Depending on the type of cleaning, insert one ofthe three attachments into the suction intake 3 Push the EXswitch forwards to switch on the appliance. 4 Push the EX switch backwards to switch off the appliance. 5 Remove the attachment. 6 Fit the appliance exactly into the charging unit

Emptying and cleaning the dust container 1 Hold the appliance upright with the suction intake [A facing downwards. 2 Press the [A button and remove the dust con- tainer downwards. 3 Remove the holder and filter EI from the dust container. Notes = Wash the filter with warm soapy water occa- sionally. After washing, leave it to dry com- pletely. Use the spare filter in this case. 4 Empty the dust container M, wash it and leave itto dry. Note M Leave the dust container to dry completely before you put it back again. 5 Hold the appliance upright. 6 Press the EX button and put the LI dust con- tainer back in. 7 Release the button M. — The catch must latch in. [14 ENGLISH Cleaning and care m Do not clean the appliance with chemical clean- ing agents. This could damage the housing. # Only clean the appliance with a damp cloih and a mild detergent. m Brush out the filter over a dustbin. æ Wash the filter and the inside of the dust con- tainer with warm soapy water. Do not wash the filter in the washing machine. æ The filter and dust container must be completely dry before they are used again. Replacing the battery The battery may only be replaced by an autho- rised technician.

Seite 15 Environmental note This product has been made from high-quality parts and materials which can be re-used and recycled. Therefore, do not throw the product away with normal household waste at the end of its service life. Take it to a collection point for recycling elec- frical and electronic devices. This is indicated by this symbol on the product, in the operating man- ual and on the packaging.

Please find out about collection points operated by your local authority. Help protect the environment by recycling used products. Technical data This product fulils he European CE | directives 2004/108/EC and 2006/95/EC. Serial number GMM 1300 Power supply 230V-, 50 Hz, at the socket DC 9 V at the charging unit Rechargeable battery: Nickel metal hydride Protection class

Ni-MH nl Technical and design modifications reserved. ENGLISH 15 |
