Product Type	Cordless Stick Vacuum Cleaner
Model	VRT70925VBV
Brand	Beko
Color	Black / Purple
Dimensions (H x W x D)	1150 x 260 x 150 mm
Weight	2.8 kg
Power Source	Rechargeable Lithium-Ion Battery (25.2 V, 2500 mAh)
Charging Time	4 - 5 hours
Run Time	45 minutes (in normal mode)
Dust Capacity	0.5 L
Filtration System	Washable HEPA filter (Cyclonic filtration)
Suction Power	20 kPa (max)
Noise Level	78 dB(A)
Attachments Included	Floor head, crevice tool, upholstery tool
Display	LED indicators for battery and mode
Lighting	LED headlights on floor head
Mounting	Wall-mountable charging station
Warranty	2 years
Maintenance	Washable filter, empty dustbin, brush roll cleaning

Frequently Asked Questions - VRT70925VBV BEKO

How do I charge the Beko VRT70925VBV vacuum?

Connect the charging adapter to the battery pack or charging base. The LED indicator will show red during charging and turn green when fully charged. Charging time is approximately 4-5 hours.

Can I use the vacuum while it's charging?

No, the vacuum cannot be used while charging. Empty the battery before use.

How do I clean the filter?

Remove the dustbin and take out the filter. Wash it under lukewarm water (no detergent) and let it air dry completely for 24 hours before reinstalling. Do not machine wash or dry.

What should I do if suction power decreases?

Check if the dustbin is full, filter is clogged, or brush roll is tangled. Empty the bin, clean the filter, and remove hair/debris from the brush roll.

How long does the battery last?

The battery provides up to 45 minutes of run time on normal mode. High-power mode reduces run time to approximately 15 minutes.

Is the battery removable?

Yes, the battery is detachable. Press the release button to slide it out. Spare batteries are available for purchase.

Can I wash the dustbin?

Yes, the dustbin can be washed with mild soap and water. Ensure it is completely dry before reassembling.

What attachments are included?

The vacuum comes with a floor head (with LED lights), a crevice tool, and an upholstery tool. Attachments click onto the main wand.

How do I store the vacuum?

Use the wall-mount charging station to store the vacuum upright. Alternatively, lean it against a wall or place it on a flat surface. Avoid storing in direct sunlight.

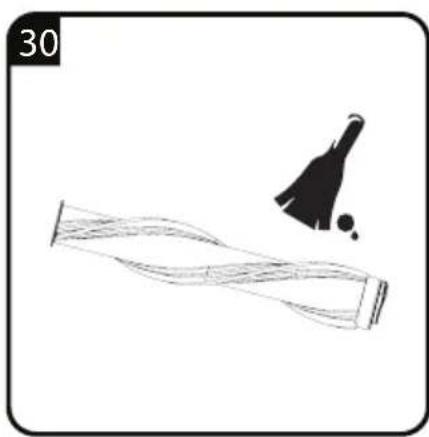

Why is the brush roll not spinning?

Check if the brush roll is jammed with hair or debris. Turn off the vacuum, remove the floor head, and clean the brush roll. Also ensure the floor head is properly attached.

USER MANUAL VRT70925VBV BEKO

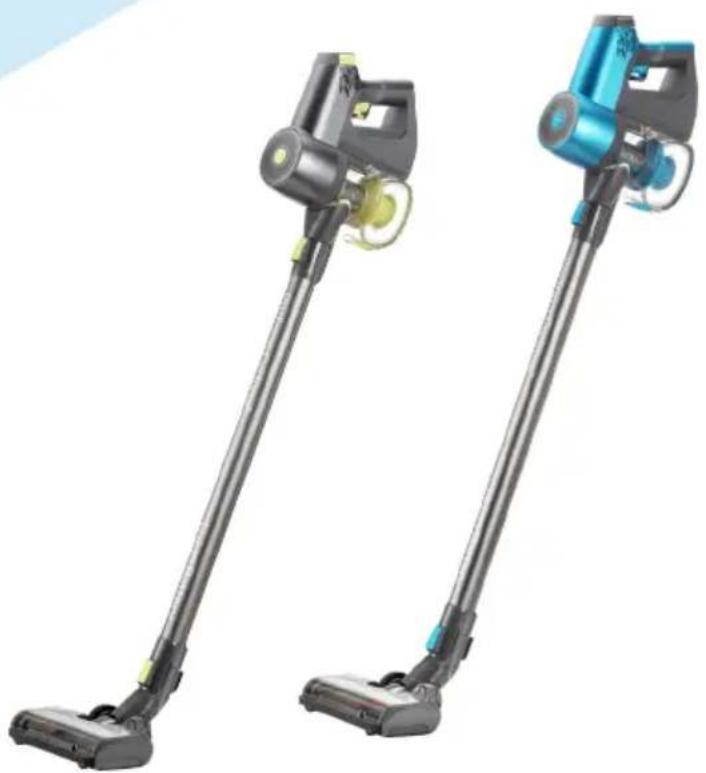

Cordless Stick Vacuum Cleaner

User Manual

VRT 82821 BV

VRT 82821 DV

EN

1 Important safety and environmental instructions 8

1.1 General safety 8

2 Part assembling 11

Elbow and flexible hose 11

3 Use 11

3.1 Charging Indicator....11

4 Cleaning and maintenance 12

4.1 Cleaning and care....12

4.2 Hepa filter 12

5 Information 13

5.1 Compliance with the WEEE Directive and disposal of the waste product ....13 5.2 Compliance with RoHS Directive....13 5.3 Package information 13 5.4 Information on waste batteries....13 5.5 Storage....13 5.6 Handling and transportation .....13

EN	OPERATION CLEANING AND CARE

Please read this manual first!

Dear Customer,

Thank you for selecting a Beko product. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well.

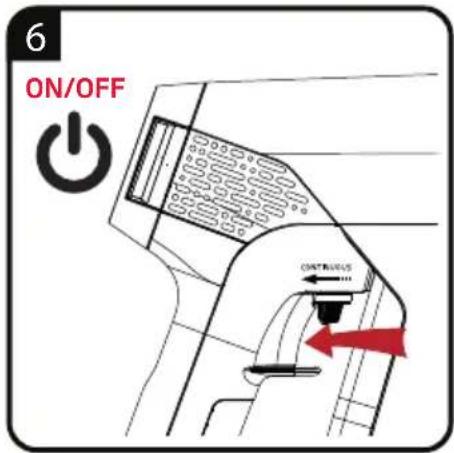

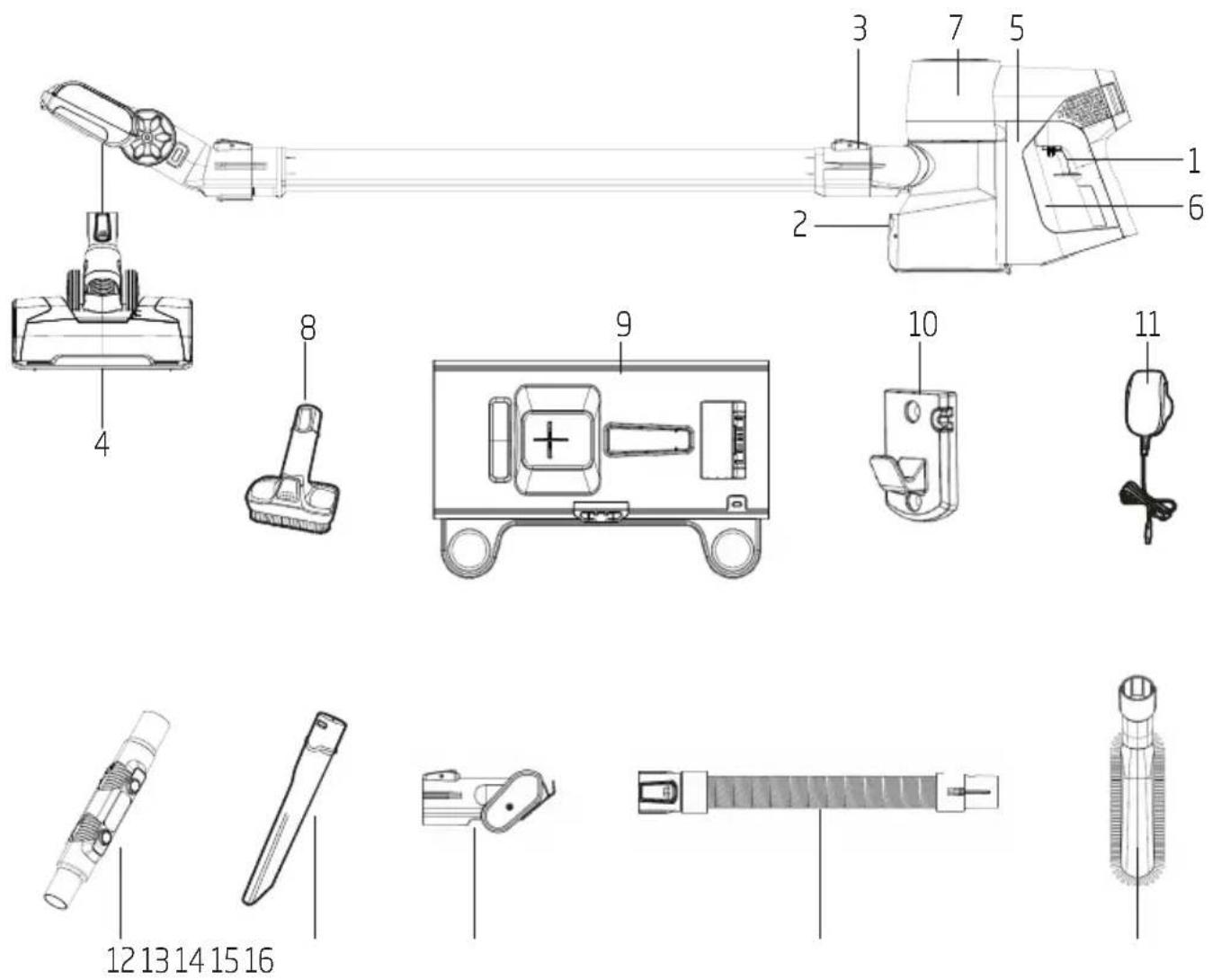

1. Switch button

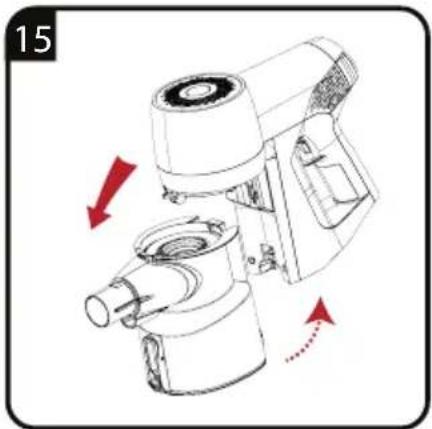

2. Dust cup release button

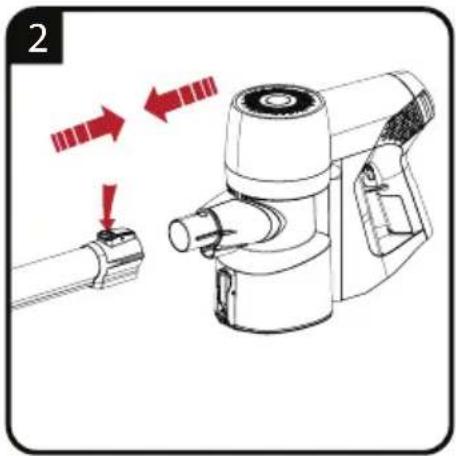

3. Metal tube release button
4. Electrical turbo brush
5. Machine body
6. Battery pack
7. Dust cup
8. Two-in-one brush

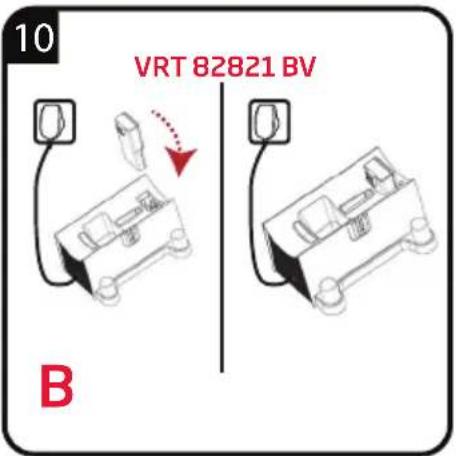

9. Charging dock (VRT 82821 BV)

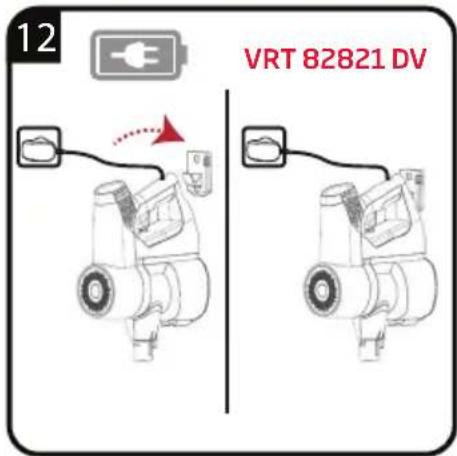

10. Wall hook (VRT 82821 DV)
11. Power supply plug
12. Elbow (VRT82821BV)
13. Crevice
14. Mini turbo brush (VRT82821BV)
15. Flexible hose (VRT82821BV)
16. Dust brush (VRT82821BV)

Technical data

Rated input power:

180W (VRT82821BV)

100W (VRT82821DV)

Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

The following symbols are used in various sections of this manual:

Important information and useful advice regarding usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Protection class for electric shock.

Input:

100 - 240 V~ 50-60Hz 0.8 A (max)

Output: 26.0V = 0.6A

Charging time: 3-4 hours

Running time max. power

VRT82821DV: 22 min.

VRT82821BV: 12 min.

Running time min. power to up to:

40 min.

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This appliance has been produced in environmentally-friendly, state-of-the-art facilities.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

- This appliance complies with international safety standards.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the adapter or the appliance itself is damaged, do not use it. Contact an authorised service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

- Do not use the appliance with an extension cable.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

- Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

- Do not pull the power cable when unplugging the appliance.

- Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.

- Do not vacuum water or other liquids.

- Protect the appliance from rain, humidity and heat sources.

- Never use the appliance in or near places where combustible or inflammable ambience or places are present.

- Unplug the appliance before cleaning and maintenance.

- Do not immerse the appliance or its power cable in water for cleaning.

- Do not attempt to dismantle the appliance.

1 Important safety and environmental instructions

- Use only original parts or parts recommended by the manufacturer.

- Do not clean particles such as cement, plaster, and compressed paper to prevent the filter from clogging and the motor from being damaged.

- Use the appliance only with the adapter supplied with it.

- Do not use the appliance without filters; otherwise, it can get damaged.

- If you keep the packaging materials, store them out of the reach of children.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is only to be used with the power supply unit provided with the appliance.

- The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance.

- If the adapter is damaged, it must be replaced by the manufacturer, its agent, or a similarly qualified person in order to avoid a hazard.

- Keep fingers, hair, and loose clothing away from moving parts and openings while using the vacuum cleaner.

- The battery must be removed from the appliance before it is scrapped.

- The appliance must be disconnected from the supply mains when removing the battery.

- Please dispose of used batteries according to local laws and regulations.

- This appliance contains batteries that are only replaceable by skilled persons.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit DK20C-260060H-B provided with this appliance.

- Please remove and insert the batteries according to UM.

1 Important safety and environmental instructions

• Rechargeable batteries are to be removed from the appliance before being charged;
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance and safely disposed of.
• If the appliance is to be stored unused for a long period, the batteries should be removed.
• The supply terminals are not to be short-circuited.
• Only use with ZB1852 battery.

2 Part assembling

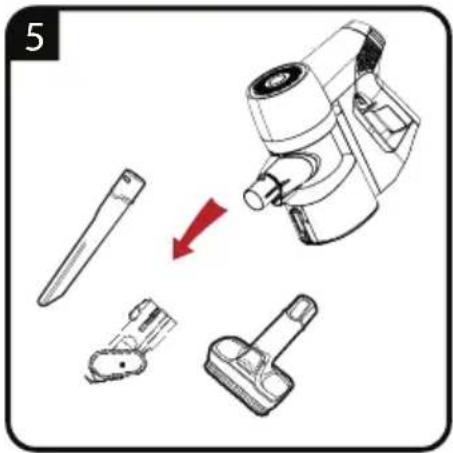

Elbow and flexible hose

The elbow and flexible hose are extension tools, one end is inserted into the suction port, the other end is connected with the accessories, which can clean corners or narrow spaces

3 Use

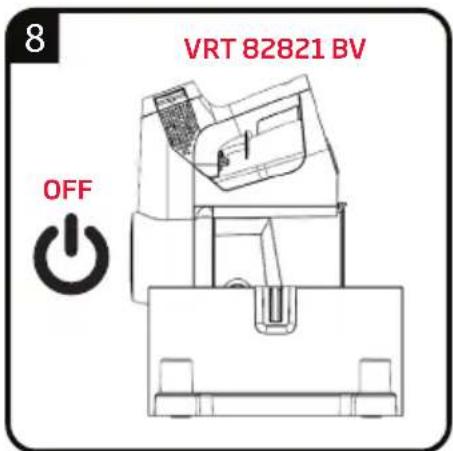

3.1 Charging Indicator

Working Charging		Fully charged	Lower power
Persistent white light	Blinking white light	Persistent white light 2 minutes and then going out.	Blinking red light

• When you receive this product, please use the charger provided by our company to recharge the battery for 3 hours (no need to charge it fully) and the charging frequency should be every 3 months.
• Do not place the battery on the charging base for a very long time. If it is still charging beyond the normal charging time, stop it immediately. Otherwise, the battery may cause heating, deformation or burning hazard.
• When the battery is not in use for a long time or it is over-discharged, you may find the working time is reduced at the first few times. We recommend you fully charge the battery (usually 4.5 hours) and discharge it. Repeat this action two times.

4 Cleaning and maintenance

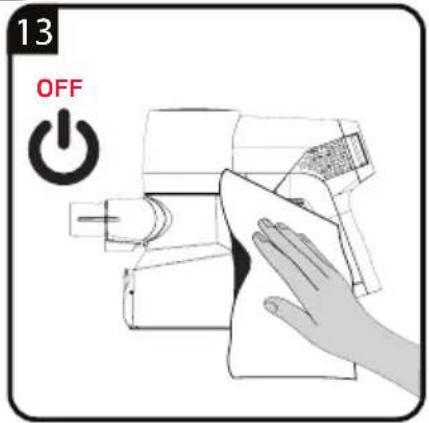

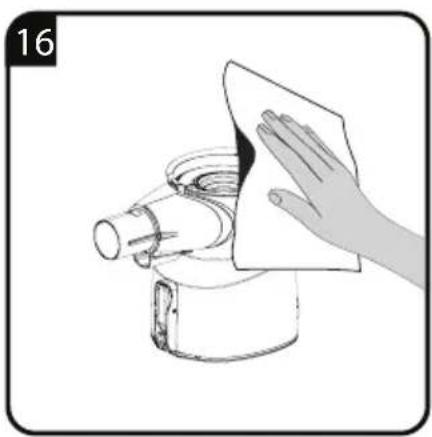

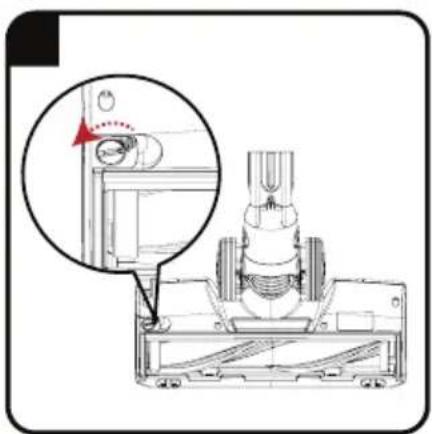

4.1 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

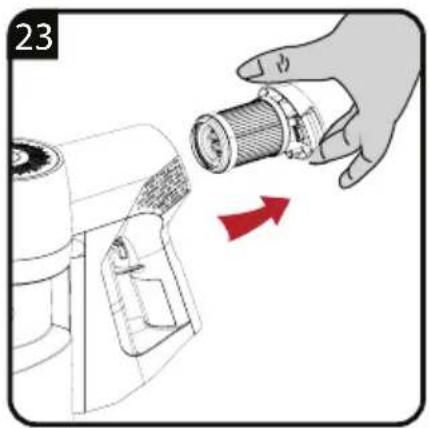

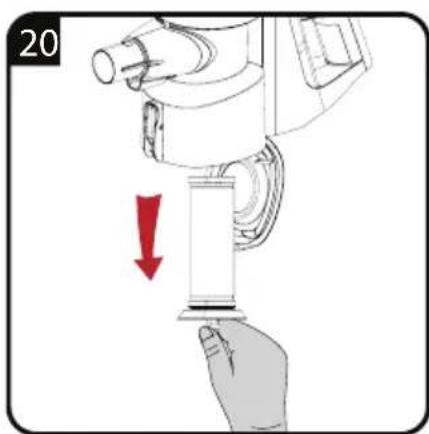

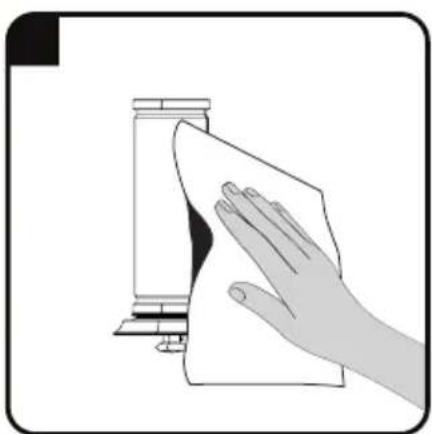

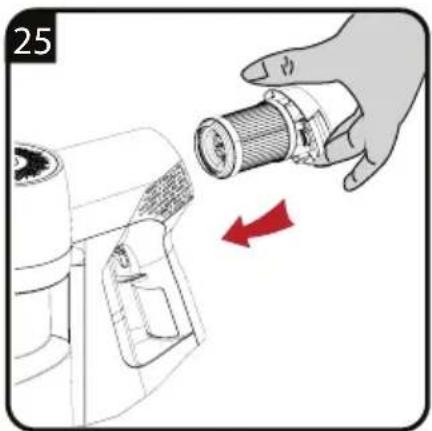

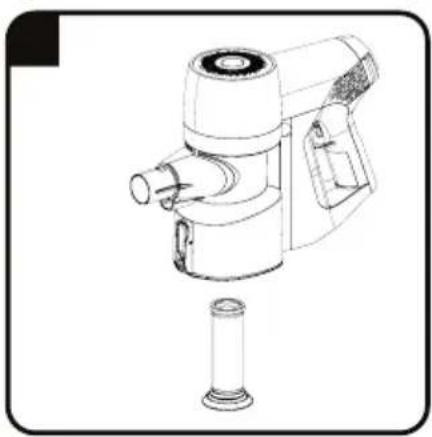

4.2 Hepa filter

- In order to ensure the performance of the product, we recommend you clean regularly, and replace one after 3-6 months. (Depending on usage)

WARNING: Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

5 Information

5.1 Compliance with the WEEE Directive and disposal of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

5.2 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

5.3 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Please see the cover page of the user manual for initial use, general use and cleaning sections.

5.4 Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

5.5 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.

5.6 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Product Guarantee

12 months breakdown and repair guarantee

Guarantor: Beko plc, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8UF

The guarantee does not in any way diminish your statutory or legal rights.

Your appliance has the benefit of our manufacturer's guarantee which covers the product for 12 months from the date of original purchase.

This gives you reassurance that if within that time, your appliance is proven to be defective because of either workmanship or materials, we will at our discretion either repair or replace your appliance.

The appliance must be correctly installed, located and operated in accordance with the instructions contained in the user manual. The guarantor disclaims any liability for accidental or consequential damage.

The Guarantee is subject to the following conditions:

■ Documentary proof of the original purchase date is provided. - The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions. The appliance is used only on the electricity supply on the rating plate. ■ The appliance has only been used for normal domestic purposes. The appliance has not been altered, serviced, dismantled or otherwise interfered with by any person. ■ The appliance is used in the United Kingdom or Republic of Ireland. ■ Any parts removed during repair work or any product that has been replaced becomes our property. - The guarantee is not transferrable if the product is resold.

The Guarantee does not cover:

■ Transit, installation or delivery damage. ■ Accidental damage. - Misuse or abuse. - Replacement of any consumable item or accessories. These include but are not limited to: plugs, cables, light bulbs, knobs, filters and flaps. - Repairs or replacements required as a result of unauthorised repairs or inexpert installation that fails to meet the requirements contained in the user guide or instruction book. ■ Repairs to products used in commercial or non-residential household premises.

How to obtain after sales service, help or general advice

Please keep your purchase receipt or other proof of purchase in a safe place as you will need to show us this document if your product requires attention within the guarantee period.

Please also record your product details below, which will allow you to access our services more quickly and help us identify your product. The model number is printed on the front of the user guide and the serial and model number is shown on your products rating plate.

Model number	Serial number	Purchased from	Date of purchase

Please call our UK based Customer Service department if you need help or advice from us:

United Kingdom and Northern Ireland: 0845 600 4911 / 0345 600 4911

Republic of Ireland: 01 862 3411

You can also contact us through our website: www.beko.co.uk
