USER MANUAL CINIO GDP 5240 GRUNDIG

Special features of your DVD player

Scope of delivery

Disc formats

Set-up and safety

Overview

The front of the DVD player

The back of the DVD player

The display elements of the DVD player

The remote control

Connection and preparation

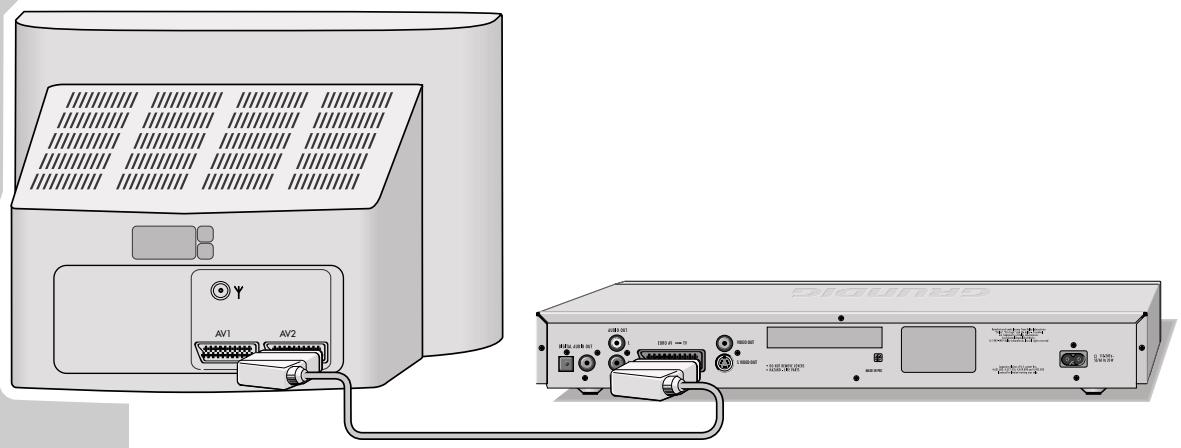

Connecting a television/projector

Connecting an AV receiver

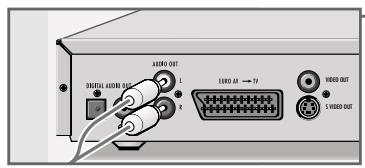

Connecting an audio system with analogue two-channel stereo sound

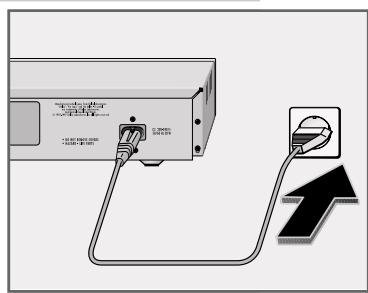

Connecting the power cord

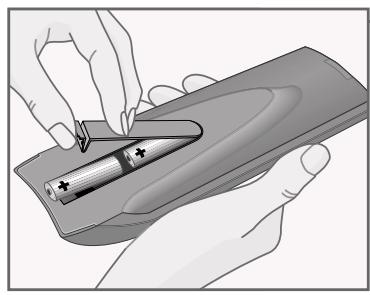

Inserting batteries in the remote control

Getting started

Switching on the DVD player

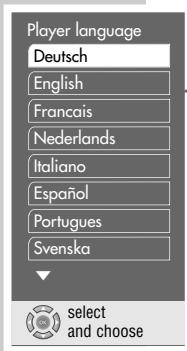

Language settings

Adapting the DVD player to the television set

Before playback

Playing back a DVD

DVD features

Special DVD features

Playing back a title

Calling up information

Adjusting the volume

Selecting titles and chapters with the DVD menu

Selecting certain titles with the number buttons

Selecting chapters

Interrupting/resuming playback (RESUME)

Ending playback

Additional playback functions

Selecting and playing scenes

Zero setting (GOTO)

Repeat functions

Playing back a S-VCD/VCD

S-VCD/VCD features

PBC (PLAYBACK CONTROL)

Switching PBC (PLAYBACK CONTROL) on/off

Playing back a track

Selecting a track

Frame search

Zero setting (GOTO)

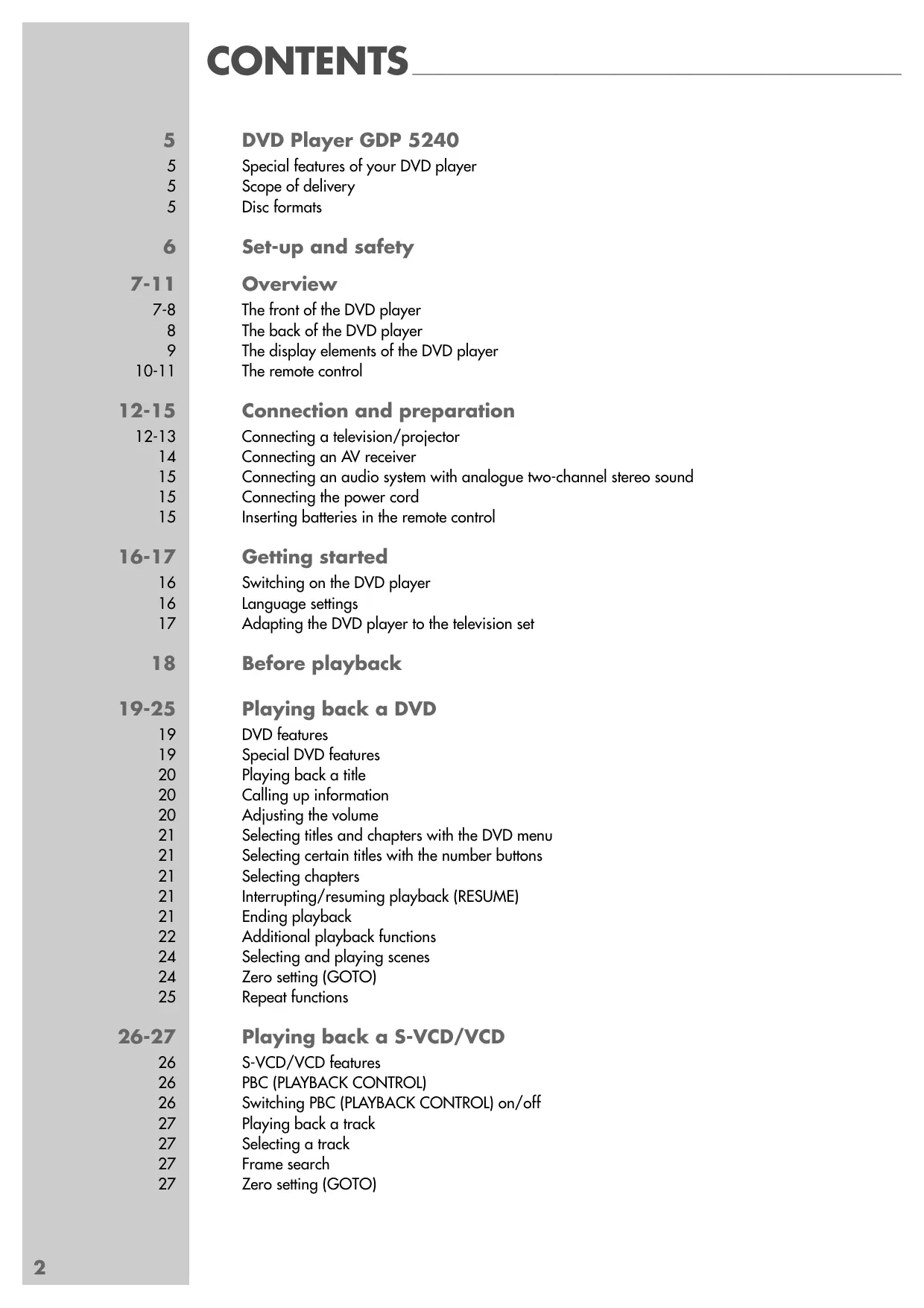

CONTENTS

28-29

28

28

29

29

30-32

30

30

31

31

32

32

32

32

33-34

33

33

34

34

34

35-36

35

35

35

35

36

36

36

36

36

37-38

37

37

37-38

39-40

39

40

41-42

41

42

43-44

43

43-44

The file browser

Organisation of the file browser

Playing back individual files

Navigating in the file browser

Playback

Playing back an MP3 CD

MP3 CD features

Playback

Selecting a track

Selecting a different folder and other tracks

Random play

Repeating tracks or folders (REPEAT)

Ending playback

Removing an MP3 CD

Playing back a JPEG CD

JPEG CD features

Playing back individual JPEG pictures

Playing back all JPEG pictures (slide show)

Random play

Repeating a folder (REPEAT)

Playing back an AUDIO CD

Audio CD features

Calling up information and CD text

Playing back a track

Selecting a track ...

Quick search

Interrupting/resuming playback (RESUME)

Ending playback

Random play

Repeating a track or an audio CD

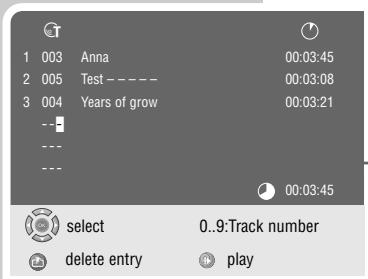

Playback program

Creating your own playback program

Viewing/playing back a playback program

Editing a playback program

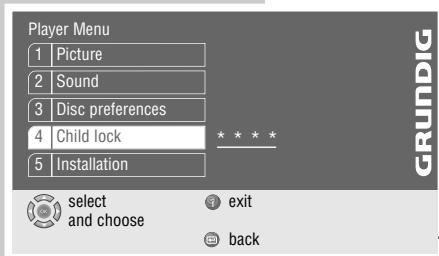

Child lock

Locking and enabling the disc compartment of the DVD player

Authorising the contents of a DVD

Sound settings

Surround sound settings

Setting the dynamic volume range

Picture settings

Selecting the picture format for your television

Selecting filter functions and Y-delay

CONTENTS

45-48

45

45

46

47

48

48

49-53

49

49

50-52

53

54

55-57

55

55

56

56

56

57

Personal settings

Selecting the language of the screen menus

Setting the TV system

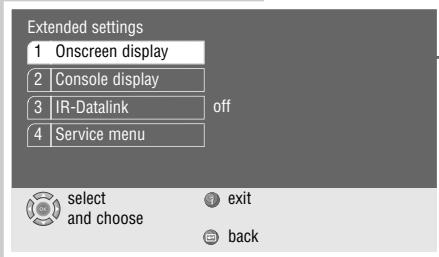

Setting the screen menus and display of the DVD player

Language settings

Activating the remote control of the DVD player via a Grundig television

Software status and dealer menu

Using audio devices

Connecting a digital multi-channel amplifier

Connecting an audio system with digital two-channel stereo sound (PCM)

Adapting digital output to a digital multi-channel amplifier

Adapting analogue output to the audio system

Television remote control

Information

Technical data

General instructions for laser devices

Rectifying minor problems

Cleaning discs

Software information

GRUNDIG service

DVD PLAYER GDP 5240

Special features of your DVD player

Your DVD player provides you with perfect digital video playback of studio quality.

It also provides superb cinema-quality audio playback – in stereo or with digital multi-channel sound – depending on the type of DVD and the audio system or stereo television.

Other features of DVD video include the choice of audio channel and language, choice of subtitle language, and various camera recording angles. Your DVD player is suitable for DVDs with regional code 2.

In addition to DVDs, MP3 CDs, JPEG-coded (photo) CDs, WMA (Windows Media Audio)-, video-, S video- and audio CDs can also be played back.

Scope of delivery

1 DVD Player GDP 5240
2 Remote control
3 Two batteries, 1.5 V, type e.g. R06 or AA, Mignon
4 Operating manual
5 Power cord
6 EURO-AV cable

Disc formats

Your DVD player can play back DVD Rs, DVD +RWs, DVD RWs in DVD video format as well as CD Rs/CD RWs in CDDA format, JPEG format, WMA format and MP3 format.

Due to the difference in quality of the recording media and the quality of the recording itself, it can occasionally happen that a home-made DVD or CD cannot be read. This does not indicate a malfunction of the DVD player.

You have to finalise your own CD R/RW recordings.

Make sure the settings of your CD burning program correspond to the ISO 9660 standard to create a CD R or CD RW.

When MP3, WMA or JPEG CDs are played back, individual tracks/pictures may be skipped or incorrectly played back/displayed. This can be due to the disc configuration, the encoder software or the hardware used for the recording.

Audio CDs (CDDA) correspond to the specification and bear the corresponding logo. Copy-protected CDs do not correspond to this specification and do not bear the corresponding logo. These CDs can cause playback errors.

SET-UP AND SAFETY

Please note the following information when setting up your DVD player:

This DVD player set is designed to play video and audio signals from compact discs (DVD and CD).

Any other use is expressly prohibited.

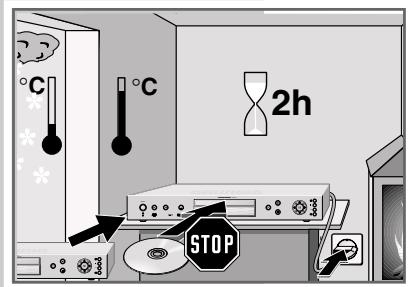

If the DVD player is subject to a sudden change in temperature, for example if it is brought in from the cold to a warm room, connect it to the mains supply and let it stand for at least two hours before you insert a DVD.

The DVD player is designed for use in dry rooms. If you do use it in the open, please ensure that it is protected from moisture, such as rain or water splashes.

Place the DVD player on a hard, level surface. Do not place any objects such as newspapers on the DVD player or a cloth or similar articles underneath it.

Do not place the DVD player directly on top of an AV receiver or a subwoofer. The laser optics are sensitive to temperature and shocks.

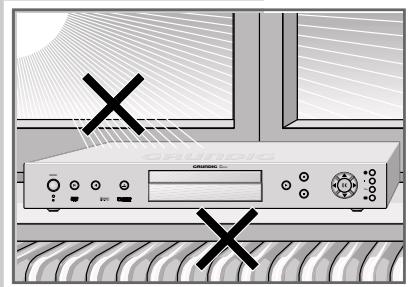

Do not place the DVD player close to heating units or in direct sunlight, as this will impair cooling.

Do not insert foreign objects in the disc compartment of the DVD player.

Never open the DVD player casing under any circumstances. Warranty claims are excluded for damage resulting from improper handling.

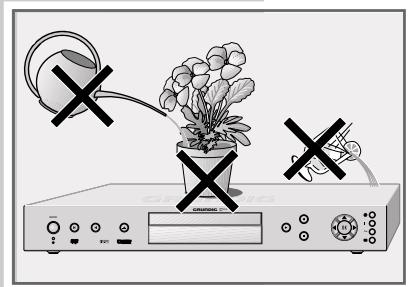

Do not place any vessels filled with liquid, such as vases, on the DVD player, as they may tip over and damage the DVD player.

Thunderstorms are a danger to all electrical devices. Even if the DVD player is switched off, it can be damaged by a lightning strike to the mains. Always remove the mains plug during an electrical storm.

If the DVD player cannot scan DVDs or CDs perfectly, use a commercially available cleaning-CD to clean the laser optics. Other cleaning methods may damage the laser optics.

Always keep the disc compartment closed to prevent dust from collecting on the laser optics.

This DVD player is designed to the highest technological and environmental standards. Only environmentally-friendly, high-quality materials have been used. The batteries included contain no mercury or cadmium.

The range of materials used has been deliberately restricted and all the larger plastic parts have been labelled. This DVD player is designed so that it can be easily disassembled to aid servicing and recycling.

The front of the DVD player

ON/OFF

Switches the DVD player into stand-by mode and off again.

Switching the DVD player off does not mean it is disconnected from the mains. The DVD player can only be fully disconnected from the mains by pulling out the power cord from the socket.

Stand-by indicator.

When pressed briefly during playback, selects the previous title or section (SKIP backwards).

Hold down during playback, switches to backwards search.

When pressed briefly during playback, selects the next title or section (SKIP forwards).

Hold down during playback, switches to forwards search.

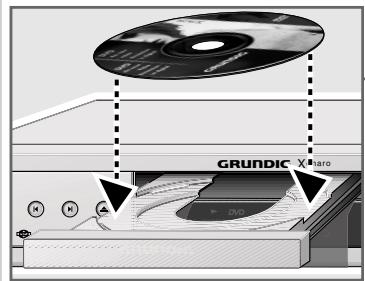

Opens and closes the disc compartment.

Display.

Disc compartment for CD media.

Press briefly to start playback.

Press briefly during playback to activate the "QUICK REPLAY" function (DVD).

Hold down (4 seconds) switches on the "VIDEO STROBE" function.*

Press once to activate the "RESUME" function.*

Press twice to switch to "STOP".

Press once to interrupt all drive mechanism functions.

Press twice to start playback again step-for-step.

Hold down to start playback in slow motion.

Selects various functions in the menus.

Navigates in the file browser (MP3, JPEG, WMA).

OK

Displays various information on the television screen and in the display of the DVD player during playback, such as the title or chapter number and playing time.

Switches to CD text.

Confirms selected functions in the menus.

Calls up the disc menu of the DVD/video CD during playback and switches the content menu (file browser) of a JPEG/MP3/WMA CD on and off.

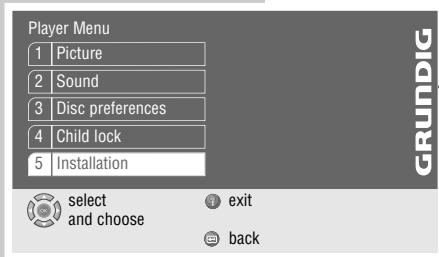

Calls up the main menu of the DVD player.

Calls up the DVD title menu during playback.

Calls up an MP3 CD (ID3 tag*) info menu.

Exits the menu or switches back one menu level.

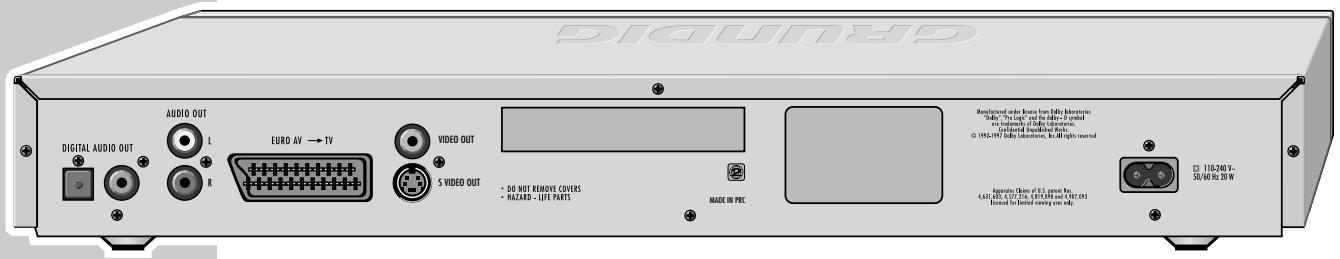

The back of the DVD player

DIGITAL AUDIO OUT

Audio output socket (coaxial) for PCM/MPEG2/Dolby digital/ DTS signals.

Audio output socket (optical) for PCM/MPEG2/Dolby digital/ DTS signals.

For connecting a digital multi-channel audio video amplifier or AV receiver.

AUDIO OUT L R

Audio output sockets (left/right analogue channel) for connecting an audio system.

EURO AV → TV

For connecting a television with an EURO-AV socket.

VIDEO OUT

Video output socket for connecting a television or AV receiver with a Cinch socket.

S VIDEO OUT

Video output socket for connecting a television or AV receiver with an S-Video socket.

110-240V\~

Power cord socket.

50/60 Hz 20 W

Caution:

Do not connect any devices while the DVD player is switched on. Switch off the other device as well before connecting it.

Never touch the inside of the sockets and plugs of the connecting cables.

An electrostatic discharge can damage the DVD player.

The display elements of the DVD player

Switching the display

The displays can be called up by pressing »OK« repeatedly.

The content of the display depends on the disc inserted.

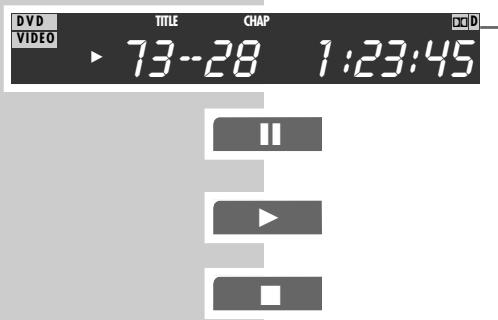

DVD	Title number, chapter number, total playing time, ticker text, remaining playing time.
S-VCD/VCD	Track number, total number of tracks, total playing time, ticker text, remaining playing time.
MP3-CD	File number, total number of files, total playing time, ticker text (track, artist), remaining playing time.
WMA-CD	File number, total number of files, total playing time, remaining playing time.
Audio-CD	Track number, total number of tracks, CD text, remaining playing time.

The remote control

Press briefly to mark DVD scenes.

Hold down, playback starts at the marker set.

Selects MP3, WMA or JPEG files to be added to the programme list.

Freeze-frame for DVDs and video CDs (S-VCD/VCD).

Pause for audio CDs.

Hold it down to switch to slow motion (DVD).

Interrupts all drive mechanism functions.

Starts playback.

Starts the QUICK REPLAY function (DVD).

Selects the previous title or section during playback.

▶ Selects the next title or section during playback.

Switches to backwards search at various speeds during playback.

Switches to forwards search at various speeds during playback.

Hold down to call up the GOTO function when the disc is in the STOP position.

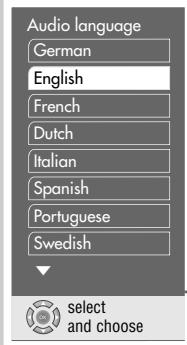

Switches between the original and the dubbed language during DVD playback.

Switches between the various sound formats.

TV Switches the remote controller between controlling your DVD player and controlling your GRUNDIG television. The possibilities of this are described on page 54.

For selecting and displaying subtitles of the DVD during playback.

Fades out the screen background during MP3 and CDDA playback (press » ◎ « to display it again).

CONNECTION AND PREPARATION

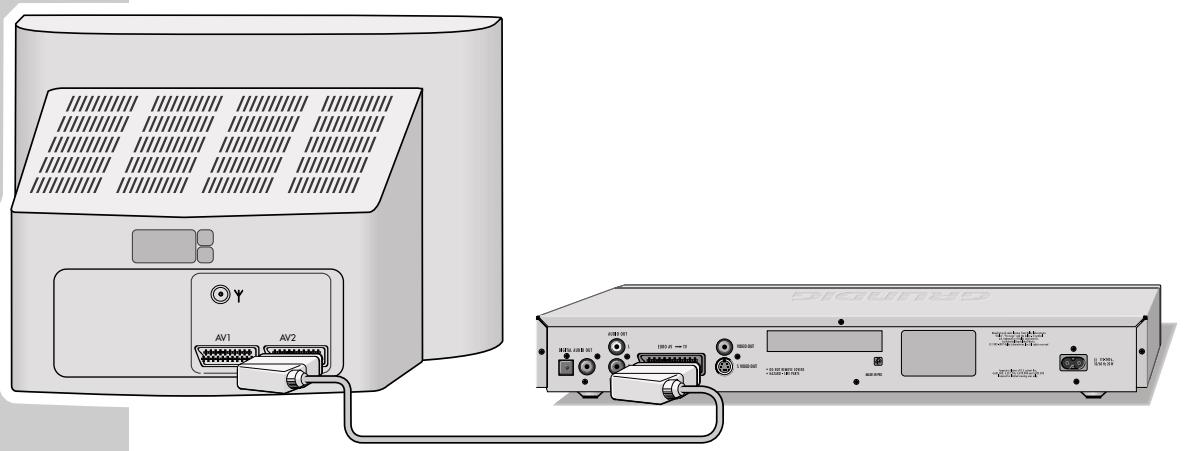

Connecting the television/projector

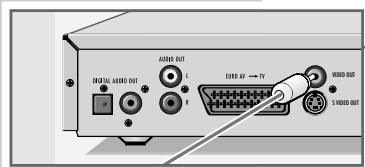

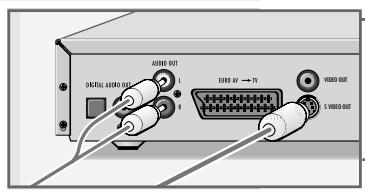

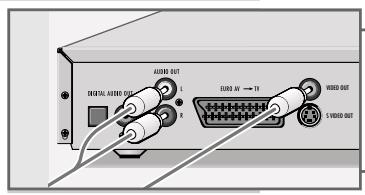

You have three options, depending on the sockets you have on your television or projector:

• You get the best picture quality by making the connection at the EURO-AV socket using a fully assigned EURO-AV cable.
• The standard connection for many devices, and one which provides good quality, is via the S-VIDEO OUT socket and the AUDIO OUT cinch sockets.
• The simplest option which stills offers sufficient quality is connecting to the video socket with a cinch cable.

Necessary adjustments to the television

After you have made the connections at the selected output sockets, you must activate them. The setting procedure is described in the section "Selecting the video output socket (RGB or S-Video)" on page 17.

If the DVD player is connected to a television set with a 16:9 format, observe the settings described in the "Selecting the picture format of your television set" section on page 17.

The colour standard of the DVD player must be matched to the colour standard of your television. The setting procedure is described in the section "Setting the TV system" on Page 45.

Connect the EURO-AV socket directly to the television and not indirectly via a video recorder. This can cause difficulties when playing back copy-protected CDs.

Connection using a EURO-AV cable

1 Plug the EURO-AV cable supplied into the »EURO AV → TV« socket of the DVD player and into the corresponding socket of the television, projector or AV receiver.

Note:

In order to attain a higher sound quality, connect the »AUDIO OUT L R« socket of the DVD player to an audio system using a cinch cable.

Connecting with a cinch cable

1 Plug a standard cinch cable into the »VIDEO OUT« socket of the DVD player and into the corresponding socket (VIDEO IN) of the television or projector.
2 Plug a standard cinch cable into the »AUDIO OUT L R« socket of the DVD player and into the corresponding socket (AUDIO IN) of the television or projector.

Connection using a Y/C (S VHS) cable and a cinch cable (audio)

1 Plug a standard Y/C cable into the »S VIDEO OUT« socket of the DVD player and the corresponding socket (S VIDEO IN) of the television or projector.
2 Plug a standard cinch cable into the »AUDIO OUT L R« socket of the DVD player and into the corresponding socket (AUDIO IN) of the television or projector.

Connecting an AV receiver (for example, the GRUNDIG AVR 5200)

Video signal

1 Plug a standard Y/C cable into the »S VIDEO OUT« socket of the DVD player and into the corresponding socket (S VIDEO IN) of the AV receiver

or

Plug a standard cinch cable into the »VIDEO OUT« socket of the DVD player and into the corresponding socket (VIDEO IN) of the television, projector or AV receiver.

Analogue sound signal

1 Plug a standard cinch cable into the »AUDIO OUT L R« socket of the DVD player and into the corresponding socket (AUDIO IN) of the AV receiver.

Digital sound signal

1 Plug a standard cinch cable into the cinch socket »DIGITAL AUDIO OUT« of the DVD player and into the corresponding socket of the AV receiver

or

Plug an optical digital cable into the optical digital output »DIGITAL AUDIO OUT« of the DVD player and into the corresponding socket of the AV receiver.

Notes:

Please observe the required settings and information in the AV receiver's instruction manual.

Connecting an audio system with analogue two-channel stereo sound

As an alternative to using the television's speakers, the sound can also be played back through an audio system. This can improve audio playback.

1 Plug a standard cinch cable into the »AUDIO OUT L R« socket of the DVD player and into the corresponding socket on the audio system.

Caution:

Do not connect the »AUDIO OUT L R« socket on the DVD player to the PHONO (record player) input socket on the audio system. Please observe the information on downmix on page 53, "Selecting sound mode type" section.

Connecting the power cord

1 Plug the mains cable supplied into the »110-240V\~« socket on the back of the DVD player.
2 Plug the mains cable into the wall socket.

Inserting batteries in the remote control

1 Open the battery compartment by pressing the snap-catch, and remove the lid.
2 When inserting the batteries (e.g. R06 or AA, 2 x 1.5 V), observe the polarity marked on the battery compartment.
3 Close the battery compartment.

Note:

If the DVD player no longer reacts properly to remote control commands, the batteries may be flat. Be sure to remove used batteries. The manufacturer accepts no liability for damage resulting from used batteries.

If the message »Batt. low« is displayed on the television screen when the remote control is operated, you should replace the batteries.

Environmental note:

Batteries, including those which contain no heavy metal, may not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.

Switching on the DVD player

1 Switch the DVD player to stand-by with »ON/OFF« and switch on with »▲« or »► « on the DVD player.

- The DVD player can also be switched on with »▶ « or »◀« on the remote control.

Language settings...

When the DVD player is switched on for the first time, the »Player language« menu appears automatically. You can now choose the language of the user guide. When this is selected, the language of the DVD menu and the dubbed language is set in the same language automatically.

... if the television is connected to the EURO AV → TV socket

1 Select the desired language for the screen menus using »▲« or »▼« and press »OK« to confirm.

Notes:

If this setting is not confirmed with »OK«, the »Player language« menu appears automatically the next time the device is switched on.

You can change these settings at any time after first operating the system, see settings in the chapter "Selecting the language of the screen menus" on page 45 and in the chapter "Language settings" on page 47.

... if the television is connected to the S VIDEO OUT socket

The video output of your DVD player has been set at the factory to »RGB«. If you connect your DVD player using a Y/C cable (»S VIDEO OUT« socket on the DVD player) to the television, you will need to set »S Video« as the video output for the video signal to be relayed to the television.

1 Switch the DVD player off with »ON/OFF«.
2 Switch the DVD player to stand-by with »ON/OFF« and switch on with »▲« or »►« on the DVD player.
3 Press the following buttons in this order »OK«, »i«, »5«, »3«, »▼«, »OK«. – The video output is set to »S-Video«, the »Installation« menu appears.
4 Select »Player language« with »▼« or »▲« and activate with »OK«.
5 Select your language using »▼« or »▲« and press »OK« to confirm.
6 Press »i« to leave the menu.

Adapting the DVD player to the television set

Selecting the screen format of your television set

If your television has a 16:9 screen format, then select »16: 9«.

On a conventional television set with a 4:3 screen format, select the »4 : 3« setting.

These default settings also have an influence on the settings on the »Picture« menu item, see "Selecting the picture format for your television" on page 43.

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and activate with »OK«
or
Select directly with »1 ... 0«.
3 Select »TV format« with »▼« or »▲« and activate with »OK«.
4 Select the desired picture format (»4:3« or »16:9 screen«) with »▼« or »▲« and confirm with »OK«.
5 Press »i« to leave the menu.

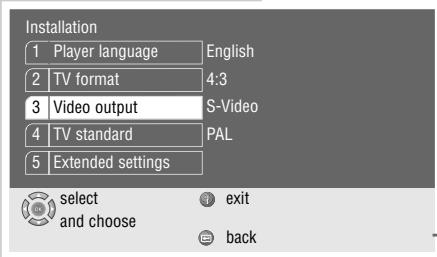

Selecting the video output socket (RGB or S-Video)

Note:

This setting depends on the connection in the television.

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and activate with »OK«

or

Select directly with »1 ... 0«.

3 Select »Video output« with »▼« or »▲« and activate with »OK«.
4 Select the required video output (»RGB« for the »EURO AV → TV« socket or »S-Video« for the »S-VIDEO OUT« socket) with »▼« or »▲« and confirm with »OK«.

- The best playback quality is attained by the RGB component signal with a EURO-AV (Scart) cable.

5 Press »i« to exit the menu.

Preparation

1 Switch on the television and select the preset channel for the DVD player.
2 If an audio system or an AV receiver is connected to the DVD player, switch it on and select the audio input for the DVD player.
3 Switch the DVD player to stand-by with »ON/OFF« on the device. – The red display on the device lights up.
4 Switch the DVD player on with »▲« or »► « on the DVD player

or press »■« for 4 seconds, the disc compartment opens.

- The red display on the DVD player goes out after the software loading process has finished.

- Display on DVD player and television: »no disc«.

Inserting a disc

1 Press »▲« on the DVD player or »■« on the remote control for 4 seconds. – The disc compartment opens.
2 Insert the disc you want to play in the disc compartment with the label facing upwards.
3 Press »▲«.

- The disc compartment closes again. The disc is scanned.

The current chapter (track) and the elapsed playing time of the disc are displayed.

Notes:

Playback of a DVD, VCD, SVCD or audio CD (CDDA) starts automatically.

The file browser appears if an MP3, WMA or JPEG CD is inserted.

If the » ⊙« symbol appears on the television screen, the selected function is not possible with this disc.

Removing discs

1 Open the disc compartment by pressing »▲« on the DVD player

or

Open the disc compartment by pressing »■« on the remote control (hold down for 4 seconds).

DVD features

You can recognise a DVD by the logo on the label.

Depending on the content of the DVD, the discs contain one or more titles.

Each title may contain one or more chapters. Titles and chapters can be selected easily and conveniently.

You can control and direct playback of a DVD using the menu of the DVD player on the television screen.

Special DVD features

DVDs have a title menu which provides an overview of the available titles and the passages they contain.

Some of the DVD player's functions, such as slow motion, freeze-frame and auto-play, can also be controlled by the DVD itself. It is therefore possible that the freeze-frame function, for example, cannot be selected during certain scenes.

Many DVDs have audio tracks recorded in up to eight languages.

This enables you to select the language you prefer.

Many DVDs are recorded by the manufacturer with subtitles in several languages. You can select subtitles from up to 32 different languages.

Since films are released in different parts of the world at different times, all DVD players world-wide are given a regional code. The regional code for your DVD player is 2.

DVDs may also be given a supplementary regional code. If you insert a DVD with a code different to that of the DVD player, a reference to the regional code appears on the television screen. The DVD player will not be able to play back the DVD.

Notes:

If the child lock is activated, the » 🔊« display appears on the television screen.

You need to switch off this lock, please refer to the chapter on "Locking and enabling the disc compartment of the DVD player" on page 39.

If a DVD is not authorised, the coded rating of the access level (1 ... 8) must be changed (see the "Authorising the contents of the DVD" chapter on page 40).

If the »⊗« symbol appears on the television screen, then the selected function is not possible with this DVD.

Playing back a track

1 After the disc compartment closes and the DVD is scanned, playback starts automatically.
2 To pause playback (freeze-frame), press »‖‖«.
3 Press »▶ « to resume playback.
4 Press »■« to end playback.

Note:

Depending on the DVD you are using, you may have to select a title or chapter from its table of contents.

Select a chapter or a title with »▲«, »▼«, »◀« or »▶« and activate with »OK« or start playback with »▶«.

Calling up information

You can call up information on the title, chapter and playing time for display on the screen.

1 Press »OK« to see the Info line.

- Gives information on: Disc type, current title number, current chapter number, Playing time, remaining playing time, Language versions, audio system, subtitle language, Camera position, bit rate, GOTO position.

- The name of the DVD is shown in the display on the device.

Note:

If the Info line is called up, the information in the DVD player display is no longer displayed.

2 Press »OK« to hide the Info line.

Note:

Information is also shown in the DVD player display, see page 9.

Adjusting the volume

1 Cancel the info line/menu/file browser with »OK«.
2 Set the volume by pressing »◀« or »▶« on the remote control or the DVD player.

Note:

No menu may be shown during this.

Selecting titles and chapters with the DVD menu

If a DVD contains several titles and/or chapters, you can select them. If a DVD contains several tracks/chapters, it can be seen in the info line in the »©T« and »©C« boxes.

1 Call up the contents of the DVD with »©« (Disc Menu) or »Title« (Title Menu).
- If the DVD has a title menu it will appear on the screen.

2 Select titles or chapters with »▲«, »▼«, »◀« or »▶« and activate with »OK«.

- Playback of the selected title/chapter begins.

Selecting certain titles with the number buttons

T 4

1 In the STOP position select the desired title with »1 ... 0« and confirm with »OK«.

- Playback begins with the selected title.

Selecting chapters ...

... using the numerical buttons

1 During playback select the desired chapter with »1 ... 0« and confirm with »OK«.

- Playback of the selected chapter begins.

Note:

Incorrect entries can be deleted by pressing »←«.

... step by step (SKIP)

1 Select the next chapter, to do this, press »▶|« during playback.

2 Select the start of the chapter with »|« (press once).

3 Select the previous chapter with »|« (press twice).

- Playback of the selected chapter begins.

Interrupting/resuming playback (RESUME)

The playback of a DVD can be interrupted at any point and then resumed from the same place.

1 Interrupt playback by pressing » « once.

2 Resume playback at the point where it was interrupted with »▶«.

Ending playback

You can stop playback at any point by pressing »■« twice.

C 2

C 2

C 2

C 1

□

▶

□

Additional playback functions

Notes:

The sound is muted during the frame search, slow motion and freeze-frame functions.

Depending on the DVD, some functions cannot be selected.

Frame search

You can select four different speeds (2-fold, 4-fold, 8-fold and 20-fold forwards and backwards).

1 Select the desired search speed during playback by pressing » ◀◀« or » ▶▶«.

2 Press »▶« to resume normal playback.

Note:

Press »|« or »|« (hold down) for 20-fold frame search (virtual jog). Release the button to resume playback.

Slow motion

You can choose between 4 different speeds (1/20, 1/8, 1/4, 1/2, forwards or backwards).

1 During playback, press »«.
2 Select the slow motion speed by pressing » ◀◀« or » ▶▶«.
3 Press »▶« to resume normal playback.

Switching the freeze frame forwards/backwards in steps

1 During playback, press »«.
2 Move the freeze frame step by step backwards or forwards with »|« or »|«
3 Press »▶« to resume normal playback.

Selecting the camera angle for particular scenes or passages

Many DVDs contain scenes or passages which were filmed several times from different camera angles.

You can choose from among these different angles.

With DVDs which support this function, the info line on the television screen shows » 1/4« for example.

To select the camera angle function, press » 📁« during playback. – Display: camera angle » 📁 2/4«, 2 from 4 in this example.
2 Select another camera angle, to do this, press » 🎯 << repeatedly.

Video strobe

With this effect, individual video frames of the DVD are shown on the screen after each other in groups of nine. During this function, which can be used to analyse the pictures, all the picture movement functions can be selected.

1 Switch on the function, to do this, hold down during playback »▶«.
2 Press »▶« to resume normal playback.

Enlarging the picture (Zoom)

This function allows you to enlarge various picture sections. The picture enlargements are selected in the following sequence 1x - 2x - 4x - 8x - 4x - 2x - 1x.

1 During playback or pause, press » 🔍 «.
- Display: » ⊕ X2«, the DVD player enlarges a section of the picture.
2 Move the picture section on the screen with »◀«, »▶«, »▲« or »▼«.
3 Switch back to "normal" picture size with » 🔍 «.

Variable zoom

This function enables you to alter the width and height of picture sections and to move the picture window around the screen.

1 Activate the variable zoom function, to do this, hold down » 🔍«.
2 Adjust the height and width of the picture with »◀«, »▶«, »▲« or »▼«.
3 Move the picture window around the screen, to do this, press » 📄 « again and position with » ◀ «, » ▶ «, » ▲ « or » ▼ «.
4 Resume normal playback, to do this, hold down » 📄 « again.

Switching the dubbed language or the audio format

These settings switch away from the preset dubbed language, if the DVD offers any alternatives.

1 During playback, press » ⚙«.
- Display: for example, » de 2/3 : ☐ 5.1« is displayed briefly, the dubbed language currently selected is displayed, in this example: German, 2nd of 3 possible dubbed languages, sound format ☐ 5.1.
2 Keep pressing » ƒ« to select the dubbing language.

Note:

Switching the dubbed language can be suppressed by the structure of the DVD itself. In this case the setting is usually made in the DVD menu.

00:00:00

Selecting and displaying subtitles

If the DVD provides subtitles, they can be displayed on your TV screen.

When subtitles in several languages are available, you can select your language of choice.

1 During playback, press »—«.

- Display: for example, »— en 2/14« is briefly displayed, the current subtitle is displayed.

2 Keep pressing » — « to select the language for the subtitles.

Notes:

To switch off the subtitles, keep pressing »—« until »—« appears in the display, or press and hold down »—«.

Switching the subtitles can be suppressed by the structure of the DVD itself. In this case the setting is usually made in the DVD menu.

Selecting and playing scenes

You can make a bookmark for a scene on a DVD. This bookmark can be selected directly for playback. The bookmark is retained when you remove the DVD.

You can set one bookmark per DVD.

Setting bookmarks

1 During playback, press »

Note:

This bookmark is automatically overwritten if you create a new bookmark.

Playing bookmarked scenes

1 During playback, press and hold down » 📋 « – Playback starts at the point marked.

Zero setting (GOTO)

This function enables the selection of a playback position on the DVD which is accurate to the second.

3 Press » ▶▶« and hold it down. – Instead of the playing time, 00:00:00 is displayed, the last digit is highlighted.

4 Select the entry positions (hours, minutes, seconds) directly with »◀« or »▶«.

5 Select the desired playing time with »1 ... 0« and confirm with »OK«. – Playback starts at the point marked.

Repeat functions

QUICK REPLAY

1 During DVD playback, press »▶« to repeat the last seconds of a scene.

Repeating a selected scene (A-B REPEAT)

You can mark the start and end of a scene, this is then played back repeatedly.

1 During playback, mark the beginning of the scene, to do this, press » ↔ « briefly.
- Display: » A-«.
2 To mark the end of a scene, press » ↔ « again briefly.
- Display: »← A-B«, the scene marked is now played back constantly.
3 To cancel this function, press » ↔ « again.

Repeating a chapter or a DVD

These functions repeat the chapter currently playing or the entire DVD.

1 During playback, press and hold down »
- Display: » ⇔ Ⓞ«, the chapter is repeated.

2 During playback, press and hold down »←« and then press it a second time.

- Display: »← Ⓞ«, the DVD is repeated.

3 Press » ↔ « again to cancel the function.

S-VCD/VCD features

You can recognise S-VCD/VCDs (video CDs) by the logo on the label.

Depending on the contents of the S-VCD/VCD (films, music videos etc.), the discs may carry one or more titles.

Like audio CDs, S-VCDs/VCDs have a track structure.

S-VCDs/VCDs can be created using the PBC (playback control) system for track navigation. This depends on the processing and burning software used.

You can control and direct playback of the S-VCD/VCD using the menu of the DVD player on the television screen.

You cannot select some of the functions on the DVD player (video strobe, slow motion, A-B repeat, camera angle, scene selection) when you are playing an S-VCD/VCD. This depends on how the S-VCD/VCD was created.

A search at 20 times normal speed is possible, but repeat functions are only possible track by track.

Depending on how they were created, S-VCDs can have various subtitles and dubbed languages.

PBC (PLAYBACK CONTROL)

PBC is a navigation option for S-VCD/VCDs. PBC information is burned onto the disc when it is made. PBC switches between the playlist structure (the menu on the S-VCD/VCD) and manual selection by the user.

The default setting upon delivery is PBC activated. PBC and the program info on the S-VCD/VCD predetermine the navigation options. If the disc has PBC, »PBC« appears in the display.

If PBC is deactivated, the S-VCD/VCD behaves like a normal CD as regards navigation (with a track structure). The user can select the track or title with »1 ... 0«, »|« or »►|« or » ◀◀« or » ►► « start playback with »►« or end playback with »■«.

Switching PBC (PLAYBACK CONTROL) on/off

1 To deactivate the PBC function, press »©« during playback. – The »PBC« symbol in the device display stops glowing.

2 To activate the PBC function, press » ⑨« or »Title« during playback.

Playing back a track

1 After the disc compartment closes and the S-VCD/VCD is scanned, playback starts automatically.
2 To pause playback (freeze-frame), press »ll«.
3 Press »| |« repeatedly to switch through individual frames.
4 Press »▶ « to resume playback.
5 Press »■« to end playback.

Selecting a track

If an S-VCD/VCD has several tracks, you can select them. Whether an S-VCD/VCD has several tracks, can be seen in the info line.

1 Press » © « to see the contents of the S-VCD/VCD. – If the S-VCD/VCD has a track menu it will appear on the screen.

2 Select the desired track directly with »1 ... 0« and confirm with »OK« or

Select the track step-by-step with »|« and »|«.

Frame search

You can search for particular passages at 20 times normal speed (backwards or forwards).

1 Select the desired playback speed during playback with » ◀◀◀ or » ▶▶◀.

2 Press »▶« to resume normal playback.

Note:

Press »|« or »|« on the device (hold down) for 20-fold frame search (virtual jog).

Release the button to resume playback.

Zero setting (GOTO)

This function enables the selection of a playback position on the S-VCD/VCD which is accurate to the second.

1 Press » ■ « to end playback.
2 Call up the status display/info line with »OK«.
3 Press and hold down »▶▶«. - Instead of the playing time, 00:00:00 is displayed, the last digit is highlighted.
4 Select the entry positions (hours, minutes, seconds) directly with »◀« or »▶«.
5 Select the desired playing time with »1 ... 0« and confirm with »OK«. – Playback starts at the point marked.

00:00:00

Organisation of the file browser

MP3 files, JPEG files and WMA files are treated as files. The following pages will give you a general description of the differences in playing back CDs with different file types.

The files on the CD can be structured in folders in a similar manner to file organisation on a PC. These folders may contain any number of sub-folders.

Playing back individual files

1 Close the disc compartment with »▲«.

- The table of contents of the CD is scanned and the file browser appears.

- DVD player display: »TOP« = top directory level of the CD, »00/025« = 25 folders present.

2 Open the folder with »OK«.

– A list of sub-folders appears.

- DVD player display: »DIR« = sub-folders, »21/025« = the 21st of 25 available sub-folders is selected.

- If the CD has no folders, the first file is displayed, in this example »01/125« »MP3«.

3 Open the sub-folder or call up the first file with »OK«.

- DVD player display: »SUB« = content of the sub-folder, »00/064« = 64 files present.

4 Call up the first sub-folder of the next hierarchical level (display »DIR«) with »OK«.

- Folders can have several hierarchical levels with sub-folders. The total number of all entries in the file browser is limited to 999.

– In the example, this level contains 2 folders.

5 Open the folder with »OK«.

- This folder can also contain files or folders.

- In the example, this folder contains 5 sub-folders.

6 Select the first file of the folder with »OK«.

- The cursor is positioned on the first file of the folder.

7 Call up the first file with »OK«.

- In the example, this is the first of 9 files, an MP3 file or a JPEG file (PIC) or a WMA file.

Notes:

In the case of a WMA or MP3 file, the track is played, in the case of a JPEG file, the first picture is called up.

You can call up information on the file just played with »Title«. Ticker text information is displayed in the device display.

Navigating in the file browser

You can navigate conveniently through the file structure of a file CD (MP3, WMA or JPEG).

1 Call up the file browser with » ◎ «.

- After scanning the file CD (MP3, WMA or JPEG), the file browser is displayed. The example shows an MP3 CD which contains no further folders.

- The piece of music is played back or the picture forms.

4 If the entries in the file browser are fairly long, use »|« or »|« to scroll backwards or forwards page-by-page.

5 Press » ◀ « to return to the folder level.

- If the CD has no folders and only contains files, the top/first entry »TOP« is highlighted. If the CD contains folders the first item of the folder is highlighted »DIR« (for MP3 or WMA), with JPEG files the file browser is not displayed.

- The file browser is always displayed (for MP3 or WMA), it is possible to search through the entries while a file is being played back.

Playback

1 Start playback of the file CD or the entire folder from the folder levels »TOP«, »DIR« or »SUB« with »▶«.

- Music playback (MP3, WMA) of the entire CD or the selected folder is started.

- The pictures (JPEG) of the selected folder are displayed in sequence.

MP3 CD features

MP3 stands for MPEG-1 Audio Layer 3 and arises from the Motion Picture Expert Group (MPEG) Standard which was developed for compressing film data.

The MP3 format enables audio files to be saved on a computer with a sound quality similar to that of a CD. This only requires approx. 10% of the original data quantity. The standard encoding byte rate for MP3 files is 128 kbps. Generally, the higher the byte rate of an MP3 file, the better the sound quality.

Most MP3 files in the Internet are encoded at 128 or 160 kbps. 160 kbps is considered CD quality.

MP3 files can be downloaded from the Internet and then burned onto a CD-ROM disc. Your DVD player can read the ID3 tag from the file header, which contains information on title and artist, and display this in the info line/status display. This MP3 text can be displayed as ticker text in the device display.

MP3 CDs contain only sound recordings. They can be played in the normal manner on an audio system. The digital signals transmitted during MP3 playback are PCM coded, regardless of the audio output setting. The signals are output with the same data rate as the music source (possibilities are: 32 kbps – 320 kbps, ideal: 128 kbps).

MP3 files can be organised into folders and subfolders, similar to files on a PC.

Playback

1 After the disc compartment closes and the MP3 CD is scanned, the file browser (contents menu) of the MP3 CD appears.
2 Select the folder or track required with » ▲ «or » ▼ «.

Note:

A folder can contain tracks which can be called up with »OK«.

3 Start track playback with »▶«.

- The playing time appears in the display of the DVD player, see page 9 "The display elements of the DVD player".

Notes:

Information about the MP3 track selected can be called up with »Title«.

If the MP3 CD contains corresponding information, the MP3 text can be displayed as a ticker text in the device display.

The contents of the MP3 CD (file browser) can be called up with » © «.

If the ID3 text (track and artist) is displayed on the DVD player, the Info menu is also displayed.

Selecting a track ...

... using the numerical buttons

1 Display the info menu by pressing »OK«.
2 During playback, select the desired track with »1 ... 0« and confirm with »OK«.
- Playback begins with the selected track.

... step by step (SKIP)

1 Display the info menu by pressing »OK«.
2 During playback, select the next track by pressing »▶|«.
3 Select the start of the track with »|« (press once).

4 Select the previous track by pressing »|« (press twice). – Playback begins with the selected track.

Note:

If the current track has been playing for less than 2 seconds, pressing »|« selects the previous track.

Selecting a different folder and other tracks

This can be done if the MP3 CD contains several folders.

1 Press » ◎ « to call up the contents menu (file browser).

Notes:

If the contents menu displays tracks, press » ◀ « to switch back one level.

2 Select the desired folder with » ▲ « or » ▼ «.

Note:

If you want to play all of the tracks in a folder press »▶« ( playback). The info menu of the first track is displayed.

3 Call up the tracks of the folder with »▶« and confirm with »OK«. – The first track of the folder is highlighted.

4 Press » ▲ « or » ▼ « to select the track you want to hear and then » OK« to start playback.

Notes:

If playback is started with »OK«, the file browser (contents menu) is called up, the selected file (track/file/title) is highlighted.

If playback is started with »▶«, the info menu (status display) is displayed.

Random play

1 Press » 📁« when in the STOP position. – Display on the device: »RND«.

2 Start random play with »▶«. - »RAND« is displayed in the info menu, the tracks of the entire MP3 CD are played back in random order.

3 End the function by pressing »■«.

Repeating tracks or folders (REPEAT)

1 During playback, press » ↔ « briefly. – The track currently being played is repeated.
2 Press » ↔ « again briefly. – The selected folder is repeated.
3 End the function by pressing » ↔ « again briefly.

Ending playback

1 Press »■« to end playback.

Removing the MP3 CD

1 Open the disc compartment by pressing »▲« on the DVD player or Open the disc compartment with »■« on the remote control (hold down).

JPEG CD features

JPEG stands for Joint Picture Experts Group. This process was designed to compress picture files.

JPEG files can be burned onto a CD along with other file types. Such CDs are known as file CDs or mixed mode CDs. For example, the CD could contain MP3 files (audio) and JPEG files (for example to display album covers).

The files on a JPEG CD can be organised in folders/groups. This structure is similar to that of an MP3 CD.

JPEG CDs only contain data in the compressed JPEG format. This is mostly data from digital cameras or from picture processing programs. The data (pictures) can be displayed individually or in sequence in a slide show.

Playing back individual JPEG pictures

1 After the disc compartment has closed and the JPEG CD has been scanned, the file browser (contents menu) of the JPEG CD is displayed.

- DVD player display: »TOP« = top directory level of the CD, »00/025« = no directory of the 25 directories present selected.

2 Select the desired folder (or picture) with » ▲ « or » ▼ «.

- A list of sub-folders appears.

- DVD player display: »DIR« = sub-folders, »21/025« = the 21st of 25 available sub-folders is selected.

- If the CD has no folders, the first file is displayed, for example »01/125« »PIC«.

3 Open the folder with »OK« or »▶ «.

- DVD player display: »SUB« = folder title, »00/064« = 64 pictures present.

4 Select the desired picture with »▲« or »▼« and confirm with »OK«.

- The JPEG picture appears on the screen.

- The resolution of the picture (picture height x picture width in pixels) is shown on the device display.

5 Select the next picture by pressing »▶|«.

6 Select the previous picture by pressing »|«.

Notes:

The contents of the JPEG CD (file browser) can be called up with » © «. The picture last selected is highlighted.

The file name can be displayed by pressing »OK«.

Pictures are loaded quickly even with large quantities of data, only very large files will need some time for the picture to be built up on the screen.

If the same picture is displayed for longer than 10 minutes, the screen saver is activated.

Playing back all JPEG pictures (slide show)

The DVD can automatically switch through a series (folder) of pictures. The interval between pictures can be set.

1 After closing the disc compartment and scanning the JPEG CD, the file browser (contents menu) of the JPEG CD is displayed.

- DVD player display: »TOP« = top directory level of the CD, »00/006« = no directory of the 6 directories present selected.

2 Select the desired folder (or picture file) with » ▲ « or » ▼ «.

- A list of sub-folders appears.

- DVD player display: »DIR« = sub-folders, »03/005« = the 3st of 6 available sub-folders is selected.

- If the CD has no folders, the first picture file is displayed, for example »01/125« »PIC«.

3 Open the folder with »OK« or »▶ «.

- DVD player display: »SUB« = folder title, »00/064« = 64 pictures present.

4 Call up the first picture file with »▼«.

5 Press »▶« to start playback.

- The files are shown in a slide show, one after another.

- The file name is briefly displayed in the picture.

Notes:

The time interval of the slide show can be altered with » ▲ « or » ▼ « (10 or 20 seconds, 1 or 5 minutes).

This function is only available when you start a slide show from a picture file by pressing »▶«.

During the slide show it is possible to switch to the next/previous picture with »▶|« or »|◀«.

6 End the function by pressing »■«.

- The file browser appears.

Random play

- The pictures on the entire JPEG CD are shown in random order.

3 End the function by pressing »■«.

Repeating a folder (REPEAT)

1 During a slide show, press » ↔ « briefly.

- The selected folder is repeated.

2 End the function by pressing » ↔ « again briefly.

PLAYING BACK AN AUDIO CD

Audio CD features

An audio CD is identified by this logo.

Audio CDs contain only sound recordings. They can be played in the normal manner on an audio system.

The individual tracks are stored in a sequence. There are no folders.

Calling up information and CD text

The info line is displayed on the television screen.

CD text appears as a ticker text on the device display if the CD has this type of information stored on it. CD text can give information on the track, artist etc.

CD text can be edited in the burning program with which the CD was created.

1 Call up the info line and CD text during playback by pressing »OK«.

- The info line is displayed.

This gives information about the CD: the number of tracks, the elapsed playing time of the track, the playing time remaining, and about the audio system and the data flow.

- The CD text is displayed in the device display.

This gives information on the track or artist (during playback) or the name of the album (when stopped).

2 Additional information can be called up in sequence by pressing » □□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

- Remaining overall playing time, remaining track playing time, elapsed overall playing time, elapsed track playing time.

Notes:

Press »—« to black out the television screen, press »i« to display the television background picture again.

Press »OK« to switch the info line on and off.

Playing back a track

- Playback starts automatically when a CD is inserted.

- Playback stops at the end of the CD.

Selecting a track ...

... using the numerical buttons

1 Call up the info line with »OK«.

2 During playback, select the desired track with »1 ... 0« and confirm with »OK«.

- Playback begins with the selected track.

... step by step (SKIP)

1 Call up the info line with »OK«.
2 Select the nexttrack during playback with »▶|«.
3 Select the start of the track with »|« (press once).
4 Select the previous track with »|« (press twice). – Playback begins with the selected track.

Quick search

1 Select the search direction during playback with » ◀◀« or » ▶▶« on the remote control » |◀« or » ▶▶« on the device (hold down). – The search starts at 4 times normal speed.

2 Press »▶« to resume normal playback.

Interrupting/resuming playback (RESUME)

The playback of a CD can be interrupted at any point and then resumed from the same place.

1 Interrupt playback by pressing » ■ « once only.
2 Resume playback at the point where it was ended with »▶«.

Ending playback

Playback of the CD stops automatically at the end of the last track. You can stop playback at any point by pressing »■« twice.

Random play

1 Press » 📁◀ « when in the STOP position. – Display on the device: »RND«.
2 Start random play with »▶«. - Display: »RAND«, the tracks of the entire audio CD are played back in random order.
3 To end the function, press » ■ « twice.

Repeating a track or an audio CD

These functions repeat the track currently being played or the entire audio CD.

1 During playback, press » ⇌ «. - Display: » ⇌ ⓊT« and the track is repeated.
2 During playback, press » ↔ « and then press again. – Display: » ↔ Ⓞ «, the audio CD is repeated.
3 Press » ↔ « again to cancel the function.

Creating a playback program for DVDs, VCDs, S-VCDs and audio CDs

Tracks and files and directories (folders) can be put together in a program list to create a playlist. The tracks/folders in the program list are played back in sequence.

You can put together tracks and chapters of a CD in any order you wish to create a playlist.

1 Press »■« to end playback.
2 Call up the playlist with » ↩ ↕.
3 Enter the desired track/chapter with »1 ... 0« and confirm with »OK«.

- Chapters/tracks can be added to the playlist several times.

- Display: track, playing duration (audio CD); title, chapter (DVD); track (S-VCD, VCD)

Note:

If the playlist is empty, all of the tracks on an audio CD can be added to the playlist at once, to do this, press »▶«.

4 Press »▶« to start playback.

Creating a playback program for MP3 CDs, JPEG CDs and WMA CDs

You can put together files (tracks, pictures) of a CD in any order you wish to create a playlist.

1 Call up the contents menu (file browser) when the player is stopped with » 🔒 «.
2 Select the desired track/folder with » ▲ « or » ▼ «.
3 Add individual tracks to the playlist with » ↗ ↖.

Note:

• Tracks can be added to the playlist several times.
• The selection is indicated with •.

Viewing/playing back a playback program

1 Switch the DVD player to RESUME (press once) or STOP (press twice) with »■«.
2 Call up the playlist with » ↩ ↕.
3 Press »▶« to start playback.

Editing a playback program

1 Switch the DVD player to STOP with »■«.
2 Call up the playlist with » ↩ ↕.
3 Select the desired track/folder with » ▲ « or » ▼ «.
4 Delete tracks with » or «.
5 Delete the entire playlist with »■«.

6 Switching off the DVD player or removing the CD deletes the entire playlist.

Note:

The REPEAT and RANDOM functions are available when a playlist is being played back.

With the parental lock you can:

• Lock the disc tray of the DVD player.
• Block scenes which are not appropriate for children from DVDs or video CDs, or select alternative scenes.

Locking and enabling the disc tray of the DVD player

Locking the disc compartment of the DVD player

1 Press »i« to open the main menu.
2 Select »Child lock« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Enter the access code with the numerical buttons »1« »9« »9« »9«. - The »Child lock« menu appears, the child lock status (»on« or »off«) is displayed.
4 Select »Player lock« with »▼« or »▲« and activate with »OK«.
5 Lock the DVD player with » ▲ « or » ▼ « (»on«) and confirm with »OK«.
6 Press »i« to exit the menu.

Note:

The »▲« button on the DVD player is disabled and »®« is displayed on the screen every time a button is pressed. The disc compartment cannot be opened. A disc in the DVD player can be played.

Enabling the disc compartment of the DVD player

1 To unlock the disc compartment, repeat points 1 to 4 in the "Locking the disc compartment of the DVD player" chapter, select »off« with »▲« or »▼« and confirm with »OK«.

Authorising the contents of a DVD

Films on DVD may be wholly or partially unsuitable for children. Such DVDs contain information which identifies these scenes, providing them with ratings from 1 to 8 (and unlimited). You can select one of the ratings and thereby authorise alternative scenes for playback.

1 Press »i« to open the main menu.
2 Select »Child lock« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Enter the access code with the numerical buttons »1« »9« »9« »9«. - The »Child lock« menu appears, the child lock status (»on« or »off«) is displayed.
4 Activate »Content control« with »OK«.
5 Select »Country« with »OK«.
6 Select the desired country with »▼« or »▲« and confirm with »OK«.
7 Select »Access level« with »▼« or »▲« and confirm with »OK«.
8 Select the desired level (from »1« to »8«) with »▼« or »▲« and confirm with »OK«.
9 Press »i« to exit the menu.

SOUND SETTINGS

Surround sound settings

You can select different 3D surround sound effects including Dolby Virtual Surround. Dolby Virtual Surround is a process which appears to provide sound all around the listener via only two loudspeakers.

You can select these settings if you have connected analogue two-channel stereo sound to your audio system, see page 15 and 53.

Selecting surround sound effects

1 Press »i« to open the main menu.
2 Select »Sound« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Select »Surround sound« with »▼« or »▲« and activate with »OK«.
4 Select »Effects« with »▼« or »▲« and activate with »OK«.
5 Select the desired surround sound setting (»Action«, »Drama«, »Theatre«, »Dolby Virtual«, »3D Headphones«, »Spatializer«) with »▼« or »▲« and confirm with »OK«.

Note:

If »No effect« is selected, the surround sound setting is switched off.

Selecting the intensity of the surround sound effects

1 Select »Intensity« with »▼« or »▲« and activate with »OK«.
2 Select the desired intensity (»low«, »medium«, »high«) with »▼« or »▲« and confirm with »OK«.
3 Press »i« to exit the menu.

Setting the dynamic volume range

Dolby digital soundtracks have a very large dynamic volume range, hence there is a great difference in volume between quiet and loud tones. When played at high volume this can be a fascinating experience, which may however cause disturbance late at night.

Simply reducing the volume does not produce pleasing results, and the dialogue becomes difficult to understand. In order to achieve the desired results, you would have to reduce the volume only for the louder sounds, increase the volume during quieter scenes and maintain the volume of the dialogue. An adjustment is carried out with the following setting. You can change the volume relations in five steps.

1 Press »i« to open the main menu.
2 Select the »Sound « menu with » ▼ « or » ▲ « and activate with »OK« or select directly with »1 ... 0«.
3 Select the »Dynamic range« line with »▼« or »▲« and confirm it with »OK«.
4 Select the desired setting – (»Maximum«, »Medium«, »Minimum«, »Night«, »Dialog«) with »▼« or »▲« and confirm with »OK«. – »Dialog« improves the quality of spoken dialogue, while »Night« matches the dynamic range to the low night-time volume level.
5 Press »i« to exit the menu.

Selecting the picture format for your television

This setting depends on the information on the DVD and the chosen TV format. See the chapter "Selecting the picture format for your television" on page 17.

If the 4:3 picture format is selected, you can set:

»Pan&Scan« for wide-screen playback, with the left and right edges of the picture cropped

or »Letterbox« for wide-screen playback with black bars on the top and bottom edges of the screen.

If 16:9 picture format is selected, you can set:

»TV setting« for resetting the format using the television

or »Automatic« for adapting the picture format automatically using the DVD player

or »Original« for 4:3 playback with black bars on the left and right edges of the screen

or »Cinema zoom«, where the picture is enlarged to the width of the screen, and the upper and lower edges of the picture are cropped. In most cases, the television can set the format itself.

1 Press »i« to open the main menu.

2 Select the »Picture« menu with »▼« or »▲« and activate it with »OK« or select directly with »1 ... 0«.

3 Select »Format« with »▼« or »▲« and activate with »OK«.

4 Select the desired setting for the 4:3 picture format (»Pan&Scan« or »Letterbox«) with »▼« or »▲« and confirm with »OK«

or Select the desired setting for the 16:9 wide screen format (»Use TV setting«, »Automatic«, »Original« or »Cinema zoom«) with »▼« or »▲« and confirm with »OK«, see the chapter on selecting the picture format of the television on page 17.

5 Press »i« to exit the menu.

Selecting filter functions and Y-delay

1 Press »i« to open the main menu.

2 Select »Picture« with »▼« or »▲« and activate it with »OK« or select directly with »1 ... 0«.

3 Select the »Additional function« line with »▼« or »▲« and activate it with »OK«.

Note:

For further operation, see the following sections, each one starting from step 1.

Adapting the colour band width

Here you adapt the colour band width in order to avoid disturbance or flickering in the colour reproduction. You can choose between the »Off«, »FBAS« and »S-Video« settings. This depends on the video signal.

1 Select »Chroma filter« with »▼« or »▲« and activate with »OK«.
2 Select the desired setting (»CVBS« or »S-Video«) with »▼« or »▲« and confirm with »OK«.

Note:

If »off« is selected, the colour filter is switched off.

Selecting the horizontal filter

This setting optimises the soft focus function, computer graphics and photos during playback.

1 Select »Horizontal filter« with »▼« or »▲« and activate with »OK«.
2 Select the desired setting (»crisp«, »medium« or »soft«) with »▼« or »▲« and confirm with »OK«.

Selecting the vertical filter

This setting optimises the flicker-reduced reproduction of freeze frames during playback.

1 Select »Vertical filter« with »▼« or »▲« and activate with »OK«.
2 Select the desired setting (»Normal« or »Anti-flicker«) with »▼« or »▲« and confirm with »OK«.

Adjusting the playback image to the television (Y-delay)

With this setting you can select a delay time for the Y signal. You may need to do this to compensate for possible processing time differences between the brightness and colour signals.

1 Select »Y-delay« with »▼« or »▲« and activate it with »OK«.
2 Select the desired value (»158 ns delay«, »74 ns delay«, »off«, »74 ns advance« or »158 ns advance«) with »▼« or »▲« and confirm it with »OK«.
3 Press »i« to exit the menu.

Selecting the language of the screen menu

With this you set the language of the DVD player's screen menu.

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Select »Player language« with »▼« or »▲« and activate with »OK«.
4 Select your language using »▼« or »▲« and press »OK« to confirm.
5 Press »i« to exit the menu.

Setting the TV system

The colour norm of the DVD player's screen menus has to be adapted to the format of the television.

Select »NTSC« for televisions with the NTSC norm, »PAL« for televisions with the PAL norm, »Auto« for televisions with the multi-norm. The TV norm follows the content of the disc.

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Select »TV standard« using »▼« or »▲« and press »OK« to activate it.
4 Select the desired setting – (»NTSC«, »PAL« or »Auto«) with »▼« or »▲« and confirm with »OK«.

Note:

You can watch any DVD on a television with the PAL system, since it always converts the format. Smearing effects may occur, depending on the type of conversion used.

5 Press »i« to exit the menu.

Setting the screen menus and display of the DVD player

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.

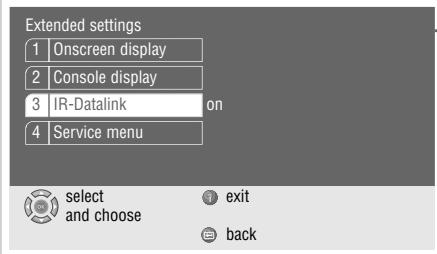

3 Select the »Extended settings« line with »▼« or »▲« and activate it with »OK«.

Note:

For further operation, see the following sections, each one starting from step 1.

Selecting the transparency of the screen menus

This enables you to make a setting to decide if the on-screen menus are to be displayed more or less transparently on the background.

1 Select »Onscreen display« with »▼« or »▲« and activate with »OK«.
2 Activate »Transparency« with »OK«.
3 Select the desired setting (25%, 50% or 75%) with »▼« or »▲« and press »OK« to confirm.

Note:

If »off« is selected the screen menus are not displayed transparently.

4 Return to the »Extended settings« menu by pressing »←«.

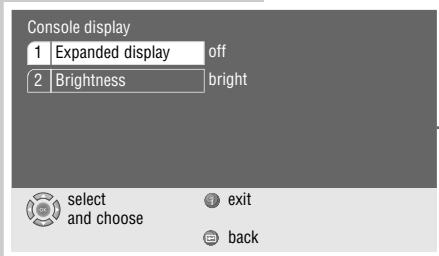

Setting the DVD player display

With this setting you can expand the DVD player's display and adjust the brightness.

1 Select »Console display« with »▼« or »▲« and activate with »OK«.
2 Select »Expanded display« with »▼« or »▲« and activate with »OK«.
3 Select the desired setting (»on« or »off«) with »▼« or »▲« and confirm with »OK«.

Note:

In order to be able to use the CD text function, the »Expanded display« must be set to »on«.

4 Select »Brightness« with »▼« or »▲« and activate with »OK«.
5 Select the desired setting (»bright«, »medium« or »dark«) with »▼« or »▲« and confirm with »OK«.
6 Press »i« to exit the menu.

Language settings

1 Press »i« to open the main menu.

2 Select the »Disc preferences« menu with »▼« or »▲« and activate with »OK«

or select directly with »1 ... 0«.

Note:

For further operation, see the following sections, each one starting from step 1.

Selecting the dubbing language

If several languages are available on the current DVD, the sound is played back in the language you have selected.

If the language you select is not on the DVD, the first dubbed language available is automatically selected.

Selecting the language for the subtitles

If subtitles are available on the current DVD, they are shown in the language you have selected.

If the language you have selected for the subtitles is not on the DVD, the first language available is automatically selected.

If you select »off« the subtitles are not shown.

If you select the »Disc default« line, the default setting of the DVD is used.

Selecting the language of the DVD menus

If the DVD has menus in several languages, you can select the language of your choice.

1 Select »Menu language« with »▼« or »▲« and press »OK« to activate it.

2 Select the language for the DVD menus using »▼« or »▲« and press »OK« to confirm.

3 Press »i« to exit the menu.

Activating the remote control of the DVD player via a Grundig television

If your DVD player is located in a closed cupboard, the DVD player can be operated with its remote control via the television. This can only be done if the television and DVD player are connected via the »EURO AV → TV« socket (and »EURO AV1« with GRUNDIG televisions)*.

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and confirm with »OK« or select directly with »1 ... 0«.
3 Select »Extended settings « with » ▼ « or » ▲ « and confirm with »OK«.
4 Select »IR-Datalink« with »▼« or »▲« and confirm with »OK«.
5 Select the desired setting (»on« or »off«) with »▼« or »▲« and confirm with »OK«.
6 Press »i« to finish the setting.

Software status and dealer menu

Here you can get information about your DVD player's software version. The »Dealer service menu« line is reserved for authorised dealers.

1 Press »i« to open the main menu.
2 Select »Installation« with »▼« or »▲« and confirm with »OK« or select directly with »1 ... 0«.
3 Select »Extended settings « with » ▼ « or » ▲ « and confirm with »OK«.
4 Select »Service menu« with »▼« or »▲« and activate with »OK«.
5 Select »System information« with »▼« or »▲« and activate with »OK«. – The »System information« is displayed.
6 Exit »System information« by pressing »i«.

USING AUDIO DEVICES

Connecting a multi-channel amplifier or digital two channel audio system

The digital multi-channel sound of a DVD can best be decoded and played back with a multi-channel audio/video amplifier (Dolby* digital decoder or DTS).

1 Plug a standard cinch cable into the »DIGITAL AUDIO OUT« socket on the DVD player and into the appropriate socket on the digital multi-channel amplifier

or

Remove the protective cap of the optical digital output and plug an optical digital cable into the »DIGITAL AUDIO OUT« socket of the DVD player and into the corresponding socket of the digital multi-channel amplifier.

Notes:

Keep the protective cap in a safe place and put it back in place on the device if it is not to be used for a longer period of time.

Even if you are using a digital connection, you should still make an analogue audio connection as it is possible, depending on the disc type, that no signal can be output via the »DIGITAL AUDIO OUT« socket.

Adapting digital sound output to a digital multi-channel amplifier/decoder

With this you choose whether the decoder signals are processed in the DVD player or fed unchanged to the digital output. With internal decoding, there is a stereo signal (PCM) at the digital output.

PCM (Pulse Code Modulation) is a process of digitalising analogue data in uncompressed form. The signals of an audio CD are in this format.

1 Press »i« to open the main menu.
2 Select »Sound« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Select »Extended settings« with »▼« or »▲« and activate with »OK«.
4 Select »Digital« with »▼« or »▲« and activate with »OK«.

Note:

For further operation, see the following sections, each one starting from step 1.

Selecting audio signal types for the digital output

Depending on the CD medium in use, various signals are present at the digital audio output.

Linear PCM audio is the signal recording format used with music CDs.

Whereas the signals for music are recorded at 44.1 kHz/16 bits,

DVD signals are recorded at 48 kHz/16 bits to 96 kHz/24 bits. This means that the sound quality of DVDs is better than that of music CDs.

	Audio recording format		Settings	Digital audio data output
DVD video DVD audio (video part only)	Dolby Digital		Digital output: Original	Dolby digital bit flow
			Digital output: PCM conversion	2-channel PCM data (48 kHz/16 bit)
	DTS		Digital output: Original	DTS bit flow
			Digital output: PCM conversion	DPL downmix
	MPEG audio*		Digital output: Original	2-channel PCM data (48 kHz/16 bit)
			Digital output: PCM conversion	2-channel PCM data (48 kHz/16 bit)
	Linear PCM	48 kHz	LPCM conversion mode: ON	PCM (48 kHz/16 bit) – 24 bit PCM
			LPCM conversion mode: OFF	PCM (48 kHz/16 bit)
		96 kHz	LPCM conversion mode: OFF	PCM (48 kHz/16 bit)
		CP: ON	LPCM conversion mode: ON	No data output(if copy protected)
		CP: OFF	LPCM conversion mode: ON	PCM (96 kHz)(if not copy protected)
Video CD	MPEG 1			Original: MPEG, otherwise PCM
Music CD	Linear PCM			PCM (44.1 kHz/16 bit)
MP3 CD	MP3			PCM (32-48 kHz/16 bit)

1 Select »Output Format« with »▼« or »▲« and activate with »OK«.
- Dolby Digital: 5.1 process for DVDs, loss inducing, sampling rate 48kHz , sample size 24 bit. A downmix algorithm can create a stereo or Dolby Surround signal from Dolby Digital.
2 Select the required output format (»DOLBY D« or »MPEG«) with »▼« or »▲« and confirm with »OK«.
3 Select the sound signal type – (»Original« or »PCM«) with »▼« or »▲« and confirm with »OK«.

Note:

»Original« is used if an external decoder is used, »PCM«, if the decoder installed in the DVD player is used or if the decoder cannot process the format, e.g. MPEG.

4 Switch back to the »Digital« menu with »←«.

Setting the bit rate

Here you choose the possible digital resolution and the size of the samples (dynamic range) of the output signal, in order to adapt the signal to the decoder. The more bits a sample comprises of, the more precisely a signal (sound) can be played back.

Setting the clock rate

This setting is used to limit the sampling rate of the digital output. The sampling rate indicates how many samples can be read in per time interval.

• Use »Original« for DVDs with a 96 kHz sound signal.
  The sound signal is output at the »AUDIO OUT L R« sockets and – if supported by the DVD – at the »DIGITAL AUDIO OUT« socket. This is the case for DVDs without copy protection algorithms.
• Use »48 kHz« for DVDs with a 48 kHz sound signal.
  The signal is output at the »AUDIO OUT L R« sockets and at the »DIGITAL AUDIO OUT« socket. The 96 kHz sound signal is converted into 48 kHz.

1 Select »Clock rate« with »▼« or »▲« and activate with »OK«. – This is set to »48 kHz« at the factory.

2 Select the desired value – (»Original«, »96 kHz« or »48 kHz«) with »▼« or »▲« and confirm with »OK«.

Setting the digital output level

With this setting, the output level can be adapted to external sound sources.

1 Select »Output level« with »▼« or »▲« and activate with »OK«.
2 Change the output level step-by-step (from »0 dB« to »20 dB«) with »▼« or »▲«, or press »◀« and »▶« to change it in increments of 10 and confirm with »OK«.
3 Press »i« to exit the menu.

Adapting analogue output to the audio system

With this you set the output level of the audio signal and the audio operation type (stereo, surround sound or □□ surround comp)

1 Press »i« to open the main menu.
2 Select »Sound« with »▼« or »▲« and activate with »OK« or select directly with »1 ... 0«.
3 Select the »Additional function« line with »▼« or »▲« and activate it with »OK«.
4 Select »Analogue« with »▼« or »▲« and activate with »OK«.

Note:

For further operation, see the following sections, each one starting from step 1.

Setting the output level

1 Select »Output level« with »▼« or »▲« and activate with »OK«.
2 Change the output level step-by-step (from »0dB« to »20dB«) using »▼« or »▲« or in increments of 10 using »◀« and »▶« and press »OK« to confirm.

Note:

The output level setting affects the connection via the »EURO AV → TV« socket.

Selecting sound mode type

1 Select »Downmix Mode« with »▼« or »▲« and activate with »OK«.
2 Select the desired mode – (» Stereo«, » Surround Sound« or » □□ Surround Comp«) with » ▼ « or » ▲ « and confirm with » OK«.

- »□□ Surround Comp« is an analogue sound recording process in which the stereo signal is supplemented with information for the centre or surround loudspeakers.

3 Press »i« to exit the menu.

TELEVISION REMOTE CONTROL

You can also operate GRUNDIG televisions with this remote control. The functions available to you depend on the model of the GRUNDIG television.

Point the remote control directly at the TV.

TV	Switches the remote control to television operation.To do this, press and hold down »TV« then press the relevant button for the desired function.
💡	Switches off the television set (stand-by).
1 ... 0	Switches the television on from standby;selects the television channel directly;»O« selects the channel position »RV«.In video text operation: for entering the three-figure page number.
💡	Inset picture in main picture.
💡 ➔	Calls up the PICTURE FORMAT menu.
💡	Calls up the concise TV help menu.
◀	Switches the sound on or off (mute).
i	Calls up the "DIALOG CENTER" or switches to menu operation.
◀	Switches between the two most recently selected channels (zapping).
◀ ▶	Volume setting, »◀< lower, »▶< higher.In menu mode: »◀< cursor left, »▶< cursor right
OK	Activates functions, calls up data, confirms and saves data.
▲ ▼	Select TV channels, »▲< up, »▼< down.In menu mode: »▲< cursor up, »▼< cursor down.
TXT Ⓤ	Switches from TV mode to teletext mode and back.
TV-G Title	Switches the TV Guide on and off.
◀	In teletext mode: returns to previous page.
▶	In teletext mode: advances to next page.
◀◀	In teletext mode: switches to the next theme.
▶▶	In teletext mode: switches to the next chapter.
?	Calls up the Sound menu.
💡 ➔	Calls up the Picture menu.

CE

CLASS 1 LASER PRODUCT

Technical data

This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC.

This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065.

You may not open the DVD player. The manufacturer will not accept any liability for damage resulting from improper handling.

Mains voltage:

110 - 240 V \~, 50/60 Hz

Audio format:

Digital: MPEG2, Dolby Digital, PCM, DTS, WMA (Class 3)

Power consumption:

Operating: approx. 20 W

Standby: ≤ 3.5 W

Analogue: Stereo sound, Dolby Pro Logic, MP3

Ambient temperature:

+10 °C to +35 °C

Picture: JPEG

Playback standard:

PAL, 50 Hz, 625 lines

Audio:

Signal: Analogue

DVD: 48/96 kHz 4 Hz-22/44 kHz

Video CD: 44.1 kHz 4 Hz-20 kHz

Audio CD: 44.1 kHz 4 Hz-20 kHz

NTSC, 60 Hz, 525 lines

Signal-to-noise ratio

(at 1 kHz): 98 dB

Sound volume

(at 1 kHz): 98 dB

Playback system:

DVD video, video CD 2.0, S-Video CD, MP3 CD,

Dimensions and weight:

Dimensions:

W x H x L 432 x 55.5 x 249 mm

Weight 2.8 kg

Laser:

Semiconductor laser

Wavelength 650 nm for DVD

Wavelength 780 nm for CD

General instructions for laser devices

Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances.

Caution:

If operating devices or methods other than those specified here are employed, it may lead to dangerous exposure to emissions.

This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened or serviced by trained personnel.

If settings other than those specified here are employed or OTHER PROCEDURES are carried out, this may lead to dangerous radiation exposure.

This product contains components which are covered by certain U.S. patents or for other reasons are considered intellectual property of the Macrovision Corporation and other proprietors. Use of this protected technology must be approved by the Macrovision Company and is only permissible for private presentation at home or for other limited applications, where no special permission has been granted by Macrovision. Reproduction or disassembly of the device is prohibited.

Manufactured with permission from Dolby Laboratories. The "Dolby" label and the double-D logo "☐☐" are trademarks of Dolby Laboratories. Confidential unpublished material.

©1992-1997 Dolby Laboratories, Inc. All rights reserved.

During playback of DTS-coded CDs and DVDs, a high noise level is produced at the analogue stereo outputs. In order to avoid possible damage to the audio system, the user should take appropriate preventive measures when the stereo outputs of the DVD player are connected to an amplification system. For DTS Digital Surround playback, an external 5.1-channel DTS Digital Surround decoder must be connected to the digital output (S/PDIF) of the DVD player.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc. All rights reserved.

Rectifying minor problems

Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control.

If the following measures do not bring about satisfactory results, consult an authorised dealer.

DVD-R/RWs in DVD video format, as well as CD-Rs and CD-RWs in CD-DA and MP3 format can be played. Due to the difference in quality of the recording media and the quality of the recording itself, it can occasionally happen that a home-made DVD or CD cannot be read. This does not indicate a malfunction of the DVD player.

Problem	Possible cause/remedy
DVD player does not respond to the remote control	Point the remote control directly at the DVD player.
	Remove all obstacles which may interfere with the path of the remote control signal.
	Check or replace the remote control batteries.
The disc compartment does not open, Picture/sound interference	Pull the mains cable plug out of the socket. Press »|« and »►|« at the same time, hold them down, and plug the mains cable plug in again. When »---« appears in the DVD player display, the reset procedure is complete.
No picture Distorted image	Check the video connection.
	Make sure that there are no fingerprints on the DVD/CD, follow the cleaning instructions on this page.
The DVD/CD cannot be played	Check if the label on the DVD/CD is facing upwards.
	Clean the DVD/CD.
	Check if the DVD/CD is damaged by testing out another DVD/CD.
No sound	Check the audio connections.
	Try another playback source.
Distorted sound from the HiFi system Abspielprobleme MP3-CDs	Ensure that the audio connections have not been connected to the phono input on the amplifier. Wir empfehlen, auf ID3V2-Tags beim Editieren von MP3-CDs zu verzichten. Verwenden Sie einen entsprechenden ID3V2-Tag-Editor. Näheres dazu finden Sie in den Internet-Foren.

Cleaning discs

Wipe the dirty disc with a cloth from the centre outwards in a straight line.

Do not use any solvents such as benzene, thinners, conventional cleaner or anti-static spray for vinyl records.

Software information

We wish to point out explicitly that only operating software authorised by GRUNDIG is permissible for the DVD player. This operating software is available from specialist dealers or will be available shortly on the Grundig web sites www.grundig.com and www.grundig.de. Any instance of operating software from a dubious Internet source being loaded to the device will impair functioning and also, since it is an unauthorised intervention, invalidate any claims under the guarantee.

GRUNDIG will refuse to refund any costs resulting in such cases. Any repair costs in such cases, even those occurring within the guarantee period, are to be paid by the customer.

GRUNDIG Service

GRUNDIG Deutschland

S.A. GRUNDIG BELUX N.V.

Deltapark, Weihoek 3, Unit 3G

B-1930 Zaventem

+32/2-7 16 04 00

GRUNDIG UK LTD.

Elstree Business Centre, Elstree Way,

Borehamwood, Hertfordshire, WD6 1RX

Gts Intermedia Service Ltd, Unit 36, Webb Ellis

Business Park, Woodside Park, Wood Street,

Rugby, Warwickshire, CV21 2NP

Steinacker Straße 28

CH-8302 Kloten

+41/1-8 15 81 11

GRUNDIG PORTUGUESA, LDA
