Brand	Electrolux
Model	EWF8025EQWA
Product Type	Freestanding Washing Machine
Loading Type	Front Load
Capacity	8 kg
Spin Speed	1200 rpm
Energy Efficiency Class	A+++
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Water Consumption (per cycle)	45 L
Noise Level (Wash/Spin)	56 dB / 77 dB
Programs	Cotton, Synthetics, Delicates, Quick 15, Eco 40-60, etc.
Display	Digital LED
Delay Start	Yes (up to 24h)
Child Lock	Yes
Overflow Protection	Yes (Aqua Control)
Drum Material	Stainless Steel
Heating Element	1200 W
Motor Type	Inverter
Self-Cleaning	Yes (Drum Clean program)
Warranty	2 years

Frequently Asked Questions - EWF8025EQWA ELECTROLUX

What is the recommended detergent for this Electrolux washing machine?

Use a low-sudsing, high-efficiency (HE) detergent suitable for front-load washers. Avoid overdosing to prevent residue.

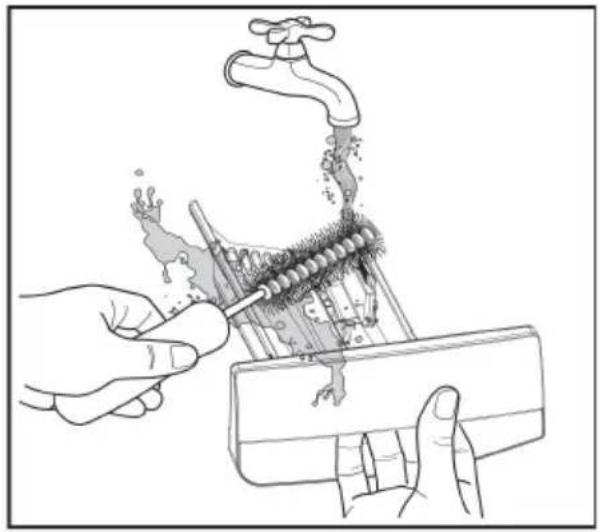

How do I clean the detergent drawer?

Remove the drawer by pressing the release lever. Wash it under warm water with a soft brush and dry before reinserting.

What does the 'Eco 40-60' program mean?

It is a standard program for normally soiled cotton items able to be washed at 40°C or 60°C in the same cycle, optimizing energy and water.

How do I activate the child lock?

Press and hold the 'Child Lock' button or a combination of buttons (refer to manual). The symbol will appear on the display.

Why is the machine not draining water?

Check the drain hose for kinks or clogs. Also clean the pump filter located at the bottom front panel.

What is the maximum spin speed?

The maximum spin speed is 1200 revolutions per minute (rpm).

How do I clean the drum?

Run a 'Drum Clean' or 'Machine Clean' program without laundry, using a drum cleaner or a cup of white vinegar occasionally.

What is the weight of this washing machine?

The weight is approximately 65 kg. Ensure proper handling and installation.

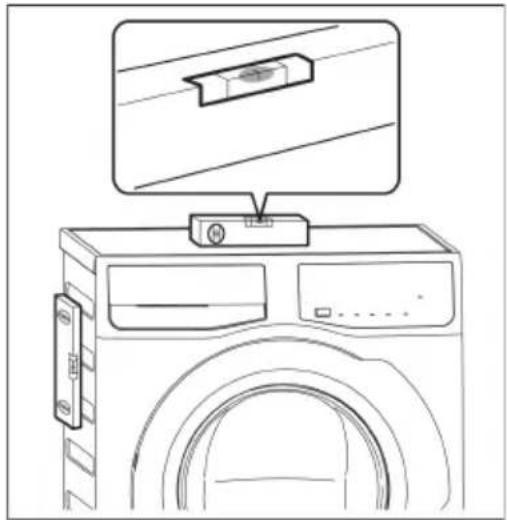

How do I level the machine?

Adjust the four feet by turning them counterclockwise to raise or clockwise to lower. Use a spirit level on top of the machine.

Why is the door not opening after a cycle?

The door lock is engaged for safety until the drum temperature and water level are safe. Wait 2-3 minutes after cycle end. If still locked, check if there is water inside.

USER MANUAL EWF8025EQWA ELECTROLUX

R EV I S I ON:	DATE: D ETAI L	: R EQU E STE D BY: R E M A R K	:
001 1 Nov 2017		Draft 014 Jan 2018 Model name updated19 Feb 2018 Tanet comments5 April 2018 1st release24 April 2018 For P49	-	-
002	17 May 2018	Page No. revised	-	-
003	25 May 2018	Power Rating revised	-	-

Gray Scale1

Electrolux

BRAND Electrolux		User Manual for- Quartz- EU (English + Vietnamese)
BY Weerasak J.
DATE -		TITLE
SCALE 100%		G0020744ARTWORK NO.:

This drawing contains confidential information and is the property of Aktiebolaget Electrolux, Stockholm, Sweden, without whose permission it may not be copied, shown or handed to a third party or otherwise used, and it is to be returned promptly upon request to Aktiebolaget Electrolux.

EN WASHING MACHINE

VN WASHING MACHINE

USER MANUAL 2

USER MANUAL 34

EASY WAY TO REGISTER YOUR

PRODUCT WITH YOUR SMARTPHONE

Photograph the camera icon located on your product's serial tag, including the 4 dots (●).

2 Send it in via Line, Facebook Messenger or go online.

@eluxreg eluxreg eluxreg.com

3 Enjoy many privileges.*

*Terms and conditions apply.

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information, buy accessories & spare parts, online product registration: www.electrolux.com

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

⚠ Warning / Caution-Safety information.

i General information and tips

Environmental information.

Subject to change without notice.

RoHS

Compliant

Being ensured permissible content limitation of some toxic chemicals (RoHS compliant)

CONTENTS

1. SAFETY INFORMATION

1.1 Conditions Of Use 4 1.2 Child Safety 4 1.3 General Safety 5 1.4 Installation 6 1.5 Use 6

2. PRODUCT DESCRIPTION

2.1 Parts 7 2.2 Accessories 7

3. CONTROL PANEL

3.1 Control Panel Description 8 3.2 Program Description 9 3.3 Maximum Load 9 3.4 Program Options Compatibility.... 10 3.5 Options 10 3.6 Settings 13 3.7 Start/Pause ( ▷∥ ) and Add Clothes ( 📋 ) Touchpad ...... 14

4. BEFORE FIRST USE.... 14

CONTENTS

5. DAILY USE

5.1 Loading The Laundry.... 15 5.2 Using Detergent And Additives 15 5.3 Options Setting 16 5.4 Starting A Cycle ( ▷ || ).... 17 5.5 Interruption Of A Program.... 17 5.6 Changing A Program 17 5.7 Changing The Options 17 5.8 Opening The Door.... 17 5.9 At The End Of The Program.... 17 5.10 When The Washing Program Is Completed, But There Is Water In The Drum ..... 18 5.11 AUTO Standby Mode.... 18

6. WASHING HINTS

6.1 Sorting The Laundry 19 6.2 Temperatures.... 19 6.3 Before Loading The Laundry.... 19 6.4 Maximum Loads 19 6.5 Removing Stains.... 19 6.6 Detergents Type And Quantity Of Detergent.... 20

7. INTERNATIONAL WASH CODE SYMBOLS 21

8. CARE AND CLEANING

8.1 External Cleaning 21 8.2 Descaling 21 8.3 After Each Wash 21 8.4 Maintenance Wash 22 8.5 Cleaning The Dispenser Drawer 22 8.6 Cleaning The Drawer Recess 22 8.7 Cleaning The Drawer Bottom 23 8.8 Cleaning The Water Inlet Filter 24 8.9 Frost Precautions.... 24

9. TROUBLESHOOTING

9.1 Possible Failures 25 9.2 Emergency Door Opening 27

10. TECHNICAL DATA 28

11. INSTALLATION

11.1 Unpacking 29 11.2 Positioning 30 11.3 Water Inlet 31 11.4 Water Drainage 31 11.5 Electrical Connection 32

12. ENVIRONMENT CONCERNS

12.1 Packaging Materials 33 12.2 Old Machine 33 12.3 Ecological Hints 33

1. SAFETY INFORMATION

1.1 Conditions of Use

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels, and other residential type environments; bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

WARNING! The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings.

To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.

Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

1.2 Child Safety

- This washing machine is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.
• Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb into the drum.
• This machine is provided with child safety lock option (☐) to prevent children playing with the control panel. (see page 13)

1.3 General Safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.
• During high temperature wash program the door glass may get hot. Do not touch it!
• Make sure that small pets do not climb into the drum. To avoid this, please check inside the drum before using the appliance.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.
• Only use manufacturer's recommended quantities of fabric softener and detergent. Damage to the fabric or appliance can occur if you exceed the recommended amount.
• Do not use your washing machine to wash articles with whalebones, material without hems or torn material.
• Always unplug the appliance and turn off the water supply after use, clean and maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

1.4 Installation

• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
• All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.
• After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable.
• If the appliance is installed on a carpeted floor, please adjust the feet in order to allow air to circulate freely.
• Always be sure, that there is no water leakage from hoses and their connections after the installation.
• Any plumbing work required to install this appliance should be carried out by a qualified plumber.
• Any electrical work required to install this appliance should be carried out by a qualified electrician.

May cause electric shock! if the machine is not connected to an earthed/ground system. DO NOT touch the wet clothes and metal parts.

1.5 Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.
• Do not overload the appliance. See the relevant section in the user manual.
• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never use the washing machine if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible.

2. PRODUCT DESCRIPTION

2.1 Parts

1 Detergent/Softener Dispenser 2 Worktop 3 Control Panel 4 Door 5 Emergency Door Opening 6 Front Feet (Level Adjustment)

7 Water Drain Hose 8 Water Inlet Hose 9 Rear Feet (Fixed) 10 Mains Cable 11 Transit Bolts

12 Transit Bolts, Hose Support

All transit bolts (3 pcs) must be removed before using the appliance.

2.2 Accessories

1 Plastic Caps

To close the holes on the rear side of the cabinet after the removal of the transit bolts.

2 Plastic Hose Guide

To connect the drain hose on the edge of a sink.

3. CONTROL PANEL

3.1 Control Panel Description

*** Maximum spin speed depended on model.

1 On/Off Button 2 Program Touchpad 3 Temp Touchpad 4 Child Lock Option 5 Spin Touchpad 6 Extra Rinse Option 7 Option Touchpad 8 Start/Pause Touchpad 9 Delay End Touchpad

10 LED Digital Number, will tell you:

• Washing Cycle Time, Delay End Time
• The alarm codes. Refer to the chapter "Troubleshooting" for their description.

11 LED Icon

Pause to add clothes status icon Door Lock status icon Extra Rinse status icon Delay End status icon

Woolmark Apparel Care

The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1757.

The Woolmark symbol is a Certification mark in many countries.

3.2 Program Description

Program	Temperature can be selected	Type of load and soil level
On/Off (1)	-	To reset program/switching off the machine.
Cottons	Cold, 30, 40, 60,90°C	White and coloured cotton.
Mixed	Cold, 30, 40, 60°C	Synthetic or mixed fabric items.
Quick 15	30°C	Synthetic and mixed fabric items. Light soil and items to freshen up.
Daily 60	30, 40, 60°C	Coloured cotton e.g. shirts, blouses, towels and undergarments with normal level of soil.
Delicates	Cold, 30, 40°C	Delicate fabrics such as acrylics, viscose, polyester items.
Wool 📄.	Cold, 30, 40°C	Specially tested program for woollen garments bearing the “Pure new woollen, non-shrink, machine washable” label.
Bedding	Cold, 30, 40°C	Special program for one synthetic blanket, duvet, bedspread and so on.
Energy Saver	40°C, 60°C	White and colourfast, cotton with normal soil. Set this program to have a good washing results and decrease the energy consumption. The time of the washing program is extended.

3.3 Maximum Load

Program	Maximum Load (kg)
	Model
	EWF8025CQSA, EWF8025BQWA, EWF8025CQWA, EWF8025EQWA, EWF8005EQWA	EWF7525DQWA, EWF7525EQWA
Cottons	8.0 kg	7.5 kg
Mixed	4.0 kg	4.0 kg
Quick 15	1.5 kg	1.5 kg
Daily 60	4.0 kg	4.0 kg
Delicates	4.0 kg	4.0 kg
Wool 📄	1.5 kg	1.5 kg
Bedding	3.0 kg	3.0 kg
Energy Saver 1)	8.0 kg	7.5 kg

1) Energy Saver program with 60 °C option selected is recommended for a full load of normally soiled cottons, and is the Energy rating label program.

3.4 Program Options Compatibility

Program	Option
	Vapour Quick Soak				Rinse & Spin	Drain & Spin	Delay End	Extra Rinse
Cottons	✓	✓	✓	✓	✓	✓		✓
Mixed	✓	✓	✓	✓	✓	✓		✓
Quick 15	×		×	×	✓	✓	✓	×
Daily 60	×		×	×	✓	✓	✓	✓
Delicates			✓✓	✓	✓	✓	✓	✓
Wool	×		×	×	✓	✓	✓	×
Bedding	✓	✓	×✓	✓	✓			✓
Energy Saver	✓	✓	✓	✓	✓	✓		✓

1) Vapour option can be combined with temperature 40°C to 90°C only.

3.5 Options

Temperature Touchpad

Press this touchpad repeatedly to increase or decrease the wash temperature if you want your laundry to be washed at a temperature different from the one proposed by the washing machine.

Spin Selection Touchpad

Press this touchpad repeatedly to increase or decrease the spin speed or select Rinse Hold, if you want your laundry to be spun at a speed different from the one proposed by the washing machine.

Maximum speeds are:

Program Spin Speed
CottonsMixedDaily 60DelicatesEnergy Saver	Max. Spin(maximum spin speed of your washing machine, eg. 1200rpm)
Wool 📋.	1000 rpm
Quick 15Bedding	800 rpm

- No Spin

No spin option eliminates all the spin phases and increases the number of rinses.

- Rinse & Hold

By selecting this option, the water of the last rinse is not emptied out and the drum turns regularly to prevent the laundry from creasing.

The door is still locked to indicate that the water must be emptied out.

The door stays locked with the water in the drum. To continue the cycle, you must press ▷∥ (Start/Pause).

Vapour Touchpad

Select this option to add approximately 30 minutes of tumbling in vapour during the wash cycle. Vapour helps open fabric fibers up to allow laundry additives to release tough stains. The indicator of this option will be on.

NOTE:

• Vapour may not necessarily be visible inside the drum during a vapour wash cycle. Vapour is created below the drum and allowed to naturally rise into the clothes.
• Vapour may not be present during the entire vapour wash cycle. • Vapour function is more effective with half load.
• At the end of the Vapour cycle, the clothes will be warmer, softer and detached from the drum.

If Vapour option is selected, rinse temperatures will be elevated.

During a vapour cycle, you may notice vapour exiting from the drain hose of the washing machine, this is normal and there is no cause for alarm.

Quick

With this option you can decrease the program duration. Use this option for items with light soil or items to refresh.

This option will reduce the working time and the number of rinses.

If you need to add more rinse phases, press "Spin" + "Option" at the same time to add "Extra Rinse" option.

Soak

This option allows you to soak heavily soiled clothes and stained items at the beginning of the wash before the main washing phase.

This option will increase the duration of the selected program by about 50 minutes and uses more water than a normal wash. The process is as follows.

1. Fill water and turn the washing drum (this takes about 20 minutes).

After pressing the Start/Pause touchpad, the machine will start adding water to the washing drum, which will start to rotate slowly to dissolve detergent and evenly distribute clothes.

1. Soak (this takes about 30 minutes).

The machine will enter the soaking process. The washing drum will stop and rotate once in a while in order to redistribute clothes.

1. Once the soak process is complete, the machine will check the water level again and will start the selected program, continuing by using the same soak water.

NOTE

If you do not wish to use the soak water to wash clothes, please follow the steps below:

1. Press Start/Pause to pause the washing machine. Then press On/Off to turn off the machine.
2. Press On/Off again to start the machine, add detergent, and select the program of your choice. Press Start/Pause again to start the selected program.

The machine will detect and drain the water in the washing drum out automatically and fill in water once again to be used for washing.

NOTE

• Any temperature may be selected, but "Cold" water is recommended with this cycle as hotter water may set some stains.
• Use the amount of detergent recommended for a normal wash cycle. If desired, use a bleach or a soaking agent safe for the fabric, by pouring it into the detergent compartment.

Rinse & Spin

With this option you can perform only a last rinse of a selected washing program.

• If you set also the "Extra Rinse" option ( ) the appliance adds two rinses.
• If you set also the "No Spin" option, the appliance only rinse.

Drain & Spin

Use this option for very wet clothes to remove the water and spin.

If you set also the "No Spin" option, the appliance only drains.

Delay End Touchpad (💡)

Before you start the program, this option makes it possible to define the end of the washing program from minimum of 1 hour to maximum of 20 hours.

eg. if program duration is longer than 3 hours, minimum Delay End option starts from 4 hours.

Press the Delay End touchpad to choose the end time as you wish. The display shows the number of hours and the indicator beside the touchpad is on.

This option must be selected after choosing the wash program, and before pressing the "Start/Pause" touchpad.

For example, if the program duration of your selected program is 3.20 hours and you define the "Delay End" time to 6 hours. This means your wash program will finish in 6 hours. (See diagram)

After selecting Delay End time, press Start/Pause touchpad to start the program. Machine will then countdown and update time on the display every hours until it reaches the starting point of the wash cycle.

If you wish to modify or cancel Delay End option after starting the program, follow the steps below:

• set the washing machine to PAUSE by pressing "Start/Pause" touchpad;
• deselect this option by pressing "Delay End" touchpad repeatedly till the display shows delay time "☐";
• press the "Start/Pause" to start the program.

3.6 Setting

Extra Rinse Option ( √ )

This option is recommended for people who are allergic to detergents, and in areas where the water is very soft. Use this option to add two rinse phases to a program.

• To activate this option, press "Spin" and "Option" touchpads at the same time until the "Extra Rinse" ( ✉ ) LED turn on.
• To deactivate this option, press "Spin" and "Option" touchpads at the same time until the "Extra Rinse" (＋) LED turn off.

This option remains enabled even after the appliance is switched off.

Child Safety Lock Option (☐)

Your appliance is provided with CHILD SAFETY LOCK which permits you to leave the appliance unsupervised with the door closed without having to worry that children might be injured by or cause damage to the appliance.

Set this option after pressing the "Start/Pause ▷" touchpad.

To set "Child Lock" option:

- To activate the function, press "Temp" and "Spin" touchpads at the same time until symbol "LOC" (lock) shows on the display with sound.

After activating this function, if you press any touchpad, symbol "LOC" will flash on display along with buzzer sound. (except "On/Off" button)

- To deactivate the function, press "Temp" and "Spin" touchpads at the same time until symbol "unl" (unlock) shows on the display with sound.

This function remains enabled even after the appliance is switched off.

Enabling/Disabling End-Of-Wash Buzzer

This setting permits you to either enable or disable the buzzer at the end of the program. As an example, you might wish to disable this buzzer when you start a wash when going to bed, so that when the wash finishes approximately 1 hour later, it will not disturb you through the night.

Error warning beeps such as critical faults are not disabled.

• To disable the buzzer sound, press "Program" and "Temp" touchpads at the same time for 3 seconds, and listen for "BEEP, BEEP".
• To return to default configuration press these 2 touchpads at the same time for 3 seconds, and listen for "BIP".

3.7 Start/Pause (▷∥), Pause to add clothes (∓)

This touchpad has 2 functions:

Start/Pause (▷∥)

After you have selected the desired program and options, press this touchpad to start the machine. The "Start/Pause" pilot light will stop flashing and remain lit until the water level is above the bottom edge of the door then pilot light goes OFF. If you have selected a "Delay End" option, the countdown will begin and will be shown in the display.

To interrupt a program which is running, press this touchpad to pause the machine, the "Start/Pause" pilot light flashes.

To restart the program from the point at which it was interrupted, press this touchpad again, the "Start/Pause" pilot light will stop flashing.

Pause to add clothes ( ✉ )

You can only add clothes if add clothes “+” pilot light is lit.

While running a program, you may add clothes by:

• Pressing the “▷‖” touchpad to pause the program.
• Wait for the machine to come to a complete stop before opening the door.
• Add clothing and close the door.
• Resume the program by pressing “▷‖” touchpad again.

You cannot open the door if the water inside the machine drum are hot, the door remains locked for your safety. Although the LED light still remain lit.

BEFORE FIRST USE4.

i NOTE

During installation or before first use you may observe some water in the machine. This is a residual water left in the machine after a full functional test in the factory to ensure the machine is delivered to customers in perfect working order and is no cause for concern.

1. Ensure that the electrical and water connections comply with the installation instructions.
2. Put 2 litres of water in the detergent compartment for washing phase. This activates the drain system.
3. Select a Cottons cycle at 90 °C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub, then start the machine.

DAILY USE 5.

5.1 Loading the Laundry

1. Turn the water tap on.
2. Connect the main plug to the main socket.
3. Press the On/Off button to turn on the washing machine. The indicator of the "Start/Pause" touchpad flashes.

Press the Program touchpad to choose the wash program you require. (For more information about washing programs, please see page 9)

• The relevant light will light up.
• The display shows the program duration.
• Check and remove objects (if there are any) that could be trapped in the fold.

1. Place the laundry in the drum, one item at a time, shaking them out as much as possible. (Refer to page 19 "WASHING HINTS")
2. Close the door.

CAUTION

Make sure that no laundry remains between the seal and the door.

5.2 Using Detergent And Additives

IMPORTANT: Please read "Detergents Type and Quantity of Detergent" on page 20 before use.

1. Detergent Dispenser Drawer

The detergent dispenser is divided into two compartments.

• Ⓗ Compartment "DETERGENT" This compartment is used for detergent on all programs.

- ⚙️ Compartment "SOFTENER" This compartment is used for fabric conditioner and starching agent.

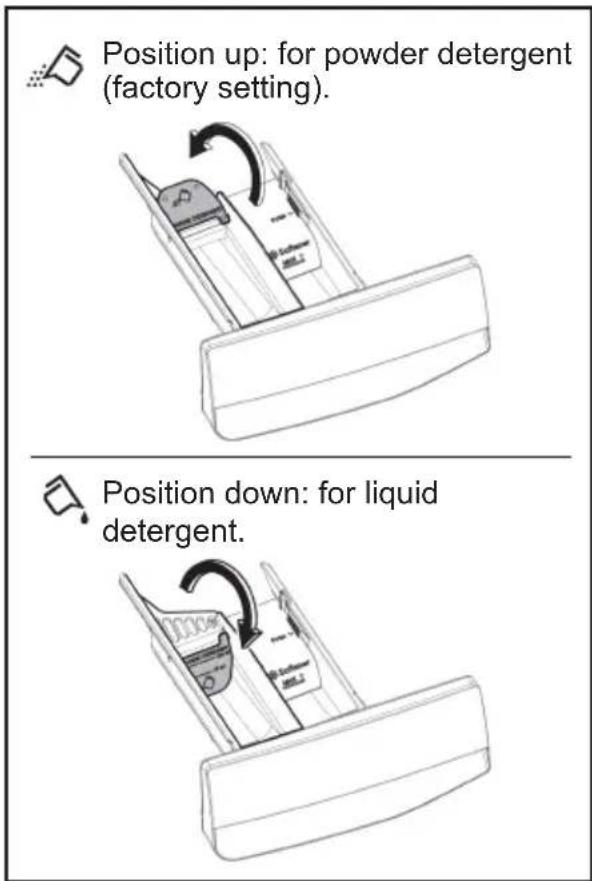

Powder or liquid detergent ( ◇|◇)

Position down: for liquid detergent.

Position up: for powder detergent (factory setting).

When you use the liquid detergent:

• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid than the maximum level.
• Do not set the Delay End.

1. Measure out the detergent and the fabric softener;
2. Pull out the dispenser drawer until it stops.
3. Measure out the amount of detergent required, pour it into the Detergent compartment.

- If required, pour fabric softener into the compartment marked “✿”.

NOTE:

The amount used must not exceed the "MAX" mark in the drawer. If you use thick softeners it is recommended to dilute with water.

- Close the drawer gently.

Residues of detergent, softener and water may remain in the dispenser. It is recommended to clean the dispenser regularly to remove any residue.

5.3 Options Setting

1. If you want your laundry to be spun or use temperature different from the one proposed by the washing machine, press the "Spin" and the "Temp" touchpads repeatedly to change the spin speed and temperature.

Press the option touchpads, if you want your laundry to be washed with special functions.

NOTE:

- Different functions can be combined, depending on the selected program.

- If an option is not compatible with the selected wash program, the symbol "---" will flash on the display along with a buzzer sound.

1. To decrease washing time, press the "Quick" option touchpad. See page 11.

To define the end of the washing cycle, press the "Delay End (©)" touchpad repeatedly to choose your washing machine working time.

5.4 Starting A Cycle (▷II)

To start a program, press the Start/Pause touchpad. The corresponding pilot light will stop flashing and a default program duration will be displayed on the screen.

If you press any touchpad while a program is operating, the symbol "----" will flash on the display along with a buzzer sound. (except Start/Pause touchpad)

After approx. 15 minutes from the start of a program:

The appliance will automatically adjust the selected program duration according to the type and size of the load.

The display will show the adjusted program duration.

5.5 Interruption Of A Program

• To pause, press Start/Pause. The indicator will start flashing.
• Press Start/Pause again. The program will continue.

5.6 Changing A Program

Changing a running program is possible only by switching off the appliance.

• Press the "On/Off" button to cancel the program and to turn off the appliance.
• Press the "On/Off" button again to start the appliance. Now, you can set a new washing program.

The appliance will not drain the water.

5.7 Changing The Options

It is possible to change only some options after the program has started.

1. Press the Start/Pause touchpad. The indicator will start flashing.
2. If available, change the options that you wish.
3. Press Start/Pause again. The program will continue.

5.8 Opening The Door

While a program or the Delay End is operating, the appliance door is locked and the door lock indicator “→0” is on. First set the machine to PAUSE by pressing the “Start/Pause” touchpad. Wait until the door lock indicator “→0” goes off, then the door can be opened.

If the door lock indicator “→0” does not disappear, this means that the machine is already heating and the water level is above the bottom edge of the door or the drum is turning. In this case the door CAN NOT be opened. If you need to open it, you must drain the water to open the door.

To drain the water, you have to switch the machine off by pressing the "On/Off" button to deactivate the appliance. Turn On the machine and select "Drain & Spin" option, you can select "No Spin", if you want the machine to only drain the water then press Start/Pause touchpad to start the program.

In case of emergency please refer to "Emergency door opening" on page 27.

5.9 At The End Of The Program

• The appliance stops automatically.
• The acoustic signal will operate.
• The display will show "End".
• The indicator of the touchpad Start/Pause goes off.
• The door lock indicator “→0” goes off.
• Remove the laundry from the appliance. Make sure that the drum is empty.
• Keep the door partly open, to prevent the mildew and odours.
• Turn off the water tap.

i NOTE:

At the end of the program, the time remaining can suddenly decrease from 7 minutes or less to 0 due to the overestimated total program time during the load sensing phase. In some cases (with perfectly balanced load) the program time can be shorter than the time estimated after the load sensing phase is completed. This is a normal behavior of the machine and not a cause for concern as it does not compromise its performance.

5.10 When The Washing Program Is Completed, But There Is Water In The Drum (Option “Rinse & Hold” is used)

• The drum turns regularly to prevent the creases in the laundry.
• The indicator "Start/Pause" flashes to remind you to drain the water.
• The door lock indicator “→0” is on. The door stays locked.

You must drain the water to open the door.

To drain the water:

1. Press the "Start/Pause ▷" touchpad. The appliance drains the water and spins with the maximum spin speed for the selected program.

Alternatively, before pressing the "Start/Pause" touchpad, you can press the "Spin" touchpad to change the spin speed. You can select "No Spin" if you want the machine to only drain the water.

1. When the program is completed and the door lock indicator "→0" goes off, you can open the door.
2. Press the "On/Off" button to deactivate the appliance.

i NOTE:

After approximately 18 hours, if you do not press the Start/Pause touchpad, the appliance will drain and spin automatically (except for the "Wool" program).

5.11 AUTO Standby Mode

The AUTO Stand-by option automatically deactivates the appliance to decrease energy consumption when:

- You do not press any touchpads for 5 minutes before you press "Start/Pause".

Press the "On/Off" button to activate the appliance again.

• After 5 minutes from the end of the washing program.

Press the "On/Off" button to activate the appliance again.

6. WASHING HINTS

6.1 Sorting The Laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

6.2 Temperatures

90°C	For normally soiled white cottons and linen (e.g. teacloths, towels, tablecloths, sheets...).
60°C	For normally soiled, colourfast garments (e.g. shirts, night dresses, pajamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).
40°C30°C Cold	For delicate items (e.g. net curtains), mixed laundry including synthetic fibres and woollens bearing the label pure new wool, machine washable, non-shrink.

6.3 Before Loading The Laundry

- Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

- Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

- Wash bras, pantyhose and other delicates in a mesh laundry bag, which you can purchase from your supermarket.

- Make sure that you wash lint collectors separately from lint producers.

• Never wash whites and coloureds together. Whites may lose their "whiteness" in the wash.
• New coloured items may run in the first wash; they should therefore be washed separately the first time.
• Remove persistent stains before washing.
• Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or a net.

6.4 Maximum Loads

Recommended loads are indicated in the program charts. General rules:

Cotton, linen:	drum full but not too tightly packed;
Synthetics:	drum no more than half full;
Delicate fabrics and woollens:	drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size.

6.5 Removing Stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used in cold water. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone (*) as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

6.6 Detergents Type And Quantity Of Detergent

Low sudsing detergent is required for this washing machine to prevent oversudsing problems, unsatisfied washing result and harm to the machine. Low sudsing detergents designed for front load washing machines are labelled “Front Loading”, “high efficiency”, “HE”, such as Cold Power for Front Loaders or “Matic”.

Do not use wrong types of detergent, such as Top Loading, Handwash detergent or Soap-Based products in your frontload washing machine. This can result in excessive suds, longer cycle time, low spin speeds, poor rinsing and overloading of the motor.

Quantity of detergent to be used

The choice of detergent and use of correct quantities not only affects your wash performance, but also helps to avoid waste and protect the environment. Although biodegradable, detergents contain substances which in large quantities can upset the delicate balance of nature.

The choice and quantity of detergent will depend on ;

• type of fabric (delicates, woollens, cottons, etc.); • the colour of clothes ;
• size of the load ;
• degree of soil ;
• wash temperature ; and
• hardness of the water used.

Water hardness is classified by so-called "degrees" of hardness.

Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

You may have to try using the detergent quantity as per manufacturers' instructions then compare the wash result to the list below and adjust the amount of detergent for your future washes accordingly.

Not enough washing powder causes:

• the washload to turn grey, - greasy clothes.

Too much washing powder causes:

• sudsing, • reduced washing effect,
• inadequate rinsing.

Use less detergent if:

• you are washing a small load, • the laundry is lightly soiled, • large amounts of foam during washing.

INTERNATIONAL WASH CODE SYMBOLS7.

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash	95Max. wash temperature 95 °C	60Max. wash temperature 60 °C60	40Max. wash temperature 40 °C40	30Max. wash temperature 30 °C30	Hand wash	DO NOT wash at all
Bleaching	Cl Bleach in cold water DO NOT bleach
Ironing	Hot iron max. 200 °C	Warm iron max. 150 °C		Lukewarm iron max. 110 °C		DO NOT iron
Dry cleaning	A Dry cleaning in all solvents	P Dry cleaning in perchlorethylene, petrol, pure alcohol, R 111 & R 113		F Dry cleaning in petrol, pure alcohol and R 113		DO NOT dry clean
Drying	- Flat Tumble	III Dry DO NOT	On clothes hanger	High temperature Low temperature		tumble dry

CARE AND CLEANING8.

WARNING! You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

8.1 External Cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

CAUTION! Do not use alcohol, solvents or chemical products.

8.2 Descaling

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.

Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions.

This will help to prevent the formation of lime deposits.

8.3 After Each Wash

Leave the door open for a while. This helps to prevent mould and stagnant smells forming inside the appliance.

Keeping the door open after a wash will also help to preserve the door seal.

8.4 Maintenance Wash

With the use of low temperature washes it is possible to get a build up of residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

• The drum should be empty of laundry. - Select the hottest cotton wash program. - Use a normal measure of detergent, must be a powder with biological properties.

8.5 Cleaning The Dispenser Drawer

The washing powder and additive dispenser drawer should be cleaned regularly. Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder.

To aid cleaning, the top part of the additive compartment should be removed.

8.6 Cleaning The Drawer Recess

Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse program without any clothes in the drum.

8.7 Cleaning The Drawer Bottom

After washing cycle finish, residues of softener and water may remain in the softener dispenser. It is recommended to clean the bottom of softener dispenser regularly to remove any residue.

To clean the bottom of softener dispenser:

1. After pulling out the drawer from its recess, turn the bottom side up.

1. Push the catch and pull up the softener bottom cover.

1. Clean the dispenser with an old toothbrush under the water tap.

1. Close the softener bottom cover.

8.8 Cleaning The Water Inlet Filter

If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time.

To clean the water inlet filters:

1. Close the water tap.
2. Remove the water inlet hose from the water tap.

1. Clean the filter in the inlet hose with a stiff brush.
2. Remove the inlet hose behind the appliance.
3. Clean the filter in the valve with a stiff brush or a towel.

1. Install the inlet hose again. Make sure that the couplings are tight to prevent leakages.
2. Open the water tap.

8.9 Frost Precautions

If the appliance is installed in an area where the temperature can be less than 0\ °C , remove the remaining water from the inlet hose and the drain pump.

Emergency Drain

1. Disconnect the main plug from the main socket. Turn off the water tap.
2. Remove the water inlet hose.

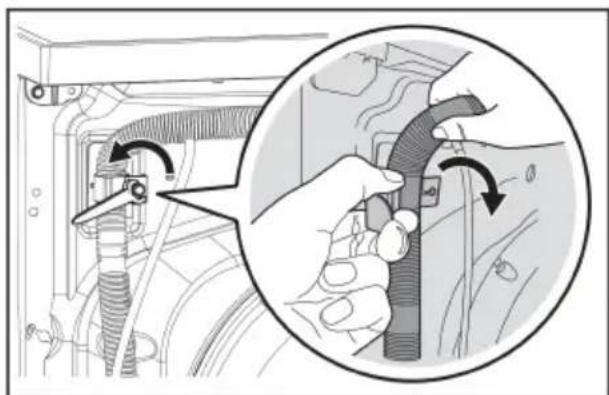

3. Remove the drain hose from the rear support and unhook it from sink or spigot.

1. Put the end of the drain and inlet hose in a container. Let the water flow out of the hoses.

1. When no more water flows, install the inlet hose and the drain hose again.

NOTE: Make sure that the temperature is more than 0 °C before you use the appliance again.

9. TROUBLESHOOTING

9.1 Possible Failures

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please check possible cause of malfunction and solution listed below. Once the problem has been eliminated, press the Start/Pause button to restart the program. If after all checks, the problem persists, contact your local Service Centre. WARNING! Deactivate the appliance before you do the checks.

Alarm Code:

E10	The appliance does not fill with water properly.
E20	The appliance does not drain the water.
E40	The appliance door is open or not closed correctly. Please check the door!
EHO	The main supply is unstable. Wait until the main supply is stable.
E91	No communication between electronic elements of the appliance. Switch off and switch on again.
EFO	Water leaks inside the machine. Please call Service Centre.

Malfunction Possible Cause Solution
The washing machine does not start:	The door has not been closed. (code:E40)	Close the door firmly.
	The plug is not properly inserted in the power socket.	Insert the plug into the power socket.
	There is no power at the socket.	Please check your domestic electrical installation.
	The Start/Pause (DII) touchpad has not been pressed.	Press the Start/Pause (DII) touchpad.
	The “Delay End” has been selected.	If the laundry are to be washed immediately, cancel the “Delay End”.
	The Main supply is unstable.(If code “EHO” appears in the display.)	Wait until the main supply is stable. Appliance will start automatically.
The machine does not fill the water:	The water tap is closed. (code:E10) Open the water tap.
	The inlet hose is squashed or kinked.(code:E10)	Check the inlet hose connection.
	The filter in the inlet hose is blocked.(code:E10)	Clean the water inlet hose filter.
	The door is not properly closed. (code:E40)	Close the door firmly.
The machine fills then empties immediately:	The end of the drain hose is too low.(code:E10)	Refer to relevant paragraph in “water drainage” section on page 31.
The machine does not empty and/or does not spin:	The drain hose is squashed or kinked.(code:E20)	Check the drain hose connection.
	The option “Rinse & Hold” has been selected.	Press Start/Pause (DII) touchpad to drain the water or select spin program.
	The laundry is not evenly distributed in the drum.	Pause the machine and redistribute laundry manually
There is water on the floor:	Too much detergent or unsuitable detergent (creates too much foam) has been used.	Reduce detergent quantity and use correct type of detergent (refer page 20).
	Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.	Check the water inlet hose connection.
	The drain hose is damaged. Call Service.
	Water leaks inside the machine. (code: EFO)	Disconnect the main plug from the main socket. Turn off the water tap. Contact your local Service Centre.
Unsatisfactory washing results:	Too little detergent or unsuitable detergent has been used.	Increase detergent quantity or use different detergent (refer page 20).
	Stubborn stains have not been treated prior to washing.	Use commercial products to treat the stubborn stains.
	The correct temperature was not selected.	Check if you have selected the correct temperature.
	Excessive laundry load. Reduce load.
The door will not open:	The program is still running. Wait until the end of cycle.
	There is water in the drum.	You must drain the water to open the door (refer “Opening The Door” on page 17).
	This problem may be caused by a failure of the appliance.	Contact Service. If you need to open the door, please read carefully “Emergency door opening” on next page.
The machine vibrates or is noisy:	The transit bolts and packing have not been removed.	Check the correct installation of the appliance.
	The support feet have not been adjusted.	Check the correct levelling of the appliance.
	The laundry is not evenly distributed in the drum.	Pause the machine and redistribute laundry manually.
	There is very little laundry in the drum.	Load more laundry.
	Unstable floors eg. wooden floors.	Refer to relevant paragraph in “Positioning” section.
Cycle time longer than displayed:	Detergent over dose.	Reduce the detergent quantity or use another one. (Refer page 20 “Detergents Type And Quantity Of Detergent”).
	Machine unbalance.	Redistribute laundry manually in the drum and start the spin phase again.
The cycle is shorter than the time displayed.	The appliance calculated a new time according to the laundry load.
No water is visible in the drum:	Machines based on modern technology operate very economically using very little water without affecting performance.
Spinning starts late or the machine does not spin:	The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin program.	Pause the machine and redistribute laundry manually.
The machine makes an unusual noise:	Machine not installed properly.	Make sure the levelling of the appliance is correct. Refer to “Installation”.
	Transit bolts or packaging not removed.	Make sure that the packaging and/or the transit bolts are removed. Refer to “Unpacking”.
	The load may be too small.	Add more laundry in the drum.

If you are unable to identify or solve the problem, contact our service centre.

Before calling service centre, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

9.2 Emergency Door Opening

In case of power failure or appliance failure, the appliance door remains locked.

The wash program continues when power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock feature.

Before Opening The Door:

WARNING!

• Make sure that the water temperature and the laundry are not hot. Wait until they cool down if necessary.
• Make sure that the drum is not rotating. Wait until the drum stops rotating if necessary.
• Make sure that the water level inside the drum is not too high. If necessary, perform an Emergency Drain (see page 24).

To open the door proceed as follows:

1. Press "On/Off" to switch the appliance off. Disconnect the main plug from the main socket.
2. Remove the cover door, as shown in the picture below.

1. Pull the emergency unlock trigger twice downward, then open the appliance door.
2. Take out the laundry.
3. Re-assemble the cover door.

TECHNICAL DATA 10.

Dimensions (Height / Width / Depth)		850 X 600 X 568 mm
Power supply (Voltage / Frequency)		220-240 V~ / 50 Hz
Total power absorbed		2000 W
Minimum fuse protection 10 A
Water supply pressure (Maximum / Minimum)		0.8 MPa / 0.05 MPa
Maximum dry clothes capacity	Program/Model	EWF8025CQSA, EWF8025BQWA, EWF8025CQWA, EWF8025EQWA, EWF8005EQWA	EWF7525DQWA, EWF7525EQWA
	Cottons	8.0 kg	7.5 kg
	Mixed	4.0 kg	4.0 kg
	Quick 15	1.5 kg	1.5 kg
	Daily 60	4.0 kg	4.0 kg
	Delicates	4.0 kg	4.0 kg
	Wool 🎨.	1.5 kg	1.5 kg
	Bedding	3.0 kg	3.0 kg
	Energy Saver	8.0 kg	7.5 kg
Spin speed(Maximum / Minimum)	Model	Model: EWF8025CQSA, EWF8025BQWA, EWF8025CQWA, EWF8025EQWA, EWF7525DQWA, EWF7525EQWA	Model: EWF8005EQWA
	RPM	1200rpm/800rpm	1000rpm/600rpm

INSTALLATION 11.

11.1 Unpacking

CAUTION!

All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

1. Use gloves. Cut and remove four cut-out straps as shown.

1. Remove the carton box. Remove the polystyrene packaging materials. Remove the plastic bag that covers the machine.

1. Open the door.

Remove the polystyrene piece from the door seal and all the items from the drum.

1. Put one of the polystyrene «A» packaging elements on the floor behind the appliance. Carefully put down the appliance with the rear side on it. Make sure not to damage the hoses.

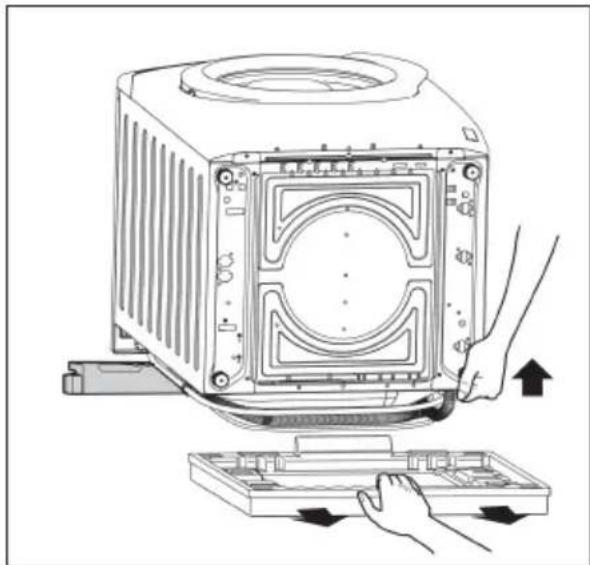

1. Remove the polystyrene base.
2. Pull up the appliance in vertical position.
3. Remove the power supply cable and the drain and inlet hoses from the hose holders «B» on the rear of the appliance.

1. Remove the three transit bolts.
2. Pull out the plastic spacers.
3. Put the plastic caps in the holes. You can find these caps in the user manual bag.

11.2 Positioning

It is important that your washing machine stands firm and leveled on the floor to ensure correct operation. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to avoid restricting the washing machine door.

Use a spirit level on the top and side of the washing machine to check the levels.

If you do not have a spirit level, as a guide use the edge of a door frame, cupboard or bench to check that the washing machine is leveled.

Loosen or tighten the feet to adjust the level. A correct adjustment of the appliance level prevents vibration, noise and the movement of the appliance when in operation.

When the washing machine is levelled, try to rock it from corner to corner. If it does rock, adjust the legs again until it is levelled and does not rock.

Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor. Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc.

Check that the machine does not touch the wall or cupboard units.

11.3 Water Inlet

Connect the water inlet hose to a tap with 3/4" BSP thread.

Use the hose supplied with the washing machine. DO NOT USE OLD HOSES.

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

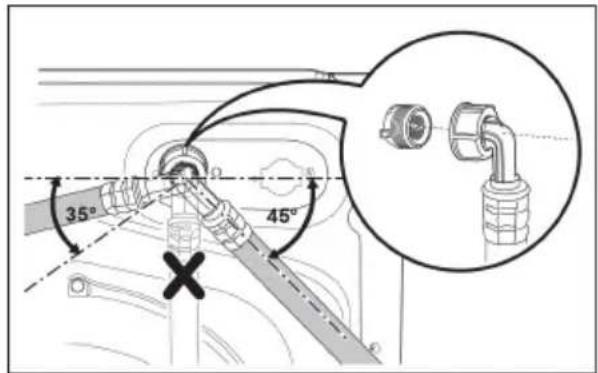

Loosen the ring nut to angle the hose to the left or right depending on the position of your water tap. Do not place the inlet hose downwards. After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks.

11.4 Water Drainage

The end of the drain hose can be positioned in three ways:

- Hooked over the edge of a sink, using the plastic hose guide supplied with the machine.

Fitting Hose Guide

In this case, make sure the end cannot come unhooked when the machine will be emptied. This could be done by tying it to the tap with a piece of string or attaching it to the wall.

• In a sink, drain pipe branch.

This branch must be above the trap so that the bend is at least 60 cm above the ground.

Push the drain hose onto the spigot and secure with a clip, ensure a loop is formed in the drain hose to prevent waste from the sink entering the appliance.

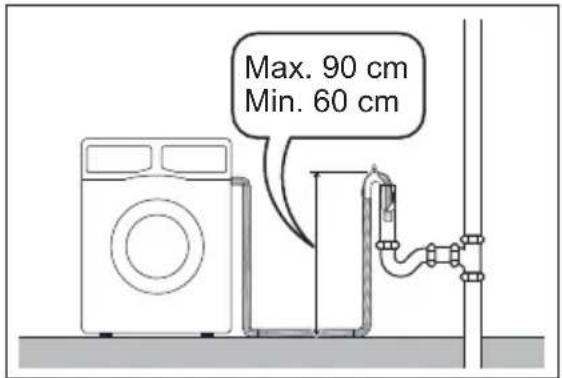

- Directly into a drain pipe, at a height of not less than 60 cm and not more than 90 cm.

The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be twisted or curled. Run it along the floor; only the part near the drainage point must be raised.

For the correct functioning of the machine, the drain hose must remain hooked on the proper support piece situated on the top part of back side of the appliance.

11.5 Electrical Connection

This machine is designed to operate on a 220-240 V, single-phase, 50 Hz supply.

"An incorrect power supply may void your warranty."

Check that your domestic electrical installation can take the maximum load required (see TECHNICAL DATA on page 28), also taking into account any other appliances in use.

CAUTION!

Connect the machine to an earthed socket outlet.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution.

Should the appliance power supply cable need to be replaced, this shall be carried out by our Service Centre.

When the appliance is installed, the power supply cable must be easily accessible.

If this appliance is supplied from a cord extension set or electrical portable outlet device, the cord extension set or electrical portable device must be positioned so that it is not subject to splashing or ingress of moisture.

ENVIRONMENT CONCERNS 12.

12.1 Packaging Materials

The materials marked with the symbol are recyclable.

PE<=polyethylene PS<=polystyrene PP<=polypropylene

This means that they can be recycled by disposing them properly in appropriate collection containers.

12.2 Old Machine

Use authorized disposal sites for your old appliance. Help to keep your country tidy!

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

12.3 Ecological Hints

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).
• The machine works more economically if it is fully loaded.
• With adequate pre-treatment, stains and limited soil can be removed; the laundry can then be washed at a lower temperature. • Measure out detergent according to the water hardness, the degree of soil and the quantity of laundry being washed.

WE ALWAYS THINK ABOUT OUR CUSTOMERS

1 Plastic lid

DAILY USE 5.

Before opening the door:

WARNING!

11.2 Positioning

PE<=polyethylene PS<=polystyrene PP<=polypropylene
