Product Type	USB Hub
Brand	SilverCrest
Model	SUDC 3 A1
Connectivity	USB 3.0 (SuperSpeed)
Number of Ports	4 x USB 3.0 Type-A
Data Transfer Speed	Up to 5 Gbps
Power Supply	Bus-powered (USB 3.0 standard)
Dimensions (L x W x H)	Approx. 8.5 x 3.5 x 1.5 cm
Weight	Approx. 45 g
Colour	Black
Material	ABS plastic
Compatible Systems	Windows, macOS, Linux (Plug & Play)
LED Indicator	Blue LED for power/activity
Overcurrent Protection	Yes
Cable Length	Approx. 30 cm
Warranty	2 years

Frequently Asked Questions - SUDC 3 A1 SILVERCREST

How many ports does the SilverCrest SUDC 3 A1 have?

The hub features 4 USB 3.0 Type-A ports for connecting peripherals.

Is the hub compatible with USB 2.0 devices?

Yes, it is backward compatible with USB 2.0 and 1.1 devices, though data speeds will be limited.

Does it require external power?

No, the hub is bus-powered via a standard USB 3.0 connection. High-power devices may need a separate power adapter.

How do I connect the hub to my computer?

Simply plug the integrated USB 3.0 cable into a USB port on your computer. The hub is immediately ready for use.

Does it support charging smartphones or tablets?

It can charge devices via the USB ports, but output current is limited to 900mA per port (standard USB 3.0). For faster charging, use a dedicated charger.

What is the maximum data transfer speed?

The hub supports up to 5 Gbps when used with USB 3.0 devices and ports.

Is it compatible with game consoles like PlayStation or Xbox?

Yes, the hub works with gaming consoles that support USB 3.0, such as PlayStation 4/5 and Xbox One/Series X|S.

Does the hub have overcurrent protection?

Yes, it includes built-in overcurrent protection to safeguard connected devices.

How do I clean the hub?

Disconnect it first and use a dry, soft cloth to wipe the surface. Avoid water or harsh cleaners.

Is there a warranty?

SilverCrest typically provides a 2-year warranty. Keep your proof of purchase.

USER MANUAL SUDC 3 A1 SILVERCREST

USB 3 PORT HUB SUDC 3 A1

GB

USB 3 PORT HUB

Operation and Safety Notes

FI

USB-PÖYTÄLATURI

Operation and Safety Notes Page 5

FI

Warnings and symbols usedThese instructions for use contain the following warnings:
	DANGER! This symbol with the signal word “DANGER” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
	WARNING! This symbol with the signal word “WARNING” indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.
	CAUTION! This symbol with the signal word “CAUTION” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
	ATTENTION! This symbol with the signal word“ ATTENTION” indicates a potential property damage, if not avoided, could result in property damage.
	NOTE: This symbol with the signal word “NOTE” provides additional useful information.
	Direct current
	Alternating current
	Use product only in dry indoor areas.
	This symbol means that the operating instructions must be observed when using the product.
	Technology to optimize charging time.
	Polarity of output terminal

USB 3 PORT HUB

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This USB 3 PORT HUB (hereinafter called "product") is an Information Technology device. This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

Trademark notice

• USB is a registered trademark of USB Implementers Forum, Inc.
• The SilverCrest trademark and trade name are the property of their respective owners.
• Any other names and products may be trademarks or registered trademarks of their respective owners.

- Scope of delivery

1 USB 3 port hub, 1 Instructions for use, 1 Power adapter

● Safety notices

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

The USB charger is only suited for use with the included power adapter (model no.: GPE018G-240085-2).

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER! Risk of suffocation!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. The product is not a toy.

Before using the product, verify the available mains voltage corresponds with the operating voltage required for the power adapter (100-240 V~, 50 / 60 Hz)!

Before using the product, verify the product and the power adapter and the cable connection aren't damaged! Never operate a damaged product!

The power adapter must be plugged into an easily accessible socket so it can easily be unplugged in the event of an emergency.

This product does not contain any parts that can be serviced by the user. The bulbs cannot be replaced.

Do not place open fire (e.g. candle) on the product.

The product is only suited for use with the included power adapter (GPE018G-240085-2). Please note that the power adapter continues to draw a small amount of power even if the product is turned off as long as the power adapter is plugged into a power outlet. To switch the product off completely, unplug the power adapter from the socket.

⚠️ ATTENTION! Risk of property damage

• This product does not contain any parts which can be serviced by the user.
• Keep the product away from moisture, dripping and splash water!
• Do not place burning candles or other open fire on or near to the product.
• Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
• If you notice smoke or unusual noise or odour, unplug the product immediately.
• Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!
• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
• Do not throw the product into fire and do not expose to high temperatures.

DANGER!

Do not try to open the product! It has no internal parts requiring maintenance.

• It is necessary to repair the product if it has been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the product, or if the product has been exposed to rain or moisture.
• Repair work is also required if the product is not working properly or has been dropped.

If smoke is produced, or there are any unusual sounds or smells, disconnect the product immediately. In such cases, the product should not be used until it has been inspected by authorized service personnel. Only have the product repaired by qualified personnel. Never open the housing of the product.

⚠ WARNING! Ensure that:

• no direct heat sources (e.g., heating) can affect the product
• the product is not exposed to bright artificial light
• any contact with splashed and dripping water and corrosive liquids is avoided, and the product is not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product
• the product is not used in the immediate vicinity of magnetic fields (e.g., speakers)
• no fire sources (e.g., burning candles) are placed on or near the product
• no foreign objects penetrate the product
• the product is never subjected to extreme temperature fluctuations, as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product has reached ambient temperature before use
• the product is never subjected to excessive shocks and vibrations
• when using an optional USB power supply, its operating instructions are observed
• Connected cables are always laid in such a manner that nobody can step on them or trip over them. There is a risk of injury.
• No objects are placed on a connected cable and cables are not connected over sharp edges because they could be damaged.

● Parts description

Please refer to the fold out page.

1 USB 3 port hub 2 LED indicator 3 USB type A output (x3) 4 Input socket 5 Adapter output plug 6 Power adapter 7 Holding clip 8 Holding locks 9 Handing shots

● Technical data

USB Input voltage / current:

2.4 V = - 0.85 A

USB output voltage/ current:

5 V = - 2.4 A (each port)

USB output current:

Total max. 3.4 A

Operating temperature:

5 - 35 °C

Storage temperature:

0 - 45 °C

Humidity (no condensation):

0 - 70 %

Power adapter

Input voltage/current: 100-240 V ~, 50/60 Hz, 0.5 A

Output voltage/current: 24 V ---, 0.85 A

Model no.: GPE018G-240085-2

Protection class: II / ☐

TÜV SÜD/ GS tested.

Cable length: approx. 1.5 m

The specification and design may be changed without notification

Before use

Note: All parts have to be unpacked and the packaging material has to be removed completely. Before use, verify the package contents are complete and undamaged!

Operation and use

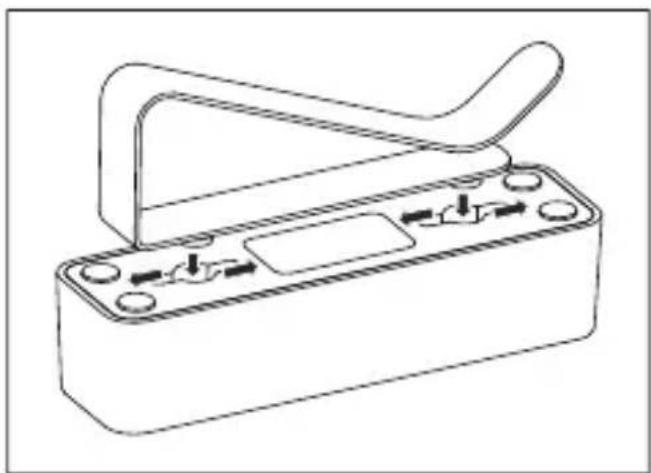

Connect the holding clip 7 to the desktop charger 1.

You can use the holding clip 7 to fix the USB charger 1 on the table.

Connect adapter output plug 5 to the desktop charger 1.

Connect power adapter to a mains power supply socket.

Insert your USB cable into a free USB slot 3 of the desktop charger and the other end of your USB cable into the device that you wish to charge.

If your battery is completely discharged, it may take a few

minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the LED indicator 2 illuminates.

When charging only use a recommended USB cable for your device.

Be sure to not exceed the maximum USB cable length recommended for the device.

●Storage during non-use

Store the product in a dry dust-free location, protected from direct sunlight.

●Cleaning and care

• Unplug the product before cleaning and remove all plugs!
• No acid, chafing or solvent cleaning agents should be used or the product can be damaged.

- Only clean the outside of the product using a soft, dry cloth!

- At persistent soiling, a mild cleaning agent can be used.

Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids. Use a

slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has

reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service

address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

©

Connect the power adapter to the mains socket.

⚠️ WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR SMALL CHILDREN AND CHILDREN!

⚠️ WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR SMALL CHILDREN AND CHILDREN!

Risk of suffocation!
