W6TB - Cooker GORENJE - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	Gorenje
Model	W6TB
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz
Total Power Consumption	Approximately 10 kW
Hob Type	Electric Ceramic Hob
Number of Cooking Zones	4
Oven Type	Electric
Oven Capacity	65 L
Oven Functions	Convection, Grill, Fan-Forced, Bottom Heat
Self-Cleaning	No
Interior Material	Enamel
Door Type	Drop-Down, Removable Inner Glass
Safety Features	Child Lock, Automatic Shut-Off, Overheat Protection
Cleaning	Manual cleaning; removable door and shelves
Energy Efficiency Class	A+
Spare Parts Availability	Available from Gorenje service centers
Warranty	2 years

Frequently Asked Questions - W6TB GORENJE

How do I install the Gorenje W6TB cooker?

Ensure the cooker is placed on a flat, stable surface. Connect to a dedicated power outlet (220-240 V) with proper grounding. For built-in installation, follow the dimensions in the manual. Do not use an extension cord.

How do I preheat the oven?

Turn the oven function knob to the desired setting (e.g., fan-forced). Set the temperature using the thermostat knob. Wait until the indicator light turns off, indicating the set temperature is reached. Preheating typically takes 10-15 minutes.

How do I clean the oven?

After use, allow the oven to cool. Remove shelves and side racks. Wipe the interior with a damp cloth and mild detergent. For stubborn stains, use a gentle oven cleaner. The door glass is removable for easier cleaning. Avoid abrasive pads.

What should I do if the oven does not heat?

Check that the cooker is plugged in and the circuit breaker is on. Ensure the oven function and temperature are set correctly. If the problem persists, the heating element or thermostat may be faulty. Contact Gorenje service for repair.

How do I replace the oven light bulb?

Disconnect the cooker from power. Remove the glass cover by turning it counterclockwise. Replace with a new 25 W/300°C oven bulb (G9 or E14 base). Refit the cover and reconnect power.

Can I use the cooker with gas?

No, the Gorenje W6TB is an electric cooker with a ceramic hob and electric oven. It is not designed for gas operation.

What is the energy efficiency class?

The Gorenje W6TB is rated A+ for energy efficiency, helping to reduce electricity consumption.

How do I activate the child lock?

Press and hold the child lock button (if available) for 3 seconds until a lock indicator appears. To deactivate, repeat the process. This prevents accidental changes to settings.

Are spare parts available?

Yes, spare parts such as heating elements, knobs, and oven doors are available through Gorenje authorized service centers and online shops.

What is the warranty period?

The Gorenje W6TB comes with a 2-year manufacturer's warranty. Registration may be required. Check your local terms.

USER MANUAL W6TB GORENJE

COOKER HOOD

NB60E-L15B7 W6TB

NB90E-L15B7 W9TB

EN COOKER HOOD

DE DUNSTABZUGSHAUBE

FI LIESITUULETIN

NO VENTILATOR

SV KÖKSFLÄKT

DA EMHÆTTE

EN COOKER HOOD

Closely follow the instructions set out in this manual. All responsibility for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. Read the instructions carefully: there is important information about installation, use and safety. Do not carry out electrical or mechanical variations on the product or on the discharge conduits. Before proceeding with the installation of the appliance verify that there are no damaged components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

CAUTION

WARNING!

! Do not connect the appliance to the mains until the installation is fully complete. ! Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply. ! Always wear work gloves for all installation and maintenance operations. ! The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults. Children should be monitored to ensure that they do not play with the appliance.

! This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

! Never use the hood without effectively mounted grating!

! The hood must NEVER be used as a support surface unless specifically indicated.

! The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

! The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

! The flaming of foods beneath the hood itself is severely prohibited.

! The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

! Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

! Accessible parts of the hood may become hot when used with cooking appliance.

! With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

! The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

! Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

! We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the nonobservance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. - Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301. • EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

USE

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10° ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct as smooth as possible inside.

! The duct must be made of certified material.

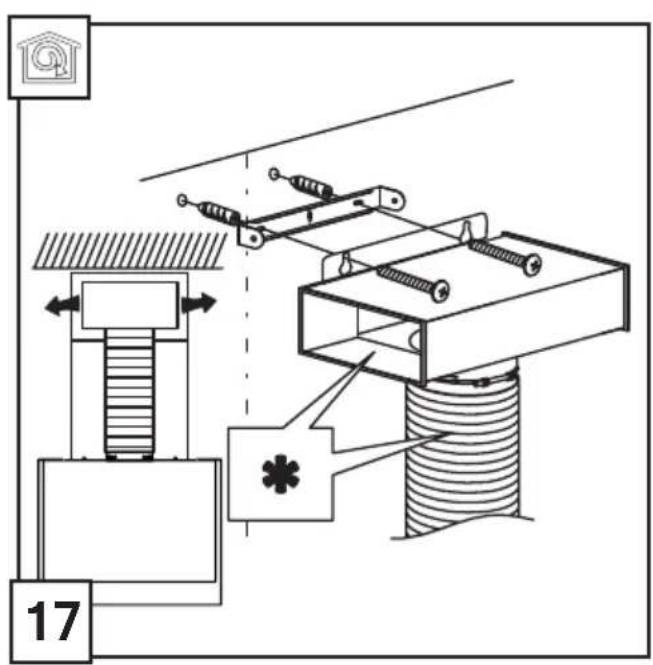

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes grease and odors from the extracted air before sending it back into the room through the upper outlet grid.

INSTALLATION

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 55 cm from electric cookers and 65 cm from gas or mixed cookers.

If the installation instructions for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

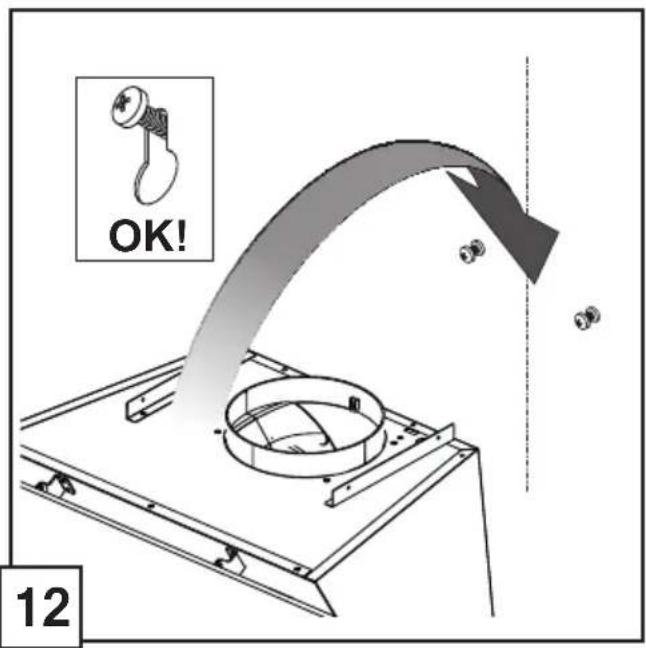

Mounting

Very heavy product; hood handling and installation must be carried out by at least two persons.

Before beginning installation:

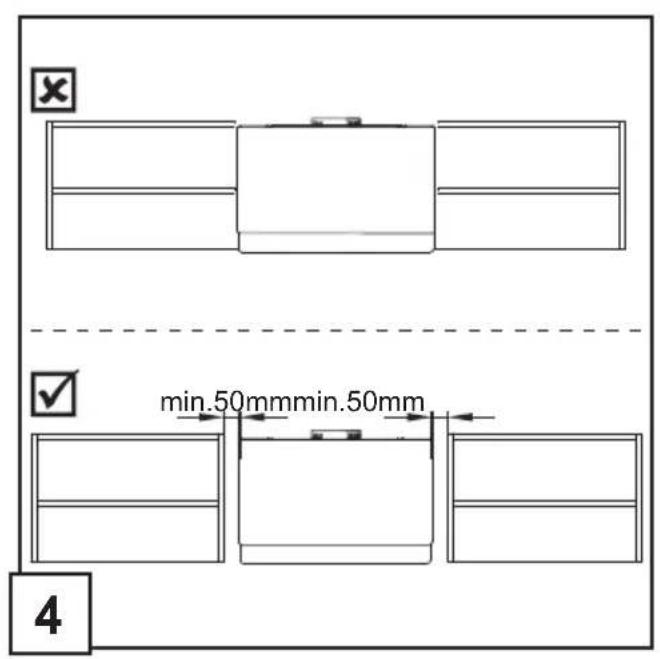

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition, check whether near the installation area of the hood (in the area accessible even with the hood mounted) an electric socket is available and whether it is possible to connect a fumes discharge device to the outside (only for the suction version).
• Carry out all necessary masonry work (e.g., installation of an electric socket and/or a hole for the passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify the suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to support the weight of the hood. Do not tile, grout, or silicone this appliance to the wall. Surface mounting only.

OPERATION

Use the high suction speed in cases of concentrated kitchen vapors. It is recommended that the cooker hood suction be switched on 5 minutes prior to cooking and left in operation during cooking and for approximately another 15 minutes after cooking is finished.

Mechanical controls

Press the Light button to switch the light ON. Press again to switch the light OFF. Press the Speed 1 button to start the motor at speed 1. Press the Speed 2 button to start the motor at speed 2. Press the Speed 3 button to start the motor at speed 3. Press the Switch Off button to switch off the motor.

Touch controls

Press the On/Off button to start selecting the motor speeds. Press the Speed 1 button to start the motor at speed 1. Press the Speed 2 button to start the motor at speed 2. Press the Speed 3 button to start the motor at speed 3. Press the Light button to switch the light ON. Press again to switch the light OFF.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or, if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Traps cooking grease particles.

The grease filter must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filters (fiber only)

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case, it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee optimum lighting, a lifespan up to 10 times longer than traditional lamps, and allow saving 90% of electrical energy. For replacement, contact the technical service.

When disassembling, turn counterclockwise.

Replace the lamps.
