USER MANUAL CMS 1201DC TANNOY

Professional Loudspeakers

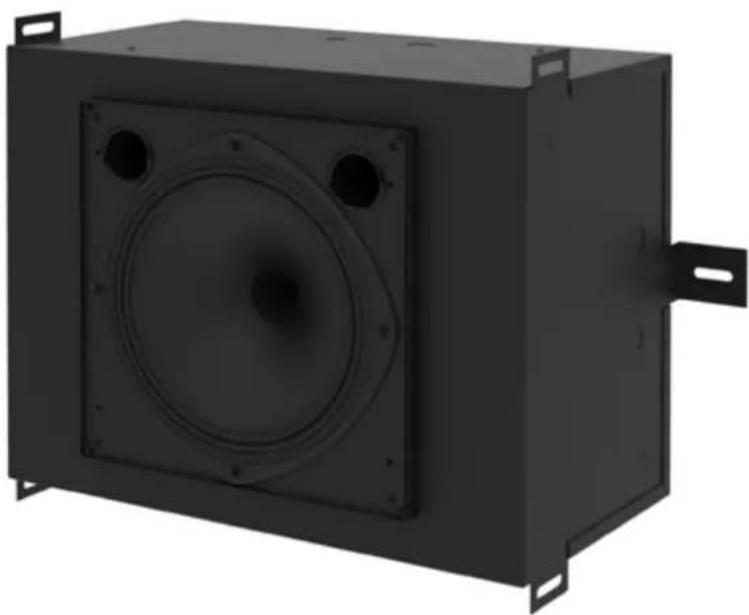

Exterior view of a black rectangular electronic device with a speaker grille and mounting brackets (no text or symbols visible)

Table of Contents

1. Introduction 4
2. Unpacking and Visual Checks 4
3. Product Overview 5

3.1. Ordering Information ....5

1. Installation Guide 6

4.1. Back-can 6
4.2. Mounted Using Unistrut roof rail system 6
4.3.Flying using Eyebolts 7
4.4.Flying using Screwed Rod 7
4.5. Fitting the loudspeaker assembly ....8
4.6. Fitting the grille ....8

1. Wiring and Setting Up 9
2. Dimensions 9
3. Technical Specifications 10
4. Warranty 11
5. Declaration of conformity 11

1. Introduction

Thank you for purchasing this Tannoy product.

The CMS 1201DC is a powerful state-of-the-art large format in-ceiling loudspeaker device conceived, designed and built to complement Tannoy's class-leading CMS range. From the pioneers of point source and large format ceiling speakers the CMS 1201DC is engineered from the ground up with superior full-range performance in mind to handle demanding distributed sound applications such as ballrooms, shopping malls, sports halls, airports and other high ceiling installations.

Built around a brand new evolution of the high power handling 12" (300 mm) Dual Concentric™ point source driver, the CMS 1201DC delivers best-in-class performance for the most even beamwidth and pattern control over the widest range of frequencies of any large format ceiling speaker. Coupled with exceptional clarity, ultra low distortion, and high SPLs, Tannoy has again raised the bar to give the absolute cutting edge performance in ceiling mounted loudspeaker technology.

The new Dual Concentric drive assembly features a treated mid-bass cone and double rolled cambric surround for high sensitivity, as well as a 34 mm (1.34") aluminium dome with ferrofluid-cooled Neodymium magnet assembly and a newly designed waveguide for the high frequency unit. These two drivers seamlessly merge into one with the high frequency mounted in the throat of the mid-bass; coincidentally aligning both transducers to a point source. The result is a smooth, uniform response over a very controlled 90 degree coverage area – even in the highest octaves.

2. Unpacking and Visual Checks

Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may ask you to return the faulty unit to him for inspection.

3. Product Overview

The CMS1201 DC comprises three discrete components that are ordered separately under different part numbers.

• A loudspeaker assembly that includes a Dual Concentric drive unit mounted on a ported steel baffle, and its crossover. This baffle may also include a line transformer (CMS 1201DCt).
• A steel back-can with multiple mounting points
• A grille assembly with its moulded bevel cover

3.1. Ordering Information

Part Number Description

8001 4750 Loudspeaker CMS 1201DC

8001 4751 Loudspeaker CMS 1201DCt

8001 4760 Back-can - CMS 1201

8001 4780 Grille Assembly - CMS 1201

4. Installation Guide

4.1. Back-can

The custom engineered powder coated steel back-can has been designed to cater for all conceivable installation possibilities making the CMS 1201DC extremely versatile. Internally dampened with 11 mm (0.43") OSB2 board, the addition of the back-can provides exceptional low frequency performance.

4.2. Mounted Using Unistrut roof rail system

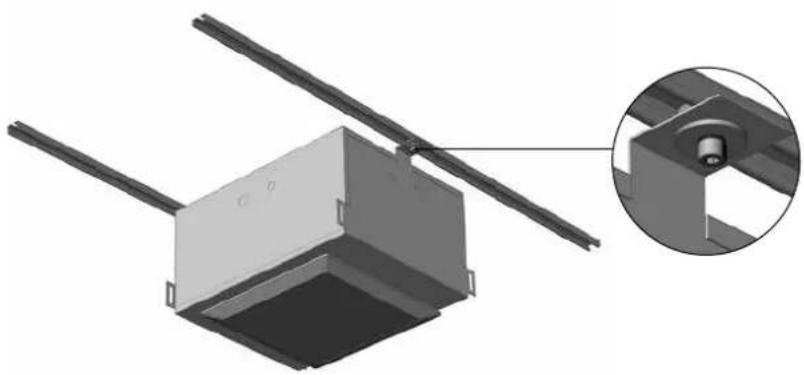

Steel mounting lugs allow for fitting to a Unistrut roof rail system in a variety of configurations both directly or via secondary prefixed cross struts.

3D mechanical assembly diagram showing a bracket with two parallel rods and a close-up inset of a component detail (no text or symbols)

Screw at fixing point should use a large series washer to help spread the load.

Two 3D technical illustrations of a structural assembly with beams and supports, shown from different angles (no text or symbols)

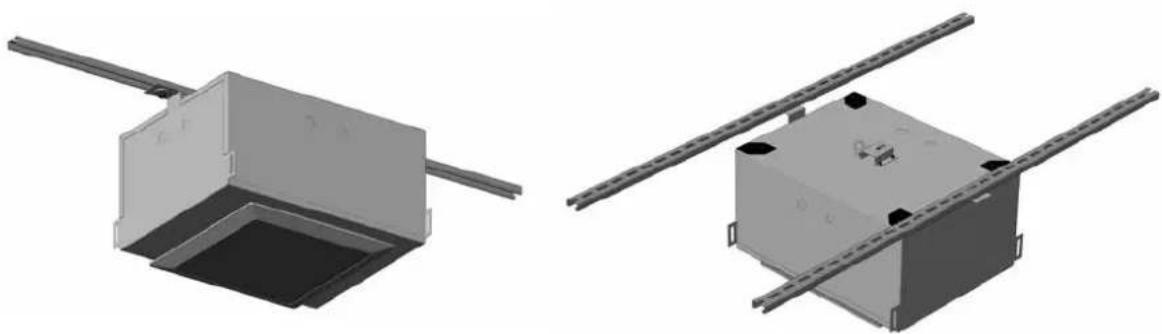

Speaker mounted to a single rail Back-can mounted between rails

4.3. Flying using Eyebolts

WARNING: As the legal requirements for flying change from country to country, please consult your local safety standards office before installing any product. We also recommend that you thoroughly check any laws and bylaws prior to commencing work.

The device can also be hung via 4 top-mounted eye bolts. Rear of back can has mounting points for both M10 and 3/8 UNC threaded eyebolts.

3D rendering of a rectangular industrial container with four vertical supports and hanging ropes (no text or symbols visible)

4.4. Flying using Screwed Rod

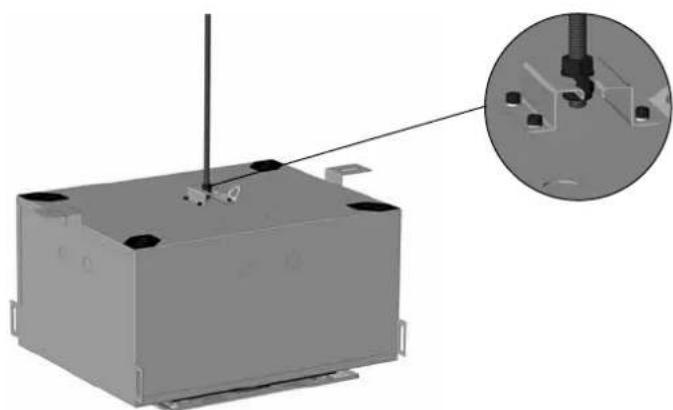

The design also caters for a single point central hang via M10 or 3/8 UNC screwed rod – made easy thanks to the slotted mounting saddle on the top of the back-can. If required a safety wire can be attached to any of the M10 flying points.

3D mechanical component diagram with a close-up inset showing internal components (no text or symbols)

To fit the back can to threaded rod support, first run a nut 50 mm (2") up the rod followed by two plain washers and then a locking nut (Nyloc®). Hook the back can on to the rod between the two plain washers. Once the nut has cleared the guide slot the top nut can be locked down to secure.

4.5. Fitting the loudspeaker assembly

Mounting of the loudspeaker assembly to the pre-installed back-can is a one man job thanks to the common sense design approach. One edge of the baffle clips onto the steel box to hold it in place while the installer secures the assembly in place. Connection is simple via terminal barrier strips inside the can, easily accessible via 20 mm (0.79") and 29 mm (1.14") conduit knockouts on all five sides of the can. Saving time and manpower during installation has been a driving factor behind the design of the CMS 1201 system.

Mechanical assembly diagram showing a component with a magnified inset view (no text or symbols)

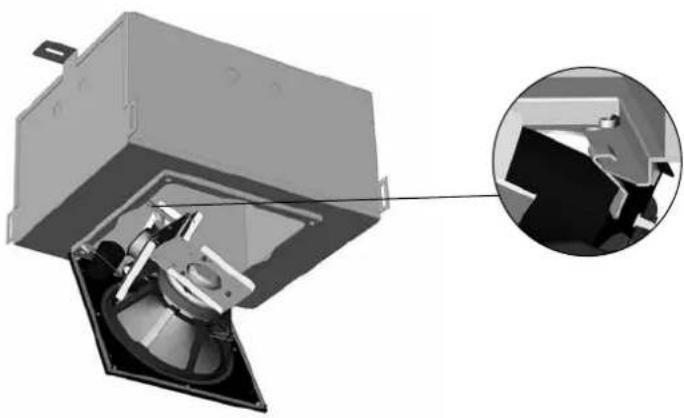

Baffle assemble can be hooked onto the back can with care.

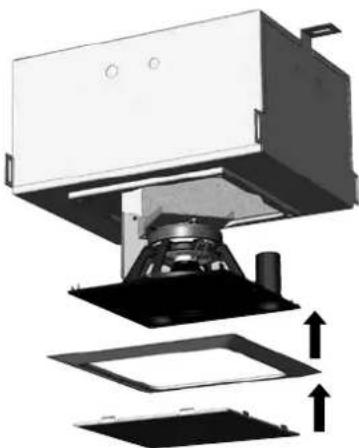

4.6. Fitting the grille

3D diagram of a mechanical assembly with layered components and directional arrows (no text or symbols)

5. Wiring and Setting Up

The CMS 1201 is available in both a standard low-impedance variant (CMS 1201DC) and a low insertion loss 60 W line transformer-equipped version (CMS 1201DCt) for use on 70 V or 100 V distributed lines. The following tappings are configurable on the transformer before screwing driver assembly into the back can:

70 V systems: 60 W / 30 W / 15 W / 7.5 W / OFF

100 V systems: 60 W / 30 W / 15 W / OFF

If later adjustment to the level is required the baffle can be hung from the can via a hinged edge, leaving both hands free to make the required adjustment.

Tannoy's focus on maintaining the highest standards of continuous product performance and reliability, through uncompromising quality control of components and manufacturing processes, means you can specify and install CMS 1201DC with confidence. As with all of Tannoy's CMS in-ceiling loudspeakers, the CMS 1201DC benefits from a 5-year warranty.

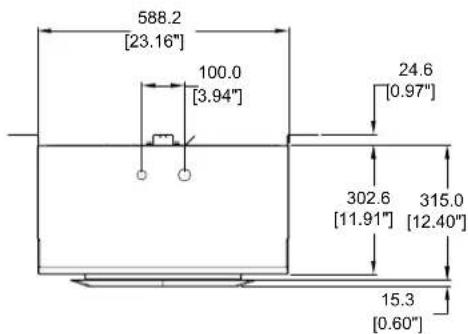

6. Dimensions

Pure electrical circuit lines without any symbols

7. Technical Specifications

Performance

Frequency response (-3 dB)(1)	60 Hz - 20 kHz
Frequency range (-10 dB)(1)	45 Hz - 30 kHz
System Sensitivity (1W @ 1m)(2)	97 dB (1 W = 2.83 V for 8 Ohms)
Nominal Coverage Angle	90 Degrees Conical
Coverage Angle (1 kHz to 16 kHz)	90 Degrees Conical
Crossover	1.6 kHz - 2nd order LF, 2nd order HF
Directivity Factor (Q)	8.9
Directivity Index (DI)	9.5
Rated maximum SPL(2)
Average 120 dB
Peak 126 dB
With THP 60 - Average 115 dB
Power Handling
Average 200 W
Programme 400 W
Peak 800 W
Recommended Amplifier Power	400 W @ 8 Ohms
Nominal Impedance	8 Ohms
Transformer Taps (CMS 1201DCt only)
70 V 60 W / 30 W / 15 W / 7.5 W / OFF
100 V 60 W / 30 W / 15 W / OFF

Transducers

Low Frequency	1 x 300 mm (12.00") Dual ConcentricTM constant directivity driver with treated cone
High Frequency	34 mm (1.34") aluminium done with neodymium magnet system

Distortion

10% full power (5.5 V) Harmonics
		2nd 3rd
	250 Hz	1.60 0.28
	1 kHz	2.45 0.73
	10 kHz	4.50 0.32
1% full power (1.73 V)
	250 Hz	0.48 0.08
	1 kHz	1.06 0.59
	10 kHz	1.57 0.04

Physical
Enclosure

Backcan 1.6 mm black powder coated steel, damped with 11 mm OSB board
Baffle 1.2 mm black powder coated steel
Grille 1.0 mm white powder coated perforated steel
Connectors	Terminal barrier strip inside the can, with loop thru capability
Safety Features	Safety ring located at the rear of enclosurefor load bearing safety bond
Cable Entry Options	20 mm and 28 mm on knockouts
Conduit Knockouts	4 sides + top
Dimensions (H x W x D)	331 x 725 x 516 mm (13.03 x 28.54 x 20.31")
Net Weight
Backcan	20 kg (44.1 lbs)
Baffle	9 kg (19.8 lbs)
Grille 1.1 kg (2.4 lbs)

Ordering Information

Part Number	Colour
8001 4750
CMS 1201DC	Black

8001 4751

CMS 1201DCt

Black

8001 4760

CMS 1201 Backcan

Black

8001 4780

CMS 1201	White
Grille Assembly

3212 0141

THP 150	N/A
Transformer

Notes:

1. Average over stated bandwidth. Measured in an IEC buffer in an Anechoic Chamber
2. Unweighted pink noise input, measured at 1 molre on axis
3. Long term power handling capacity as defined in EIA - 426B test

A full range of measurements, performance data, CLF and Ease™ Data for CNS 1201DC can be downloaded from www.tannoypro.com.

Tarnoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods may introduce variations in actual performance; however, actual performance always will equal or exceed the published specifications, which Tarnoy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

8. Warranty

No maintenance of the CMS Series loudspeaker is necessary.

As part of the MUSIC Group, Tannoy is committed to providing the highest quality products, service and user experience for our customers. One element of this commitment is our after sales support which now incorporates our extended Limited Warranty. In the event of any concern that is not addressed by this extended Limited Warranty we would ask you to contact us at [e-mail]

For full warranty details including the extended Limited Warranty, please visit http://www.music-group.com/warranty.aspx and register your purchase online at www.music-group.com or www.tannoy.com

9. Declaration of conformity

The following apparatus is/are manufactured in the United Kingdom by Music Group Innovation SC Ltd of Rosehall Industrial Estate, Coatbridge, Scotland, ML5 4TF and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives relevant to Domestic Electrical Equipment. The apparatus is designed and constructed such that electromagnetic disturbances generated do not exceed levels allowing radio and telecommunications equipment and other apparatus to operate as intended, and, the apparatus has an adequate level of intrinsic immunity to electromagnetic disturbance to enable operation as specified and intended.

Details of the Apparatus: Tannoy Contractor Loudspeaker

Model Numbers: CMS 1201 DC

CMS 1201 DCT

Applicable Standards: EN 50103-1 Emission

EN 50103-2 Emission

Electrical Safety: EN 60065

Engineering Director

18/02/2016

Completely black image with no visible content, text, or symbols.
