Product Type	Document Scanner
Brand	Epson
Model	DS-730N
Scanning Technology	Contact Image Sensor (CIS)
Scan Speed (B&W / Color, A4, 300dpi)	35 ppm / 72 ipm (simplex) ; 70 ppm / 140 ipm (duplex)
Optical Resolution	600 dpi
Maximum Document Size	216 x 355.6 mm (8.5 x 14 in.)
ADF Capacity	50 sheets (80 g/m²)
Duplex Scanning	Automatic one-pass duplex
Connectivity	USB 3.0, Ethernet (10/100/1000), Wi-Fi (IEEE 802.11b/g/n)
Power Supply	AC adapter (100-240V, 50/60Hz)
Power Consumption	Operating: 12W, Standby: 4.5W, Sleep: 1.8W
Operating Temperature	10°C to 35°C (50°F to 95°F)
Dimensions (W x D x H)	296 x 204 x 160 mm (11.7 x 8.0 x 6.3 in.)
Weight	3.6 kg (7.9 lbs)
Features	Ultrasonic double feed detection, Epson Scan 2 software, scan to network folder, cloud services
Maintenance	Clean scanner glass and ADF rollers with soft lint-free cloth; use Epson cleaning kit for rollers
Safety Certifications	FCC, CE, UL, ENERGY STAR
Spare Parts	Roller replacement kit (B12B808511), cleaning kit (B12B813071)

Frequently Asked Questions - DS-730N EPSON

How do I set up the scanner wirelessly?

Press the Wi-Fi button on the scanner, then use the Epson ScanSmart or EpsonNet Config software to connect to your network. Ensure your router is on.

What paper sizes does the DS-730N support?

It supports A4, Letter, Legal, and many custom sizes up to 8.5 x 14 inches. Use the ADF for automatic feeding.

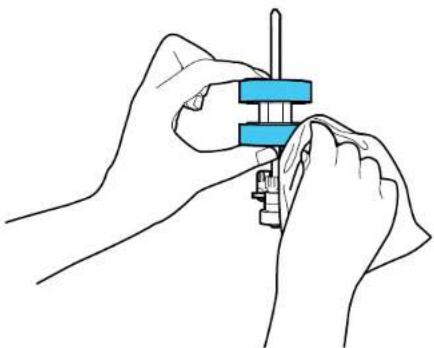

How do I clean the scanner rollers?

Turn off and unplug the scanner. Open the ADF cover, remove the roller assembly, and wipe the rollers with a lint-free cloth slightly dampened with water or use an Epson cleaning kit.

What driver do I need for Windows 10?

Download the Epson Scan 2 driver and software from the Epson support website. It is compatible with Windows 10 (32/64-bit).

Why are my scanned images showing streaks?

Streaks often indicate dirty glass or rollers. Clean the scanner glass and the ADF rollers using a soft cloth. If problem persists, run the scanner calibration.

How do I replace the ADF roller kit?

Purchase the Epson roller replacement kit (B12B808511). Follow the manual: open the ADF, remove the old rollers, snap the new ones in place, and close the cover.

Can I scan directly to cloud services?

Yes, use the Epson ScanSmart software to configure scan-to-cloud destinations like Google Drive, Dropbox, OneDrive, and SharePoint.

What is the maximum scan resolution?

The optical resolution is 600 dpi. You can interpolate up to 1200 dpi in the software settings.

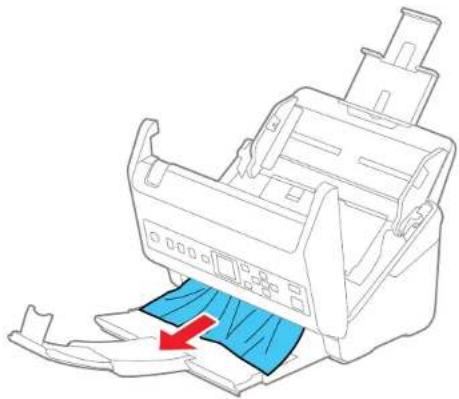

How do I troubleshoot paper jams?

Turn off the scanner, gently remove any jammed paper from the ADF or output tray. Check for torn pieces. Clean the rollers if jams persist.

What is the energy saving mode?

The scanner enters sleep mode after a period of inactivity (default 15 minutes). Press the power button to wake it. Power consumption drops to 1.8W.

USER MANUAL DS-730N EPSON

DS-730N User's Guide....7

Scanner Basics....8

Using the Control Panel 8

Control Panel Buttons and Lights 9

The LCD Screen 10

Viewing Animations.... 10

Status Icon Information 12

Adjusting the Screen Brightness.... 12

Changing LCD Screen Language.... 13

Selecting the Date and Time 14

Changing the Keyboard Layout 16

Selecting the Start-up Screen.... 16

Turning Off the Operation Time Out Setting 17

Preventing PC Connection via USB 18

Setting Direct Power On 19

Changing Regular Cleaning Alert Settings 20

Changing Roller Replacement Alert Settings 21

Setting a Password and Locking the Control Panel 22

Scanner Parts Locations 24

Scanner Parts 24

User Replaceable Epson Scanner Parts 26

Using Power Saving Settings 27

Changing the Sleep Timer Settings 27

Changing the Power Off Timer Settings 28

Loading Originals 30

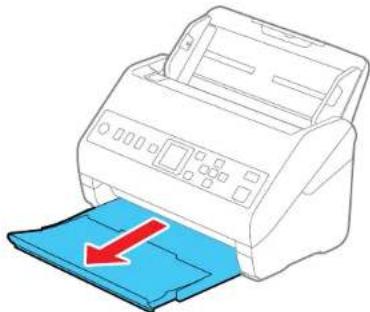

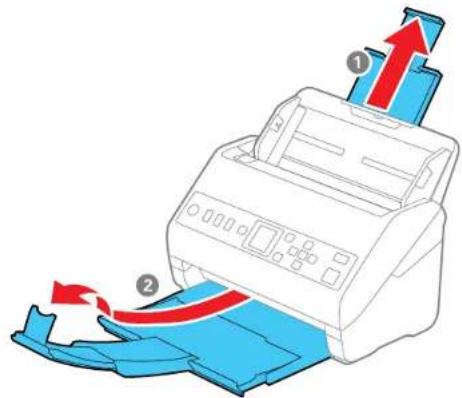

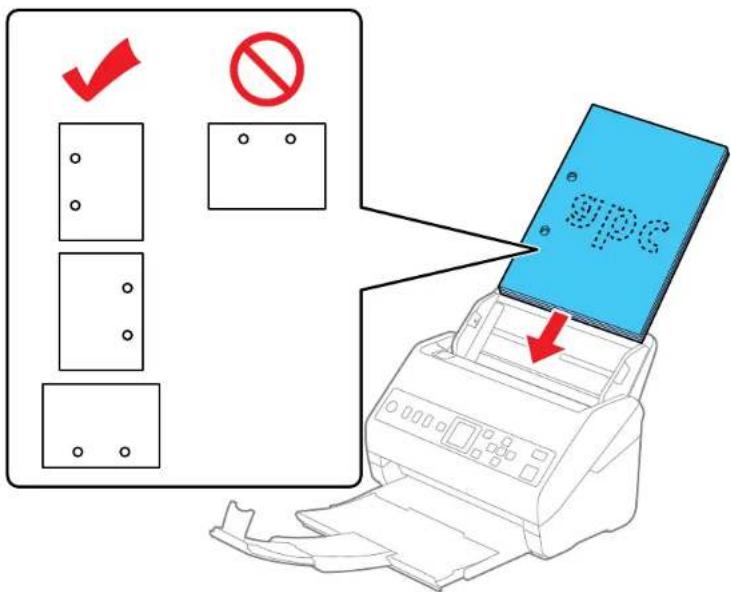

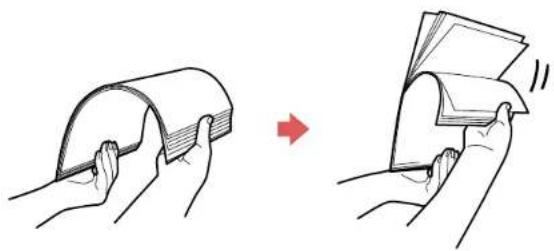

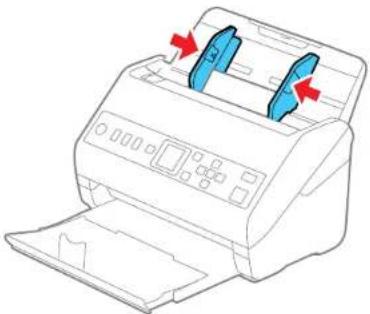

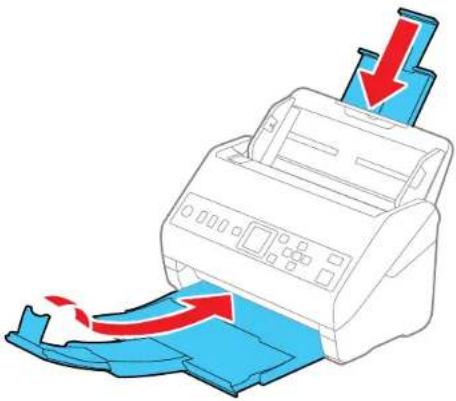

Loading Originals in the Input Tray 30

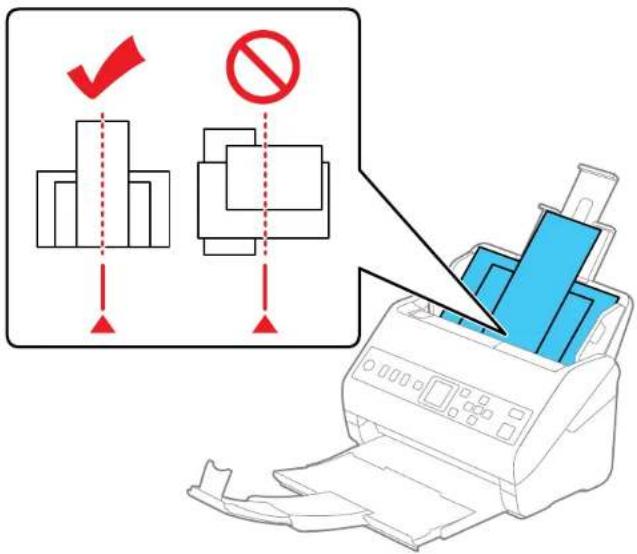

Loading Multiple Sizes of Originals in the Input Tray 37

Original Document Specifications.... 40

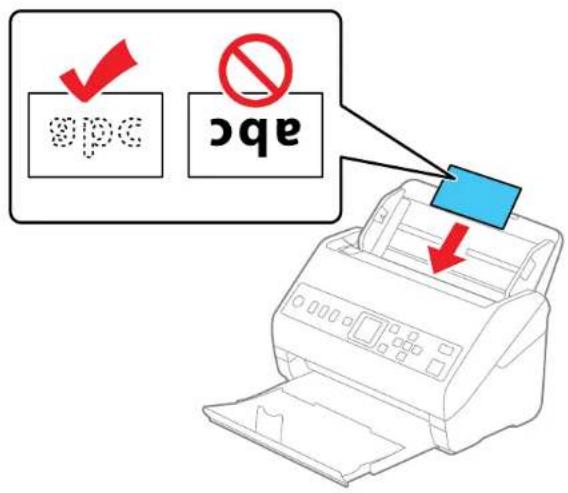

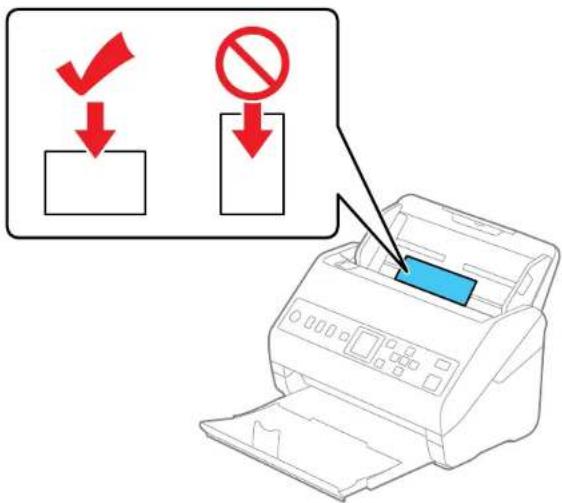

Loading Plastic and Laminated Cards in the Input Tray 42

Plastic and Laminated Card Specifications 46

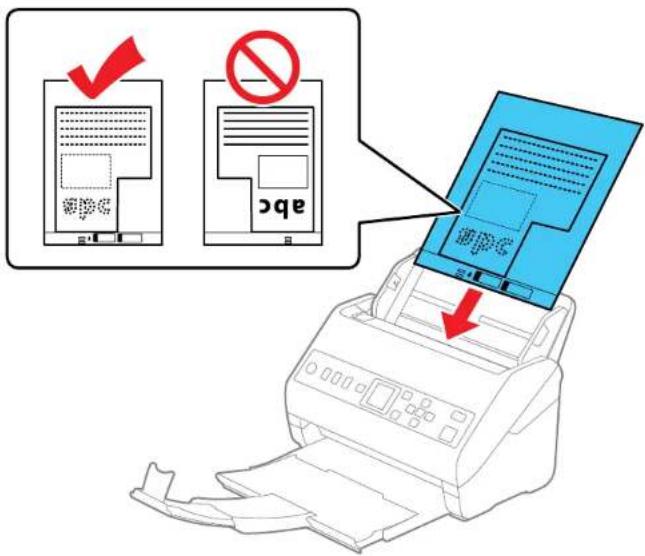

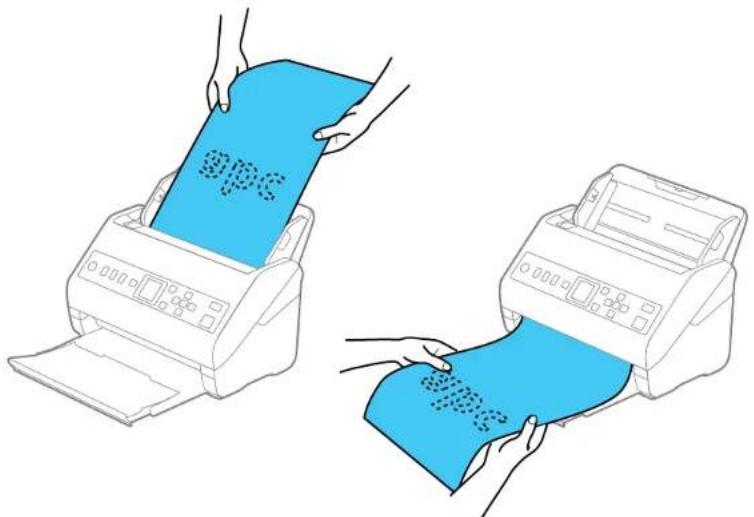

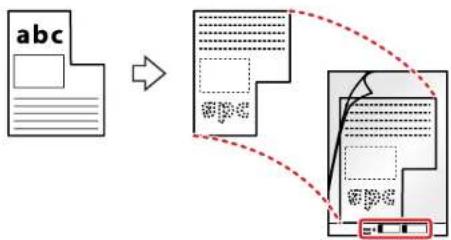

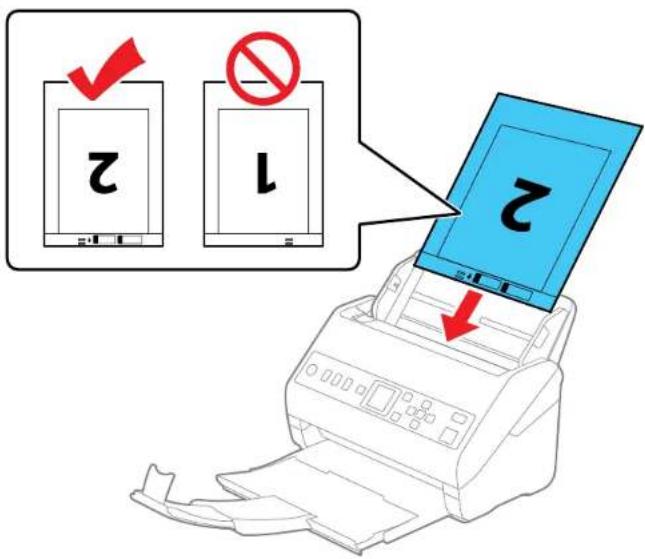

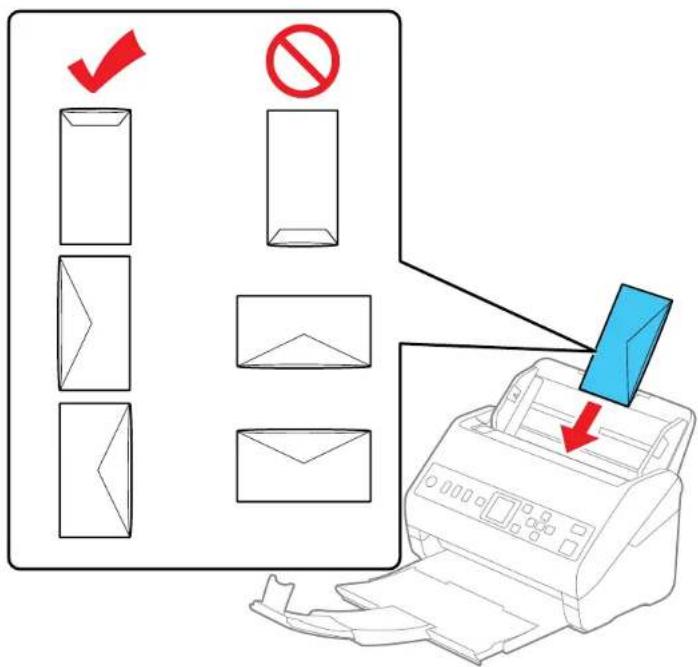

Loading Special Originals.... 46

Special Original Specifications 54

Wired Networking.... 56

Network Security Recommendations 56

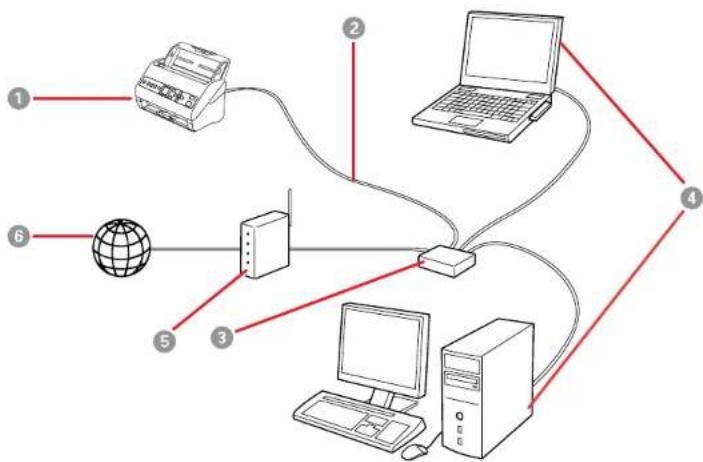

Wired Network Setup 56

Connecting the Product to the Network 57

Determining the Scanner's IP Address 58

Accessing the Web Config Utility.... 58

Registering Presets or Quick Send Buttons.... 59

Scanning 60

Starting a Scan....60

Scanning Using the Product Control Panel 60

Setting the Operation Mode on the Product Control Panel....61

Scanning Using the Quick Send Buttons 61

Scanning Using Presets.... 62

Scanning Originals to the Computer 62

Scanning Using Web Services for Devices (WSD) - Windows....63

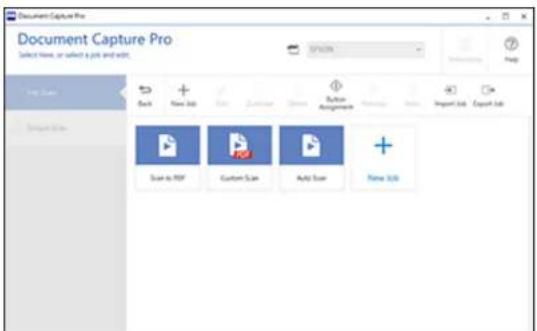

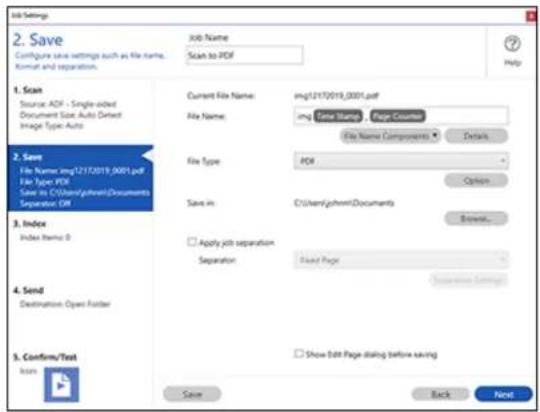

Adding and Assigning Scan Jobs with Document Capture Pro - Windows....64

Adding and Assigning Scan Jobs with Document Capture - Mac....67

Starting a Scan Using the Epson Scan 2 Icon 68

Starting a Scan from a Scanning Program.... 70

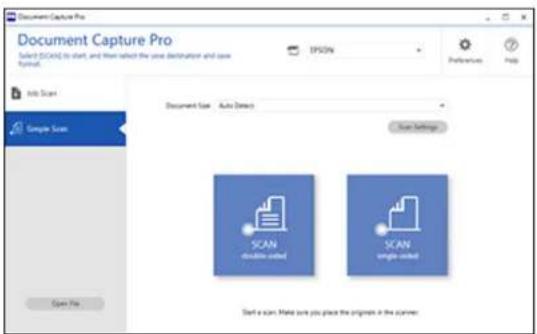

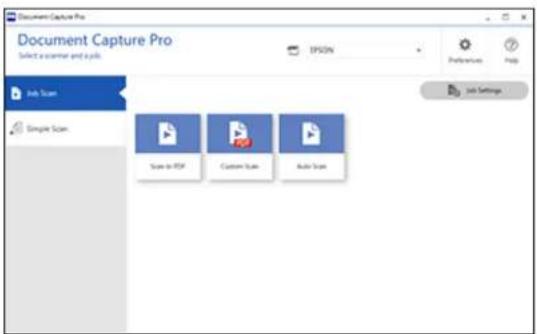

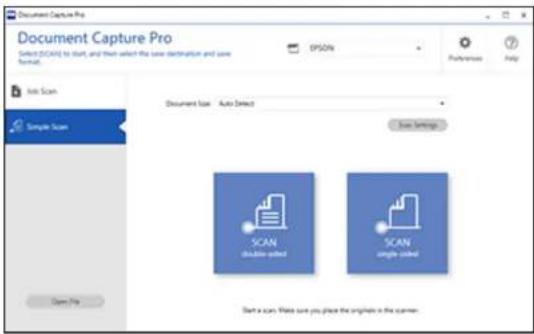

Scanning with Simple Scan in Document Capture Pro - Windows....72

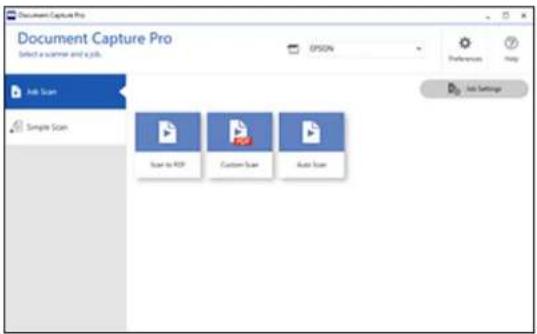

Scanning with Job Scan in Document Capture Pro - Windows....73

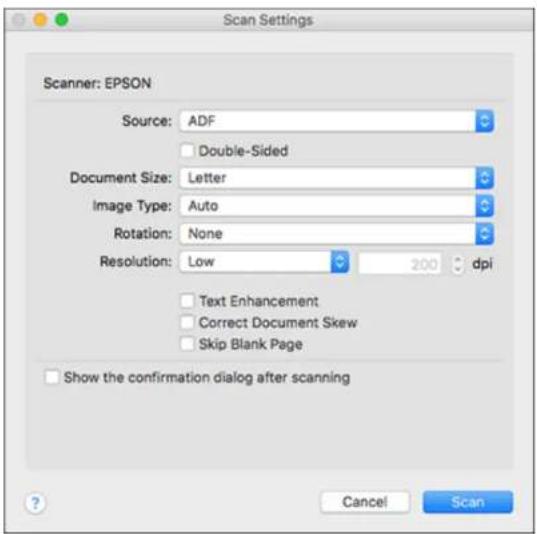

Scanning with Document Capture - Mac 74

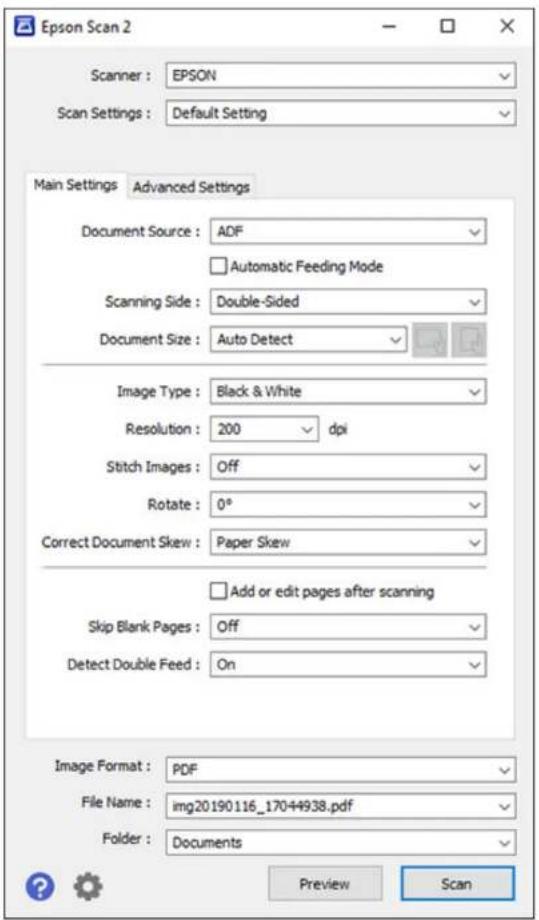

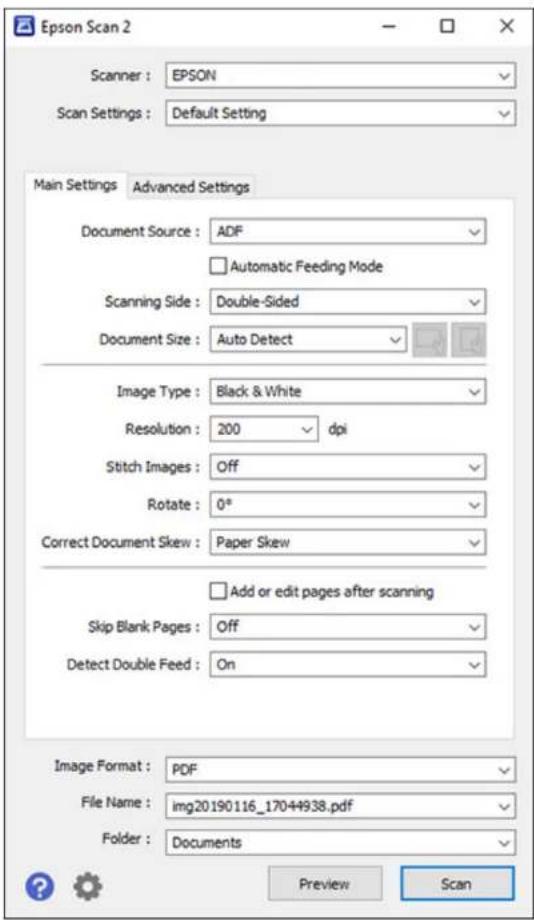

Scanning in Epson Scan 2 78

Additional Scanning Settings - Main Settings Tab 82

Additional Scanning Settings - Advanced Settings Tab....83

Scanning Settings for Special Documents.... 84

Image Format Options 85

Scan Resolution Guidelines 86

Scanning Special Projects 86

Scanning Two Originals onto One Sheet (Stitching Images) - Windows....87

Scanning Multi-Page Originals as Separate Files - Windows....90

Saving Scanned Documents as a Searchable PDF Using Epson Scan 2....92

Saving a Scan as an Office Format File - Windows 94

Scanning to a SharePoint Server or Cloud Service - Windows....95

Scanning to a SharePoint Server or Cloud Service - Mac....97

Cleaning and Transporting Your Scanner....99

Cleaning Your Scanner 99

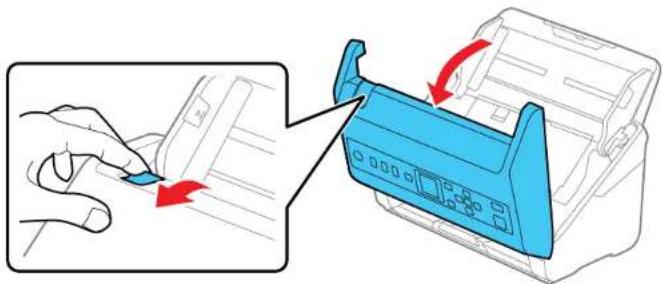

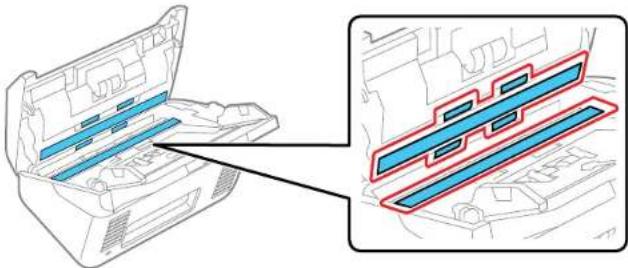

Cleaning Inside Your Scanner....99

Checking the Scanner Roller Counter 110

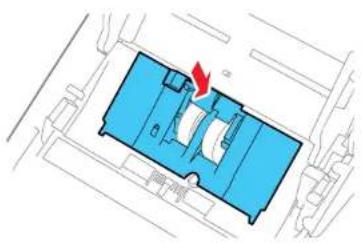

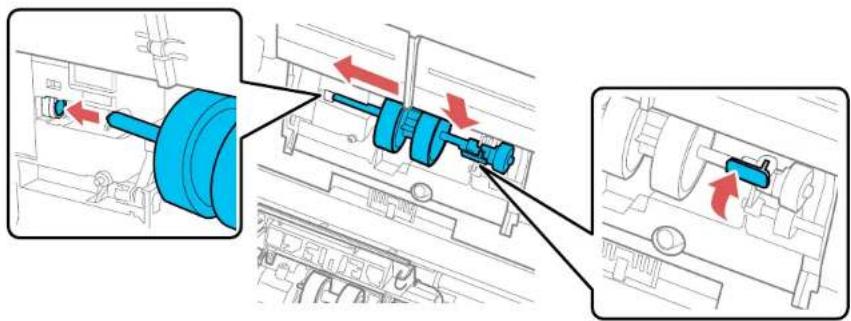

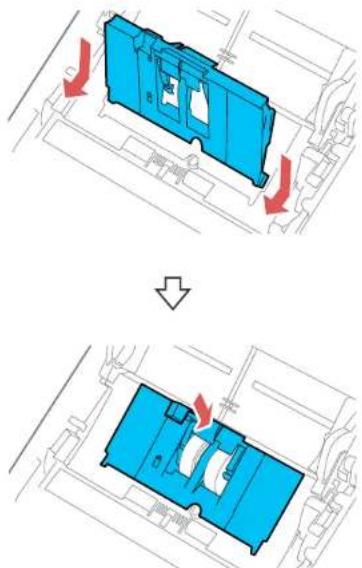

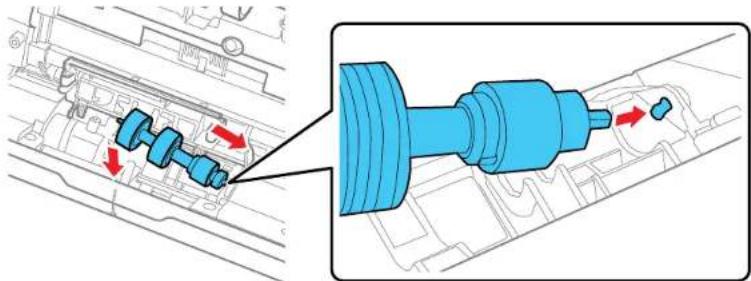

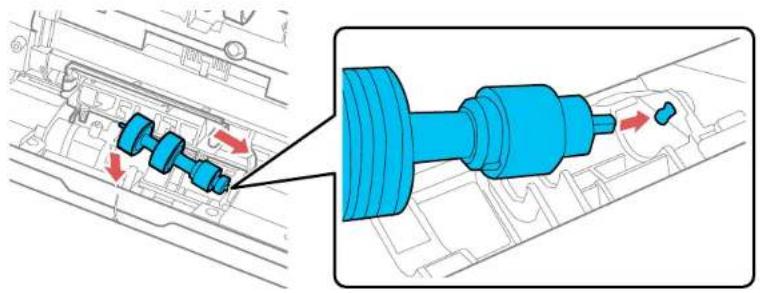

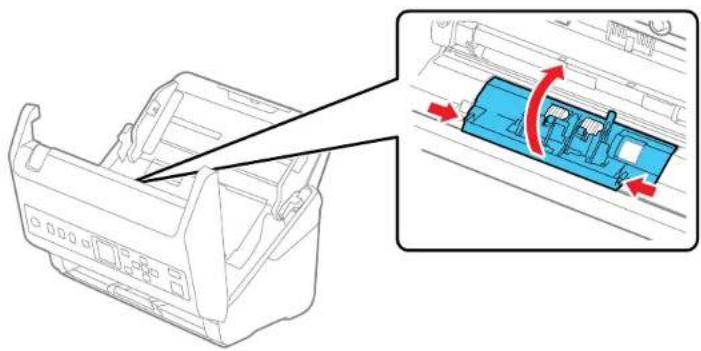

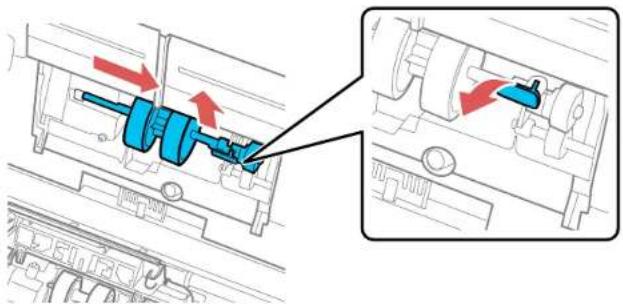

Replacing the Scanner Rollers.... 111

Resetting the Scanner Roller Counter 116

Transporting Your Scanner 117

Solving Problems 119

Product Status Messages 119

Solving Scanning Problems 120

Scanner Does Not Turn On or Turns Off Unexpectedly....120

Scanner Button Does Not Work as Expected 121

Scanning Software Does Not Operate Correctly 121

Cannot Start Epson Scan 2 122

Original Feeds Incorrectly in Scanner 123

Original Jams in Scanner 124

Scanning is Slow 126

Cannot Scan Over a Network 126

Solving Scanned Image Quality Problems 127

Back of Original Image Appears in Scanned Image....128

Scanned Characters are Blurry 128

Characters are not Recognized During Conversion to Editable Text (OCR)....129

Ripple Patterns Appear in an Image 129

Spots or Lines Appear in All Scanned Images 130

Scanned Image is Cropped 130

Resetting the Epson Scan 2 Settings 131

Uninstall Your Scanner Software.... 131

Uninstalling Scanner Software - Windows 131

Uninstalling Scanner Software - Mac.... 132

Where to Get Help (U.S. and Canada) 133

Where to Get Help (Latin America).... 134

Technical Specifications 136

Windows System Requirements 136

Mac System Requirements 137

General Specifications 137

Dimension Specifications 139

Electrical Specifications 139

Environmental Specifications 140

Network Interface Specifications 140

Safety and Approvals Specifications 141

Notices 142

Important Safety Instructions.... 142

Restrictions on Copying 144

Default Delay Times for Power Management for Epson Products....145

Binding Arbitration and Class Waiver 145

Trademarks 148

Copyright Notice.... 149

libTIFF Software Acknowledgment 149

A Note Concerning Responsible Use of Copyrighted Materials....150

Copyright Attribution.... 150

DS-730N User's Guide

Welcome to the DS-730N User's Guide.

For a printable PDF copy of this guide, click here.

Scanner Basics

See the sections to learn about the basic features of your scanner.

Using the Control Panel

Scanner Parts Locations

User Replaceable Epson Scanner Parts

Using Power Saving Settings

Using the Control Panel

See the sections to learn about the control panel and select control panel settings.

Control Panel Buttons and Lights

Adjusting the Screen Brightness

Changing LCD Screen Language

Selecting the Date and Time

Changing the Keyboard Layout

Selecting the Start-up Screen

Turning Off the Operation Time Out Setting

Preventing PC Connection via USB

Setting Direct Power On

Changing Regular Cleaning Alert Settings

Changing Roller Replacement Alert Settings

Setting a Password and Locking the Control Panel

Parent topic: Scanner Basics

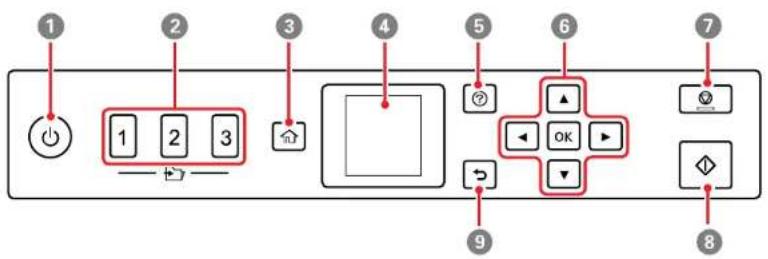

Control Panel Buttons and Lights

1 ⏻ power button and the power light

2 Quick Send buttons

3 home button

4 LCD screen

5 ? help button

6 Navigation arrows and the OK button

7 stop button

8 start button

backButton

The LCD Screen

Viewing Animations

Status Icon Information

Parent topic: Using the Control Panel

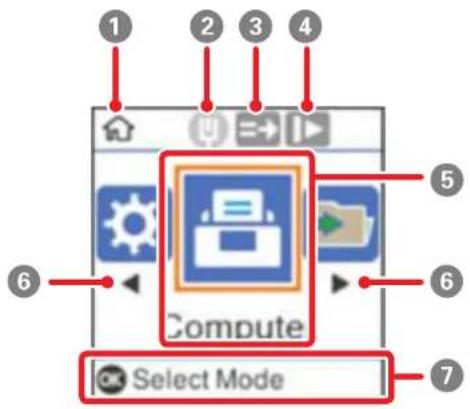

The LCD Screen

1 Home screen indicator

2 Displays the network connection status

3 Double Feed Detection Skip (DFDS) is enabled (blue) or disabled. Select the DFDS Function option in the Scanner Settings menu to change the setting.

4 Slow mode is enabled (blue) or disabled. Select the Slow option in the Scanner Settings menu to change the setting.

5 Displays available menus

6 Press the arrow button to scroll through available menus

7 Displays available button actions

Parent topic: Control Panel Buttons and Lights

Viewing Animations

You can view animations on the LCD screen to help guide you through a procedure or to troubleshoot a problem.

1. Press the Help button to display the Help screen.

You see a screen like this:

1. Select Troubleshooting if you are experiencing a problem, or How To to view instructions on common procedures.
2. Select a topic from the list of available topics and follow the on-screen instructions.

While viewing the topics, you may see screens like this:

1 Indicates your overall progress through the animation. 2 Press the left arrow button to view the previous step. 3 Displays the current step number and the total number of steps. 4 Press the right arrow button to view the next step.

Parent topic: Control Panel Buttons and Lights

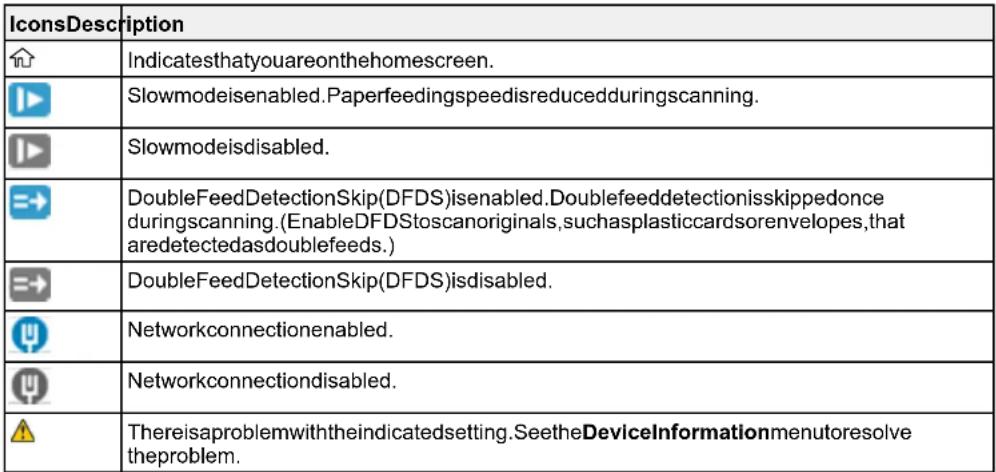

Status Icon Information

Your product displays status icons on the LCD screen for certain product status conditions.

Parent topic: Control Panel Buttons and Lights

Adjusting the Screen Brightness

You can adjust the brightness of the LCD screen.

1. Press the Home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select LCD Brightness and press the OK button. 5. Use the arrow buttons to decrease or increase the brightness. 6. Press the OK button to exit.

Parent topic: Using the Control Panel

Changing LCD Screen Language

You can change the language used on the LCD screen.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select Language and press the OK button. 5. Select a language and press the OK button to exit.

Parent topic: Using the Control Panel

Selecting the Date and Time

Before using your product, select the current date, time, and daylight saving phase in your area, and choose your preferred date and time format.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select Date/Time Settings and press OK. 5. Press the OK button to select Date/Time. 6. Use the arrow buttons to select the date format you want to use. 7. Use the arrow buttons to enter the current date and press OK. 8. Use the arrow buttons to select the time format you want to use and press OK. 9. Use the arrow buttons to enter the current time and press OK. 10. Use the arrow buttons to select Daylight Saving Time and press OK. 11. Select the setting that applies to your area:

- Winter: it is winter or your region does not use Daylight Saving Time (DST)

- Summer: it is spring or summer and your region uses Daylight Saving Time (DST)

Note: If your region uses Daylight Saving Time (DST), you must change this setting to match the season. When you change from Winter to Summer, your product automatically sets its clock ahead one hour. When you change from Summer to Winter, it sets its clock back one hour.

1. Use the arrow buttons to select Time Difference and press OK.
2. Use the arrow button to enter the time difference between your local time and UTC (Coordinated Universal Time) and press OK.

Parent topic: Using the Control Panel

Changing the Keyboard Layout

You can change the layout of the keyboard on the control panel.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button.

1. Use the arrow buttons to select Keyboard and press the OK button.
2. Select the layout you want to use and press the OK button to exit.

Parent topic: Using the Control Panel

Selecting the Start-up Screen

You can choose the initial menu that displays on the LCD screen when the scanner is turned on and Operation Time Out is enabled.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow button to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button.

1. Use the arrow buttons to select Start-up Screen and press the OK button.
2. Use the arrow buttons to select the menu you want to see on the LCD screen (Home, Quick Send, or Presets) when the scanner is powered on. 6. Press the OK button to exit.

Parent topic: Using the Control Panel

Turning Off the Operation Time Out Setting

The Operation Time Out setting causes the LCD screen to return to the Home screen after a few minutes of inactivity. This feature is enabled by default, but you can turn it off.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow button to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select Operation Time Out and press the OK button. 5. Select Modify and press the OK button. 6. Select Off and press the OK button.

Parent topic: Using the Control Panel

Preventing PC Connection via USB

You can disable access from a USB-connected computer. This restricts non-network access to the product and protects the security of confidential scanned documents.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Select PC Connection via USB. 5. Select Disable.

Parent topic: Using the Control Panel

Setting Direct Power On

You can turn on the scanner directly when the scanner is connected to the power source, without pressing the power button.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select Direct Power On and press the OK button. 5. Select On and press the OK button to exit.

Parent topic: Using the Control Panel

Changing Regular Cleaning Alert Settings

You can set an alert to appear to remind you to perform regular cleaning after a certain number of scans.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

1. Use the arrow buttons to select Regular Cleaning Alert Settings and press the OK button.

4. Do the following:

• Set the Warning Alert Setting to On to receive a notification when it is time to clean inside the scanner.
• On the Count Alert Settings screen, use the arrow buttons to change the number of scans before the notification appears.

5. Press the OK button to exit.

Parent topic: Using the Control Panel

Changing Roller Replacement Alert Settings

You can set an alert to appear to remind you to replace the roller after a certain number of scans.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow button to select Settings and press the OK button.

You see a screen like this:

1. Use the arrow buttons to select Roller Replacement Alert Settings and press the OK button.
2. Use the arrow buttons to change the number of scans before the notification appears. 5. Press the OK button to exit.

Parent topic: Using the Control Panel

Setting a Password and Locking the Control Panel

You can set an administrator password to lock the following settings and prevent them from being changed:

Note: You should set an administrator password and keep it in a safe place. You must know the administrator password in order to change or delete it. If you forget the password or inadvertently set it, the product will need to be sent to Epson for service.

• Network settings - Web Service settings - Scanner settings • System Administration settings - Web Config settings • EpsonNet Config settings

Note: For more information on administration settings, see the Administrator's Guide.

1. Press the home button, if necessary.
2. Use the arrow button to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select System Administration and press the OK button. 5. Select Admin Settings and press the OK button. 6. Select Admin Password > Register. 7. Use the displayed keyboard to enter a password and press OK. 8. Enter your password again to confirm.

Note: Keep a copy of your password in a safe place.

9. Press the OK button to exit.

When the control panel is locked, you must enter the password to access any of the locked settings. You can change or delete the administrator password by entering the password and selecting Change or Reset on the Admin Password screen.

Parent topic: Using the Control Panel

Scanner Parts Locations

See these sections to identify the parts on your scanner.

Scanner Parts

Parent topic: Scanner Basics

Scanner Parts

1 Control panel

2 Edge guides

3 Input tray

4 Input tray extension

5 ADF (Automatic Document Feeder)

6 Output tray 7 Output tray extensions 8 Stopper

1 Kensington security slot 2 USB port 3 LAN port

4 Power inlet

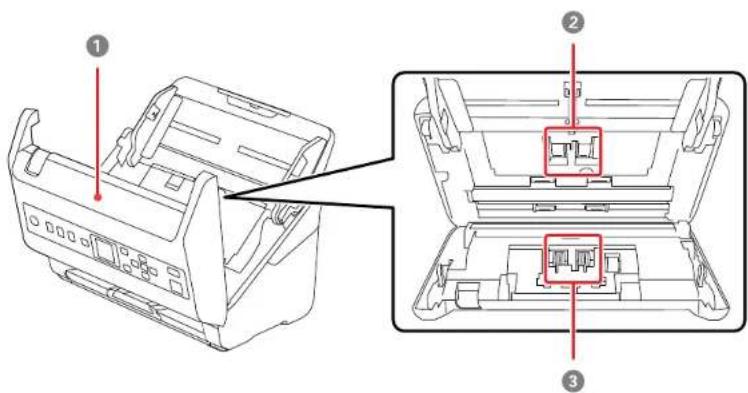

Scanner cover

Pickup roller

Separation roller

Parent topic: Scanner Parts Locations

User Replaceable Epson Scanner Parts

U.S. and Canada: You can purchase genuine Epson accessories at epson.com (U.S. sales) or epson.ca (Canadian sales). You can also purchase accessories from an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.

Latin America: You can purchase optional accessories and replacement parts from an Epson authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as described in "Where to Get Help".

Note: Availability of accessories varies by country.

PartPartnumber
Carriersheet(5)B12B819051
RollerassemblykitB12B819671
CleaningkitB12B819291

Parent topic: Scanner Basics

Using Power Saving Settings

Your scanner enters sleep mode automatically and turns off the LCD screen if it is not used for a period of time. You can make the time period shorter to save energy and resources.

Changing the Sleep Timer Settings

Changing the Power Off Timer Settings

Parent topic: Scanner Basics

Changing the Sleep Timer Settings

You can adjust the time period before your product enters sleep mode and turn off the LCD screen.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select Sleep Timer and press the OK button. 5. Do one of the following:

• Press the up or down arrow buttons to decrease or increase the number of minutes.
• Press the left and right arrow buttons to move to the previous or next character.

6. Press the OK button to exit.

Parent topic: Using Power Saving Settings

Changing the Power Off Timer Settings

You can have the product turn off automatically if it is not used for a specified period of time.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.

You see a screen like this:

3. Press the OK button. 4. Use the arrow buttons to select Power Off Timer and press the OK button. 5. Select Off or select a time period between 30 minutes and 12 h (12 hours). 6. Press the OK button to exit.

Parent topic: Using Power Saving Settings

Loading Originals

Follow the instructions here to load your originals into the scanner.

Loading Originals in the Input Tray

Loading Plastic and Laminated Cards in the Input Tray

Loading Special Originals

Loading Originals in the Input Tray

You can load originals that meet the document specifications in the input tray.

Caution: Do not load photos, or valuable original documents or artwork, directly into the input tray. This may wrinkle or damage the original. Load these originals using an optional carrier sheet.

Note: Photos scanned using a document scanner may not have the same color depth as the original. Use a flatbed photo scanner to achieve the best color reproduction of photos.

The steps below describe loading originals of the same size. To load originals of multiple sizes at once, see the link at the end of these steps.

1. Pull up the input tray extension.

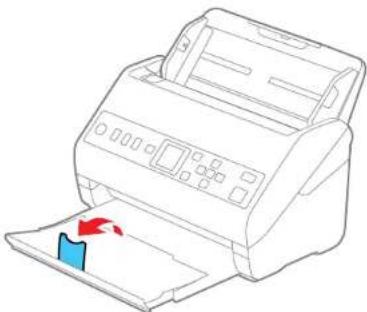

2. Pull out the output tray and its extension, and open the stopper.

Note: If you are loading an original that is 15.5 inches (393.8 mm) or longer, do not pull out the input or output tray extensions and do not open the stopper.

3. Slide the input tray edge guides all the way out.

1. If you are loading a multi-page original, align your stack of originals.

Note: If you are loading an original that is 15.5 inches (393.8 mm) or longer, load only one sheet at a time.

1. Stack the originals with the printed side facing down and slide the stack so the leading edge is at an angle as shown.

1. Load standard originals into the input tray printed sides down and top edge first, and guide them in until they meet resistance.

- If you are loading paper business cards, load up to 30 cards (printed side down and long edge first) into the input tray horizontally, and slide them in until they meet resistance.

- If you are loading hole-punched originals, load them with the holes facing down to the sides shown. The holes must be within 1.2 inches (30 mm) of the edge of the originals.

7. Slide the edge guides against the edges of the original.

Note: If you are scanning originals that are 15.5 inches (393.8 mm) or longer, support the original as it enters into and ejects from the scanner as shown and use the following resolutions:

• 11.6 to 53 inches (393.8 to 1346.2 mm): 301 to 600 dpi - 53 to 215 inches (1346.3 to 5461 mm): 201 to 300 dpi - 215 to 240 inches (5461.1 to 6096 mm): 50 to 200 dpi

1. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.

Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.

If scanning thin or wrinkled paper causes paper jams, slow down the feeding speed by selecting Settings > Scanner Settings > Slow > On on the LCD screen.

Loading Multiple Sizes of Originals in the Input Tray

Original Document Specifications

Parent topic: Loading Originals

Loading Multiple Sizes of Originals in the Input Tray

You can load originals of different sizes, paper types, and thicknesses at one time in the input tray. Just make sure they meet the original document specifications.

Caution: Do not load photos, or valuable original documents or artwork, directly into the input tray. This may wrinkle or damage the original. Load these originals using an optional carrier sheet.

1. Pull up the input tray extension.
2. Pull out the output tray and its extension, and open the stopper.

Note: If you are loading originals that are 15.5 inches (393.8 mm) or longer, do not pull out the input or output tray extensions and do not open the stopper.

3. Slide the input tray edge guides all the way out.

1. Load the originals in the center of the input tray in descending order of paper size with the widest at the back and the narrowest at the front. Slide them in until they meet resistance. Make sure the printed sides are face down and the top edges are slightly angled in the input tray.

5. Slide the edge guides against the edges of the widest original.

1. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.

Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.

If scanning thin or wrinkled paper causes paper jams, slow down the feeding speed by selecting Settings > Scanner Settings > Slow > On on the LCD screen.

You can also scan originals of multiple sizes by loading them one by one using the Automatic Feeding Mode setting in Epson Scan 2.

Parent topic: Loading Originals in the Input Tray

Original Document Specifications

You can load original documents that meet these specifications in your scanner.

PapertypePapersizePaperweightLoadingcapacity
PlainpaperFinepaperRecycledpaper	Letter(8.5×11inches[216×279mm])	7to110lb(27to413g/m2)	21lb(80g/m2):100 sheets24lb(90g/m2):86sheets28lb(104g/m2):74 sheets34lb(127g/m2):62 sheets42lb(157g/m2):50 sheets56lb(209g/m2):38 sheets68lb(256g/m2):30 sheets110lb(413g/m2):18 sheetsLoadingcapacitymay varydependingonthe papertype.
	A4(8.3×11.7inches[210×297mm])
	A5(5.8×8.2inches[148×210mm])
	A6(4.1×5.8inches[105×148mm])
	B5(7.2×10.1inches[182×257mm])
	B6(5×7.2inches[128×182mm])
	A8(2.1×2.9inches[52×74mm])	34to110lb(127to413g/m2)
	Width:2.0to8.5inches(50.8 to215.9mm)Height:15.5to240inches(393.8to6096mm)	13to35lb(50to130g/m2)	1sheet
PapertypePapersizeP	PaperweightLoadingcapacity
Plainpaper	Legal(8.5×14inches[216×356mm])	7to110lb(27to413g/m2)	21lb(80g/m2):80sheets
Finepaper			24lb(90g/m2):69sheets
Recycledpaper			28lb(104g/m2):59 sheets
			34lb(127g/m2):50 sheets
			42lb(157g/m2):40 sheets
			56lb(209g/m2):30 sheets
			68lb(256g/m2):24 sheets
			110lb(413g/m2):14 sheets
			Loadingcapacitymay varydependingonthe papertype.
PaperbusinesscardsBusinesscardsUpto56lb		(210g/m2)	30cardsloaded horizontally

Note: You can load originals of different sizes, paper types, and thicknesses up to this size: Letter (8.5 × 11 inches [216 × 279 mm]).

The following types of originals may not be successfully scanned or may require special attention:

• Originals with uneven surfaces, such as embossed documents or letterhead

• Originals with wrinkles or fold lines

• Perforated originals

• Originals with labels or stickers

• Carbonless paper

• Curled originals

Coated paper

Note: Lightly wrinkled paper may scan better if you slow down the feeding speed during scanning or smooth out the wrinkles before loading. Use a carrier sheet to scan delicate originals or originals that are easily wrinkled. To scan originals that are incorrectly detected as double feeds, set the DFDS Function (Double Feed Detection Skip Function) to On on the control panel before you resume scanning, or set the Detect Double Feed setting to Off on the Main Settings tab in the Epson Scan 2 window.

Caution: Do not load the following types of originals directly in the scanner, or they may be damaged or may damage the scanner:

• Photos • Originals that are bound • Passports • Thermal paper • Fabric or other non-paper originals • Originals containing staples or paper clips • Originals with wet ink or glue • Ripped originals • Heavily wrinkled or curled originals • Originals with holes on the bottom of them • Transparencies • Originals with carbon paper backing • Originals with sticky notes attached • Glossy originals

Parent topic: Loading Originals in the Input Tray

Loading Plastic and Laminated Cards in the Input Tray

You can load plastic and laminated cards that meet the card specifications in the input tray.

Note: For best results, make sure Edge Fill is set to None in the scanner software.

1. Pull out the output tray and open the stopper. Do not pull out the extensions.

2. Slide the input tray edge guides all the way out.

1. Load plastic or laminated cards (printed side down and long edge first) into the input tray horizontally, and slide them in until they meet resistance.

Note: Do not load plastic cards vertically.

4. Slide the edge guides against the edges of the card.

1. Turn off the Detect Double Feed setting on the Main Settings tab in Epson Scan 2 when scanning the cards.

Note: If you do not disable the Detect Double Feed setting and a double feed error occurs, remove the plastic or laminated card from the input tray and reload it. Press the down arrow button on the control panel, and select DFDS Function > On to disable the Detect Double Feed setting for the next scan. The DFDS Function setting only disables the Detect Double Feed setting for one scan.

Plastic and Laminated Card Specifications

Parent topic: Loading Originals

Plastic and Laminated Card Specifications

You can load original plastic and laminated cards that meet these specifications in your scanner.

PapertypePapersizePaperthicknessLoadingcapacity
Plasticcards, embossed(ISO7810 ID-1compliant)	2.1×3.3inches (54×85.6mm)	0.05inch(1.24mm) maximum	1card(horizontal)
Plasticcards,standard (ISO7810ID-1 compliant)		0.03inch(0.76mm)to 0.04inch(1.1mm)*	5cards(horizontal)
		smallerthan0.03inch (0.76mm)	5cards(horizontal)
Laminatedcards4.7×5.9 inches(120 ×150mm)orsmaller		0.03inch(0.76mm) maximum	1card

Resolution must be 300 dpi or less and slow mode disabled.

Note: Plastic cards with glossy surfaces may not scan properly.

Parent topic: Loading Plastic and Laminated Cards in the Input Tray

Loading Special Originals

You can load photos or large, thick, or folded originals in the input tray using one or more carrier sheets. You can also load envelopes. Make sure the originals meet the specifications for special originals before loading them.

Note: Photos scanned using a document scanner may not have the same color depth as the original. Use a flatbed photo scanner to achieve the best color reproduction of photos.

1. Pull up the input tray extension.
2. Pull out the output tray and its extension, and open the stopper.

Note: If you are loading originals that are 15.5 inches (393.8 mm) or longer, do not pull out the input or output tray extensions and do not open the stopper.

3. Slide the input tray edge guides all the way out.

1. Load envelopes vertically in the input tray with the printed side down and the flap facing as shown. Slide in the envelopes until they meet resistance. Skip to step 7.

Do one of the following to load photos, or folded or irregularly shaped originals using a carrier sheet:

Note: Use only the carrier sheet designed for your scanner. The carrier sheet is automatically recognized by the scanner by the two small rectangular holes on the front edge, as shown. Keep the

holes clean and not covered. Do not load a carrier sheet that has scratches on it or one that has been scanned more than 3,000 times.

For a Letter- or A4-size or larger original, fold it as shown and place it in the center of an optional carrier sheet. Make sure the illustration on the front edge of the carrier sheet is facing up.

To scan both sides and stitch them together, set the appropriate setting in Epson Scan 2 or Document Capture Pro (Windows).

For a photo or an irregularly shaped original, load it in the center of an optional carrier sheet with the printed side face down. Make sure the illustration on the front edge of the carrier sheet is facing up. If you are loading originals that are 11.7 inches (297 mm) or shorter, place the leading

edge of the original against the binding of the carrier sheet, as shown. Otherwise, the scanner may not detect the correct length of the original.

Note: Photos scanned using a document scanner may not have the same color depth as the original. Use a flatbed photo scanner to achieve the best color reproduction of photos.

1. Load the carrier sheet in the input tray as shown until it meets resistance.

Folded original

Photo or irregularly shaped original

7. Slide the edge guides against the edges of the envelope or carrier sheet.

1. Turn off the Detect Double Feed setting on the Main Settings tab in Epson Scan 2 when scanning special originals.

Note: If the Document Size setting on the Main Settings tab in Epson Scan 2 is set to Auto Detect, Paper Skew is automatically selected as the Correct Document Skew setting.

1. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.

Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.

Special Original Specifications

Parent topic: Loading Originals

Special Original Specifications

You can load photos, envelopes, or large, thick, or folded originals that meet these specifications in your scanner.

Note: Photos scanned using a document scanner may not have the same color depth as the original. Use a flatbed photo scanner to achieve the best color reproduction of photos.

PapertypePapersizeP	aperthicknessLoadingcapacity
Largeoriginals(plain paper,finepaper,or recycledpaper)(loadonlyinacarrier sheet)	Uptothissize:A3(11.7×16.5 inches[297×420mm])	0.012inch(0.3mm) maximum(excludingthe thicknessofthecarrier sheet)	10carriersheets
Photos(loadonlyinacarrier sheet)	Uptothissize:A4(8.3×11.7 inches[210×297mm])	0.012inch(0.3mm) maximum(excludingthe thicknessofthecarrier sheet)	10carriersheets
Envelopes4.49×6.38inches(114 ×162mm)4.33×8.66inches(110 ×220mm)		0.015inch(0.38mm) maximum	10envelopes
Irregularlyshaped originals(loadonlyinacarrier sheet)	Uptothissize:A4(8.3×11.7 inches[210×297mm])	0.012inch(0.3mm) maximum(excludingthe thicknessofthecarrier sheet)	10carriersheets

Note: Originals that are wider than 8.5 inches (215.9 mm) need to be folded in half.

Parent topic: Loading Special Originals

Wired Networking

See the sections to use your product on a wired network.

Network Security Recommendations

Wired Network Setup

Connecting the Product to the Network

Accessing the Web Config Utility

Network Security Recommendations

To help deter unauthorized access to your product over a network, you should protect your network environment using appropriate security measures.

Security measures such as these can help deter threats such as loss of user data, use of telephone and fax lines, and other intrusions:

- Connect your product only to a network protected by a firewall

Connecting your product directly to the Internet may make it vulnerable to security threats. Instead, connect it to a router or other network connection protected by a firewall. Your router may already have a firewall set up by your Internet service provider; check with your ISP for confirmation. For best results, set up and use a private IP address for your network connection.

- Change the default administrator password on your product

If your product has an option to set an administrator password, change the default administrator password to deter access by unauthorized users to personal data stored on your product, such as IDs, passwords, and contact lists.

Parent topic: Wired Networking

Wired Network Setup

You can set up your scanner to communicate with your computer over a wired network by connecting it to the router or hub using an Ethernet cable.

1 Epson scanner

2 Ethernet cable

3 Ethernet hub/switch

4 Computers with a wired network interface

5 Router

6 Internet

Parent topic: Wired Networking

Connecting the Product to the Network

To install your product on a network, follow the instructions on the Start Here sheet and install the necessary software by downloading it from the Epson website. The installer program guides you through network setup. You can check the network status using your product's control panel.

1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press OK.
3. Use the arrow buttons to select Network Status and press OK.

Determining the Scanner's IP Address

Parent topic: Wired Networking

Determining the Scanner's IP Address

If you have multiple scanners on your network, you need to know the IP address of the scanner when setting up network scanning.

1. Do one of the following to start EpsonNet Config:

• Windows 10: Click > EpsonNet > EpsonNet Config
• Windows 8.x: Navigate to the Apps screen and select EpsonNet Config.
• Windows (other versions): Click the Start button or Start screen, and select All Programs or Programs. Select EpsonNet > EpsonNet Config > EpsonNet Config.
• Mac: Open the Applications folder and select Epson Software > EpsonNet > EpsonNet Config > EpsonNetConfig.
• Locate your scanner in the list and write down the IP address.

Parent topic: Connecting the Product to the Network

Accessing the Web Config Utility

You can select your product's network settings and confirm its operating status using a web browser. You do this by accessing your product's built-in Web Config utility from a computer or other device that is connected to the same network as your product.

Note: For more information on administration settings, see the Administrator's Guide.

1. Check your network status.
2. Note your product's IP address.
3. On a computer or other device connected to the same network as your product, open a web browser.
4. Enter your product's IP address into the address bar.

You see the available Web Config utility options.

Registering Presets or Quick Send Buttons

Parent topic: Wired Networking

Registering Presets or Quick Send Buttons

You can register up to 12 frequently used scanning settings as Presets. Settings registered to preset numbers 1 through 3 are assigned to the Quick Send buttons on the product.

Note: For more information on administration settings, see the Administrator's Guide.

1. Access the Web Config Utility
2. Log in as an administrator to change the scanner settings.

Note: If Administrator Logout is displayed at the top-right of the screen, you are already logged in as an administrator.

1. Select Presets on the Scan tab.
2. Select the Presets number you want to configure, and click Edit. 5. Select Type, and click Next.
3. Enter the name you want to display, and then click Select from Contacts or Enter Destination to set the destination information. You can enter the email address manually to add to the destination.
4. Select the scan settings, as necessary. 8. Click OK to apply the settings. Parent topic: Accessing the Web Config Utility

Scanning

You can scan your originals and save them as digital files.

Starting a Scan

Scanning with Simple Scan in Document Capture Pro - Windows

Scanning with Job Scan in Document Capture Pro - Windows

Scanning with Document Capture - Mac

Scanning in Epson Scan 2

Scan Resolution Guidelines

Scanning Special Projects

Starting a Scan

After placing your originals on your product for scanning, start scanning using one of these methods.

Note: You can also scan using Document Capture Pro (Windows) or Document Capture (Mac).

Scanning Using the Product Control Panel

Starting a Scan Using the Epson Scan 2 Icon

Starting a Scan from a Scanning Program

Parent topic: Scanning

Scanning Using the Product Control Panel

You can use the following methods to save scanned images from the product's control panel.

- QuickSend button Presets

You can save the scanned image to a network folder, or send the image by e-mail using the

QuickSend button or Presets. (You can configure the settings in Web Config.)

• Computer

You can save the scanned image to a computer connected to the scanner.

• Web Services for Devices (WSD)

You can use the WSD feature to save the scanned image to a computer connected to the scanner.

Setting the Operation Mode on the Product Control Panel

Scanning Using the QuickSend Buttons

Scanning Using Presets

Scanning Originals to the Computer

Scanning Using Web Services for Devices (WSD) - Windows

Adding and Assigning Scan Jobs with Document Capture Pro - Windows

Adding and Assigning Scan Jobs with Document Capture - Mac

Parent topic: Starting a Scan

Setting the Operation Mode on the Product Control Panel

Before scanning, set the operation mode on the control panel.

1. Make sure you installed the product software and connected the product to your computer or network. 2. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press OK.
3. Select Document Capture Pro and press OK.
4. Select Operation Mode and press OK. 6. Choose from the following options:

- Select Client Mode if your product is connected to the network with Document Capture Pro or Document Capture software running on a Windows or macOS client PC.

- Select Server Mode if your product is connected to the network with Document Capture Pro Server (DCPS) running on a Microsoft-based Server OS. You need to enter the server address in this mode.

1. Press OK to return to the Settings menu.

Parent topic: Scanning Using the Product Control Panel

Scanning Using the Quick Send Buttons

You can use the Quick Send buttons to save the scanned image to a network folder, or send the image by email using pre-configured settings.

1. Make sure you installed the product software and connected the product to your computer or network.
2. Place your original on the product for scanning.
3. Press any of the Quick Send buttons.

The Quick Send screen is displayed, and configured destinations are listed.

Note: You can also display the Quick Send screen by selecting Quick Send on the home screen.

4. Press the Quick Send button for the destination to which you want to send your scans.

Parent topic: Scanning Using the Product Control Panel

Scanning Using Presets

You can register up to 12 frequently used scanning settings and use them to scan images.

1. Make sure you installed the product software and connected the product to your computer or network.
2. Place your original on the product for scanning. 3. Press the home button, if necessary.
3. Use the arrow buttons to select Preset and press OK.
4. Use the arrow buttons to select the preset you want to use and press OK. 6. Press the start button to start scanning using the selected preset.

Parent topic: Scanning Using the Product Control Panel

Scanning Originals to the Computer

You can scan an original from the control panel using jobs created in Document Capture Pro or Document Capture. Set the operation mode on the control panel before scanning.

1. Make sure you installed the product software and connected the product to your computer or network.

Note: Restart your computer after installing the product software to enable scanning from the control panel.

1. Place your original on the product for scanning. 3. Press the home button, if necessary.
2. Use the arrow buttons to select Computer and press OK.
3. Select the computer on which you created the jobs in Document Capture Pro Document Capture.

Note: If the scanner is connected via USB or the operation mode is set to Server, you do not need to select a computer.

1. On the Select Job screen, use the arrow buttons to select the job you want to use.
2. If you want to change the scan settings, press the down arrow and use the arrow buttons to select from the following options:
3. To slow down the scanning speed, set the Slow setting to On.
4. To skip double feed detection when scanning originals such as envelopes or plastic cards, set the DFDS Function setting to On.
5. To stop scanning when a double feed is detected, select Double Feed Stop Timing and press OK. Use the arrow buttons to select a timing option.
6. To stop scanning when a paper feed error is detected or the original is fed askew, select Paper Protection and press OK. Use the arrow buttons to select the setting you want to use.

Note: Turning this function on will not always prevent damage to your originals.

• To detect dirt on the glass surface inside the product, select Detect Glass Dirt and press OK. Use the arrow buttons to select the setting you want to use.
• To detect a double feed error when scanning multiple originals, set the Ultrasonic Double Feed Detection setting to On.
• To set a timeout when using the Automatic Feeding Mode, select Automatic Feeding Mode Timeout and select the settings you want to use.

Note: This setting is available when you can from the Quick Send button or Presets.

1. Press the OK button to view the job settings.
2. Use the arrow buttons to scroll through the job settings and make any desired changes.

Note: If Disable job settings changes on control panel is set to On in Document Capture Pro or Document Capture, you cannot change the settings.

10. Press the start button to start scanning.

Parent topic: Scanning Using the Product Control Panel

Scanning Using Web Services for Devices (WSD) - Windows

You can scan originals to a computer from the product control panel using WSD (Web Services for Devices). The Computer (WSD) function lets you manage network scanning in Windows 10, Windows 8.x, or Windows 7.

Note: To use this feature on Windows 7, you must first set up WSD on the computer. See Windows help for instructions.

1. Make sure you installed the product software and connected the product to your computer or network.
2. Place your original on the product for scanning. 3. Press the home button, if necessary.
3. Use the arrow buttons to select WSD and press OK.
4. Select a computer. 6. Press the start button to start scanning.

The scanned image is transferred to the selected computer.

Parent topic: Scanning Using the Product Control Panel

Adding and Assigning Scan Jobs with Document Capture Pro - Windows

You can add scan jobs that contain specific scan settings and use the jobs when you scan from your product control panel or the Job Scan option in Document Capture Pro. You can save up to 30 scan jobs.

Note: Settings may vary depending on the software version you are using. Click the Help icon in Document Capture Pro at any time for more information.

1. Do one of the following to start Document Capture Pro:
2. Windows 10: Click 📄 and select Epson Software > Document Capture Pro.
3. Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
4. Windows (other versions): Click 📄 or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.

You see the Document Capture Pro window.

1. Select the Job Scan tab.

You see a window like this:

3. Click the Job Settings button.

You see a window like this:

4. To add a scan job, click the New Job icon.

5. Enter a name for the new job, and select any settings as necessary from the following options:

• Scan: select the size, color, or resolution
• Save: select the filename, file type, or destination folder
• Index: enable the index setting and choose output options for an index file
• Send: select the destination for the scanned file, or choose to email or print the file
• Confirm/Test: select the job button icon and color, choose display settings, and run a test scan if necessary

6. Click Save when you are finished.

The new job appears in the Job Scan window.

1. To assign a scan job to the product control panel, click the Button Assignment icon.

You see a screen like this:

1. Select the job that you want to assign to the product control panel using any of the pull-down menus.

Note: The number of pull-down menus available may vary, depending on your product and any connected options.

9. Click OK, then click Back.

You can now use the added scan jobs when you scan from the product control panel.

Parent topic: Scanning Using the Product Control Panel

Adding and Assigning Scan Jobs with Document Capture - Mac

You can add scan jobs that contain specific scan settings and use the jobs when you scan from your product control panel or Document Capture. You can save up to 30 scan jobs.

Note: Settings may vary depending on the software version you are using. See the Help menu in Document Capture at any time for more information.

1. Start Document Capture on a computer connected to the product.

1. Click the Manage Job icon from the toolbar at the top of the window.

You see a window showing the current scan job list.

1. To add a scan job, click the + icon, enter a name for the new job, select settings as necessary, and click OK.

You can now use the new scan job when you scan with Document Capture.

1. To assign a scan job to the product control panel, click the settings icon at the bottom of the window and click Event Settings.
2. Select the job that you want to assign to the product control panel using any of the pull-down menus.

Note: The number of pull-down menus available may vary, depending on your product and any connected options.

6. Click OK, then click OK again.

You can now use the scan jobs when you scan from the product control panel.

Parent topic: Scanning Using the Product Control Panel

Starting a Scan Using the Epson Scan 2 Icon

You can start the Epson Scan 2 program to select scan settings, scan, and save the scanned image to a file.

Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.

• Windows 10: Click and select EPSON > Epson Scan 2.
• Windows 8.x: Navigate to the Apps screen and select Epson Scan 2.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select EPSON > Epson Scan 2 > Epson Scan 2. • Mac: Open the Applications folder, open the Epson Software folder, and select Epson Scan 2.

You see an Epson Scan 2 window like this:

Parent topic: Starting a Scan

Starting a Scan from a Scanning Program

You can start Epson Scan 2 from a TWAIN-compliant scanning program to select scan settings, scan, and open the scanned image in the program.

Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.

1. Open your scanning program and select its scanning option. (See your scanning program help for instructions.)
2. Select your product.

Note: In certain programs, you may need to select your product as the "source" first. If you see a Select Source option, choose it and select your product. With Windows, do not select a WIA option for your product; not all scan functions will be available.

You see an Epson Scan 2 window like this:

Parent topic: Starting a Scan

Scanning with Simple Scan in Document Capture Pro - Windows

You can use the Simple Scan option in Document Capture Pro to quickly scan an original.

Note: Settings may vary depending on the software version you are using. Click the Help icon in Document Capture Pro at any time for more information.

1. Load your original in the product. 2. Do one of the following to start Document Capture Pro:
2. Windows 10: Click and select Epson Software > Document Capture Pro.
3. Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
4. Windows (other versions): Click or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.

You see the Document Capture Pro window.

Note: You may need to select your scanner from the list, if necessary.

1. Select the Simple Scan tab.

You see a window like this:

1. Select the size of your original from the Document Size menu.
2. If you want to change specific settings for the scan, click the Scan Settings button. Change any of the settings as necessary and click OK. For additional settings, click the Detailed Settings button on the Scan Settings screen. 6. Do one of the following:
3. To scan the front side of an original, select SCAN single-sided.
4. To scan both sides of an original, select SCAN double-sided.

Your product scans the original and the image appears in the Edit Scanned Results window.

1. Review and edit the scanned image as necessary and click Next when you are finished.
2. Select a destination for the scanned image, change any settings as necessary, and click Complete.

Note: If you are sending the scanned image to a server or cloud destination, you need to enter your login information.

Parent topic: Scanning

Scanning with Job Scan in Document Capture Pro - Windows

You can create scan jobs in Document Capture Pro and use them to quickly scan originals and save them to various destinations.

Note: Settings may vary depending on the software version you are using. Click the Help icon in Document Capture Pro at any time for more information.

1. Load your original in the product. 2. Do one of the following to start Document Capture Pro:

- Windows 10: Click and select Epson Software > Document Capture Pro.

• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.

You see the Document Capture Pro window.

Note: You may need to select your scanner from the list, if necessary.

3. Select the Job Scan tab.

You see a window like this:

1. Select one of the scan jobs (or click Job Settings to create a new scan job).

The product scans the loaded original and saves it according to the job settings.

1. Depending on these settings for the scan job you selected, you may be able to view and edit the pages before saving them. If so, click Complete when finished.

The scanned image is saved according to the job settings.

Parent topic: Scanning

Scanning with Document Capture - Mac

When you scan with Document Capture, the program automatically saves your scanned file on your computer in the folder you specify. You can select settings, preview, and change scanned file settings as necessary.

Note: Settings may vary depending on the software version you are using. See the Help menu in Document Capture at any time for more information.

1. Load your original in the product.
2. Open the Applications folder, open the Epson Software folder, and select Document Capture.

You see a window like this:

Note: You may need to select your scanner from the scanner list.

1. Click the scan icon.

You see a window like this:

Note: If you want to use a scan job that you created instead, select it from the Job list in the Document Capture window, click the Start Job button, and skip the rest of these steps.

1. Select any displayed scan settings you want to use.

Note: See the Help information in Document Capture for details.

1. If you want to select detailed scan settings, close the Scan Settings window, open the Scan menu at the top of the Mac desktop, and select Displays the EPSON Scan Setup Screen.
2. Click the Scan icon and select any detailed scan settings you want to use from the Epson Scan 2 window.

7. Click Scan.

You see a preview of your scan in the Document Capture window.

Note: You may have to close the Epson Scan 2 window to view your scan in the Document Capture window.

1. If you would like to scan additional originals and add them to the current captured images, click the + icon, select Acquire from Scanner, and repeat the previous steps.
2. Check the scanned images and edit them if necessary.
3. Click one of the destination icons to choose where to send your scanned files. (If you cannot see all of the icons below, click the arrow next to the icons.) Change any settings as necessary.

Note: If you are sending the scanned image to a server or cloud destination, you need to enter your login information.

1. Depending on the destination you chose, click OK or Send to complete the operation.

Parent topic: Scanning

Related tasks

Loading Originals in the Input Tray

Scanning in Epson Scan 2

Scanning in Epson Scan 2

Epson Scan 2 gives you access to basic and advanced scanning features. You can scan your document and save the scanned image in various file formats in your operating system's Documents or My Documents folder, or open it in your scanning program. You can preview the scanned image and select or change settings as necessary.

1. Load your original in the product.

2. Start Epson Scan 2.

You see this window:

Note: The Document Source setting is automatically set to ADF for your product.

1. If you want to scan different size originals by loading them into the ADF one by one, check the Automatic Feeding Mode checkbox and click Scan. Scanning begins as soon as you load each original.
2. Select the Scanning Side setting that matches the sides of the original that you want to scan.
3. Select the Document Size setting that matches the size of your original, or select Auto Detect to have Epson Scan 2 automatically detect the size. You can select Customize to enter a custom size, if necessary.
4. Click on one of the orientation icons, if applicable.
5. Select your original image type and how you want it scanned as the Image Type setting, or select Auto to have Epson Scan 2 automatically detect the image type.
6. Select the Resolution setting you want to use for your scan.
7. Select any of the additional settings that you want to use on the Main Settings tab.
8. Click the Advanced Settings tab and select any settings that you want to use.
9. To see a preview of your scan with the settings you selected, click the Preview button.

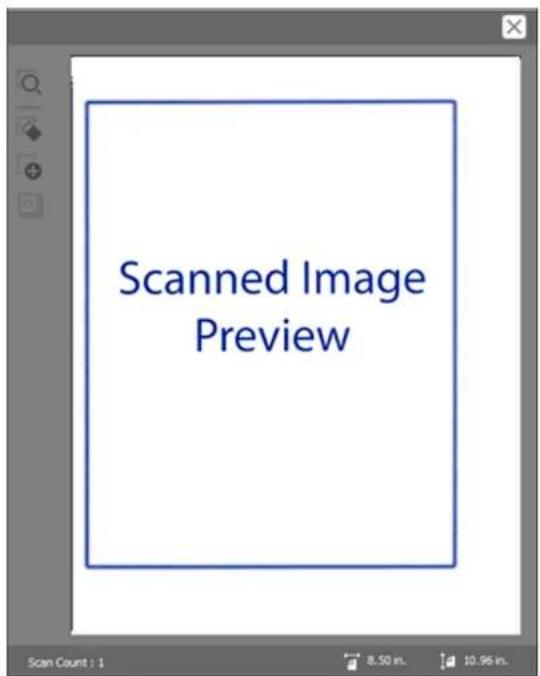

Epson Scan 2 previews your original and displays the results in the Epson Scan 2 window.

1. Reinsert your original into the ADF.
2. If scanning an original in a carrier sheet or other special original, see the link below for other setting requirements for special documents.
3. Select the format in which you want to save your scanned file as the Image Format setting. If necessary, select Options and select any desired format options.
4. Select Settings to modify the file name settings. Enter the file name for your scanned file in the File Name field.
5. Select the location in which you want to save your scanned file as the Folder setting. If necessary, select Select to choose an alternate folder or create a new folder. 17. Click Scan.

The product scans your original and saves the scanned file in the location you specified.

1. If you selected the Automatic Feeding Mode setting, place your next original in the ADF for scanning. When you finish scanning originals, click Finish.

Additional Scanning Settings - Main Settings Tab

Additional Scanning Settings - Advanced Settings Tab

Scanning Settings for Special Documents

Image Format Options

Parent topic: Scanning

Related tasks

Loading Originals in the Input Tray

Additional Scanning Settings - Main Settings Tab

You can select these additional scanning settings on the Epson Scan 2 Main Settings tab.

Stitch Images

When scanning double-sided originals, lets you lay out images from both sides of the original onto one scanned page.

Rotate

Rotates the original image clockwise to the desired angle before scanning it. Select Auto to allow your product to automatically rotate the image based on the orientation of the text (may take longer to scan).

Correct Document Skew

Corrects skewed originals, image contents, or both.

Add or edit pages after scanning

Lets you add, remove, or edit the pages in a scan, including rotating pages and changing the page order.

Note: To save multiple pages in a single file, you must select a file format that supports multiple pages such as PDF or Multi-TIFF. If you select another file format, each scanned image or page is saved as a separate file.

Skip Blank Pages

If the scanner detects marks from the other side of a blank page and adds the marks to the scanned image, adjust this setting to prevent this.

Detect Double Feed

Detects a double-feed paper error in the ADF. If you are scanning an original envelope or plastic card, select Off.

Parent topic: Scanning in Epson Scan 2

Additional Scanning Settings - Advanced Settings Tab

You can select these additional scanning settings on the Epson Scan 2 Advanced Settings tab. Not all adjustment settings may be available, depending on other settings you have chosen.

Unsharp Mask

Makes the edges of certain image areas clearer. Turn off this option to leave softer edges.

Descreening

Removes the ripple pattern that might appear in subtly shaded image areas, such as skin tones. This option improves results when scanning magazines or newspapers. (The results of descreening do not appear in the preview image, only in your scanned image.)

Remove Background

Removes the background of the originals.

Text Enhancement

Sharpens the appearance of letters in text documents.

Auto Area Segmentation

Makes black and white images clearer and text recognition more accurate by separating the text from the graphics.

Dropout

The scan will not pick up the color you select. This setting is available only if you select Grayscale or Black & White as the Image Type setting.

ColorEnhance

Enhances the shades of the color you select in the scanned image. This setting is available only if you select Grayscale or Black & White as the Image Type setting.

Brightness

Adjusts the overall lightness and darkness of the scanned image.

Contrast

Adjusts the difference between the light and dark areas of the overall scanned image.

Gamma

Adjusts the midtone density of the scanned image.

Threshold

Adjusts the level at which black areas in text and line art are delineated, improving text recognition in OCR (Optical Character Recognition) programs.

EdgeFill

Corrects shadowing around the edges of the image by filling the shadows with black or white.

RemovePunchHoles

Removes the shadows caused by holes on the edges of the original.

DualImageOutput

Scans the original image twice using different output settings (Windows only).

Watermark

Adds text to the background of the scanned image.

Parent topic: Scanning in Epson Scan 2

Scanning Settings for Special Documents

You need to select specific options on the Main Settings tab in Epson Scan 2 when scanning special originals.

TypeoforiginalRequiredsettings
EnvelopeSelectOffastheDetectDoubleFeedsetting.
PlasticcardsSelectPlasticCard(Landscape)astheDocumentSize settingandOffastheDetectDoubleFeedsetting.
CarriersheetIfyouselectAutoDetectastheDocumentSizesetting, paperskewisautomaticallycorrectedeveniftheCorrect DocumentSkewsettingissettoOff.IfyouselectasettingotherthanAutoDetectasthe DocumentSizesetting,youcanonlyuseContentsSkew astheCorrectDocumentSkewsetting.Aspaperskewis notappliedinthiscase,onlycontentsskewiscorrected whenyouselectthePaperandContentsSkewsetting.
LargeoriginalsIftheDocumentSizelistdoesnotcontainthedocument sizeyouwanttoscan,selectCustomizetocreateacustom size.
LongpaperIftheDocumentSizelistdoesnot	containthedocument sizeyouwanttoscan,selectAutoDetect(LongPaper)or selectCustomizetocreateacustomdocumentsize.
LaminatedcardsToscananytransparentare	asaroundtheedgesofthe card,selectSettingsastheDocumentSizesettingand eitherselecttheScanlaminatedcardcheckboxorcreatea customsize.

Parent topic: Scanning in Epson Scan 2

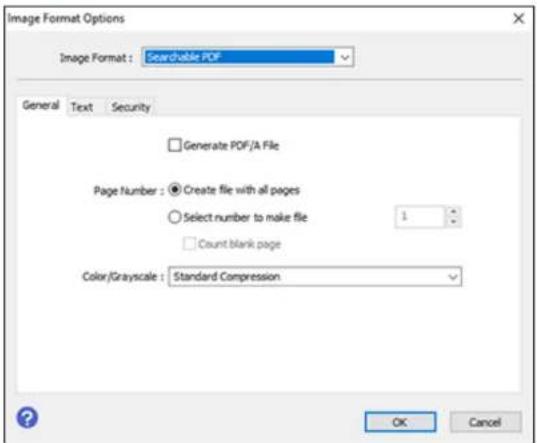

Image Format Options

You can select different image formats and related options. For details on available options, click the ? icon on the Epson Scan 2 Image Format Options window. Not all image formats have options.

BITMAP (*.bmp)

A standard image file format for most Windows programs.

JPEG (*.jpg)

An image format that lets you highly compress image data. However, the higher the compression, the lower the image quality. (The TIFF format is recommended when you need to modify or retouch your scanned image.)

PNG (*.png)

An image format that does not lose quality during editing.

TIFF (*.tif)

A file format created for exchanging data between many programs, such as graphic and DTP software.

Multi-TIFF (*.tif)

A TIFF file format when multiple pages are saved to the same file, allowing you to edit the images using a compatible program.

PDF (*.pdf)

A document format that is readable by Windows and Mac systems using Adobe Reader, Acrobat, or other programs. You can save multi-page documents in one PDF file.

Searchable PDF (*.pdf)

A document format that is readable by Windows and Mac systems using Adobe Reader, Acrobat, or other programs. You can save multi-page documents in one PDF file. Recognized text in the scanned document can be searched.

Note: If you do not see the Searchable PDF option, run the Epson Software Updater and install the EPSON Scan OCR Component/Pro.

Parent topic: Scanning in Epson Scan 2

Scan Resolution Guidelines

The resolution setting in your scanning software, measured in dpi (dots per inch), controls the amount of detail captured in your scans. Increasing the resolution raises the amount of detail captured, but comes with the following disadvantages:

• Larger file sizes - It takes longer to scan your originals, send/receive your scans by email or fax, and to print your scans. • The image may become too large to fit on your display or print on paper. • The maximum length you can scan is reduced.

If you plan to enlarge a scanned image so you can print it at a larger size, you may need to increase the resolution from the default resolution set by the software. Follow these guidelines to determine the resolution setting you need:

- You will scan the image at its original size but enlarge it later in an image-editing program.

Increase the resolution setting in your scanning software. Increase the resolution by the same amount you will increase the image size to retain a high image quality. For example, if the resolution is 300 dpi (dots per inch) and you will double the image size later, change the resolution setting to 600 dpi.

- You will scan the image at 100% or smaller size.

Select the resolution setting based on how you will use the scanned image:

• Email/view on a computer screen/post on the web: 96 to 200 dpi
• Print/fax/convert to editable text (OCR)/create searchable PDF: 200 to 300 dpi

Parent topic: Scanning

Scanning Special Projects

Your product's scanning software offers various options to help you quickly complete special scan projects.

Scanning Two Originals onto One Sheet (Stitching Images) - Windows

Scanning Multi-Page Originals as Separate Files - Windows

Saving Scanned Documents as a Searchable PDF Using Epson Scan 2

Saving a Scan as an Office Format File - Windows

Scanning to a SharePoint Server or Cloud Service - Windows

Scanning to a SharePoint Server or Cloud Service - Mac

Parent topic: Scanning

Scanning Two Originals onto One Sheet (Stitching Images) - Windows

You can scan both sides of a double-sided or folded original in Document Capture Pro and combine them into a single image with the Epson Scan 2 Stitch Images setting (not available for all products).

Note: Settings may vary depending on the software version you are using. Click the Help icon in Document Capture Pro at any time for more information.

1. Load your original in the product.

Note: If an optional carrier sheet is included with your product, use it when scanning a folded original or damage to the original may occur. Place the original into the carrier sheet with the folded edge against the right side of the carrier sheet. Make sure to insert the carrier sheet into your product with the white edge facing down.

2. Do one of the following to start Document Capture Pro:

• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click 📋 or Start and select All Programs or Programs. Select Epson Software > Document Capture Pro.
• Select the Simple Scan tab.

You see a window like this:

1. Click Scan Settings > Detailed Settings.

You see an Epson Scan 2 window like this:

1. Select Double-Sided as the Scanning Side setting.
2. Select the original document size or Auto Detect as the Document Size setting.
3. Select one of the following as the Stitch Image setting:

- Top & Bottom: Places the scanned images one above the other.

- Left & Right: Places the scanned images side by side.

1. Select the Advanced Settings tab and verify that the Edge Fill setting is set to None. 9. Click Save. 10. Click OK. 11. Click SCAN double-sided.

Your product scans the original and the image appears in the Edit Scanned Results window.

Note: If the scanned images are not stitched together in the correct orientation, click Scanning Side on the Epson Scan 2 window, select Settings, set the Binding Edge to Left or Top, and rescan the document.

12. Review and edit the scanned pages as necessary and click Next when you are finished. 13. Select a destination and any settings as necessary and click Complete.

Parent topic: Scanning Special Projects

Scanning Multi-Page Originals as Separate Files - Windows

You can use Document Capture Pro to scan multi-page originals as separate scanned files. You can indicate how the separate files are created by defining a maximum page count per file or by inserting blank pages, barcodes, or characters that can be detected by the software as separation markers.

Note: Settings may vary depending on the software version you are using. Click the Help icon in Document Capture Pro at any time for more information.

1. Load your multi-page original in the product. 2. Do one of the following to start Document Capture Pro:
2. Windows 10: Click 📋 and select Epson Software > Document Capture Pro.
3. Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.

Windows (other versions): Click 📄 or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.

You see the Document Capture Pro window.

3. Select the Job Scan tab.

You see a window like this:

4. Click the Job Settings button.

You see a window like this:

1. Select New Job and select the scan settings. Click Next when finished.

You see a window like this:

1. Select the Apply job separation checkbox.
2. Select the method you want to use to separate the originals as the Separator setting. Click Separation Settings to specify the settings for the selected option.
3. Finish creating the new scan job and click Save. 9. Click Back on the Job Settings screen.

Your originals are saved into separate files and folders as specified when the job is run.

Parent topic: Scanning Special Projects

Saving Scanned Documents as a Searchable PDF Using Epson Scan 2

You can scan a document and save the text in a searchable PDF. In a searchable PDF, text is recognized using Optical Character Recognition (OCR) and then embedded in the scanned original.

Note: The required Epson Scan 2 OCR Component is installed automatically when you install your product software. If you install your scanner software programs individually, be sure to also install this component if you want to perform OCR.

1. Load your original in the product for scanning. 2. Start Epson Scan 2.
2. Select your scan settings. 4. Click Preview and adjust the area you want to scan, if necessary.
3. Reload the ejected original in the scanner.
4. Select Searchable PDF as the Image Format setting.
5. Select Options from the Image Format list.

You see this window:

1. Select any of the options on the General tab.

9. Select the Text tab.

1. Make sure the language used in the document text is selected as the Text Language setting.
2. Select the Security tab if you want to add a password to the PDF or protect printing or editing properties.

12. Click OK.

1. Confirm the File Name setting and select a Folder setting for your document.

14. Click Scan.

The scanned image is saved as a searchable PDF.

Parent topic: Scanning Special Projects

Saving a Scan as an Office Format File - Windows

You can use Document Capture Pro (Windows) to save your scans in one of the following Microsoft Office file formats: Microsoft Word (.docx), Microsoft Excel (.xlsx), or Microsoft PowerPoint (.pptx).

Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.

1. Load your original in the product.

2. Do one of the following to start Document Capture Pro:

• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.
• Select the Simple Scan tab.

You see a window like this:

1. If you want to select specific scan settings for the scan, click the Scan Settings button, select any displayed settings you want to use, and click OK.

Note: See the help information in Document Capture Pro for details.

1. Do one of the following:

- To scan the front side of an original, select SCAN single-sided.

- To scan both sides of an original, select SCAN double-sided.

Your product starts scanning and you see the Edit Scanned Results window.

6. View and edit the scanned pages as necessary and click Next when you are finished.

Note: See the help information in Document Capture Pro for details.

1. Click one of the destination icons (except Print) to choose where to send your scanned files. You see the settings window.
2. Select the Office format file you want to use from the File Type drop-down list.

9. Click Option to display additional settings.

1. Select any additional settings as necessary and click OK.

Note: See the help information in Document Capture Pro for details.

1. Confirm your settings and click Complete.

Your originals are saved in the Office file format you selected.

Parent topic: Scanning Special Projects

Scanning to a SharePoint Server or Cloud Service - Windows

You can use Document Capture Pro to upload scanned images to a SharePoint server or a cloud service.

Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.

1. Load your original in the product.

2. Do one of the following to start Document Capture Pro:

• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click 📋 or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.
• Select the Simple Scan tab.

You see a window like this:

1. If you want to select specific scan settings for the scan, click the Scan Settings button, select any displayed settings you want to use, and click OK.

Note: See the help information in Document Capture Pro for details.

5. Do one of the following:

• To scan the front side of an original, select SCAN single sided.
• To scan both sides of an original, select SCAN double sided.

Your product starts scanning and you see the Edit Scanned Results window.

6. View and edit the scanned pages as necessary and click Complete when you are finished.

Note: See the help information in Document Capture Pro for details.

1. Click one of the cloud server or service destination icons. You see the settings window.
2. Enter any required information to set up the destination. You may need to log in to your cloud service to authenticate the connection and allow Document Capture Pro to access the cloud service.
3. Adjust any settings and click Complete.

Note: See the help information in Document Capture Pro for details.

Your originals are uploaded to the indicated server or cloud service.

Parent topic: Scanning Special Projects

Scanning to a SharePoint Server or Cloud Service - Mac

You can use Document Capture to upload scanned images to a SharePoint server or a cloud service.

1. Open the Applications folder, open the Epson Software folder, and select Document Capture.

You see a window like this:

Note: You may need to select your scanner from the scanner list.

1. Click the scan icon.
2. Select any displayed scan settings you want to use.

Note: See the Help information in Document Capture for details.

4. Click Scan.

You see a preview of your scan in the Document Capture window.

1. Click one of the cloud service Destination icons to choose where to save your scanned file. (If you cannot see all of the icons, the services software may not be installed, the service may not be available on your platform, or you need to click the arrow next to the icons.)

You see the Transfer Settings window.

6. Enter any required information to set up the destination. You may need to log in to your cloud service to authenticate the connection and allow Document Capture to access the cloud service. If you have previously created a saved setting for the destination, select it from the drop-down list.

1. Adjust any save settings, then click OK or Send, depending on the destination.

Your originals are scanned and uploaded to the indicated server or cloud service.

Parent topic: Scanning Special Projects

Related tasks

Loading Originals in the Input Tray

Cleaning and Transporting Your Scanner

See these sections if you need to clean or transport your scanner.

Cleaning Your Scanner

Cleaning Inside Your Scanner

Checking the Scanner Roller Counter

Replacing the Scanner Rollers

Transporting Your Scanner

Cleaning Your Scanner

To keep your product working at its best, you should clean it several times a year.

Caution: Do not use a hard brush, alcohol, or paint thinner to clean the product or you may damage it. Do not use oil or other lubricants inside the product or let water get inside it. Do not open the product's outer case.

1. Turn off the scanner and unplug the AC adapter.
2. Disconnect any connected cables.
3. Clean the outer case with a soft, dry cloth. Do not use liquid or chemical cleansers.

Note: If the outer case still requires additional cleaning, use a slightly damp cloth to wipe the outer case. Then wipe the case with a soft, dry cloth.

1. Clean the LCD screen with a soft, dry cloth.

Parent topic: Cleaning and Transporting Your Scanner

Cleaning Inside Your Scanner

Clean your scanner regularly to make sure that no dust builds up on the glass scanning surfaces. Dust can cause spots or lines in your scanned images.

Caution: Do not use a hard brush, alcohol, or paint thinner to clean the product or you may damage it. Do not use oil or other lubricants inside the product or let water get inside it.

1. Turn off the scanner and unplug the AC adapter.
2. Disconnect any connected cables.
3. Pull down on the cover open lever and open the scanner cover.

1. Use a genuine Epson cleaning kit or a soft, moist cloth to wipe off any dust or dirt on the glass scanning surfaces and the rollers inside the scanner cover. If the glass surface is stained with grease or some other hard-to-remove material, use a genuine Epson cleaning kit. Use a small amount of cleaner on the cleaning cloth to remove the stains. Be sure to wipe off all remaining liquid.

Caution: Do not spray glass cleaner directly on the scanning surfaces. Be careful not to place too much force on the glass.

1. Use a cotton swab to wipe off any dust or dirt on the sensors shown here.

Caution: Do not use liquid or glass cleaner on the cotton swab.

1. Locate the separation roller.

1. Squeeze the tabs on the sides of the separation roller cover and open the cover.

Caution: Be careful not to apply too much force when opening the cover.

8. Slide the separation roller to the left and remove it.

9. Wipe off any dust or dirt on the separation roller using a genuine Epson cleaning kit or a soft, moist cloth.

Caution: Use only a genuine Epson cleaning kit or soft, moist cloth to clean the roller; using a dry cloth may damage the surface of the roller. Do not spray cleaners directly inside the product; always spray cleaners on a cleaning cloth to slightly dampen the cloth. Wipe off any excess cleaner with a dry, lint-free cloth.

1. To replace the separation roller, insert the end of the roller into the hole on the right side and lower the other end of the roller into place.

1. Close the separation roller cover until you hear it click into place.

Note: If you are not able to close the cover, the roller is not installed correctly. Remove the roller and reinstall it, then try to close the cover again.

1. Locate the pickup roller.

1. Press down on the pickup roller cover latch and pull up the cover to remove it.

1. Pull down the tab on the pickup roller and slide the roller to the right to remove it.

15. Wipe off any dust or dirt on the pickup roller using a genuine Epson cleaning kit or a soft, moist cloth.

Caution: Use only a genuine Epson cleaning kit or soft, moist cloth to clean the roller; using a dry cloth may damage the surface of the roller.

1. To replace the pickup roller, align the notches on the roller unit and slide it to the left. Press up on the tab to secure the roller.

1. Align the bottom edge of the pickup roller cover into the notches as shown and press it down until it clicks into place.

↓

Note: If you are not able to close the cover, the roller is not installed correctly. Remove the roller unit and reinstall it, then try to close the cover again.

18. Close the scanner cover. 19. Plug in the AC adapter and press the power button to turn on the scanner. 20. Press the home button, if necessary. 21. Use the arrow buttons to select Scanner Maintenance and press OK. 22. Press OK to select Roller Cleaning.

1. Pull down on the cover open lever and open the scanner cover.

The scanner enters roller cleaning mode.

1. Slowly rotate the rollers shown here by pressing the start button. Use a genuine Epson cleaning kit or a soft, moist cloth to wipe off any dust or dirt on the rollers as they rotate. Repeat this step until the rollers are clean.

Caution: Be careful not to get your hands or hair caught in the rollers as they rotate.

Note: Do not spray cleaners directly inside the product; always spray cleaners on a cleaning cloth to slightly dampen the cloth. Wipe off any excess cleaner with a dry, lint-free cloth.

25. Close the scanner cover.

Parent topic: Cleaning and Transporting Your Scanner

Checking the Scanner Roller Counter

Check the scanner roller counter to determine when your rollers need to be replaced. When you replace the scanner rollers, reset the scanner roller counter so you know when you may need to replace the rollers again.

1. Make sure the scanner is turned on and connected to your computer. 2. Do one of the following to open the Epson Scan 2 Utility:
2. Windows 10: Click 📋 and select EPSON > Epson Scan 2 Utility.
3. Windows 8.x: Navigate to the Apps screen and select Epson Scan 2 Utility.
4. Windows (other versions): Click 📋 or Start > All Programs or Programs > EPSON > Epson Scan 2 > Epson Scan 2 Utility. • Mac: Open the Applications folder, click Epson Software, and click Epson Scan 2 Utility.

1. If the number in the Number of Scans field exceeds the number displayed as the Life Cycle of the rollers, it is time to replace the rollers. 5. Close the Epson Scan 2 Utility.

Parent topic: Cleaning and Transporting Your Scanner

Replacing the Scanner Rollers

Replace the scanner rollers when the number of scans exceeds the life cycle of the rollers. Check the scanner roller counter to see when you need to replace the rollers.

Note: Frequent use of textured media may cause premature wear on the rollers. If frequent paper jams occur before the life cycle of the rollers is exceeded, try cleaning the rollers. In some cases, the rollers may need to be replaced before the number of scans exceeds the life cycle of the rollers.

1. Turn off the scanner. 2. Unplug the AC adapter.
2. Disconnect any connected cables.
3. Pull down on the cover open lever and open the scanner cover.

1. Press down on the pickup roller cover latch and pull up the cover to remove it.

1. Pull down the tab on the pickup roller and slide the roller to the right to remove it.

1. To install the new pickup roller, align the notches on the roller unit and slide it to the left. Press up on the tab to secure the roller.

1. Align the bottom edge of the pickup roller cover into the notches as shown and press it down until it clicks into place.

Note: If you are not able to close the cover, the pickup roller is not installed correctly. Remove the roller unit and reinstall it, then try to close the cover again.

1. Squeeze the tabs on the sides of the separation roller cover and open the cover.

Caution: Be careful not to apply too much force when opening the cover.

10. Slide the separation roller to the left and remove it.

1. To install a new separation roller, insert the end of the roller into the hole on the right side and lower the other end of the roller into place.

1. Close the separation roller cover until you hear it click into place.

Note: If you are not able to close the cover, the roller is not installed correctly. Remove the roller and reinstall it, then try to close the cover again.

1. Close the scanner cover.
2. Connect any disconnected cables. 15. Plug in the AC adapter and turn on the scanner.
3. Reset the roller counter.

Resetting the Scanner Roller Counter

Parent topic: Cleaning and Transporting Your Scanner

Resetting the Scanner Roller Counter

When you replace the scanner rollers, reset the scanner roller counter so you know when you may need to replace the rollers again.

1. Press the OK button, if necessary.
2. Use the arrow buttons to select Scanner Maintenance and press OK.
3. Use the arrow buttons to select Roller Replacement and press OK.
4. Follow the on-screen instructions to store the rollers. 5. Press the down arrow to select Reset Counter and press OK.

Note: You can also reset the roller counter from your computer using the Epson Scan 2 Utility. Select the Counter tab and click Reset.

Parent topic: Replacing the Scanner Rollers

Transporting Your Scanner

If you need to ship your product, transport it over a long distance, or store it for an extended period, prepare it for transportation as described here.

1. Turn off the scanner and unplug the AC adapter.
2. Disconnect any connected cables.
3. Close the input tray extension and the output tray.

Note: Make sure the output tray is securely closed.

4. Push apart the latches on the back of the input tray and lift the input tray off of the scanner.

1. Place the scanner in its original packing materials, if possible, or use equivalent materials with cushioning around the product.

Parent topic: Cleaning and Transporting Your Scanner

Solving Problems

Check these sections for solutions to problems you may have using your product.

Product Status Messages

Solving Scanning Problems

Solving Scanned Image Quality Problems

Resetting the Epson Scan 2 Settings

Uninstall Your Scanner Software

Where to Get Help (U.S. and Canada)

Where to Get Help (Latin America)

Product Status Messages

You can often diagnose problems with your product by checking the messages and status icons on its LCD screen.

Note: If the LCD screen is dark, press the screen to wake the product from sleep mode.

LCDscreenmessageCondition/solution
Computernotfound.Fordetails,see yourdocumentation.	Trythefollowing:•Makesurethescannerisconnectedandcorrectlyconfigured.•InstallEpsonScan2andDocumentCapturePro(Windows),orDocumentCapture(Mac)onyourcomputer.•Installthelatestversionoftheapplication.•MakesuretheACadapterissecurelyconnectedtothescannerandanelectricaloutlet.Checkthattheoutletisworkingproperlybyplugginganotherelectricaldeviceintoit.•CheckthefirewallsettingsforEpsonsoftware.•MakesuretheGroupsettingisthesameforthecomputerandthescanner.•Searchforthecomputeragain.
Scannererror.Fordetails,seeyour documentation.	Turnthepoweroffandonagain.Iftheerrorcontinues,contact Epson.
RecoverymodeAerrorhasoccurredduringfirmwareupdating.ConnectyourproductusingaUSBcableandtrydownloadingtheFirmwareUpdatefromtheEpsonsupportsite.Ifyoustillneedhelp,contactEpsonforsupport.

Parent topic: Solving Problems

Solving Scanning Problems

Check these solutions if you have problems scanning with your product.

Scanner Does Not Turn On or Turns Off Unexpectedly

Scanner Button Does Not Work as Expected

Scanning Software Does Not Operate Correctly

Cannot Start Epson Scan 2

Original Feeds Incorrectly in Scanner

Original Jams in Scanner

Scanning is Slow

Cannot Scan Over a Network

Parent topic: Solving Problems

Scanner Does Not Turn On or Turns Off Unexpectedly

If the scanner does not turn on or if it turns off unexpectedly, try these solutions:

- Make sure the AC adapter is securely connected to the scanner and to a working electrical outlet.

- If the scanner turns off unexpectedly, you may need to adjust the setting in the Epson Scan 2 Utility.

- You may need to adjust the Sleep Timer and Power Off Timer settings on the control panel.

Parent topic: Solving Scanning Problems

Related tasks

Changing the Sleep Timer Settings

Changing the Power Off Timer Settings

Scanner Button Does Not Work as Expected

If the scanner button does not start the correct program or perform the correct action, try these solutions:

• Check the USB cable connection between the computer and scanner if you are connecting via USB. In Windows, be sure that the scanner is listed under Imaging Devices in the Device Manager.
• Make sure Document Capture Pro (Windows) or Document Capture (Mac) is installed correctly. If necessary, uninstall and reinstall it.
• Make sure you have assigned the correct job to the scanner button and change it, if necessary.
• Check the status of the lights and make sure the scanner is ready to scan.
• Make sure Epson Scan 2 and other applications are installed correctly. If necessary, uninstall and reinstall it.

Parent topic: Solving Scanning Problems

Scanning Software Does Not Operate Correctly

If your scanning software does not operate correctly, try these solutions:

• Make sure your computer has adequate memory and meets the system requirements for your operating system.
• Make sure your computer is not running in a power-saving mode, such as sleep or standby. If so, wake your system and restart your scanning software. Make sure the scanner is turned on.
• Make sure the connection between the scanner and your computer is secure.
• If you upgraded your operating system but did not reinstall your scanning software, try reinstalling it. In Windows, be sure that the scanner is listed under Imaging Devices in the Device Manager.
• Check that the correct scanner is selected using the EpsonScan2 Utility.
• Check that the correct setting is assigned to the scanner button in DocumentCapturePro (Windows) or DocumentCapture (Mac). Make sure the scanning software is installed.
• Connect the scanner directly to the computer. The scanner may not work properly when connected through a USB hub.
• DocumentCapturePro (Windows) does not support Windows Vista or Windows Server, so use Epson Scan2 for scanning instead.
• If you are using a TWAIN-compliant program, make sure that the correct product is selected as the Scanner or Sources setting.
• Make sure the PC Connection via USB setting is not disabled on the control panel.
• If you are using the scanner over a network, make sure the network cable is securely connected.

Parent topic: Solving Scanning Problems

Related concepts

Uninstall Your Scanner Software

Related references

Windows System Requirements

Mac System Requirements

Cannot Start Epson Scan 2

If you cannot start Epson Scan 2, try these solutions: - Make sure your scanner appears in the Epson Scan 2 Utility. - Make sure your scanner is turned on and any interface cables are securely connected at both ends. - Make sure your computer is not running in a power-saving mode, such as sleep or standby. If so, wake your system and restart Epson Scan 2. - Connect the scanner directly to the computer. The scanner may not work properly when connected through a USB hub. - If you connected the scanner using a USB cable, make sure it is connected directly to your computer or through only one USB hub. - If you are using the scanner over a network, make sure the network cable is securely connected. - If you are using the scanner over a network, make sure your scanner is displayed in the Scanner Settings screen. If your scanner is not displayed in the list, click Enable Editing and click Add. Add your scanner on the Add Network Scanner screen. - Make sure the PC Connection via USB setting is not disabled on the control panel. - If you upgraded your operating system but did not reinstall Epson Scan 2, try reinstalling it. - If you are using a TWAIN-compliant program, make sure that the correct product is selected as the Scanner or Sources setting.

Parent topic: Solving Scanning Problems

Related concepts

Uninstall Your Scanner Software

Related references

Windows System Requirements

Mac System Requirements

Original Feeds Incorrectly in Scanner

If you have problems feeding originals in your scanner, try these solutions:

- If multiple pages feed at once, try the following:

- Remove the originals, fan the edges to separate the sheets, if necessary, and reload them.

- Load fewer originals at a time.

- Load only originals that meet the specifications for your scanner.

- Clean inside the scanner and replace the roller assembly kit, if necessary.

- Check the pickup rollers and clean, if necessary.

- Scan the originals one by one using the Automatic Feeding Mode setting in Epson Scan 2.

- Select Slow on the scanner control panel to slow down the scanning speed.

- Use Automatic Feeding Mode in Epson Scan 2 and scan originals one at a time.

- Use the optional carrier sheet for thin, folded, or irregularly shaped originals.

- If you see a double feed error in the Epson Scan 2 window or the Document Capture Pro window, start

Epson Scan 2, select the Main Settings tab, select the Detect Double Feed setting, and select Off.

Parent topic: Solving Scanning Problems

Related references

User Replaceable Epson Scanner Parts

Related tasks

Cleaning Inside Your Scanner

Related topics

Loading Originals

Original Jams in Scanner

If an original has jammed inside the scanner, follow these steps:

1. Turn off your scanner.
2. Remove all originals from the input tray.
3. Pull down the cover open lever and open the scanner cover.

1. Gently pull out any jammed originals from inside the scanner.

1. Gently pull out any jammed originals from the output tray.

6. Close the scanner cover. 7. Carefully follow all loading instructions when you load originals.

If originals jam in the scanner frequently, try the following:

• Select on the scanner control panel to slow down the scanning speed.
• Select on the scanner control panel to slow down the scanning speed. Clean inside the scanner and clean the rollers.
• Close the output tray and let the originals fall freely onto the surface below the scanner.

Parent topic: Solving Scanning Problems

Related tasks

Cleaning Inside Your Scanner

Related topics

Loading Originals

Scanning is Slow

If scanning becomes slow, try these solutions:

- Scan your original at a lower resolution, if possible.

- Make sure your system meets the requirements for your operating system. If you are scanning a high-resolution image, you may need more than the minimum requirements. If necessary, increase your system's memory or reduce the resolution.

- If scanning becomes slower after scanning continuously with the ADF for a long time, the scanner may have automatically slowed down to protect the scanner mechanism from overheating or becoming damaged. Let the scanner rest with the power on for 30 minutes, then try scanning again.

- Make sure Slow is set to Off on the scanner control panel.

- If you are running virus protection or other security software, exclude the TWAIN.log files from monitoring or set the TWAIN.log files as read only. See your virus protection or security software instructions for details. The TWAIN.log file is saved in C:\Users\ (username)\ AppData\ Local\ Temp.

Note: You may need to unhide system folders to view files in that location.

- If you are scanning over a network, factors such as interference, network traffic, or weak signal strength may affect your scanning speed.

- Computers with USB 3.0 (SuperSpeed) or USB 2.0 (Hi-Speed) ports can scan faster than those with USB 1.1 ports. If you are using a USB 3.0 or 2.0 port with the scanner, make sure it meets the system requirements.

Parent topic: Solving Scanning Problems

Related references

Windows System Requirements

Mac System Requirements

Cannot Scan Over a Network

If you have problems scanning over a network, try these solutions:

- Restart the scanner and check the IP address on the scanner control panel.

- Make sure the Ethernet hub is turned on.

- Restart the Ethernet hub, wait for approximately one minute after restarting, then check the connection again.

- The order in which the Ethernet hub and scanner are turned on may cause a temporary connection error. Restart the scanner, wait for approximately one minute after restarting, then check the connection again. - If network communication was interrupted while starting Epson Scan 2, exit Epson Scan 2, wait a few seconds, and restart it. If Epson Scan 2 cannot restart, turn off your scanner, turn it back on, and try starting Epson Scan 2 again. - Check the network connection setting in the Epson Scan 2 Utility. - Make sure the Ethernet cable is connected securely. If the connection status light on the Ethernet hub is off, check the light status by connecting the Ethernet cable to another port or changing the Ethernet cable. If this does not solve the problem, replace the Ethernet hub. - If you see a message saying your product is not available, there may be a communication error between the scanner and computer. Restart the scanner. - If your network uses a firewall, the scanner may not be discovered by the Epson Scan 2 Utility. Open the Epson Scan 2 Utility, enter the IP address for your scanner, and click Add. - If there is an IP address conflict, the network connection may become unavailable. Check the IP address for each device and assign unique IP addresses. - Make sure the scanner and Ethernet hub connection modes match. You can change the connection modes using EpsonNet Config. See the Administrator's Guide for details. - Restart the computer.

Parent topic: Solving Scanning Problems

Solving Scanned Image Quality Problems

Check these sections if a scanned image on your computer screen has a quality problem.

Note: For solutions when using Document Capture Pro (Windows) or Document Capture (Mac) software, see the Document Capture Pro (Windows) or Document Capture (Mac) help utility.

Back of Original Image Appears in Scanned Image

Scanned Characters are Blurry

Characters are not Recognized During Conversion to Editable Text (OCR)

Ripple Patterns Appear in an Image

Spots or Lines Appear in All Scanned Images

Parent topic: Solving Problems

If an image from the back of a fourth original appears in your scanned image, make sure you selected the correct Image Type setting for your original and select the Text Enhancement setting in Epson Scan 2. You can also select the Remove Background setting in Epson Scan 2.

Note: If you select Color as the Image Type setting, you can change the level from Standard to High to remove more of the background.

Parent topic: Solving Scanned Image Quality Problems

Related references

Image Format Options

Related tasks

Scanning in Epson Scan 2

Scanned Characters are Blurry

If characters in your scanned images are blurry, try these solutions:

- Make sure you do not move the scanner or original while scanning.

- Operate the scanner on a flat, stable surface.

- Adjust these Epson Scan 2 settings (if available) and try scanning again:

- Select the Text Enhancement setting.

- If the Image Type setting is Black & White, adjust the Threshold setting.

- Increase the Resolution setting.

- Set the Image Type to Grayscale.

- If you are scanning in JPEG format, change the compression level. Click Options in the Image Format menu and change the Image Quality setting.

Parent topic: Solving Scanned Image Quality Problems

Related references

Image Format Options

Related tasks

Scanning in Epson Scan 2

Characters are not Recognized During Conversion to Editable Text (OCR)

If characters in your scanned images are not recognized during OCR conversion, try these solutions:

- Make sure your original is loaded straight on your product.

- Use an original with clear text.

- Adjust these Epson Scan 2 settings (if available) and try scanning again:

- Select the correct Image Type setting.

- If the Image Type is set to Black & White, select Text Enhancement. If the Image Type is set to Color or Grayscale, change the Text Enhancement setting to High.

- Select or adjust the Text Enhancement setting.

- If the Image Type is set to Black & White, adjust the Threshold setting.

- Set the Image Type to Grayscale.

- Set the scanning resolution between 200 and 600 dpi.

- If the original document is in landscape mode, set the Rotate setting to Auto in Epson Scan 2.

- If you are using OCR software, check the manual for any additional adjustments.

- Scan thermal paper receipts as soon as possible. They may deteriorate due to age or friction.

- When saving to Microsoft Office or Searchable PDF files, check that the correct languages are selected. Check the language in each save setting window.

Parent topic: Solving Scanned Image Quality Problems

Related references

Image Format Options

Related tasks

Scanning in Epson Scan 2

Ripple Patterns Appear in an Image

You may see a ripple pattern (called moiré) in scanned images of printed documents. This is caused by interference from differing pitches in the scanner's screen and your original halftone screen. To reduce this effect, adjust these Epson Scan 2 settings (if available) and try scanning again:

- Select the Descreening setting on the Advanced Settings tab.

- Select a lower Resolution setting.

Parent topic: Solving Scanned Image Quality Problems

Related references

Image Format Options

Related tasks

Scanning in Epson Scan 2

Spots or Lines Appear in All Scanned Images

If spots or lines appear in all your scanned images, try these solutions:

• Make sure the surface of your original is clean. - Make sure there is no debris or dirt inside the ADF. - Disconnect any connected cables and clean inside the scanner. - Check the rollers and clean, if necessary.

- Enable the Detect Glass Dirt setting on the control panel. (Press the home button, select Settings > Scanner Settings > Detect Glass Dirt, and select On-Low, if the alert displays a misdetection, or On-High if dirt is not detected.) When an alert displays on the control panel, clean the glass scanning surfaces inside your scanner using a genuine Epson cleaning kit or a soft, moist cloth.

Note: If there are scratches on the glass surface, the alert screen may continue to appear even after cleaning the glass. Contact Epson for information about replacing the glass.

- Avoid scanning in direct sunlight.

Parent topic: Solving Scanned Image Quality Problems

Scanned Image is Cropped

If the edges of a scanned image are cropped, try the following solutions:

- Select Auto Detect as the Document Size setting in Epson Scan 2, Document Capture Pro.

• In Epson Scan 2, select the Main Settings tab. Select Document Size > Settings and adjust the cropping area shown in the Crop Margins for Size "Auto" setting. In Document Capture Pro, select Detailed Settings from the Scan window. Click Configuration and select the Document tab. Adjust the cropping area shown in the Crop Margins for Size "Auto" setting.
• In Epson Scan 2, select the Advanced Settings tab. Make sure the Edge Fill setting is set to None.
• Document Capture Pro (Windows): Select Scan Settings > Detailed Settings from the Scan window. Select Document Size and then select the Auto Detect setting.

- Document Capture (Mac): Click the Scan button and select Main Settings from the Scan window. Select Document Size and then adjust the cropping area shown in the Crop Margins for Size "Auto" setting.

Parent topic: Solving Scanned Image Quality Problems

Resetting the Epson Scan 2 Settings

If you continue to experience image quality problems after trying all possible solutions, you may need to reset the Epson Scan 2 settings using the Epson Scan 2 Utility.

1. Do one of the following to start the Epson Scan 2 Utility:
2. Windows 10: Click □ > EPSON > Epson Scan 2 Utility.
3. Windows 8.x: Navigate to the Apps screen and select Epson Scan 2 Utility.
4. Windows (other versions): Click the Start button or press the Windows key, and select All Programs or Programs. Select EPSON > Epson Scan 2 Utility.
5. Mac: Open the Applications folder, open the Epson Software folder, and select Epson Scan 2 Utility.
6. Click the Other tab.

3. Click Reset.

Note: If resetting the Epson Scan 2 settings does not solve your problem, uninstall your scanner software and re-install it.

Parent topic: Solving Problems

Uninstall Your Scanner Software

If you have a problem that requires you to uninstall and reinstall your software, follow the instructions for your operating system.

Uninstalling Scanner Software - Windows

Uninstalling Scanner Software - Mac

Parent topic: Solving Problems

Uninstalling Scanner Software - Windows

You can uninstall and then re-install your scanner software to solve certain problems.

1. Exit all applications currently running on your computer.
2. Turn off the scanner.
3. Disconnect any interface cables.
4. Do the following to uninstall each of your scanning software programs and follow any on-screen instructions:
5. Windows 10: Click and select (Settings) > Apps > Apps & features. Select the scanner software program and click Uninstall.
6. Windows 8.x: Navigate to the Apps screen and select Control Panel > Programs > Programs and Features. Select the scanner software program and click Uninstall/Change.
7. Windows 7: Open the Windows Control Panel utility. Select Programs and Features. (In Classic view, select Programs and click Uninstall a program.) Select the scanner software program and click Uninstall/Change.

5. Restart your computer, then see the Start Here sheet to re-install your software.

Note: If you find that re-installing your scanner software does not solve a problem, contact Epson.

Parent topic: Uninstall Your Scanner Software

Uninstalling Scanner Software - Mac

In most cases, you do not need to uninstall your scanner software before re-installing it. However, you can download the Uninstaller utility from the Epson support website to uninstall your scanner software as described here.

1. To download the Uninstaller utility, visit epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean) and select your product.
2. Follow the instructions on the screen to install the Uninstaller utility.
3. Quit all applications currently running on your Mac.
4. Double-click the Uninstaller icon.
5. In the Epson Uninstaller screen, select the checkbox for each software program you want to uninstall. 6. Click Uninstall.
6. Follow the on-screen instructions to uninstall the software.
7. To reinstall your scanner software, see the Start Here sheet for instructions.

Note: If you find that re-installing your scanner software does not solve a problem, contact Epson.

Parent topic: Uninstall Your Scanner Software

Where to Get Help (U.S. and Canada)

If you need to contact Epson for technical support services, use the following support options.

Internet Support

Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) and select your product for solutions to common problems with your product. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.

Speak to a Support Representative

Before you call Epson for support, please have the following information ready:

• Product name - Product serial number (located on a label on the product) • Proof of purchase (such as a store receipt) and date of purchase • Computer configuration • Description of the problem

Then call:

• U.S.: [phone], 6 AM to 8 PM, Pacific Time, Monday through Friday, and 7 AM to 4 PM, Pacific Time, Saturday • Canada: [phone], 6 AM to 8 PM, Pacific Time, Monday through Friday, and 7 AM to 4 PM, Pacific Time, Saturday

Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Note: For help using any other software on your system, see the documentation for that software for technical support.

Purchase Supplies and Accessories

You can purchase genuine Epson accessories at epson.com (U.S. sales) or epson.ca (Canadian sales). You can also purchase accessories from an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.

Parent topic: Solving Problems

Where to Get Help (Latin America)

If you need additional help with your Epson product, contact Epson.

Epson provides these technical support services:

Internet Support

Visit Epson's support website at latin.epson.com/support and select your product for solutions to common problems. You can download drivers and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.

Speak to a Support Representative

Before you call Epson for support, please have the following information ready:

• Product name

• Product serial number (located on a label on the product)

• Proof of purchase (such as a store receipt) and date of purchase

• Computer configuration

• Description of the problem

Then call:

CountryTelephone
Argentina(5411)5167-0300	0800-288-37766
Bolivia*800-100-116
BrazilStatecapitalsandmetropolitanareas:3004-6627	Otherareas:0800-377-6627/0800-EPSONBR
Chile(562)2484-3400
ColombiaBogota:[phone]	Othercities:018000-915235
CostaRica800-377-6627
Ecuador*1-800-000-044
ElSalvador*800-6570
Guatemala*1-800-835-0358
MexicoMexicoCity:(5255)1323-2052	Othercities:01-800-087-1080
Nicaragua*00-1-800-226-0368
Panama*00-800-052-1376
Paraguay009-800-521-0019
PeruLima:[phone]	Othercities:0800-10-126
Uruguay00040-5210067
Venezuela(58212)240-1111

*Contact your local phone company to call this list - free number from a mobile phone. If your country does not appear in the list, contact the sales office in the nearest country. Toll or long distance charges may apply.

Purchase Supplies and Accessories

You can purchase genuine Epson accessories from an Epson authorized reseller. To find the nearest reseller, visit latin.epson.com/support or call your nearest Epson sales office.

Parent topic: Solving Problems

Technical Specifications

These sections list the technical specifications for your scanner.

Note: Epson offers a recycling program for end of life Epson products. Please go to this site (U.S) or this site (Canada) for information on how to return your Epson products for proper disposal.

Windows System Requirements Mac System Requirements General Specifications Dimension Specifications Electrical Specifications Environmental Specifications Network Interface Specifications Safety and Approvals Specifications

Windows System Requirements

To use your product and its software, your computer should use one of these Microsoft operating systems:

- Windows 10

- Windows 8.x

- Windows 7

- Windows Vista (not supported by Document Capture Pro 2.0 or later)

- Windows XP Professional x64 Edition (not supported by Document Capture Pro 2.0 or later)

- Windows XP SP3 (not supported by Document Capture Pro 2.0 or later)

- Windows Server 2016

- Windows Server 2012 R2

- Windows Server 2012

- Windows Server 2008 R2

- Windows Server 2008

- Windows Server 2003 R2

- Windows Server 2003 SP2

Note: For the latest product software available for your operating system, visit the Epson support site at epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean), select your product, and select Downloads.

Parent topic: Technical Specifications

Mac System Requirements

To use your product and its software, your Mac should use one of these operating systems:

• macOS 11.x

• macOS 10.15.x

• macOS 10.14.x

• macOS 10.13.x

• macOS 10.12.x

• OS X 10.11.x

• OS X 10.10.x

• OS X 10.9.x

• OS X 10.8.x

• OS X 10.7.5

Note: The UNIX File System (UFS) for OS X and Fast User Switching on OS X is not supported.

For the latest product software available for your operating system, visit the Epson support site at epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean), select your product, and select Downloads.

Parent topic: Technical Specifications

General Specifications

Scanner type: Sheet feed, one-pass duplex, color

Photoelectric device: CIS

Effective pixels: 5100 × 9300 pixels at 600 dpi

2550 × 64,500 pixels at 300 dpi

Document size: Maximum: 8.5 × 240 inches (215.9 × 6096 mm)

Minimum: 2 × 2 inches (50.8 × 50.8 mm)

Paper input: Face down loading

Paper output: Face down ejection

Paper capacity: 100 sheets of paper at 21 lb (80 g/m

² weight

Scanning resolution: 600 dpi (main scan)

600 dpi (sub scan)

Output resolution: 50 to 1200 dpi in 1 dpi increments

53 inches (1346.0 mm) or less: up to 600 dpi

215 inches (5461.0 mm) or less: up to 300 dpi

220 inches (6096.0 mm) or less: up to 200 dpi

Color Depth Color:

30 bits per pixel internal (10 bits per pixel per color)

24 bits per pixel external (8 bits per pixel per color)

Grayscale:

10 bits per pixel internal

8 bits per pixel external

Black-and-white:

10 bits per pixel internal

1 bit per pixel external

Interface Hi-speed USB

Note: You cannot use a USB connection when using the Document

Capture Pro Server Authenticate Edition.

LightsourceRGBLED

Parent topic: Technical Specifications

Dimension Specifications

Height: 6.6 inches (167 mm)

Width: 11.7 inches (296 mm)

Depth: 6.7 inches (169 mm)

Weight: 7.9 lb (3.6 kg)

Note: Dimensions do not include projecting parts.

Parent topic: Technical Specifications

Electrical Specifications

Scanner

Note: Check the label on the scanner and the AC adapter for voltage information. Power consumption varies depending on operating conditions or whether an option is installed.

Rated DC input power supply voltage: 24 VDC

Rated DC input current: 1 A

Power consumption (USB connection):

Operating: 13W (approximate)

Ready mode: 5.9W (approximate)

Sleep mode: 1.2W (approximate)

Power off mode: 0.1W (approximate)

Ethernet Connection:

Operating: 14W (approximate)

Ready mode: 5.9W (approximate)

Sleep mode: 1.5W (approximate)

Power off mode: 0.1W (approximate)

AC Adapter

AC adapter model: 100 to 240VAC, model: A461H

Rated input current: 1A

Rated frequency range: 50 to 60Hz

Rated output power supply voltage: 24VDC

Rated output current: 1A

Parent topic: Technical Specifications

Environmental Specifications

Temperature Operating: 41 to 95°F (5 to 35°C)

Storage: -13 to 140°F (-25 to 60°C)

Humidity

Operating: 15 to 80% RH

(non-condensing)

Storage: 15 to 85% RH

Operating conditions: Ordinary office or home conditions

Note: Avoid operating the scanner in direct sunlight, near a strong light source, or in extremely dusty conditions.

Parent topic: Technical Specifications

Network Interface Specifications

Standards: IEEE 802.3i (10BASE-T)*

IEEE 802.3u (100BASE-TX)*

IEEE 802.3ab (1000BASE-T)*

IEEE 802.3az (Energy Efficient Ethernet); connected devices should be IEEE 802.3az compliant

Communication mode: Auto, 10 Mbps Full duplex, 10 Mbps Half duplex, 100 Mbps Full

Duplex, 100 Mbps Half duplex

Connector: RJ-45

*Use a category 5e or higher STP (Shielded twisted pair) cable to prevent risk of radio interference.

Parent topic: Technical Specifications

Safety and Approvals Specifications

Scanner

United States EMC: FCC part 15 Subpart B class B

Canada EMC: CAN ICES-3 (B)/NMB-3 (B)

AC Adapter (A471H)

United States Safety: UL 60950-1

EMC: FCC part 15 Subpart B class B

Canada Safety: CAN/CSA C22.2 No. 60950-1

EMC: CAN ICES-3 (B)/NMB-3 (B)

Parent topic: Technical Specifications

Notices

Check these sections for important notices about your scanner.

Note: Epson offers a recycling program for end of life Epson products. Please go to this site (U.S) or this site (Canada) for information on how to return your Epson products for proper disposal.

Important Safety Instructions

Restrictions on Copying

Default Delay Times for Power Management for Epson Products

Binding Arbitration and Class Waiver

Trademarks

Copyright Notice

Important Safety Instructions

Follow these safety instructions when setting up and using the scanner:

- Read all these instructions, and follow all warnings and instructions marked on the scanner.

- Place the scanner close enough to the computer for the interface cable to reach it easily.

- Do not use with wet hands.

- When connecting this product to a computer or other device with a cable, ensure the correct orientation of the connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.

- Do not insert objects into any opening as they may touch dangerous voltage points or short out parts. Beware of electrical shock hazards.

- Place the product on a flat, stable surface that extends beyond the base of the product in all directions. If you place the product by the wall, leave at least 3.9 inches (10 cm) between the back of the product and the wall.

- After replacing consumable parts, dispose of them correctly following the rules of your local authority. Do not disassemble them.

- Do not place or store the scanner outdoors, in a car, near excessive dirt or dust, water, heat sources, or in locations subject to shocks, vibrations, condensation, high temperature or humidity, direct sunlight, strong light sources, or rapid changes in temperature or humidity.

- Never disassemble, modify, or attempt to repair the scanner or a scanner option by yourself except as specifically explained in this guide.

AC Adapter

- Do not place or store the AC adapter outdoors, in a car, near excessive dirt or dust, water, heat sources, or in locations subject to shocks, vibrations, condensation, high temperature or humidity, direct sunlight, strong light sources, or rapid changes in temperature or humidity.

- Place the scanner and the AC adapter near an electrical outlet where the adapter can be easily unplugged.

- The AC power cord should be placed to avoid abrasions, cuts, fraying, crimping, and kinking.

- Do not place objects on top of the AC power cord and do not allow the AC adapter or the power cord to be stepped on or run over. Be particularly careful to keep the AC power cord straight at the end and the point where it enters the AC adapter.

- Use only the AC adapter that comes with your scanner. Using any other adapter could cause fire, electrical shock, or injury.

- The AC adapter is designed for use with the scanner with which it was included. Do not attempt to use it with other electronic devices unless specified.

- Use only the type of power source indicated on the AC adapter's label, and always supply power directly from a standard domestic electrical outlet with the AC adapter that meets the relevant local safety standards.

- Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.

- If you use an extension cord with the scanner, make sure the total amperage rating of the devices plugged into the extension cord does not exceed the cord's amperage rating. Also, make sure the total amperage rating of all devices plugged into the wall outlet does not exceed the wall outlet's amperage rating.

- Never disassemble, modify, or attempt to repair the AC adapter by yourself except as specifically explained in the scanner's guides.

- If damage occurs to the plug, replace the cord set or consult a qualified electrician. If there are fuses in the plug, make sure you replace them with fuses of the correct size and rating.

- Unplug the scanner and the AC adapter, and refer servicing to qualified service personnel under the following conditions: The AC adapter or plug is damaged; liquid has entered the scanner or the AC adapter; the scanner or the AC adapter has been dropped or the case has been damaged; the scanner or the AC adapter does not operate normally or exhibits a distinct change in performance. (Do not adjust controls that are not covered by the operating instructions.)

• Unplug the scanner and the AC adapter before cleaning. Clean with a damp cloth only. Do not use liquid or aerosol cleaners.
• If you are not going to use the scanner for a long period, be sure to unplug the AC adapter from the electrical outlet.

LCD Screen

• The LCD screen may have uneven brightness or a few small bright or dark spots. This is normal and does not indicate damage. • Use only a dry, soft cloth to clean the LCD screen. Do not use liquid or chemical cleansers. - If the LCD screen is damaged, contact Epson. If the liquid crystal solution gets on your hands, wash them thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush them immediately with water. If discomfort or vision problems remain after a thorough flushing, see a doctor immediately. - Do not press too hard on the LCD screen or subject it to heavy impacts. - Do not use a pointy or sharp object, such as a pen or your fingernail, to operate the LCD screen. - If the LCD screen cracks, don't touch or attempt to remove the broken pieces; contact Epson for support. - Do not subject your product to sudden changes in temperature or humidity; this may cause condensation to develop inside the LCD screen and degrade its performance.

Parent topic: Notices

Restrictions on Copying

Observe the following restrictions to ensure responsible and legal use of our scanner.

Copying of the following items is prohibited by law:

• Bank bills, coins, government-issued marketable securities, government bond securities, and municipal securities - Unused postage stamps, pre-stamped postcards, and other official postal items bearing valid postage • Government-issued revenue stamps, and securities issued according to legal procedure Exercise caution when copying the following items: - Private marketable securities (stock certificates, negotiable notes, checks, etc.), monthly passes, concession tickets, etc. • Passports, driver's licenses, warrants of fitness, road passes, food stamps, tickets, etc.

Note: Copying these items may also be prohibited by law.

Restriction on disassembling and decompiling

You may not disassemble, decompile, or otherwise attempt to derive the source code of any software included with this product.

Default Delay Times for Power Management for Epson Products

This product will enter sleep mode after a period of nonuse. This is to ensure that the product meets Energy Star standards of energy efficiency. More energy savings can be achieved by setting the time to sleep to a shorter interval.

Binding Arbitration and Class Waiver

1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS

1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term "Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim, controversy or action between you and Epson arising out of or relating to this Agreement, Epson branded products (hardware and including any related software), other transaction involving you and Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentional tort, statute, regulation, ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more specifically, a claim or cause of action for (a) trademark infringement or dilution, (b) patent infringement, (c) copyright infringement or misuse, or (d) trade secret misappropriation (an "IP Claim"). You and Epson also agree, notwithstanding Section 1.6, that court, not an arbitrator, may decide if a claim or cause of action is for an IP claim.

1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration according to this Agreement. ARBITRATION MEANS THAT YOU WAIVE YOUR RIGHT TO A JUDGE OR JURY IN A COURT PROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.

Pursuant to this Agreement, binding arbitration shall be administered by JAMS, a nationally recognized arbitration authority, pursuant to its code of procedure then effective for consumer related disputes, but excluding any rule that permits joinder or class actions in arbitration (for more detail on procedure, see Section 1.6 below). You and Epson understand and agree that (a) the Federal Arbitration Act (9 U.S.C. §1, et seq.) governs the interpretation and enforcement of this Section 1, (b) this Agreement memorializes a transaction in interstate commerce, and (c) this Section 1 shall survive termination of this Agreement.

1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to resolve the Dispute within the sixty (60) days, you or Epson may commence an arbitration. Notice to Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3840 Kilroy Airport Way, Long Beach, CA 90806 (the "Epson Address"). The Dispute Notice to you will be sent to the most recent address Epson has in its records for you. For this reason, it is important to notify us if your address changes by emailing us at [e-mail] or writing us at the Epson Address above. Notice of the Dispute shall include the sender's name, address and contact information, the fact giving rise to the Dispute, and the relief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson and you agree to act in good faith to resolve the Dispute before commencing arbitration.

1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small claims court of your state or municipality if the action is within that court's jurisdiction and pending only in that court.

1.5 WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS. YOU AND EPSON AGREE THAT EACH PARTY MAY BRING DISPUTES AGAINST THE OTHER PARTY ONLY IN AN INDIVIDUAL CAPACITY, AND NOT AS A PLAINTIFF OR CLASS MEMBER IN ANY CLASS OR REPRESENTATIVE PROCEEDING, INCLUDING WITHOUT LIMITATION FEDERAL OR STATE CLASS ACTIONS, OR CLASS ARBITRATIONS. CLASS ACTION LAWSUITS, CLASS-WIDE ARBITRATIONS, PRIVATE ATTORNEY-GENERAL ACTIONS, AND ANY OTHER PROCEEDING WHERE SOMEONE ACTS IN A REPRESENTATIVE CAPACITY ARE NOT ALLOWED. ACCORDINGLY, UNDER THE ARBITRATION PROCEDURE OUTLINED IN THIS SECTION, AN ARBITRATOR SHALL NOT COMBINE OR CONSOLIDATE MORE THAN ONE PARTY'S CLAIMS WITHOUT THE WRITTEN CONSENT OF ALL AFFECTED PARTIES TO AN ARBITRATION PROCEEDING.

1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by the rules of JAMS in effect when the arbitration is filed, excluding any rules that permit arbitration on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling 1-800-352-5267, and under the rules set forth in this Agreement. All Disputes shall be resolved by a single neutral arbitrator, and both parties shall have a reasonable opportunity to participate in the selection of the arbitrator. The arbitrator is bound by the terms of this Agreement. The arbitrator, and not any federal, state or local court or agency, shall have exclusive authority to resolve all disputes arising out of or relating to the interpretation, applicability, enforceability, or formation of this Agreement, including any claim that all or any part of this Agreement is void or voidable. Notwithstanding this broad delegation of authority to the arbitrator, a court may determine the limited question of whether a claim or cause of action is for an IP Claim, which is excluded from the definition of "Disputes" in Section 1.1 above. The arbitrator shall be empowered to grant whatever relief would be available in a court under law or in equity. The arbitrator may award you the same damages as a court could, and may award declaratory or injunctive relief only in favor of the individual party seeking relief and only to the extent necessary to provide relief warranted by that party's individual claim. In some instances, the costs of

arbitration can exceed the costs of litigation and the right to discovery may be more limited in arbitration than in court. The arbitrator's award is binding and may be entered as a judgment in any court of competent jurisdiction.

You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by telephone shall take place in a location reasonably accessible from your primary residence, or in Orange County, California, at your option.

a) Initiation of Arbitration Proceeding. If either you or Epson decide to arbitrate a dispute, both parties agree to the following procedure: (i) Write a Demand for Arbitration. The demand must include a description of the dispute and the amount of damage sought to be recovered. You can find a copy of a Demand for Arbitration at http://www.jamsadr.com ("Demand for Arbitration"). (ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North State College Blvd., Suite 600 Orange, CA 92868, U.S.A.

(iii) Send one copy of the Demand for Arbitration to the other party (same address as the Dispute Notice), or as otherwise agreed by the parties.

b) Hearing Format. During the arbitration, the amount of any settlement offer made shall not be disclosed to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled. The discovery or exchange of non-privileged information relevant to the Dispute may be allowed during the arbitration.

c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for all JAMS filing and arbitrator fees for any arbitration commenced (by you or Epson) pursuant to the provisions of this Agreement.

d) Award in Your Favor. For Disputes in which you or Epson seeks 75,000 or less in damages exclusive of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you1,000 or the amount of the award, whichever is greater; (ii) pay twice the amount of your reasonable attorney's fees, if any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and expenses to be paid by Epson pursuant to this Section 1.6d).

e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced involving a dispute under this Agreement. Your right to attorney's fees and expenses under Section 1.6d) above does not limit your right to attorney's fees and expenses under applicable law; notwithstanding the foregoing, the arbitrator may not award duplicative awards of attorney's fees and expenses.

1.7 Opt-out. You may elect to opt-out (exclude yourself) from the final, binding, individual arbitration procedure and waiver of class and representative proceedings specified in this

Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent to this Agreement (including without limitation the purchase, download, installation of the Software or other applicable use of Epson Hardware, products and services) that specifies (i) your name, (ii) your mailing address, and (iii) your request to be excluded from the final, binding individual arbitration procedure and waiver of class and representative proceeding specified in this Section 1. In the event that you opt-out consistent with the procedure set forth above, all other terms shall continue to apply, including the requirement to provide notice prior to litigation.

1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you and Epson agree that if Epson makes any future amendments to the dispute resolution procedure and class action waiver provisions (other than a change to Epson's address) in this Agreement, Epson will obtain your affirmative assent to the applicable amendment. If you do not affirmatively assent to the applicable amendment, you are agreeing that you will arbitrate any Dispute between the parties in accordance with the language of this Section 1 (or resolve disputes as provided for in Section 1.7, if you timely elected to opt-out when you first assented to this Agreement). 1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not apply to the prohibition against class or representative actions as provided in Section 1.5. This means that if Section 1.5 is found to be unenforceable, the entire Section 1 (but only Section 1) shall be null and void.

EPSON® is a registered trademark and EPSON Exceed Your Vision is a registered logomark of Seiko Epson Corporation.

Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.

Apple, macOS, and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

EPSON®

EXCEED YOUR VISION

Parent topic: Notices

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alteration to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson approved Products by Seiko Epson Corporation.

This information is subject to change without notice.

libTIFF Software Acknowledgment

A Note Concerning Responsible Use of Copyrighted Materials

Copyright © 1988-1997 Sam Leffler

Copyright © 1991-1997 Silicon Graphics, Inc.

Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

A Note Concerning Responsible Use of Copyrighted Materials

Epson encourages each user to be responsible and respectful of the copyright laws when using any Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume. Contact your legal advisor for any questions regarding copyright law.

© 2020 Epson America, Inc.

10/20

CPD-58844

Parent topic: Copyright Notice
