Product Type	Portable Air Conditioner
Brand	DeLonghi
Model	Pinguino PAC N100E
Cooling Capacity	10000 BTU/h
Power Supply	220-240V ~ 50Hz
Power Consumption (Cooling)	1050 W
Refrigerant	R410A
Airflow (Max)	320 m³/h
Noise Level (High/Low)	54 / 50 dB(A)
Dehumidification Capacity	1.2 L/h
Energy Efficiency Class	A
Dimensions (WxHxD)	450 x 745 x 390 mm
Net Weight	30 kg
Functions	Cooling, Dehumidifying, Fan, Auto Swing
Number of Fans Speeds	3
Timer	Up to 24 hours
Remote Control	Included
Exhaust Hose Length	1.5 m
Installation Kit	Window kit included
Washable Filter	Yes
Water Tank Capacity	1.5 L (continuous drainage optional)
Operating Temperature Range	18°C to 35°C

Frequently Asked Questions - Pinguino PAC N100E DELONGHI

How do I clean the air filter?

Turn off and unplug the unit. Open the front grille, remove the filter, and wash it with warm water and mild detergent. Let it dry completely before reinstalling. Clean the filter every two weeks for optimal performance.

What should I do if the unit does not cool properly?

Check that the air filter is clean, the exhaust hose is properly connected and not kinked, and the window seal is tight. Also ensure the cooling mode is selected and the set temperature is lower than room temperature.

How do I drain the water?

The unit has a self-evaporative system, but in high humidity conditions, water may accumulate in the tank. When the tank is full, the unit will beep and stop cooling. Remove the drain plug at the back to empty the water. You can also attach a hose for continuous drainage.

Can I use an extension cord?

No, using an extension cord is not recommended as it may cause voltage drop and overheating. Plug the air conditioner directly into a grounded wall outlet.

How do I set the timer?

Press the TIMER button on the remote or control panel. Use the + or - buttons to set the desired operating time (from 1 to 24 hours). The unit will turn off automatically after the set time.

Why does the compressor turn off frequently?

This may be due to the set temperature being reached, the room being too small, or the unit cycling to prevent freezing. It can also happen if the exhaust hose is blocked. Ensure the hose is clear and the room size is appropriate for the cooling capacity.

What is the correct way to store the unit?

Drain all water from the tank, clean the filter and allow to dry. Wrap the exhaust hose and power cord, and cover the unit to protect from dust. Store in a dry, cool place.

How do I program the weekly schedule?

Some models have a weekly timer feature. Press and hold the TIMER button for 3 seconds to access the schedule setting. Use the arrow buttons to select the day and set on/off times. Refer to the manual for detailed instructions.

What does the 'F' error code mean?

Error codes are displayed on the control panel. F codes indicate a sensor or system malfunction. For example, F1 may indicate a room temperature sensor failure. Contact DeLonghi support if the error persists after resetting the unit.

Is the PAC N100E compatible with smart home systems?

This model does not have built-in Wi-Fi or smart home compatibility. However, you can use a smart plug with energy monitoring to control power, but advanced features like scheduling will not be available through the plug.

USER MANUAL Pinguino PAC N100E DELONGHI

INSTRUCTION MANUAL - SAVE THESE INSTRUCTIONS

PORTABLE AIR CONDITIONER

MODE D'EMPLOI - CONSERVEZ CETTE NOTICE

Register this product online and receive a free trial issue of Cook's Illustrated.

Visit: www.delonghiregistration.com

Visit: www.delonghi.com for a list of service centers near you.

• Use this appliance only as described in the instruction manual. As with any electrical appliance, the instructions aim to cover as many situations as possible. Caution and common sense should be used when operating and installing this air conditioner.
• This appliance has been manufactured to cool and dehumidify domestic environments and must not be used for other purposes.
• It is dangerous to alter or modify characteristics in any way.
• The appliance must be installed in accordance with the relevant national legislation.
• Should repairs be necessary, contact the nearest authorized Repair Service Center. Unauthorized servicing can be dangerous.
• The appliance is not intended for persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• In the case that the power cord becomes damaged, this must be repaired only by specialized personnel authorized by the manufacturer in order to protect against fire. • Always ensure the appliance is a grounded 3-prong outlet. If you have any doubts check with a qualified electrician. • We strongly discourage the use of an extension cord due to potential safety hazards.
• Before cleaning or maintenance operations, always unplug the unit from the outlet.

Do not pull on or place strain on the power cord when moving the appliance.

• The appliance should not be installed where the atmosphere may contain combustible gases, oil or sulphur, or near heat sources.
• Do not rest hot or heavy objects on the appliance. Clean the filters at least once a week.
• Avoid using heaters near the unit.
• The unit should be transported in an upright position. If this is not possible, secure the unit at an angle; do not lay it horizontally.
• Before transporting the unit, drain the water. After transportation, wait at least 6 hours before switching the unit on.
• The packaging materials can be recycled. You are therefore recommended to place them in the special containers for differentiated waste collection.
• This appliance is fitted with a special device. When the compressor switches off, this device prevents it from switching on again for at least 3 minutes.
• WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SAVE THESE

plugged into

INSTRUCTIONS

THIS PRODUCT IS FOR

HOUSEHOLD ONLY

DESCRIPTION

1 Air outlet grille 2 Control panel 3 Handles 4 Castors 5 Filter 6 Evaporator air intake grille 7 Air exhaust hose housing 8 Condenser air intake grille 9 Power cable

10 Drainage hose with 2 caps 11 Wall flange with cap 12 Air exhaust hose 13 Hose adaptor 14 Accessory for wall mounting 15 Window bracket 16 Additional window bracket 17 Window outlet 18 Remote control

ELECTRICAL CONNECTIONS

Before plugging the appliance into the mains, ensure that:

• The outlet's power supply corresponds to the rating indicated on the label on the back of the appliance;
• The outlet and electrical circuit are adequate for the appliance;
• The outlet is a 3-hole grounded outlet. If this is not the case, you must choose another outlet.

Failure to follow these important safety instructions absolves the manufacturer of all liability.

The power cable must be replaced by a qualified professional only.

The instructions below will enable you to operate the air conditioner as efficiently as possible. Before use, make sure the air intake and outlet grilles are unobstructed.

AIR-CONDITIONING WITHOUT INSTALLATION

Just a few simple steps and your comfort is ensured with your air conditioner:

• Screw the hose adaptor 13 to the hose's end 12.
• Fit the air exhaust hose in the housing at the back of the appliance. Insert it as shown in figure A.

Screw the window outlet 17 to the other end of the exhaust hose. (see fig. B).

Sash window

- Place the window bracket 15 in the window, extending it to the width of the window (fig. C).

- Place the air conditioner near the window. Insert the assembled exhaust hose 12 into the window bracket hole 15.

- Make sure the air exhaust hose is unobstructed. - If you have a very large window, in order to cover your window aperture, use the additional window bracket without holes, extending it to the desired dimension, then fix the bracket by using the locking pin provided. When extracting the window bracket and joining the two

pieces, pay attention not to cover the hole.

Other set-up methods:

- Thanks to the locking pin, it's possible to use the window bracket also for sliding windows. Position the hole of the bracket so as to allow a correct installation of the exhaust hose (see figure D).

Keep the air hoses as short and free of curves as possible to avoid constrictions.

French window

• After having screwed the window outlet 17 into the air exhaust hose 12, open the French window slightly and position the window outlet 17 as shown in figure E.

SEMI-PERMANENT INSTALLATION

If required, your appliance can also be installed semi-permanently (Fig. F).

Proceed as follows:

- Drill a hole (ø134mm / 5.27 in.) in and through a window pane.

Respect the height and dimensions of the hole given in figures F and G.

NOTE: As special tools are required for installation, we suggest you have the appliance installed by specialized personnel.

KEEP THE AIR HOSES AS SHORT AND FREE OF CURVES AS POSSIBLE TO AVOID CONSTRICTIONS.

• Fit the wall flange 11 into the hole. - Screw the hose adaptor 13 to the hose's end 12. - Fit the air exhaust hose in the housing at the back of the appliance as shown in figure A. - Screw the wall mounting accessory 14 into the hose 12.

(fig. H) and fit it into the wall flange 11 as shown in fig. I.

When the hose 12 is not fitted, the hole can be closed with the flange cap 11.

NOTE: When installing the air conditioner semi-permanently, you should leave a door slightly open (as little as 1 cm) to guarantee correct ventilation.

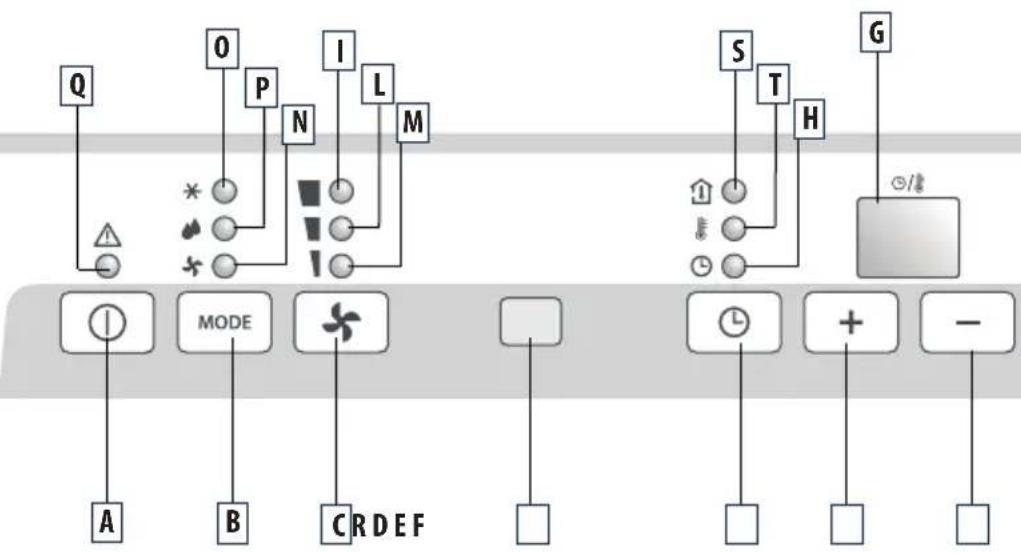

DESCRIPTION OF THE CONTROL PANEL

A ON/OFF button B MODE selection button

Air conditioning, dehumidifying, fan.

C Fan speed selection button (MAX/MED/MIN) D Timer button E Programmed operation increase temperature/time button F Programmed operation decrease temperature/time button G Display Displays the temperature values set and the programmed operating time H Timer in operation indicator light I/L/M Fan speed lights N Fan mode light 0 Air-conditioning mode light P Dehumidifying mode light Q Alarm light R Remote control receiver S Light: the inner temperature is shown on the display T Light: the outdoor temperature is shown on the display

Never turn the air conditioner off by unplugging from the outlet. Always press the ⏻ button, then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify operation.

TURNING THE APPLIANCE ON

Before plugging the appliance check the caps on the back of the unit are correctly inserted and screwed on the drainage hose 10.

Plug into an outlet. Two lines appear on the display indicating that the appliance is in stand-by. Press the ON/STAND-BY button (A). When turned on, the air conditioner starts operating in the same mode as when it was turned off. Press the MODE button (B) until the light corresponding to the desired mode lights up:

Light (0): air-conditioning mode

Light (P): dehumidifying mode

Light (N): fan mode

AIR CONDITIONING MODE

Ideal for hot muggy weather when you need to cool and dehumidify the room.

The display shows the inner temperature: the light (S) turns on.

To modify the set temperature, push the (E) or (F) button to reach the desired temperature. The (T) light turns on and the (S) light turns off. (To change from °F to °C or vice versa, press for few seconds both button E and F).

After 15 seconds, the inner temperature is shown on the display.

The (S) light turns on.

You can adjust the temperature only in air conditioning mode. Then select the fan speed by pressing the FAN button (C) until the light corresponding to the required fan speed lights up:

MAX: the air conditioner operates at maximum to achieve the target temperature as rapidly as possible

MED: reduces noise levels while maintaining a comfortable temperature

MIN: for silent operation

The most suitable temperature for the room during the summer varies from 75°F to 81°F (24 to 27°C). You are recommended, however, not to set a temperature much below the outdoor temperature.

FAN MODE

Adjust fan speed by pressing the FAN button (C) as described for the air-conditioning mode.

Remember that the higher the speed, the more air is filtered. If you select "MIN" speed, less air is filtered but the appliance is also less noisy.

DEHUMIDIFYING MODE

Ideal for reducing the humidity in a room without lowering or raising the temperature (spring or autumn, damp rooms, rainy spells, etc). When the dehumidifying mode is selected, the light (P) comes on. At the same time, the "MIN" fan speed light (M) comes on. In this mode, other speeds cannot be selected.

PROGRAMMING THE TIMER

The timer can be used to delay appliance start up or shut down. This avoids wasting electricity by optimising operating periods.

How to programme delayed start up

• Plug the appliance into a mains socket and press the ON/OFF button (A), then select the required operating mode and other settings (temperature, fan speed, etc).
• Press the ON/OFF button (A) again to place the appliance in standby mode.
• Press the timer button (D). The timer light "H" flashes.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance comes on. The time increases or decreases in steps of one hour.

The indicator light (H) flashes until the appliance starts up.

You can set the appliance to come on with a delay of up to 12 hours. To cancel the timer programme, press the timer button (D) again. Light (H) stops flashing.

How to programme delayed shut down

• Delayed shut down can be programmed in any operating mode (air conditioning / fan/ dehumidifying).
• Press the timer button (D). The timer light "H" flashes.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance goes off.

The time increases or decreases in steps of one hour.

The light (H) flashes until the appliance turns off as programmed. At the set time, the air conditioner shuts down and remains in standby. To cancel the timer programme, press the timer button (D) again.

Light (H) stops flashing.

MODELS WITH REMOTE CONTROL

- Point the remote control at the receiver on the

air conditioner. The remote control must be no more than 16.4 ft (5 meters) away from the

appliance (without obstacles between the remote control

Using the remote control unit (some models only)

and the receiver).

- The remote control must be handled with extreme care. Do not drop it or expose it to direct sunlight or sources of heat.

DESCRIPTION OF THE REMOTE CONTROL

19) "ON/OFF" button 20) Increase/Decrease button for temperature/programmed use 21) "MODE" button 22) "TIMER" button 23) °F/°C scale button 24) Fan speed selection button (MAX/MED/MIN).

Inserting or replacing the batteries

• Remove the cover on the rear of the remote control;
• Remove the old batteries, if present.
• Correctly insert two new L03 "AAA" 1.5V batteries (see the instructions inside the battery compartment);
• Replace the cover.

If the remote control unit is replaced or discarded, the batteries must be removed and disposed of in accordance with current legislation as they are harmful to the environment. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Do not dispose of batteries in fire. Batteries may explode or leak. If the remote control will not be used for a certain length of time, remove the batteries.

• Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This Class B digital apparatus complies with Canadian ICES-003.

TURNING THE APPLIANCE ON

Plug the appliance into the mains.

Press the ON/OFF button (19) (when turned on, the air conditioner starts operating in the same mode as when it was turned off).

Press the MODE button (21) to select the required mode.

COOLING

DEHUMIDIFYING

FAN ONLY

On the control panel, the light corresponding to the selected mode comes on.

For air conditioning, dehumidifying, fan only settings, and programming the timer, see page 8.

To get the best from your air conditioner, recommendations:

- Close the windows and doors in the room being conditioned.

The only exception is when the appliance is installed through a hole in the wall.

In this case, you are recommended to leave a slight draught through a door or window to guarantee correct ventilation.

• Protect the room from direct exposure to sunlight by partially closing curtains and/or blinds to make the appliance much more economical to run. Never rest objects of any kind on the air conditioner. Never obstruct the air intake (6) or outlet (1) grilles. Make sure there are no heat sources in the room.

Do not cover the appliance.

• Never use the appliance in very damp rooms (laundries, for example). Never use the appliance outdoors.

Close blinds or curtains.

Make sure the air conditioner is on a level floor.

Before cleaning or maintenance, turn the appliance off by pressing the ON/OFF button (A) or, in models with remote control unit, by pressing the ON/OFF button 19, then always unplug the appliance from the mains socket.

CLEANING THE CABINET

You should clean the appliance with a slightly damp cloth, then dry it with a dry cloth.

For safety reasons, never wash the air conditioner with water.

Precautions

Never use petrol, alcohol, or solvents to clean the appliance. Never spray insecticide liquids or similar.

CLEANING THE AIR FILTERS

To keep your air conditioner working efficiently, clean the dust filter every week of operation.

The filter is housed in the intake grille.

To clean the filters, remove the filter as shown in figure L.

Use a vacuum cleaner to remove the dust collected on the filter.

If it is very dirty, immerse it in warm water and rinse a number of times. The water should never be hotter than 40°C.

After washing, leave the filter to dry. Put the filter back in its housing.

START OF SEASON CHECKS

Make sure the power cable and plug are undamaged and the earth system is efficient. Follow the installation instructions precisely.

END OF SEASON OPERATIONS

To drain all water from the circuit, remove the external cap by unscrewing it in the anticlockwise direction, then remove the internal cap from the drain hose on the back of the appliance and allow the water to drain out into a basin (figure M). When the appliance is empty, replace the caps.

Clean the filter and dry thoroughly before putting it back.

NOTE:

NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE

TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. (After the unit has been on its side, oil needs to return to the

compressor to ensure proper function. Without allowing the unit this time (6-24 hours), the unit may function for only a short time, and then the compressor will break down from lack of oil.)

PROBLEM CAUSE REMEDY
The air conditioning unit does not start.	No electricity.It is not plugged into the outlet.The safety device of the plug has tripped.	Wait.Plug into the outlet.Reset the safety device, if problem persists contact our toll free customer service.
The air conditioning unit works for a short time only.	The air exhaust hose has a constriction.The air exhaust hose is blocked.There are tight bends in the air exhaust hose.	Position the exhaust hose correctly.Check there are no obstacles.Obstructing air discharge.Eliminate the tight bends.
The air conditioner works, but does not cool the room.	Window open.The exhaust hose is detached.Air filters clogged.	close the window.connect the exhaust hose.clean or replace the filter.
Particular odour in the room · air purifying filters clogged · clean or replace the filters.
The air conditioner does not operate for about 3 minutes after turning it on	the safety device has tripped · wait for three minutes.
The alarm light Q comes on	the tank inside the appliance is full.	empty the tank (see “End of season operations) on page 10).

SELF-DIAGNOSIS

The appliance has a self-diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display.

IF...IS DISPLAYED, IF...IS DISPLAYED, IF...IS DISPLAYED,
“Low Temperature”...MEANS: room temperature is too low	“High Temperature”...MEANS: room temperature is too high	“Probe Failure”(sensor damaged)...MEANS: contact your local customer service

TECHNICAL SPECIFICATION

Power supply voltage: see rating label Max. absorbed power during air conditioning: " Refrigerant: " Cooling capacity: "

LIMIT CONDITIONS

Room temperature for air conditioning: 70 ÷ 95°F 21 ÷ 35°C

Transport, filling, cleaning, recovery, and disposal of refrigerant should be performed by a technical service centre appointed by the manufacturer only. The appliance should be disposed of by a specialist centre appointed by the manufacturer only.

NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. (After the unit has been on its side, oil needs to return to the compressor to ensure proper function. Without allowing the unit this time (6-24 hours), the unit may function for only a short time, and then the compressor will break down from lack of oil).

This appliance is equipped with a 3-prong grounded plug. The plug must be connected to an outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician or relocate the unit to a proper outlet. If the household electrical supply does not meet the above specifications, or if you are not sure your home has an effective electrical ground, have a qualified electrician or your local electrical utility company check it and correct any problems.

SAFETY PLUG

The appliance is fitted with a safety plug to protect the power cable.

If power is cut off, unplug from the outlet and make sure the power cable is undamaged.

If the cable is damaged, call the service center immediately.

If power cuts off frequently and the power cable is undamaged, contact a qualified electrician.

If the safety device incorporated in the plug trips and cuts off the power supply, check that the power cable and plug are not damaged.

If the power cable is undamaged, to restore operation press the "RESET" button.

To verify correct operation of the plug, press the "TEST" button periodically and make sure the appliance disconnects. If this is not the case, contact the service center.

To restore operation, press the "RESET" button.

LIMITED WARRANTY

De'Longhi is the distributor of Kenwood home appliances.

This warranty applies to all home appliances with De'Longhi or Kenwood brand names.

Limited Warranty

We warrant each De'Longhi AIR CONDITIONER to be free from defects in material and workmanship. From the purchase date, our obligation under this warranty is to provide one (1) year free parts and labor on the entire AIR CONDITIONER, with an additional four (4) years free on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing. Labor and all other parts during the additional four (4) year warranty are to be paid by the owner. All AIR CONDITIONERS in need of repair are to be shipped to an authorized De'Longhi service center at the owner's expense, and De'Longhi will then incur the return shipping costs. After the first five (5) years of ownership, all expenses (all parts, labor and shipping) are to be paid by the owner of the unit. This warranty shall apply only if the AIR CONDITIONER is used in accordance with the factory directions that accompany it, and on an Alternating Current (AC) circuit. This warranty is in lieu of all other warranties and representations, expressed or implied, and all other obligations or liabilities on our part. We do not authorize any other person or company to assume for us any liability in connection with the sale or use of our AIR CONDITIONER. This warranty shall not apply to any AIR CONDITIONER that has been repaired or altered outside our factory nor shall it apply to any AIR CONDITIONER that has been subjected to misuse, negligence or accidents.

If repairs become necessary, see contact information below:

U.S. Residents:

Please contact our toll free hotline at 1-800-322-3848

or log onto our website at www.delonghi.com

CANADA Residents:

Please contact our toll free hotline at 1-888-335-6644

or log onto our website at www.delonghi.com

MEXICO Residents:

Please contact our toll free hotline at 01-800-711-8805

or log onto our website at www.delonghi.com

The above warranty is in lieu of all other express warranties and representations. All implied warranties are limited to the applicable warranty period set forth above. This limitation does not apply if you enter into an extended warranty with De'Longhi. Some states/countries do not allow limitations on how long an implied warranty lasts, so the above exclusions may not apply to you. De'Longhi does not authorize any other person or company to assume for it any liability in connection with the sale or use of its appliance.

How does country law apply?

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state/country to country.
