ROSIERES RSBI94 - Kitchen hood

RSBI94 - Kitchen hood ROSIERES - Free user manual and instructions

Find the device manual for free RSBI94 ROSIERES in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

View the manual : Français FR English EN
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Kitchen Hood
Brand ROSIERES
Model RSBI94
Use Exhaust or recirculation (filtering)
Minimum Safety Distance (from cooking surface) 65 cm
Number of Speeds 3 + intensive (10 minutes)
Special Functions Timer 15 min, Clean Air (auto cycle), lighting
Lighting Halogen lamps (replaceable)
Grease Filter Washable (every 2 months, dishwasher safe)
Active Carbon Filter Not washable, replace every 4 months
Power Supply 230 V – 50 Hz (single-phase, class II)
Motor Power Not specified (standard estimate: 150-250 W)
Air Outlet Diameter 150 mm (recommended)
Material Stainless steel / glass
Installation Ceiling (telescopic), ceiling mount
Dimensions (approx.) Adjustable height, width 90 cm (not exactly specified)
Weight Not specified (estimate: 15-20 kg)
Noise Level Not specified
Protection Rating Class II (double insulation)
Serial Number 16 characters starting with 3, on plate inside

Frequently Asked Questions - RSBI94 ROSIERES

What is the minimum distance between the hood and the cooking surface?
The minimum distance is 65 cm between the surface supporting the containers and the lowest part of the hood.
How to clean the grease filters?
The grease filters should be washed every 2 months. They are dishwasher safe or can be washed by hand with a mild detergent.
When should the activated carbon filter be replaced?
The activated carbon filter is neither washable nor renewable. It must be replaced every 4 months or more often depending on use.
How to replace the halogen lamps?
Remove the glass by prying in the designated slots, then replace the lamps with lamps of the same type. Do not touch the lamps with bare hands.
What do the flashing displays on the screen mean?
If the screen alternately flashes the speed and the letter A, the grease filters need to be cleaned. If it flashes with the letter C, the carbon filters need to be changed.
How to activate the 'Clean Air' function?
Press the E button for 2 seconds when the hood is off. The motor will run for 10 minutes every hour at the first speed.
Can the hood be used in recirculation mode?
Yes, in filtering version. It is then necessary to install the activated carbon filters (provided) and a deflector for the air return into the room.
What to do if the hood does not work?
First, check that the plug is fully inserted into the socket. If the problem persists, turn off the appliance and contact the technical support service.
Where to find the product serial number?
The serial number (16 characters starting with 3) is on the rating plate inside the appliance or on the warranty certificate.
Can the hood be used without external evacuation?
Yes, by installing the hood in filtering mode (recirculation). The air is filtered by the activated carbon and returned to the room. An exhaust duct is not necessary.

User questions about RSBI94 ROSIERES

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Kitchen hood in PDF format for free! Find your manual RSBI94 - ROSIERES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RSBI94 by ROSIERES.

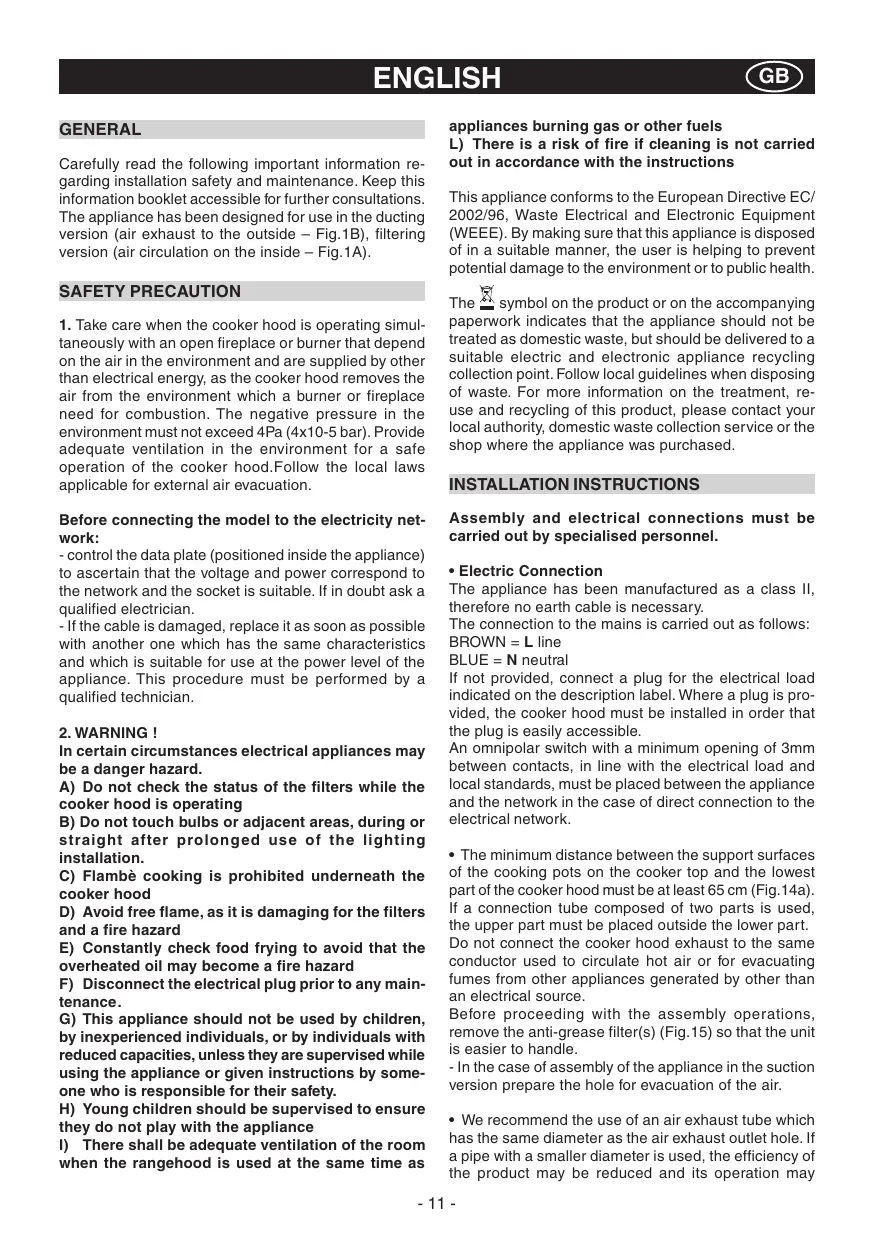

USER MANUAL RSBI94 ROSIERES
