BDP-S190 - Blu-ray player SONY - Free user manual and instructions

Type	Blu-ray disc player
Model	BDP-S190
Brand	Sony
Dimensions (W x D x H)	430 x 199 x 42 mm
Weight	1.4 kg
Power supply	120-240 V AC, 50/60 Hz
Power consumption	10 W (typical)
Disc playback	Blu-ray, DVD, CD
Video output	HDMI, Composite video
Audio output	HDMI, Optical digital, Analog stereo
Network	Ethernet (10/100)
USB port	1 x USB 2.0 (front)
Supported video formats	AVC HD, MPEG-2, VC-1, XviD, WMV
Supported audio formats	Dolby TrueHD, DTS-HD Master Audio, MP3, AAC, WMA
Supported photo formats	JPEG, PNG, GIF
DLNA	Yes (wired)
BD-Live	Yes (requires USB storage)
Care and cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Do not open the casing. No user-serviceable parts inside.
Spare parts and repairability	Contact authorized service center for repairs. No user-replaceable parts.
General information	Manufactured by Sony. Free user manual available in PDF.

Frequently Asked Questions - BDP-S190 SONY

How do I connect the BDP-S190 to my TV?

Use an HDMI cable (not included) to connect the HDMI OUT port on the player to an HDMI input on your TV. For audio-only systems, use the optical digital output.

Can I play DVDs on this Blu-ray player?

Yes, the BDP-S190 is compatible with DVD, Blu-ray, and CD discs. It also supports playback of DVD-R/RW, DVD+R/RW, and CD-R/RW.

Does the BDP-S190 support Wi-Fi?

No, the BDP-S190 does not have built-in Wi-Fi. It only has an Ethernet port for wired network connection. You can use a USB Wi-Fi adapter? No, not supported.

How can I update the firmware?

Connect the player to the internet via Ethernet. Go to Settings > Software Update and select Update via Internet. Alternatively, download the firmware from Sony's support site and burn it to a CD-R or USB drive.

What to do if the disc does not play?

Check that the disc is inserted correctly with the label side up. Ensure the disc is clean and free of scratches. Try another disc. If the issue persists, update the firmware or contact support.

Can I play media files from a USB drive?

Yes, insert a USB 2.0 drive into the front USB port. The player can play video (AVC HD, MPEG-2, etc.), music (MP3, WMA), and photos (JPEG, PNG).

How do I reset the player to factory settings?

Press HOME on the remote, go to Settings > System Settings > Reset. Confirm the reset. This will erase all custom settings.

The remote control is not working. What can I do?

First, check the batteries and replace them if needed. Ensure there are no obstacles between the remote and the player. Try pointing directly at the front panel. If it still does not work, you can use the physical buttons on the unit.

Does this player support 3D Blu-ray?

No, the BDP-S190 does not support 3D playback. It is a standard 2D Blu-ray player.

How can I clean the player?

Wipe the exterior with a soft, dry cloth. Do not use any liquid cleaners or solvents. For the disc tray, use a lens cleaning disc if necessary.

USER MANUAL BDP-S190 SONY

Operating Instructions

Getting Started

Playback

Settings and Adjustments

Additional Information

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Precautions

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. • Install this unit so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

The shielded Interface cable (LAN cable) must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Important Safety Instructions

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Owner's Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ____ Serial No. ____

If this product is not working properly, please call 1-866-909-7669.

Precautions

The power requirements and power consumption of this player are indicated on the back of the player. Check that the player's operating voltage is identical with your local power supply.

Power requirements and power consumption

This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 metres.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.
• Do not place the player on a soft surface such as a rug that might block the ventilation holes.
• Do not install this player in a confined space, such as a bookshelf or similar unit.
• Do not place the player near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place the player outdoors, in vehicles, on ships, or on other vessels.
• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.
• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.
• Do not place heavy or unstable objects on the player.
• Do not place any objects other than discs on the disc tray. Doing so may cause damage to the player or the object.
• Take out any discs from the tray when you move the player. If you don't, the disc may be damaged.
• Disconnect the AC power cord and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.
• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
• Observe the following points to prevent the AC power cord being damaged. Do not use the

AC power cord if it is damaged, as doing so may result in an electric shock or fire.

• Do not pinch the AC power cord between the player and wall, shelf, etc.
• Do not put anything heavy on the AC power cord or pull on the AC power cord itself.

For the model supplied with the AC plug adaptor

If the AC plug of your unit does not fit into the wall outlet, attach the supplied AC plug adaptor.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. Your ears and the speakers may be damaged when the sound level reaches the peak.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

On connecting to the HDMI OUT jack

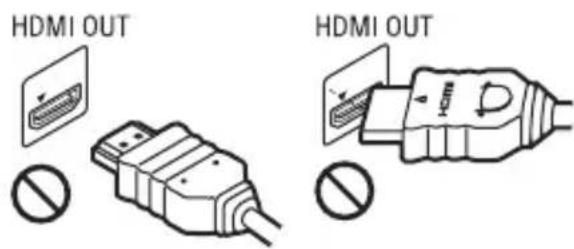

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

- Carefully align the HDMI OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

- Be sure to disconnect the HDMI cable when moving the player.

- Hold the HDMI connector straight when connecting or disconnecting the HDMI cable. Do not twist or force the HDMI connector into the HDMI OUT jack.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Copy Protection

Please be advised of the advanced content protection systems used in both Blu-ray Disc™ and DVD media. These systems, called AACS (Advanced Access Content System) and CSS (Content Scramble System), may contain some restrictions on playback, analog output, and other similar features. The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governing board of the AACS may adopt or change its restriction rules after the time of purchase.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

Copyrights and Trademarks

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.
• Java is a trademark of Oracle and/or its affiliates. • “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.
• This product incorporates High-Definition Multimedia Interface (HDMI®) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• Blu-ray Disc™, Blu-ray™, BD-Live™, BONUSVIEW™, and the logos are trademarks of the Blu-ray Disc Association.
• “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.
• “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.
• “BRAVIA” is a trademark of Sony Corporation.
• “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

- This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

- Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

- Opera® Browser from Opera Software ASA. Copyright 1995-2010 Opera Software ASA. All rights reserved.

OPERA™ software

- All other trademarks are trademarks of their respective owners.

- Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

Table of Contents

WARNING 2

Precautions 3

Getting Started

Guide to Parts and Controls 8

Step 1: Supplied Accessories 11

Step 2: Connecting the Player ..... 12

Step 3: Preparing for Network Connection ..... 14

Step 4: Easy Setup 14

Playback

Playing a Disc 16

Playing from a USB Device 17

Playing via a Network 17

Available Options 18

Settings and Adjustments

Using the Settings Displays 20

[Network Update] 20

[Screen Settings] 20

[Audio Settings] 21

[BD/DVD Viewing Settings] 22

[Parental Control Settings] 22

[System Settings] 23

[Network Settings] 24

[Easy Setup] 24

[Resetting] 24

Additional Information

Troubleshooting 25

Specifications 28

Guide to Parts and Controls

Front panel

The ▶ button has a tactile dot. Use the tactile dot as a reference when operating the player.

1 Disc tray 2 ▲ (open/close) 3 ▶ (play) 4 ■ (stop) 5 Power indicator 6 I/ (on/standby)

Turns on the player, or sets to standby mode.

7 (USB) jack

Connect a USB device to this jack.

8 Remote sensor

To lock the disc tray (Child Lock)

You can lock the disc tray to avoid accidental opening of the tray.

While the player is turned on, hold down the ▶ button on the player for more than 10 seconds to lock or unlock the tray.

Rear panel

1 LINE OUT (VIDEO) jack ② DIGITAL OUT (COAXIAL) jack ③ LAN (100) terminal

4 HDMI OUT jack 5 LINE OUT (R-AUDIO-L) jacks

Remote

The available functions of the remote are different depending on the disc or the situation.

Number 5, AUDIO, VOL +, and ▶ PLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

The player automatically returns to standby mode

If any button on the player or remote is not pressed for more than 30 minutes, the player automatically returns to standby mode.

1 ▲ OPEN/CLOSE

Opens or closes the disc tray.

-TV- INPUT

Switches between TV and other input sources.

-TV- I/ (on/standby)

Turns on the TV, or sets to standby mode.

I/⏻ (on/standby)

Turns on the player, or sets to standby mode.

2 Number buttons (0 - 9)

Enters the title/chapter numbers, etc.

VOL +/-

Adjusts the TV volume.

AUDIO (page 22)

Selects the language track when multi-lingual tracks are recorded on BD-ROMs/DVD VIDEOs.

Selects the sound track on CDs.

SUBTITLE (page 22)

Selects the subtitle language when multi-lingual subtitles are recorded on BD-ROMs/DVD VIDEOS.

DISPLAY (page 17)

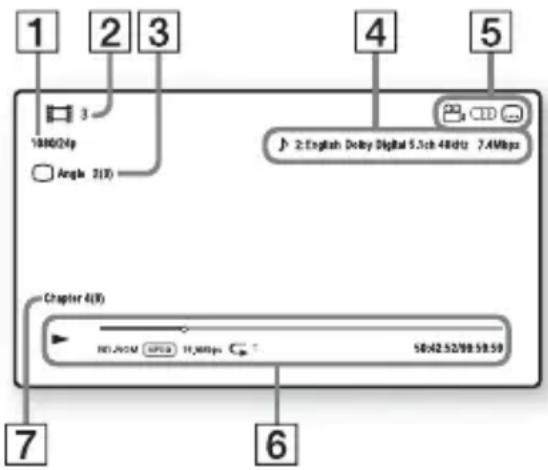

Displays the playback information on the screen.

③ Color buttons (YELLOW/BLUE/RED/GREEN)

Shortcut keys for interactive functions.

4 TOP MENU

Opens or closes the BD's or DVD's Top Menu.

POP UP/MENU

Opens or closes the BD-ROM's Pop-up Menu, or the DVD's menu.

OPTIONS (page 18)

Displays the available options on the screen.

HOME

Enters the player's home menu.

Displays the wall paper when pressed on the category icon of the home menu.

RETURN

Returns to the previous display.

Moves the highlight to select a displayed item.

Center button (ENTER)

Enters the selected item.

5 PREV/NEXT

Skips to the previous/next chapter, track, or file.

II PAUSE

Pauses or re-starts playback.

◀◀/▶▶ (fast reverse/fast forward)

• Fast reverse/fast forward the disc when you press the button during playback. The search speed changes each time you press the button during video playback.
• Plays in slow motion, when pressed for more than one second in pause mode.
• Plays one frame at a time, when you press for a short time in pause mode.

PLAY

Starts or re-starts playback.

NETFLIX

Enables access to the “NETFLIX” online service.

■ STOP

Stops playback and remembers the stop point (resume point).

The resume point for a title/track is the last point you played or the last photo for a photo folder.

SEN (page 17)

Accesses the “Sony Entertainment Network™” online service.

Home menu display

The home menu appears when you press HOME. Select a category using ←/→. Select an item using ↑/↓, and press ENTER.

[Setup]: Adjusts the player settings. [Photo]: Displays photos. [Music]: Plays music. [Video]: Plays videos. [Network]: Displays network items.

Step 1: Supplied Accessories

Check that you have the following items:

• Audio/video cable (phono plug ×3) (1) - Remote commander (remote) (1) - Size AA (R6) batteries (2)

A plug adaptor is included with some models.

Step 2: Connecting the Player

Do not connect the AC power cord until you have made all the connections.

Connecting to your TV

Select one of the following connection methods according to the input jacks on your TV.

Match the color of the plug to that of the jack when connecting.

Do not connect the player through a VCR. Video signals from VCRs can be affected by copyright protection systems that cause the picture on the TV to be distorted.

Connecting to your AV amplifier (receiver)

Select one of the following connection methods according to the input jacks on your AV amplifier (receiver). When you select Ⓐ or Ⓑ, make the appropriate settings in the [Audio Settings] setup (page 21).

A HDMI OUT	High Speed HDMI Cable (not supplied) HDMI IN HDMI OUT → Set [BD Audio MIX Setting] (page 21).
B DIGITAL OUT PCM/DTS/ COAXIAL DOLBY DIGITAL	Coaxial digital cable (not supplied) → Set [Dolby Digital*1/ DTS*2] (page 21).
C VIDEO R AUDIO LINE OUT	Audio/video cable (supplied)

*1 Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. *2 Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Step 3: Preparing for Network Connection

If you are not going to connect the player to a network, proceed to “Step 4: Easy Setup” (page 14).

Wired Setup

Use a LAN cable to connect to the LAN (100) terminal on the player.

Using a shielded interface cable (LAN cable), straight or crossing, is recommended.

Step 4: Easy Setup

When turned on for the first time

Wait for a short while before the player turns on and starts [Easy Initial Settings].

1 Insert two Size AA (R6) batteries by matching the ⊕ and ⊖ ends on the batteries to the markings inside the battery compartment.

2 Plug the player into the AC outlet.

3 Press I/⏻ to turn on the player.

4 Turn on the TV and set the input selector on your TV. This will show the signal from the player on your TV screen. 5 Perform [Easy Initial Settings].

Follow the on-screen instructions to make the basic settings using

←/↑/↓/→ and ENTER on the remote.

When [Easy Initial Settings] is complete, select [Easy Network Settings] to use the network functions of the player.

Playback

Playing a Disc

For playable discs, see page 28.

1 Switch the input selector on your TV so that the signal from the player appears on your TV screen. 2 Press ▲OPEN/CLOSE, and place a disc on the disc tray.

Playing side facing down

3 Press ▲ OPEN/CLOSE to close the disc tray.

Playback starts. If playback does not start automatically, select in the [Video], Music], or [Photo] category, and press ENTER.

Enjoying BONUSVIEW/BD-LIVE

Some BD-ROMs with the “BD-LIVE” logo* have bonus contents and other data that can be downloaded for your enjoyment.

1 Connect a USB memory to the USB jack on the player (page 8). Use a 1 GB or larger USB memory as your local storage. 2 Prepare for BD-LIVE (BD-LIVE only).

• Connect the player to a network (page 14).
• Set [BD Internet Connection] to [Allow] (page 22).

3 Insert a BD-ROM with BONUSVIEW/BD-LIVE.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

To delete data in the USB memory, select [Erase BD Data] in the [Video], and press ENTER. All data stored in the buda folder will be erased.

Displaying the play information

You can view the playback information, etc., by pressing DISPLAY.

The displayed information differs depending on the disc type and player status.

Example: when playing a BD-ROM

1 Output resolution/Video frequency 2 Title number or name 3 The currently selected angle 4 The currently selected audio setting 5 Available functions ( angle,

○○○ audio, □... subtitle)

⑥Playback information Displays the Play mode, Playing status bar, Disc type, Video codec, Bitrate, Repeat type, Elapsed time, and Total playing time. 7 Chapter number

Playing from a USB Device

For playable types of files, see page 29.

1. Connect the USB device to the USB jack on the player (page 8). Refer to the instruction manual supplied with the USB device before connecting. 2. Select [Video], [Music], or [Photo] on the home menu using ←/→. 3. Select [USB device] using ↑/↓, and press ENTER.

Playing via a Network

Enjoying Sony Entertainment Network

Sony Entertainment Network serves as a gateway, delivering the selected Internet content and a variety of on-demand entertainment straight to your player.

• Some Internet content requires registration via a PC before it can be played. For further details, visit the following website: http://www.sony.com/bluraysupport/
• Some Internet content may not be available in some regions/countries.

1. Connect the player to a network (page 14). 2. Press the SEN button on the remote. 3. Select an Internet content and a variety of on-demand entertainment using ←/↑/↓/→, and press ENTER.

Video streaming control panel

The control panel appears when the video file starts playing. The displayed items may differ depending on Internet content providers.

To display again, press DISPLAY.

1. Control display: Press ←/↑/↓/→ or ENTER for playback operations. 2. Playing status bar: Status bar, cursor indicating the current position, playing time, duration of the video file. 3. Network condition: indicates the wired connection. 4. Network transmission speed. 5. The file name of the next video. 6. The file name of the current video selection.

Available Options

Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.

Common options

■[Repeat Setting]: Sets the repeat mode. ■[Play]/[Stop]: Starts or stops the playback. ■[Play from beginning]: Plays the item from the beginning.

[Video] only

■[A/V SYNC]: Adjusts the gap between picture and sound, by delaying the sound output in relation to the picture output (0 to 120 milliseconds).

■[Video Settings]:

– [Picture Quality Mode]: Selects the picture settings for different lighting environments. – [BNR]: Reduces the mosaic-like block noise in the picture. – [MNR]: Reduces minor noise around the picture outlines (mosquito noise).

■[Pause]: Pauses the playback. ■[Top Menu]: Displays the BD's or DVD's Top Menu. ■[Menu]/[Popup Menu]: Displays the BD-ROM's Pop-up Menu or DVD's menu. ■[Title Search]: Searches for a title on BD-ROMs/DVD VIDEOs and starts playback from the beginning. ■[Chapter Search]: Searches for a chapter and starts playback from the beginning.

■[Audio]: Switches the language track when multilingual tracks are recorded on BD-ROMs/DVD VIDEOs. Selects the sound track on CDs.

■[Subtitle]: Switches the subtitle language when multilingual subtitles are recorded on BD-ROMs/DVD VIDEOs.

■[Angle]: Switches to other viewing angles when multi-angles are recorded on BD-ROMs/DVD VIDEOs.

■[IP Content Noise Reduction]: Adjusts the picture quality of Internet contents.

♪ [Music] only

■[Add Slideshow BGM]: Registers music files in the USB memory as slideshow background music (BGM).

[Photo] only

■[Slideshow Speed]: Changes the slideshow speed. ■[Slideshow Effect]: Sets the effect for slideshows. ■[Slideshow BGM]:

• [Off]: Turns off the function. – [My Music from USB]: Sets the music files registered in [Add Slideshow BGM]. – [Play from Music CD]: Sets the tracks in CD-DAs.

■[Change Display]: Switches between [Grid View] and [List View].

■[Slideshow]: Plays a slideshow. ■[Rotate Left]: Rotates the photo counterclockwise by 90 degrees. ■[Rotate Right]: Rotates the photo clockwise by 90 degrees.

Settings and Adjustments

Using the Settings Displays

Select [Setup] on the home menu when you need to change the settings of the player. The default settings are underlined.

1 Select [Setup] on the home menu using ←/→.

2 Select the setup category icon using ↑/↓, and press ENTER.

[Network Update]

Select [OK] to update the player's software via the network.

• We recommend performing the network update every 2 months or so.
• For information about update functions, visit the following website: http://www.sony.com/bluraysupport/

[Screen Settings]

■[TV Type]

[16:9]: Select this when connecting to a wide-screen TV or a TV with a wide mode function. [4:3]: Select this when connecting to a 4:3 screen TV without a wide mode function.

[Screen Format]

[Full]: Select this when connecting to a TV with a wide mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV.

[Normal]: Changes the picture size to fit the screen size with the original picture aspect ratio.

[DVD Aspect Ratio]

[Letter Box]: Displays a wide picture with black bands on the top and bottom.

[Pan & Scan]: Displays a full-height picture on the entire screen, with trimmed sides.

[Cinema Conversion Mode]

[Auto]: Normally select this. The player automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method.

[Video]: The conversion method suited for video-based material will always be selected regardless of the material.

[Output Video Format]

[HDMI]: Normally select [Auto]. Select [Original Resolution] to output the resolution recorded on the disc. When the resolution is lower than the SD resolution, it is scaled up to the SD resolution.

[Video]: Automatically sets the lowest resolution.

[BD-ROM 24p Output]

[Auto]: Outputs 1920 × 1080p/24 Hz video signals only when connecting a 1080/24p-compatible TV using the HDMI OUT jack. [On]: Turns on the function. [Off]: Select this when your TV is not compatible with 1080/24p video signals.

[DVD-ROM 24p Output]

[Auto]: Outputs 1920 × 1080p/24 Hz video signals only when connecting a 1080/24p-compatible TV using the HDMI OUT jack. [Off]: Select this when your TV is not compatible with 1080/24p video signals.

■[YCbCr/RGB (HDMI)]

[Auto]: Automatically detects the connected TV type, and switches to the matching color setting. [YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video signals. [YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video signals. [RGB]: Outputs RGB video signals.

■[HDMI Deep Color Output]

[Auto]: Normally select this. [16bit]/[12bit]/[10bit]: Outputs 16bit/12bit/10bit video signals when the connected TV is compatible with Deep Color. [Off]: Select this when the picture is unstable or colors appear unnatural.

■[Pause Mode]

[Auto]: Normally select this. Dynamic moving pictures appear without blurring. [Frame]: Displays static pictures at high resolution.

[Audio Settings]

■[Audio (HDMI)]

[Auto]: Normally select this. Outputs audio signals according to the status of the connected HDMI device. [PCM]: Outputs PCM signals from the HDMI OUT jack.

■[BD Audio MIX Setting]

[On]: Outputs the audio obtained by mixing the interactive and secondary audio to the primary audio. [Off]: Outputs the primary audio only. Select this to output HD audio signals to an AV amplifier (receiver).

■[Dolby Digital / DTS]

[Downmix PCM]: Converts to output Linear PCM signals. Select this when connecting an audio device without a built-in Dolby Digital or DTS decoder. [Bitstream]: Select this when connecting an audio device with a built-in Dolby Digital or DTS decoder.

■[DTS Neo:6]

[Cinema]/[Music]: Outputs the simulated multi-channel sound from 2 channel sources via the HDMI OUT jack according to the capability of the connected device using DTS Neo:6 Cinema or DTS Neo:6 Music mode. [Off]: Outputs the sound with its original number of channels via the HDMI OUT jack.

■[Audio DRC]

[Auto]: Performs playback at the dynamic range specified by the disc (BD-ROM only). Other discs are played back at the [On] level.

[On]: Performs playback at a standard compression level.

[Off]: No compression works. A more dynamic sound is produced.

[Downmix]

[Surround]: Outputs audio signals with surround effects. Select this when connecting an audio device that supports Dolby Surround (Pro Logic) or DTS Neo:6.

[Stereo]: Outputs audio signals without surround effects. Select this when connecting an audio device that does not support Dolby Surround (Pro Logic) or DTS Neo:6.

[BD/DVD Viewing

Settings]

■[BD/DVD Menu Language]

Selects the default menu language for BD-ROMs or DVD VIDEOS.

Select [Select Language Code], and enter the code for your language, referring to “Language code list” (page 31).

■[Audio Language]

Selects the default track language for BD-ROMs or DVD VIDEOS.

When you select [Original], the language given priority in the disc is selected.

Select [Select Language Code], and enter the code for your language, referring to “Language code list” (page 31).

■[Subtitle Language]

Selects the default subtitle language for BD-ROMs or DVD VIDEOS.

Select [Select Language Code], and enter the code for your language, referring to “Language code list” (page 31).

■[BD Hybrid Disc Playback Layer]

[BD]: Plays BD layer.

[DVD/CD]: Plays DVD or CD layer.

■[BD Internet Connection]

[Allow]: Normally select this.

[Do not allow]: Prohibits Internet connection.

[Parental Control

Settings]

■[Password]

Sets or changes the password for the Parental Control function. A password allows you to set a restriction on BD-ROM or DVD VIDEO, and Internet video playback. If necessary, you can differentiate the restriction levels for BD-ROMs, DVD VIDEOs, and Internet videos.

[Parental Control Area Code]

Playback of some BD-ROMs, DVD VIDEOs, or Internet videos can be limited according to the geographic area. Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

[BD Parental Control] / [DVD Parental Control] / [Internet Video Parental Control]

By setting Parental Control, scenes can be blocked or replaced with different scenes.

Follow the on-screen instructions and enter your four-digit password.

[Internet Video Unrated]

[Allow]: Allows the playback of unrated Internet videos.

[Block]: Blocks the playback of unrated Internet videos.

[System Settings]

[OSD Language]

Selects on-screen display language for your player.

[Control for HDMI]

[On]: The following BRAVIA Sync features are available:

- One-Touch Play

- System Power-Off

– Language Follow

[Off]: Turns off the function.

For details, refer to the instruction manual supplied with the TV or components.

■[HDMI: Linked to TV-off]

[On]: Automatically turns off the player and HDMI-compatible components when the connected TV enters standby mode (BRAVIA Sync).

[Off]: Turns off the function.

■[Quick Start Mode]

[On]: Shortens the startup time when turning on the player.

[Off]: Reduces standby power consumption.

■[Auto Display]

[On]: Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc.

[Off]: Displays information only when you press DISPLAY.

■[Screen Saver]

[On]: Turns on the screen saver function. The screen saver image appears when you do not use the player for more than 10 minutes while an on-screen display is displayed.

[Off]: Turns off the function.

[Software Update Notification]

[On]: Sets the player to inform you of newer software version information (page 20).

[Off]: Turns off the function.

[System Information]

Displays the player's software version information and the MAC address.

[Software License Information]

Displays information about the Software License.

[Network Settings]

[Internet Settings]

Connect the player to the network beforehand. For details, see "Step 3: Preparing for Network Connection" (page 14).

[Wired Setup]: Select this when you connect to a broadband router using a LAN cable.

[View Network Status]: Displays the current network status.

For further details, visit the following website and check the FAQ contents: http://www.sony.com/bluraysupport/

[Network Connection Diagnostics]

Checks for the proper network connection by running the network diagnostics.

[Easy Setup]

■[Easy Initial Settings]

Select [Easy Initial Settings] to specify the basic settings. Follow the on-screen instructions.

■[Easy Network Settings]

Select [Easy Network Settings] to specify the network settings. Follow the on-screen instructions.

[Resetting]

■[Reset to Factory Default Settings]

You can reset the player settings to the factory default by selecting the group of settings. All the settings within the group will be reset.

■[Initialize Personal Information]

You can erase your personal information stored in the player.

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.


There is no picture or the picture is not output correctly.

→Check that all the connecting cables are securely connected (page 12). →Switch the input selector on your TV to display the signal from the player. →Reset the video output resolution to the lowest resolution by pressing ■ on the player for more than 10 seconds. →For HDMI connections, try the following: ①Turn the player off and on again. ②Turn the connected equipment off and on again. ③Disconnect and then reconnect the HDMI cable. →The HDMI OUT jack is connected to a DVI device that does not support copyright protection technology. →For HDMI connections, check the [Output Video Format] settings in the [Screen Settings] setup (page 20). →When the analogue signals are also output, set [BD-ROM 24p Output] or [DVD-ROM 24p Output] to [Off] in the [Screen Settings] setup (page 21).

→For BD-ROMs, check the [BD-ROM 24p Output] or [DVD-ROM 24p Output] setting in the [Screen Settings] setup (page 21).

The display language on the screen switches automatically when connected to the HDMI OUT jack.

→When [Control for HDMI] is set to [On] (page 23), the display language on the screen automatically switches according to the language setting of the connected TV (if you change the setting on your TV, etc.).

Sound

There is no sound or the sound is not output correctly.

→Check that all the connecting cables are securely connected (page 12). →Switch the input selector on your AV amplifier (receiver) so that the audio signals of the player are output from your AV amplifier (receiver). →If the audio signal does not come through the DIGITAL OUT (COAXIAL)/HDMI OUT jack, check the audio settings (page 21). →For HDMI connections, try the following: ①Turn the player off and on again. ②Turn the connected equipment off and on again. ③Disconnect and then reconnect the HDMI cable. →For HDMI connections, if the player is connected to a TV through an AV amplifier (receiver), try connecting the HDMI cable directly to the TV. Refer also to the instruction manual supplied with the AV amplifier (receiver).

→The HDMI OUT jack is connected to a DVI device (DVI jacks do not accept audio signals). →The device connected to the HDMI OUT jack does not support the audio format of the player. Check the audio settings (page 21).

The HD Audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio, and DTS-HD Master Audio) is not output by bitstream.

→Set [BD Audio MIX Setting] to [Off] in the [Audio Settings] setup (page 21). →Check that the connected AV amplifier (receiver) is compatible with each HD Audio format.

The interactive audio is not output.

→Set [BD Audio MIX Setting] to [On] in the [Audio Settings] setup (page 21).

Disc

The disc does not play.

→The disc is dirty or skewed. →The disc is upside down. Insert the disc with the playback side facing down. →The disc has a format that cannot be played back by this player (page 29). →The player cannot play a recorded disc that is not correctly finalized. →The region code on the BD or DVD does not match the player.

USB device

The player does not detect a USB device connected to the player.

→Make sure that the USB device is securely connected to the USB jack. →Check if the USB device or a cable is damaged. →Check if the USB device is on. →If the USB device is connected via a USB hub, connect the USB device directly to the player.

Sony Entertainment Network

The picture/sound is poor/certain programs display a loss of detail, especially during fast-motion or dark scenes.

→Picture/sound quality may be improved by changing the connection speed. Recommended connection speed is of at least 2.5 Mbps for standard definition video (10 Mbps for high definition video).

The picture is small.

→Press ↑ to zoom in.

Network connection

The player cannot connect to the network.

→Check the network connection (page 14) and the network settings (page 24).

The message [A new software version is available. Please go to the “Setup” section of the menu and select “Network update” to perform the update.] appears on the screen when turning the player on.

→See [Network Update] (page 20) to update the player to a newer software version.

Control for HDMI (BRAVIA Sync)

The [Control for HDMI] function does not work (BRAVIA Sync).

→Check that [Control for HDMI] is set to [On] (page 23). →If you change the HDMI connection, turn the player off and on again. →If power failure occurs, set [Control for HDMI] to [Off], then set [Control for HDMI] to [On] (page 23). →Check the following and refer to the instruction manual supplied with the component.

– the connected component is compatible with the [Control for HDMI] function.

- the connected component's setting for the [Control for HDMI] function is correct.

→When you connect the player to a TV through an AV amplifier (receiver),

- if the AV amplifier (receiver) is not compatible with the [Control for HDMI] function, you may be unable to control the TV from the player.

- if you change the HDMI connection, disconnect and reconnect the AC power cord, or a power failure occurs, try the following: ①Switch the input

selector of the AV amplifier (receiver) so that the picture from the player appears on the TV screen. ②Set [Control for HDMI] to [Off], then set [Control for HDMI] to [On] (page 23). Refer to the instruction manual supplied with the AV amplifier (receiver).

The System Power-Off function does not work (BRAVIA Sync).

→Check that [Control for HDMI] and [HDMI: Linked to TV-off] are set to [On] (page 23).

Others

Playback does not start from the beginning of content.

→Press OPTIONS, and select [Play from beginning].

Playback does not start from the resume point where you last stopped playing.

→The resume point may be cleared from memory depending on the disc when

• you open the disc tray. – you disconnect the USB device. – you play other content.
• you turn off the player.

The disc tray does not open and you cannot remove the disc even after you press ▲.

→ Try the following: ①Turn the player off, and disconnect the AC power cord. ②Reconnect the AC power cord while pressing down ▲ on the player. ③Keep pressing down ▲ on the player until the tray opens. ④Remove the disc. ⑤Hold down ⏻/⏻ on the player for more than 10 seconds until the player turns off.

The player does not respond to any button.

→Moisture has condensed inside the player (page 4). → Hold down ⏻/⏻ on the player for more than 10 seconds until the player turns off. If the player still does not respond to any button, disconnect then reconnect the AC power cord.

Specifications

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load impedance)

LINE OUT R-AUDIO-L:

Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LINE OUT VIDEO:

Phono jack/1.0 Vp-p/75 ohms

LAN (100):

100BASE-TX Terminal

USB:

USB jack Type A, maximum current 500 mA (For connecting USB device)

General

Power requirements:

110 V - 240 V AC, 50/60 Hz

See page 3 for further information.

Power consumption: 10 W

Dimensions (approx.):

290 mm × 196 mm × 43 mm

(11 1/2 in. × 7 3/4 in. × 1 3/4 in.)

(width/depth/height)

incl. projecting parts

Mass (approx.): 1.1 kg (2 lb 6 3/4 oz)

Operating temperature:

5°C to 35°C (41°F to 95°F)

Operating humidity:

25% to 80%

Supplied accessories

See page 11.

Specifications and design are subject to change without notice.

Playable discs

Blu-rayDisc*1	BD-ROMBD-R*2/BD-RE*2
DVD*3	DVD-ROMDVD-R/DVD-RWDVD+R/DVD+RW
CD*3	CD-DA (Music CD)CD-ROMCD-R/CD-RW

*1 Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version. The audio output differs depending on the source, connected output jack, and selected audio settings. *2 BD-RE: Ver.2.1 BD-R: Ver.1.1, 1.2, 1.3 including organic pigment type BD-R (LTH type)

The BD-Rs recorded on a PC cannot be played if postscripts are recordable.

*3 A CD or DVD disc will not play if it has not been correctly finalized. For more information, refer to the instruction manual supplied with the recording device.

Discs that cannot be played

• BDs with cartridge • BDXLs
• DVD-RAMs
• HD DVDs
• DVD Audio discs • PHOTO CDs • Data part of CD-Extras
• Super VCDs

• Audio material side on DualDiscs

- A disc recorded in a color system other than NTSC, such as PAL (this player conforms to the NTSC color system).

Note on Discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

Note on playback operations of BDs/DVDs

Some playback operations of BDs/DVDs may be intentionally set by software producers. Since this player plays BDs/DVDs according to the disc contents the software producers designed, some playback features may not be available.

Note about double-layer BDs/DVDs

The playback pictures and sound may be momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD VIDEO only)

Your player has a region code printed on the rear of the unit and will only play BD-ROMs/DVD VIDEOs labeled with

identical region codes or

Region code

playable types of files

Video

File format Extensions
MPEG-1 Video/PS*1	“.mpg,”“.mpeg,”
MPEG-2 Video/PS, TS*1	“.m2ts,”“.mts”
MPEG-4 AVC*1	“.mkv,”“.mp4,”
	“.m4v,”“.m2ts,”
	“.mts”
WMV9*1	“.wmv,”“.asf”
AVCHD*2 *3
Xvid “.avi”

Music

File format Extensions
MP3 (MPEG-1 Audio Layer III)	“.mp3”
AAC/HE-AAC*1*4	“.m4a”
WMA9 Standard*1*4	“.wma”
LPCM “.wav”


File format Extensions

JPEG “.jpg,” “.jpeg”
PNG “.png	*5,,
GIF “.gif	*5,,

*1 The player does not play coded files such as DRM. *2 This player can play AVCHD Ver.2.0 format. *3 The player plays AVCHD format files that are recorded on a digital video camera, etc. The AVCHD format disc will not play if it has not been correctly finalized. *4 The player does not play coded files such as Lossless. *5 The player does not play animated PNG or animated GIF files.

• Some files may not play depending on the format, the encoding, or recording condition.
• Some files edited on a PC may not play.
• The player can recognize the following files or folders in BDs, DVDs, CDs and USB devices:
• up to folders in the 9th layer, including the root folder
• up to 500 files/folders in a single layer
• Some USB devices may not work with this player.
• The player can recognize Mass Storage Class (MSC) devices, Still Image Capture Device (SICD) class devices, and 101-key keyboards.
• To avoid data corruption or damage to the USB memory or devices, turn off the player when connecting or removing the USB memory or devices.
• The player may not play high bit rate video files on DATA CDs smoothly. You are recommended to play such files using DATA DVDs or DATA BDs.

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case.
• Clean the disc with a cleaning cloth. Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.
• If you have printed the disc's label, dry the label before playing.
• Do not use the following discs.

- A lens cleaning disc.

- A disc that has a non-standard shape (e.g., card, heart).

- A disc with a label or sticker on it.

– A disc that has cellophane tape or sticker adhesive on it.

- Do not resurface the playing side of a disc to remove surface scratches.

Code numbers of controllable TVs

While holding down -TV- I/⏻, enter the TV manufacturer's code using the number buttons.

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

Sony 01 (default)
Hitachi 02
LG/Goldstar 04
Mitsubishi/MGA 13
NEC 04
Panasonic 19
Philips 21
Pioneer 16
RCA 10
Samsung 20
Sharp 18
Toshiba 07

Language code list

For details, see [BD/DVD Viewing Settings] (page 22).

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language

1027 Afar	1028 Abkhazian
1032 Afrikaans	1039 Amharic
1044 Arabic	1045 Assamese
1051 Aymara	1052 Azerbaijani
1053 Bashkir	1057 Byelorussian
1059 Bulgarian	1060 Bihari
1061 Bislama	1066 Bengali
1067 Tibetan	1070 Breton
1079 Catalan	1093 Corsican
1097 Czech	1103 Welsh
1105 Danish	1109 German
1130 Bhutani; Dzongkha	1142 Greek
1144 English 1145 Esperanto
1149 Spanish	1150 Estonian
1151 Basque	1157 Persian
1165 Finnish	1166 Fiji
1171 Faroese	1174 French
1181 Frisian	1183 Irish
1186 Scots Gaelic	1194 Galician
1196 Guarani	1203 Gujarati
1209 Hausa	1217 Hindi
1226 Croatian	1229 Hungarian
1233 Armenian	1235 Interlingua
1239 Interlingue	1245 Inupiak
1248 Indonesian	1253 Icelandic
1254 Italian	1257 Hebrew
1261 Japanese	1269 Yiddish
1283 Javanese	1287 Georgian
1297 Kazakh	1298 Greenlandic; Kalaallisut
1299 Cambodian; Khmer	1300 Kannada
1301 Korean	1305 Kashmiri
1307 Kurdish	1311 Kirghiz
1313 Latin 1326 Lingala
1327 Laothian; Lao	1332 Lithuanian
1334 Latvian	1345 Malagasy
1347 Maori	1349 Macedonian
1350 Malayalam	1352 Mongolian
1353 Moldavian	1356 Marathi

Code Language

1357 Malay 1358 Malese;Maltese
1363 Burmese 1365 Nauru
1369 Nepali 1376 Dutch
1379 Norwegian 1393 Occitan
1403 Oromo 1408 Oriya
1417 Punjabi; Panjabi	1428 Polish
1435 Pashto; Pushto	1436 Portuguese
1463 Quechua 1481 Rhaeto-Romance
1482 Kirundi; Rundi 1483 Romanian
1489 Russian 1491 Kinyarwanda
1495 Sanskrit 1498 Sindhi
1501 Sangho; Sango	1502 Serbo-Croatian
1503 Singhalese; Sinhalese	1505 Slovak
1506 Slovenian 1507 Samoan
1508 Shona 1509 Somali
1511 Albanian 1512 Serbian
1513 Siswati; Swati 1514 Sesotho; Sotho southern
1515 Sundanese 1516 Swedish
1517 Swahili 1521 Tamil
1525 Telugu 1527 Tajik
1528 Thai 1529 Tigrinya
1531 Turkmen	1532 Tagalog
1534 Setswana; Tswana	1535 Tonga; Tonga islands
1538 Turkish	1539 Tsonga
1540 Tatar	1543 Twi
1557 Ukrainian	1564 Urdu
1572 Uzbek 1581 Vietnamese
1587 Volapük 1613 Wolof
1632 Xhosa 1665 Yoruba
1684 Chinese	1697 Zulu
1703 Not specified

Parental control/area code

For details, see [Parental Control Area Code] (page 22).

Code Area

2044 Argentina	2047 Australia
2046 Austria	2057 Belgium
2070 Brazil	2090 Chile
2092 China	2093 Colombia
2115 Denmark 2165 Finland
2174 France	2109 Germany
2200 Greece	2219 Hong Kong
2248 India	2238 Indonesia
2239 Ireland 2254 Italy
2276 Japan	2304 Korea
2333 Luxembourg 2363 Malaysia
2362 Mexico 2376 Netherlands
2390 New Zealand	2379 Norway
2427 Pakistan	2424 Philippines
2428 Poland	2436 Portugal
2489 Russia 2501 Singapore
2149 Spain	2499 Sweden
2086 Switzerland	2543 Taiwan
2528 Thailand	2184 United Kingdom

The software of this player may be updated in the future. For information about any available updates and the latest Operating Instructions, please visit the following website:

http://www.sony.com/bluraysupport/

BD LIVE™

AVCHD™

HDMI

COMPACT disc DIGITAL AUDIO

http://www.sony.net/

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.

4-410-136-71(1)
