Product Type	Freestanding Washing Machine
Model	DWFT 510AH/1-S
Brand	Hoover
Capacity	10 kg
Spin Speed	1400 rpm
Energy Class	A+++ (Likely)
Noise Level (Wash/Spin)	Approx. 53 dB / 75 dB
Dimensions (H x W x D)	85 cm x 60 cm x 54 cm (Approx.)
Weight	70 kg (Approx.)
Power Supply	220-240 V, 50 Hz, 10 A
Number of Programs	15+ (including Cotton, Synthetics, Delicates, Quick Wash, Wool, etc.)
Display	LED Digital Display
Control Type	Electronic with Dial and touch buttons
Water Consumption	Approx. 50 L per cycle
Annual Energy Consumption	Approx. 200 kWh
Safety Features	Child Lock, Overflow Protection, Unbalanced Load Detection, Anti-foam System
Maintenance	Clean detergent drawer and drum regularly; clean filter every 30 cycles
Spare Parts Availability	Compliant with EU Right to Repair, parts available for 10 years
Special Features	Steam function, Time Manager, Rapid Wash 30 min

Frequently Asked Questions - DWFT 510AH/1-S HOOVER

What is the maximum capacity of the Hoover DWFT 510AH/1-S?

The Hoover DWFT 510AH/1-S has a maximum capacity of 10 kg, suitable for large families.

What is the spin speed of this washing machine?

It offers a maximum spin speed of 1400 rpm, which helps reduce drying time.

Does it have a child lock feature?

Yes, the machine includes a child lock to prevent accidental operation during the cycle.

How do I clean the drum?

Run a drum clean cycle (if available) with a washing machine cleaner or use a hot water cycle with vinegar. Refer to the manual for details.

What are the dimensions of the appliance?

Approximate dimensions are 85 cm (height), 60 cm (width), and 54 cm (depth). Ensure proper installation space.

Can I wash delicate fabrics?

Yes, there is a Delicates program designed for gentle washing of lingerie, silk, and other fine fabrics.

How often should I clean the filter?

Clean the drain filter every 30 cycles to prevent clogs and ensure proper drainage.

What should I do if the machine displays an error code?

Refer to the user manual for the specific error code. Common codes like E01 indicate water supply issues; check the hose and tap.

Is a quick wash cycle available?

Yes, the Quick Wash program cleans lightly soiled clothes in about 30 minutes at a reduced capacity.

How do I install the washing machine?

Remove transport bolts, level the feet, connect water inlet and drain hoses, and plug into a 220-240V socket. See manual for full instructions.

USER MANUAL DWFT 510AH/1-S HOOVER

Level the appliance using the feet as illustrated in figure 8:

WARNING:

3. PRACTICAL TIPS

Filling tips

Cleaning the drawer

A Touch control (with ON/OFF button) B START/PAUSE button C SPIN SPEED button D TEMPERATURE SELECTION button E DELAYED START button F WASH TIME button G PREWASH button H HYGIENE PLUS button I EXTRA RINSE button L IRON FREE button M FAVORITES button N NIGHT AND DAY button O Digital display P DOOR SAFETY indicator light E+N KEY LOCK

WARNING:

1) ON/OFF button

3. PRACTICAL TIPS

Tips on laundry load

Cleaning the drawer

A Touch control (with ON/OFF button) B START/PAUSE button C SPIN SPEED button D TEMPERATURE SELECTION button E DELAYED START button F WASH TIME button G PREWASH button H HYGIENE PLUS button I EXTRA RINSE button L IRON FREE button M FAVORITES button N NIGHT AND DAY button O Digital display P DOOR SAFETY indicator light E+N KEY LOCK

WARNING:

1) ON/OFF button

DELAY START button

Read the following:

3. PRACTICAL TIPS

Filling tips

1) ON/OFF button

C

Hydraulic couplings

WARNING:

● compartment "2": for detergent.

WARNING:

Cleaning the drawer

A Control panel (with ON/OFF button) B START/PAUSE button C SPIN SPEED button D TEMPERATURE SELECTION button E DELAY START button F WASH TIME button G PREWASH button H HYGIENE PLUS button I EXTRA RINSE button L EASY IRON button M FAVORITES button N DAY AND NIGHT button O Digital display P DOOR SAFETY indicator light E+N KEY LOCK

WARNING:

1) ON/OFF button

Hold the ON/OFF button for at least 1 second to turn on the machine.

When the machine is turned on, the corresponding indicator light turns on. In addition, "X red light" is displayed while waiting for a wash program selection. If a wash program is not selected within 30 seconds, the machine will automatically turn off. Until a program is selected, the display does not light up.

2) PROGRAM SELECTION buttons

3) BUTTON SELECTION indicators

Read these notes carefully:

Thank you for choosing a Hoover washing machine. We are proud to always offer new, innovative and technologically advanced products, with a complete range of home appliances to ensure true assistance in your daily routine.

We suggest you register your product at www.registerhoover.com to gain faster access to supplementary services solely reserved to our most loyal customers.

Carefully read this manual for correct and safe appliance use and for helpful tips of efficient maintenance.

Only use the washing machine after carefully reading these instructions. We recommend you always keep this manual on hand and in good condition for any future owners.

Please check that the appliance is delivered with this instruction manual, warranty certificate, service centre address and energy efficiency label. Also check that plugs, drain hose support hook and liquid detergent or bleach tray (only on some models) are included. We recommend you keep all these components.

Each product is identified by a unique 16-character code, also called the "serial number", printed on the sticker. This can be found inside the door opening. This code is a unique code for your product that you will need to register the product warranty, or if you need to contact the Customer Service Centre.

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

● WEEE should not be treated as household waste; ● WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Contents

1. GENERAL SAFETY RULES
2. INSTALLATION
3. PRACTICAL TIPS
4. MAINTENANCE AND CLEANING
5. QUICK USER GUIDE
6. CONTROLS AND PROGRAMS
7. TROUBLESHOOTING AND WARRANTY

1. GENERAL SAFETY RULES

• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance. ● Children of less than 3 years should be kept away unless continuously supervised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets). ● Water pressure must be between 0,05 MPa and 0,8 MPa.
• Make sure that a carpet do not obstruct the base of the machine and ventilation openings.
• The OFF condition is reached by placing the reference mark on the programmes control/knob in the vertical position. Any other different position of such control sets the machine in ON condition (only for models with programmes knob).
• After installation, the appliance must be positioned so that the plug is accessible.
• The maximum load capacity of dry clothes depends on the model used (see control panel).
• To consult the product fiche please refer to the manufacturer website.

Safety instructions

• Before cleaning or maintaining the washing machine, unplug the appliance and turn off the water faucet. ● Make sure the electrical system is grounded. Otherwise, seek qualified professional assistance.
• Please do not use converters, multiple sockets or extension cords.

WARNING:

Water may reach very high temperatures during the wash cycle.

• Make sure there is no water in the drum before opening the porthole.
• Do not pull on the power cord or appliance to unplug the machine.
• Do not expose the washing machine to rain, direct sunlight or other weather elements.
• When moving, do not lift the washing machine by the knobs or detergent drawer; during transport, never rest the porthole on the trolley. We recommend two people lift the washing machine.

- In the event of fault and/or malfunction, turn off the washing machine, close the water faucet and do not tamper with the appliance.

Immediately contact the Customer Service Centre and only use original spare parts. Failure to observe these instructions may jeopardise appliance safety.

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

2. INSTALLATION

• Release the power cord and drain hose from the securing clip at the rear of the machine.
• Remove the 2 or 4 transportation screws (A) on the back and remove the 2 or 4 flat washers, rubber bungs and plastic spacer tubes (B) as illustrated in figure 1.
• If the washing machine is built-in, unscrew the 3 or 4 transportation screws (A) and remove the 3 or 4 flat washers, rubber bungs and plastic spacer tubes (B).
• During the removal of the screws occasionally spacer tubes fall inside the product, these can be removed by tilting the product forward and recovering them from the floor or inside the base of the machine.
• Cover the open transportation screw holes with the 2 or 4 plastic caps included in the instruction bag.

WARNING:

keep packaging materials away from children.

- Place the corrugated plastic sheet, found on top of the appliance during the unpacking process, into the base of the appliance as shown in figure 2 (according to the model, consider version A, B or C).

1

C

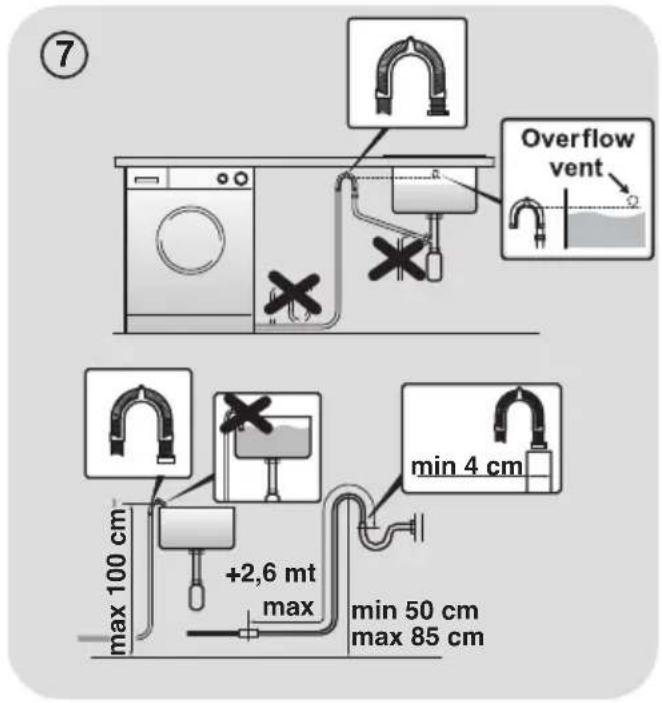

Hydraulic connections

- Connect the water hose to the water supply tap (fig. 3) only using the hose supplied with the appliance (do not reuse old hose-sets).

● Some models may include one or more of the following features:

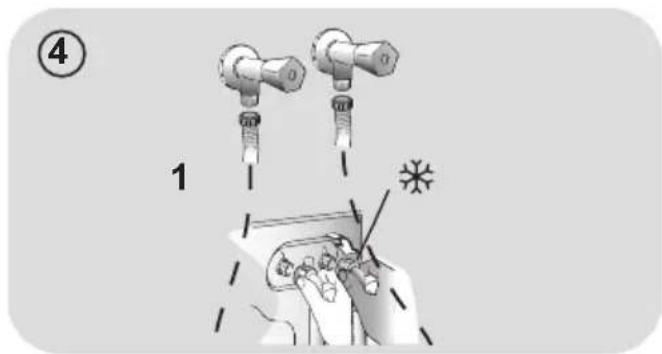

● HOT&COLD (fig. 4):

water mains connection settings with hot and cold water for higher energy savings. Connect the grey tube to the cold water faucet ✝ and the red one to the hot water faucet. The machine can be connected to the cold water faucet only: in this case some programs may start a few minutes later.

● AQUASTOP (fig. 5):

A device located on the supply tube stops water flow if the tube deteriorates. In this case, a red mark will appear in the window "A" and the tube must be replaced. To unscrew the nut, press the one-way lock device "B".

● AQUAPROTECT – SUPPLY TUBE WITH GUARD (fig. 6):

Should water leak from the primary internal tube "A", the transparent containment sheath "B" will contain water to permit the washing cycle to complete. At the end of the cycle, contact the Customer Service Centre to replace the supply tube.

Setting

● Position the washing machine near the wall, being careful that the tube is not bent or crushed, and place the drain tube in the tub or, preferably, connect it to a wall drain at least 50 cm high with diameter greater than the washing machine tube (fig. 7).

● Level the appliance using the feet as illustrated in figure 8:

a. Turn the nut clockwise to release the screw; b. Rotate the foot to raise or lower it until it adheres to the floor; c. Lock the foot, screwing in the nut, until it adheres to the bottom of the washing machine.

- Plug in the appliance.

WARNING:

Contact the Customer Service Centre should the power cord need replacement.

Detergent drawer

The detergent drawer is split into 3 compartments as illustrated in figure 9:

● Compartment "1": for prewash detergent; - Compartment "☐": for special additives, softeners, starch fragrances, etc.;

WARNING:

Only use liquid products; the washing machine is set to automatically dose additives at each cycle during the last rinse.

● compartment "2": for washing detergent.

A liquid detergent cup is also included in some models (fig. 10). To use it, place it in compartment "2". This way, liquid detergent will only enter the drum at the right time. The cup can also be used for bleach when the "Rinse" program is selected.

WARNING:

Some detergents are hard to remove. In this case, we recommend using the specific container to be placed in the drum (example in figure 11).

3. PRACTICAL TIPS

Load tips

WARNING: when sorting laundry, make sure:

• you have eliminated metallic objects such as hooks or clips, pins, coins, from laundry;
• you have buttoned pillow cases, closed zips, tied loose belts and long robe ribbons;
• you have removed rollers, hooks or clips from curtains;
• you have carefully read clothing washing labels;
• you have removed any persistent stains using specific detergents.
• When washing rugs, bedcovers or other heavy clothing, we recommend you avoid the spinning cycle.
• To wash wool, make sure the item can be machine washed and marked by the "Pure virgin wool" symbol with the "Does not mat" or "Machine washable" label.

Helpful suggestions for the user

A guide environmentally friendly and economic use of your appliance.

Maximise The Load Size

• Achieve the best use of energy, water, detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads.

Do you need to pre-wash?

- For heavily soiled laundry only! SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

Is a hot wash required?

• Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme. Save up to 50% energy by using a 60° C wash programme.

Following is a quick guide with tips and recommendations on detergent use at the various temperatures. In any case, always read the instructions on the detergent for correct use and doses.

When washing heavily soiled whites, we recommend using cotton programs of 60° C or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results.

For washes between 40° C and 60° C the type of detergent used needs to be appropriate for the type of fabric and level of soiling.

Normal powders are suitable for "white" or colour fast fabrics with high soiling, while liquid detergents or "colour protecting" powders are suitable for coloured fabrics with light levels of soiling.

For washing at temperatures below 40° C we recommend the use of liquid detergents or detergents specifically labeled as suitable for low temperature washing.

For washing wool or silk, only use detergents specifically formulated for these fabrics.

4. MAINTENANCE AND CLEANING

To clean the washing machine exterior, use a damp cloth, avoiding abrasives, alcohol and/or solvents. To maintain good wash performance, we recommend that the soap drawer and pump filters are regularly cleaned. A monthly service wash, using a proprietary cleaner, is also recommended.

Drawer cleaning

• We recommend you clean the drawer to avoid accumulating detergent and additive residue. ● To do this, extract the drawer using slight force, clean it with running water and reinsert it in its housing. ● Ensure the siphon cap is correctly refitted.

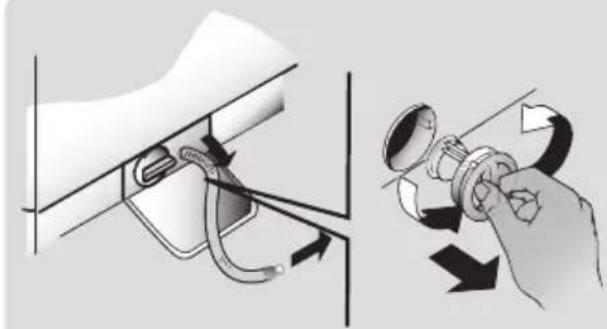

Filter cleaning

● The washing machine comes with a special filter able to trap large residue, such as buttons or coins, which could clog the drain.

- Only available on certain models: pull out the corrugated hose, remove the stopper and drain the water into a container.

● Ensure all the water has been emptied from the drum.

- Before unscrewing the filter, we recommend you place an absorbent cloth under it to keep the floor dry. A small amount of water will come out of the filter as you remove it - this is normal.

- Turn the filter counter-clockwise to the limit stop.

• Remove and clean the filter; when finished, replace it turning it clockwise. The filter handle will be locked when it is not possible to turn any further and the handle is horizontal. Smearing a small amount of liquid soap on the filter seal will help refitting.
• Repeat the previous steps in reverse order to reassemble all parts.

Suggestions for moves or prolonged disuse

● Should the washing machine be stored in an unheated room for a long period of time, drain all water from tubes. ● Unplug the washing machine. - Detach the tube from the drainage system and clip on the rear of the machine and lower it, fully draining water into a bowl. - Secure the drain tube with the drainage system and clip on the rear of the machine when finished. - Keep the door glass and gasket clean.

The manufacturer's warranty only covers faults within the product of mechanical or electrical nature. Faults caused by handling, installation or misuse are not covered and may incur a charge for any repair visit to resolve.

5. QUICK USER GUIDE

This washing machine automatically adjusts the water level to the type and quantity of laundry. This system reduces energy consumption and saves washing time.

Program selection

● Turn on the washing machine and select the required program. - Adjust the washing temperature if necessary and press the required "option" buttons. - Press the START/PAUSE button to start washing.

If the power goes out while the washing machine is running, a special memory saves the settings and, when power returns, the machine resumes the cycle from where it left off.

- At the end of the programme, the message "End" will appear on the display or, on some models, all wash stage indicator lights will turn on.

Wait until the door locked light turns off: about 2 minutes after the program ends.

● Turn off the washing machine.

For any type of wash, see the program table and follow the operating sequence as indicated.

Technical data

Water pressure:

min 0.05 Mpa / max 0.8 Mpa (0.05 MPa dispenses approximately 1 litre of water in 10 seconds)

Power input / Power current fuse amp / Supply voltage: See rating plate.

6. CONTROLS AND PROGRAMS

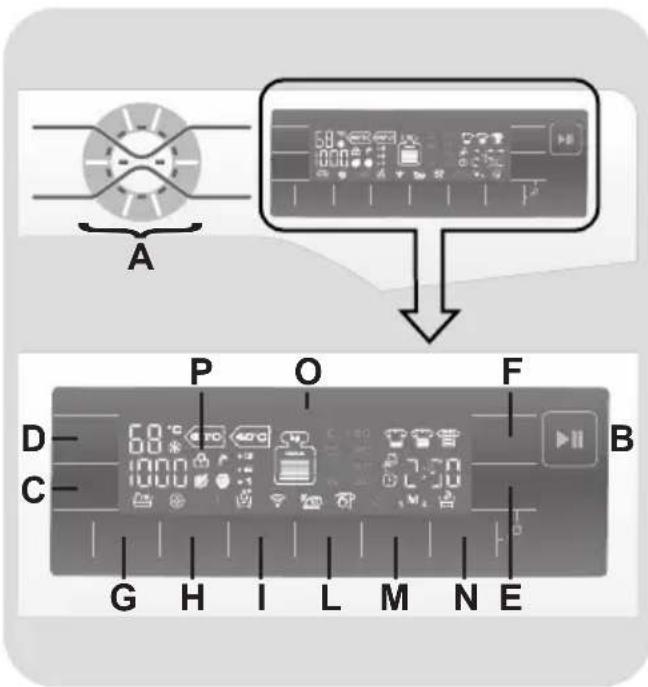

A Touch Control (with ON/OFF button) B START/PAUSE button C SPIN SPEED button D TEMPERATURE SELECTION button E DELAY START button F WASH TIME button G PREWASH button H HYGIENE PLUS button I EXTRA RINSE button L EASY IRON button M FAVOURITES button N NIGHT & DAY button O Digital display P DOOR LOCKED indicator light E+N KEY LOCK

WARNING:

Don't touch the display (and the Touch Control) while inserting the plug because the machine calibrates the systems during the first seconds: touching the display, the machine couldn't work properly. In this case, remove the plug and repeat the operation.

Opening the door

A special safety device prevents the door from being opened immediately after the end of the cycle.

Wait for 2 minutes after the wash cycle has finished and the "Door Security" light has gone out before opening the door.

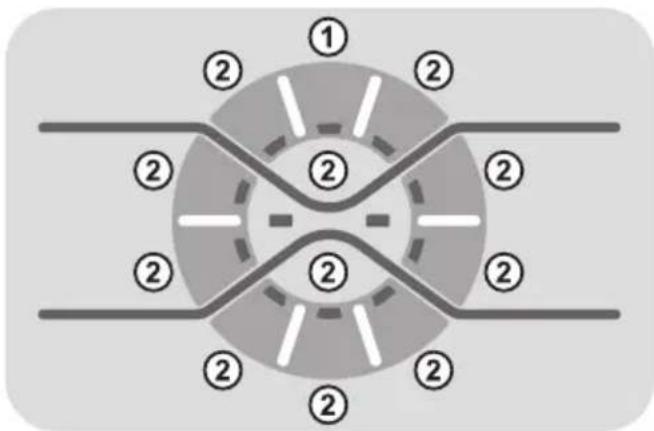

Touch Control

1) ON/OFF button

Press for at least 1 second the ON/OFF button to turn on the appliance.

Switching on, the related indicator will light on, as well as the "X Red Light", waiting for the selection of a washing program.

If a program is not selected within 30 seconds, the appliance will automatically turn off.

Waiting for the selection of the program the display is off.

2) PROGRAM SELECTION button

Turning on the appliance is also possible by pushing for at least one second the button of a selected program (the display will light up, showing the parameters of the selected cycle).

To set another program, press the related button (the corresponding indicator light will light up).

To switch off the appliance, press the ON/OFF button (for at least 3 seconds).

3) BUTTON SELECTION indicators

They light up at the touch of the related button.

4) "X Red Light"

It lights up at the pressing of any button of the Touch Control, with a diffused lighting fading to the edges.

It gradually turns off within 5 minutes since the last touch of a button, in order to save energy.

START/PAUSE button

Close the door BEFORE selecting the button START/PAUSE.

- Press to start the selected cycle.

When the START/PAUSE button has been pressed, the appliance can take few seconds before it starts working.

ADD OR REMOVE ITEMS AFTER THE PROGRAMMES HAS STARTED (PAUSE)

• Press and hold the START/PAUSE button for about 2 seconds (some indicator light and the time remaining indicator will flash, showing that the machine has been paused).
• Wait 2 minutes until the safety device unlocks the door. ● After you have added or removed items, close the door and press the START/PAUSE button (the programme will start from where it left off).

CANCELLING THE PROGRAMME

- To cancel the programme, press the ON/OFF button (for at least 3 seconds).

The option buttons should be selected before pressing the START/PAUSE button.

If an option is selected that is not compatible with the selected programme, the option indicator first flashes and then goes off.

SPIN SPEED button

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.

Spin speed cancelled.

To reactivate the spin cycle, press the button until you reach the spin speed you would like to set.

To prevent damage to the fabrics, it is not possible to increase the speed over that which is automatically suitable during the selection of the programme.

It is possible to modify the spin speed without pausing the machine.

The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced.

This reduces the noise and vibration in the machine and so prolongs the life of your machine.

TEMPERATURE SELECTION button

This button allows you to change the temperature of the wash cycles.

Cold wash.

It is not possible to raise the temperature over the maximum allowed for every programme, in order to save the fabrics.

DELAY START button

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours.

- To delay the start use the following procedure:

- Set the required programme.

- Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display). The pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

- Confirm by pressing the START/PAUSE button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.

- It is possible to cancel the delay start by pressing the ON/OFF button (for at least 3 seconds).

If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

WASH TIME button

- By selecting this button there is a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled (can be used only on some programmes as shown in the table of programmes).

- Once the programme has been selected the indicator light will automatically show the wash time set for that programme.

- Selecting a different wash time the relevant indicator will light up.

PREWASH button

• This option allows you to make a prewash and it is particularly useful for heavily soiled loads (can be used only on some programmes as shown in the table of programmes).
• We recommend you use only 20% of the recommended quantities shown on the detergent pack.

HYGIENE PLUS button

With this option it is possible to hygienize the clothes, the washing programme reaches a temperature of 60°C.

EXTRA RINSE button

• This button allows you to add rinses at the end of the washing cycle. The maximum number of extra rinses is related to the programme selected. ● This function has been studied for people with delicate and sensitive skin, for whom even the least residue of detergent can cause irritations or allergies.
• It is advisable to also use this function for children's items and in case of washing very dirty items, for which a lot of detergent is needed, or when washing toweling items whose fibres tend to hold the detergent.

EASY IRON button

This function allows you to minimize creases as much as possible, eliminating the intermediate spins or reducing the intensity of the last one.

FAVOURITES button

This function allows you to save the settings of your two favourite personalised programmes, including the temperature, spin speed and soil level, so you can recall them quickly.

How to memorize a programme for the first time:

1) Select the programme and the options you want. 2) Press the FAVOURITES button, choosing either M1 or M2. You should choose M1 if this is the first programme you have saved. 3) Keep your finger on the FAVOURITES button for about 3 seconds to save the combination in the chosen position.

Memorize a new programme when M1 & M2 already have programmes saved:

1) Set the programme and the options you want. 2) Press the FAVOURITES button for about 3 seconds to save the combination in the position M1. The pre-existing saved programme in M1 will move to the position M2.

Start a program that is already memorized

• Press briefly the FAVOURITES button (once for M1, twice for M2) and press the START/PAUSE button.
• Once you recall a memorized program, you can still change its options and settings by pressing the corresponding keys. In this case, the added options won't be memorized.

If you accidentally select a memorized program, simply turn the program knob to select another one.

NIGHT & DAY button

● This option reduces the intermediate spin speed to 400 rpm, where applicable, increases the water level during rinsing, and keeps the laundry immersed in water after the final rinse to spread the fibers perfectly. ● During the phase when water is held in the tub, the relevant indicator light blinks to show that the machine is at a standstill. - Deselect the option to end the cycle with a spin dry (which may be reduced or cancelled using the appropriate button) and the emptying phase. ● Thanks to electronic control, the water in the intermediate phases is emptied silently, making this option very useful for washing at night.

KEY LOCK

• Pressing the NIGHT & DAY and DELAY START buttons simultaneously for about 3 seconds locks the keys. This prevents accidental or unwanted changes if a button on the display is pressed accidentally during a cycle. ● The key lock can be cancelled by pressing the two buttons simultaneously again or by pressing the ON/OFF button (for at least 3 seconds).

Digital Display

The display's indicator system keeps you constantly informed about the status of the machine.

1) DOOR LOCKED INDICATOR LIGHT

● The indicator light is illuminated when the door is fully closed.

Close the door BEFORE selecting the START/PAUSE button.

- When START/PAUSE is pressed on the machine with the door closed, the indicator will flash momentarily and then illuminate.

If the door is not properly closed, the light will continue to flash for about 7 seconds, after which the start command will be automatically deleted. In this case, close the door properly and press the START/PAUSE button.

● A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the DOOR LOCKED light has gone out before opening the door. At the end of the cycle, press the ON/OFF button (for at least 3 seconds).

2) SPIN SPEED

This shows the spin speed of the selected programme, which can be changed or omitted using the relevant button.

Spin speed cancelled.

3) WASH TEMPERATURE

This shows the washing temperature of the selected programme, which can be changed (where allowed) by the relevant button.

Cold wash.

4) CYCLE DURATION

- When a programme is selected, the display automatically shows the cycle duration, which can vary depending on the options selected.

- Once the programme has started, you will be kept informed constantly of the time remaining to the end of the wash.

● The appliance calculates the time to the end of the selected programme based upon a standard loading. During the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

5) WASH TIME

- Once the programme has been selected, the indicator light will automatically show the wash time set for that programme.

- Selecting a different wash time will light up the relevant indicator.

6) EXTRA RINSES

The indicator lights show the extra rinses selected by the relevant button.

7) OPTIONS

The indicator lights show the options that can be selected by the relevant buttons.

8) Wi-Fi (some models only)

• In the models with the Wi-Fi option, the icon indicates that the Wi-Fi system is working.
• For all the information about the functionality and the instructions for an easy configuration of the Wi-Fi, please refer to the "Download" section on http://wizardservice.candy-hoover.com.

9) DELAY START

This flashes when delay start has been set.

10) Kg MODE (function active only on Cotton and Synthetics programmes)

• For the programmes where the "Kg MODE" function is active, the appliance in the first minutes it calculates the real laundry loaded, updating the levels on the display in real time. Every levels shown on the display is the 20% of the maximum loading capacity. When a programme is selected the maximum capacity suggested is shown on the display.

- Through every wash phase "Kg MODE" allows to monitor information on the wash load in the drum and in the first minutes of the wash it:

• adjusts the amount of water required;
• determines the length of the wash cycle;
• controls rinsing according to the type of fabric selected to be washed it;
• adjusts the rhythm of drum rotation for the type of fabric being washed;
• recognizes the presence of lather, increasing, if necessary, the amount of water during rinsing;

- adjusts the spin speed according to the load, thus avoiding any imbalance.

11) FAVOURITES

The indicator light show that the memory function is working.

12) KEY LOCK

The indicator light shows that the keys are locked.

13) TAP CLOSED

Indicates that the machine is unable to load water: it is suggested to turn off the machine, check that the tap is open and that the water pressure is not particularly low.

14) FILTER BLOCKED

Indicates that the machine is not able to drain water: it is suggested to turn off the machine, check that the filter is not clogged or that the drain hose is not kinked or crushed.

15) STANDARD COTTON PROGRAMMES LIGHTS (see table of programmes)

The lights will light up when you select the most efficient program in terms of water and energy consumption, to wash cotton garments with a normal grade of soil.

Table of programmes

PROGRAM		kg*(MAX.)				TEMP.°C		DETERGENT
						Recommended	Max.	2	☀	1
All In One 20°C	All In One 20°C	5,5	6	6,5	7	20°	20°	●	●
All Baby 60°C	All Baby 60°C	5,5	6	6,5	7	60°	60°	●	●
All In One 59 Min.	All In One 59 Min.	8	9	10	11	40°	40°	●	●
Drain & Spin &	Drain & Spin	-	-	-	-	-	-
	Rinse	-	-	-	-	-	-	△	●
Wool & Silk &	Wool & Silk	2	2	2	2	30°	30°	●	●
Delicates	Delicates	2,5	2,5	2,5	2,5	40°	40°	●	●
Mixed	Mixed 1)	4	4,5	5	5,5	40°	60°	●	●	(●)
Cottons	Cottons ** 1)	8	9	10	11	40°	90°	●	●	(●)
Rapid 30'	Rapid 30 Min.	2,5	2,5	2,5	2,5	30°	30°	●	●
Rapid 14'	Rapid 14 Min.	1,5	1,5	1,5	1,5	30°	30°	●	●

Please read these notes:

* Maximum load capacity of dry clothes, according to the model used (see control panel).

** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and No 1061/2010.

COTTON PROGRAMME WITH A TEMPERATURE OF 60°C.

COTTON PROGRAMME WITH A TEMPERATURE OF 40°C.

These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing cotton laundry.

These programmes have been developed to be compliant with the temperature on the wash label on the garments. The actual water temperature may slightly differ from the declared temperature of the cycle.

The spin speed may also be reduced to match any guidelines suggested on the fabric label. For very delicate fabrics, you can cancel the spin completely; this option is available with the SPIN SPEED button.

If the label does not indicate specific information, it is possible to use the maximum spin expected in the program.

An over dosage of detergent can cause excessive foaming.

If the appliance detects the presence of excessive foam, it may exclude the spinning phase or extend the duration of the program and increase water consumption.

(●) Only with PREWASH option selected (programmes with PREWASH option available).

△ (Only for models with liquid detergent compartment)

When only a limited number of articles have stains which require treatment with liquid bleaching agents, preliminary removal of stain can be carried out in the washing machine.

Pour the bleach into the liquid bleach container, inserted into the compartment marked "2" in the detergent drawer, and set the special programme RINSE.

When this phase has terminated, turn the programme selector to the OFF position, add the rest of the fabrics, and proceed with a normal wash on the most suitable programme.

1) For the programmes shown, you can adjust the duration and intensity of the wash using the WASH TIME button.

Programme selection

To clean different types of fabrics and various levels of dirt, the washing machine has specific programmes to meet every washing need (see table of programmes).

ALL IN ONE technology

This washing machine is equipped with an innovative system with a high-pressure jet that sprays a mixture of water and detergent directly into the load.

The special motor movement used in this machine manages the drum movement during the start-up of each programme. In conjunction with the high-pressure jet spraying the detergent mixture into the load, the cycle includes a set of spin actions that help the detergent solution penetrate into the fibers, aiding dirt removal and ensuring the best available wash performance.

The ALL IN ONE system is also used during the water load phases, where the high-pressure jet aids the complete removal of detergent residues trapped in the clothes.

All In One 20°C

Thanks to ALL IN ONE technology, this innovative programme allows you to wash fabrics such as cottons, synthetics, and mixed fabrics at 20°C with a performance comparable to a 40°C wash.

The consumption of this programme is about 50% of a conventional 40°C cottons wash.

IMPORTANT WASH PERFORMANCE ADVICE:

● New, coloured garments should be washed separately for at least 5 or 6 washes. ● Certain large dark items such as jeans and towels should always be washed separately. ● Never mix NON COLOURFAST fabrics.

All Baby 60°C

You can wash all baby clothes together at medium temperature, resulting in hygienic and perfectly clean items when combined with heavy-duty soap. This is possible thanks to the ideal pre-dose of water and detergent, which is sprayed onto the laundry through the jet, activating the enzymes at 50°C.

All In One 59 Min.

This programme allows you to wash mixed fabrics such as cottons, synthetics, and mixed fabrics in only 59 minutes, using the full load of the washing machine, at 40°C (or less) temperature. This programme is particularly suited to slightly dirty fabrics.

Drain & Spin

The programme completes the drain and a maximum spin. It is possible to delete or reduce the spin with the SPIN SPEED button.

Rinse

This programme performs 3 rinses with an intermediate spin (which can be reduced or excluded by using the appropriate button). It is used for rinsing any type of fabric, for example after a wash carried out by hand.

Wool & Silk

This programme allows a delicate washing cycle, particularly suited to garments specified as "Machine-Washable" Wool fabrics and laundry items made from Silk or specified as "Wash as Silk" on the fabric label.

Delicates

This program alternates between periods of work and breaks and is particularly suitable for washing delicate fabrics. The wash cycle and rinses are carried out with a high water level to ensure the best performance.

Mixed

The washing and rinsing are optimized in the rhythms of rotation of the drum and the water levels. The gentle spin ensures a reduced formation of creases in the fabric.

Cottons

This program is suitable to clean normally soiled cotton laundry and it is the most efficient program in terms of combined energy and water consumptions for washing cotton laundry.

Rapid 30 Min.

A complete washing cycle (wash, rinse and spin). This programme is particularly suited to slightly dirty cottons and mixed fabrics. With this programme it is recommended to use only 20% of the detergent normally used to avoid waste.

Rapid 14 Min.

A complete washing cycle (wash, rinse and spin). This programme is suited to slightly dirty cottons and mixed fabrics. With this programme it is recommended to use only 20% of the detergent normally used to avoid waste.

7. TROUBLESHOOTING AND WARRANTY

If you believe the washing machine is not working correctly, consult the quick guide provided below with some practical tips on how to fix the most common problems.

Problem	Possible causes and practical solutions
The washing machine does not work/start	Make sure it is correctly plugged in.
	Make sure power is on.
	Check whether the required program was correctly selected and to have correctly started the machine.
	Make sure the fuse has not blown and that the wall socket is working, testing it with another appliance such as a lamp.
	The porthole may not be correctly closed: open and close it again.
The washing machine does not fill with water	Make sure the water faucet is open.
	Make sure the timer is correct set.
The washing machine does not drain water	Make sure the filter is not clogged.
	Make sure the drain hose is not bent.
	Make sure there are no foreign objects in the filter.
Water leaked on the floor near the washing machine	This may be due to a leak in the gasket between the faucet and supply tube; in this case, replace it and tighten the tube and faucet.
The washing machine does not centrifuge	This could be due to the fact that water has not been completely drained: wait a few minutes. Some models include a "no centrifuge" function: make sure it is not on.
	An excessive amount of detergent could prevent centrifuge: reduce the amount at the next wash.
Strong vibrations are heard during centrifuge	The washing machine may not be fully levelled: if necessary, adjust the feet as indicated in the specific section.
	Make sure transport brackets were removed.
	Make sure the load is evenly distributed.
If a specific ERROR appears of blinks	If error no. 0, 1, 5, 7 or 8 appears or blinks, contact the Customer Service Centre directly.
	If error no. 2 appears or blinks, the machine does not load water. Make sure the water faucet is open.
	If error no. 3 appears or blinks, the machine does not correctly drain. Make sure the drain is free and that the drain hose is not bent.
	If error no. 4 appears or blinks, the machine is too full. Close the water faucet and contact the Customer Service Centre.
	If error no. 9 appears or blinks, turn off the washing machine, wait 10 – 15 seconds and restart the program.

The use of ecological detergents without phosphates may cause the following effects:

• Cloudier rinse drain water: This effect is tied to the suspended zeolites which do not have negative effects on rinse efficiency.
• White powder (zeolites) on laundry at the end of the wash: this is normal, the powder is not absorbed by fabric and does not change its colour.

To remove the zeolites, select a rinse programme. In the future, consider using slightly less detergent.

• Foam in the water at last rinse: this does not necessarily indicate poor rinsing. Consider using less detergent in future washes.
• Abundant foam: This is often due to the anionic surfactants found in the detergents which are hard to eliminate from laundry.

In this case, do not re-rinse to eliminate these effects: it will not help at all.

We suggest conducting a maintenance wash using a proprietary cleaner.

If the problem persists or if you suspect malfunction, immediately contact an Authorised Customer Service Centre.

It is always recommended to use original spare parts, that are available at our Authorised Customer Service Centres.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The warranty certificate must be duly filled in and stored, so as to be shown to the Authorised Customer Service Centre in case of need. Proof of purchase must be made available at the time of any warranty related repair.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.
