ACR39U-UF - Payment terminal ACS - Free user manual and instructions

Product Type	Smart Card Reader / Payment Terminal
Brand	ACS (Advanced Card Systems)
Model	ACR39U-UF
Connectivity	USB 2.0 Full Speed
Card Support	ISO 7816 Class A, B, C (5V, 3V, 1.8V) contact smart cards; Mifare and ISO 14443 Type A/B contactless cards
Operating System Compatibility	Windows, Linux, macOS, Android (with USB OTG)
Dimensions	Approx. 105 mm x 70 mm x 20 mm
Weight	Approx. 80 g
Power Supply	USB bus-powered (5V DC)
Current Consumption	Typical 200 mA, max 300 mA
Main Functions	Contact and contactless smart card read/write, PC/SC compliant, EMV Level 1 certified
LED Indicators	Power and card status indicators
Maintenance & Cleaning	Wipe with a soft, dry cloth. Do not use harsh chemicals or liquids.
Security Standards	EMV Level 1, PC/SC, CE, FCC, RoHS
Spare Parts & Repairability	No user-serviceable parts. Contact manufacturer for repairs.
Warranty	1 year limited warranty
General Information	Designed for secure payment and identification applications. Compact and portable.

Frequently Asked Questions - ACR39U-UF ACS

What operating systems are supported by the ACR39U-UF?

The ACR39U-UF supports Windows, Linux, macOS, and Android (via USB OTG). Drivers are available for each platform.

Does the ACR39U-UF support contactless cards?

Yes, it supports ISO 14443 Type A/B contactless cards, including Mifare and other RFID cards.

How do I install the device drivers?

Download the latest drivers from the ACS website. On Windows, plugging in the device usually triggers automatic driver installation. For Linux and macOS, follow the provided instructions.

Is the ACR39U-UF compatible with EMV chip cards?

Yes, it is EMV Level 1 certified, meaning it meets the physical and electrical requirements for EMV chip card reading.

Can I use this reader with a smartphone?

Yes, if your smartphone supports USB OTG (On-The-Go), you can connect the ACR39U-UF using an appropriate adapter and use compatible apps.

What is the maximum card read/write speed?

The reader supports up to 848 kbps for contactless cards and up to 250 kbps for contact cards, depending on the card protocol.

Does the device require external power?

No, it is fully bus-powered via the USB port. No external power adapter is needed.

How do I clean and maintain the reader?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids or abrasive cleaners. Ensure the card slot is free of debris.

What should I do if the reader is not recognized?

First, try a different USB port. Install or reinstall the official drivers from ACS. Ensure your operating system is up to date. If the issue persists, contact support.

Is the ACR39U-UF suitable for payment applications?

Yes, with EMV Level 1 certification and PC/SC compliance, it is suitable for secure payment applications, though additional software integration is required for payment processing.

USER MANUAL ACR39U-UF ACS

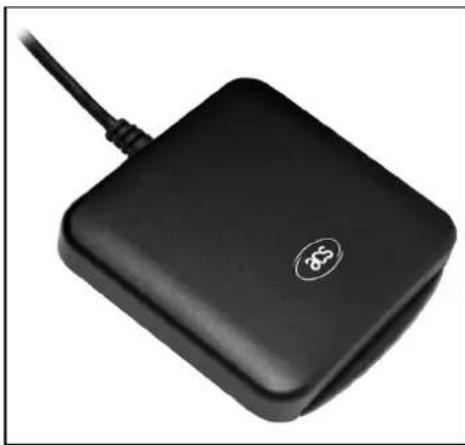

ACR39U-UF [USB Type C] Smart Card Reader

Technical Specifications V1.01

Table of Contents

1.0. Introduction ...... 3 1.1. Smart Card Reader....3 1.2. Compact Design 3 1.3. Ease of Integration....3 2.0. Features ....4 3.0. Supported Card Types....5 3.1. MCU Cards 5 3.2. Memory-based Smart Cards....5 4.0. Typical Applications ...... 6 5.0. Technical Specifications ....7

1.0. Introduction

The ACR39U-UF hails the new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card-based applications.

1.1. Smart Card Reader

ACR39U-UF supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. In addition, it supports a wide variety of memory cards in the market, including the Department of Defense Common Access Card (CAC), and SIPRNET Card. This makes it ideal for a broad range of solutions such as PIV Application, Physical and Logical Access Control, Digital Signature, and Online Banking.

It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U-UF can last for 100,000 card insertion cycles. ACR39U-UF also has various certifications such as EMV™ Level 1 (Contact) and People's Bank of China (PBOC), making it the ideal smart card reader for your e-Banking and e-Payment application needs.

1.2. Compact Design

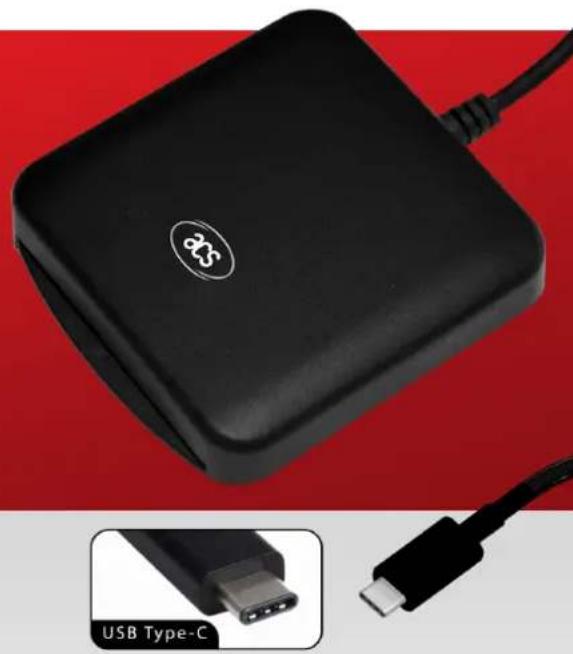

The modern design of ACR39U-UF, with its matte casing and its USB Type C connector, makes it stand out from ordinary smart card readers as it houses a powerful core that can support demanding applications which can be used anytime, anywhere.

1.3. Ease of Integration

The ACR39U-UF is PC/SC and CCID-compliant, making it easy to install and use, as it is specifically designed to be integrated into any computer-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Mac OS®, and Solaris. In addition, ACR39U-UF may now be used on mobile devices running the Android™ platform with versions 3.1 and later.

With its numerous features, the ACR39U-UF is clearly the perfect smart card reader for your smart card solution.

2.0. Features

• USB Full Speed Interface - USB Type C Connector - Plug and Play – CCID support brings utmost mobility • Smart Card Reader:

- Contact Interface:

■ Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards ■ Supports CAC ■ Supports SIPRNET Card ■ Supports J-LIS Card ■ Supports microprocessor cards with T=0 and T=1 protocol ■ Supports memory cards ■ Supports PPS (Protocol and Parameters Selection) ■ Features Short Circuit Protection

• Application Programming Interface:

• Supports PC/SC o Supports CT-API (through wrapper on top of PC/SC)

• Supports Android™ 3.1 and later ¹

• Compliant with the following standards:

• EN 60950/IEC 60950 ○ ISO 7816 ○ EMV™ Level 1 (Contact) ○ PC/SC ○ CCID ○ CE ○ FCC ○ WEEE ○ RoHS 2 ○ REACH ○ TAA (USA) ○ J-LIS (Japan) o VCCI (Japan) ○ PBOC (China)
• Microsoft® WHQL

3.0. Supported Card Types

3.1. MCU Cards

ACR39U-UF operates with MCU cards following either the T=0 or T=1 protocol. It also works with SIPRNET and CAC cards, ideal for US PIV and PKI applications.

3.2. Memory-based Smart Cards

ACR39U-UF works with several memory-based smart cards such as:

- Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:

○ Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024

- SGS-Thomson: ST14C02C, ST14C04C

Gemplus: GFM1K, GFM2K, GFM4K, GFM8K

• Cards with intelligent 1 KB EEPROM with write-protect function, including:

○ Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528

• Cards with intelligent 256-byte EEPROM with write-protect function, including:

○ Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542

4.0. Typical Applications

• e-Government • e-Banking and e-Payment • e-Healthcare • Public Key Infrastructure • Network Security - Access Control - Loyalty Program

5.0. Technical Specifications

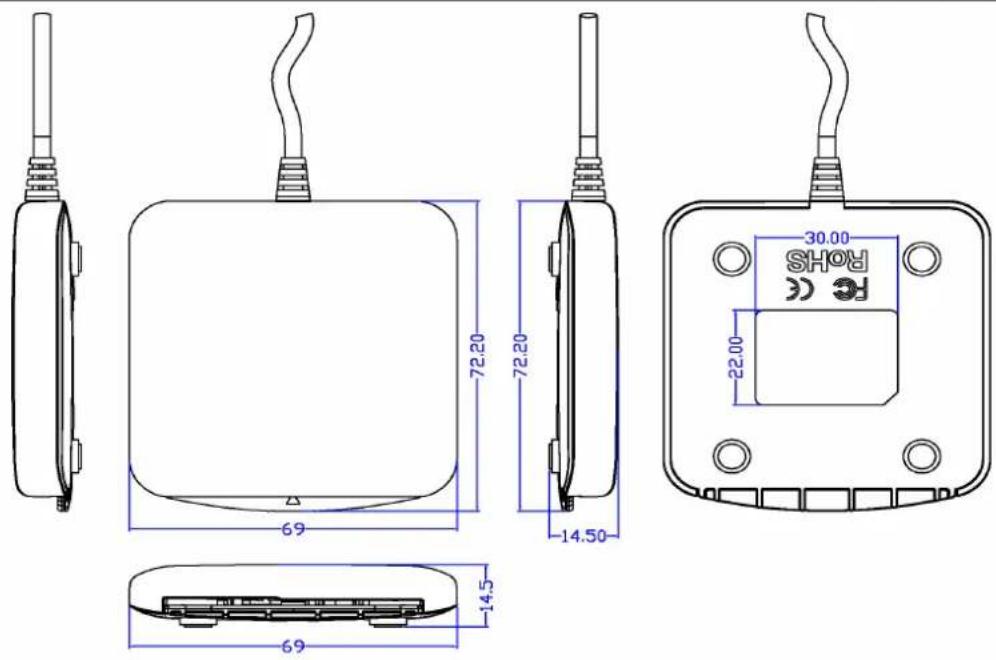

Physical Characteristics

Dimensions 72.2 mm (L) × 69.0 mm (W) × 14.5 mm (H)

Weight 56 g

Color .... Black (Matte)

USB Host Interface

Protocol....USB CCID

Connector Type.... USB Type C

Power Source.... From USB port

Speed.... USB Full Speed (12 Mbps)

Supply Voltage....5 V

Cable Length 1.5 m (Fixed)

Contact Smart Card Interface

Number of Slot 1 Full-sized Card Slot

Standard ..... ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol....T=0; T=1; Memory Card Support

Supply Current Max. 50 mA

Smart Card Read/Write Speed...... 9.6 Kbps – 600 Kbps

Short Circuit Protection ..... (+5) V/GND on all pins

Clock Frequency 4.8 MHz

Card Connector Type....Contact

Landing (optional)

Card Insertion Cycles...... Min. 100,000

Min. 200,000 (for landing connector)

SAM Card Interface (Optional)

Number of Slot 1 Standard SIM-sized Card Slot

Standard ..... ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol....T=0; T=1; Memory Card Support

Card Connector Type....Contact

Built-in Peripheral

LED Green

Application Programming Interface

PC-Linked Mode ...... PC/SC

CT-API (through wrapper on top of PC/SC)

Operating Conditions

Temperature 0 °C - 60 °C

Humidity ...... Max. 90% (non-condensing)

MTBF 500,000 hrs

Certifications/Compliance

EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH, TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL

Device Driver Operating System Support

Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10

Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012,

Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Solaris, Android™ 3.1 and later
