ACR39T-A1 - Payment terminal ACS - Free user manual and instructions

Product Type	Smart Card Reader / Payment Terminal
Model	ACR39T-A1
Brand	ACS (Advanced Card Systems)
Interface	USB 2.0 (Full Speed)
Card Compatibility	ISO 7816 Class A, B, C (5V, 3V, 1.8V) smart cards; ISO 14443 Type A & B contactless cards
Dimensions (L x W x H)	Approximately 78 mm x 48 mm x 12 mm
Weight	Approximately 30 g
Power Supply	USB bus-powered (5V DC, 500 mA)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	Up to 90% non-condensing
Main Functions	Read and write contact and contactless smart cards; support for EMV Level 1 and payment applications; secure PIN entry
Supported Operating Systems	Windows (7/8/10/11), Linux, macOS, Android (via OTG)
LED Indicators	Power/Activity LED
Compliance	CE, FCC, RoHS, EMV Level 1 (contact and contactless)
Included Accessories	USB cable, quick start guide
Maintenance & Cleaning	Disconnect from USB; clean with a soft dry cloth; avoid liquids and abrasives
Safety Instructions	Use only with certified USB ports; keep away from extreme temperatures and moisture
Spare Parts & Repairability	No user-serviceable parts; contact authorized service center for repairs
General Information	Designed for secure payment transactions; supports contactless and contact card technologies

Frequently Asked Questions - ACR39T-A1 ACS

What operating systems are compatible with the ACR39T-A1?

The ACR39T-A1 is compatible with Windows (7, 8, 10, 11), Linux, macOS, and Android devices with USB OTG support.

Does the ACR39T-A1 support contactless payments?

Yes, it supports ISO 14443 Type A and B contactless cards, making it suitable for contactless payment applications.

How do I install the driver for the ACR39T-A1?

Drivers are usually included in the operating system. For Windows, you can download the PC/SC driver from the ACS website. On Linux, it often works with the built-in CCID driver.

What is the maximum power consumption of the device?

The device is bus-powered and consumes up to 500 mA at 5V DC via the USB port.

Can I use the ACR39T-A1 with Android smartphones?

Yes, you can use it with Android devices that support USB OTG. You may need a USB OTG adapter and appropriate app support.

How do I clean and maintain the ACR39T-A1?

Disconnect the device from the USB port. Clean the exterior with a soft, dry cloth. Do not use liquids, abrasive cleaners, or immerse in water.

Is the ACR39T-A1 EMV certified?

Yes, it meets EMV Level 1 specifications for both contact and contactless interfaces, ensuring secure payment transactions.

What types of smart cards are supported?

It supports ISO 7816 class A, B, and C (5V, 3V, 1.8V) contact smart cards, as well as ISO 14443 Type A and B contactless cards.

Does the device come with a warranty?

Yes, ACS products typically come with a limited warranty. Check with your reseller or ACS for specific warranty terms.

What should I do if the device is not recognized?

First, ensure the USB cable is properly connected. Try a different USB port. If using Windows, check Device Manager for driver issues. Reinstall the driver if necessary. For Linux, ensure the CCID driver is loaded.

USER MANUAL ACR39T-A1 ACS

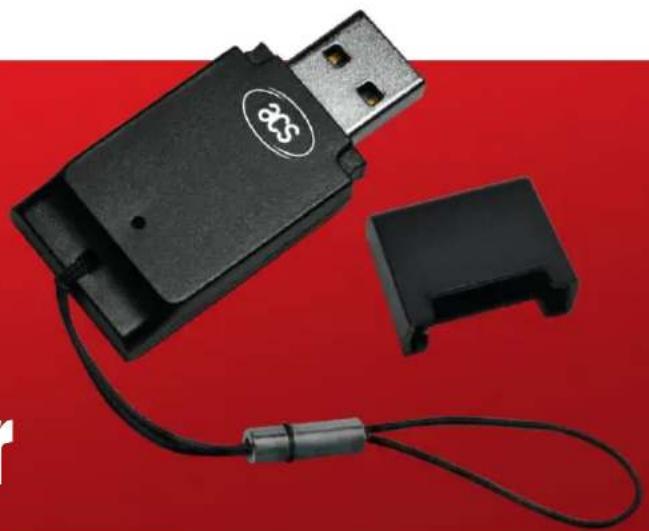

ACR39T-A1 [USB Type A] Smart Card Reader

Technical Specifications V1.06

Table of Contents

1.0. Introduction .... 3 1.1. Smart Card Reader 3 1.2. Ease of Integration....3 2.0. Features 4 3.0. Supported Card Types ....5 3.1. MCU Cards 5 3.2. Memory-based Smart Cards....5 4.0. Typical Applications....6 5.0. Technical Specifications....7 6.0. Opening the SIM card cover 9

1.0. Introduction

The ACR39T-A1 hails the new and modern technology in the world of smart card readers. It is a SIM-sized smart card reader that is small in size but packs a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology with modern design to meet rigorous requirements in various smart card-based applications.

1.1. Smart Card Reader

ACR39T-A1 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and works well with most memory cards and microprocessor cards with the T=0 and T=1 protocol. It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. This makes it ideal for a broad range of solutions, such as Physical and Logical Access Control, Digital Signature, and Online Banking.

1.2. Ease of Integration

The ACR39T-A1 has PC/SC and CCID compliance, making it easy to install and use as it is specifically designed to be integrated into any computer-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Mac OS®, and Solaris. In addition, ACR39T-A1 may now be used on mobile devices running the Android™ platform with versions 3.1 and later.

With its numerous features, the ACR39T-A1 is clearly the perfect smart card reader for your smart card solution.

2.0. Features

• USB Full Speed Interface - USB Type A Connector - Plug and Play – CCID support brings utmost mobility • Includes protective USB cap - Smart Card Reader:

- Contact Interface:

■ Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) and 1.6V SIM-sized cards ■ Supports microprocessor cards with T=0 and T=1 protocol ■ Supports memory cards ■ Supports PPS (Protocol and Parameters Selection) ■ Features Short Circuit Protection

• Application Programming Interface:

• Supports PC/SC; supports CT-API (through wrapper on top of PC/SC)

• Supports Android™ 3.1 and later • Compliant with the following standards:

• EN 60950/IEC 60950, ISO 7816, PC/SC, CCID, CE, FCC, WEEE
• RoHS 2, REACH, VCCI (Japan)
• Microsoft® WHQL

3.0. Supported Card Types

3.1. MCU Cards

ACR39T-A1 operates with MCU cards following either the T=0 or T=1 protocol.

3.2. Memory-based Smart Cards

ACR39T-A1 works with several memory-based smart cards such as:

• Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including: Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024
• SGS-Thomson: ST14C02C, ST14C04C
• Gemplus: GFM1K, GFM2K, GFM4K, GFM8K

- Cards with intelligent 1 KB EEPROM with write-protect function, including:

○ Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528

- Cards with intelligent 256-byte EEPROM with write-protect function, including:

○ Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542

4.0. Typical Applications

• e-Government • e-Banking and e-Payment • e-Healthcare • Public Key Infrastructure • Network Security
• Access Control
• Loyalty Program

5.0. Technical Specifications

Physical Characteristics

Dimensions 49.5 mm (L) × 21.5 mm (W) × 9.0 mm (H)

Weight 8.5 g

Color .... Black

USB Host Interface

Protocol ...... USB CCID

Connector Type.... Standard Type A

Power Source...... From USB port

Speed.... USB Full Speed (12 Mbps)

Supply Voltage 5 V

Contact Smart Card Interface

Number of Slot.... 1 SIM-sized Card Slot (optional with MicroSIM-sized)

Standard ..... ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol....T=0; T=1; Memory Card Support

Supply Current Max. 50 mA

Smart Card Read/Write Speed..... 9.6 Kbps - 600 Kbps

Short Circuit Protection ..... (+5) V/GND on all pins

Clock Frequency 4.80 MHz

Card Connector .... Contact

Card Insertion Cycles ...... Min. 10,000

Built-in Peripheral

LED ...... Green

Application Programming Interface

PC-linked Mode..... PC/SC

CT-API (through wrapper on top of PC/SC)

Operating Conditions

Temperature.... 0 °C - 60 °C

Humidity ...... Max. 90% (non-condensing)

MTBF 500,000 hrs

Certifications/Compliance

EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH VCCI (Japan), Microsoft® WHQL

Device Driver Operating System Support

Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10

Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012,

Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Solaris, Android™ 3.1 and later

6.0. Opening the SIM card cover

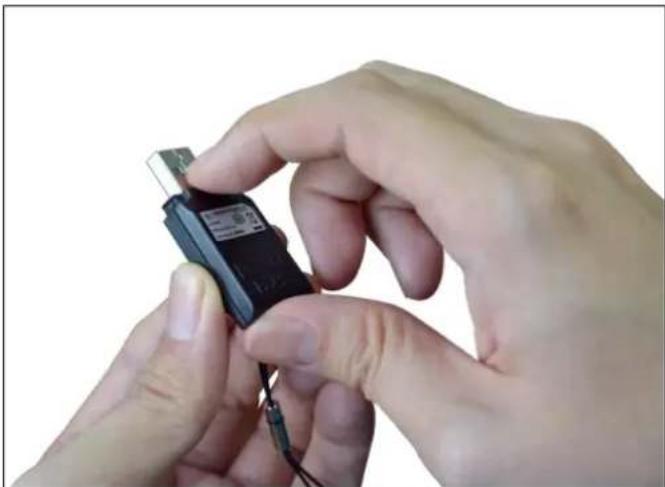

1. Open the SIM card cover from the back part of the reader.

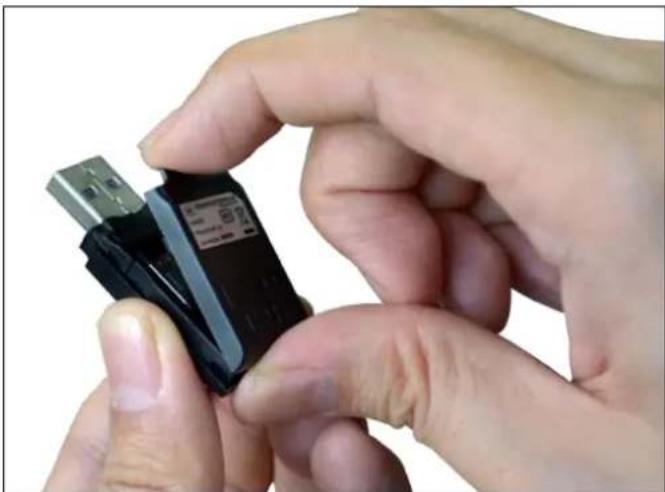

1. Pull out the back cover from the top end.

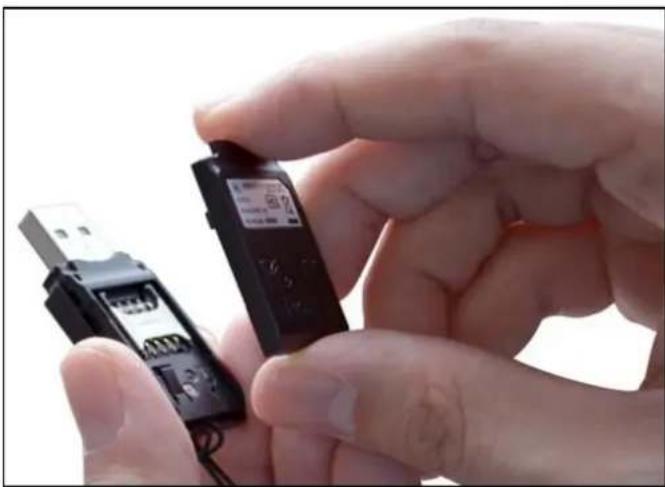

1. Remove the cover completely to insert/remove the SIM card to/from the reader.
