Product Type	Air Purifier
Model Number	AC5663
Brand	Philips
Series	5000 Series
Dimensions (W x D x H)	340 x 300 x 540 mm
Weight	8.5 kg
Power Consumption	60 W
Voltage / Frequency	220-240 V / 50-60 Hz
Max. Noise Level	65 dB
Min. Noise Level (Sleep Mode)	35 dB
Airflow (CADR)	300 m³/h (Pollen, Dust, Smoke)
Filtration Stages	Pre-filter, Activated Carbon, HEPA-13, NanoProtect
Sensors	PM2.5, Gas (VOCs), Temperature, Humidity
Display	Color touchscreen with real-time air quality index
Modes	Auto, Sleep, Boost, Manual
Timer	1-8 hours
App Connectivity	Philips Air+ (Wi-Fi)
Filter Replacement Indicator	Yes
Maintenance	Pre-filter washable every 2-4 weeks; HEPA/carbon filter replaceable every 12 months
Safety	Child lock, automatic shut-off when cover open, tip-over protection

Frequently Asked Questions - 5000 series AC5663 PHILIPS

How often should I replace the filters?

The HEPA and activated carbon filters should be replaced every 12 months. The pre-filter can be washed every 2-4 weeks.

Can I control the purifier remotely?

Yes, via the Philips Air+ app (iOS/Android) over Wi-Fi. You can monitor air quality, adjust settings, and set schedules.

What room size is this purifier suitable for?

It covers up to 50 m² (approx 540 sq ft) for optimal performance, based on CADR 300 m³/h and 2 air changes per hour.

Is the air purifier noisy?

Noise ranges from 35 dB in Sleep mode to 65 dB at maximum speed. Sleep mode is whisper-quiet for nighttime use.

What does the display show?

The touchscreen displays real-time PM2.5 levels, temperature, humidity, and a color-coded air quality indicator (blue, green, orange, red).

Does it remove odors?

Yes, the activated carbon filter captures VOCs, smoke, cooking odors, and other household smells.

Can I wash the HEPA filter?

No, the HEPA filter is not washable and must be replaced when the indicator lights up. Only the pre-filter is washable.

How do I reset the filter replacement timer?

After replacing filters, press and hold the reset button on the unit or use the app to reset the filter life counter.

What is the power consumption?

Maximum 60 W, typical consumption in auto mode is around 20-40 W, making it energy efficient.

Is there a child lock?

Yes, you can enable the child lock via the touchscreen to prevent accidental button presses.

USER MANUAL 5000 series AC5663 PHILIPS

ZH-S 用户手册 3

EN User manual 24

目录

1 重要事项 4

安全 4

2 您的空气净化器 6

产品概述 6

控件概览 7

3 使用入门 8

安装过滤网 8

4 使用产品 9

了解空气质量指示灯 9

打开和关闭 10

更改自动模式设置 11

更改风速 12

使用灯光开/关功能 12

设置童锁 13

5 清洁 13

清洁计划 13

清洁产品机身 13

清洁出风口盖 14

清洁空气质量传感器 14

清洁预过滤网 15

6 更换空气净化

滤网 16

了解健康空气智能锁 16

更换过滤器 16

过滤网强行重置 18

更换过滤网类型 18

7 存放 20

8 故障排除 21

9 保修与服务 23

订购部件或附件 23

10 注意事项 23

电磁场 (EMF) 23

回收 23

1 重要事项

安全

控制按钮

4 将无包装的空气净化滤网放回产品内。

5 将预过滤网放回产品内部。

注意

注意

去过敏原模式

更改风速

手动

提示

使用灯光开/关功能

设置童锁

2 用刷子清洁出风口盖。

3 以正确的方式重新安装此盖板。

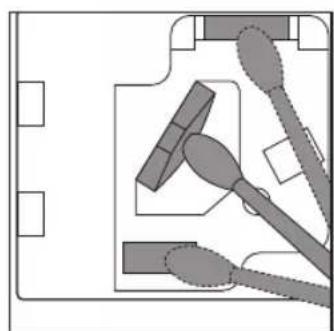

清洁空气质量传感器

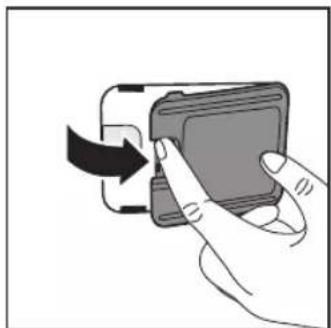

2 打开空气质量传感器保护盖。

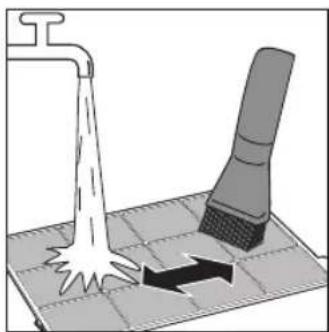

清洁预过滤网

注意

8 将空气净化器的插头插入电源插座。

9 轻触 ⏻ 按钮启动产品。

注意

4 将无包装的空气净化滤网放回产品内。

3 Getting started 30

Installing filters 30

4 Using the appliance 31

Understanding the air quality light 31

Turning on and off 32

Changing the Auto mode setting 33

Changing the fan speed 34

Using the light on/off function 35

Setting the child lock 36

5 Cleaning 36

Cleaning schedule 36

Cleaning the body of the appliance 37

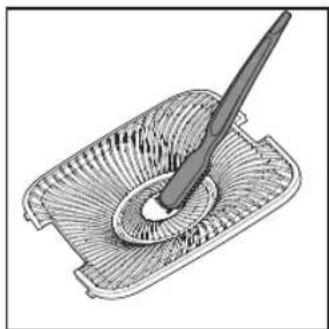

Cleaning the air outlet cover 37

Cleaning the air quality sensor 37

Cleaning the pre-filter 38

6 Replacing the air

purification filter 40

Understanding the healthy air protect lock 40

Replacing the filter 40

Filter force reset 41

Changing filter type 42

7 Storage 44

8 Troubleshooting 45

9 Guarantee and service 47

Order parts or accessories 47

10 Notices 47

Electromagnetic fields (EMF) 47

Recycling 47

1 Important

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

• Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
• Do not clean the appliance with water, any other liquid, or a (flammable) detergent to avoid electric shock and/or a fire hazard.
• Do not spray any flammable materials such as insecticides or fragrance around the appliance.

Warning

- Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance.

- If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.

- Do not use the appliance if the plug, the power cord, or the appliance itself is damaged.

- This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.

• Make sure that foreign objects do not fall into the appliance through the air outlet.

Caution

- This appliance is not a substitute for proper ventilation, regular vacuum cleaning, or use of an extractor hood or fan while cooking.

- If the power socket used to power the appliance has poor connections, the plug of the appliance becomes hot. Make sure that you plug the appliance into a properly connected power socket.

• Always place and use the appliance on a dry, stable, level, and horizontal surface.

- Leave at least 20cm free space behind and on both sides of the appliance and leave at least 30cm free space above the appliance.

- Do not place anything on top of the appliance.

- Do not sit or stand on the appliance. Sitting or standing on the appliance may lead to potential injury.

- Do not place the appliance directly below an air conditioner to prevent condensation from dripping onto the appliance.

• Make sure all filters are properly installed before you switch on the appliance.

- Only use the original Philips filters specially intended for this appliance. Do not use any other filters.

- Combustion of the filter may cause irreversible human hazard and/or jeopardize other lives. Do not use the filter as fuel or for similar purpose.

- Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.

• Always lift or move the appliance by the handle on the side of the appliance.

• Do not insert your fingers or objects into the air outlet or the air inlet to prevent physical injury or malfunctioning of the appliance.
• Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
• Do not use the appliance near gas appliances, heating devices or fireplaces.
  • Always unplug the appliance after use and before cleaning, or carrying out other maintenance or replacing the filters.
• Do not use the appliance in a room with major temperature changes, as this may cause condensation inside the appliance.
  • To prevent interference, place the appliance at least 2 meters away from electrical appliances that use airborne radio waves

such as TVs, radios, and radio-controlled clocks.

• The appliance is only intended for household use under normal operating conditions.

- Do not use the appliance in wet surroundings or in surroundings with high ambient temperatures, such as the bathroom, toilet, or kitchen.

• The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device in case of accidents with combustion processes and hazardous chemicals.

- If you need to move the appliance, disconnect the appliance from the power supply first.

- Do not move the appliance by pulling its power cord.

• Always cleanse your hands after changing the filters.

2 Your air purifier

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

This appliance works with an air filtration system. Read this user manual carefully before you use the appliance, and save it for future reference.

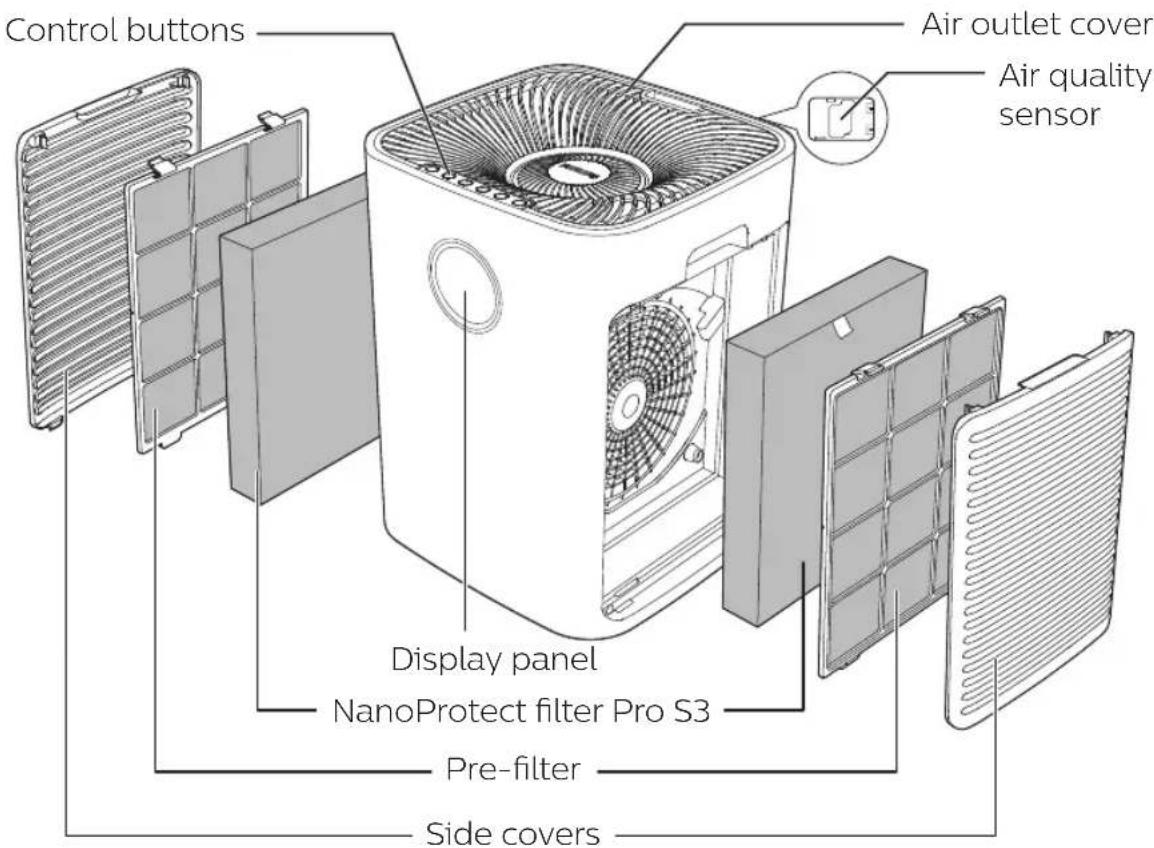

Product Overview

Type number Filter
FY5186 NanoProtect filter Pro S3 *

*Hereinafter referred to as "air purification filter".

Controls overview

Control buttons

	Power on/off button Fan speed button
	Light on/off button Child lock button
	Auto mode button Filter reset button

Display panel

PM2.5	PM2.5 display Child lock indicator
Gas	Gas display Pre-filter cleaning alert
IAI	Indoor Allergen Index display Filter replacement alert
[0GT3]	Sleep mode Speed 1
[CSCW]	Pollution mode Speed 2
	Formaldehyde mode Speed 3
	Allergen mode Turbo speed

3 Getting started

Installing filters

Remove all packaging of the filters before using the appliance. Unpack them and place them into the appliance described as follows:

Note

• There is one set of filters on each side of the appliance. Each side is equipped with one pre-filter and one air purification filter.
  • Make sure that you place the air purification filter in the appliance first and then the pre-filter.
  • Make sure that the side with the tag is pointing towards you when installing the filter.

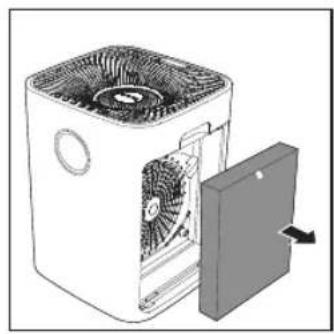

1 Remove all packaging materials of the air purification filters.

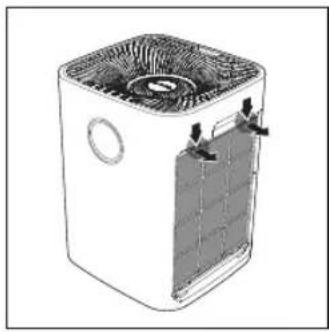

2 Pull the top part of the side panel to remove it from the appliance.

3 Press the two clips down and pull the pre-filter towards you.

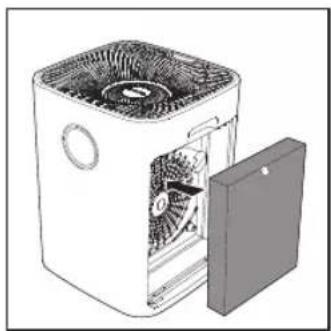

4 Put the unpacked air purification filter back into the appliance.

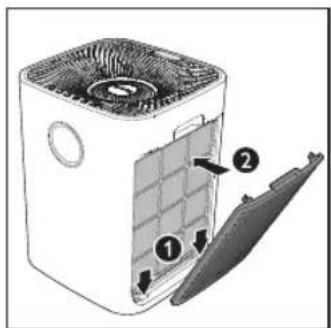

5 Put the pre-filter back into the appliance.

Note

• Make sure that all hooks of the pre-filter are properly attached to the purifier.

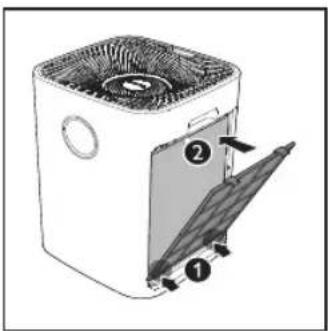

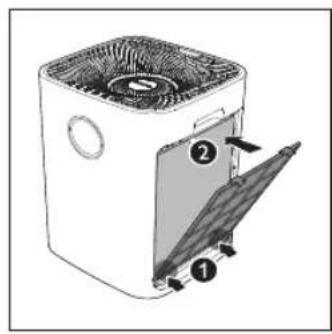

6 To reattach the side panel, mount the panel onto the bottom of the appliance first (1). Then, gently push the panel against the body of the appliance (2).

7 Repeat the above steps and assemble the filter for the other side of the appliance.

4 Using the appliance

Understanding the air quality light

Air quality light color	Air quality level
Blue Good
Blue-purple Fair
Purple-red Poor
Red Very poor

The air quality light automatically goes on when the air purifier is switched on, and lights up all colors in sequence. After approximately 30 seconds, the air quality sensors select the color that corresponds to the surrounding air quality.

The color of the air quality light is determined by the highest level among PM2.5, IAI and Gas readings.

PM2.5

AeraSense sensing technology accurately detects and quickly responds to even the slightest particle change in the air. It provides you with reassurance with real-time PM2.5 feedback.

Most of the indoor air pollutants fall under PM2.5 – which refers to airborne particle pollutants smaller than 2.5 micrometers. Common indoor sources of fine particles are tobacco smoke, cooking, burning candles. Some airborne bacteria and the smallest mold spores, pet allergen and dust mite allergen particles also fall under PM2.5.

PM2.5 level	Air quality light color
≤12 Blue
13-35 Blue-purple
36-55 Purple-red
>55 Red

|AI

The professional-grade AeraSense sensor detects the level of indoor air allergen and with numerical feedback from 1 to 12 the potential risk level of indoor air allergens can be displayed. 1 indicates best air quality.

IAI level	Air quality light color
1-3 Blue
4-6 Blue-purple
7-9 Purple-red
10-12 Red

GAS

With an advanced gas sensor, a display ranging from L1 to L4 shows the level change of potential harmful gases (incl. VOC, odor, etc.) detected. L1 indicates best air quality.

PM2.5 level	Air quality light color
L1 Blue
L2 Blue-purple
L3 Purple-red
L4 Red

Turning on and off

Note

• Always place the air purifier on a stable, horizontal, and level surface with the front of the unit facing away from walls or furniture.
- For optimum purification performance, close doors and windows.
- Keep curtains away from the air inlet or air outlet.

1 Put the plug of the air purifier in the power socket.

2 Touch the ⏻ button to switch on the appliance.

→The air purifier beeps.
→The air purifier operates under the Pollution mode by default.

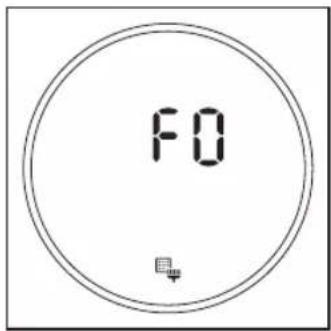

When the air purifier is warming up, "displays on the screen.
→After measuring the air quality, the air purifier shows the PM2.5/IAI/Gas level, the air quality sensor automatically selects the appropriate air quality light color.
→The air purifier operates in the auto mode with displayed on the screen.

3 Touch and hold the button for 3 seconds to switch off the air purifier.

Note

- If the air purifier stays connected to the electrical outlet after turning OFF, the air purifier will operate under the previous settings when turned ON again.

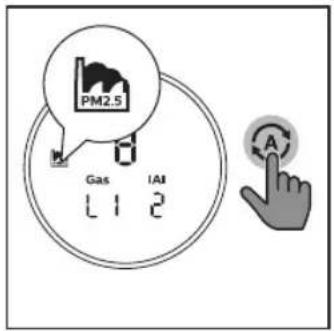

Changing the Auto mode setting

You can choose the Pollution mode (the Formaldehyde mode () or the Allergen mode (*

Pollution mode

The specially designed Auto pollution mode can effectively remove airborne pollutants such as PM2.5.

- Touch the Auto mode button to select Auto pollution mode. →The displays on the screen.

Note

• The air purifier will switch to manual mode aumatically when touching the fan speed button ✗.

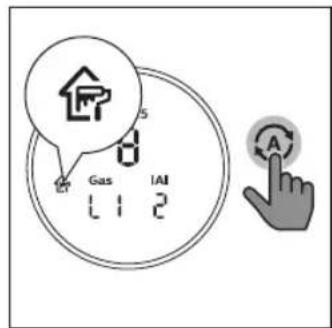

Formaldehyde mode

The unique Formaldehyde mode is designed to quickly remove your indoor formaldehyde and maintain it at safe level.

- Touch the Auto mode button 🔒 to select the Formaldehyde mode. → The ⏻ icon displays on the screen.

Allergen mode

The extra-sensitive allergen mode is designed to react to even a small change in allergen levels in the surrounding air.

- Touch the Auto mode button to select Allergen mode. → The 🎨 icon displays on the screen.

Changing the fan speed

In addition to the Auto modes, there are several fan speeds available.

When using the manual fan speed settings, the air purifier will still monitor the air quality, but it will not automatically adjust the fan speed if it detects changes in the air quality.

Sleep mode ( C

In sleep mode, the air purifier operates quietly at a very low speed.

- Touch the fan speed button ⚙ select the sleep mode. →The sleep mode indicator goes on.

Manual

- Touch the fan speed button

repeatedly to select the fan speed you need:

(Speed 1) (Speed 2) (Speed 3)

Tip

• If the air quality light lights up blue, it indicates that the air quality is good, and you can select a lower fan speed. On the other hand, if the air quality light lights up red-purple or red, it indicates that the air quality is unhealthy, and you can select a higher fan speed to purify the air more quickly.

Turbo

In Turbo mode, the air purifier operates on the highest speed.

- Touch the fan speed button select the Turbo mode.

→The turbo speed indicator goes on.

Using the light on/off function

With the light on/off button, you can switch on or off the air quality light, the display screen and the function indicator if desired.

1 Touch the light on/off button once, the air quality light will be off, the display panel will be dimmed with -displayed.

2 Touch the light on/off button 🎨 again, all lights will be on.

Setting the child lock

1 Touch and hold the child lock button 📋 for 3 seconds to activate child lock.

→The child lock icon

displays on the screen.

→When the child lock is on, all the other buttons are not responsive.

2 Touch and hold the child lock button for 3 seconds again to deactivate child lock.

→The child lock icon

disappears.

Note

- You can still control the appliance through the App even child lock is activated.

5 Cleaning

Note

• Always unplug the appliance before you clean it.
- Never immerse the appliance in water or any other liquid.
- Never use abrasive, aggressive, or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.
- Only the pre-filter is washable. The air purifier filter is not washable nor vacuum cleanable.

Cleaning schedule

Frequency Cleaning method
When necessary	Wipe the surface of the appliance with a soft dry cloth
	Clean the air outlet cover
Every two months	Clean the air quality sensor with a dry cotton swab
When the pre-filter cleaning indicator lights up and F0 displays on the screen	Clean the pre-filter

Cleaning the body of the appliance

Regularly clean the inside and outside of the air purifier to prevent dust from collecting.

1 Use a soft, dry cloth to clean both the interior and exterior of the air purifier.
2 The air outlet can also be cleaned with a dry, soft cloth.

Cleaning the air outlet cover

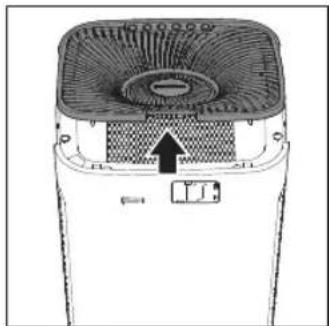

1 To unlock the air outlet cover, grab the handle on the cover and pull the cover up.

2 Clean the cover with a brush.

3 Reattach the cover properly.

Cleaning the air quality sensor

Clean the air quality sensor every two months for optimal functioning of the appliance. Clean it more frequently if you use the appliance in a dusty environment.

Note

- If the air purifier is used in a dusty environment, it may need to be cleaned more often. - If the humidity level in the room is very high, condensation may develop on the air quality sensor and the air quality light may indicate a more poor air quality even though the air quality is actually good. If this occurs, clean the air quality sensor or use the air purifier on a manual speed setting.

1 Clean the inlet and outlet of the air quality sensor with a soft brush.

2 Open the air quality sensor cover.

3 Clean the air quality sensor, the dust inlet and the dust outlet with a damp cotton swab.

4 Dry all parts thoroughly with a dry cotton swab.

5 Reattach the air quality sensor cover.

Cleaning the pre-filter

Clean the pre-filter when lights up and F0 is displayed on the screen.

1 Switch off the air purifier and unplug from the power socket.

2 Pull the top part of the side panel to remove it from the appliance.

3 Press the two clips down and pull the pre-filter towards you.

4 If the pre-filter is very dirty, use a soft brush to brush away the dust. Then wash the pre-filter under running tap water.

5 Allow the pre-filter to air dry thoroughly before placing back in the air purifier.

6 Put the pre-filter back into the appliance.

Note

• Make sure that the pre-filters are completely dry before you put them back in the appliance. If they are still wet, bacteria may multiply in them and shorten the lifetime of the pre-filters.

7 To reattach the side panel, mount the panel onto the bottom of the appliance first (1). Then, gently push the panel against the body of the appliance (2).

8 Put the plug of the air purifier in the power socket.

9 Touch the ⏻ button to switch on the appliance.

10 Touch and hold the reset button ← for 3 seconds to reset the pre-filter cleaning time.

11 Wash your hands thoroughly after installing filters.

6 Replacing the air purification filter

Understanding the healthy air protect lock

This air purifier is equipped with a filter replacement indicator to make sure that the air purification filter is in optimal condition when the air purifier is operating. When the filter needs to be replaced, the filter code displays on the screen (see Filter alert chart) and the filter replacement alert ( lights up red.

If the filter is not replaced in time, the air purifier will stop operating and automatically lock to protect the air quality in the room. Replace the filter as soon as possible according to the filter code.

Replacing the filter

Note

• The filter is not washable or reusable.
• Always turn off the air purifier and unplug from the electrical outlet before replacing the filters.
- Do not clean the filters with a vacuum.
• If the pre-filter is damaged, worn or broken, do not use. Visit www.philips.com/support or contact the Consumer Care Center in your country.

Filter alert light status	Action
A3 displays on the screen and the filter replacement alert goes on.	Replace the NanoProtect filter HEPA Series 3 (FY5186)

1 Take out the pre-filters on both sides of the appliance.

2 Take out the expired filter. Discard used filter.

Note

- Do not touch the pleated filter surface, or smell the filter as it has collected pollutants from the air.

3 Remove all packaging material of the new filter.

4 Put the unpacked air purification filter back into the appliance.

5 Put the plug of the air purifier in the power socket.
6 Touch the ⏻ button to switch on the appliance.
7 Touch and hold the reset button ← for 3 seconds to reset the filter lifetime counter

Note

- Wash your hands after changing a filter.

Filter force reset

You can replace filters even if there is no filter replacement code displayed on the screen. After replacing a filter, you need to reset the filter lifetime counter manually.

1 Touch and simultaneously for 3 seconds to enter the filter reset mode.

Code (A3) of the NanoProtect filter Pro S3 displays on the screen.

2 Touch and hold to 3 seconds to force reset the filter lifetime counter.

3 After the filter is reset, -- displays on the screen.

4 Touch and hold for 3 seconds to exit the filter reset mode.

Changing filter type

1 Touch and simultaneously for 3 seconds to enter the filter type change mode.

Code (A3) of the NanoProtect filter Pro S3 displays on the screen.

2 Touch 🔒 to select filter code of the new filter you will use.

3 Touch and hold for 3 seconds to confirm the filter code of the new filter.

Note

• After you have selected the filter code of the new filter using the button, if you do not touch any other buttons in 10 seconds, the appliance will automatically confirm the filter code of the new filter.

4 After the new filter code is confirmed, -displays on the screen.

If you have the second filter to change the filter type, tap first to choose the new filter code, and then tap and hold for 3 seconds to confirm the selection and exist the filter type change mode.

→if you don't have the second filter, just tap and hold → for 3 seconds to confirm the filter code and exist the filter type change mode.

Note

• Refer to the separate leaflet that comes with the filter for more information on different filter combinations for your choice.

7 Storage

1 Turn off the air purifier and unplug from the power socket.
2 Clean the air purifier, air quality sensor and pre-filter (see chapter ‘Cleaning’).
3 Let all parts air dry thoroughly before storing.
4 Wrap the filters and pre-filter separately in air tight plastic bags.
5 Store the air purifier, filters and pre-filters in a cool, dry location.
6 Always thoroughly wash hands after handling filters.

8 Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Center in your country.

Problem Possible solution
The appliance does not work even though it is plugged in.	·Check if the top cover is properly installed.·The filter replacement light has been on continuously but you have not replaced the corresponding filter. As a result, the appliance is now locked. In this case, replace the filter and reset the filter lifetime counter.
The airflow that comes out of the air outlet is significantly weaker than before.	·The pre-filter is dirty. Clean the pre-filter (see the chapter "Cleaning").
The air quality does not improve, even though the appliance has been operating for a long time.	·Check if the packing material is removed from the filters.·One of the filters has not been placed in the appliance. Make sure that all filters are properly installed in the following order, starting with the innermost filter: 1) NanoProtect filter HEPA Series 3; 2) pre-filter.·The air quality sensor is wet. The humidity level in your room is high and causes condensation. Make sure that the air quality sensor is clean and dry (see the chapter "Cleaning").
The color of the air quality light always stays the same.	·The air quality sensor is dirty. Clean the air quality sensor (see the chapter "Cleaning").

Problem Possible solution

The appliance produces a strange smell.	· The first few times you use the appliance, it may produce a plastic smell. This is normal. However, if the appliance produces a burnt smell, contact your Philips dealer or an authorized Philips service center. The filter may produce smell after being used for a while because of the absorption of indoor gases. It's recommended that you reactivate the filter by putting it in direct sunlight for repeated use. If odor still exists, replace the filter.
The appliance is extra loud.	· If the appliance is too loud, you can change the fan speed to a lower fan speed level. When using the appliance in a bedroom at night, choose the silent speed.
The appliance still indicates that I need to replace a filter, but I already did.	· Perhaps you did not reset the filter lifetime counter. Switch on the appliance. Then touch and hold the reset button ( ) for 3 seconds.
Error code "E1" displays on the screen.	· The motor has malfunctions. Contact the Consumer Care Center in your country.
Error codes "E2", "E3", "E4" or "E5" displays on the screen.	· The sensor has malfunctions. Contact the Consumer Care Center in your country.

9 Guarantee and service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Center in your country (you can find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Center in your country, go to your local Philips dealer.

Order parts or accessories

If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support.

If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country (you can find its phone number in the worldwide guarantee leaflet).

10 Notices

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Compliance with EMF

Koninklijke Philips N.V. manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.

One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Recycling

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

PHILIPS

产品保用卡

保修及服务：
