5 Quart Programmable Slow Cooker LY-5000DE - Slow cooker Ambiano - Free user manual and instructions

Product Type	Programmable Slow Cooker
Brand	Ambiano
Model	LY-5000DE
Capacity	5 Quarts
Dimensions (H x W x D)	10 x 12 x 10 inches
Weight	7 lbs
Power Consumption	250 Watts
Voltage	120 V
Frequency	60 Hz
Outer Material	Stainless Steel
Inner Pot Material	Ceramic with Nonstick Coating
Control Type	Digital Programmable
Cooking Modes	Low, High, Warm
Timer Range	Up to 24 Hours
Auto Shift to Warm	Yes
Dishwasher Safe Parts	Removable Pot and Lid
Cool-Touch Handles	Yes
Viewing Window	Tempered Glass Lid
Indicator Light	Yes
Power Cord Length	3 Feet
Safety Features	Automatic Shut-Off, Overheat Protection
Warranty	1 Year Limited

Frequently Asked Questions - 5 Quart Programmable Slow Cooker LY-5000DE Ambiano

How do I set the cooking time on my Ambiano slow cooker?

Press the Timer button, then use the + and - buttons to set the desired cooking time (up to 24 hours). After setting, press Start to begin.

Can I cook frozen meat directly in the slow cooker?

It is not recommended. Always thaw meat in the refrigerator before cooking to ensure even cooking and food safety.

What is the difference between Low and High settings?

The Low setting cooks at approximately 200°F (93°C) and takes longer, while High cooks at about 300°F (149°C) for faster cooking. Both result in tender food.

How do I clean the slow cooker?

Unplug and let it cool. Remove the ceramic pot and glass lid; they are dishwasher safe. Wipe the base with a damp cloth. Do not immerse the base in water.

Why is my food taking longer than the recipe says?

Factors like starting with cold ingredients, opening the lid frequently, or using the Low setting can extend cooking time. Try to minimize lid opening.

Can I leave the slow cooker unattended?

Yes, the Ambiano slow cooker is designed for safe unattended cooking. It has an automatic keep-warm function after the set time.

How can I prevent food from burning?

Ensure there is enough liquid (at least 1/2 cup) and avoid lifting the lid unnecessarily. Cooking on Low for longer periods typically prevents burning.

What is the capacity of this slow cooker?

The Ambiano LY-5000DE has a 5-quart capacity, ideal for 3-6 servings.

Is the slow cooker programmable?

Yes, it features a digital programmable timer and temperature settings for precise cooking.

Can I cook rice in this slow cooker?

Yes, use a 1:2 ratio of rice to liquid and cook on High for about 2 hours or until tender. Adjust liquid as needed.

USER MANUAL 5 Quart Programmable Slow Cooker LY-5000DE Ambiano

Contents

Parts list....3

Contents ....3

General informaon....4

Safety instrucons ....5

User instrucons ....7

Helpful hints 9

Cleaning and maintenance....11

Other useful informaon ....12

Technical specicaons 12

Storing 12

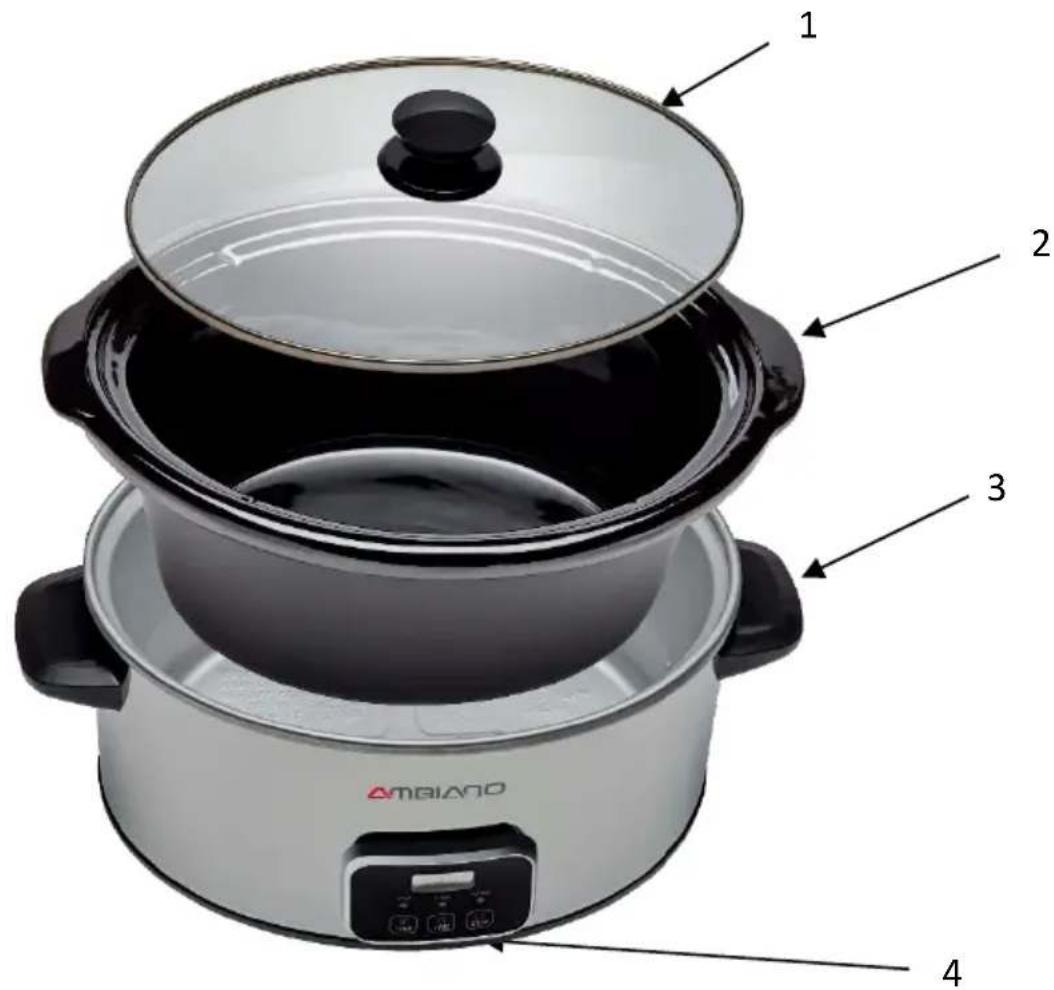

Main parts

1. Tempered glass lid
2. Removable ceramic pot
3. Base
4. Control panel

Contents of packaging

• Base unit
• Removable ceramic pot
• Tempered glass lid
• Instrucon manual

General informaon

When using electrical appliances basic safety precautions should always be followed. PLEASE READ AND SAVE ALL INSTRUCTIONS BEFORE USING THE 4 QT. STAND MIXER.

1. To protect against electrical shock, do not immerse power cord, plug or Slow Cooker in water or any other liquid.
2. If the power cord is damaged, the manufacturer or qualified electrician must replace it in order to avoid hazard.
3. Do not use outdoors. For household use only. Do not use the appliance for other than intended use.
4. Close supervision is necessary when any appliance is being used by or near children.
5. Never touch the outer surface of the slow cooker during its operaon or before it cools. Use the handles. Use oven gloves or a cloth when removing the lid or handling the ceramic pot. Tilt the lid away from you when removing the lid to avoid scalding.
6. Unplug this unit from the electrical outlet when not in use and before cleaning. Allow appliance to cool completely before immersing the ceramic pot or lid in water. DO NOT immerse the slow cooker base in water or any other liquid.
7. Do not operate the Slow Cooker with a damaged power cord or plug or aer the appliance malfuncons or is dropped or damaged in any manner.
8. Do not let the power cord hang over the edge of a table or counter or touch any hot surface.
9. Do not place this unit on or near a hot gas or electric burner, or in a heated oven.
10. To disconnect the unit, push the STOP buon rst and then remove the plug from the wall outlet. Never leave the slow cooker connected to the power outlet when not in use.
11. Do not clean the appliance with metal scouring pads. Pieces can break o from the pad and touch electrical parts, creang a risk of electrical shock.
12. Do not switch on the slow cooker if the ceramic pot is empty.
13. NEVER cook directly in the slow cooker base without the ceramic pot.
14. Extreme cauon should be used when moving a slow cooker containing hot food, water, or other hot liquids. DO NOT carry the slow cooker base by the handles with a full ceramic pot in it. ALWAYS use oven mis to move it when full.
15. Do not use the ceramic pot or glass lid if cracked or chipped.
16. Avoid sudden temperature changes, such as adding cold or frozen ingredients into a heated ceramic pot.
17. DO NOT PLACE THE CERAMIC POT OR LID IN A HOT OVEN OR USE ON A STOVE TOP.

SAVE ALL INSTRUCTIONS!

Safety instrucons

WARNING: Read and understand all instrucons. Failure to follow all instrucons listed below may result in electric shock, re or serious personal injury. The warnings, cauons, and instrucon discussed in this instrucon manual cannot cover all possible condions and situaons that may occur. It must be understood by the operator that common sense and cauon are a factor which cannot be built into this product, but must be supplied by the operator.

CAUTION: A short power supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a longer cord.

Extension cords are available from local hardware stores and may be used if care is exercised in their use. If an extension cord is required, special care and cauon is necessary. Also the cord must be: (1) marked with an electrical rang of 125V, and at least 13 A., 1625 W., and (2) the cord must be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

Polarized plug

NOTE:

This slow cooker has a polarized plug (one blade is wider than the other).

As a safety feature to reduce the risk of electrical shock, this plug is intended to t in a polarized outlet only one way.

If the plug does not t fully in the outlet, reverse the plug.

If the plug sll does not t, contact a qualified electrician. Do not aempt to defeat this safety feature.

Electric power

If electric circuit is overloaded with other appliances, your appliances may not operate properly. The appliances should be operated on a separate electrical circuit from other operating appliances.

Safety warning

Although your Slow Cooker is easy to operate, for your safety, the warnings below must be followed:

1. Do not place the Slow Cooker near a heat source.

2. Never leave the Slow Cooker unaended while connected to the electrical outlet. Use the Slow Cooker on a stable work surface away from water.

3. Do not unplug from the wall socket by pulling on the supply cord.

4. The Slow Cooker must be unplugged:

A. Aer each use.
B. If it appears to be faulty.
C. Before cleaning or maintenance.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. SAVE THESE INSTRUCTIONS!

User instrucons

Before rst use

Please note that there may be a faint smell when using the 5 Qt. Programmable Slow Cooker for the rst me. This is dust burning o that has been collected in storage at the manufacturer. This faint smell will eventually go away aer the rst few uses.

• Unpack the slow cooker and other necessary parts from the box.
• Remove any unwanted packaging materials such as cardboard, plascs or styrofoam.
• Wipe clean all the parts with a so damp cloth or sponge. Rinse and dry thoroughly. DO NOT USE ANY ABRASIVE MATERIALS TO CLEAN THE SURFACE.
• DO NOT IMMERSE THE SLOW COOKER BASE INTO WATER AT ANY TIME.
• Assemble all the parts to the slow cooker.

How to use

1. Always set your slow cooker on a level and stable heat resistant surface. Make sure the feet are seng securely on the table or counter.
2. Prepare your recipe according to the direcons
3. Assemble your ingredients in the ceramic pot and place the pot into the base. Cover with the glass lid. If you need to pre-cook or brown foods prior to slow cooking, this must be done in a pan on the stove, not in the slow cooker.
4. To begin cooking, plug the power cord into an outlet. The unit will beep and 4 blue dashes will appear in the display window.

1. Press the TEMP buon once. This will turn the unit on and 08:00 will ash in the display window. This sets the temperature to the LOW seng and the me will begin to count down from 8 hours. The light below the word LOW will turn on.

2. Press the TEMP buon a second me and 04:00 will ash in the display window. This changes the temperature to the HIGH seng and the mer will start counng down from 4 hours. The light below the word HIGH will turn on.

3. Press the TEMP buon a third me and 06:00 will ash in the display window. This will change the temperature to the WARM seng and the mer will start counng down from 6 hours. The light below the word WARM will turn on.

4. PLEASE NOTE: The WARM seng is only used for keeping foods warm and is not intended for cooking.
5. When the mer expires the slow cooker will automacally switch to WARM for up to six hours. To turn the unit OFF, press the STOP buon. The unit will turn o and the 4 blue dashes will begin blink unl you unplug the slow cooker. Remove the ceramic pot using oven mis. ALWAYS unplug the unit when not in use.
6. THIS UNIT BECOMES VERY HOT DURING USE AND EXTREME CAUTION SHOULD BE USED DURING AND AFTER COOKING UNTIL THE UNIT HAS COOLED COMPLETELY AFTER UNPLUGGING FROM THE WALL OUTLET.
7. NEVER CARRY THE SLOW COOKER BY THE HANDLES WHEN THE CERAMIC POT IS FULL OF HOT FOOD OR LIQUID. ALWAYS USE OVEN MITTS.

Helpful hints

- Authenc stoneware is red at high temperatures therefore the ceramic pot may have minor surface blemishes, the glass lid may rock slightly due to these imperfecons. Low heat cooking does not produce steam so there will be lile heat loss. Due to normal wear and tear through the product's life, the outer surface may start appearing to have ne cracks on the surface of the glaze.

- Do not put the ceramic pot or glass lid in an oven, freezer, microwave, or in a toaster oven.

- Do not pre-heat before adding ingredients.

- Do not subject the ceramic pot to sudden changes in temperature. Adding cold water to a very hot ceramic pot could cause it to crack.

- Do not allow the ceramic pot to stand in water for a long me as there is an area on the base of the ceramic pot that has to remain unglazed for manufacturing purposes. This unglazed area is porous, therefore will soak up water. However, you can leave water in the ceramic pot to soak.

- Do not switch the Slow Cooker on when the ceramic pot is empty or out of the base.

- The Slow Cooker must be at least half full for best result.

- The lid is not a sealed t. Don't remove unnecessarily as the built up heat will escape. Each me you remove the lid, allow 10 minutes of extra cooking me.

- If cooking soups or stews, leave a 2-inch space between the top of the ceramic pot and the food surface to allow simmering.

- Many recipes call for all day cooking. Ingredients can be prepared the night before and stored in food containers in the refrigerator overnight. In the morning transfer the ingredients to the ceramic pot, add warm liquid or gravy and set the slow cooker for the desired temperature seng and me.

- Most meat and vegetable recipes require 8-10 hours on LOW or 4-6 hours on HIGH.

- Do not use frozen meat or poultry unless it is thoroughly thawed out rst.

- Some ingredients are not suitable for slow cooking. Pasta, seafood, milk and cream should be added towards the end of the cooking me. Many things can aect how quickly a recipe will cook, such as water and fat content, initial temperature of the food, and the size of the food.

- Pieces of food cut into small pieces will cook quicker. A degree of ‘trial and error’ will be required to fully opmize the potential of your Slow Cooker.

• Aer food is cooked, switch control knob to OFF and leave covered with the lid. There will be enough heat in the ceramic pot to keep the food warm for approximately 30 minutes. If you require longer me to keep the food warm switch to the WARM seng.
• All food should be cooked with a liquid, gravy or sauce. In a separate pan prepare your liquid, gravy or sauce and add to the food in the ceramic pot.
• Pre-brown meat and onions in a pan to seal in the juices. This also reduces the fat content if separated before adding to the ceramic pot. This is not necessary if the me is limited, but it does improve the avor.
• We recommend that you do not store foods in the ceramic pot in the refrigerator, however, if you do store food in the ceramic pot do not put it into the Slow Cooker base for a minimum of 45 minutes to allow it to warm up slightly. Make sure it is completely dry before placing it in the Slow Cooker base.
• Never use the ceramic pot on top of the stove. It is meant for use in the Slow Cooker only.

Cleaning and maintenance

CAUTION:

Always be sure that the Slow Cooker is unplugged and completely cooled before cleaning or aempng to store the item. NEVER IMMERSE base in water or any other liquid.

It is important to clean your Slow Cooker thoroughly aer each use to prevent scky build ups that are dicult to clean later.

1. Use a so cloth moistened with a mild soap soluon to clean the base of the slow cooker, lid, and ceramic pot.
2. If food is cooked on to the inner lining of the ceramic pot you may soak the inside of the ceramic pot in warm soapy water. Do NOT soak the whole ceramic pot in water.
3. Rinse thoroughly and dry with a so cloth.
4. DO NOT immerse the Slow Cooker base in water or any other liquid. NEVER use gasoline, benzene, or paint thinner to clean the surface. This will damage the surface of the Slow Cooker.
5. Do not use abrasive materials to clean the surface of the Slow Cooker.

Other useful informaon

Technical specicaons

Model Number LY-5000DE

Rang Voltage 120V – 60Hz

Nominal Power 190W

Storing

• Store the Slow Cooker in a dry locaon.
• Do not place heavy items on top of the Slow Cooker as this may damage the Slow Cooker.

Service center

If you have any quesons in regards to the operaon of this Slow Cooker please contact the service center at:

Tel: [phone]

Business Hours: Mon-Fri 10:00am – 5:00pm EST

Email: [e-mail]

Environmental protecon

If Slow Cooker should no longer work at all, please make sure that it is disposed of in an environmentally friendly way.

Contenido

Lista de componentes ...... 14

Contenido 14

Información general....15

*We recommend you keep the receipt with this warranty card

Locaon of purchase

Descripon of malfuncon:

Return your completed warranty card to:

Wachsmuth & Krogmann, Inc.

1015 Hawthorn Drive

Itasca, IL

60143

USA

[e-mail]

AFTER SALES SUPPORT 51790

888 367 7373

[e-mail]

MODEL:

LY-5000DF 01/2017

Hotline:

888-367-7373

Operang hours:

Monday – Friday

10:00am - 5:00pm EST

2

YEAR WARRANTY

AÑOS DE GARANTÍA

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer:

The ALDI warranty is a fully warranty oering you the following benets:

Warranty period: 2 years from date of purchase.

6 months for movable parts and consumables under normal and proper conditions of use (e.g. rechargeable baeries).

Costs: Free repair/exchange or refund.

No transport costs.

ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

The faulty item with all the component parts, the original receipt and the warranty card properly completed.

The warranty does not cover damage caused by:

Accident or unanticipated events (e.g. lightning, water, re).

Improper use or transport.

Failure to follow the safety and maintenance instrucons.

Other improper treatment or modicaon of the product.

Aer the expiraon of the warranty period, you may wish to have your product repaired at your own expense.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state but this warranty is not intended to exceed statutory minimum requirements beyond what is included above.

This warranty does not limit the statutory obligaon of the seller arising from any implied warranes. The period of warranty can only be extended in accordance with applicable law.

Neither the service company nor ALDI will assume any liability for data or sengs stored on any returned product.

TARJETA DE GARANTÍA

10:00a.m. - 5:00p.m.
