14" Electric Grill HY-6504 - Electric grill Ambiano - Free user manual and instructions

Product Type	Electric Grill
Brand	Ambiano
Model	14" Electric Grill HY-6504
Cooking Surface Diameter	14 inches (35.6 cm)
Dimensions (L x W x H)	16.5 x 16.5 x 5.5 inches
Weight	7 lbs (3.2 kg)
Power Supply	120V, 60Hz, 1500W
Cooking Surface Material	Non-stick coating
Temperature Control	Adjustable thermostat with variable heat settings
Indicator Light	Power on/off indicator
Handle	Cool-touch handle for safe operation
Base	Non-slip rubber feet for stability
Drip Tray	Removable drip tray for easy cleaning
Cleaning	Non-stick surface and removable drip tray; hand wash recommended
Safety Features	Overheat protection, auto shut-off
Usage	Indoor use only
Warranty	1 year limited warranty
Color	Black with silver accents
Included Accessories	Grill plate, drip tray, user manual

Frequently Asked Questions - 14" Electric Grill HY-6504 Ambiano

How do I preheat the Ambiano 14" Electric Grill?

Plug in the grill and turn the temperature dial to the desired setting. Wait approximately 5-10 minutes for the heating indicator light to cycle, indicating the grill has reached the set temperature.

Can I use metal utensils on the non-stick surface?

No, metal utensils can scratch the non-stick coating. Use silicone, wood, or plastic utensils to preserve the surface.

How do I clean the drip tray?

Allow the drip tray to cool completely, then remove it from the grill. Wash with warm soapy water and a soft sponge. The tray is dishwasher safe for easy cleaning.

Is the grill plate dishwasher safe?

The grill plate has a non-stick coating and is not recommended for dishwasher use. Hand wash with mild detergent and a non-abrasive sponge to maintain the coating.

What is the maximum temperature of this grill?

The adjustable thermostat can reach up to 450°F (232°C), suitable for grilling meats, vegetables, and more.

Can I cook frozen food directly on the grill?

It is recommended to thaw frozen food before grilling for even cooking. Cooking frozen items may result in uneven doneness and longer cooking times.

How do I adjust the temperature?

Turn the temperature dial clockwise to increase heat and counterclockwise to decrease. The indicator light will turn on when heating and off when the set temperature is reached.

What does the power light indicate?

The power indicator light illuminates when the grill is plugged in and turned on. It does not indicate the cooking temperature but confirms power is supplied.

How should I store the grill when not in use?

Ensure the grill is completely cool and clean. Store in a dry place, preferably with the drip tray inserted and the power cord wrapped loosely. Avoid placing heavy items on top.

What safety precautions should I follow during use?

Always use on a heat-resistant surface, keep away from flammable materials, do not immerse in water, and unplug after use. The grill has overheat protection but should not be left unattended.

USER MANUAL 14" Electric Grill HY-6504 Ambiano

Contents

Parts list....3

Contents ....3

Assembly 4

General information 5

Safety instructions ....6

User instructions....7

Cooking tips 8

Cleaning and maintenance 9

Other useful information 10

Technical specifications ....10

Storing 10

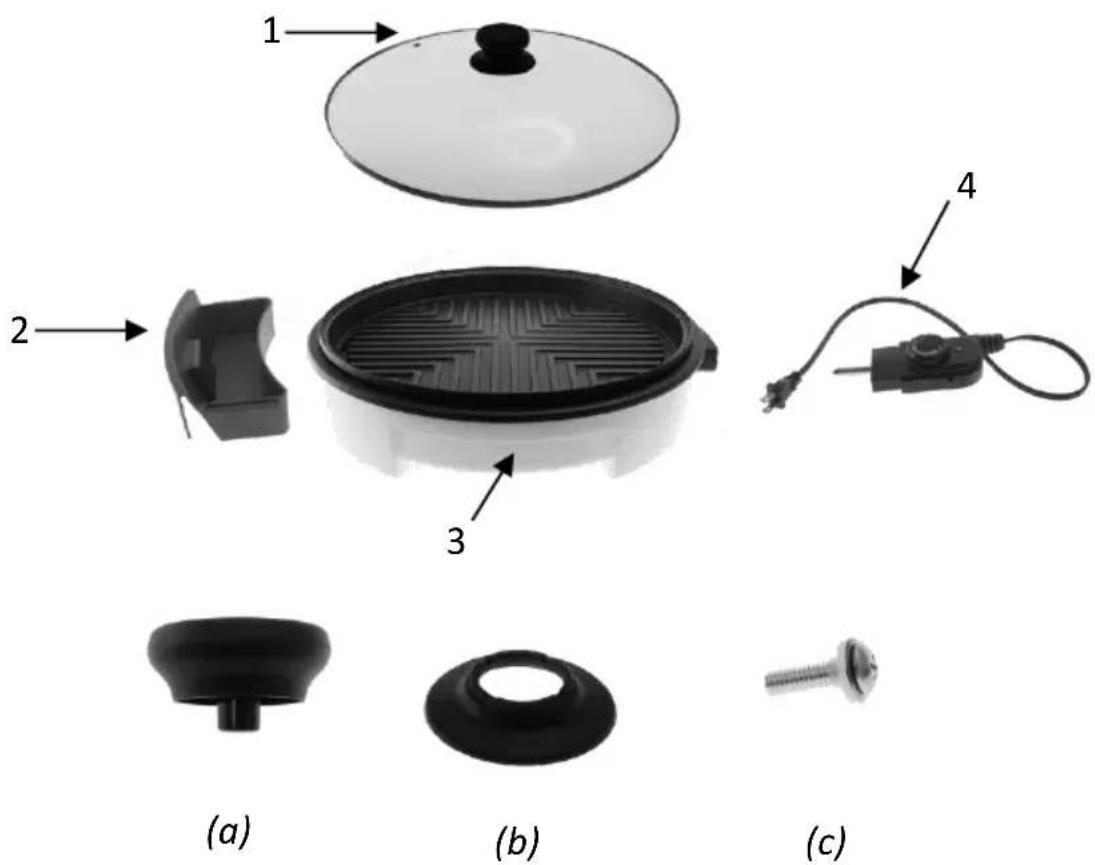

Main parts

1. Glass lid
2. Drip tray
3. Base
4. Temperature probe

Contents of packaging

• Glass lid • Handle (knob, handle base and screw) (see Fig. a, b, c)
• Grill base with attached temperature probe receptacle
• Temperature probe
• Drip tray
• Instruction manual

Assembly

1. Unpack the 14" Electric Grill from the box.
2. Please note the glass lid is packed upside down in the base. Remove before using.
3. Wipe clean all of the parts with a soft damp cloth or sponge and warm water. Rinse and dry thoroughly.
4. Attach the handle to the glass lid by placing the knob on the handle base on top of the glass lid. The screw with the bolt will reach under the glass lid. Turn the screw set clockwise while simultaneously turning the handle clockwise. This will ensure the handle is securely attached to the glass lid.

1. Place the drip tray into the base of the grill. It may be easiest to line up the tabs on the pan with the tabs on the base at an upward angle, then follow the tabs and push the drip tray into place.
2. Plug the probe into the grill with the power knob facing up.

DO NOT USE ANY ABRASIVE MATERIAL TO CLEAN THE SURFACE. DO NOT IMMERSE THE TEMPERATURE PROBE IN WATER OR ANY OTHER LIQUIDS.

General information

When using electrical appliances, basic safety precautions should always be followed.

Please read and save all instructions before using the 14" Electric Grill.

NOTE: During first use, the Grill may give off a slight odor. This is due to the newness of the product and will dissipate with use.

1. DO NOT immerse the temperature probe in water or other liquids. Protect yourself from electrical hazards.
2. Do not use outdoors or while standing in a damp area. For household use only.
3. Close supervision is necessary when any appliance is being used by or near children. This 14" Electric Grill is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. DO NOT operate the 14" Electric Grill with a damaged power cord or plug or after it has malfunctioned or is dropped or damaged in any manner. Contact the warranty center for instructions.
5. When not in use (and before cleaning), the 14" Electric Grill should be turned OFF and unplugged from the outlet. Avoid all contact with moving parts.
6. Do not let the power cord hang over the edge of a table or counter or touch any hot surface.
7. Do not use the 14" Electric Grill for other than intended use.
8. Do not operate this unit with wet hands.
9. Do not use this unit with an external timer or a separate remote-control system.
10. Do not place the 14" Electric Grill on or near hot gas or electric burner, or in a heated oven.
11. A hazard may be caused by the use of accessory attachments NOT recommended by the manufacturer.
12. A short cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord.

SAVE ALL INSTRUCTIONS!

For household use only!

Safety instructions

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

CAUTION: A short power supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a longer cord. Extension cords are available from local hardware stores and may be used if care is exercised in their use. If an extension cord is required, special care and caution is necessary. Also the cord must be: (1) marked with an electrical rating of 125V, and at least 13 A., 1625 W., and (2) the cord must be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

Polarized plug

NOTE: This 14" Electric Grill has a polarized plug (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way.

• If the plug does not fit fully in the outlet, reverse the plug.
• If the plug still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Electric power

If the electric circuit is overloaded with other appliances, your 14" Electric Grill may not operate properly. The 14" Electric Grill should be operated on a separate electrical circuit from other operating appliances.

Safety warning

Although your 14" Electric Grill is easy to operate, for your safety, the warnings below must be followed:

1. Do not place the grill near a heat source.
2. Never leave the grill unattended while connected to the electrical outlet.
3. Use the grill on a stable work surface away from water.
4. Do not unplug from the wall socket by pulling on the supply cord.
5. The 14" Electric Grill must be unplugged:

A. After each use. B. If it appears to be faulty. C. Before cleaning or maintenance.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

SAVE THESE INSTRUCTIONS!

User instructions

Before first use

• Wash all pieces, except the temperature probe, in warm soapy water, rinse, and dry thoroughly before first use.
• Do NOT immerse temperature probe in water or any other liquid.

How to use

1. Place base on heat resistant stable surface in a well ventilated area.
2. Place the drip tray onto the base.
3. Make sure the temperature probe is turned off. Insert temperature probe into the receptacle in the handle. Plug the power supply cord into a wall outlet.
4. Adjust the temperature probe to the desired temperature. NOTE: The power indicator light is also the temperature indicator for the grill.
5. Allow the unit to preheat 7–10 minutes. Place food directly on the grill. Place glass lid onto grill. Cook food to desired doneness.
6. When cooking is finished, turn the temperature probe knob to OFF and remove the plug from the wall outlet.
7. IMPORTANT: Wait until the grill has cooled down completely before removing the temperature probe, or attempting to clean the unit.

CAUTION

1. Hot oil and liquid may splash as grease and juices hit the drip tray. BE CAREFUL WHILE GRILLING!
2. DO NOT TOUCH any hot surfaces while cooking. The grill may become extremely hot while cooking and will remain hot while unit is cooling down.
3. DO NOT overload the grill surface.
4. DO NOT remove the temperature probe until the grill is turned OFF, unplugged and completely cooled.
5. DO NOT move the grill while in use.

DO NOT touch hot surfaces. Always use handles.

ALWAYS make sure that the unit is set to the OFF position when not in use and when unplugging from power outlet.

CAUTION: BE CAREFUL NOT TO TOUCH THE BASE UNIT AFTER COOKING AS IT REMAINS HOT!

Cooking Tips

• If using bamboo or wooden skewers, soak skewers in water at least 30 minutes before use to prevent burning.
• Use only nylon, plastic, or wooden utensils to avoid scratching the non-stick surface. Never cut food on the surface.

- Cut food into small and equal pieces to ensure more even cooking.

- Frozen food should always be thawed before it is grilled.

- If you grill vegetables, fish or lean meat, spray the grilling surface with a cooking spray. If you are grilling meat with any amount of fat, or if the food has been marinated, there is no need to treat the grill prior to cooking.

- If using a marinade with oil, place grill near an exhaust hood. Oil or fat may produce smoke.

Cooking Guide

FOOD	APPROXIMATE COOKING TIME	TEMPERATURE
Fish	10–15 minutes	300°F
Bacon	10–15 minutes	275°F
Sausage Links	20 minutes	275°F
Hamburgers	15–20 minutes	325°F
Hot Dogs	15 minutes	300°F
Chicken Breast	15–20 minutes each side	325°F
Pork Chops with Bone	10–12 minutes each side	300°F
Steak (rare)	4–6 minutes each side (Depending on thickness)	350°F
Steak (well done)	7–9 minutes each side (Depending on thickness)	350°F

Note: This chart is for your reference only. You may need to adjust cooking time and temperature according to the type, size, thickness of food and your own personal taste preference.

Cleaning and Maintenance

CAUTION:

Always be sure that the 14" Electric Grill is unplugged and completely cooled before cleaning or attempting to store the item.

1. When performing any cleaning or maintenance to this unit, turn the temperature probe to OFF and be sure to unplug from the power outlet first and allow item to cool completely before removing the temperature probe.
2. Remove the temperature probe from the unit. NEVER IMMERSE THE TEMPERATURE PROBE IN WATER OR ANY OTHER LIQUID.
3. Allow the base to cool completely before cleaning. Once cooled, clean the base with a soft cloth or sponge and warm soapy water. The base may be immersed in water. Do not place the base in the dishwasher. Make sure the base is completely dry before using.
4. Remove stubborn stains or cooked on food with plastic scouring pad and mild dish washing liquid.

Other useful information

Technical specifications

Model Number HY-6504

Rated Voltage 120V – 60Hz

Nominal Power 1500W

Storing

• Always wash and dry the grill before storing. Ensure the drip tray is in the correct position.
• Allow the 14" Electric Grill to cool completely before storing.
• Store the 14" Electric Grill in a dry location in the original box if possible.
• Do not place any heavy items on top of the 14" Electric Grill during storage as this may result in possible damage.

Service center

If you have any questions in regards to the operation of this Electric Grill please contact the service center at:

Tel: [phone]

Business Hours: Mon-Fri 10:00am – 5:00pm EST

Email: [e-mail]

Environmental protection

If the Electric Grill should no longer work at all, please make sure that it is disposed of in an environmentally friendly way.

Contenido

Lista de componentes ......12

Contenido ....12

Ensamblaje 13

Información general....14

DO NOT USE ABRASIVE MATERIALS TO CLEAN THE SURFACE DO NOT IMMERSE THE GRILL AND/OR THE TEMPERATURE PROBE IN WATER OR ANY OTHER LIQUID

Información general

*We recommend you keep the receipt with this warranty card

Location of purchase

Description of malfunction:

Return your completed warranty card to:

Wachsmuth & Krogmann, Inc.

1015 Hawthorn Drive

Itasca, IL

60143

USA

[e-mail]

AFTER SALES SUPPORT

49021

888 367 7373

[e-mail]

MODEL:

HY-6504 02/2017

Hotline:

888-367-7373

Operating Hours:

Monday – Friday

10:00am - 5:00pm EST

2

YEAR WARRANTY AÑOS DE GARANTÍA

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer:

The ALDI warranty is a full warranty offering you the following benefits:

Warranty period: 2 years from date of purchase.

6 months for movable parts and consumables under normal and proper conditions of use (e.g. rechargeable batteries).

Costs: Free repair/exchange or refund.

No transport costs.

ADVICE:

Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

The faulty item with all the component parts, the original receipt and the warranty card properly completed.

The warranty does not cover damage caused by:

Accident or unanticipated events (e.g. lightning, water, fire).

Improper use or transport.

Failure to follow the safety and maintenance instructions.

Other improper treatment or modification of the product.

After the expiration of the warranty period, you may wish to have your product repaired at your own expense.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state but this warranty is not intended to exceed statutory minimum requirements beyond what is included above.

This warranty does not limit the statutory obligation of the seller arising from any implied warranties. The period of warranty can only be extended in accordance with applicable law.

Neither the service company nor ALDI will assume any liability for data or settings stored on any returned product.
