EBENCH KH 2273 RADIO-REVEIL - Alarm Clock KOMPERNASS - Free user manual and instructions

Product type	Clock radio
Brand	KOMPERNASS
Model	EBENCH KH 2273
Mains power	230 V / 50 Hz
Backup battery	9 V (type 6LR61)
Radio bands	FM / AM
Alarm functions	Radio or audible alarm (buzzer)
Sleep timer	Yes, adjustable up to 59 minutes
Snooze	Repeat after 9 minutes
Display	Digital with alarm active indicator
Controls	Buttons TIME, ALARM, HOUR, MINUTE, SLEEP, SNOOZE; slide switches ON/OFF/AUTO, AM/FM; dials VOLUME and TUNING
Maintenance	Soft, dry cloth; do not use cleaning products
Safety	Do not expose to moisture; do not open the casing
Spare parts	No user-serviceable parts; 9V battery replaceable
Usage	Household use only
Compliance	EMC standards for bedroom use (distance > 1 m)

Frequently Asked Questions - EBENCH KH 2273 RADIO-REVEIL KOMPERNASS

How to set the time on the EBENCH KH 2273 clock radio?

Press and hold the TIME button. Press HOUR to set the hour and MINUTE to set the minutes. Release TIME.

How to set the alarm time?

Press and hold the ALARM button. Use HOUR and MINUTE to set the desired time. Release ALARM.

How to activate the alarm and choose between radio and buzzer?

Set the main switch to AUTO. If the volume is set to an audible level, the alarm will use the radio. If the volume is turned until it clicks (position BUZZ), the buzzer alarm will sound.

How to use the snooze function?

When the alarm sounds, press SNOOZE. The alarm will repeat after 9 minutes.

How to use the sleep timer?

Set the switch to AUTO and press SLEEP. The radio will turn off after 59 minutes. To reduce the duration, hold SLEEP and press MINUTE to adjust.

How to completely turn off the alarm?

Set the main switch to OFF. The alarm is deactivated.

What to do if the device does not turn on?

Check the power outlet and the power cord. Make sure the 9V backup battery is correctly inserted. If the problem persists, contact customer service.

How to clean the clock radio?

First unplug the device. Clean the exterior with a soft, dry cloth. Never use cleaning products or solvents.

Where to place the device to minimize electromagnetic fields?

Place the device at least 1 meter from the bed to stay below the EMC standard limits.

How to change the backup battery?

Open the battery compartment (usually at the back or bottom). Replace the 9V battery with a new one. Observe polarity.

USER MANUAL EBENCH KH 2273 RADIO-REVEIL KOMPERNASS

Operating Instructions

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage : 230 V / 50 Hz

Time memory ....: 9 V block battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:
- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket. Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

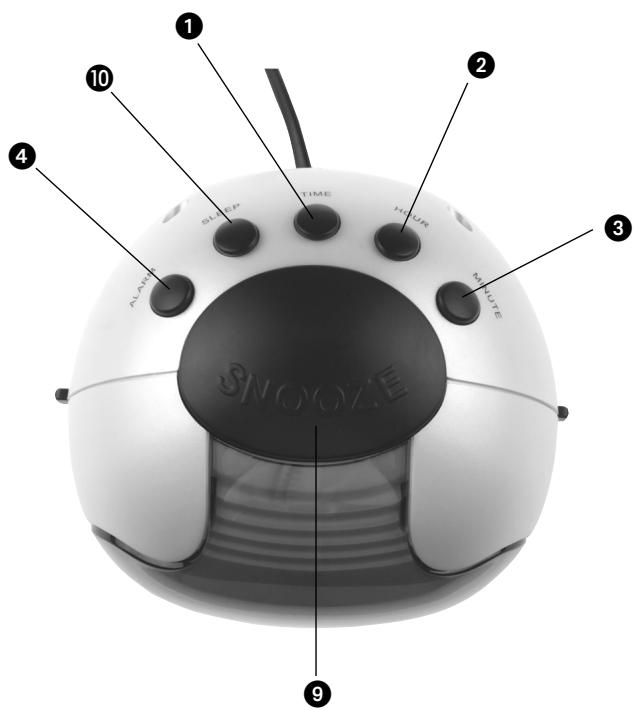

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

7. Radio reception

Move the sliding switch to the ON position.
⑥ Turn the volume control VOL to the centre position.

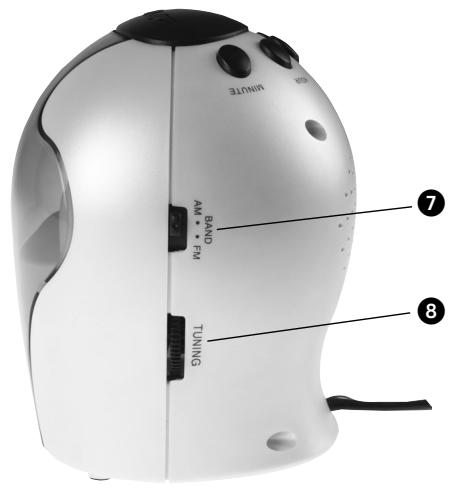

Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.
You will be awakened by the radio if ...
the volume control VOL is set to a level high enough to awaken you.
You will be awakened by the alarm signal if ...
the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

⇔ Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
