EBENCH KH 2270 RADIO-REVEIL - Alarm Clock KOMPERNASS - Free user manual and instructions

Product type	Clock radio
Brand	KOMPERNASS
Model	EBENCH KH 2270
Mains power	230 V / 50 Hz
Backup power	9 V battery (monobloc type)
Reception bands	FM, AM
Alarm functions	Radio, sound alarm (buzzer)
Snooze	9 minutes
Sleep timer	59 minutes maximum, adjustable
Display	Digital with alarm icon

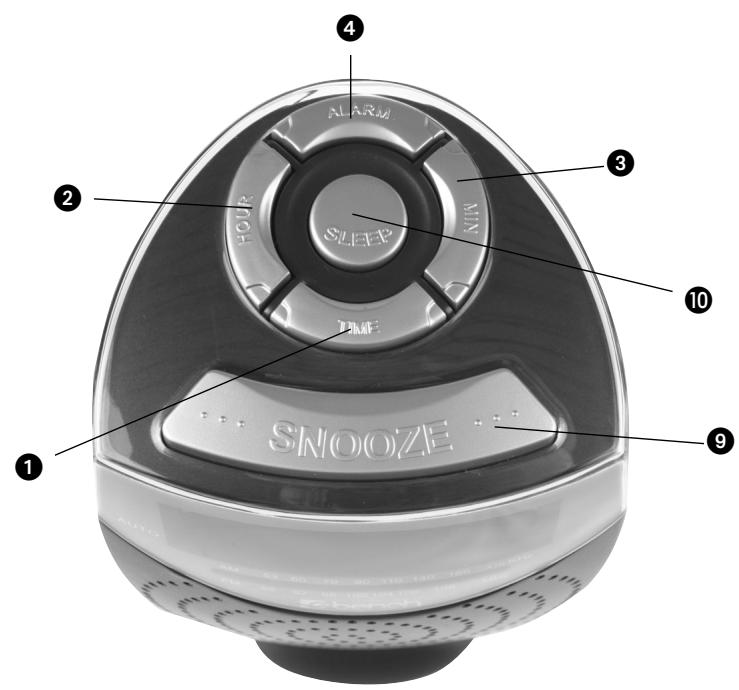

Controls	Buttons TIME, ALARM, HOUR, MINUTE, SLEEP, SNOOZE; switches ON/AUTO/OFF, AM/FM
Volume adjustment	VOL potentiometer with buzzer stop
Intended use	Domestic, indoors
Recommended placement	At least 1 meter from the bed to reduce electromagnetic fields
Electrical safety	Do not expose to moisture; unplug before cleaning
Maintenance and cleaning	Dry, soft cloth; do not use solvents
Disposal	Electronic device: collection point; used batteries: return to store
Included accessories	User manual, 9 V battery (not included?)

Frequently Asked Questions - EBENCH KH 2270 RADIO-REVEIL KOMPERNASS

How to set the time on the EBENCH KH 2270 clock radio?

Press and hold the TIME button while pressing HOUR to set the hour and MINUTE for the minutes.

How to set the alarm?

Press and hold the ALARM button, then use HOUR and MINUTE to set the alarm time.

How to listen to the radio?

Slide the switch to ON, select the AM or FM band, then turn the TUNING knob to find a station. Adjust volume with VOL.

How to activate the alarm?

Set the switch to AUTO. The alarm icon appears. The alarm will sound via radio or buzzer depending on the volume position. If the volume is set to an audible level, the radio will sound; if turned to the click (BUZZ position), the buzzer will sound.

How to stop the alarm or use the snooze function?

Press SNOOZE to repeat the alarm after 9 minutes. To completely stop the alarm, set the switch to OFF.

How to use the sleep timer?

Set the switch to AUTO, then press SLEEP. The radio will turn off after 59 minutes. You can reduce the duration by holding SLEEP and pressing MINUTE.

What type of backup battery to use?

Use a 9 V monobloc battery (type 6LR61 or equivalent). Insert it into the compartment at the back or underneath the device. The battery retains the time during power outages.

How to clean the clock radio?

Unplug the device first. Clean it with a dry, soft cloth. Do not use cleaning agents or solvents that could damage the plastic.

What are the important safety precautions?

Do not place the device near heat sources or in a humid place. Ensure the power cord is not damaged. Do not use if the housing is open. To reduce electromagnetic fields, keep the device at least 1 meter away from the bed.

How to dispose of the device and battery?

Used batteries must not be disposed of with household waste: take them to a collection point (store, recycling center). The clock radio is electronic waste, take it to a specialized recycling point.

USER MANUAL EBENCH KH 2270 RADIO-REVEIL KOMPERNASS

Operating Instructions

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage 230 V / 50 Hz Time memory 9 V block battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:
- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oegrating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket. Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

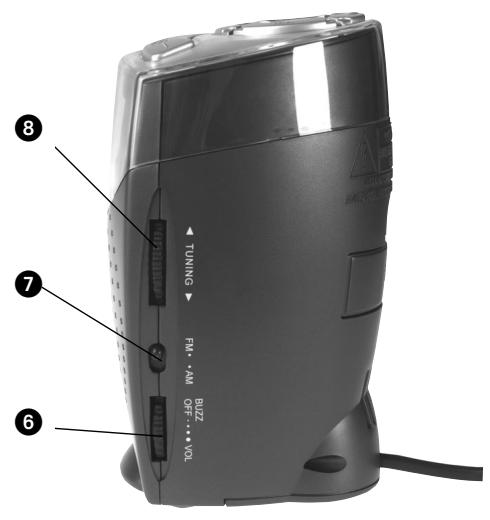

7. Radio reception

Move the sliding switch to the ON position.
Turn the volume control VOL to the centre position.
Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

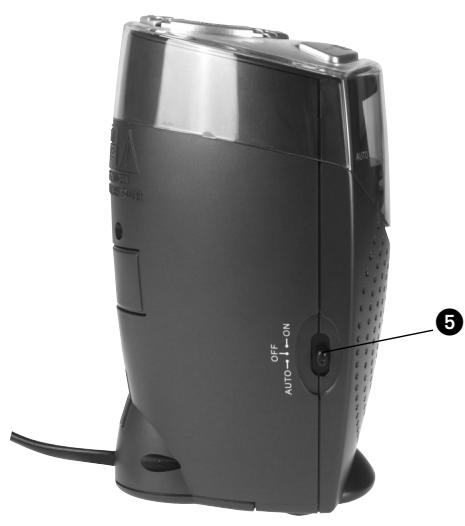

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.
You will be awakened by the radio if ...
the volume control VOL is set to a level high enough to awaken you.
You will be awakened by the alarm signal if ...
the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
⇔ Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
