Product Type	Digital Glass Scale
Brand	KOMPERNASS
Model	KH 5503 / 5504 / 5505
Maximum Weighing Capacity	180 kg / 396 lb
Minimum Measurable Weight	2 kg / 4.4 lb
Measurement Units	kg / lb (selectable)
Division	0.1 kg / 0.2 lb
Operating Temperature	20°C +/- 10°C
Power Supply	2 CR2032 lithium batteries
Display	LCD
Low Battery Indicator	Yes (displays 'Lo')
Overload Indicator	Yes (displays 'O-Id')
Error Display	Yes (displays 'Err')
Intended Use	Personal weighing, private use
Recommended Location	Flat and solid floor, avoid heat sources and humidity
Cleaning	Neutral products, soft cloth
Safety	Do not jump on the scale, do not disassemble
Repairs	Only by qualified personnel

Frequently Asked Questions - BALANCE KH 5503-5504-5505 BALANCE NUME-RIQUE EN VERRE KOMPERNASS

How to turn on the scale?

Tap with your foot on the center of the scale until HI appears on the LCD display. Then, wait until 0.0 is displayed before stepping on.

How to change the measurement unit between kg and lb?

Open the battery compartment and operate the switch to select the desired unit: kg or lb.

What does the display 'Lo' mean?

The Lo display indicates that the batteries are low. Replace both CR2032 lithium batteries.

What does the display 'O-Id' mean?

O-Id means the weight exceeds the maximum capacity of 180 kg. Step off immediately to avoid damaging the scale.

What does the display 'Err' mean?

Err indicates a weighing error. Step off the scale, wait a few seconds, and try again while staying still during the measurement.

How to clean the glass scale?

Use only neutral cleaning products and a soft cloth. Avoid abrasive products that could scratch the glass.

How to replace the batteries?

Remove the battery compartment cover, take out the old batteries, and insert two new CR2032 batteries observing polarity. Close the cover until it clicks.

Why can measurements vary between different scales?

Slight variations are normal between different devices. For consistent weighing, always use the same scale on a flat and hard surface.

How to store the scale?

Store the scale in a dry and clean place. Avoid placing objects on it when not in use and remove the batteries if not used for a long time to prevent unnecessary discharge.

What to do if the scale is disturbed by electronic devices?

High-frequency devices (phones, microwaves) can disturb the scale. Move the scale away from the source of interference or turn off these devices during use.

USER MANUAL BALANCE KH 5503-5504-5505 BALANCE NUME-RIQUE EN VERRE KOMPERNASS

Operating Instructions

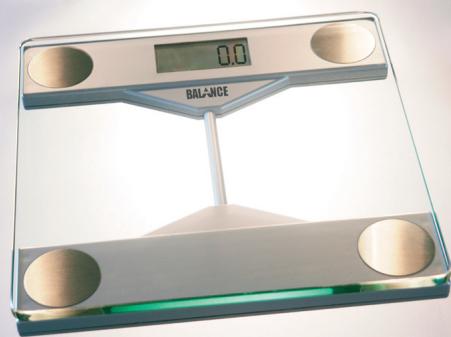

Digital balance scale with digital display and glass casing (no text or symbols visible)

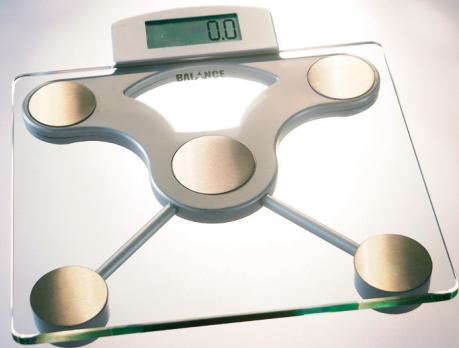

Digital kitchen scale with a digital display showing 0.0, no text or symbols on the device itself

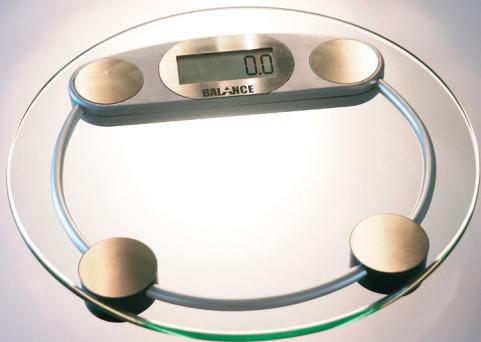

Digital balance scale with glass and gold buttons, no visible text or symbols on the device itself.

Bedienungsanleitung

Digitale Glaswaage

Balance KH 5503 / 5504 / 5505

D

Inhaltsverzeichnis

Illustration of a hand pressing down on a tray with circular components (no text or symbols)

Inbetriebnahme

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

Mise en service

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

Inbedrijfstelling

Illustration of a hand pressing down on a tray with circular components (no text or symbols)

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

2

Preparazione

Trocar as pilhas....6

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

Uso

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

Uruchomienie

Wymiana baterii

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

Uvedení do provozu

Illustration of a hand pressing down on a tray with circular compartments (no text or symbols)

SF

Käyttö

Illustration of a hand pressing down on a tray with circular components (no text or symbols)

Driftstart

Operating Instructions

Digital glass scales

Balance KH 5503 / 5504 / 5505

Table of contents

Technical Data ....3

Purpose....3

Place of Assembly....3

Commissioning 4

Use 5

Warning Displays....5

Replacing the Batteries 6

Use and Storage....7

Cleaning....7

Troubleshooting 7

Technical Data

Maximum load bearing capacity: 180 kg/396 lb
Minimum measurable weight: 2 kg/4.4 lb
Selectable measurement units: kg/lb
Scaling: 0.1 kg/0.2 lb
Operating temperature: 40^ ± 10^
Display for low battery power
Overload display
Fault display
Powered by 2 lithium batteries CR2032

Purpose

These digital glass scale is exclusively intended

» as personal scale
» for use in private households

Place of Assembly

The glass scale contains sensitive electronic components and must therefore not be installed

» close to heat sources
» in environments that are exposed to extreme humidity

Illustration of a hand pressing down on a tray with circular components (no text or symbols)

Commissioning

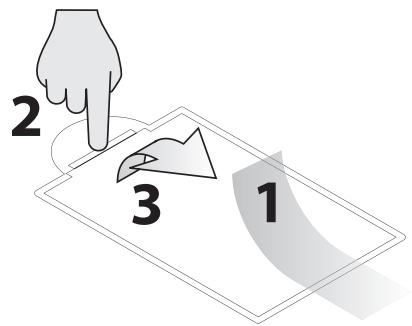

» Remove the insulation tape on the battery compartment

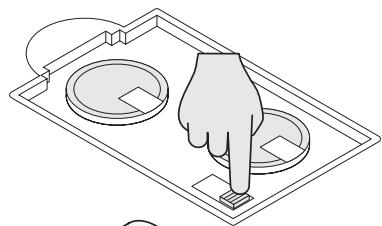

» Set the desired measurement unit by pressing the button in the battery compartment
» Place your glass scale on a flat, solid surface. Please ensure that both the floor where the weigh scales are set up and the surface of the weigh scales are not wet to ensure that nobody slips.

Use

1 Tap your foot lightly on the centre of the scale until "HI" appears on the LCD display.
2 Stand with both feet on the scale once "o.o" appears on the LCD display. Stand calmly and without shifting your weight.
3 During weighing, the "kg/lb" LCD display flashes and the displayed value rises until your weight has been determined.
4 The "kg/lb" display now stops flashing and your weight is displayed in grades of 0.1 kg/0.2 lb.

Attention: never jump on to the scale as this may cause damage.

Warning Displays

"O-Ld" appears in the LCD display if the weight exceeds the maximum weighing capacity of 180 kg/396 lb. Step off the scale immediately as you may otherwise cause damage.

Replace the batteries if "Lo" appears in the display.

The scale is unable to measure the weight if "Err" appears in the display. Step off the scale in this case, wait for a few seconds and then try again. Make sure you stand calmly and do not interrupt the weighing process.


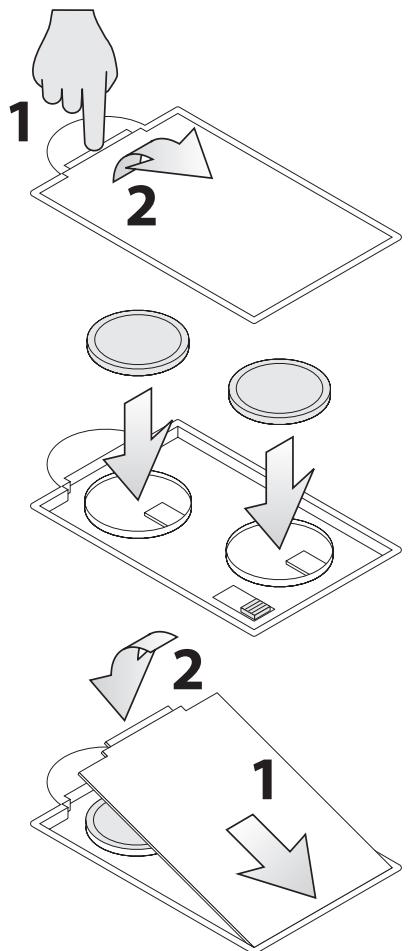

Replacing the Batteries

» Remove the lid on the battery compartment.
» Remove the batteries and replace two new ones of the type CR2032 in the battery compartment. Make sure the batteries are facing in the right direction.

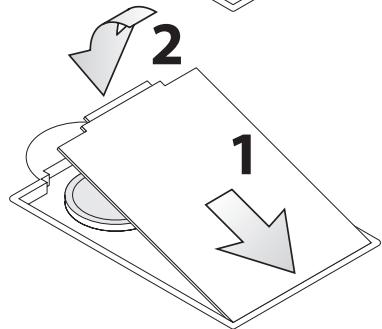

» Replace the lid on the battery compartment and press until it audibly snap locks.

Use and Storage

» Please take note that the measurement results of different scales may differ slightly.
» Avoid using the batteries unnecessarily. Therefore, do not store any items on the scale if it is not being used. Remove the batteries if you will not use the scale for a longer period.
» Keep the scale in a clean and dry environment.
» Your glass scale represent a sensitive electronic instrument. As such, high-frequency devices may sometimes cause disturbance when used in the immediate vicinity (e.g. mobile telephones, CB radio stations, remote controls and microwave ovens).

If there are faults such as irregular or faulty displays in the LCD display, remove the scale from the source of disturbance or deactivate the source of disturbance when you are using the product.

Cleaning

Only use neutral detergent and a soft cloth to clean the glass scale.

Troubleshooting

Do not attempt to dismantle the scale to repair any defects yourself. You may otherwise damage the sensitive electronic components.

Only qualified service personnel are authorised to repair the glass scale!

No liability will be accepted for damage resulting from improper use and/or opening of the appliance!
