Product Type	Air Purifier
Brand	HOOVER
Model	WH10400
Dimensions (L × W × H)	25.6 × 10.9 × 7.3 inches
Weight	11.4 lb (5.17 kg)
Power Supply	120 V AC, 60 Hz
Power Consumption	50 watts
Number of Speeds	3 settings
Main Functions	UV/TiO2 mode, Ionizer, Timer (2/4/8 h)
Filter Type	Replaceable HEPA filter + washable pre-filter
HEPA Filter Part Number	Hoover Part AH60015
UV Bulb Part Number	Hoover Part 440001064
Filter Replacement Indicator	Yes (on-screen icon + audible beep)
Pre-filter Maintenance	Washable with water, monthly inspection recommended
Warranty	2 years (household use)
Usage	Household (commercial use voids warranty)
Safety	Polarized plug, automatic shutoff if rear grille is open
Customer Service	1-800-944-9200 (Mon-Fri, 8am-7pm EST)
Website	www.hoover.com (U.S.), www.hoover.ca (Canada)

Frequently Asked Questions - WH10400 HOOVER

How to turn on the WH10400 air purifier?

Plug the unit into a power outlet, then press the power switch. Use the '+' and '-' buttons to adjust the purification speed.

How to activate UV/TiO2 mode?

Press the 'UV/TiO2' button to turn this mode on or off. A curved light on the front of the unit illuminates when the mode is active.

How to set the timer?

Press the TIMER button to select the duration: 2, 4, or 8 hours. The corresponding LED indicator lights up. Press again to turn off the timer (OFF).

When and how to clean the pre-filter?

Inspect the pre-filter once a month. If it is clogged, remove it and gently vacuum it or rinse it under tap water. Let it dry completely before reinstalling. Do not use cleaning solutions.

How to replace the HEPA filter?

When the filter icon appears on the screen, turn off and unplug the unit. Remove the rear grille and the used filter. Replace with a new filter (part AH60015). Reinstall the grille, then use a paperclip to press the 'Filter Reset' button until you hear a beep.

How to replace the ultraviolet bulb?

Turn off and unplug the unit. Remove the rear grille and the HEPA filter. Remove the TiO2-coated pre-filter. Holding the ceramic end of the bulb, gently twist to release it. Replace with Hoover bulb part number 440001064. Reinstall the pre-filter, HEPA filter, and grille.

What to do if the air purifier does not turn on?

Check that the cord is plugged in, the rear grille is properly closed, and the unit is on a level surface. If the problem persists, contact customer service.

Airflow is reduced, what to do?

Ensure there is adequate air circulation around the unit. Check that the pre-filter and HEPA filter are not clogged. Clean or replace filters if necessary.

What is the warranty on the unit?

The product has a 2-year warranty for household use against defects in materials and workmanship. Commercial use voids the warranty. For any claim, bring the unit with proof of purchase to an authorized Hoover service center.

How to contact Hoover customer service?

Call 1-800-944-9200 Monday through Friday from 8am to 7pm EST or visit www.hoover.com (U.S.) / www.hoover.ca (Canada) to find an authorized service center.

USER MANUAL WH10400 HOOVER

Questions or concerns? For assistance, please call Customer Service at 1-800-944-9200

Mon-Fri 8am-7pm EST. PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIAALLY WARRANTY IS VOID.

CAUTION: HIGH VOLTAGE.

Please enter the complete model and Manufacturing Code in the spaces provided.

MODEL

MFG.CODE

Hint: Attach your sales receipt to this owner's manual. Verification of date of purchase may be required for warranty service of your HOOVER® product.

Be sure to register your product online at Hoover.com or call 1-800-944-9200 to register by phone.

CONTENTS

Important Safeguards 3

Set Up and How To Use 5

Product Description 5

Setup. 5

Maintenance. 6

Rinsable Pre-Filter 6

Replacement of filter made with HEPA media. 6

UV Bulb Replacement. 7

Power Cord Care 7

Troubleshooting 7

Specifications 8

Service 8

Warranty 9

If you need assistance:

Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover® authorized dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover® authorized dealer locations (U.S. only) or to speak with a customer service representative; Mon- Fri 8am- 7pm EST.

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.
• Operate product only at voltage specified on data plate located on the lower back of product.
• Unplug from outlet when not in use and before cleaning or servicing.
• Do not use outdoors or on wet surfaces. Keep the unit away from water.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this manual.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings.
• Turn off all controls before unplugging.
• Do not use without filters in place.

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

CAUTION:

• Do not block or partially block the air intake or air outtake grilles. Ensure that there is adequate airflow around the product.
• Keep the Air Purifier away from heaters / fireplaces and other hot objects / locations.
• Do not disassemble the unit.
• Do not place any items on top of the unit, or sit on the product.
• Never open the rear grille while the unit is plugged into a wall outlet.
• Never operate the unit without the filter made with HEPA media or with a damaged filter, as exposure to the UV bulb may cause severe eye damage and possible blindness.
• Keep personal and loose objects (such as jewelry, loose ties, long hair etc.) away from the unit.
• Keep children and pets away from the product.
• Never use compressed gas dusters, canned air, flammable or aerosol cleaners on this product. Some cleaning agents may combust, causing serious injury and/or property damage. Never use this product near flammable solvents or substances and vapors.

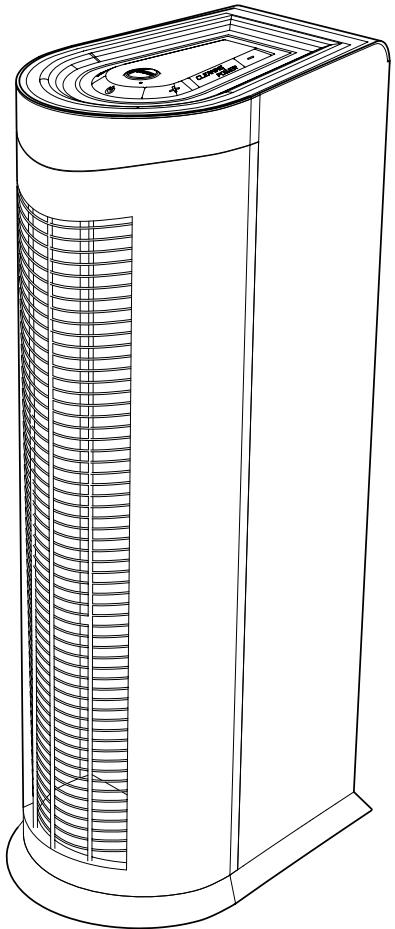

1. SET-UP & HOW TO USE

PRODUCT DESCRIPTION

1.1
FRONT

CONTROL PANEL

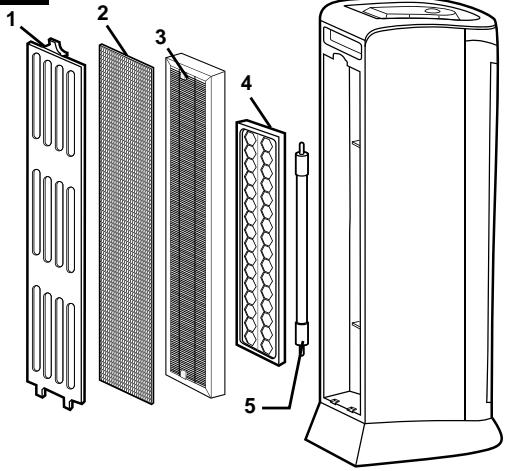

BACK/FRONT

1. Rear Grille
2. Rinsable Pre-Filter
3. Replaceable filter made with HEPA Media
4. TiO_2 Coated Screen
5. UV Bulb

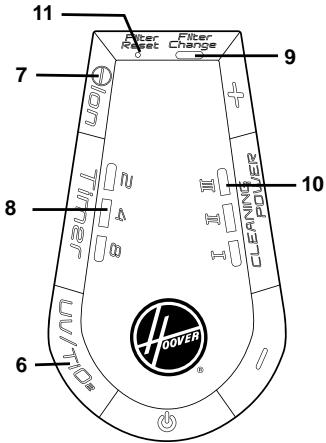

CONTROL PANEL

1. UV Bulb/ TiO_2 Coated Screen
2. Ionizer
3. 2/4/8 Hour Timer
4. Replacement Indicator for filter made with HEPA Media
   10.3 Speed Fan Control
5. Filter Reset

SET-UP

• Remove the air purifier from its packaging.

- IMPORTANT

Place the unit on a flat, stable surface with adequate ventilation.

• Plug the unit into an AC outlet.
• Press the POWER button.
• Adjust the Air Cleaning Power with the "+" and "-" buttons. The unit has 3 Air Cleaning Power settings, and an LED will indicate which setting is in operation.
• Press the "UV/TiO _2 " button to toggle on/off. The curved light at the front of the unit will illuminate when - the UV/TiO _2 mode has been activated.
• Press the "ION" button to toggle on/off. The button will illuminate with an amber light when the ION mode has been activated.
• Press the TIMER button to set the timer to 2 hours/4 hours/8 hours/OFF (hours indicated with LEDs).

2. MAINTENANCE

Familiarize yourself with these home maintenance tasks as proper use and care of your air purifier will ensure continued cleaning effectiveness.

Any other servicing should be done by an authorized service representative.

WARNING

HIGH VOLTAGE. To reduce the risk of electric shock - unplug Air Purifier before servicing.

RINSABLE PRE-FILTER

The rinsable pre-filter extends the life of your filter made with HEPA Media by trapping larger airborne particles before they reach the filter made with HEPA Media.

The pre-filter is black in color and is situated inside the grille, between it and the filter made with HEPA Media.

We recommend that you inspect the pre-filter once a month to insure that it is clean and therefore working most effectively. Before inspecting the pre-filter, switch off the unit, and unplug it from the AC outlet.

2.1 When you observe that the pre-filter is becoming clogged and requires cleaning, remove the pre-filter and either gently vacuum it or gently rinse it under a running tap. (NOTE: Do not use any cleaning solutions, as these may damage the pre-filter.) Allow filter to dry.

2.1

FILTER MADE

WITH HEPA MEDIA

FOAM RINSABLE PRE-FILTER

REPLACEMENT OF FILTERS MADE WITH HEPA MEDIA

Your Air Purifier is equipped with a feature that automatically advises you when your filters made with HEPA Media needs replacement.

A red light will illuminate reminding you to change the filter. Replace the filter with Hoover Part Number: AH60015 and then use a paper clip to press the "Filter Reset" button next to the red light. Press and hold until beep occurs and light turns off.

To replace the filters made with HEPA Media:

• Switch off the unit, and unplug it from the AC outlet.
• Remove the rear grille and old filter made with HEPA Media.
• Replace the old filter made with HEPA Media with the new filter made with HEPA media, ensuring that the pre-filter is aligned correctly.
• Replace the rear grille.

UV BULB REPLACEMENT

The UV/TiO _2 feature is activated by a fluorescent bulb inside the Air Purifier. As with all bulbs, this will require periodic replacement, depending on frequency of use. To ensure bulb is operational, periodically look at back of product for a blue glow through the grille. Checking in a low light environment or in the dark will aid in seeing the glow.

To replace the UV bulb:

• Switch off the unit, and unplug it from the AC outlet.
• Remove the rear grille and filter made with HEPA Media.
• Remove the TiO_2 coated screen

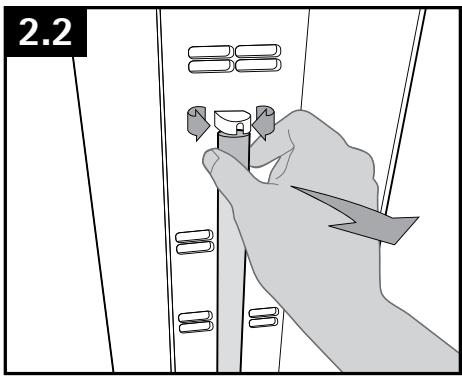

• Holding the ceramic end of the UV bulb, turn the bulb gently until it releases from the socket. The bulb will release from the top. To avoid injury do not touch the glass.
• Replace the expired bulb with Hoover Part Number: 440001064.
• Reinstall the TiO_2 coated screen, the filter made with HEPA Media and the rear grille.

NOTE: The TiO_2 coated screen does not require replacement or cleaning.

WARNING

To avoid injury grasp ceramic ends of bulb and do not touch the glass.

POWER CORD CARE

• Do not rest anything on the power cord.
• Do not place the Air Purifier where people or pets may trip over or walk on the power cord.
• Do not pick the unit up by the power cord.
• Inspect the power cord before use to ensure the cord and plug are in a good condition.

3. TROUBLESHOOTING

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.

Any other servicing should be done by an authorized service representative.

WARNING

To reduce risk of personal injury - unplug product before servicing.

PROBLEM	POSSIBLE SOLUTION
The air purifier will not power on.	1. Check that the power cord is securely plugged into an AC outlet. 2. Check that the rear grille is securely closed. 3. Check that the unit is on a level surface
The airflow is reduced.	1. Check that there is adequate airflow around the unit. 2. Check that the pre-filter is not clogged. 3. Check that the filter made with HEPA Media is not clogged.

4. SPECIFICATIONS

Power Source: AC 120V/60HZ

Power Consumption: 50 Watts

Weight: 11.4lbs

Dimensions: 25.6 × 10.9 × 7.3 inch

5. SERVICE

To obtain approved Hoover® service and genuine Hoover® parts, locate the nearest Authorized Hoover® Warranty Service Dealer (Depot) by:

• Visit our website at hoover.com (U.S. Customers) or hoover.ca (Canadian customers).
  Follow the service center link to find the service outlet nearest you.
• For an automated referral of authorized service outlet locations call 1-800-944-9200.

Do not send your product to Hoover, Inc., Company in Glenwillow for service. This will only result in delay.

If you need further assistance:

To speak with a customer service representative call 1-800-944-9200; Mon-Fri 8am-7pm EST.

Always identify your product by the complete model number when requesting information or ordering parts.

(Located on the lower back of product)

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.

6. WARRANTY

HOOVER® AIR PURIFIER LIMITED 2 YEAR WARRANTY

(Domestic Use)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your HOOVER® product is warranted against original defects in material and workmanship for a full 2 years from date of purchase (the "Warranty Period"). During the Warranty Period, Hoover will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to Hoover® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Hoover® online at www.hoover.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Hoover® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: rinsable pre-filter, filter made with HEPA media, TiO_2 coated screen, UV bulb, use of the product in a commercial operation, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover, owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a Hoover® Authorized Warranty Service Dealer for warranty service, cost of shipping will be paid one way.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoover® products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.

THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY HOOVER. ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

AIR PURIFIER

www.hoover.com
