Product Type	Built-in Microwave
Brand	Whirlpool
Model	MWF 863
Capacity	25 Liters
Microwave Power	900 W
Grill Power	1000 W
Display Type	LED Digital
Control Type	Touch Control + Buttons
Number of Power Levels	5
Defrost Function	Yes, by weight and time
Auto Cook Programs	8 pre-set programs
Grill Function	Yes
Timer	Up to 95 minutes
Child Lock	Yes
Interior Light	Yes
Interior Coating	Enamel with antibacterial coating
Door Opening	Drop-down
Dimensions (W x H x D)	595 x 382 x 388 mm (niche)
Product Dimensions	595 x 410 x 418 mm
Net Weight	Approx. 16 kg
Power Supply	230 V ~ 50 Hz
Energy Consumption (Standby)	0.7 W
Energy Efficiency Class	A+
Cleaning	Wipe with damp cloth; avoid abrasives
Spare Parts Availability	via authorized service centers

Frequently Asked Questions - MWF 863 WHIRLPOOL

How do I set the clock on my Whirlpool MWF 863 microwave?

Press the Clock button, then use the '+' and '-' buttons to set the hour and minute. Confirm by pressing Clock again. The clock is now set.

What is the maximum cooking time?

The timer can be set up to 95 minutes. For longer cooking, you may need to restart the cycle.

How do I use the defrost function?

Press the Defrost button, select weight or time defrost using the rotary knob, then start. The microwave will automatically adjust power.

Can I use metal containers in the microwave?

No, metal and aluminum foil can cause sparks and damage. Use microwave-safe glass or plastic containers only.

How do I clean the interior?

Wipe the interior with a damp soft cloth after use. For stubborn stains, use mild detergent and rinse. Avoid abrasive cleaners.

The microwave is not heating. What could be wrong?

Check that the door is fully closed, the timer is set, and the power is on. If still not heating, the magnetron may need replacement by a qualified technician.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds until the display shows a lock icon. To deactivate, repeat the same procedure.

What are the dimensions for the built-in niche?

The required niche dimensions are: width 595 mm, height 382 mm, depth 388 mm. Ensure proper ventilation.

Can I use the grill and microwave together?

Yes, select the Combi mode to use both microwave and grill functions for faster browning and cooking.

Where can I get spare parts?

Contact Whirlpool authorized service centers. Provide the model number MWF 863 for correct parts.

USER MANUAL MWF 863 WHIRLPOOL

MICROWAVE OVEN

MODEL: MWF 863

Owner's Manual

User Manual

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY....1

IMPORTANT SAFETY INSTRUCTIONS....2

SPECIFICATIONS ....3

INSTALLATION....4

RADIO INTERFERENCE ....4

MICROWAVE COOKING PRINCIPLES 4

GROUNDING INSTRUCTIONS....5

BEFORE YOU CALL FOR SERVICE ....5

UTENSILS GUIDE....6

PART NAMES 6

CONTROL PANEL 7

HOW TO SET THE OVEN CONTROLS 8

Setting the clock....8

Microwave cooking....8

Grill cooking....9

Combination cooking....9

Multi-stage cooking....9

Pre-set cooking 9

Jet start cooking....10

Weight defrost....10

Time defrost ....10

CLEANING AND CARE....11

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance. Carefully and keep for future reference.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity: a) When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition. b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. c) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
9. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
11. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before consumption in order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
14. Utensils should be checked to ensure that they are suitable for use in microwave oven.
15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
17. Children should be supervised to ensure that they do not play with the appliance.
18. The microwave oven is only used in freestanding.
19. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed, it could be damaged and the warranty would be void.
20. The accessible surface may be hot during operation.
21. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
22. For microwave ovens having an additional decorative door, and for microwave ovens intended to be used in a cabinet, the instructions for use shall state that the microwave oven must be operated with the decorative door open.

For microwave ovens having an additional decorative door, and for microwave ovens intended to be used in a cabinet, the instructions for use shall state that the microwave oven must be operated with the decorative door open.

1. The door or the outer surface may get hot when the appliance is operating.
2. The temperature of accessible surfaces may be high when the appliance is operating.
3. The appliance shall be placed against a wall.
4. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
5. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
6. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
7. Please secure the turn table before you move the appliance to avoid damages.

Please secure the turn table before you move the appliance to avoid damages.

1. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
2. The microwave oven is intended for defrosting, cooking and steaming of food only.
3. Caution! Steam will escape, when opening lids or wrapping foil.
4. Only use the temperature probe recommended for this oven (for appliances having a facility to use a temperature-sensing probe).
5. Warning: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

SPECIFICATIONS

Power Consumption	230V~50Hz, 1400W(Microwave)
	1000W(Grill)
Rated Microwave Power Output: 900W
Operation Frequency: 2450MHz
Oven Capacity: 23Litres

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
3. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
4. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
5. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
6. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
7. The socket must be readily accessible so that it can be easily unplugged in an emergency.
8. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or

fires.

1. Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.
2. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE MICROWAVE GRILL COMBINATION
Heat-Resistant Glass Yes Yes Yes
Non Heat-Resistant Glass No No	No
Heat-Resistant Ceramics Yes Yes	Yes
Microwave-Safe Plastic Dish Yes	No No
Kitchen Paper Yes No No
Metal Tray No Yes No
Metal Rack	No Yes No
Aluminum Foil & Foil Containers	No Yes No

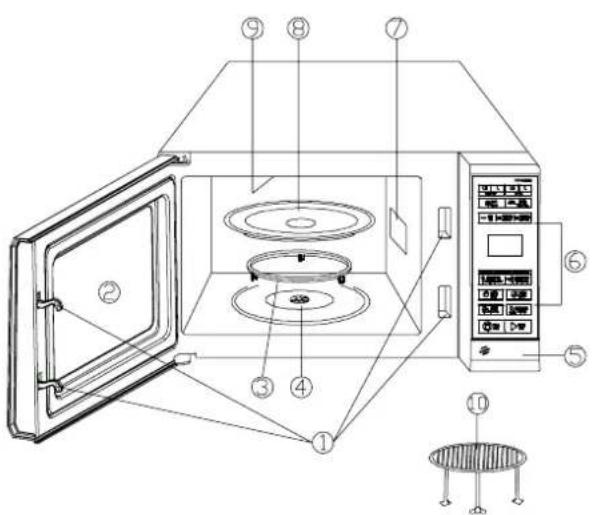

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Door Release Button
6. Control Panel
7. Wave Guide (Please do not remove the mica plate covering the wave guide)
8. Glass Tray
9. Grill Heater
10. Metal Rack

CONTROL PANEL

MWF863

MENU ACTION SCREEN

Cooking time, power level, action indicators, and clock time are displayed.

10/1 MIN 10/1 SEC

Touch to set clock, cooking time, enter food weight, etc.

POWER

Press this button repeatedly to set cooking power level.

MICROWAVE

Touch this button to set a microwave cooking program.

GRILL

Press it to set a grill cooking program.

COMBI 1 & COMBI 2

Touch these buttons when you want to set a combination cooking session.

WEIGHT DEFROST

Automatically sets proper defrosting cycle once you have entered the weight of the food to be thawed.

TIME DEFROST

Customize defrosting time for food outside the categories or exceeding the max. allowable weight by weight defrost.

CLOCK

Use to set the time of day or recall the time of day.

PRE-SET

Preset feature allows you to put food into the oven and program it to start cooking at a later time.

MEMORY

Use this button to set a multistage cooking program.

JET START

To start the oven quickly at full microwave power, you can press this button a number of times to indicate cooking time.

STOP

Touch to clear the current setting or reset the system.

START

Touch to start a cooking program.

HOW TO SET THE OVEN CONTROLS

1. When the microwave is connected to the power supply, it enters child lock status. The only way to unlock it is to open the door and close it once.
2. During standby mode, the child lock function will activate automatically if there is no operation for 5 minutes.
3. You must keep the door closed before setting any programs. Press "STOP" once or wait for 20 seconds to cancel the programs set. The oven returns to standby mode.
4. During cooking, you can open the door or press "STOP" once to temporarily pause the cooking process. After closing the door, you can resume the cooking process by pressing "START". Or press "STOP" twice to cancel the cooking process. The oven returns to standby mode.
5. When cooking is finished, "End" will appear on the LED display of the oven. A beep sound will continue every two minutes until you open the door or press any key on the control panel.

SETTING THE CLOCK

1. In standby mode, touch the CLOCK button once.
2. Touch the MIN. button to set the time.
3. Touch the CLOCK button again to confirm.

Note: The clock operates on a 24-hour cycle. You can check the clock time during cooking by touching the CLOCK button.

MICROWAVE COOKING

The longest cooking time is 99 minutes and 99 seconds. You can check the power level by pressing the power button during the cooking process.

1. In standby mode, touch MICROWAVE button.
2. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter cooking time.
3. Touch POWER button repeatedly to select desired power level.

Touch POWER button	Power Level
Once	100%
Twice	80%
3 times 60%
4 times 40%
5 times 20%
6 times 0%

1. Touch START button.

GRILL COOKING

The longest cooking time is 99 minutes and 99 seconds. Grill cooking is useful for thin slices of meat, steaks, pork chops, kebabs, sausages or pieces of chicken.

1. In standby mode, touch GRILL button.
2. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter cooking time.
3. Touch START button.

COMBINATION COOKING

The longest cooking time is 99 minutes and 99 seconds.

COMBI1

30% time for microwave cooking. 70% time for grill cooking. Use for fish, baked potatoes.

COMBI 2

55% time for microwave cooking. 45% time for grill cooking. Use for pudding, egg rolls, baked potatoes and poultry.

Suppose you want to use the Combination feature.

1. Touch COMBI 1 or COMBI 2 button once.
2. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter cooking time.
3. Touch START button.

MULTI-STAGE COOKING

Your oven can be programmed for up to 2 automatic cooking sequences.

The following steps are needed if we are going to set a cooking program which involves Jet Defrost and Grill cooking.

1. Touch TIME DEFROST button in standby mode.
2. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter cooking time.
3. Touch MEMORY button.
4. Touch GRILL button.
5. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter cooking time.
6. Touch START button.

Note: TIME DEFROST can be only set in the first stage, WEIGHT DEFROST and JET START cannot be set in the multistage cooking mode.

PRE-SET COOKING

You can put food in first, and then schedule microwave appointments to start automatically.

Suppose you want to set the oven to start up at 12:35.

1. Place food in the oven.
2. Touch the MICROWAVE button.
3. Use the number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter the cooking time.
4. Touch the POWER button repeatedly to select the desired power level.
5. Touch the PRE-SET button.
6. Use the number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter the preset time "12:35".
7. Touch the START button.

Note: The Jet Start function cannot be applied in pre-set cooking. You can check the pre-set time by pressing the "PRE-SET" button; press the "STOP" key again to cancel the function.

JET START COOKING

Use this feature to program the oven to microwave food at 100% power conveniently.

In standby mode, press JET START in quick succession to set the cooking time; the oven will start automatically. The longest cooking time is 10 minutes.

WEIGHT DEFROST

Automatically sets proper defrosting cycle once you have entered the weight of the food to be thawed. Maximum allowable weight for each category is shown below.

FOOD	MAXIMUM	DISPLAY
Meat	2300g	d1
Poultry	4000g	d2
Seafood	900g	d3

1. Touch WEIGHT DEFROST repeatedly to select the food stage
2. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter food weight.
3. Touch START button.

During defrosting process, the oven will pause and signal to remind user to turn over food, after that, press START to resume defrosting.

The oven will not start if you happen to enter weight in excess of the maximum recommended.

For food exceeding these maximum weights, use the TIME DEFROST program.

TIME DEFROST

With Time Defrost, you need to input defrosting time. The longest defrosting time is 99 minutes and 99 seconds.

1. Touch TIME DEFROST button.
2. Use number pads 10MIN, 1MIN, 10SEC, and 1SEC to enter cooking time.
3. Touch START button.

Note: During defrosting process, the oven will pause and signal to remind user to turn over food, after that, press START to resume defrosting.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult our service center to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
13. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

If there is any inconsistency or ambiguity between the English version and Chinese version, the English version shall prevail.

Safety measures to avoid microwave energy leakage
