FR148AP - Refrigerator SMEG - Free user manual and instructions

Product Type	Refrigerator
Brand	Smeg
Model	FR148AP
Height	185 cm
Width	60 cm
Depth	65 cm
Weight	55 kg
Energy Efficiency Class	A+
Power Supply	220-240 V, 50 Hz
Annual Energy Consumption	~250 kWh
Noise Level	38 dB(A)
Climate Class	SN-ST
Refrigerant	R-600a
Number of Shelves	4 adjustable
Door Storage	3 compartments
Crisper Drawers	1
Freezer Compartment	Yes, top
Freezing Capacity	3 kg/24h
Storage Time in Power Failure	12 hours
Temperature Control	Mechanical dial
Interior Light	LED
Reversible Door	Yes
Defrost Method	Manual (freezer), auto (fridge)
Maintenance	Clean interior with mild detergent; vacuum condenser coils
Safety Features	Stable shelves, door lock (optional)
Spare Parts Availability	Available via Smeg service
Warranty	2 years standard

Frequently Asked Questions - FR148AP SMEG

What is the correct temperature setting for the refrigerator?

The ideal temperature for the refrigerator compartment is between 2°C and 4°C. The freezer compartment should be set to -18°C. Adjust using the internal dial.

How do I clean the interior of my Smeg FR148AP?

Unplug the appliance and remove all food. Clean the interior with a soft cloth and a solution of warm water and mild detergent. Rinse and dry thoroughly. Avoid abrasive cleaners.

Why is my refrigerator making unusual noise?

Some noise is normal. Clicking sounds occur when the compressor starts/stops. A gurgling noise is from refrigerant flow. If the noise is loud, check for level installation or contact service.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to change the hinge side. Typically, you'l need a screwdriver and a helper.

How often should I defrost the freezer?

Defrost the freezer when frost builds up to about 5 mm thick. This ensures efficient operation. For manual defrost, unplug the fridge, remove food, and let the frost melt.

What should I do if the refrigerator stops cooling?

Check if the appliance is plugged in and the thermostat is set correctly. Ensure the condenser coils are clean and the door seals are intact. If still not cooling, contact Smeg service.

How do I save energy with my Smeg fridge?

Place the fridge in a cool, well-ventilated area away from heat sources. Keep the doors closed as much as possible. Avoid overfilling. Defrost regularly and clean the condenser coils yearly.

Are spare parts available for this model?

Yes, Smeg provides spare parts. Contact Smeg authorized service centers or check their website for genuine parts like shelves, drawers, and door gaskets.

What is the recommended clearance around the refrigerator?

Leave at least 5 cm (2 inches) of space at the back and sides for proper ventilation. The top should have at least 10 cm clearance.

Can I store hot food in the refrigerator?

No, allow hot food to cool to room temperature before placing it in the fridge. Hot food raises internal temperature and strains the compressor, leading to higher energy consumption.

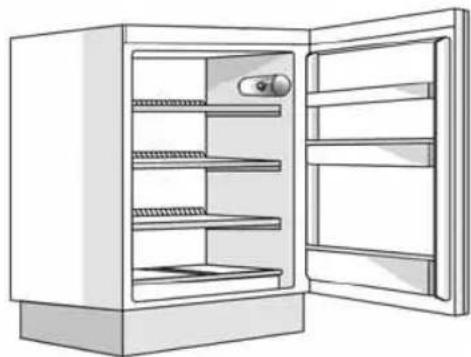

USER MANUAL FR148AP SMEG

A. Refrigerator Compartment

1. Crisper drawer
2. Shelves / Shelf area
3. Thermostat control knob/light
4. Door trays
5. Bottle rack
6. Removable bottle restraint
7. Rating plate (at the side of crisper drawer)
8. Ice cube tray
9. Low Temperature compartment door

B. Low temperature compartment if present

Coldest zone

Least cold zone

Note: The number of shelves and type of accessories may vary, depending on the model. All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not be washed in a dishwasher.

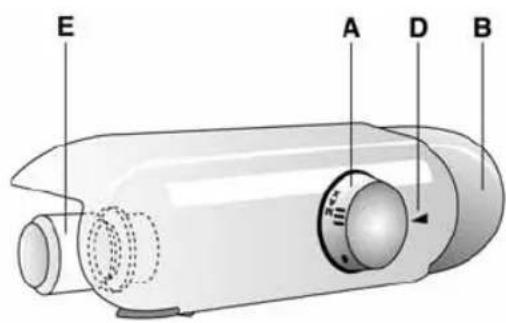

CONTROLS

A. Thermostat knob B. Light switch D. Thermostat control reference E. Light bulb (max 15 W)

BEFORE USING THE APPLIANCE

• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments; To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice. Keep these instructions for future reference.
• After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
• Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.
• Installation and the electrical connection must be carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.
• Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packing material is 100% recyclable and bears the recycling symbol. For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment.

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped.

Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children.

For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance).

Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system.

Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300.

Declaration of conformity

- This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

- This appliance has been designed, manufactured and marketed in compliance with:

- safety objectives of the "Low Voltage" Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments);

- the protection requirements of Directive "EMC" 2004/108/EC.

Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

INSTALLATION

• The appliance must be handled and installed by two or more persons.
• Be careful not to damage the floors (e.g. parquet) when moving the appliance.
• During installation, make sure the appliance does not damage the power cable.
• Make sure the appliance is not near a heat source.
• To guarantee adequate ventilation, leave a space on both sides and above the appliance and follow the installation instructions.
• Keep the appliance ventilation openings free.
• Do not damage the appliance refrigerant circuit pipes. Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.
• Install the appliance in a dry and well-ventilated place. The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. T. (°C) Amb. T. (°F)

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 16 to 38 From 61 to 100

T From 16 to 43 From 61 to 110

• Make sure the voltage specified on the rating plate corresponds to that of your home.
• Do not use single/multi adapters or extension cords.
• For the water connection, use the pipe supplied with the new appliance; do not reuse that of the previous appliance.
• Power cable modification or replacement must only be carried out by qualified personnel or by After-sales Service.
• It must be possible to disconnect the appliance from the power supply by unplugging it or by means of a mains two-pole switch installed upstream of the socket.

SAFETY

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.
• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
• Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.
• Do not swallow the contents (non-toxic) of the ice packs (in some models).
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

USE

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.
• All appliances equipped with an automatic ice-maker and water dispenser must be connected to a water supply that only delivers drinking water (with mains water pressure of between 0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic ice-makers and/or water dispensers not directly connected to the water supply must be filled with drinking water only.
• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not store glass containers with liquids in the freezer since they may burst.

The Manufacturer declines any liability if the above advice and precautions are not respected.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

This appliance is an automatic refrigerator or a refrigerator with a low temperature compartment.

Defrosting of the refrigerator compartment is completely automatic.

The refrigerator can operate at ambient temperatures between +16°C and +32°C.

Switching on the refrigerator for the first time Insert the plug into the mains socket.

The thermostat knob is used to adjust the temperature of the refrigerator compartment, maintaining the temperature inside the low temperature compartment.

Adjusting temperature

To adjust the temperature in the compartment, turn the thermostat control knob:

• to lower numbers 1-2/MIN for the LEAST COLD internal temperatures;

• to 3-4/MED for a MEDIUM temperature;

• to 5-7/MAX for the COLDEST temperature.

Thermostat set to • : no operation, no light.

Note:

The ambient temperature, frequency of door opening and position of the appliance can affect the temperatures inside the two compartments.

Take these factors into consideration when setting the thermostat knob.

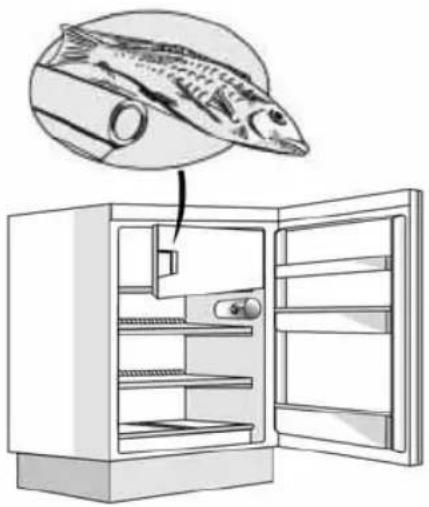

How to use the refrigerator compartment

Position the food as illustrated in the figure

A. Cooked food

B. Fish, meat

C. Fruit and vegetables

D. Bottles

E. Eggs

F. Butter, cheese and dairy products

Note:

- The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.

- Do not place food in direct contact with the rear wall of the compartment.

- Store liquids in closed containers.

- Even under normal conditions, storing vegetables with a high water content (e.g., lettuce) can cause condensation to form in the lower drawers and/or on the middle shelves; this will not affect the

correct operation of the appliance. However, we recommend wrapping vegetables to avoid condensation formation.

HOW TO OPERATE THE LOW TEMPERATURE COMPARTMENT

The low temperature compartment, if present, is a

**** star compartment.

For recommended storage times for frozen foods, see the packaging of individual food products.

When purchasing frozen food products:

• Make sure the packaging is not damaged, since the product quality may have deteriorated. If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the low temperature compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
• Always follow the storage instructions on the frozen food packages.

Making ice cubes

- Fill the ice cube tray 3/4 with water and place it on the bottom of the low temperature compartment.

Do not use sharp or pointed instruments to detach the tray if it is stuck to the low temperature compartment bottom.

HOW TO DEFROST AND CLEAN THE LOW TEMPERATURE COMPARTMENT

For optimum performance, we recommend the low temperature compartment is defrosted at least twice a year, or when the ice on the walls reaches a thickness of about 3mm.

If possible, defrost the freezer when it is nearly empty.

1. Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.
2. Disconnect the appliance from the mains power supply.
3. Leave the door open to allow the frost/ice to melt.
4. Remove the defrost water with a sponge.
5. Clean the compartment using a sponge dampened in a solution of warm water and neutral detergent. Do not use abrasive products.
6. Rinse and dry carefully.

- Note: Do not use sharp or pointed metal instruments to scrape off ice; do not heat the low temperature compartment artificially.

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT

Periodically clean the inside of the refrigerator compartment.

Defrosting of the refrigerator compartment is completely automatic.

Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress. The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly.

Before carrying out any cleaning operations, unplug the appliance.

- Use a sponge dampened in lukewarm water and/or neutral detergent.

- Rinse and dry with a soft cloth.

Do not use abrasive products.

CLEANING AND MAINTENANCE

• Clean the air vents and condenser at the rear of the appliance regularly with a vacuum cleaner or brush
• Clean the outside using a soft cloth.

For long vacations:

1. Empty the refrigerator and low temperature compartments.
2. Disconnect the appliance from the mains power supply.
3. Defrost the low temperature compartment, and clean and dry both compartments.
4. Leave the doors open to prevent formation of unpleasant odours.

ENERGY SAVING TIPS

• Avoid exposing the appliance to very high temperatures and direct sunlight and do not position it in close proximity to heaters or cookers, since these increase energy consumption.
• Do not obstruct the appliance's air inlet or outlet vents.
• To defrost food, place it in the refrigerator, making best use of the cold temperature produced by the frozen food.
• Restrict the frequency and duration of door opening as much as possible.
• Do not place hot food in the refrigerator compartment.
• Do not leave the low temperature compartment door open.

TROUBLESHOOTING GUIDE

1. The appliance is not working.

• Is there a power failure? - Is the plug properly inserted in the socket? • Is the main power switch on? - Has the fuse blown? • Is the thermostat set to the correct temperature?

2. Temperature inside the compartments is not low enough.

• Are the doors closed properly? • Is the appliance installed near a heat source? • Is the thermostat setting correct?
• Are the air circulation grilles blocked?

3. Temperature inside the refrigerator compartment is too low.

• Is the thermostat setting correct?

4. Water collects at the bottom of the refrigerator compartment.

• Is the defrost water drain blocked?

5. The inside light is not working.

Perform the checks for problem 1 and then:

• Disconnect the appliance from the mains power supply.
• Replace the bulb if necessary with a new one (type E14, max. 15W)
• To remove the bulb: unscrew anti-clockwise as shown in the figure.

6. Excessive frost build-up in the low temperature compartment.

- Is the low temperature compartment door closed properly?

Note:

- It is normal for the appliance to make a range of noises (gurgling and hissing due to expansion in the refrigerant circuit ...) during the normal operating cycle.

AFTER-SALES SERVICE

Before contacting the After Sales Service:

1. See if you can solve the problem yourself with the help of the Troubleshooting guide.
2. Switch the appliance off and then on again to see if the problem has been solved. If it has not, switch off the appliance again and repeat the operation after one hour.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

• the nature of the fault, • the appliance model, - the Service number (the number after the word SERVICE on the data plate at the side of the crisper drawer),

• Your full address,
• Your telephone number and area code.

SERVICE

0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

INSTALLATION

• Install the appliance away from heat sources (minimum distance: 30 cm from coal and paraffin stoves, 3 cm from ovens and electric cookers). • Install the appliance in a dry, well-ventilated place. - Do not obstruct the appliance's air vents. - Clean the inside (see relevant chapters). • Fit the accessories supplied.

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate at the side of the crisper drawer.
• Regulations require that the appliance be earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.
• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
• Do not use extension leads or adapters

Disconnecting the appliance

- It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact After-sales Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufactures instructions and current standard safety regulations.

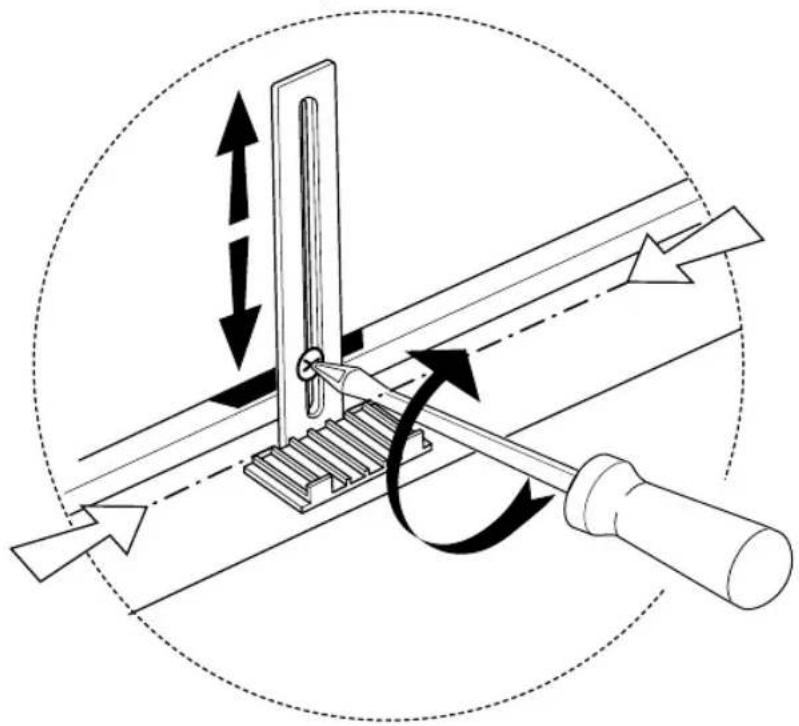

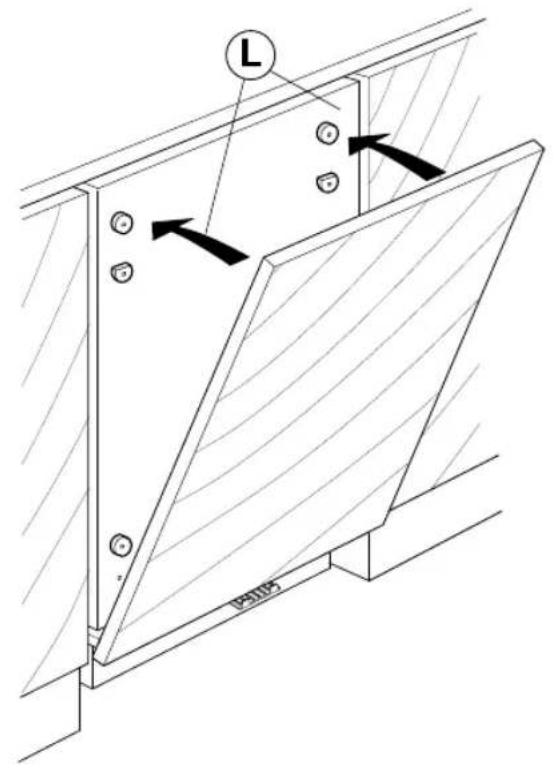

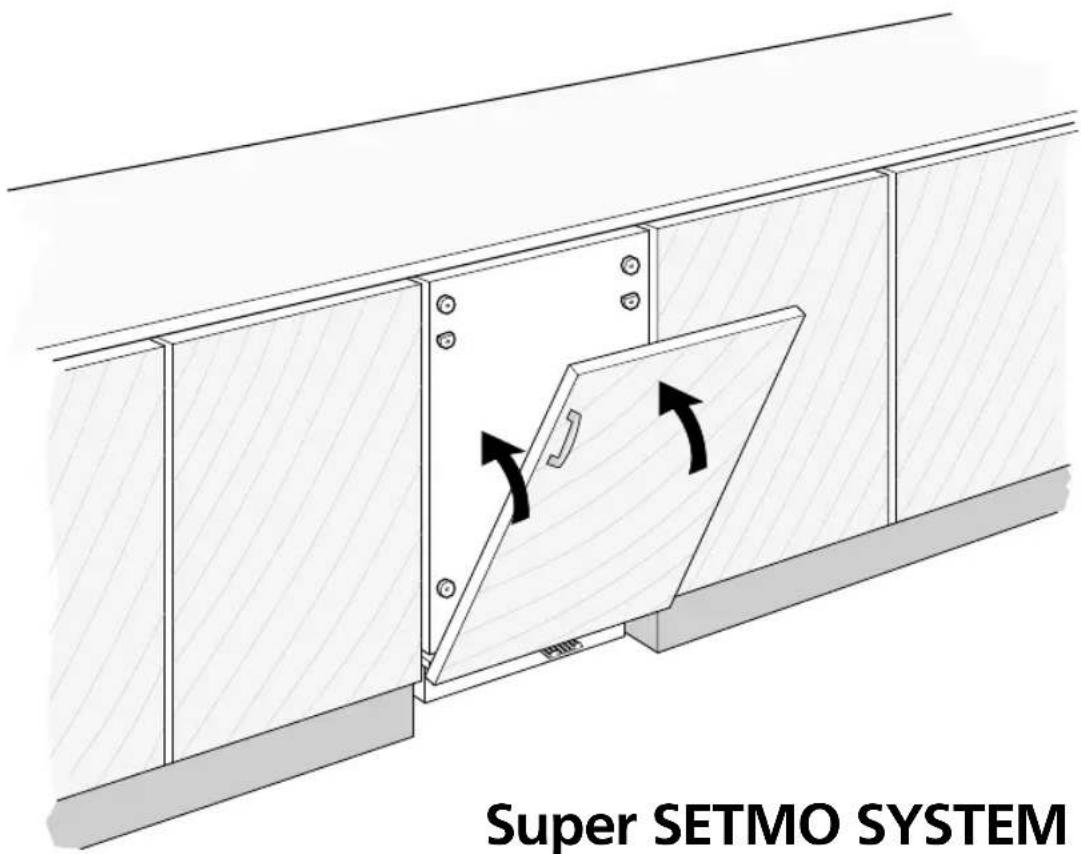

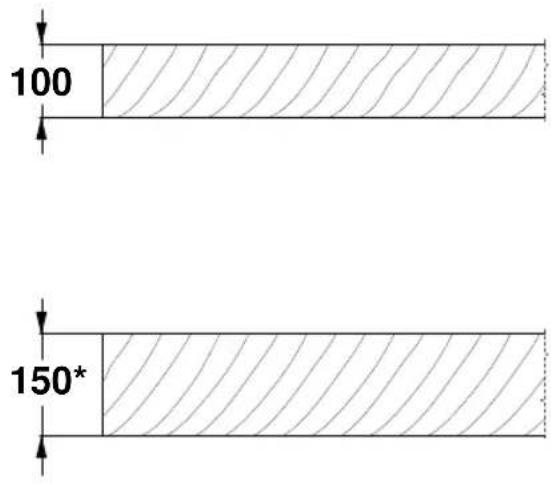

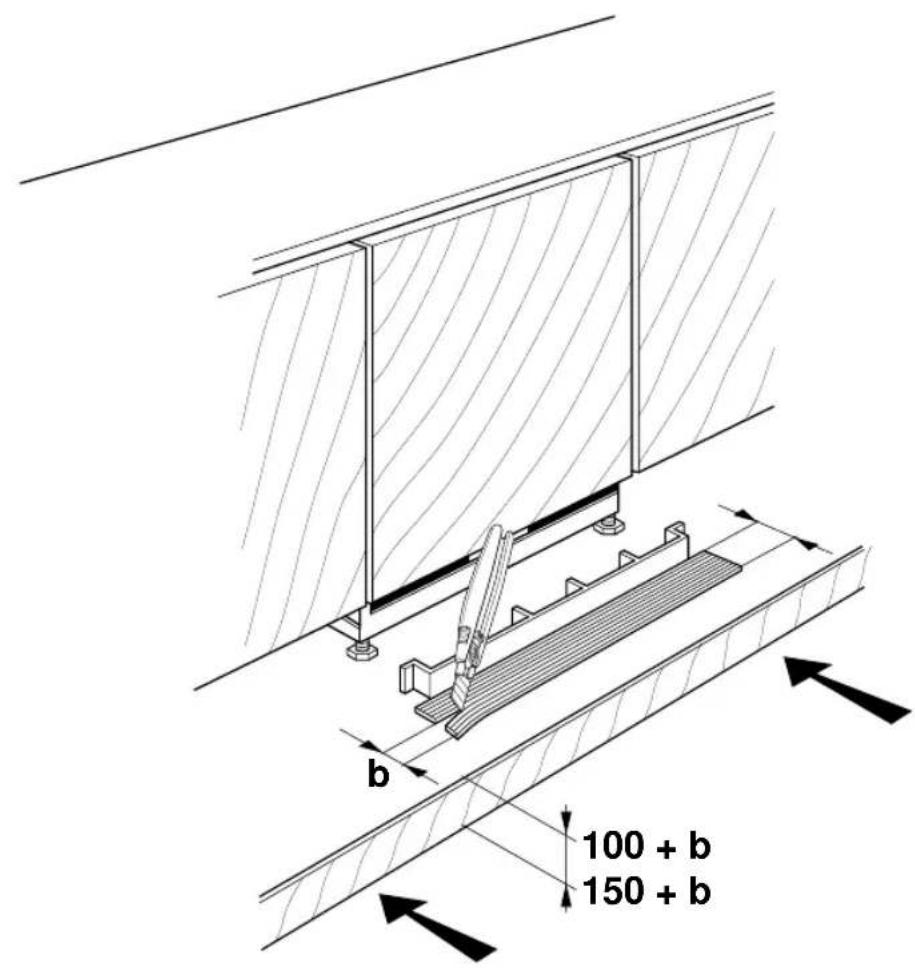

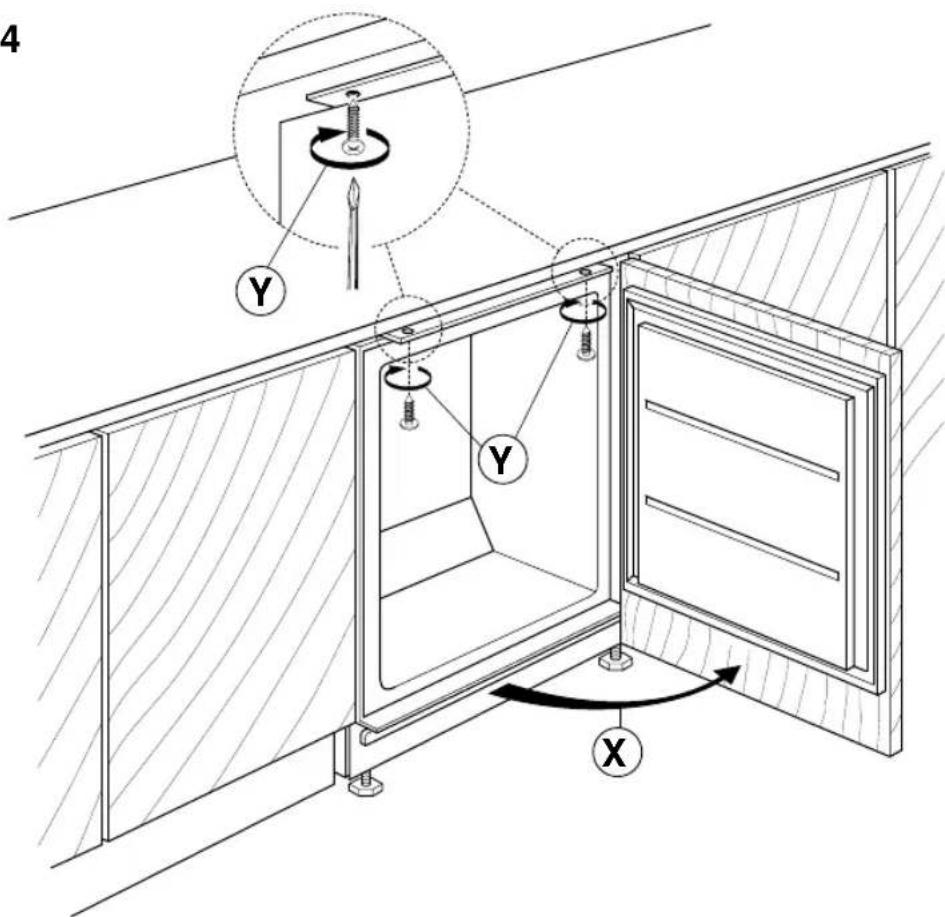

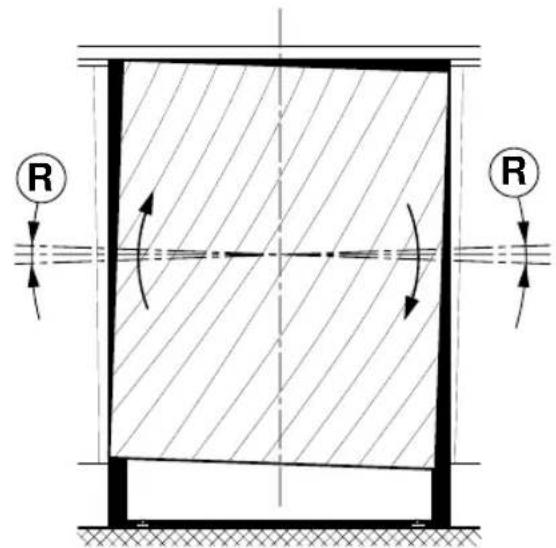

UNDER COUNTERS

D MONTAGEANWEISUNG UND ÄNDERUNG DES TÜRANSCHLAGES GB INSTALLATION INSTRUCTIONS AND DOORS REVERSIBILITY F INSTRUCTIONS DE MONTAGE ET REVERSIBILITE DES PORTES NL MONTAGE-AANWIJZING EN VERWISSELBARE DRAAIRICHTING VAN DE DEUREN E INSTRUCCIONES DE MONTAJE Y REVERSIBILIDAD DE LA PUERTA P INSTRUÇÕES DE MONTAGEM E REVERSIBILIDADE DAS PORTAS ① ISTRUZIONI PER IL MONTAGGIO E REVERSIBILITÀ PORTE GR ΟΔΗΓΙΕΣ ΕΓΚΑΤΑΣΤΑΣΗΣ ΚΑΙ ΑΝΤΙΣΤΡΟΦΗ ΑΝΟΙΓΜΑΤΟΣ ΠΟΡΤΑΣ S ANVISNINGAR FÖR MONTERING N INSTALLASJON DK MONTERINGSVEJLEDNING FIN ASENNUSOHJEET PL INSTALACJA - ODWRACALNOŚĆ DRZWI ©CZ INSTALACE - ZMĚNA SMĚRU OTVÍRÁNÍ DVERÍ SK INŠTALÁCIA - VÝMENA POLOHY OTVÁRANIA DVERÍ H BEÁLLÍTÁS - AJTÓNYITÁS MEGFORDÍTÁSA RUS УСТАНОВКА - ПЕРЕСТАНОВКА ДВЕРЦЫ BG ИНСТАЛИРАНЕ - ОБРЪЩАНЕ НА ВРАТАТА RO INSTALARE · REVERSIBILITATEA UŞILOR

5

6

7

10

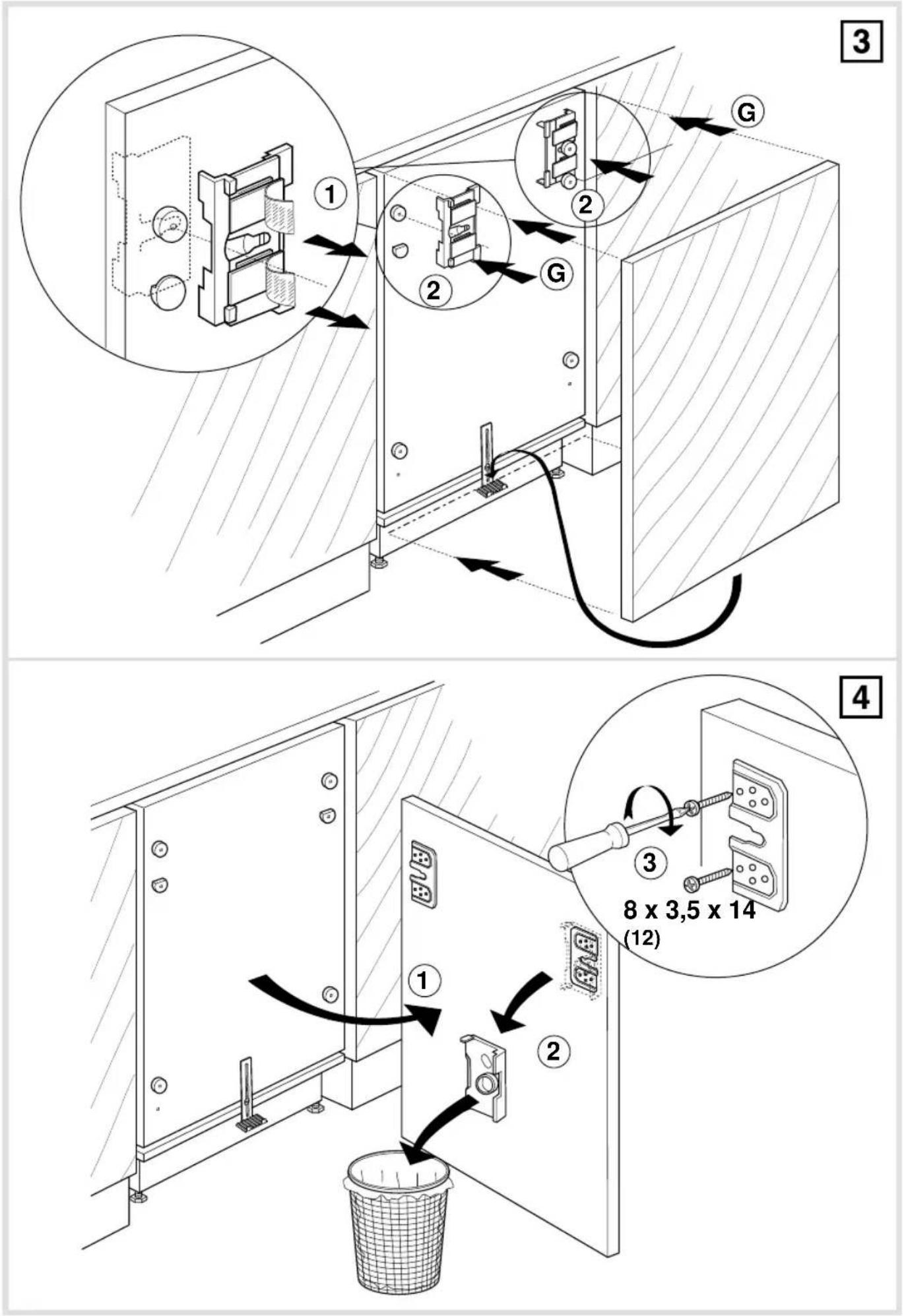

No. 2 ∅ 3.5 x 14

11

X = 3 mm

17

18

19

21

22

23

24
