USER MANUAL DECT SCD510 PHILIPS AVENT

Register your product and get support at www.philips.com/welcome SCD510

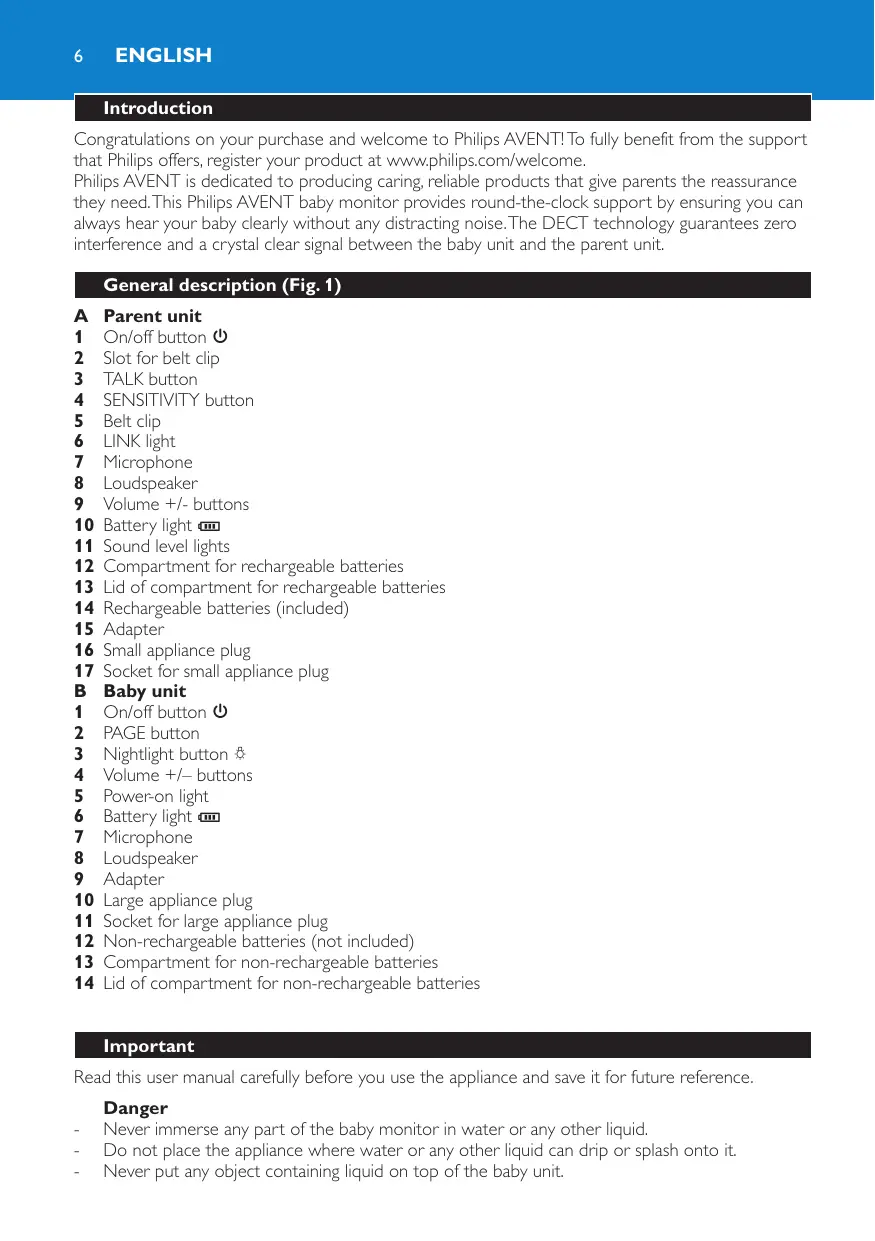

SCD510 Congratulations on your purchase and welcome to Philips AVENT! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Philips AVENT is dedicated to producing caring, reliable products that give parents the reassurance they need. This Philips AVENT baby monitor provides round-the-clock support by ensuring you can always hear your baby clearly without any distracting noise. The DECT technology guarantees zero interference and a crystal clear signal between the baby unit and the parent unit. General description (Fig. 1)

Parent unit On/off button 3 Slot for belt clip   TALK button SENSITIVITY button Belt clip LINK light Microphone Loudspeaker   Volume +/- buttons Battery light T Sound level lights Compartment for rechargeable batteries Lid of compartment for rechargeable batteries    Rechargeable batteries (included) Adapter Small appliance plug Socket for small appliance plug Baby unit On/off button 3 PAGE button Nightlight button Q Volume +/– buttons Power-on light    Battery light T Microphone Loudspeaker Adapter   Large appliance plug Socket for large appliance plug Non-rechargeable batteries (not included) Compartment for non-rechargeable batteries Lid of compartment for non-rechargeable batteries Important Read this user manual carefully before you use the appliance and save it for future reference. Danger -- Never immerse any part of the baby monitor in water or any other liquid. -- Do not place the appliance where water or any other liquid can drip or splash onto it. -- Never put any object containing liquid on top of the baby unit. English

Warning -- To prevent strangulation with the power cord, always keep the baby unit and the power cord out of baby’s reach, at least 1 meter/3.5 feet away. Do not use extension cords. -- Check if the voltage indicated on the adapters of the baby unit and the parent unit correspond to the local mains voltage before you connect the appliance. -- Only use the adapter supplied to connect the baby unit to the mains. -- Only use the adapter supplied to charge the parent unit. -- The adapters contain a transformer. Do not cut off the adapters to replace them with other plugs, as this causes a hazardous situation. -- If the adapters are damaged, always have them replaced with one of the original type in order to avoid a hazard. For the correct type, see chapter ‘Replacement’. -- Never use the baby monitor in moist places or close to water. -- Except for the battery compartments, do not open the housing of the baby unit and parent unit in order to prevent electric shock. -- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -- Children should be supervised to ensure that they do not play with the appliance. Caution Use and store the appliance at a temperature between 10°C and 35°C. Do not expose the baby unit and parent unit to extreme cold or heat or to direct sunlight. Never place the baby unit inside the baby’s bed or playpen. Never cover the parent unit and the baby unit with anything (e.g. a towel or blanket). Always place non-recheargeable batteries of the correct type in the baby unit. Always place rechargeable batteries of the correct type in the parent unit. If you place the parent unit next to a transmitter or other DECT appliance (e.g. a DECT telephone or wireless router for the internet), the connection with the baby unit may be lost. Move the baby monitor further away from the other wireless appliances until the connection is restored.. -- Switched-on mobile phones in the vicinity of the baby monitor may cause interference with the baby monitor. -- Radio interference is inevitable and may have an effect on the sound quality of the baby monitor.

General -- This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such. -- Take every precaution to make sure that your baby can sleep safely. Important information about non-rechargeable and rechargeable batteries -- Non-rechargeable batteries and rechargeable batteries may explode if exposed to sunshine, fire or high temperatures due to other causes. -- Always place rechargeable batteries of the correct type in the parent unit to avoid the risk of explosion. Do not use non-rechargeable batteries to avoid the risk of explosion. -- Always place non-recheargeable batteries of the correct type in the baby unit to avoid the risk of explosion. The baby unit does not have a charging function. -- Make sure that your hands are dry when you insert or replace non-rechargeable batteries or rechargeable batteries. -- To avoid damage due to leakage of non-rechargeable or rechargeable batteries: 1 Do not expose the appliance to temperatures higher than 35°C. 2 Remove the rechargeable batteries of the parent unit and the non-rechargeable batteries of the baby unit if you are not going to use the appliance for one month or more. 3 Do not leave empty non-rechargeable batteries in the baby unit.

English -- Dispose of non-rechargeable batteries and rechargeable batteries properly (see chapter ‘Environment’). Electromagnetic fields (EMF) This Philips AVENT appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Preparing for use Baby unit You can use the baby unit from the mains or on non-rechargeable batteries. Even if you are going to use the unit from the mains, we advise you to insert the non-rechargeable batteries. This guarantees automatic back-up in case of mains failure. Mains operation 1 Put the large appliance plug in the baby unit and put the adapter in a wall socket (Fig. 2). ,, The power-on light goes on. Operation on non-rechargeable batteries The baby unit runs on four 1.5V R6 AA batteries (not included). We strongly advise you to use Philips LR6 PowerLife batteries. Do not use rechargeable batteries, as the baby unit does not have a charging function. Unplug the baby unit and make sure your hands and the unit are dry when you insert the non-rechargeable batteries. 1 Remove the lid of the compartment for non-rechargeable batteries. (Fig. 3) 2 Insert four non-rechargeable batteries (Fig. 4). Note: Make sure the + and - poles point in the right direction. 3 Reattach the lid. (Fig. 5) Note:When the batteries are low, the battery light on the baby unit flashes red. Parent unit Operation on rechargeable batteries The parent unit comes with two NiMH AAA 850mAh batteries. Charge the parent unit before you use it for the first time or when the battery light indicates that the batteries are low. The battery light flashes red when the batteries are low. The battery light starts to flash red 30 minutes before the batteries are completely empty. Note: If the batteries are completely empty, the parent unit automatically switches off and loses contact with the baby unit. 1 Remove the lid of the compartment for the rechargeable batteries (Fig. 6). 2 Insert the rechargeable batteries (Fig. 7). Note: Make sure the + and - poles of the batteries point in the right direction. 3 Reattach the lid (Fig. 8). 4 Put the small appliance plug in the parent unit and put the adapter in a wall socket (Fig. 9). 5 Leave the parent unit connected to the mains until the batteries are fully charged. ,, During charging, the battery light lights up red continuously. ,, When the batteries are fully charged, the battery light lights up green continuously. English

-- When you charge the parent unit for the first time or after a long period of disuse, switch it off and let it charge continuously for at least 10 hours. -- Charging normally takes 8 hours, but it takes longer when the parent unit is switched on while charging. To keep the charging time as short as possible, switch off the parent unit during charging. -- When the batteries are fully charged, the parent unit can be used cordlessly for up to 24 hours. Note:When the parent unit is charged for the first time, the operating time is less than 24 hours.The batteries only reach their full capacity after you have charged and discharged them four times. Note:When the parent unit is not connected to the mains or even when the parent unit is switched off, the batteries gradually discharge. Using the appliance 1 Place the parent unit and the baby unit in the same room to test the connection (Fig. 10). Make sure the baby unit is at least 1 metre/3.5 feet away from the parent unit. 2 Press and hold the on/off button 3 on the baby unit until the green power-on light goes on. (Fig. 11) Note:The power-on light always lights up green, even when there is no connection with the parent unit. ,, The nightlight lights up briefly and then goes out again. ,, The battery light T lights up briefly and then goes out again. (Fig. 12) 3 Press and hold the on/off button 3 on the parent unit until the sound level lights light up briefly. (Fig. 13) ,, The battery light briefly lights up red and then continuously is on (Fig. 14). ,, The LINK light flashes red. (Fig. 15) ,, The LINK light on the parent unit turns green and lights up continuously when a connection has been established between the baby unit and parent unit (Fig. 16). ,, If no connection is established, the LINK light on the parent unit stops flashing and lights up red. The parent unit beeps from time to time. (Fig. 17) Positioning the baby monitor Note: Make sure the baby unit and the cord are always out of reach of the baby (at least 1 metre/3.5 feet away). 1 Place the baby unit at least 1 metre/3.5 feet away from your baby (Fig. 18). 2 Place the parent unit within the operating range of the baby unit. Make sure it is at least 1 metre/3.5 feet away from the baby unit to avoid acoustic feedback (Fig. 19). For more information on the operating range, see section ‘Operating range’ below. Operating range The operating range of the baby monitor is 330 metres/1000 feet in open air. Depending on the surroundings and other disturbing factors, this range may be smaller. Indoors the operating range is up to 50 metres/150 feet.

English Dry materials Material thickness Loss of range Wood, plaster, cardboard, glass (without metal, wires or lead) < 30cm/12in 0-10% Brick, plywood < 30cm/12in 5-35% Reinforced concrete < 30cm/12in 30-100% For wet and moist materials, the range loss may be up to 100%. Features Adjusting loudspeaker volume 1 Press the volume + or - button on the baby unit until the desired loudspeaker volume for the baby unit has been reached. (Fig. 20) Note:You only have to adjust the baby unit volume when you use the talk function (see below). 2 Press the volume + or – button on the parent unit until the desired loudspeaker volume for the parent unit has been reached (Fig. 21). Note: If the volume is set to a high level, the units consume more power. Talk function You can use the TALK button on the parent unit to talk to your baby (e.g. to comfort your baby). 1 Press and hold the TALK button and talk clearly into the microphone from a distance of 15-30cm (Fig. 22). ,, The green LINK light starts flashing. 2 Release the TALK button when you have finished talking. Sound level lights The parent unit continuously monitors the sound level in your baby´s room and the sound level lights let you know if there is any activity. If your baby cries, you see the sound level lights light up on the parent unit. -- As long as the baby unit does not detect a sound, all sound level lights on the parent unit are out. -- When the baby unit picks up a sound, one or more sound level lights on the parent unit go on. The number of lights that go on is related to the loudness of the sound picked up by the baby unit. Nightlight 1 Press the nightlight button Q on the baby unit to switch on the nightlight. (Fig. 23) 2 Press the nightlight button Q again to switch off the nightlight. ,, The nightlight dims gradually before it goes out completely. Tip: Switch off the nightlight when you operate the baby unit on the non-rechargeable batteries.This saves power. English 11 Paging the parent unit If you have misplaced the parent unit and its volume is switched off, you can use the PAGE button on the baby unit to locate the parent unit. Note:The paging function only works when the parent unit is switched on. 1 Press the PAGE button on the baby unit (Fig. 24). ,, The parent unit produces a paging alert tone. 2 To stop the paging alert tone, press the PAGE button again or press any button on the parent unit. Out of range alert When the parent unit is out of range of the baby unit, the parent unit beeps from time to time. The LINK light on the parent unit flashes red. Note:The LINK light on the parent unit also flashes red when the baby unit is switched off. Microphone sensitivity You can set the microphone sensitivity of the baby unit to the desired level with the SENSITIVITY button on the parent unit. You can only change the microphone sensitivity when a connection between the baby unit and the parent unit has been established, i.e. when the LINK light on the parent unit lights up green continuously. 1 Briefly press the SENSITIVITY button on the parent unit (Fig. 25). ,, The sound level lights light up for approx. 2 seconds to indicate the current sensitivity level. 2 Briefly press the volume + and - buttons on the parent unit until the desired microphone sensitivity level for the baby unit has been reached. ,, one light on = minimum sensitivity level ,, all lights on = maximum sensitivity level Note:When the microphone sensitivity of the baby unit is set to a high level, it picks up more sounds and therefore transmits more often. As a result, the units consume more power. Reset function This function allows you to reset the parent unit and the baby unit to the default settings. You can use this function if problems occur that you cannot solve by following the suggestions in chapter ‘Frequently asked questions’. You have to reset each unit separately. 1 Press the on/off button to switch off the parent unit. Remove the small plug from the parent unit and the adapter from the wall socket (Fig. 13). 2 Press and hold the volume down (-) button. Put the small appliance plug in the parent unit and put the adapter in the wall socket (Fig. 26). 3 Wait for the parent unit to complete its automatic restart at its default settings before you release the volume down (-) button. 4 Proceed in the same way to reset the baby unit. Default settings Parent unit -- Loudspeaker volume: 1 -- Microphone sensitivity: 5 Baby unit -- Loudspeaker volume: medium -- Nightlight: off

English Accessories Belt clip If the batteries of the parent unit are sufficiently charged, you can take the unit with you inside and outside the house if you attach the unit to your belt with the belt clip. This allows you to monitor your baby while you are moving around. Connecting the belt clip 1 Snap the belt clip onto the parent unit (Fig. 27). Disconnecting the belt clip 1 Pull the belt clip off the parent unit. Cleaning and maintenance Do not immerse the parent unit and the baby unit in water and do not clean them under the tap. Do not use cleaning spray or liquid cleaners. 1 Unplug the baby unit or the parent unit if they are connected to the mains. 2 Clean the parent unit and the baby unit with a damp cloth. Make sure the units are dry before you connect them to the mains. 3 Clean the adapters with a dry cloth. Storage -- When you are not going to use the baby monitor for some time, remove the non-rechargeable batteries from the baby unit and the rechargeable batteries from the parent unit. Store the parent unit, the baby unit and the adapters in a cool and dry place. Replacement Baby unit Batteries Only replace the non-rechargeable batteries of the baby unit with four 1.5V R6 AA batteries. Note:We strongly advise you to use Philips non-rechargeable batteries. Adapter Only replace the adapter of the baby unit with an adapter of the original type.You can order a new adapter from your dealer or a Philips service centre. -- UK only: S004LB0750040 (UK) -- Other countries: S004LV0750040 (EU) Parent unit Batteries Only replace the rechargeable batteries of the parent unit with two NiMH AAA 850mAh batteries. Note:We strongly advise you to use Philips rechargeable batteries. Adapter Only replace the adapter of the parent unit with an adapter of the original type.You can order a new adapter from your dealer or a Philips service centre. -- UK only: S004LB0450040 (UK) -- Other countries: S004LV0450040 (EU) English 13 Environment -- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 28). -- Rechargeable and non-rechargeable batteries contain substances that may pollute the environment. Do not throw away rechargeable and non-rechargeable batteries with the normal household waste, but hand them in at an official collection point. Always remove rechargeable and non-rechargeable batteries before you discard and hand in the appliance at an official collection point. (Fig. 29) Guarantee and service If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/welcome or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer. Frequently asked questions This chapter lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, contact the Consumer Care Centre in your country. Question Answer Why don’t the power-on light of the baby unit and the LINK light of the parent unit come on when I press the on/off buttons of the units? Perhaps the rechargeable batteries of the parent unit are empty and the parent unit is not connected to the mains. Insert the small appliance plug into the parent unit and put the adapter in a wall socket. Then press the on/off button to establish connection with the baby unit. Perhaps the non-rechargeable batteries of the baby unit are empty and the baby unit is not connected to the mains. Replace the non-rechargeable batteries or connect the baby unit to the mains. Then press the on/off button to establish connection with the parent unit. If the LINK light on the parent unit still does not start to flash, use the reset function to reset the units to their default settings. Why does the LINK light on the parent unit flash red? The baby unit and the parent unit are out of range of each other. Move the parent unit closer to the baby unit. The baby unit may be switched off. Switch on the baby unit. Why does the battery light on the baby unit flash red? The non-rechargeable batteries of the baby unit are running low. Replace the non-rechargeable batteries or connect the baby unit to the mains (see chapter ‘Preparing for use’). Why does the parent unit beep? If the parent unit beeps while the LINK light flashes red, the connection with the baby unit is lost. Move the parent unit closer to the baby unit. If the parent unit beeps and the battery light flashes red, the rechargeable batteries of the parent unit are running low. Recharge the batteries.

English Question Answer The baby unit may be switched off. Switch on the baby unit. Why does the appliance produce a high-pitched noise? The units may be too close to each other. Make sure the parent unit and the baby unit are at least 1 metre/3.5 feet away from each other. The volume of the parent unit may be set too high. Decrease the volume of the parent unit. Why don’t I hear a sound/ Why can’t I hear my baby cry? The volume of the parent unit may be set too low or may be switched off. Increase the volume of the parent unit. The microphone sensitivity level of the baby unit may be set too low. Increase the microphone sensitivity level with the SENSITIVITY button on the parent unit. The baby unit and the parent unit may be out of range of each other. Reduce the distance between the units. Why does the parent unit react too quickly to other sounds? The baby unit also picks up other sounds than those of your baby. Move the baby unit closer to the baby (but observe the minimum distance of 1 metre/3.5 feet). The microphone sensitivity level of the baby unit may be set too high. Decrease the microphone sensitivity level with the SENSITIVITY button on the parent unit. Why does the parent unit react slowly to the baby’s crying? The microphone sensitivity level of the baby unit may be set too low. Increase the microphone sensitivity level with the SENSITIVITY button on the parent unit. Why do the nonrechargeable batteries of the baby unit run low quickly? The microphone sensitivity level of the baby unit may be set too high, which causes the baby unit to transmit more often. Decrease the microphone sensitivity level with the SENSITIVITY button on the parent unit. The volume on the baby unit may be set too high, which causes the baby unit to consume a lot of energy. Decrease the volume of the baby unit. Perhaps you have switched on the nightlight. If you want to use the nightlight, we advise you to run the baby unit on mains power. Why does the charging time of the parent unit exceed 8 hours? The parent unit may be switched on during charging. Switch off the parent unit during charging. The specified operating range of the baby monitor is 330 metres/1000 feet. Why does my baby monitor manage a much smaller distance than that? The specified range is only valid outdoors in open air. Inside your house, the operating range is limited by the number and type of walls and/or ceilings in between. Inside the house, the operating range is up to 50 metres/150 feet. English 15 Question Answer Why is the connection lost every now and then? Why are there sound interruptions? The baby unit and the parent unit are probably close to the outer limits of the operating range. Try a different location or decrease the distance between the units. Please note that it takes about 30 seconds each time before a connection between the units is established. What happens during a power failure? If the parent unit is sufficiently charged, it continues to operate during a power failure, both connected to and disconnected from the adapter. If there are batteries in the baby unit, it also continues to operate during a power failure. Is my baby monitor secure from eavesdropping and interference? The DECT technology of this baby monitor guarantees no interference from other equipment and no eavesdropping. The operating time of the parent unit is supposed to be up to 24 hours. Why is the operating time of my parent unit shorter? When the parent unit has been charged for the first time, the operating time is less than 24 hours. The rechargeable batteries only reach their full capacity after you have charged and discharged them at least four times. The volume of the parent unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the volume of the parent unit The microphone sensitivity level of the baby unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the microphone sensitivity level with the SENSITIVITY button on the parent unit. It may take a few minutes before the battery light of the parent unit Why doesn’t the lights up when you charge the parent for the first time or after a battery light of the parent unit light up when I start to long period of disuse. recharge the parent unit?

Philips Consumer Lifestyle DOC-SCD535

EC DECLARATION OF CONFORMITY

(DECLARATION DE CONFORMITE CE) Following the provisions of : 1999/5/EC (R&TTE Directive) (Directive R&TTE 1999/5/CE) 2009/125/EC (ErP Directive) - 278/2009/EC - 1275/2008/EC And are produced under a quality scheme at least in conformity with ISO 9001 or CENELEC Permanent Documents And issued the certificates, (et a délivré le certificat) performed (a effectué) Expert Opinion A.Speelman, CL Compliance Manager
