USER MANUAL LED19H800 FUNAI

To aid reporting in case of loss or theft, please record the unit's model and serial numbers in the space provided. The numbers are located at the rear of the unit.

Model number:

Serial number:

PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

CAUTION

1. Do not attempt to open the cabinet. There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
2. Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.
3. Keep the unit away from radiators and other heat sources.
4. Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
5. To prevent fire or shock hazard, do not expose this unit to dripping or splashing, and do not place objects filled with liquids, such as vases, on the unit.
6. Use the unit on a horizontal (flat) surface only.
7. Do not place any combustible objects on the unit (candles, etc.).
8. The LCD panel used in this unit is made of glass. Therefore, it can break when the unit is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks. The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the TV screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your unit.
9. Disconnect the mains plug to switch off when the unit becomes faulty or not in use.
10. The mains plug shall remain readily operable.
11. Read the manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.
12. Keep a distance of 20 cm around the ventilation openings of the unit.
13. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not place the unit on furniture that can be tilted by a child or an adult leaning, pulling, standing, or climbing on it. A falling unit can cause serious injury or even death.

POWER SUPPLY

The main power supply is engaged when the main plug is plugged into a 220-240 V~, 50 Hz AC outlet. To operate the unit, press ⏻ (power) to turn it on.

WARNING: LIVE PARTS INSIDE. DO NOT REMOVE ANY SCREWS.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times

INTRODUCTION

A Note about Recycling

This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

This product consists of materials which can be recycled and reused if disassembled by a specialised company.

The following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The following information is only valid for EU-member states: Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Pb, Hg, Cd

Battery Precautions

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc or rechargeable batteries like ni-cad, ni-mh, etc.) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture.

Contents

PRECAUTIONS....2

INTRODUCTION.... 3

Supplied Accessories....4

Symbols Used in this Manual....4

Attaching the Base....4

Tilting the Unit 4

Fixing the Unit on Your Furniture....4

Installing the Batteries 4

Remote Control.... 4

Your TV 5

PREPARATION FOR USE 6

Antenna Connection....6

External Connection....6

Plug In the AC Power Cord 7

Initial Setup....7

OPERATIONS 8

Watching a TV Programme 8

Channel List....8

Sleep Timer....8

Switching the Input Mode 8

Colour System 8

ECO Mode 8

Sound Select 8

TV Screen Information....9

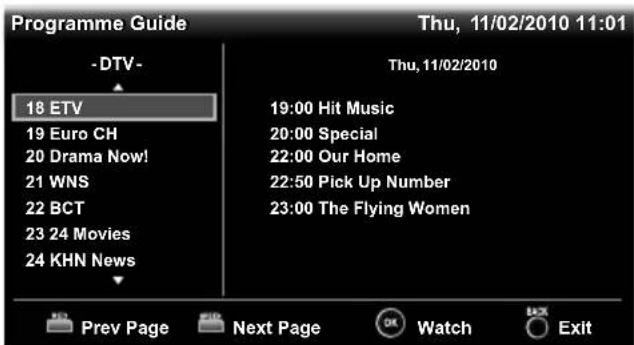

EPG (Electronic Programme Guide)....9

Changing the TV Screen Display Mode 10

OTHER SETTINGS 11

Picture Adjustment....11

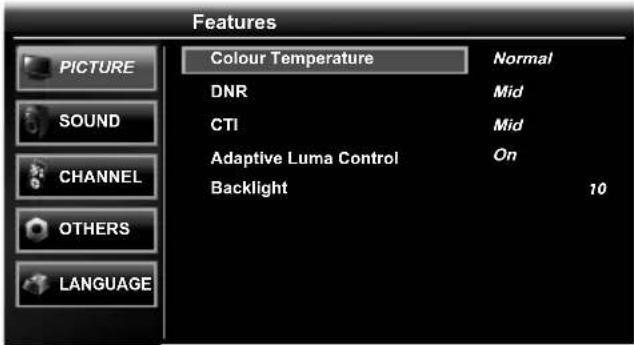

Advanced Picture Adjustment....11

Sound Adjustment....12

Channel Settings 12

Channel Scan 13

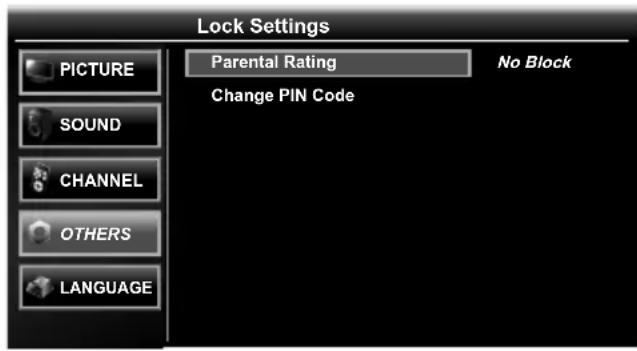

Lock Settings 14

Audio Settings 14

Subtitle Settings 15

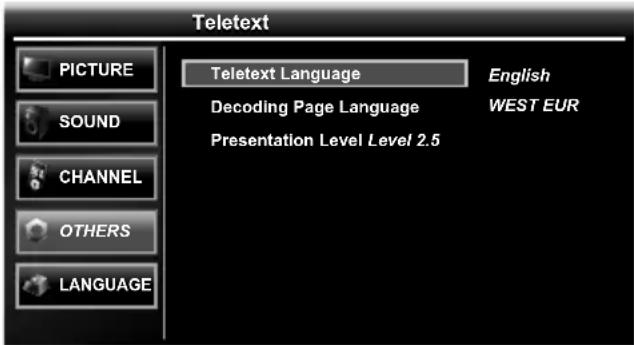

Teletext....15

Common Interface (CI)....16

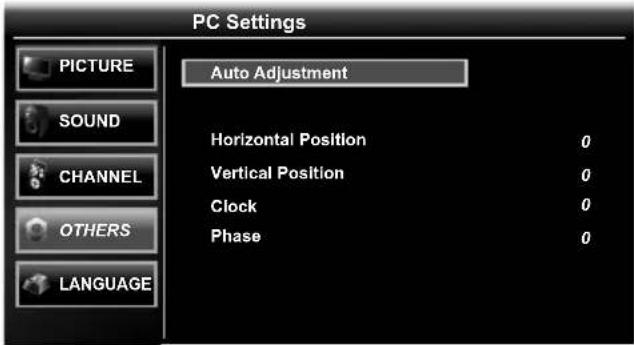

PC Settings....16

FUN-LINK....16

Time Setup....17

Software Download....18

Factory Reset....18

Menu Language Selection....18

TROUBLESHOOTING GUIDE.... 19

OTHER INFORMATIONS 20

Specifications....20

Trademark Information....20

License....20

Declaration of conformity....21

Cabinet Cleaning 21

Panel Cleaning....21

Servicing....21

License Statement...... end of book

Supplied Accessories

• Remote Control • Batteries (R03/AAA, 1.5V × 2)
• Owner's Manual
• Screw kit for attaching the base

Symbols Used in this Manual

The following are the descriptions for the symbols used in this manual.

If neither symbol appears, the operation is applicable to both.

Digital TV operation

Analogue TV operation

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction.

1. Spread a thick and soft cloth over a table as shown. Place the main unit face down onto it. Make sure not to damage the screen. 2. Insert the metal neck under the bottom of the main unit into base holes (shown by arrow), then move the base until it stops and the 2 mounting holes are aligned. Make sure not to put the AC power cord between the base and the unit. 3. Drive Phillips head screws into the 2 threaded holes at the rear of this unit until they are tight.

To remove the base from this unit

Unscrew the Phillips head screws on step 3. After the screws are removed, move the base in the opposite direction on step 2 to pull the base from the unit. Be careful not to drop the base when you remove it.

• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.
• Make sure to use the table which can support the weight of this unit and is larger than this unit. • Make sure the table is in a stable location.

Tilting the Unit

You can adjust the base to change the angle of the unit (-2° to 10°).

Fixing the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screw (not supplied) in the hole at the back of the base as shown.

- Recommended screw dimension: 5.1 × 20 mm

When you remove this unit make sure to unscrew the wood screw from your Wood Stand, Furniture and other wood item.

Installing the Batteries

Install the batteries (R03 / AAA, 1.5 V x 2) matching the polarity indicated inside battery compartment of the remote control.

Remote Control

Your TV

1. ⏻(power) (p. 7)

Turns the unit on and go to the standby mode.

1. SLEEP (p. 8)
2. Number buttons (p. 8)

Selects the desired channel in TV mode and enters the password in the password input field.

1. AUDIO (p. 8)
2. BACK (p. 8)

Returns to the previous display.

1. ▲ / ▼ / ◀ / ▶ (cursor) (p. 7)
2. OK
3. MENU (control panel) / MENU (remote control) (p. 11)
4. VOL. ∧ / ∇ (control panel) /

+/- (remote control) (p. 8)

VOL. ∧ works the same as ▶ (cursor) or OK to set the menu option.

VOL. ▽ works the same as ◀ (cursor) on the menu.

1. (mute) (p. 8)
2. RED/GREEN/YELLOW/BLUE (p. 9, 15, 17)

Used for EPG / teletext / FUN-LINK.

1. COLOUR SYSTEM (p. 8)

Selects the colour input signal from external devices.

1. FUN-LINK buttons (p. 16)

Functionally useful for FUN-LINK.

1. (expand) / (subpage) / (hold) / (text) /

∃? (reveal) / ∃(index) (p. 16)

1. SOURCE (p. 8)
2. MODE (DTV/ATV)

Selects digital or analogue mode.

1. ASPECT (▶10)
2. GUIDE (p. 9)
3. ECO (p8)
4. i(information) (p. 9)
5. DTV / RADIO

Selects DTV or radio mode.

1. PROG. ▲ / ▼ (control panel) /

P ∧ / (remote control) (p. 8)

PROG. ▲ / ▼ works same function as ▲ / ▼ (cursor)

on the menu.

1. PICTURE MODE (p. 11)
2. SOUND MODE (p. 12)
3. (subtitle) (p. 15)

Terminals

1. (aerial) Input jack (p. 6)
2. PC Input jack (p. 7)
3. HDMI (HDMI 1 / HDMI 2) Input jack (p. 6)
4. Cl slot (p. 16)
5. Audio Input jack for PC connection (p. 7)
6. Headphone jack
7. SCART jack (p. 6)
8. Component Video (p. 6), Composite Video and Audio(L/R) Input jacks (p. 7)
9. Coaxial digital audio Output jack (p. 6)

- The Audio (L) jack is for monaural input. The sound is heard from both speakers. Use this jack for a monaural audio device.

* service terminal (service use only)

- Use this terminal only when a software update is necessary. The user should not connect any devices to the service terminal, such as digital camera, keyboard, mouse, etc. (because these will not work).

- The software update is, in most cases, handled by an authorized service person, or in some circumstances the user may be asked to do the software update themselves.

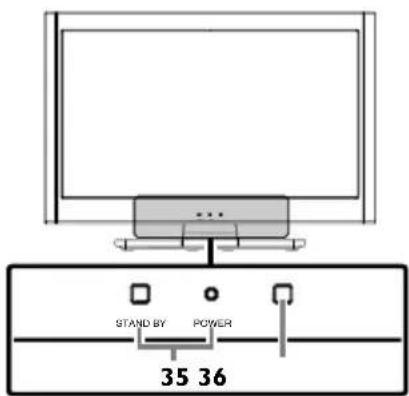

1. STAND BY / POWER indicator

Lights up green when power is on. Lights up red when the unit goes to standby mode.

1. Infrared sensor window

Receives the infrared rays transmitted from the remote control.

PREPARATION FOR USE

Read this first

• No supplied cables are used with these connections. Please purchase the necessary cables at your local store. • The illustrations in the following connections are examples. Read the manual accompanying your device for more detail.
• Before you connect, be sure your antenna or other device is connected properly before plugging in the AC power cord.

Antenna Connection

1 Connect an RF cable to the (r aerial) Input jack at the rear of this unit. 2 Plug this unit into an AC outlet. 3 When the STAND BY / POWER indicator on the front panel lights red, then press ⏻ to turn on the unit.

- If you like to connect an active DVB-T antenna, the antenna must have its own power supply.

- It is not possible to power the antenna from the TV.

External Connection

HDMI Connection (HDMI 1 / HDMI 2)

• This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i / 1080p video signals and 32 kHz / 44.1 kHz / 48 kHz only 2 channel audio signals (LPCM).
• You need to select "PCM" for the digital audio output of the device you connect. Make sure the device outputs the digital audio. Audio sometimes makes no sound if you select "Bitstream", etc.

Dear Customer,

By connecting an HDMI cable to your Funai LCD TV, you have to use only a certified HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

A certified HDMI cable can be identified by the HDMI logo on the cable or the cable package.

SCART Connection

Input Output
S-Video	Audio (L/R)	CVBS	RGB	Video and Audio (L/R)
Yes Yes Yes Yes				Outputs the RF input signal converted as CVBS signal.

• Inappropriate output is not available.

Component Video Connection

• This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i video signals for component connection.

Audio output connection DTV

For digital broadcasting only

- Make sure the rest of Component Video jacks (Pb/Pr) are unplugged completely when you plug the Composite Video jack to Y/VIDEO terminal.

PC Connection

The following signals can be displayed.

Format Resolution Refresh rate
VGA 640 × 480		60 Hz
SVGA 800 × 600
XGA 1,024 × 768
WXGA	1,280 × 768
	1,360 × 768

• Other formats or non-standard signals will not be displayed correctly.
• Please use the VGA cable that has a ferrite core.

Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed.

Initial Setup

This section will guide you through the unit's initial setting which includes selecting a language for your on-screen menu and auto scan, which automatically scans and memorises viewable channels.

1 After making all the necessary connections, press ⏻ to turn the unit. 2 Use ▲ / ▼ repeatedly to select the menu language, the country and the region, then press OK.

• If you select the country except [Spain] or [Portugal], you can skip region setting.
• Scan confirmation menu will appear.

3 When below display appear, then press OK to start scanning.

• If you press MENU during DTV channel scanning, this operation will be stopped and ATV channel scanning will start automatically.
• If you press MENU during ATV channel scanning, this operation will be stopped and skip to step 4.
• When no channel is registered, retry confirmation menu will appear.

4 Use ◀/▶ to select the location, then press OK.

• Select [At Home], this unit is set to maximize energy efficiency for home settings and can be adjusted through a choice of picture and sound quality according to your preference.
• Select [Retail Store], this unit will be set up with predefined settings for retail displays. If you select [Retail Store], the settings of picture and sound quality you adjusted will not be memorized after the unit goes to standby mode.
• When "Initial Setup" is completed, you cannot change the location setting unless you restore this unit to "Factory Reset" (p. 18) and that restarts all over again such as channel scanning.

OPERATIONS

Read this first

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Watching a TV Programme

To select a channel

Use P repeatedly to select your desired channel.

or

Use the Number buttons to enter a channel number, then press OK for quicker access.

(e.g.) If you want to select channel 24 without pressing OK, press 2 first, then press 4 within 3 seconds.

To adjust the volume

Use → to adjust the audio volume.

Press ☐ to turn on or off the sound right away.

- You can recover the original volume by pressing again or +/-

Channel List

You can easily find a channel you want.

1 Press OK while watching a programme.

2 Use ▲ / ▼ to select the channel you want to watch, then press OK.

1

2

1		Locked Channel
2		Decoded Channel

- Use ◀/▶ to move to the previous or next page.

3 Press BACK to exit.

- You can edit the channel list at "Channel Settings" (p. 12).

Sleep Timer

The sleep timer can be set the unit to go to the standby mode after an incremental period of time.

1 Press SLEEP repeatedly to change the sleep time period.

• Each time you press SLEEP, the timer increases by 30 minutes up to 120 minutes.

• Press SLEEP repeatedly until [Off] appears to cancel the sleep timer.
• If you disconnect the unit from the AC outlet or if a power failure occurs, the sleep timer will be cancelled.

Switching the Input Mode

You can switch the input mode to TV mode or external input mode.

1 Press SOURCE →. 2 Use ▲ / ▼ to select the input mode you want, then press OK.

Colour System

You can change the TV colour system in video or scart mode.

Press COLOUR SYSTEM repeatedly to select the colour system you want.

([Auto], [PAL], [PAL 60], [SECAM], [NTSC], or [NTSC 4.43])

- When you select [Auto] by pressing COLOUR SYSTEM, this unit will distinguish the system automatically according to the input signal from the external devices.

ECO Mode

When you set [ECO Mode] to [On], backlight brightness will be reduced automatically which may save on power consumption.

Press ECO repeatedly to select [On] or [Off].

On	The backlight is the lowest level.
Off	You can adjust the backlight level at "Advanced Picture Adjustment" (p. 11).

Sound Select

DTV

Press AUDIO to display currently selected audio language with the number of available ones and press repeatedly to cycle through them.

- The display image can be found on the "TV Screen Information" (p. 9).

	Dolby Digital sound
	Dolby Digital Plus sound
	HE-AAC sound
no icon MPEG sound

ATV

Press AUDIO to display the currently selected audio mode and press repeatedly to cycle through the available audio modes.

(e.g.)

TV Screen Information

You can see the broadcasting information.

1 Press i to display less information; press again to show more information.

1 Channel name
2 Present programme name / time		Use ◀/► to switch the present and next programme. (if available)
3 Current time
4 ATV broadcast		is displayed when it receives analogue TV broadcast.
Radio service		is displayed when it receives digital audio broadcast.
5 Channel number
6 Resolution / Format / TV aspect ratio
7 Audio language (DTV) / Audio Mode (ATV)
8 Audio mode (DTV)
9 Subtitle (p. 15)		is displayed if the subtitle of the TV programme is available.
		is displayed if the subtitle of the TV programme is for hearing impaired.
10 Programme information		When the programme information consists of more than 3 lines, use ▲/▼ to scroll.
11 Audio Description (p. 14)		is displayed when the TV programme provides additional audio description for visually impaired.
12 Teletext (p. 15)		is displayed if the teletext of TV programme is available.

13	Scrambled programme	is displayed, when you are watching the scrambled programme.
14	Parental rating (p. 14)	is displayed if the parental rating of TV programme is available.* The icon may differ depending on the ratings.
15	Lock status (p. 14)	is displayed when you are watching the TV programme which you set the parental lock or channel lock.

2 Press BACK to exit.

EPG

(Electronic Programme Guide)

DTV

You can easily find a channel or see detailed channel information. EPG provides scheduled information about TV programmes.

1 Press GUIDE and use ▲ / ▼ to select a channel, then press ▶ (cursor).

• Press RED or GREEN to move the channel list to the previous or next page.
• Press OK to watch the selected channel.

2 Use ▲ / ▼ to select a programme.

• Press RED or GREEN to move the programme list to the previous or next day.
• Press OK to watch the selected programme if it is currently available.

3 Press i to display more detailed programme information.

- When the programme information consists of more than 2 pages, use ▲ / ▼ to move to the previous or next page.

4 Press GUIDE to exit.

Changing the TV Screen Display Mode

You can select your favourite TV screen size.

Press ASPECT repeatedly to switch the TV screen display mode.

For 16:9 video signal

Auto	Selects the TV screen display mode automatically.
4:3	Displays a16:9 picture at a 4:3 size; the picture is shortened horizontally. Sidebars appear on both edge of the TV screen.
Full	Displays a 16:9 picture at its original size.
Zoom	Displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.
Cinema	Displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture.
Expand	Displays a horizontally stretched picture. This crops out the left and right sides of the picture.

For 4:3 video signal

Auto	Selects the TV screen display mode automatically.
4:3	Displays a 4:3 picture at its original size.Sidebars appear on both edge of the TV screen.
14:9	Displays a 4:3 picture at a 14:9 size.Sidebars will be displayed on both edge of the TV screen. This crops out the top and bottom of the picture.
Full	Displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the TV screen.
Zoom	Displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture.
Cinema	Displays a 4:3 picture at a 16:9 size; the picture is stretched more vertically at the top of the TV screen. This crops out the top of the picture.
Wide	Displays the picture with its centre at the original size and the edges stretched horizontally to fill the screen.

For PC input signal

Normal	Displays a proportionally stretched picture.Mainly sidebars appear on both edges of the TV screen.
Full	Displays a picture that is stretched out of proportion horizontally to fill the TV screen.
Dot by Dot	Displays a picture at its original size.

OTHER SETTINGS

Read this first

Before adjust each setting, press MENU to display the menu. To exit the menu, press MENU.

Picture Adjustment

You can adjust the picture settings according to your personal preference. These settings are automatically stored after exiting the picture menu.

1 Use ▲ / ▼ to select [PICTURE], then press OK.

Picture Mode

2 Use ▲ / ▼ to select [Picture Mode], then press OK. 3 Use ▲ / ▼ to select the setting you want, then press OK. ([Standard], [Dynamic], [Movie], [Game], or [Personal])

- You can change picture mode easily using PICTURE MODE. Press PICTURE MODE repeatedly or use ▲ /▼ to select picture mode you want. In this function, you can also assign the picture mode individually to each input mode.

Brightness / Contrast / Colour / Hue / Sharpness

2 Use ▲ / ▼ to select the item you want, then press OK. • Use ▲ / ▼ to change the items.

3 Use ◀/▶ to adjust the settings according to your personal preference, then press OK.

- If you adjust the settings in other than [Personal] mode, [Picture Mode] will be changed to [Personal].

Advanced Picture Adjustment

You can adjust the detailed picture settings according to your personal preference.

1 Use ▲ / ▼ to select [PICTURE], then press OK. 2 Use ▲ / ▼ to select [Features], then press OK.

Colour Temperature

You can change the colour tone of the picture.

3 Use ▲ / ▼ to select [Colour Temperature], then press OK. 4 Use ▲ / ▼ to select the setting you want, then press OK. ([Warm], [Normal], or [Cool])

DNR (Digital Noise Reduction)

You can adjust to reduce the appearance of digitizing error caused by the compression.

3 Use ▲ / ▼ to select [DNR], then press OK. 4 Use ▲ / ▼ to select the setting you want, then press OK. ([High], [Mid], or [Low])

CTI (Colour Transient Intensity)

You can adjust the picture for colour errors.

3 Use ▲ / ▼ to select [CTI], then press OK. 4 Use ▲ / ▼ to select the setting you want, then press OK. ([High], [Mid], or [Low])

Adaptive Luma Control

You can adjust changes in the luminance of the picture.

3 Use ▲ / ▼ to select [Adaptive Luma Control] then press OK. 4 Use ▲ / ▼ to select the setting you want, then press OK. ([On] or [Off])

Backlight

You can adjust backlight brightness.

3 Use ▲ / ▼ to select [Backlight], then press OK. 4 Use ◀/▶ to adjust, then press OK.

- Use ◀ (cursor) to dim / ▶ (cursor) to brighten.

- If you adjust the brightness except 1, [ECO Mode] will be set to [Off].

Sound Adjustment

You can adjust the sound settings according to your personal preferences.

1 Use ▲ / ▼ to select [SOUND], then press OK.

Sound Mode

2 Use ▲ / ▼ to select [Sound Mode], then press OK. 3 Use ▲ / ▼ to select the setting you want, then press OK. ([Standard], [Movie], [Music], [Game], or [Personal])

• You can change sound mode easily using SOUND MODE.
• Press SOUND MODE repeatedly or use ▲ / ▼ to select sound mode you want.

Equalizer

You can adjust tonal quality for each frequencies.

2 Use ▲ / ▼ to select [Equalizer], then press OK. 3 Use ◀/▶ to select the specific frequencies you want. 4 Use ▲ / ▼ to adjust the Level, then press OK.

- If you adjust the setting in other than [Personal] mode, [Sound Mode] will be changed to [Personal].

Balance

You can set the balance of the left and right speakers.

2 Use ▲ / ▼ to select [Balance], then press OK. 3 Use ◀/▶ to adjust, then press OK.

- Use ◀ / ▶ to decrease right/left speaker volume level.

Auto Volume Control

If set to [On], sudden changes in volume will be reduced automatically, for example, during commercials or when switching channels.

2 Use ▲ / ▼ to select [Auto Volume Control], then press OK. 3 Use ▲ / ▼ to select the setting you want, then press OK. ([On] or [Off])

TV Speakers

Select the audio output from the unit's speakers, or not. If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit's remote control. Make sure [FUN-LINK Control] is set to [On].

2 Use ▲ / ▼ to select [TV Speakers], then press OK. 3 Use ▲ / ▼ to select the setting you want, then press OK. ([On], [Off], or [Ext. Amp])

On	The sound will be output from the unit's speakers.
Off	The sound will not be output from the unit's speakers.
Ext. Amp	You can control audio output from your connected HDMI link devices by using this unit's remote control.

Digital Audio Output

You can set the audio output to [Auto] or [PCM].

2 Use ▲ / ▼ to select [Digital Audio Output], then press OK. 3 Use ▲ / ▼ to select the setting you want, then press OK. ([Auto] or [PCM])

Auto	Dolby Digital (if available)
PCM	PCM

Channel Settings

You can edit the channels.

1 Use ▲ / ▼ to select [CHANNEL], then press OK. 2 Use ▲ / ▼ to select [Channel List], then press OK. 3 Use ▲ / ▼ to select the channel you want to edit, then press OK.

Channel Skip

When using P, the channel you selected will be skipped.

4 Use ▲ / ▼ to select [Skip], then press OK. • 📁 will appear on the right of the channel.

- Press OK again to cancel, and 📄 will disappear.

Channel Delete

The channel you selected will be deleted from the channel list.

4 Use ▲ / ▼ to select [Delete], then press OK. • Delete confirmation message will appear.

5 Use ▲ / ▼ to select [Delete], then press OK.

Channel Lock

You can set particular channels to be invisible.

• When you select the locked channel, you need to enter the PIN Code to watch.
• If you want to unlock the locked channel, select [Lock] by using ▲ / ▼, then the PIN Code again.

4 Use ▲ / ▼ to select [Lock], then press OK.

5 Use the Number buttons to enter the 4-digit PIN Code you set.

• Will appear on the right of the channel.

Channel Move Up / Move Down

You can change the channel order.

4 Use ▲ / ▼ to select [Move Up] or [Move Down], then press OK.

- When your country selection is [France], [Portugal], [Italy], [Hungary], [Estonia], or [Latvia] at "Initial Setup" (p. 7), and you select DTV channel, the channel order will be changed. If ATV channels or any other countries, the channel number will be switched.

Channel Decode

ATV

Some TV stations transmit encoded TV signals which can only be viewed with a purchased or hired decoder. You can connect such a decoder to SCART jack of the unit. This function will automatically activate the connected decoder for the channel.

4 Use ▲ / ▼ to select [Decoder], then press OK.

• will appear on the right of the channel.

- Press OK again to cancel, and ■will disappear.

Channel Scan

You can scan the channel in your area automatically or search and store channels manually.

1 Use ▲ / ▼ to select [CHANNEL], then press OK.

Auto Scan

2 Use ▲ / ▼ to select [Auto Scan], then press OK. • Auto scan confirmation message will appear.

3 Use ▲ / ▼ to select [Start], then press OK. • Channel scanning will start.

• Digital or analogue channels will be scanned depending on the TV mode (ATV mode or DTV mode) you selected.
• When the scanning is completed, the lowest memorised digital or analogue channel will be displayed.
• If you press MENU during the scanning, this operation will be stopped and the lowest memorised channel will be displayed.
• Please note that after tuning, the analogue channels will be stored in the order that they are broadcast by your local transmitter. This may not be in the same order in which you would like them to be stored. If this is the case, you can change the order according to your preference at "Channel Settings" (p. 12).

Manual Scan

2 Use ▲ / ▼ to select [Manual Scan], then press OK.

DTV

3 Use ▲ / ▼ or the Number buttons to select the channel number you want to scan, then press OK. • Channel scanning will start.

ATV

3 Use ▲ / ▼ to select [Channel], then press OK. 4 Use ▲ / ▼ or the Number buttons to select the channel number you want, then press OK. 5 Use ▲ / ▼ to select [Frequency], then press OK. 6 Use the Number buttons to select the 3-digit frequency, then use ▲ / ▼ to start scanning. 7 After channel scanning is completed, press OK to select the following settings. ([Colour System], [Sound System], and [Fine Tune])

Colour System / Sound System

8 Follow steps 1 to 7. Use ▲ / ▼ to select [Colour System] or [Sound System], then press OK. 9 Use ▲ / ▼ to select the settings you want, then press OK.

Fine Tune

8 Follow steps 1 to 7. Use ▲ / ▼ to select [Fine Tune], then press OK. 9 Use ◀/▶ to select the settings you want, then press OK.

Lock Settings

You can set the parental rating and change the PIN Code.

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [Lock Settings], then press OK. 3 Use the Number buttons to enter the 4-digit PIN Code you set.

- If you have not set up your PIN Code, enter 0000.

Parental Rating

You can set the parental rating to avoid watching an inappropriate programme for your children.

4 Use ▲ / ▼ to select [Parental Rating], then press OK.

5 Use ▲ / ▼ to select the age restriction, then press OK.

Change PIN Code

You can set your own PIN Code.

4 Use ▲ / ▼ to select [Change PIN Code], then press OK. 5 Use the Number buttons to enter the new 4-digit number. 6 Use the Number buttons to enter the same 4-digit number again.

Audio Settings

DTV

You can change the audio settings used for TV programmes. Before you begin: You must select [DTV] at "Switching the Input Mode" (p. 8).

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [TV Settings], then press OK. 3 Use ▲ / ▼ to select [Preferred Audio], then press OK.

Main Audio Language / Sub Audio Language

You can select the main or sub audio language.

4 Use ▲ / ▼ to select [Main Audio Language] or [Sub Audio Language], then press OK. 5 Use ▲ / ▼ to select the language you want.

- While watching a programme, you can change the audio language easily using AUDIO when it is available.

Audio Type

You can adjust the audio type.

4 Use ▲ / ▼ to select [Audio Type], then press OK. 5 Use ▲ / ▼ to select the setting you want, then press OK. ([-], [Hearing Impaired], or [Visually Impaired])

Hearing Impaired:

Provides audio service for hearing impaired.

Visually Impaired:

Provides additional audio description for visually impaired.

Mixing Level

You can adjust the audio volume for [Visually Impaired]. Make sure [Audio Type] is set to [Visually Impaired] at "Audio Settings" (p. 14).

- Only MPEG sound is available for this function.

4 Use ▲ / ▼ to select [Mixing Level], then press OK. 5 Use ◀/▶ to adjust, then press OK.

Subtitle Settings

DTV

You can change the subtitle settings used for TV programmes.

Before you begin: You must select [DTV] at "Switching the Input Mode" (p. 8).

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [TV Settings], then press OK. 3 Use ▲ / ▼ to select [Subtitle], then press OK.

1st Subtitle Language / 2nd Subtitle Language

You can set 1st and 2nd subtitle language.

4 Use ▲ / ▼ to select [1st Subtitle Language] or [2nd Subtitle Language], then press OK. 5 Use ▲ / ▼ to select the language you want, then press OK.

- While watching a programme, you can change the subtitle language easily using .when it is available.

- To hide the subtitle, select [Off] in [1st Subtitle Language].

Subtitle Type

You can select the preferred subtitle type.

4 Use ▲ / ▼ to select [Subtitle Type], then press OK. 5 Use ◀ / ▶ to select the setting you want, then press OK. ([-] or [Hearing Impaired])

Hearing Impaired : Provides subtitle commentary for hearing impaired.

Teletext

You can change the teletext settings.

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [TV Settings], then press OK. 3 Use ▲ / ▼ to select [Teletext], then press OK.

Teletext Language

You can select the preferred teletext language.

4 Use ▲ / ▼ to select [Teletext Language], then press OK. 5 Use ▲ / ▼ to select the language you want, then press OK.

Decoding Page Language

You can switch to the appropriate language group.

- You must select [Russia] if you select the countries that use the Cyrillic alphabet at "Initial Setup" (p. 7).

4 Use ▲ / ▼ to select [Decoding Page Language], then press OK. 5 Use ▲ / ▼ to select the language you want, then press OK.

Presentation Level

You can adjust the teletext presentation level. Level 2.5 offers more colours and better graphics than Level 1.5.

4 Use ▲ / ▼ to select [Presentation Level], then press OK. 5 Use ▲ / ▼ to select the setting you want, then press OK. ([Level 1.5] or [Level 2.5])

To show the teletext

1 Press return on the teletext decoder. • [Teletext] information will appear. 2 Press repeatedly to show the teletext in transparent mode or picture and teletext mode.

• If you want to select other pages, use the Number buttons or ▲ / ▼.
• To enlarge fonts, press • To select the teletext subpages, press
• To directly select the page numbers shown at the bottom of the TV screen, use RED/GREEN/YELLOW/BLUE. • To call up the hidden information, press ☑? • To hold the current page, press • To go back to the start page, press ☐i • To hide the teletext, press SLEEP.

3 Press BACK to turn off the teletext decoder.

Common Interface (CI)

DTV

This unit is equipped with a CI slot. You can enjoy additional services with this function, for example Pay TV. The access restrictions menu will appear on the TV screen when a CI module is installed.

1 Go to the standby mode and unplug from an AC outlet. 2 Insert the CI module straight to the CI slot of this unit. - Some CI modules may be a two-piece design consisting of a card reader with the viewing card. When using this kind of card, insert the card reader firmly into the CI slot on the unit first. Then, insert the viewing card into the reader.

3 Plug this unit into an AC outlet and press ⏻ to turn on the unit.

4 Press MENU to display the menu.

5 Use ▲ / ▼ to select [OTHERS], then press OK.

6 Use ▲ / ▼ to select [TV Settings], then press OK.

7 Use ▲ / ▼ to select [Common Interface], then press OK.

8 Follow the instructions on the TV screen.

• CI may not be available in some countries or regions. • In case of failure, you need to call your CI service provider.
• Menu operations may vary depending on the viewing card. Refer to the manual accompanying the viewing card.

PC Settings

You can adjust the PC screen position, clock and phase.

Before you begin: You must connect your PC to this unit and select [PC] at "Switching the Input Mode" (p. 8).

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [PC Settings], then press OK.

Auto Adjustment

3 Use ▲ / ▼ to select [Auto Adjustment], then press OK. • Auto adjust confirmation message will appear.

4 Use ▲ / ▼ to select [Adjust], then press OK.

• Each setting will be adjusted automatically.

Horizontal Position / Vertical Position / Clock / Phase

3 Use ▲ / ▼ to select the item you want, then press OK. - Use ▲ / ▼ to change the items.

4 Use ◀/▶ to adjust the settings according to your personal preference, then press OK.

FUN-LINK

This function allows you to operate the linked functions between our brand devices with a FUN-LINK feature and this unit connecting through an HDMI cable.

- The set with FUN-LINK will interoperate without any problems with other Funai devices which comply with FUN-LINK.

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [FUN-LINK], then press OK.

FUN-LINK Control

You can set the FUN-LINK function On or Off.

3 Use ▲ / ▼ to select [FUN-LINK Control], then press OK.

4 Use ▲ / ▼ to select [On] or [Off], then press OK.

On: Selects if you have connected an external device that is compatible with the FUN-LINK function.

Off: Disables all FUN-LINK functions.

- The following additional settings will be greyed out when you set to [Off].

Auto Device Off

You can set your device to turn off by interlocking from this unit's power.

3 Use ▲ / ▼ to select [Auto Device Off], then press OK. 4 Use ▲ / ▼ to select [On] or [Off], then press OK.

On: Your connected FUN-LINK device turns off automatically when the unit goes to the standby mode.

Off: Your connected FUN-LINK device stays on even if the unit goes to the standby mode.

Auto TV On

This unit will turn on detected when the power on signal is sent from your connected FUN-LINK device.

3 Use ▲ / ▼ to select [Auto TV On], then press OK. 4 Use ▲ / ▼ to select [On] or [Off], then press OK.

On: This unit turns on automatically when you turn on your connected FUN-LINK device.

Off: This unit stays the standby mode even if you turn on your connected FUN-LINK device.

Device Control

You can operate some functions such as disc playback or call up the menu of the connected devices, by using this unit's remote control.

3 Use ▲ / ▼ to select [Device Control], then press OK. 4 Use ▲ / ▼ to select [On] or [Off], then press OK.

On : ▶ / ■ / ◀◀/ ▶▶/ □/ ◀◀/ ▶▶ / FUN-LINK 🔒 / ▲ / ▼ / ◀/ ▶ / OK / BACK / the Number buttons / RED / GREEN / YELLOW / BLUE can be used to control your connected FUN-LINK devices by this unit's remote control.

Off : Disables the device control.

Device List

This function lets you see the product model number or name of connected devices.

3 Use ▲ / ▼ to select [Device List], then press OK. 4 Use ▲ / ▼ to select the FUN-LINK device you want, then press OK.

To show the menu of connected your devices

Make sure [FUN-LINK Control] and [Device Control] is set to [On].

1 Press FUN-LINK 🔒 to display the menu. 2 Use ▲ / ▼ to select the item you want, then press OK.

Device - Menu : This function allows you to control the menu of your connected FUN-LINK device.

Device - Contents : This function allows you to control the top menu of your DVD or Blu-ray discs.

Device - Favourite : This function allows you to control the pop-up menu of your Blu-ray discs.

• Some of FUN-LINK functions may not be available depending on your FUN-LINK devices or discs.
• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.

3 Use ▲ / ▼ / ◀ / ▶ / OK on this unit's remote control to operate the desired functions for your devices or discs.

Time Setup

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [Time Setup], then press OK.

Time Zone

You can set the time zone according to the resident area.

3 Use ▲ / ▼ to select [Time Zone], then press OK. 4 Use ▲ / ▼ to select the time difference you want, then press OK.

Auto: Automatically selects the time zone of your area to ensure the proper performance of the time.

- Although you select [Auto], the correct time may not be displayed on the “TV Screen Information” (p. 9) depending on DTV broadcasting.

Auto Standby

You can set the unit to go standby mode automatically if no activity is detected after the power is turned on for 4 hours. In spite of this setting, the unit goes to the standby mode automatically if there is no signal input from the antenna terminal and no user operation for 15 minutes.

3 Use ▲ / ▼ to select [Auto Shut Off], then press OK. 4 Use ▲ / ▼ to select [On] or [Off], then press OK.

Software Download

Software download complies in specified countries only. You may not use this function depending on where you live.

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [Software], then press OK.

Auto Update Search

When set to [On], this unit in standby mode automatically detects and updates to a new version of software. 3 Use ▲ / ▼ to select [Auto Update Search], then press OK. 4 Use ▲ / ▼ to select [On] or [Off], then press OK.

- The power indicator lights up while the unit searches for or updates the software.

Search for new software

You can search for a new version of the software.

3 Use ▲ / ▼ to select [Search for new software], then press OK. - When this unit finds a new version of software, the software update confirmation menu will appear. 4 Use ▲ / ▼ to select [Start] to update the software. - The software update will start.

• This process may take up to 60 minutes.

5 After the software update is completed, press ⏻ to restart this unit.

Factory Reset

You can restore this unit to factory settings.

1 Use ▲ / ▼ to select [OTHERS], then press OK. 2 Use ▲ / ▼ to select [Factory Reset], then press OK. 3 Use ▲ / ▼ to select [Reset], then press OK.

- All settings are restored to the default, including memorized channels, picture settings, and sound settings.

Menu Language Selection

You can select the menu language.

1 Use ▲ / ▼ to select [LANGUAGE], then press OK. 2 Use ▲ / ▼ to select the language you want, then press OK.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save you time and money.

Problem Possible Remedy
Remote Control Doesn't Work	• Is unit plugged in?• Power at outlet?• Check batteries in remote control.
Bars On TV Screen	• If outside antenna is being used, check for broken wire.• Check for local interference.
Picture Distorted	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.• Surrounding temperature is too low.
Picture Rolls Vertically	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.• Check for local interference.
No Colour	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Adjust [Colour] control.
Poor Reception on Some Channels	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Check for local interference.
Weak Picture	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Adjust [Contrast] and [Brightness] control.• Surrounding temperature is too low.
Lines or Streaks in Picture	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.• Check for local interference.
Ghosts in picture	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Check for local interference.
Picture Blurred	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.
Sound OK, Picture Poor	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Check for local interference.• Adjust [Contrast] and [Brightness] control.
Picture OK, Sound Poor	• Try a new channel, if OK, then possibly due to poor channel reception.• Check for local interference.
No Picture or Sound	• Try a new channel, if OK, then possibly due to poor channel reception.• Is unit plugged in?• Power at outlet?• Is unit's power on?• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and turn on the unit again.
Different colour marks on TV screen	• Try a new channel, if OK, then possibly due to poor channel reception.
Black or Luminous point on TV screen	• It is quality of the LCD Panel.
Forget the password • Enter the default PIN Code (4737).

OTHER INFORMATION

Specifications

Model LED22-H800M LED19-H800M
LCD 21.6 inches 18.5 inches
Television system DVB-T(MPEG4/H.264), PAL-B/G, D/K, SECAM-B/G, D/K, L
Terminals Antenra	a UHF/VHF 75 ohm
	Audio Input RCA jack (L/R) x 1
	Composite Video Input	RCA jack (shared terminal with Y of components) x1
	Component Video Input	RCA jack (Y/Pb/Pr) x1
	HDMI Input HDMI 19pin x 2
	PC Input D-Sub 15pin x 1 (RGB) / Mini jack ∅3.5 mm x 1 (AUDIO)
	SCART SCART x 1
	Headphone Mini jack ∅3.5 mm x 1
	Coaxial digital audio Output	RCA jack x 1
	USB Input service use only
	Common Interface	CI Slot x 1
Sound Output		3 W, 16 ohm x 2
Remote control		Digital encoded infrared light system
Operating temperature range		5 °C to 40 °C
Power requirements AC 220-240 V ~ , 50 Hz
Power consumption		35 W (standby: less than 0.5 W)	30 W (standby: less than 0.5 W)
Dimensions*Protruding parts excluded.	without base	H:337.0 mm W:531.0 mm D:40.0 mm	H:293.9 mm W:459.9 mm D:40.0 mm
	with base	H:374.6 mm W:531.0 mm D:180.0 mm	H:331.5 mm W:459.9 mm D:180.0 mm
Weight	without base	4.2 kg	3.3 kg
	with base	4.8 kg	3.9 kg

Trademark Information

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. • DVB is a registered trademark of the DVB Project.
• The "HD TV" Logo is a trademark of DIGITALEUROPE.

License

This product uses some open source software:

• GPL software: liba52.c, scalfact.c, Faad2

- jpeglib.h

- FreeType

"License Statement" is written at the end of book.

If you are interested in obtaining GPL source code used in this product, please contact Funai Electric Europe Sp. z o.o., ul. Inżynierska 1 Nowa Sól, 67-100 / Poland.

Declaration of conformity

This product complies with the requirements of the relevant directives.

We: Funai Electric Europe Sp. z o.o.

declare that the following product:

LCD Television

Model LED22-H800M

Model LED19-H800M

Trade Name: Funai

is in compliance with the relevant regulations.

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

- If the LCD panel requires cleaning, wipe it with a cotton or soft cloth. Before cleaning the panel, disconnect the power cord.

Servicing

- Should your unit become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Take the unit to a Service Centre for servicing.
