| Product Type | VHS Video Cassette Recorder |
| Brand | Panasonic |
| Model | NV-HS830 |
| Tape Format | VHS (Video Home System) |
| Video Heads | 4-head system for enhanced picture quality |
| Audio System | Hi-Fi stereo with Dolby NR |
| Recording Modes | SP (Standard Play), LP (Long Play), EP (Extended Play) |
| Timer Recording | Up to 8 programs with 1-month programmable timer |
| Remote Control | Infrared remote with full function control |
| Inputs | RF antenna in, composite video/audio in (RCA) |
| Outputs | RF modulator, composite video/audio out (RCA), S-Video out |
| Dimensions (W x H x D) | Approx. 430 x 95 x 320 mm (16.9 x 3.7 x 12.6 inches) |
| Weight | Approx. 4.5 kg (9.9 lbs) |
| Power Consumption | 22 W (operating), 0.5 W (standby) |
| Voltage | AC 110-240 V, 50/60 Hz |
| Special Features | Auto tracking, digital auto head cleaner, slow motion, still frame |
| Index Search | VHS Index Search System (VISS) for quick tape navigation |
| Playback Compatibility | Plays back VHS and VHS-C (with adapter) tapes |
| Heads Cleaning | Manual cleaning recommended every 500 hours of use |
| Safety | Auto power-off after 3 hours in stop mode; child lock feature |
| Parts and Service | Repairable with commonly available belts, heads, and electronic components |
Frequently Asked Questions - NV-HS830 PANASONIC

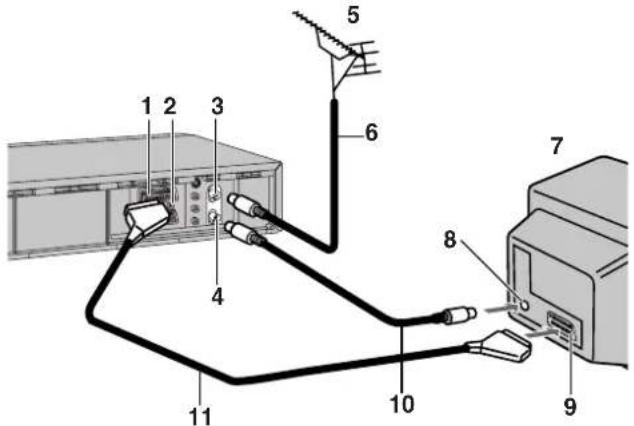

How do I connect the Panasonic NV-HS830 to my TV?
Connect the RF antenna to the VCR's input, then use the coaxial cable from the VCR's RF out to your TV's antenna input. Alternatively, use RCA composite cables (yellow, white, red) from the VCR's video/audio out to your TV's corresponding inputs.
Why is the playback picture snowy or distorted?
Snowy or distorted picture often indicates poor tracking. Press the tracking up/down buttons on the remote or front panel to adjust. Also check video head cleanliness; dirty heads can cause picture issues. Use a head cleaning cassette or manual cleaning with isopropyl alcohol.
How do I set up timer recording?
Press TIMER on the remote. Use the programming buttons to set date, start time, end time, and channel. Confirm each entry with OK. Ensure the VCR is on standby and the tape is inserted with record tab intact.
Can I record from external sources like a cable box?
Yes, connect the source (e.g., cable box) to the VCR's audio/video inputs (RCA jacks on front or back). Select the input channel (usually AV or L1) on the VCR. Then start recording with the REC button.
How do I clean the video heads?
First, try a dry video head cleaning tape (available at electronics stores). Insert and play for 10-20 seconds. If that fails, use isopropyl alcohol and a lint-free swab. Open the top cover, locate the drum, and gently rub the heads in a horizontal motion. Let dry before use.
What does the 'Digital Auto Head Cleaner' feature do?
The Digital Auto Head Cleaner automatically cleans the video heads at startup or after 100 hours of use. It uses a built-in mechanism with a rotating cleaning brush to remove dust and debris, reducing the need for manual cleaning.
My VCR won't power on. What should I check?
First, ensure the power cord is securely connected to the wall outlet. Check the standby light; if off, try a different outlet. If still no power, the internal fuse may be blown. Open the casing and replace the fuse with the same rating (usually T2A 250V). If problem persists, seek service.
How do I use the Index Search function?
To locate recordings on a tape, press INDEX on the remote. Use the forward/reverse buttons to jump to the next or previous index mark. The VCR automatically records an index signal at the start of each recording.
What should I do if the tape gets stuck?
Unplug the VCR. Gently remove the tape by turning the manual eject screw on the bottom (use a small screwdriver). If the tape is loose, rewind it manually with a pen or pencil. Avoid pulling the tape. Restart the VCR and try again.
Can I use the remote control with other Panasonic devices?
The remote uses infrared (IR) signals. It may control some Panasonic TVs (code 04 or similar). Check the remote's TV power and volume buttons. For other devices, you may need a universal remote.
