Product type	Cooker hood
Brand	Atag
Model	ES1011QAM
Dimensions (W x D x H)	598 x 500 x 140 mm
Net weight	12 kg
Power supply	220-240 V ~ 50 Hz
Motor power	200 W
Max airflow	650 m³/h
Max noise level	65 dB(A)
Control type	Electronic, touch
Number of speeds	3
Lighting	LED, 2 x 2 W
Filters	Washable metal grease filters
Energy class	A
Air outlet diameter	150 mm
Extraction function	Yes
Recirculation function	Yes (with optional charcoal filter)
Installation type	Built-in under cabinet
Material	Stainless steel, tempered glass
Warranty	2 years
Repairability	Spare parts available (motor, electronic board, filters)

Frequently Asked Questions - ES1011QAM Atag

How to turn on the Atag ES1011QAM hood?

Press the on/off button. The hood starts at speed 1. To turn off, press the same button again.

How to change the hood speed?

Use the speed selection buttons (usually marked 1 to 3). Speed 3 is the most powerful.

How to clean the grease filters?

Remove the metal filters and wash them by hand with hot water and detergent, or in the dishwasher. Dry them before putting them back. Do this every month.

Does the charcoal filter need to be replaced?

Yes, if you use the hood in recirculation mode. The charcoal filter should be replaced every 3 to 6 months depending on usage.

How to adjust the lighting?

Press the lighting button (bulb symbol) to turn the LED lights on or off.

What to do if the hood stops working?

First check the power supply and fuse. If the problem persists, contact Atag after-sales service.

How to install the hood?

Installation should be carried out by a qualified professional. Ensure you respect the safety distances from the hob (65 cm for an electric hob, 75 cm for a gas hob).

Can I use the hood without a charcoal filter?

Yes, if the hood is connected to an external exhaust. The charcoal filter is only necessary in recirculation mode.

How to reduce hood noise?

Use the lowest possible speed. Check that filters are clean and nothing blocks the air outlets.

Where to find spare parts?

Spare parts are available from authorized Atag retailers or online on the official website. Always use original parts.

USER MANUAL ES1011QAM Atag

instructions for use cooker hood

anvendelse emhætte

ATAG

Exterior view of a stainless steel double boiler with a chimney (no text or symbols visible)

ES1011QAM ES1092QAM ES1211QAM ES1292QAM ES1511SAM

700005568000

3LIK1621

NL

Two black rectangular blocks with a white horizontal line and a circular icon featuring a half-circle (no text or symbols)

Koolstofffilter-indicatie inschakelen

Two black rectangular blocks with white symbols: one horizontal line and one circular icon (no text or labels)

Hand pressing down on a textured surface with numbered callouts (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of hands holding a closed book with a curved arrow indicating rotation (no text or symbols)

Illustration of a mechanical assembly with a hand pressing down on a cylindrical component, showing no text or symbols.

Two black rectangular blocks with white symbols: one with a horizontal line and the other with a sunburst pattern (no text or labels)

Two black rectangular blocks with white symbols: one horizontal line and one circular icon (no text or labels)

Hand pressing down on a textured surface with numbered callouts (no text or symbols)

Illustration of a hand using a tool to press or install a coiled cable, with no visible text or symbols.

Two black rectangular blocks with white symbols: one with a horizontal minus sign, the other with a sunburst graphic (no text or numbers)

Two black rectangular blocks with white symbols: one horizontal line and one circle with a diagonal line (no text or labels)

Aktivkohlefilter:

Illustration of a mechanical assembly with a hand operating a component, showing parts being handled (no text or symbols present)

On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance's safety and maintenance instructions.

Please retain the operating and installation instructions as these may be useful for future reference.

Please read the separate safety instructions prior to use.

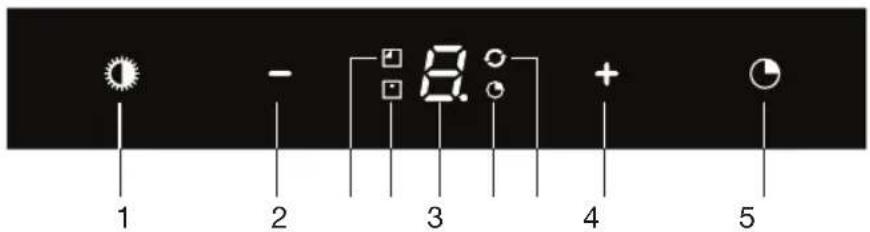

Description

6

1. Switching on/off and dimming the lighting
2. Reducing air extraction capacity and switching off
3. Cleaning carbon filter indicator
4. Cleaning grease filter indicator
5. Display status
6. Timer function indicator
7. Clean Air function indicator
8. Switching on and increasing air extraction capacity
9. Switching on timer function

Note!

• Prior to activating or deactivating a function, the motor and lighting should be switched off.
• If you have a cooker hood with a carbon filter, you should activate the carbon filter indicator as described in the 'Cleaning filters' paragraph.

Operation

Switching extraction on and off

• Press the '+' button (8).
  The cooker hood will switch on at the lowest setting.
• Press the ‘+’ button (8) again to set a higher extraction setting.
  Press and hold the '+' button (8) for 2 seconds to select the highest setting (boost) (see switching on intensive setting).
  The extraction setting can be set between speeds 1 to 4 or 9 (depending on the model).
• Press the ‘-’ button (2) to select a lower setting. The extraction setting is indicated in the display (5).
• If the extraction setting is set at 1, you can switch off the cooker hood by quickly pressing and releasing the '-' button (2).
• To switch off the cooker hood from whatever setting press and hold the ‘-’ button (2) for at least 2 seconds.

Alter the number of speed-settings (models with 9 speed-settings)

You can choose between 9 speed-settings (standard) or 5 speed-settings.

- Press and hold the ‘-’ button (2) and ‘+’ button (8) for at least 5 seconds. This selects the 5 speed-setting option. Press and hold the ‘-’ button (2) and ‘+’ button (8) again for at least 5 seconds to select the 9 speed-setting option.

Switching the lighting on and off

• Quickly press and release the lighting button (1).
  The light switches on at maximum strength.
• Press and hold the lighting button (1) to set the lighting strength. The lighting changes from maximum to minimum strength and vice versa.

Switch on intensive setting:

• Press and hold the ‘+’ button (8) for approximately 2 seconds. The intensive setting (setting ‘P’) is switched on for ten minutes (depending on the model). The display will flash (5) during this period. The original extraction setting will be reactivated after this period.
• Quickly press and release the ‘+’ (8) button to switch off the intensive setting.

Switching on the timer

- Press the timer button (9). The timer indicator will light up The cooker hood will switch off automatically after 10 minutes.

- Switch off the timer function by pressing the '-' button '2'.

If the lighting is lit its strength will be reduced automatically by 30-40% once the timer has finished.

Note!

If the intensive setting has been selected you cannot activate the timer function.

Clean Air function

The Clean Air function allows you to freshen the air in your kitchen for a maximum of 12 hours.

- Switch off the cooker hood. - Press and hold the timer button (9) for approximately 4 seconds. The cooker hood will switch on automatically for 10 minutes every hour at the lowest speed setting. During extraction the Clean Air indicator will flash (6). When the hood switches off after 10 minutes, the Clean Air indicator (6) will be lit continuously until the hood switches on again after 50 minutes.

- Switch off the Clean Air function in the meantime by pressing a random button (except the one for lighting).

Cleaning filters

Saturation grease and carbon filters

The filters should be replaced or cleaned when the grease filter indicator (4) or the carbon filter indicator (3) are lit.

Grease filter

The grease filter indicator (4) will flash after 30 operating hours.

• The grease filters should then be cleaned.
• Reset the memory by pressing and holding the '-' button (2) until the grease filter indicator (4) stops flashing.

Carbon filter

The carbon filter indicator (3) will flash after 120 operating hours.

• The carbon filter should then be cleaned or replaced.
• Reset the memory by simultaneously pressing and holding the ‘-’ (2) and ‘+’ (8) buttons until the carbon filter indicator (3) stops flashing.

Two black rectangular panels: top shows a horizontal line and a circular icon with a half-power effect (no text or symbols)

Switching on carbon filter indicator

• Simultaneously press and hold the ‘+’ (8) button and the lighting button (1) until the carbon filter indicator (3) flashes twice. The carbon filter indicator is activated.

Two black rectangular blocks with white symbols: a horizontal line and a circle with a diagonal line inside (no text or labels)

Switching off carbon filter indicator

- Simultaneously press and hold the ‘+’ (8) button and the lighting button (1) until the carbon filter indicator (3) flashes once.

The carbon filter indicator is switched on:

- The carbon filter indicator (3) lights up for 3 seconds.

The carbon filter indicator is switched off:

- The carbon filter indicator (3) flashes for 3 seconds.

Cleaning

Important!

For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning). Do not use abrasive cleaning products. Do not use alcohol!

Important!

If the instructions regarding cleaning the appliance or replacing the filters are not followed, this can cause a fire. These instructions should be followed! The manufacturer is not liable for damage to the hood or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth.

Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Removing cassette filter

1 Switch off the motor and lighting.
2 Open the access hatch.
3 Remove the filter from the hood.

Cleaning

The filters can be cleaned in the dishwasher. Allow the filters to drain well before replacing.

The filters can also be cleaned by hand.

Clean the filters in soapy water with washing up liquid and rinse.

Allow the filters to drain well. The underside of the cooker hood can be cleaned with a mild cleaning agent and a damp cloth. Dry off with kitchen paper or a dry tea towel.

Replacing cassette filter

The filter should be placed with the locking mechanism on the side.

Open the filter access hatch. The notches at the side of the filter will then slot in. Hold the access hatch in this position when placing the filters.

1 Slot the notches at the back of the filter in the specially designed opening to the side of the cooker hood.
2 Tilt the filter upwards.
3 Release the filter access hatch. The notches at the back of the filter will extend outwards and slot into the specially designed openings of the cooker hood.

The filter is now in position again.

Please note!

Replace the grease filters in their original assembled position (see figure).

Positioning the grease filters correctly ensures the most efficient extraction.

Active carbon filters:

The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65\ °C (the washing should be done without any plates, dishes, cups, etc. in the machine).

Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 15 minutes at a maximum temperature of 100\ °C .

To keep the regenerable carbon filter efficient, this action should be repeated every 2 months or when indicated by the filter indicator. The filter must be replaced after no more than 3 years, or if it has been damaged.

It is important that the grease filters and the regenerable active carbon filter are thoroughly dry before repositioning.

Replacing the carbon filter:

The grease filters should first be removed before replacing the carbon filter.

• Press the carbon filter's two 'B' buttons inwards.
• Tilt the carbon filter downwards to remove it.

Operation:

• Using a carbon filter creates more sound than when using the cooker hood with an outlet.
- The carbon filter's operation is optimal at a lower motor speed. You should, therefore, avoid using the boost function.

Attention!

This hood is fitted with LED lighting! These have to be replaced by a specialized technician. Do not attempt to replace LED lights yourself.

General

This appliance should be connected to the mains power by a registered installer, who knows and applies the correct safety specifications.

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

Important information:

• The distance between the lowest point of the cooker hood and a gas hob should be at least 65 cm. With an electric, ceramic or induction hob this distance should be at least 55 cm.
• Follow the applicable local regulations regarding the ventilation of gas appliances.
• The cooker hood will work better with a short outlet pipe and the fewest bends possible.
• Prior to drilling check that there are no pipes or cables present.
• The cooker hood connection pipe is 120 mm, 125 mm or 150 mm in diameter. Use the largest possible (150 mm) flue of the same diameter.
• The installation material provided with this cooker hood is suitable for reinforced concrete and brick walls. You will need special plugs and screws for certain walls.

Connection

Electrical connection

This is an insulation class II (double insulated) appliance. The cable does not need to be connected to an earthed socket.

Check whether the voltage mentioned on the type plate corresponds with the voltage of the domestic electric installation.

Connection to the mains power should be carried out as follows:

BROWN= L phase

BLUE = N zero.

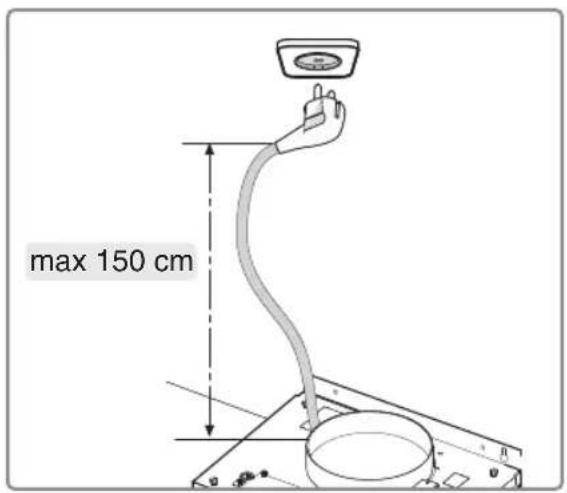

Each cooker hood is equipped with a connection plug. Install the cooker hood in such a way that the plug is accessible.

Please note!

If you want to make a fixed connection, make sure that an omnipolar switch with a contact separation of at least 3 mm is fitted in the supply line.

Build-in dimensions

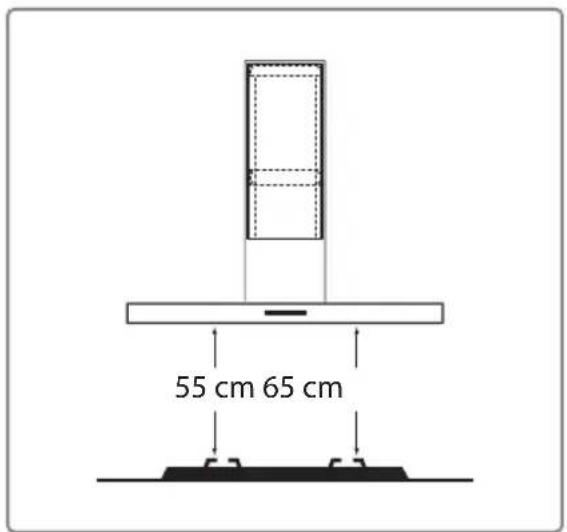

Installation height:

The minimum distance between a gas hob's pan supports and the lower edge of the hood should be 65 cm. For use with an electric, ceramic or induction hob this distance should be at least 55 cm.

It is best that two people install this cooker hood.

• Unpack the frame and remove the two screws A to separate the top section from the bottom section (Fig.1).

• Take the template and place this against the ceiling with the arrow on the same side as the hood's control panel (Fig.2).

For assembly, screws should be used that are suitable for the wall type (for example reinforced concrete, plasterboard, etc.). If screws and plugs are supplied with the hood, make sure in advance that these are suitable for the wall on which the hood is to be installed.

• Drill four holes ∅ 8 in the ceiling and affi x the four plugs.
• Form the air outlet opening A (Fig.3).
• Connect the tube to the opening A.
• Take the bracket B and secure this to the ceiling with the four screws C (Fig.4).

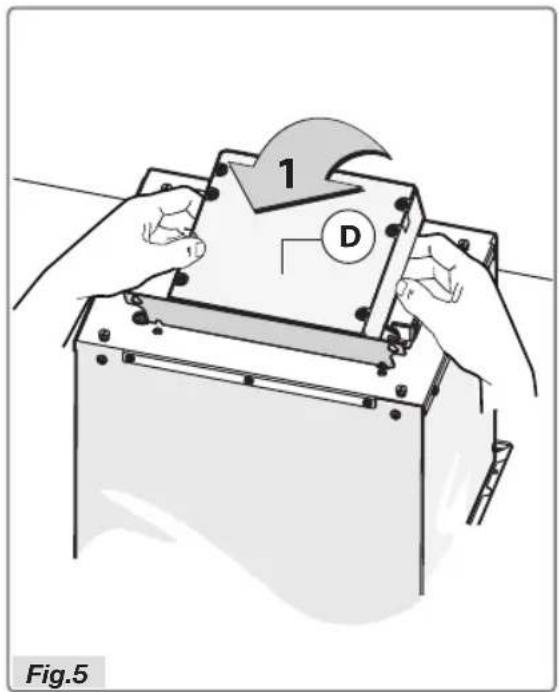

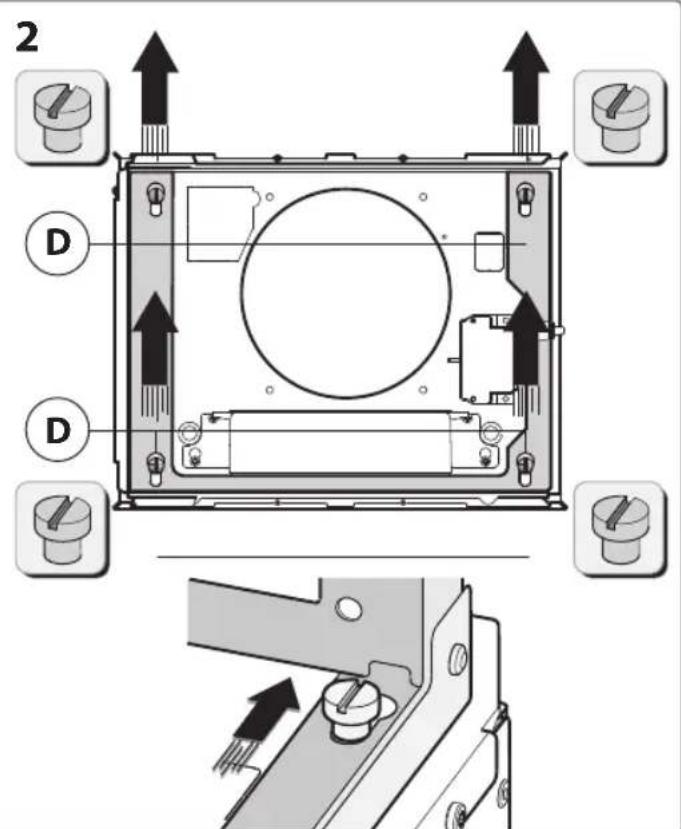

• To install the cooker hood fit the electric unit D upright.

• Secure the bracket with the four screws G, as indicated in Figure 6.

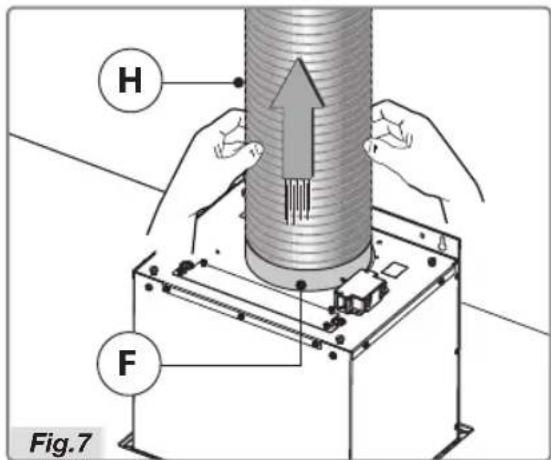

• Secure the air outlet pipe H (not supplied) to the connection flange F as indicated in Figure 7.

• Take the bottom section of the frame C and fi x this to the motor housing (Fig.8).

- Fix the construction C to the motor housing using the 4 screws E (Fig.9).

• Take the top section of the frame B and slot this in the bottom section C.
• Adjust the height according to the sizes in Figure 10 and secure these with the 8 screws G supplied.

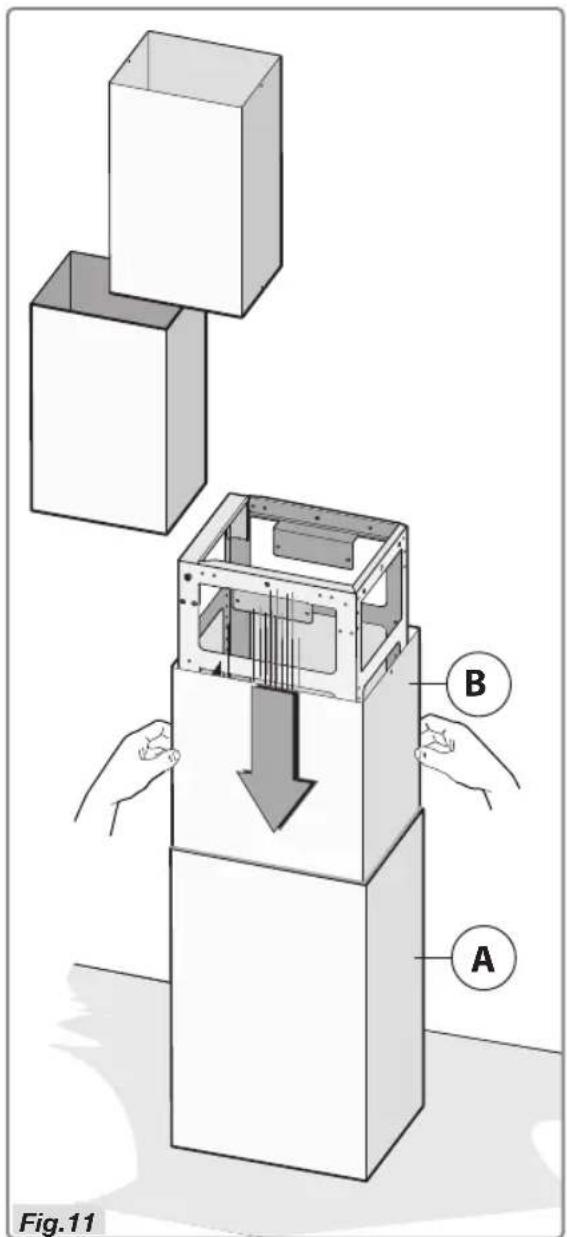

• Connect the bottom shaft A with the top one B as indicated in Figure 11.

- Tilt the hood as indicated in Figure 12 – step 1.

- Use the two pivot pins C that are already present in the construction to hang the hood on the bracket B. Figure 12 - steps 2-3.

- Put the hood in position so that the safety pin clicks in the gap in the bracket B. Figure 12 – step 4.

• Please note! Secure the hood directly onto the bracket B with the 6 screws D (Fig.13).

• Take the safety bracket L and secure this to the ceiling plate with the two screws M as indicated in Figure 14 – steps 1-2.

• Connect the pipe H (not supplied) to the air outlet opening A (Fig.15).

Illustration of a mechanical assembly with a hand pressing down on a cylindrical component, showing no text or symbols.

• Insert the plug into the disconnected wall socket (Fig.16).

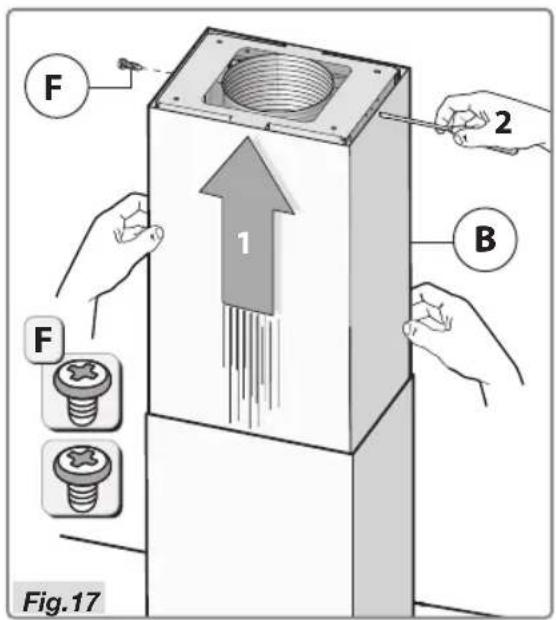

• Connect the shaft B to the ceiling plate using the two screws F (Fig.17).

Disposal

Disposal of packaging and appliance

Sustainable materials have been used during manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this.

The appliance packaging is recyclable. The following materials may have been used:

• cardboard;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS-rigid foam);

Dispose of these materials in a responsible manner and in accordance with government regulations.

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately. This means that the appliance may not be included with normal domestic refuse at the end of its service life. The appliance must be taken to a special municipal centre for separated waste collection or to a dealer providing this service.

Separate processing of household appliances prevents the potentially negative consequences for the environment and health that can arise as a result of inappropriate processing. It ensures that the materials of which the appliance is composed can be recovered to obtain significant savings in energy and raw materials.

INDHOLD

Din emhætte

Two abstract black-and-white graphic elements: a horizontal line and a circular symbol with a half-circle (no text or symbols)

Tænde for kulfilterindikatoren

Two horizontal black bars with white symbols: one above a minus sign, the other with a circle and diagonal line (no text or labels)

Slukke for kulfilterindikatoren

Hand pressing down on a textured surface with numbered callouts (no text or symbols)

Fjerne filterkassette

Illustration of a hand adjusting a cylindrical component with an attached circular component, showing assembly steps (no text or symbols)
