Product Type	Freestanding Refrigerator
Model	BO 3034 V
Brand	Hotpoint Ariston
Total Gross Capacity	150 L
Refrigerator Capacity	130 L
Freezer Capacity	20 L (ice compartment)
Energy Class	A+
Annual Energy Consumption	120 kWh/year
Climate Class	N-ST
Noise Level	39 dB(A)
Width	540 mm
Height	840 mm
Depth	550 mm
Weight	32 kg
Voltage / Frequency	220-240 V / 50-60 Hz
Refrigerant	R600a (Isobutane)
Adjustable Thermostat	Yes
Interior Light	LED
Reversible Door	Yes
Number of Shelves	3 glass shelves
Bottle Storage	Yes (door shelf)
Defrost Type	Manual (refrigerator) / Automatic (ice compartment)
Installation Type	Freestanding
Color	White

Frequently Asked Questions - BO 3034 V Hotpoint Ariston

How do I adjust the temperature in my Hotpoint Ariston BO 3034 V fridge?

Use the thermostat dial inside the fridge. Turn clockwise for colder, anti-clockwise for warmer. The recommended setting is between 3 and 4 for normal use.

Why is my fridge making a noise?

Some noise is normal from the compressor and fan. If it's excessive, check that the fridge is level and not touching walls or cabinets. Also ensure nothing inside is vibrating.

How do I reverse the door on my BO 3034 V?

The door is reversible. You'll need a screwdriver and the included hinge parts. Remove the door, swap hinges to the opposite side, and reattach. Refer to the manual for step-by-step instructions.

How often should I defrost the fridge?

For the refrigerator compartment, defrost manually when ice buildup exceeds 3-5 mm. The small ice compartment may defrost automatically. Regularly cleaning and defrosting improves efficiency.

What is the energy consumption of this model?

The annual energy consumption is approximately 120 kWh, which is typical for an A+ rated fridge. Actual usage depends on ambient temperature and door openings.

Can I install the fridge in a garage or unheated area?

This fridge has climate class N-ST, meaning it operates in ambient temperatures from 16°C to 38°C. Avoid installing in freezing conditions as the fridge may not cool properly.

How do I clean the condenser coils?

Unplug the fridge and locate the coils at the back or bottom. Use a vacuum or brush to remove dust. Clean every 6-12 months to maintain efficiency.

What spare parts are available for the BO 3034 V?

Common spare parts include shelves, door gaskets, thermostat, light bulb/LED, and hinge kits. Contact Hotpoint Ariston customer service or authorized dealers.

Why is there water pooling inside my fridge?

Check the defrost drain hole at the back of the fridge. It may be blocked. Clean it with a pipe cleaner or warm water. Also ensure the fridge is level.

How long does it take to reach the set temperature after first use?

Typically 2-4 hours to cool down. Avoid overfilling initially. The compressor runs continuously until the temperature stabilizes.

USER MANUAL BO 3034 V Hotpoint Ariston

Installation and use

Refrigerator

Installation and use

Refrigerator

Installation and use

ARISTON

BO 3034 V

GB 1-door refrigerator with 4 stars compartment 9

Instructions for installation and use

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

• call only the Service Centers authorized by the manufacturer
• always use original Spare Parts

(Ariston integrated refrigeration)

Fig. 1

Fig. 2

Fig. 3

Fig. 4

For proper freezing

Fig. 5

Fig. 6

Fig. 7

Safety - a good habit to get into.

ATTENTION

Read your manual carefully since it contains instructions which will ensure safe installation, use and maintenance of your appliance.

Your Refrigerator is built to International safety standards (EN60) and has been awarded the European approval mark (IMQ) for compliance with UK electrical safety requirements. It also meets the EC standards on the prevention and elimination of radio interference (EC directive 87/308 - 02.06.89).

1. This appliance must not be installed outdoors - not even in an area protected by a roof. It is extremely dangerous to leave it exposed to rain or storms.
2. It must only be used by adults and exclusively to refrigerate and freeze foodstuffs, following the instructions for use contained in this manual.
3. Do not ever touch or handle the appliance with bare feet or with wet hands or feet.
4. It is highly recommended that you do not use extension cords or multiple socket adapters. If the refrigerator is installed between cabinets, make sure that the cord is not bent or dangerously pinched or compressed.
5. Never pull on the cord or the refrigerator to remove the plug from the wall socket - this is very dangerous.
6. Never touch the cooling components within the appliance, especially with wet hands, because this could result in injury. Never put ice cubes just removed from the freezer into your

mouth because they could stick to your mouth and cause burns.

1. Never clean the appliance or perform maintenance without first disconnecting it from the electrical mains. Turning the thermostat knob to the ● setting does not suffice to break all electrical contact with the mains.
2. Before having your old refrigerator picked up for disposal, remove or make inoperable any locking devices to prevent children who might play in or around the appliance from being locked inside.
3. Before calling for service/assistance in the case of malfunction, consult the chapter entitled "Is There a Problem?" to determine whether it is possible to eliminate the problem. Do not try to repair the problem by trying to access the internal components of the appliance.
4. If damaged, the power supply cord on this appliance must necessarily be replaced by our service centre because special tools are required for replacement.
5. Do not use electric appliances inside the compartment for food storage, if these are not those recommended by the manufacturer.
6. At the end of the functional life of your appliance – containing cyclopentane gas in the insulation foam and perhaps gas R600a (isobutane) in the refrigeration circuit – the latter should be made safe before being sent to the dump. For this operation, please contact your dealer or the Local Organisation in charge of waste disposal.

Installation

To ensure that the appliance operates properly and to reduce energy consumption, it is important that the appliance is installed correctly.

Ventilation

The compressor and condenser generate heat and, therefore, need to be ventilated properly. Avoid placing the refrigerator in direct sunlight, or next to an electric stove or similar appliance. Areas not adequately ventilated are not suitable for this appliance.

During installation, make sure not to cover or obstruct the grates that allow for proper ventilation of the appliance.

Away from Heat

This appliance should not be positioned in a place where it is directly exposed to sunlight or directly next to an oven/hob.

Level

The appliance must be level. If the floor is not level, the adjustable feet located in front can be used to level the appliance.

Electrical Connection and Earthing

Before proceeding with the electrical connection, make sure that the voltage indicated on the rating plate, located at the bottom left near the vegetable crisper, corresponds to the mains voltage in your home and that the socket is fitted with a standard earthing wire in accordance with safety standards for 46/90 systems. If the socket is not fitted with an earthing wire, the manufacturer will not be held liable for any damages and or injuries arising out of the use of the appliance. Do not use multiple sockets or adapters.

Position the appliance in such a way that you can access the socket where it is plugged in.

Insufficient power?

The electrical socket must be able to handle the maximum power load of the appliance, which is indicated on the rating plate located at the bottom left next to the vegetable crisper.

Before making the electrical connection ...

After the appliance has been delivered, place it in the vertical upright position and wait at least 3 hours before inserting the plug into the socket in order to ensure that it functions properly.

For English Market only

The appliance is fitted with a continental 2-pin plug for factory testing. Before installation the plug should be cut off. The appliance is designed to be installed in a switched spur outlet fused at 13 Ampere. If the installation requires a 13 Ampere plug type to be fitted it should be conform to BSI 1363.

A Closer Look

Thermostat knob for regulating the temperature

This knob is used to regulate the temperature in the two compartments with the following settings:

● The refrigerator is off; 1 less cold; 5 colder

Meat/cheese storage box

Hinged bottle rack

Removable height adjustable shelves

"A.I.R. System"

(Ariston Integrated Refrigeration)

Compartment - * storing frozen foods, freezing fresh foods and making ice.

Removable shelves for small items

Removable door shelves for products

Hinged shelf

Compartment for a 2 litre bottle

Removable door shelf for bottles

Bottom fruit and vegetable drawer

Top drawers for highly perishable fruit and vegetables

How to Start the Appliance

NOTICE

After the appliance has been delivered, stand it in the upright position and wait approximately 3 hours before connecting it to the electrical outlet to guarantee that it operates properly.

Before placing foodstuffs in the refrigerator or freezer, clean the interior well with warm water and baking soda.

After putting the plug in the socket, make sure that the light is on inside the appliance and then turn the thermostat knob (A) to the "3" setting. After a few hours have passed, you can place fresh food in the refrigerator compartment and frozen foods into the freezer.

How to use the refrigerator compartment...

The thermostat automatically regulates the temperature inside the appliance

1 = less cold 5 = colder

It is recommended that a medium setting be used.

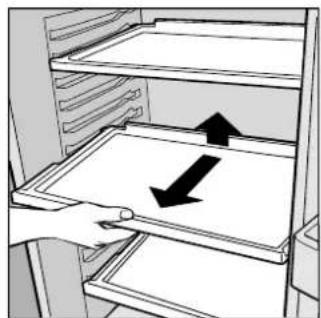

To increase the amount of space, optimize arrangement and improve appearance, this appliance has a "cooling area" located within the back panel of the refrigerator compartment. When the appliance is operating, this panel may be covered with frost or droplets of water depending on whether the compressor is operating or not at a given time. Do not be concerned about this! The refrigerator is operating normally.

If the thermostat knob is positioned on higher settings while the refrigerator is heavily filled and the ambient temperature high, the appliance may run continuously, resulting in the formation of frost on the back cooling area. This will lead to an increase in energy consumption.

To avoid this situation, just turn the thermostat knob to a lower setting so that the appliance defrosts automatically.

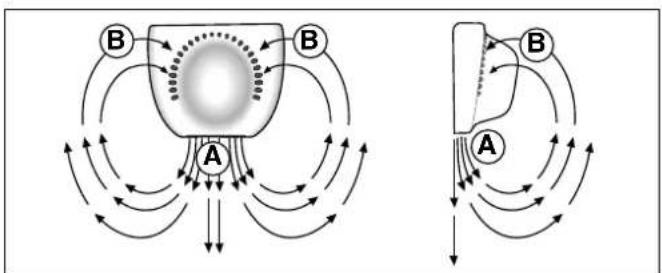

The refrigerator compartment of your appliance is equipped with "A.I.R. System" (Ariston Integrated Refrigeration) which makes it possible to achieve optimal food storage while simplifying the use of the refrigerator thanks to the following features:

• Fast temperature reset: after the doors have been opened, the internal temperatures return to optimal values faster, improving food storage.
• More uniform temperature distribution: this makes it possible to place any type of food on any shelf.
• Higher humidity level: this allows you to store food longer.

A - Blown air which is cooled when it comes into contact with the refrigeration panel B - Hotter air is drawn in

• Please follow our instructions carefully on maximum storage time: any food, even the freshest, will not remain edible for any extended amount of time.
• Contrary to popular belief, cooked foods do not store any longer than raw food.
• Do not place liquids in containers without covering them because this will lead to an increase in the level of moisture within the refrigerator, causing the formation of frost.
• Be careful not to place containers (plastic or glass), food or other objects in direct contact with the cooling area of the back wall of the refrigerator. This could harm the food, increase energy consumption and facilitate the formation of condensate (on food, containers, etc.).
• The refrigerator compartment is equipped with convenient, removable shelves (Fig. 1) which can be adjusted for height using the shelf guides. This allows you to place even large containers and foodstuffs in the refrigerator.
• The door accessories are designed to offer easy use and flexibility. The easy to remove door shelves make cleaning simple.

The 2 shelves "B" situated at the top of the refrigerator can be used for storage of small food products such as soup cubes, mayonnaise tunes, anchovy paste, preserves, etc.

- The top salad crispers, which are colder than the bottom one, are more suited to the preservation of delicate fruits and vegetables such as: grapes, strawberries, figs, cherries, fruits of the forest, mushrooms, asparagus, red tomatoes, artichokes etc.; whereas the bottom crisper is ideal for storing pineapples, avocados, citrons, lemons etc.

To use the meat/cheese box, unhook it and remove it from the shelf. To optimise space according to your needs, the same can be moved laterally (Fig. 2).

Fig. 1

Fig. 2

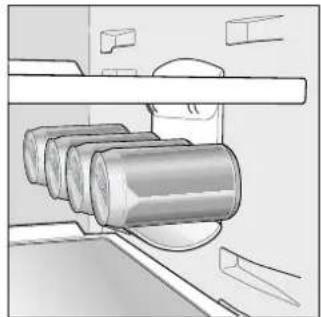

The side bottle rack can be used either for storing bottles (Fig. 3) as well as several cans (2-4) placed horizontally (Fig. 4). If not in use, the bottle/can rack can be tipped up and away to make more room inside the refrigerator.

Fig. 3

Fig. 4

Freezing Foods Properly

- For the preparation of food to be frozen, please consult a specialized manual.

- Food that has been thawed, even partially, must not be re-frozen: you must cook it in order to consume it (within 24 hours) or to freeze it once again.

- When freezing fresh foods, remember that they should not touch other previously frozen or deep frozen foods. Place the food that you wish to freeze in the top compartment where the temperature will fall below -18°C, which is ideal for freezing food properly. Please keep in mind that proper conservation of frozen foods depends on the speed with which they are frozen.

- During the freezing process, avoid opening the door of the freezer.

- The maximum daily quantity of food that can be frozen is indicated on the rating plate located to the left of the vegetable crisper.

Tips on Saving Energy

- Install the Appliance Properly

In other words, away from sources of heat and direct sunlight, in a well ventilated room complying with the minimum distances indicated in the paragraph entitled, "Installation/Ventilation."

THE ACTUAL ENERGY CONSUMPTION OF THE APPLIANCE DEPENDS ON THE WAY THE SAME IS USED AND ON ITS LOCATION. The consumption tests were performed in 560mm deep column units, the most common installation setting for this appliance.

- Use the Right Temperature Setting

A setting which is too cold increases energy consumption.

- Do not Overfill

To conserve food properly, the cold air must circulate freely within the refrigerator. If it is overfilled, this will prevent proper air circulation, forcing the compressor to work continuously.

- In order to freeze and then thaw foods optimally, it is recommended that you divide food into small portions so that they freeze quickly and uniformly. The packages should be clearly marked with the content and the date they were frozen.

- Do not open the freezer door in the event of a power failure or malfunction. This precaution will slow the rise in temperature within the compartment. If the door is not opened, frozen and fast-frozen foods will remain in their current state for approximately 9-14 hours.

- Do not place full bottles in the freezer: they could easily burst because all liquids increase in volume when they freeze.

- Fill the ice cube trays about 3/4 full.

- If the ambient temperature remains below 14°C for an extended period of time, the temperature needed for extended storage of food in the freezer will not be reached, resulting in reduced storage life of the food.

- Close the Doors

Open your refrigerator as little as possible because each time you do so you lose much of the cold air. To raise the temperature to the proper level again, the motor must work for a long time, consuming energy.

- Keep an Eye on the Seals

Keep the seals clean and make sure that they adhere well to the door. This alone will ensure that no cold air escapes.

- No Hot Foods

A hot pot or pan placed in the refrigerator immediately raises the temperature several degrees. Let hot cookware and food cool to ambient temperature before placing them in the refrigerator.

- Defrost the Freezer

Check the thickness of the frost on the walls of the freezer and immediately defrost it if the layer of frost is too thick. (See the section entitled, "Keeping Your Appliance in Shape").

Guide to Using the Freezer

Meat and Fish

Food Wrapping		Tenderising (days)	Storage (months)	Thawing Time
Beef Roast Tinfoil 2 / 3 9 / 10 Not required.
Lamb Tinfoil 1 / 2 6 Not required.
Pork Roast Tinfoil 1 6 Not required.
Veal Roast Tinfoil 1 8 Not required.
Veal/Pork Chops	Each piece wrapped in cling wrap and then in tinfoil (4 to 6 slices)		6 Not required.
Veal/Lamb Cutlets	Each piece wrapped in cling wrap and then in tinfoil (4 to 6 slices)		6 Not required.
Minced Meat	In aluminium containers covered with cling wrap.	Freshly minced	2 Slowly in refrigerator.
Heart and Liver Plastic Baggies 3 Not required.
Sausages Cling Wrap or	Tinfoil 2 As necessary.
Chicken and Turkey Tinfoil 1 / 3 9 Very slowly in refrigerator.
Duck and Goose Tinfoil 1 / 4 6 Very slowly in refrigerator.
Pheasant, Partrige and Wild Duck	Tinfoil 1 / 3 9 Very slowly in refrigerator.
Hare and Rabbit	Tinfoil 3 / 4 6 Very slowly in refrigerator.
Venison	Tinfoil or Cling Wrap	5 / 6 9 Very slowly in refrigerator.
Large Fish	Tinfoil or Cling Wrap		4 / 6	Very slowly in refrigerator.
Small Fish	Plastic Baggies		2 / 3	Not required.
Crustaceans	Plastic Baggies		3 / 6	Not required.
Shellfish	Store in salted water in aluminium containers or plastic containers.		3 Very slowly in refrigerator.
Boiled Fish Tinfoil or Cling Wrap		12	In hot water.
Fried Fish Plastic Baggies		4 / 6	Directly in pan.

Fruits and Vegetables

Food Preparation		Blanching Time	Wrapping	Storage (months)	Thawing Time
Apples and Pears Peel and cut into slices. 2'			In Containers (cover with syrup)	12	In refrigerator very slowly.
Apricots, Peaches, Cherries and Plums	Peel and pit. 1' / 2'		In Containers (cover with syrup)	12	In refrigerator very slowly.
Strawberries Blackberries and Raspberries	Rinse and fry.		In Containers (cover with sugar)	10 / 12	In refrigerator very slowly.
Cooked Fruit Cut, cook and strain.			In Containers (add 10% sugar)	12	In refrigerator very slowly.
Fruit Juice Wash, cut and crush.			In Containers (sugar to taste)	10 / 12	In refrigerator very slowly.
Cauliflower	Remove leaves, cut head into small pieces and blanch in water and a little lemon juice.	2' Plastic Baggies 12 Not required.
Cabbage and Brussel Sprouts	Wash and cut into small pieces.	1' / 2' Plastic Baggies 10 / 12 At room temperature.
Peas Shell and wash. 2'	Plastic Baggies 12 Not required.
French Beans	Wash and slice if required.	2	Plastic Baggies	10 / 12	Not required.
Carrots, Peppers and Turnips	Peel, wash and slice if necessary.	3' / 4' Plastic Baggies 12 Not required.
Mushrooms and Asparagus	Wash, peel and cut up.	3' / 4'	Plastic Baggies or Containers	6	At room temperature.
Spinach	Wash and mince.	2'	Plastic Baggies	12	At room temperature.
Vegetable for Soups	Wash and cut up in small pieces.	3'	Plastic Baggies or Containers	6 / 7	Not required.
Various Foods	Preparation	Blanching Time	Wrapping	Storage (months)	Thawing time
Bread			Plastic Baggies	4	At room temperature and in the oven.
Cakes			Plastic Baggies	6	About 10 minutes at room temperature, cook at 100/200°C.
Cream			Plastic Containers	6	At room temperature or in refrigerator.
Butter			In original wrapping or tinfoil	6	In refrigerator.
Boiled Food or Vegetable Soup			Plastic or Glass Containers	3 / 6	At room temperature or in hot water.
Eggs			Freeze without shells in small containers	10	At room temperature or in refrigerator.

Keeping Your Appliance in Shape

Before doing any cleaning, disconnect the appliance from the electricity (by pulling out the plug or turning off the general switch in your home).

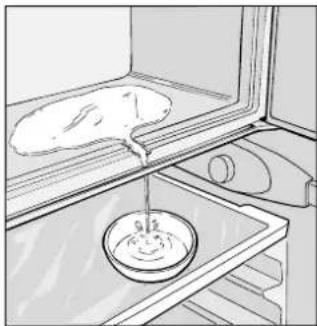

Defrosting

WARNING: do not damage the refrigeration circuit. Do not use mechanical devices or instruments other than those recommended by the manufacturer to speed up the defrosting process.

How to Defrost the Refrigerator

This appliance defrosts automatically and the water is channeled to the back toward the drain installed for this purpose (fig. 5). Here, the heat produced by the compressor will make it evaporate. The only thing you must do is to periodically check and clean the hole of the drain, which is located behind the vegetable crispers, so that the water drains properly.

How to Defrost the Freezer

- Every so often, remove the frost with the scraper provided with the appliance (do not use knives or metal objects). - If the frost is more than 15 mm thick, the freezer must be defrosted.

Proceed as follows: turn the thermostat knob to the ● setting; collect the defrost water as shown in fig. 6.

Then wrap all the frozen and fast-frozen food in newspaper, placing it either in the refrigerator or in a cool place. Leave the freezer door open so that the frost thaws completely. You can speed this process by placing containers of warm water in the compartment.

Fig. 5

Fig. 6

Cleaning and Special Maintenance

Before cleaning the refrigerator, disconnect it from the electrical mains (by removing the plug from the socket or by turning off the main electricity switch for the apartment or house).

• The materials used to build your appliance are hygienic and do not transmit odors. However, to preserve this quality of your appliance, the food stored in it must be well closed and covered to prevent spills which could stain it and cause unpleasant odors.
• Only water and baking soda. To clean both the interior and exterior, use a sponge with warm water and baking soda, which is, among other things, a good disinfectant. If you do not have any in the house, you can use a neutral soap.
• What not to use. Never use abrasives, bleach or ammonia. Solvents and similar products are strictly prohibited.
• All removable parts should be taken out and allowed to soak in hot water and dishwashing soap. Rinse and dry them well before putting them back in the refrigerator.
• When the appliance is not used for a long time. If you decide not to use the appliance (during the summer), it must be cleaned and the doors left open to prevent the formation of mold and unpleasant odors.
• How to replace the refrigerator lamp. The lamp is located on the back part of the thermostat knob box. When replacing the lamp, disconnect the appliance from the mains, unscrew the burned out lamp and replace it with another following the steps illustrated in figure 7. Make sure that the wattage is not greater than 15W.

Fig. 7

Is There a Problem?

The refrigerator does not function.

Have you checked whether:

• The main switch for the electricity to the apartment or home has been turned off;
• The plug is properly inserted in the outlet;
• The outlet is adequate; try inserting the plug into another outlet in the room.

The refrigerator and the freezer do not cool properly.

Have you checked whether:

• The doors do not close well or the seals are faulty; • The doors are left open too long;
• The thermostat knob is not on the proper setting;
• The refrigerator or freezer is overfilled.

The food in the refrigerator becomes too cold.

Have you checked whether:

• The thermostat knob is on the proper setting;
• The food is in contact with the back wall - which is the coldest part.

The motor runs continuously.

Have you checked whether

• The doors are not closed well or have remained open too long; • The ambient temperature is too high;
• The thermostat knob is not on the proper setting.

The appliance makes too much noise.

The gas refrigerant produces a slight noise even when the compressor is not running (this is not a defect).

Have you checked whether:

• The refrigerator is level. - The appliance was installed between cabinets or objects that vibrate and make noise.

There is water on the bottom of the refrigerator.

Have you checked whether:

- The hole for draining the water from the frost is clogged (see fig. 5).

If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre and inform them of: the type of problem, the abbreviation of the model name (Mod.) and the relative numbers (S/N) written on the rating plate located at the bottom left next to the vegetable crisper (see examples in the figures below).

Never call on unauthorized technicians and always refuse spare parts which are not originals.

(Ariston Integrated Refrigeration)

Fig.1 Fig. 2

Fig. 3

Fig. 4

To freeze well

Fig. 5

Fig. 6

Fig. 7

Some problems

The refrigerator does not work.

Check if:

(Ariston Integrated Refrigeration)

To freeze well

There is a problem
