Product type	Multifunction immersion blender
Brand	Braun
Model	Multiquick 3 K 650
Power	600 W
Speeds	2 speeds + turbo
Bowl capacity	600 ml
Shaft material	Stainless steel
Included accessories	Whisk, chopper, measuring jug
Dimensions (L x W x H)	40 x 7 x 7 cm
Weight	1 kg
Power supply	Mains 220-240 V, 50/60 Hz
Main functions	Blend, chop, whisk, emulsify
Care and cleaning	Shaft and accessories dishwasher safe
Safety	Anti-spatter system, double blade safety
Spare parts and repairability	Available on Braun website, repairability index 8/10
Cable length	1.2 m
Warranty	2 years
Color	Black with silver accents

Frequently Asked Questions - Multiquick 3 K 650 BRAUN

How to use the turbo button on the Braun Multiquick 3 K 650?

The turbo button allows you to reach maximum speed instantly. Press and hold it during blending for hard foods or for a faster result. Release to return to the selected speed.

Can I blend hot foods with the immersion shaft?

Yes, the stainless steel shaft supports hot foods up to 80°C. However, do not immerse the motor unit and use a suitable container.

How to clean the chopper of the Multiquick 3 K 650?

The chopper disassembles easily: the blades and bowl are dishwasher safe (top rack). Rinse immediately after use to avoid staining.

Is the whisk suitable for whipping egg whites?

Yes, the included whisk is ideal for egg whites, whipped cream, or light mixtures. Use a wide, deep bowl for best results.

What is the maximum power of the appliance?

The Braun Multiquick 3 K 650 has a power of 600 W, sufficient for blending soups, smoothies, and chopping meats or hard vegetables.

Can I use accessories from other Braun models?

Accessories from the Multiquick 3 series are compatible with each other. Check the QuickLock or EasyClick attachment system according to your model.

How to avoid splattering during blending?

Use a tall bowl and immerse the shaft to the bottom before starting. Gradually increase speed and slightly tilt the blender to create a vortex.

What to do if the appliance does not turn on?

Check the power outlet, power cord, and switch. If the problem persists, contact Braun customer service for diagnosis.

Can the measuring jug go in the microwave?

No, the plastic measuring jug is not microwave safe. Transfer food to a suitable container before heating.

Where to find the user manual in French?

The manual is available free of charge on our site notice-facile.com as a PDF download. You can also request it by email.

USER MANUAL Multiquick 3 K 650 BRAUN

Deutsch 6, 93

English 11, 93

Français 16, 93

Español 21, 93

Português 26, 93

Italiano 31, 93

Nederlands 36, 94

Dansk 41, 94

Norsk 46, 94

Svenska 51, 94

Suomi 56, 94

Polski 61, 94

Türkçe 66

Ελληνικά 71, 95

Русский 76, 95

Українська 81, 96

92, 88

Braun Infolines

D A

A 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH

08 44 - 88 40 10

GB

0 800 783 70 10

IRL

1 800 509 448

F

0 800 944 802

B

0 800 14952

E

901 11 61 84

P

808 20 00 33

I

(02) 667 86 23

NL

0 800-445 53 88

DK

70 15 00 13

N

22 63 00 93

s

020 - 21 33 21

FIN

020 377 877

PL

0 801 127 286

0 801 1 BRAUN

TR

0 800 261 63 65

RUS

8 800 200 20 20

UA

+ 38 044 428 65 05

HK

852-25249377

(Audio Supplies Company Ltd.)

Internet:

www.braun.com

www.service.braun.com

Braun GmbH

		K 600 K 650
		●	●
		●	●
		●	●
			●
			●

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Please read the use instructions carefully before first use.

Important

The blade ⑨ is very sharp!
Take hold of the blady by the knob only. After use, always first remove the blade from the food processor bowl ⑥ before removing the processed food.
- Make sure that your voltage corresponds to the voltage printed on the bottom of the appliance. Connect to alternating current only.
- Keep the appliance out of the reach of children.
- This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
- This appliance was constructed for household use only to process the listed quantities.
- Do not use any parts in the microwave oven.
- Do not allow the appliance to operate unsupervised.
- Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorised service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.
- Switch the appliance off and disconnect it from the outlet before storing it.

Specifications

• Voltage/wattage: See typeplate on the bottom of the appliance.
• Operating time and max. capacity: See processing instructions.

Description

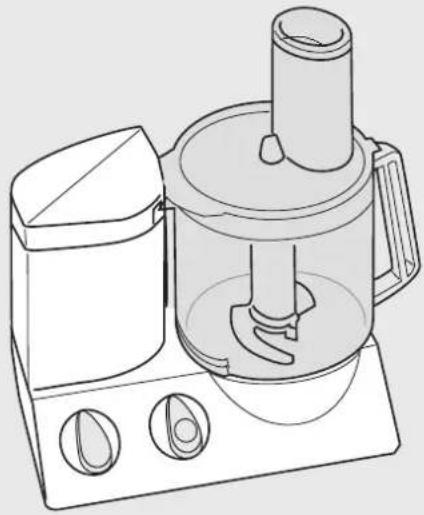

The Braun Multiquick 3 meets highest demands for kneading, mixing, blending, chopping, slicing, shredding and grating, both simply and quickly.

① Motor block
② Cord storage
③ Motor switch (on = «|», off = «O»)
④ Pulse mode «P»
⑤ Variable speed regulator (1 - 15)
⑥ Food processor bowl (2 l capacity)
⑦ Lid for food processor bowl ⑥
⑧ Pusher for lid ⑦

Attachments for food processor bowl ⑥

(Important: Not all attachments will be included in the standard equipment of all models.)

⑨ Blade with protective cover

⑩ Insert carrier

⑪ Fine slicing insert - a

⑫ Coarse slicing insert – b

⑬ Fine shredding insert – c

⑭ Coarse shredding insert – d

⑮ Grating insert - e

⑯ French-fries system

⑰ Kneading hook

⑱ Whipping attachment

Note: Before using the food processor for the first time, clean all parts as described under «Cleaning».

Overload protection

In order to avoid damages caused by overload, this appliance is equipped with an automatic security switch which shuts off the current supply if necessary. In such case, turn the motor switch ③ back to «O» and wait approx. 15 minutes to allow the motor to cool off before switching on the appliance again.

Pulse mode «P» ④

The pulse mode is for example useful for the following applications:

• Chopping delicate and soft food, e.g., eggs, onions or parsley.
• Carefully folding flour into dough or batter to maintain the creaminess.
• Adding whipped eggs or cream to more solid food.

The pulse mode «P» is activated by pressing the blue knob on the motor switch ④ with switch setting «O».

Before activating the pulse mode, set the desired speed with the speed regulator ⑤. When releasing the pulse knob ④, the appliance is switched off.

Recommended speed ranges for individual attachments

Set the speed range by means of the variable speed regulator ⑤. It is recommended to first select the speed and then switch on the appliance in order to work with the desired speed right from the beginning.

Attachments Speed range

Kneading hook 7

Blade 6

Whipping attachment:

-egg-whites 4 - 5

- cream 2

Slicing, grating and

shredding inserts 1 - 8

French-fries system 1 - 2

(please also refer to product printing)

Double safety feature

The appliance can only be switched on when the food processor bowl with lid is properly engaged. If the lid is opened during operation, the motor switches off automatically. As in this case the motor switch ③ is still on «I», turn it back to «O» to avoid switching on the motor accidentally.

Attaching the food processor bowl ⑥ and the lid ⑦

1. With the motor switched off, place the food processor bowl onto the drive place of the motor block ① matching the arrow on the bowl with the arrow on the motor block (A). Then turn the bowl in the «function» direction as far as it will go.

1. Put the attachment needed (see instructions for each of the attachments) onto the drive shaft of the bowl and push it down as far as it will go.

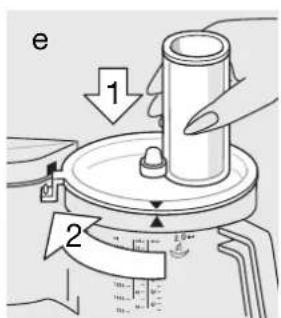

2. Put the lid ⑦ onto the bowl matching the arrow on the lid with the arrow on the bowl.

Then turn the lid clockwise guiding its nose rim into the safety lock opening of

the motor block ① until it audibly snaps in place (B).

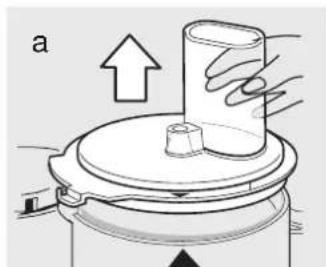

Removing the food processor bowl and the lid

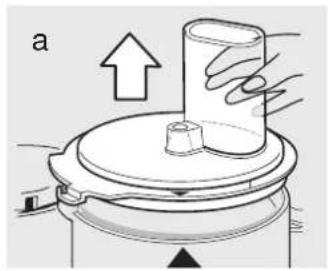

Switch off the appliance. Turn the lid counterclockwise and lift it off. Then turn the food processor bowl in the «click» direction until it locks and lift off the bowl.

Note: If you continue turning the food processor bowl in the «click» direction as far as it will go, beyond the stop position, you can lock the food processor bowl on the motor part. In this position, however, you cannot switch on the motor.

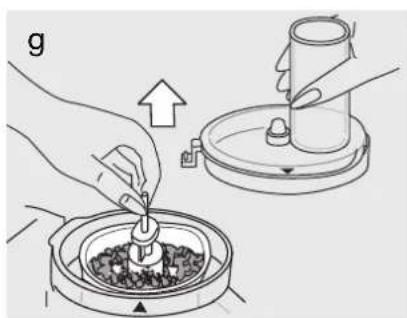

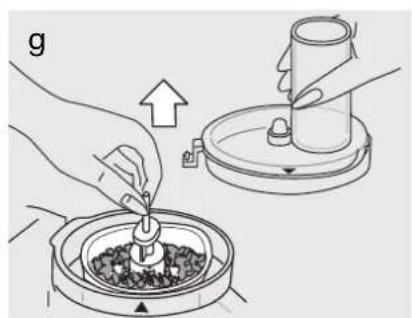

When removing the blade from the bowl, take hold of it by the knob and pull it off.

Caution: The blade is very sharp.

The blade ⑨ comes with a protective cover. If not in use, store the blade in the protective cover.

Cleaning

First, always switch off the motor and unplug the appliance. Clean the motor block ① with a damp cloth only.

All parts can be cleaned in the dishwasher. If necessary, clean all parts thoroughly with a spatula or a brush before rinsing them.

Color-intensive food (e.g. carrots) may leave stains on the plastic parts; wipe them off with cooking oil before cleaning with water.

Do not use sharp objects for cleaning purposes.

Clean the blades and the inserts very carefully – they are very sharp.

1. Kneading

For kneading you can use the kneading hook ⑰ or the blade ⑨. For best results, we recommend using the kneading hook which is specially designed for making yeast dough, pasta and pastries.

Yeast dough (bread/cake)

Max. 500 g flour plus other ingredients Speed 7, 1 1/2 minutes

Pour the flour into the food processor bowl, then add the other ingredients – except liquids.

Put on the lid ⑦ and lock in place.

Then choose speed 7 and switch the appliance on.

Add liquids by pouring them through the filling tube of the lid while the motor is running.

When kneading with the blade ⑨, do not add ingredients like raisins, candied peel, almonds, etc. which are not supposed to be cut. These have to be added maually after having taken the kneaded dough out of the food processor bowl.

Pasta dough

Max. 500 g flour plus other ingredients Speed 7, 1 1/2 minutes

Pour the flour into the food processor bowl, then add the other ingredients – except liquids.

Pour the required amount of liquid through the filling tube in the lid when the motor is running.

Do not add any liquid after the dough has formed into a ball as then the liquid will no longer be absorbed evenly.

Pastries

Max. 500 g flour plus other ingredients Speed 7, approx. 1 minute

Pour flour into the food processor bowl, then add the other ingredients. For best results, be butter used must not be too hard, nor too soft.

Put on the lid ⑦ and lock in place. Choose speed 7 and switch on the appliance.

Stop kneading the dough shortly after a ball has formed. Otherwise the pastry dough will become too soft.

2. Mixing

For mixing cake dough or sponges use the blade ⑨.

The kneading hook ⑰ is not suitable for mixing cake doughs or sponges.

Max. 500 g flour plus other ingredients

Cake mixture

(2 methods) Speed / Time

a) Cream butter with sugar end eggs 6 / ca. 1 min pour in milk and 6 / ca. 15 secs carefully fold in 15 / ca. 10-15 x flour with pulse «P» mode.

b) Pour all ingredients except liquids into the food processor bowl. 15 / ca. 1 min

Add required liquids through the filling tube of the lid while the motor is running. Finally add ingredients like raisins manually.

Sponge Speed / Time

Cream eggs and water (if required) 15 / ca. 2 mins and sugar 15 / ca. 4 mins fold in flour with pulse mode 8 / 5 x «P» add cocoa powder 8 / 3 x «P»

3. Blending

Use the blade ⑨ for blending soups, shakes, etc.

Maximum capacity 2 l

Speed 10

(otherwise the bowl may overflow)

For milk-shakes, pour coarsely chopped fruit into the food processor bowl.

Put on the lid ⑦ and lock in place. With speed 15, blend fruit first, then add liquid at speed 10 and finish blending.

When blending milk, please note that it will froth. Use smaller quantities.

4. Chopping

Chopping with the blade ⑨

Processing examples

The processing times are approximate and depend on the quality, the amount of food to be processed and the required degree of fineness.

Product Max.	Preparation	Speed Mode	Time/pulses amounte
Hard bread rolls	4	quartered	15	I	45 secs
Ice cubes	28	whole	15	I	1 minute (snow)
Apples	700 g	quartered	8	I	15 secs
Chocolate cool	400 g	broken	15	I	coarse 15 secs fine 30 secs
Eggs	8	whole	6	P	8 x
Cheese (soft)	400 g	3-cm cubes	15	I	20 secs
Cheese (hard)	700 g	3-cm cubes	15	I	60-70 secs
Meat	700 g	in cubes	15	I	40 secs
Carrots	700 g	in pieces	15	I	10 secs
Onions	700 g	quartered	15	P	10 - 13 x

5. Slicing, shredding, grating

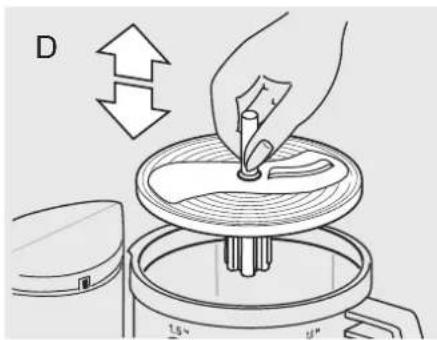

- Place the insert you want to use into the insert carrier ⑩ as shown in (C) and snap into position. In order to remove the insert, push up the insert end that protrudes at the bottom of the insert carrier.

• Put the assembled slicer/shredder onto the drive shaft of the food processor bowl (D).

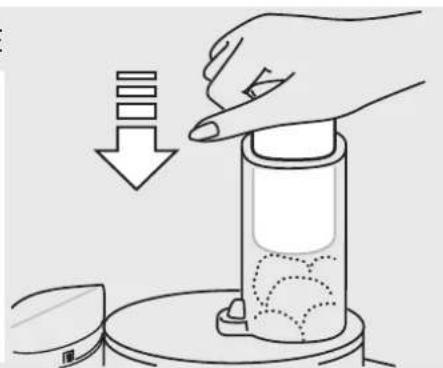

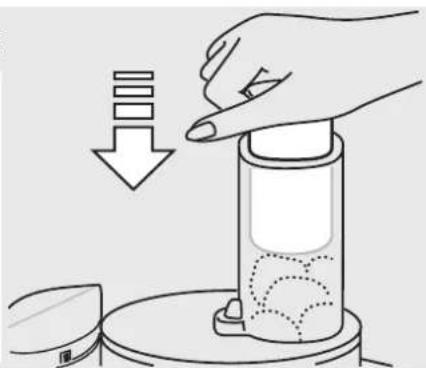

• Put on the lid ⑦ and lock in place. Set the speed and fill the food to be pro-

cessed into the filling tube while the motor is switched off. Refilling should be done with the motor switched off.

- Never reach into the filling tube when the motor is running. Always use the pusher ⑧ (E).

N.B.: When processing juicy or soft food, you will obtain better results at a lower speed. Hard food should be processed at a higher speed. Do not overload the food processor bowl.

Fine slicing insert - a ⑪

Speed 1 - 2

Processing examples: cucumbers, cabbage, raw potatoes, carrots, onions, radishes.

Coarse slicing insert - b ⑫

Speed 1 - 2

Processing examples: cucumbers, kohlrabi, raw potatoes, onions, bananas, tomatoes, mushrooms, celery.

Fine shredding insert - c ⑬

Speed 3 - 6

Processing examples: cheese (soft to medium), cucumbers, carrots, raw potatoes, apples.

Coarse shredding insert - d ⑭

Speed 3 - 6

Processing examples: cheese (soft to medium), cucumbers, kohlrabi, beetroot, carrots, raw potatoes, apples, cabbage.

Grating insert - e ⑮

Speed 8 - 15

Processing examples: raw potatoes (e.g. for potatoe pancakes), horseradish, parmigiano cheese (hard).

6. Whipping with the whipping attachment ⑱

Speed / Time

Whipping sponges

Max. 280-300 g flour

plus ingredients

Cream eggs and

water (if required) 5 / ca. 2 mins

add sugar 5 / ca. 2 mins

fold in flour 1 / ca. 30 secs

Whipping egg-whites

Min.: 2 egg-whites 4 - 5 / ca. 4 mins

Max.: 6 egg-whites 4 - 5 / ca. 6 mins

Whipping cream

Before whipping sterilized cream, keep the cream cool for several hours (at 4°C approx.).

Other accessories:

French-fries system ⑯

(available at your retailer or at Braun Service Centres)

Place the French-fries system onto the drive shaft, put on the lid ⑦ and lock in place. For best results, place 3 - 4 potatoes (depending on size) in the filling tube of the lid ⑦ while the motor is switched off.

Set speed to 1 - 2 and switch on the appliance. Before filling in a new load, switch the motor off. Use the pusher ⑧ to apply slight pressure when pushing the potatoes into the filling tube.

Please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice.

Special accessories

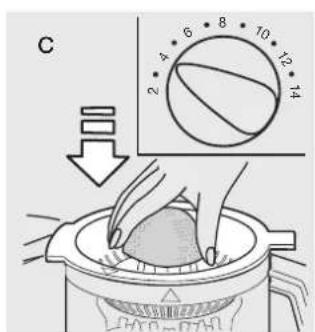

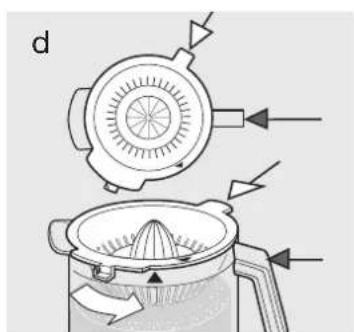

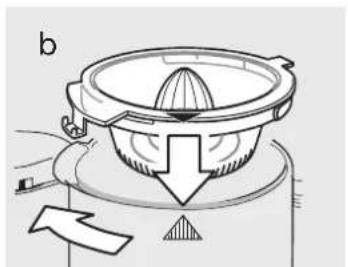

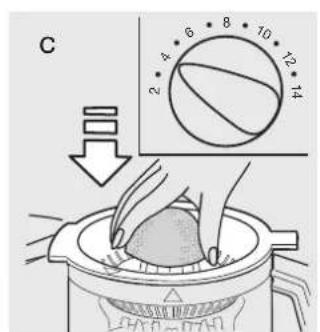

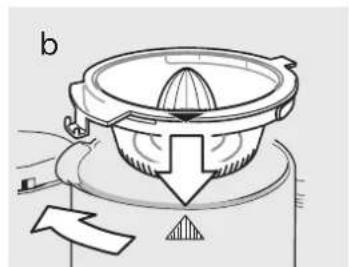

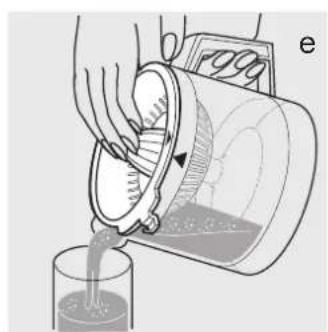

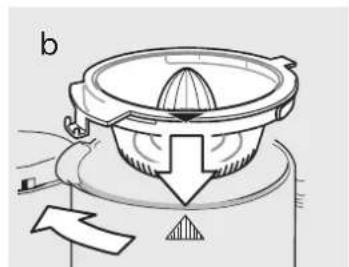

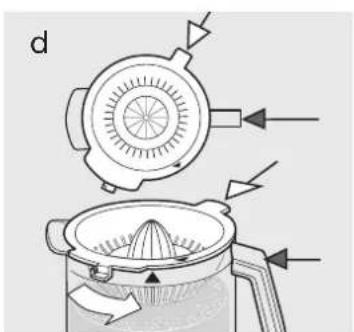

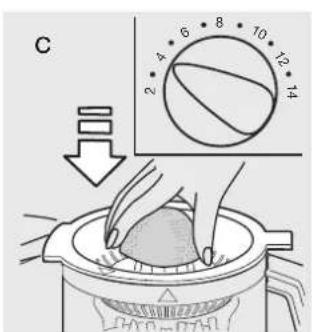

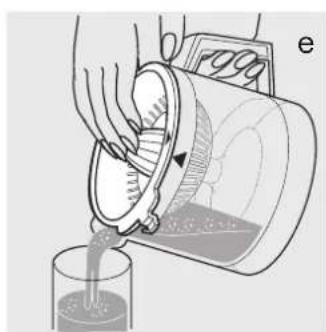

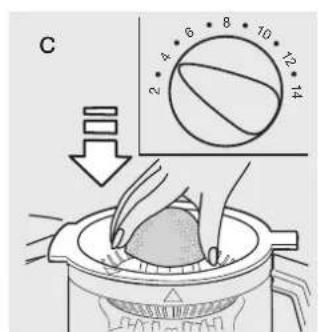

Braun Citrus press PJ 600 Type 3200, Speed: 1 - 3

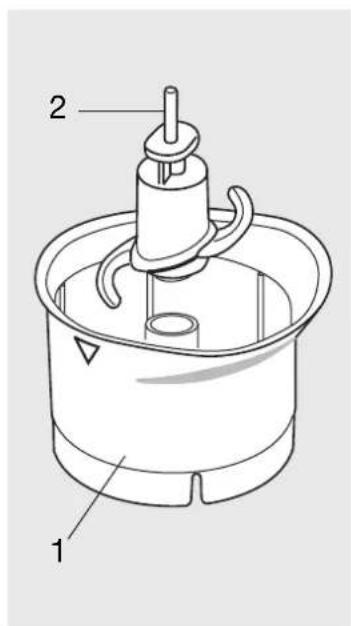

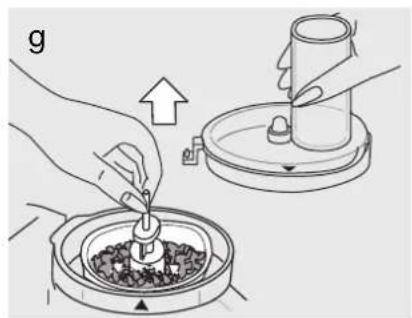

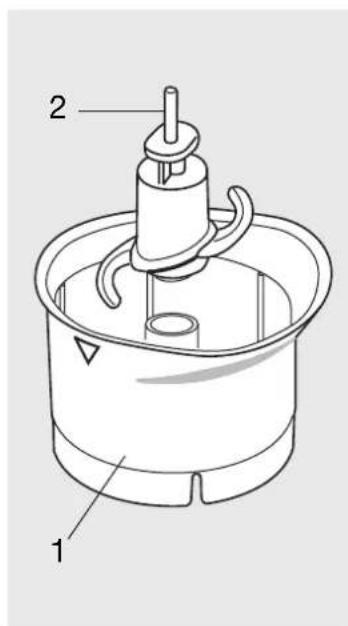

Braun Chopper attachment CH 600 Type 3200

• The blade is very sharp! Take hold of the blade by the knob only. After using the blade, always first remove it from the chopper bowl before taking out the processed food.
• Keep out of reach of children.
• This appliance is suitable for household use and for processing small quantities only.

Processing examples

(recommended quantity: max. 200 ml/200 g)

When processing large pieces of food, first use the pulse mode and then continue with the highest speed until you reach the desired degree of fineness. Do not chop extremely hard food such as coffee beans or nutmeg.

Produkt	Recomm. quantity	Preparation	Speed	Switch setting	Time/pulses
Herbs		without stems	15	I	5 - 10 secs
Onions	1	quartered	6	P	5 x
Cheese (hard)	50 g	in pieces	15	I	45 secs
Nuts	50 g	whole	15	I	30 secs
Salad dressing		chop herbs beforehand	7	I	5 - 10 secs
Mayonnaise	max. 1 egg	mix egg, seasoning, mustard, vinegar, add oil slowly while motor is running	15	I	60 secs
Baby food (vegetables/fruits)		raw or cooked, no hot food	15	I	20 - 30 secs

Recipe example

Dried Fruit in Vanilla-Honey (as a pancake stuffing or spread) (use the food processor bowl, speed: 15)

Chill 500g creamy honey and chopped dried fruit (250 g prunes, 250 g dried figs) in the fridge. Fill honey and dried fruit into the food processor bowl and chop for 20 seconds, then add 250 ml water and 3 drops vanilla aroma and resume chopping for 3 seconds.

Cleaning

Be careful when cleaning the blade. Take hold of it by the knob only. Please note that the chopper bowl is not dish-washer-proof. Clean it manually with warm water.

Français

Accessoires Vitesses

5. Émincer, râper, gratter

Braun Accessoire hachoir CH 600 Type 3200

Attention

E

Gistdeeg (brood/cake)

Meng bloem erdoor. 1 / ca. 30 sec.

Kloppen van eiwit

Braun Hakmolen accessoire CH 600 Type 3200

Waarschuwing

Braun Hakketilbehør CH 600 Type 3200

5. Snitting, riving, rasping

Fin snitteinnsats - a ⑪

Hastighet 1 - 2

Fin riveinnsats - c ⑬

Hastighet 3 - 6

Braun Hakketilbehør CH 600 Type 3200

Advarsel

Fin skärskiva - a ⑪

Hastighet 1 - 2

Braun Hacktillsats CH 600 Type 3200

E

Braun Teholeikkuri CH 600 Type 3200

Varoitus:

Braun Chopper attachment CH 600 Type 3200

Uwaga!

Braun Doğrama ataçman CH 600 Tip 3200

Dikkat

E

Εξάρτημα για

Предостережение

Увага

3200 : Braun Chopper attachment CH 600

Country of origin: Hungary

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of the manufacture.

Example: "631" – The product was manufactured in week 31 of 2006.

صنعت في هنغارية

عام الصنع

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Garantie
