NN-CT870S - Microwave PANASONIC - Free user manual and instructions

Product type	Combination microwave (Inverter, Grill, Convection)
Brand	Panasonic
Model	NN-CT870S
Dimensions (W x H x D)	525 x 310 x 420 mm
Net weight	15.5 kg
Power supply	230 V, 50 Hz
Microwave power	1000 W
Grill power	1200 W
Capacity	33 L
Inverter technology	Yes, uniform and precise cooking
Automatic programs	21 preset menus
Defrost function	Automatic by weight
Keep warm	Yes
Combined function	Microwave + Grill, Microwave + Convection
Display	LCD screen
Cavity material	Easy-to-clean non-stick coating
Safety	Child lock, automatic shut-off
Care and cleaning	Clean with a soft, damp cloth after each use
Spare parts available	Turntable, support ring, grease filter
Repairability	Repairability index available on request

Frequently Asked Questions - NN-CT870S PANASONIC

How to use the automatic defrost function?

Place the frozen food in the oven, select the Defrost mode via the menu, then enter the weight. The appliance automatically adjusts the time and power.

What to do if the oven no longer heats?

First check that the door is properly closed and that the child lock is not activated. If the problem persists, refer to the manual for error codes or contact customer service.

Can I use metal containers?

No, never use metal containers or those with metal parts in microwave mode, as this can cause sparks. Only use suitable dishes (glass, ceramic, microwave-safe plastic).

How to clean the inside of the oven?

Regularly clean the cavity with a soft, damp cloth. For stubborn stains, use a little diluted white vinegar. Avoid abrasives. The turntable and support ring can be washed with soapy water.

What does error code 'H98' mean?

The H98 code indicates an internal communication fault. Turn off the appliance for 10 minutes, then turn it back on. If the error persists, contact an authorized technician.

How to activate the child lock?

Press the Stop key for 3 seconds until a padlock symbol appears. To deactivate, repeat the operation.

What is the maximum power in microwave mode?

The maximum power is 1000 W in microwave mode. You can adjust the power according to your needs via the preset levels.

How to use the combined cooking function?

Select the Combined mode on the panel, choose between microwave + grill or microwave + convection, then set the time and temperature if necessary. This function allows browning and cooking simultaneously.

Can I heat beverages in this oven?

Yes, but be careful of overheating: use a suitable container and stir liquids before consuming to avoid splattering. Never heat alcoholic or flammable beverages.

How to reset the appliance after a power outage?

The appliance resets automatically after a power outage. If the screen remains blank, unplug the oven for one minute, then plug it back in. Readjust the clock if necessary.

USER MANUAL NN-CT870S PANASONIC

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

Installation and Connection

Examine your microwave oven

Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven.

Earthing instructions

IMPORTANT: THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY. If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket.

Operation voltage

The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

Placement of the oven

This oven is intended for Counter-Top and Built-In use only. It is not intended for use inside a cupboard.

1. Place the oven on a flat and stable surface, more than 85 cm above the floor.
2. When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.
3. For proper operation, ensure sufficient air circulation for the oven.

Counter-top use:

a. Allow 15 cm of space on the top of the oven, 10 cm at the back, 5 cm on one side, and the other side must be opened more than 40 cm. b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

Built-in

This oven may be built into a wall cabinet by using the proper trim kit, white NN-TKA80WB, silver NN-TKA80MB which may be purchased from a local Panasonic dealer.

1. Do not place this oven near an electric or gas cooker range.
2. The feet should not be removed.
3. This oven is only for household usage. Do not use outdoors.
4. Avoid using the microwave oven in high humidity.
5. The power cord should not touch the outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.
6. Do not block the air vents on the top and back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.

Installation and Connection

WARNING

1. The door seals and door seal areas should be cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas, and if these areas are damaged, the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.
2. Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches, or any other part of the oven. Do not remove the outer panel from the oven, which gives protection against exposure to microwave energy. Repairs should only be done by a qualified service person.
3. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.
4. If the supply cord of this appliance is damaged, it must be replaced with the special cord available from the manufacturer.
5. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. Liquids and other foods must not be heated in sealed containers since they are liable to explode.
7. This oven is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the oven by a person responsible for their safety. Children should be supervised to ensure they do not play with the oven.

Use of your oven

1. Do not use the oven for any reason other than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.
2. Before use, check that utensils/containers are suitable for use in microwave ovens.
3. Do not attempt to use this microwave oven to dry newspaper, clothing, or any other materials. They may catch on fire.
4. When the oven is not being used, do not store any objects other than oven accessories inside the oven in case it is accidentally turned on.
5. The appliance shall not be operated by microwave or combination without food in the oven. Operation in this manner may damage the appliance. Exception to this is point 1 under heater operation.
6. If smoke or a fire occurs in the oven, press Stop/Cancel pad and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel.

Safety Instructions

Heater Operation

1. Before using the CONVECTION, COMBINATION, or GRILL function for the first time, wipe off any excess oil inside the oven cavity and operate the oven without food or accessories on CONVECTION at 250°C for 10 minutes. This will burn off the oil used for rust protection. This is the only time the oven should be used empty.
2. Exterior oven surfaces, including air vents on the cabinet and the oven door, will become hot during CONVECTION, COMBINATION, and GRILLING. Take care when opening or closing the door and when inserting or removing food and accessories.
3. The oven has two heaters located at the top and back of the oven. After using the CONVECTION, COMBINATION, and GRILL functions, these surfaces will be very hot. Note: After cooking with these modes, the oven accessories will also be very hot.
4. The accessible parts may become hot during combination use. Young children should be kept away, and children should only use the oven under adult supervision due to the high temperatures generated.

Fan Motor Operation

While the oven is in Microwave/Heater operation, the cooling fan rotates to cool the electronic components. After operation is complete, the fan may continue to rotate for a while. This is perfectly normal, and you can remove food from the oven while the fan is still running.

Oven Light

When it becomes necessary to replace the oven light, please consult your dealer.

Accessories

The oven comes equipped with a variety of accessories. Always follow the instructions provided for their use.

Glass Tray

1. Do not operate the oven without the roller ring and the glass tray in place.
2. Never use another type of glass tray than the one specially designed for this oven.
3. If the glass tray is hot, let it cool before cleaning or placing in water.
4. The glass tray can turn in either direction.
5. If the food or cooking vessel on the glass tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.
6. Do not cook foods directly on the glass tray.

Roller Ring

1. The roller ring and the oven floor should be cleaned frequently to prevent noise and build-up of remaining food.
2. The roller ring must always be used for cooking together with the glass tray.

Metal Tray

1. Metal Tray is for cooking on Grill, Convection and Combination modes. Do not use the Metal Tray in Microwave mode only.
2. Metal Tray should be placed on Glass Tray or Round Rack.

Round Rack

1. The Round Rack is used to facilitate browning of small dishes and help with the good circulation of the heat.
2. Do not use any metal container directly on the Round Rack in COMBINATION with MICROWAVE.
3. Do not use the Round Rack in MICROWAVE mode only.

Enamel Shelf and Wire Shelf

1. The shelves are for cooking on convection and grill modes. Do not use the shelves on microwave mode or combination mode.
2. When cooking on convection mode, use just one or both of the shelves in position. When cooking on grill mode, use the shelf in the upper position.

Installation and Connection

1. Cooking Times

• Cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature, amount of food and on the type of cookware.
• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer.

N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2. Small Quantities of Foods

- Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3. Eggs

- Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs will explode even after microwave heating has ended.

4. Piercing Skin

- Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

5. Meat Thermometer

- Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer when using MICROWAVE or COMBINATION because it may cause sparking.

6. Liquids

- When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks. b) Do not overheat. c) Stir the liquid before placing the container in the oven and again halfway through the cooking time. d) After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

7. Paper/Plastic

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
• Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.
• Remove wire twist-ties from roasting bags before placing the bags in the oven.

8. Utensils/Foil

• Do not heat any closed cans or bottles because they might explode.
• Metal containers or dishes with metallic trim should not be used during Microwave cooking. Sparking will occur.
• If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

9. Feeding Bottles/Baby Food Jars

• The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.
• The contents of feeding bottles and baby food jars are to be stirred or shaken.
• The temperature has to be checked before consumption to avoid burns.

Outline Diagram

1. Door Release Button

Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Pad pressed. The oven lamp lights as soon as the oven door is opened.

1. Oven Window
2. Door Safety Lock System
3. Oven Air Vent
4. Control Panel
5. Glass Tray
6. Roller Ring
7. External Oven Air Vents
8. Metal Tray
9. Round Rack
10. Enamel Shelf
11. Wire Shelf
12. 2 Level Cooking Support guides
13. Power Cord
14. Warning Label

Control Panels

If an operation is set and the start pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. The display will revert back to the colon or clock mode.

(1) Display Window (2) Time Pads (3) Microwave Power Pad (4) Grill Power Pad (5) Convection Pad (6) Grill Convection Pad (7) Combination Pad (8) Memory Pad (9) Auto Defrost Pad (10) Plus/Minus/Weight Selection Control Pads (11) Delay/Stand Pad (12) Auto Sensor Microwave Program Pad (13) Auto Sensor Combination Program Pad (14) Auto Weight Combination Program Pads (15) Start Pad: Press to start operating the oven. If during cooking the door is opened or the Stop/Cancel Pad is pressed once, the Start Pad has to be pressed again to continue cooking. (16) Stop / Cancel Pad: Before cooking, one press clears your instructions. During cooking, one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display.

* The design of your control panel may vary from the panel displayed (depending on colour), but the words on the pads will be the same.

Beep Sound: A beep sounds when a button is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, five beeps sound.

Choosing the right Cooking Mode

Cooking modes Uses		Accessories to use	Containers
Microwave	- Defrosting- Reheating- Melting : butter, chocolate, cheese.- Cooking fish, vegetables, fruits, eggs.- Preparing : stewed fruits, jam, sauces, custards, choux, pastry, béchamel, caramel, meat, fish or vegetarian loaves.- Baking cakes with eggs and baking powder ingredients without colour. (Victoria sandwich, clafoutis etc.)No Preheating	Glass turntable only	Microwaveable, no metal.
Grill	- Grilling of meat or fish.- Toast grilling.- Colouring of gratin dishes or meringue pies.Preheating necessary	Glass turntable + metal tray + round rack	Heatproof, metal tin can be used.
Convection	- Baking of small pastry items with short cooking times : puff pastry, cookies, choux, short pastry cookies, roll cakes.- Special baking : souffles, meringues, vol-au-vent, small loaves of bread or brioches, sponge cake, meat pie, etc.- Baking of quiches, pizzas and tarts.Preheating advised	Glass turntable + metal tray + round rack or enamel shelf and/or wire shelf	Heatproof, metal tin can be used.

Choosing the right Cooking Mode

Cooking modes Uses		Accessories to use	Containers
Grill + Convection	- Roasting red meats, thick steak (rib or beef, Tbone steaks)- braising of fish.Preheating necessary	Glass turntable + metal tray + round rack or enamel shelf and/or wire shelf	Heatproof, metal tin can be used.
COMBINATION• Grill + microwave• Convection + microwave• Grill + convection + microwave	- Roasting meat and poultry.- Defrosting and reheating crunchy foods (quiche, pizza, bread, viennoiserie, lasagne, gratin.)- Cooking lasagne, meat, potatoes or vegetable gratins.- Baking cakes and puddings with eggs or baking powder ingredients with browning, baking of quiches, pies and tarts.Preheating advised	Glass turntable + metal tray + round rack (depending on food size for the latter)	Microwaveable and heatproof. Metal cake tin to be used on metal tray only. DO NOT USE spring form tins.

Oven Accessories

The following chart shows correct use of the accessories in the oven.

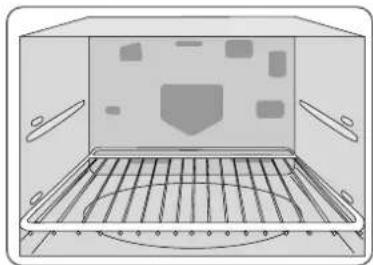

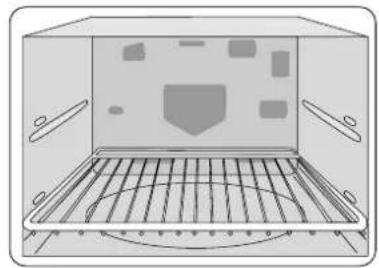

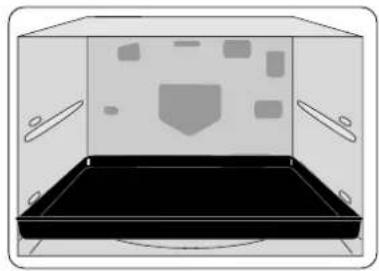

	Glass Tray	Metal Tray	Round Rack	Enamel Shelf	Wire Shelf
Microwave	YES	NO	NO	NO	NO
Grill	YES	YES	YES	YES	YES
Convection	YES	YES	YES	YES	YES
Grill Convection	YES	YES	YES	YES	YES
Combination	YES	YES	YES	NO	NO

Controls and Operation Procedure

Word Prompting:

These models have a unique function "Word Prompting" which guides you through the operation of your microwave. After plugging in the oven, press the Start Button until you locate your language. As you press the buttons, the display will scroll the next instruction, eliminating the opportunities for mistakes. If for any reason you wish to change the language displayed, unplug the oven and repeat this procedure.

If the Delay/Stand Pad is pressed 4 times, this will turn off the operation guide. To turn the operation guide back on, press the Delay/Stand Pad 4 times.

Controls and operation procedure

Clock Setting:

Example: To set 14:25

- Press Delay/Stand Pad twice.

The colon starts to blink.

- Enter the time by pressing the appropriate Time Pads.

The time appears in the display and the colon blinks.

- Press Delay/Stand Pad once.

The colon stops blinking and the time of day is entered.

NOTE:

1. To reset the time of day, repeat all the above steps.
2. The time of day is displayed, unless the power supply is interrupted.
3. This clock has a 24-hour display.

Child Safety Lock:

Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time.

To Set:

To Cancel:

- Press Start Pad three times.

The time of day will disappear. Actual time will not be lost.

- Press Stop/Cancel Pad three times.

The time of day will reappear in the display.

Microwave Cooking and Defrost

There are 6 different microwave power levels available (see the chart below).

Use of accessory:

This chart shows approximate wattage for each power level.

Press Power Level Wattage Max time available
once HIGH power 1000 W 30 minutes
twice DEFROST power 270 W 99 min. 50 sec.
3 times MEDIUM power 600 W 99 min. 50 sec.
4 times LOW power 440 W 99 min. 50 sec.
5 times SIMMER power 250 W 99 min. 50 sec.
6 times	WARM power	100 W	99 min. 50 sec.

- Select Microwave power level.

- Set the cooking time.

- Press Start Pad.

NOTE:

1. For 2 or 3 stage cooking, before pressing Start Pad, repeat setting the Microwave power level and cooking time.

e.g. Casserole - High 10 minutes to bring the casserole to boil. Simmer 60 minutes to cook. Warm 10 minutes to allow flavours to develop.

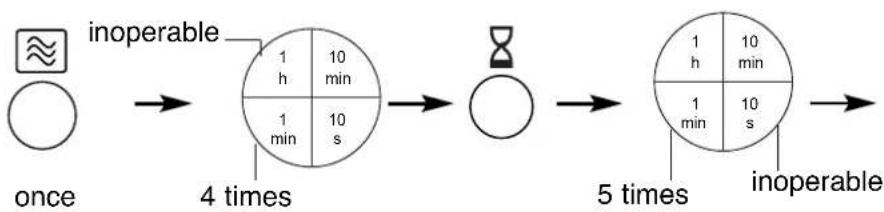

1. Stand time can be programmed after the Microwave power and time setting.
2. You can add to the cooking time during cooking, if required. Press 1 min pad to increase the cooking time. Time can be added in 1 minute increments up to maximum time available.

CAUTION: The oven will automatically operate on 1000 W Microwave Power if a cooking time is entered without selecting the power level.

En-12

Grilling

The Grill Pad provides 3 Grill settings.

Use of accessory:

Press Power Level Wattage
once 1 HIGH 1500 W
twice 2 MEDIUM 1200 W
3 times 3 LOW 950 W

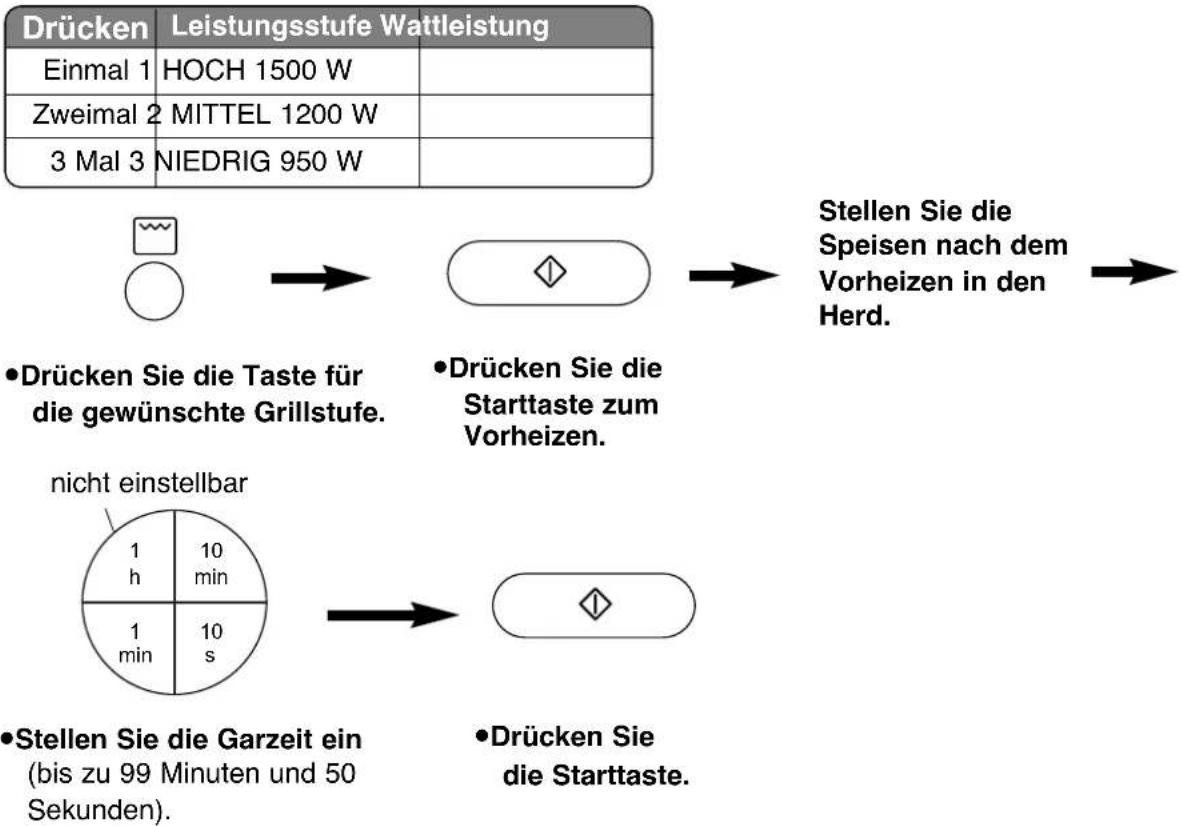

After preheating, place the food in the oven.

- Press Grill Power Pad for the desired Grill setting.

- Press Start Pad to start preheating.

- Set the cooking time (up to 99 minutes 50 seconds).

- Press Start Pad.

NOTE ON PREHEATING:

1. Do not open the door during preheating. After preheating, 3 beeps will be heard and the "P" will flash in the display window. If the oven door is not opened after preheating, the oven will maintain the selected temperature for 30 minutes. After 30 minutes, the oven will shut off automatically and revert to time of day.
2. If you want to cook without preheating, after selecting the Grill power, set the cooking time then press Start Pad.

NOTE:

1. The Grill will only operate with the oven door closed.
2. You can add to the cooking time during cooking, if required. Press the 1 min pad to increase the cooking time. Time can be added in 1 minute increments, up to 99 minutes.

Cooking by Convection / Grill Convection

These pads offer a choice of convection temperatures 40°C (only for Convection mode) and 100 - 250°C in 10°C increments. For quick selection of the most commonly used cooking temperatures, the temperatures start at 150°C and count up to 250°C, then 40°C (only for Convection mode) and 100°C. It is possible to cook on one or two levels when using convection cooking. See En-16 for shelf cooking.

Use of accessory: For one level cooking. If using the turntable.

Cooking by Convection:

• Set the desired temperature.
• Press Start Pad to start preheating.

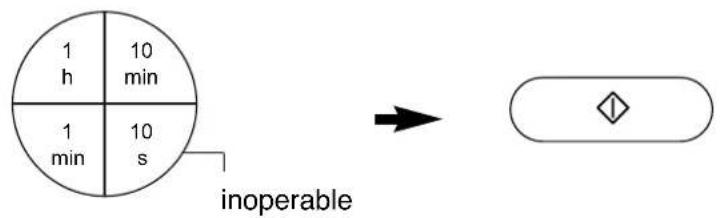

• Set the cooking time (up to 9 hours 59 minutes).
• Press Start Pad.

Cooking by Convection / Grill Convection

Cooking by Grill Convection:

After preheating, place the food in the oven.

- Set the desired temperature. (Grill power is preset to High.)

- If desired to change Grill power press once; Medium, twice; Low.

- Press Start Pad to start preheating.

- Set the cooking time (up to 9 hours 59 minutes).

- Press Start Pad.

NOTE ON PREHEATING:

1. Do not open the door during preheating. After preheating 3 beeps will be heard and the "P" will flash in the display window. If the oven door is not opened after preheating, the oven will maintain the selected temperature. After 30 minutes, the oven will shut off automatically and revert to time of day.
2. If you want to cook without preheating, after selecting the desired temperature, set the cooking time then press Start Pad.

NOTE:

1. When the selected cooking time is less than one hour, the time counts down second by second.
2. When the selected cooking time is over one hour, the time counts down minute by minute until only "1H 00" (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.
3. You can add to the cooking time during cooking, if required. Press 1 min pad to increase the cooking time. Time can be added in 1 minute increments.
4. After pressing Start Pad, the selected temperature can be recalled and changed. Press Convection or Grill Convection Pad once to indicate the temperature in the display window. While the temperature is recalled in the display window, you can change the temperature by pressing Convection or Grill Convection Pad.

Cooking by Convection/Grill Convection

Shelf Cooking

One Level Cooking

If using a shelf for one level cooking, place on the lower level.

Enamel Shelf

Wire Shelf

Two Level Cooking

When cooking on two levels use both the shelves supplied, with the enamel shelf on the lower level and the wire shelf on the upper level.

Depending on the recipe, you can preheat with or without the shelves in position. See individual recipes for details.

Batch Baking

Cooking Large Dishes of Food

The shelves are ideal for batch baking and when cooking in a large dish that will not turn on the turntable.

NOTE:

1. When cooking with one or both of the shelves, remove all other accessories (glass tray, roller ring and metal tray).
2. Ensure that the shelves are inserted correctly, and are secure before use.
3. Do not place a dish of food weighing more than 5Kg on each shelf.
4. ALWAYS USE OVEN GLOVES WHEN REMOVING THE FOOD AND ACCESSORIES AFTER COOKING AS THE OVEN & ACCESSORIES WILL BE VERY HOT.
5. When removing food, only pull the shelf out halfway and then remove the food. The wire shelf will lock in position.
6. If baking longer than 20 minutes at a high temperature (more than 210°C), it is preferable to turn the shelves halfway during cooking time.

Combination Cooking

There are 3 combinations settings; 1) Grill + Microwave, 2) Convection + Microwave, 3) Grill Convection + Microwave. 1000 W Microwave power level is not available on Combination cooking. This would not be useful in normal use (the food would be cooked before browning is achieved).

Use of accessory:

Grill + Microwave Convection + Microwave

Grill Convection + Microwave

1) Grill + Microwave

- Press Combination Pad.

- Set the desired Grill setting.

- Set the desired microwave power level.

- Set the desired cooking time (up to 9 hours 59 minutes).

- Press Start Pad.

NOTE ON PREHEATING:

The oven can be preheated on Combination cooking. Press Start Pad before setting the cooking time and follow the NOTE ON PREHEATING on page En-15.

Combination Cooking

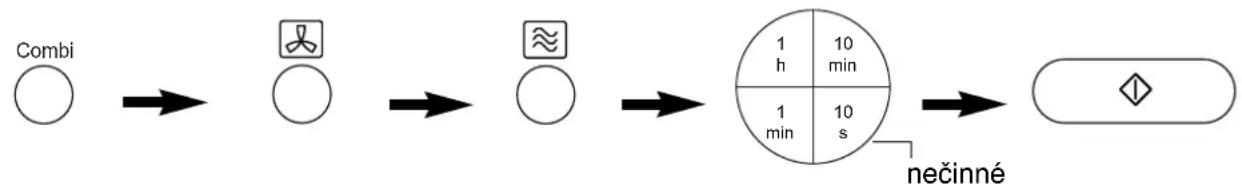

2) Convection + Microwave

3) Grill Convection + Microwave

NOTE ON PREHEATING:

The oven can be preheated on Combination cooking. Press Start Pad before setting the cooking time and follow the NOTE ON PREHEATING on page En-14.

Combination Cooking

NOTE ON PREHEATING:

The oven can be preheated on Combination cooking. Press Start Pad before setting the cooking time and follow the NOTE ON PREHEATING on page En-15.

NOTE:

1. When the selected cooking time is less than one hour, the time counts down second by second.
2. When the selected cooking time is over one hour, the time counts down minute by minute until only "1H 00" (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.
3. You can add to the cooking time during cooking, if required. Press the 1 min pad to increase the cooking time. Time can be added in 1 minute increments, up to 99 minutes.
4. After pressing the Start Pad, the selected temperature can be recalled by pressing the Combination Pad. The selected setting appears in the display for 2 seconds.

Auto Defrost

With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

- Select the desired Auto Defrost Program. Press once for small pieces, twice for big piece, 3 times for bread.

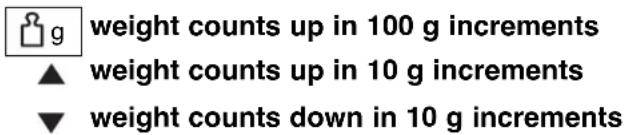

- Set the weight of the frozen food.

- Press Start

Pad. The display reminds you which accessory to use and which cooking modes are in use.

Program Weight		Accessories	Suitable Foods
1. Small Pieces	100 - 1600 g		Small pieces of meat, escallop, sausages, fish fillets, steaks, chops.(each 100 g to 400 g). Turn at beeps.
2. Big Pieces	400 - 2000 g		Big pieces of meat, roast, whole chicken. Turn at beeps.
[ABAY]3. Bread	70 - 400 g		For reheating frozen bread, rolls and croissants. Remove all packaging and place on Round Rack on Metal Tray on Glass Tray. Place large whole loaf directly on the metal tray. Turn at beeps.

NOTE:

1. When the defrosting time is longer than 60 minutes, the time will appear in hours and minutes.
2. The shape and size of the food will determine the maximum weight the oven can accommodate.
3. Allow standing time to ensure the food is completely defrosted.

NOTE on Program 3:

Take care when removing Bread and Rolls from the oven. The oven and accessories will get hot during/after defrosting.

Auto Sensor Programs

A variety of food may be cooked without having to enter the cooking time, weight or the power level.

e.g.

• Select the desired Auto Sensor Program.
• Press Start Pad.

Plus/Minus Control:

Preferences for degree of cooking vary for each individual. After having used Auto Sensor Programs a few times, you may decide you would prefer your food cooked to a different degree of cooking. By using Plus/Minus control, the programs can be adjusted to cook food for a longer or shorter time. Press ▲ or ▼ pad before pressing Start Pad. If you are satisfied with the result of the Auto Sensor Programs, you do not have to use this control.

NOTE:

1. Auto Sensor Programs cannot work within 3 minutes after plug-in.
2. The oven automatically calculates the cooking time or the remaining cooking time.
3. The door should not be opened before the time appears in the display window.
4. The temperature for frozen food is assumed to be -18°C to -20°C, for other types of food +5°C to +8°C (refrigerator temperature). The reheat pasta/rice and reheat soup programs are suitable for foods at refrigerator or room temperature.
5. To prevent any mistakes during Auto Sensor Programs ensure that Glass Tray and the plate are dry.
6. The room temperature should not be more than 35°C and not less than 0°C.
7. Only cook foods within the recommended weight range described on page En-22.
8. If the oven has previously been used on Convection, Grill Convection, Combination or Grill, and it is too hot to be used on an Auto Sensor Program, "HOT" will appear in the display window. After the "HOT" disappears, the Auto Sensor Programs may be used. If in a hurry, cook food manually by selecting the correct cooking mode and cooking time yourself.

Auto Sensor Programs

Category Weight			Accessories	Instructions
1 Press	4. Soup	300 - 1000 g		For reheating tetra, canned or homemade soups. All foods should be at room or refrigerated temperatures. Stir before and after reheating. It is preferable to cover with a lid or plate or saucer. Final temperature of soup may vary depending on thickness of soup, starting temperature, sugar and fat content of soup.
2 Presses	5. Rice/Pasta	300 - 1000 g		For reheating pre-cooked canned, vacuumed packed or homemade pasta, rice or potatoes. All foods should be at room or refrigerated temperatures. Stir at beep and after reheating. It is preferable to cover with a lid or plate. Final temperature may vary depending on the amount of sauce, fat content of sauce and starting temperature.
1 Press	6. Fresh Vegetables	250 - 1000 g		For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tbsp (90 ml) of water. Cover them lightly with pierced cling film. Stir at beep.
2 Presses	7. Fresh Fish	200 - 700 g		For cooking fresh fish (whole - no more than 300 g each, fillets, steaks). Place it in a suitable sized container. Add 2 tbsp (30 ml) liquid. Cover with pierced cling film. Turn at beep.
1 Press	8. Frozen Gratin	500 - 800 g		For reheating and browning frozen gratin. Remove all packaging and place the gratin in a heat-proof dish on Round Rack on Metal Tray on Glass Tray.
2 Presses	9. Fresh Gratin	300 - 800 g		For reheating and browning fresh gratin. Remove all packaging and place the gratin in a heat-proof dish on Round Rack on metal Tray on Glass tray.

Auto Weight Programs

This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill setting, Convection temperature and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

e.g.

NOTE:

1. When cooking time is over 60 minutes, the time will appear as Hours and Minutes.
2. Follow the charts on the following pages for the recommended weight and accessories to be used.
3. Beep sounds may be heard during cooking or reheating of some auto programs to remind you to turn or stir the food. Failure to do so may effect the results.

Category		Weight	Accessories	Instructions
1 Press	10. Chilled Pizza	130 - 800 g		For reheating and browning the top of fresh purchased pizza. Remove all packaging and place the pizza on Round Rack on Metal Tray on Glass Tray.
2 Presses	11. Frozen Pizza	120 - 650 g		For reheating and browning the top of frozen (NOT fresh) purchased pizza. Remove all packaging and place the pizza on Round Rack on Metal Tray on Glass Tray.
1 Press	12. Fresh Quiche	150 - 800 g		For reheating pre-cooked, fresh quiche. Remove all packaging and place the quiche on Round Rack on Metal Tray on Glass Tray.
2 Presses	13. Pastry Items	150 - 720 g		For reheating, crisping, and browning small pastry items such as sausage rolls, meat friands, vegetable or mushroom or ham and cheese friands or feuilletés. Place directly on Round Rack on Metal Tray on Glass Tray.

Auto Weight Programs

Category		Weight	Accessories	Instructions
1 Press	14. Chicken Pieces	200 - 1500 g		For cooking chicken pieces e.g. chicken legs, thighs or drumsticks. Place the chicken on Round Rack on Metal Tray on Glass Tray. For even cooking spread out the chicken and turn at beep.
2 Presses	15.Chicken Pieces	1000 - 2400 g		For cooking whole fresh unstuffed chicken. Cook the stuffing separately. Place the chicken on a heat-proof upturned saucer on Metal Tray on Glass Tray. Start cooking the breast side down and turn at beep.
3 Presses	16. Pork / Veal	800 - 2000 g		For cooking fresh roast pork or veal. Place the pork in a heat-proof shallow dish on Metal Tray on Glass Tray. Turn at beep.
1 Press	17. Beef	650 - 1250 g		For cooking fresh roast beef. Place the beef in a heat-proof shallow dish on Metal Tray on Glass Tray. Turn at beep. This program cooks beef Well-done; if you prefer medium Beef, decrease the weight displayed by 20%.
2 Presses	18. Rib of Beef	700 - 1300 g		For cooking fresh roast rib of beef with the bone. Place the beef rib in a heatproof dish on the High Wire Rack on a Metal Tray on Glass Tray. For larger joints (above 1000 g) place directly on the High Wire Rack. Turn at beep. After cooking, rest for 10 mins out of the oven. This program cooks the meat well done. If you prefer medium beef, decrease the weight displayed by 30%.
3 Presses	19. Lamb	1000 - 2300 g		For cooking fresh roast lamb. Place the lamb in a heat-proof shallow dish on Metal Tray on Glass Tray. Large legs of lamb can be placed directly on the Metal Tray. Turn at beep. This program is not suitable for boned roast lamb. This program cooks the meat medium to well done.

Auto Weight Programs

Category		Weight	Accessories	Instructions
1 Press	20 Tart	4 - 6 portions		For baking Tart from raw ingredients- see cook book for recipes.E.g. Savoury Quiche - QuicheLorraine, mushroom tart, onion tart,spinach tart.Sweet Tart - Bourdaloue tart,fromage frais tart, rubarb tart, apple tart.
2 Presses	21 Tart	6 - 8 portions		• Select Tart auto menupress 1servings 4-6diameter 25 cmpresses 2servings 6-8diameter 27 cmpresses 3servings 8-10diameter 30 cm• After baking, stand the Tart fora few minutes. Remove fromthe tin and cool on a rack.
3 Presses	22 Tart	8 - 10 portions

It is necessary to preheat the oven for the tart programs. Use the following sequence:-

- Select tart program 20, 21 or 22, depending on size of tart.

- Press the start button to pre-heat the oven.

- Press start

NOTE FOR AUTO TART MENU:

1. Only use metallic tins for baking the tart - aluminium, teflon coated or other light metal. The depth of the average tart tin is 30 mm. Do not use loose-bottomed tins, carton forms or light aluminium forms on this auto menu.
2. The end colour and the cooking of the pastry case may vary depending on the quality of the pastry.
3. The top colour of the tart may vary depending on the type of filling. For this reason, you may wish to stop cooking a few minutes before the end of the program.
4. Do not use this auto menu for baking pizza or double crust pies.
5. When baking tarts with fresh fruits, it may be preferable to "blind bake" the pastry case.

Memory

This feature allows you to pre-program your oven for regular reheating or cooking tasks. You are able to pre-program your oven for a specific power level and time that is convenient for you. You are able to pre-program three memory tasks.

To set a Memory Program

- Press Memory Pad. The oven is automatically pre-set to memory 1. To select memory 2 press memory pad twice. To select memory 3 press memory pad three times.

- Press Memory Pad to store this task or press Start Pad to start cooking in this sequence.

This memory feature is pre-programmed to reheat 1 cup, 1 bowl or 2 bowls of hot drink (e.g. tea, coffee, milk or soup).

	No. of presses	Category	Recommended Weight	Power and Time
Memory 1	1 Presses	1 Cup	150 ml	1000 W 80 secs.
Memory 2	2 Presses	1 Bowl	300 ml	1000 W 120 secs.
Memory 3	3 Presses	2 Bowls	2 x 300 ml	1000 W 240 secs.

To use a Memory Program

- Press Memory Pad.

The oven is automatically pre-set to memory 1. To select memory 2 press memory pad twice. To select memory 3 press memory pad three times.

- Press Start Pad to begin cooking.

NOTE:

1. Auto programs cannot be programmed into memory.
2. Convection pre-heat mode cannot be programmed into memory.
3. Memory can only store 1 stage cooking. It is not possible to store 2 or 3 stage cooking.
4. Setting a new cooking program into memory will cancel the cooking program previously stored.
5. Memory program will be cancelled if the power supply is off or the plug gets disconnected.
6. If you program into the memory the reheating of a baby bottle or a baby food jar, ensure you test the temperature before feeding the baby.

Delay Start Cooking

By using Delay/Stand Pad, you are able to program Delay Start cooking.

e.g.

NOTE:

1. Three stage cooking can be programmed including Delay Start cooking.

e.g.

Simmer Power: 20 min.

1. If the programmed delay time exceeds one hour, the time will count down in units of minutes. If less than one hour, the time will count down in units of seconds.
2. Delay Start cannot be programmed before any Auto Programs.

Stand Time

By using Delay/Stand Pad, you can program Stand Time after cooking is completed or use to program the oven as a minute timer.

e.g. To program stand time after cooking.

- Set the desired cooking program and cooking time.

- Press Delay/Stand Pad.

- Set desired amount of time by pressing Time Pads (up to 9 hours 59 minutes).

- Press Start Pad.

NOTE:

1. Three stage cooking can be programmed including Stand Time.

e.g.

High Power: 4 min. Stand Time: 5 min.

High Power: 2 min.

1. If the oven door is opened during the Stand Time or Minute Timer, the time in the display window will continue to count down.
2. This feature may also be used as a timer. In this case press Delay/Stand Pad, set time and press Start Pad.

Questions and Answers

Q: Why won't my oven turn on?

A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from the outlet, wait 10 seconds and reinsert.
2. Check the circuit breaker and the fuse. Reset the circuit breaker or replace the fuse if it is tripped or blown.
3. If the circuit breaker or fuse is all right, plug another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorized Service Center.

Q: My microwave oven causes interference with my TV. Is this normal?

A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.

Q: The oven won't accept my program. Why?

A: The oven is designed not to accept an incorrect program. For example, the oven will not accept a fourth stage, and will not accept Auto Weight Program after Delay Start.

Q: Why is there no word prompt in my display?

A: The power supply had been off at your home or the plug disconnected. Repeat the procedure described on page 10.

Q: Sometimes warm air comes from the oven vents. Why?

A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking.

Q: There are humming and clicking noises from my oven when I cook by COMBINATION. What is causing these noises?

A: The noises occur as the oven automatically switches from microwave power to CONVECTION/GRILL to create the combination setting. This is normal.

Q: Can I check the pre-set oven temperature while cooking or preheating by CONVECTION?

A: Yes. Press Convection Pad and the oven temperature will appear in the display window for 2 seconds.

Q: Can I easily cook my favourite recipes using CONVECTION/GRILL?

A: Yes. You can cook your favourite recipe just as you would in a conventional oven. Check instructions in the Panasonic Cookbook for suggested oven temperatures and cooking times.

Q: "D" appears in the display and the oven does not cook. Why?

A: The oven has programmed DEMO MODE. This mode is designed for retail store display. Deactivate this mode by pressing Micro Pad once then Stop/Cancel Pad four times.

Q: Can I use a conventional oven thermometer in the oven?

A: Only when you are using CONVECTION/GRILL cooking mode. The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes.

Q: My oven has an odour and generates smoke when using the CONVECTION, COMBINATION and GRILL function. Why?

A: After repeated use, it is recommended to clean the oven and then run the oven without food, glass tray, and roller ring on CONVECTION 250°C for 10 minutes. This will burn off any food, residue or oil which may cause an odour and/or smoking.

Care of Your Oven

Care & Cleaning of your Microwave Oven - IMPORTANT

It is essential for the safe operation of the oven that it is kept clean, and wiped out after each use. Failure to maintain the oven in a clean condition could lead to deterioration of a surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Turn the oven off before cleaning.
2. Keep the inside of the oven, door seals and door seal areas clean. When food spatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended. DO NOT USE COMMERCIAL OVEN CLEANERS.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the door glass since they can scratch the surface, which may result in shattering the glass.
4. If the Control Panel becomes dirty, clean it with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear the display window.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.
8. When using the GRILL, CONVECTION or COMBINATION mode, some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to "smoke" during use.
9. A steam cleaner is not to be used for cleaning.
10. This oven should only be serviced by qualified personnel. For maintenance and repair of the oven contact the nearest authorized dealer.
11. Keep air vents clean at all times. Check that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.

Technical Specifications

Rated Voltage: 230 V, 50 Hz

Operating Frequency: 2,450 MHz

Input Power: Maximum; 2980 W

Microwave; 1275 W

Grill; 1560 W

Convection; 1500 W

Output Power: Microwave; 1000 W (IEC-60705)

Grill; 1500 W

Convection; 1400 W

Outer Dimensions: 530 (W) x 508 (D) x 344 (H) mm

Oven Cavity Dimensions: 350 (W) x 360 (D) x 250 (H) mm

Weight with internal accessories; 21.0 Kg

Noise: 52.7dB

This product is an equipment that fulfills the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard, this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for warming up of foods. Class B means that this product may be used in normal household areas.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local

authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Panasonic Corporation

Web Site: http://panasonic.com.net

Panasonic®

NN-CT870S/NN-CT850W

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

User manual

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

Deactivate:

Combination rack

• Select the

desired

Operating frequency 2,450 MHz

Operating Instructions

Operating Instructions

Operating Instructions

User manual

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

To cancel:

Indrukken	Vermogen Wattage
1 x 1 HOOG 1500 W
2 x 2 MIDDEN 1200 W
3 x 3 LAAG 950 W

Baking rack

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Mode d'emploi

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

Square grill

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Mode d'emploi

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.

Cooking by Grill Convection:

Wire shelf

Two-level cooking

Grill + Microwave Convection + Microwave

Grill Convection + Microwave

1) Grill + Microwave

2) Convection + Microwave

3) Grill Convection + Microwave

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Microwave/Grill/Convection Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS.
